1999 NISSAN PICK-UP Repair Manual

4WD
Applied modelEurope
255/70R15 tire Except 255/70R15 tire

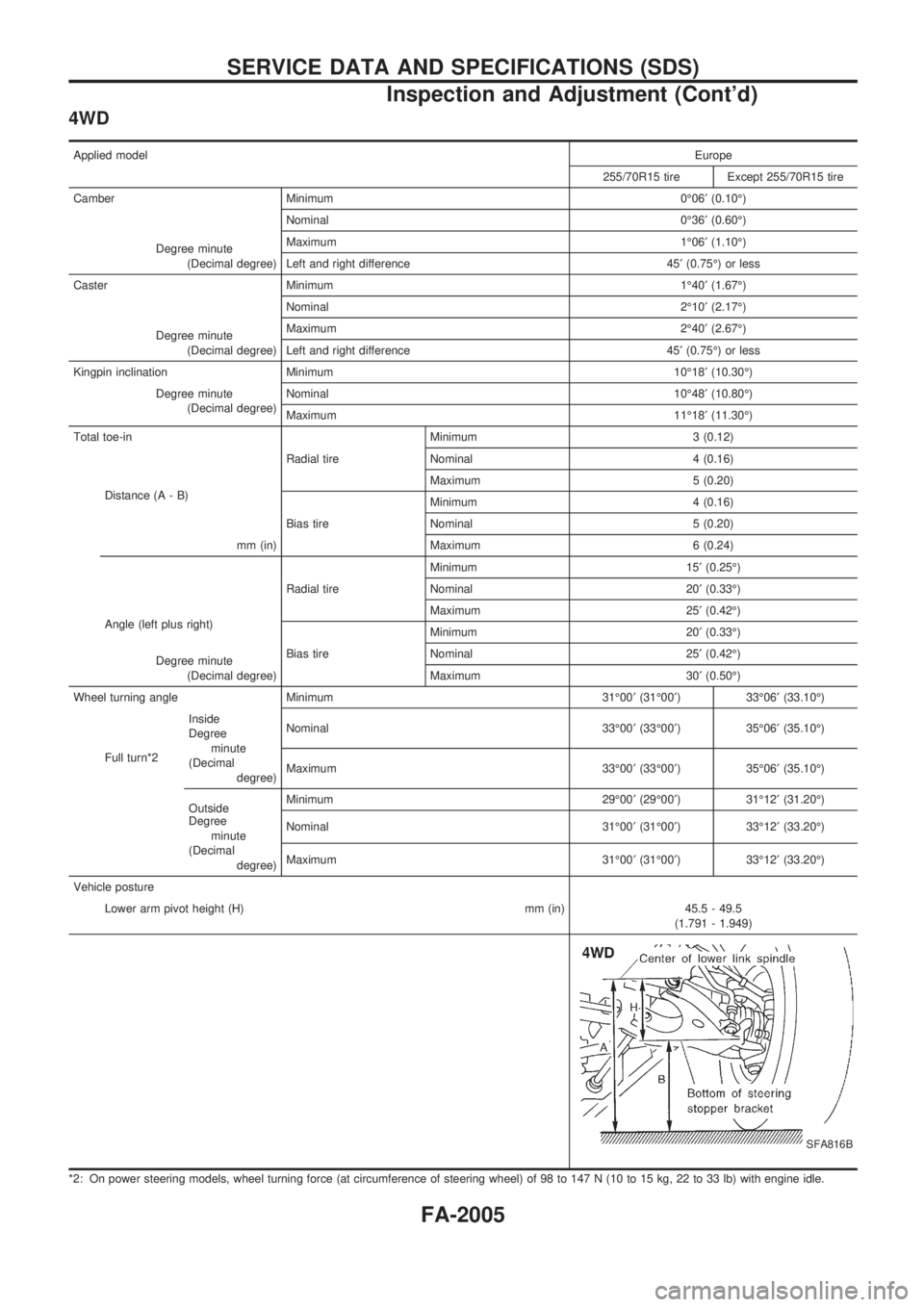

Camber Minimum 0É06¢(0.10É)
Degree minute
(Decimal degree)Nominal 0É36¢(0.60É)
Maximum 1É06¢(1.10É)
Left and right difference 45¢(0.75É) or less
Caster Minimum 1É40¢(1.67É)
Degree minute
(Decimal degree)Nominal 2É10¢(2.17É)
Maximum 2É40¢(2.67É)
Left and right difference 45¢(0.75É) or less
Kingpin inclination Minimum 10É18¢(10.30É)
Degree minute
(Decimal degree)Nominal 10É48¢(10.80É)
Maximum 11É18¢(11.30É)
Total toe-in
Radial tireMinimum 3 (0.12)
Distance (A - B)
mm (in)Nominal 4 (0.16)
Maximum 5 (0.20)
Bias tireMinimum 4 (0.16)
Nominal 5 (0.20)
Maximum 6 (0.24)
Angle (left plus right)
Degree minute
(Decimal degree)Radial tireMinimum 15¢(0.25É)
Nominal 20¢(0.33É)
Maximum 25¢(0.42É)
Bias tireMinimum 20¢(0.33É)
Nominal 25¢(0.42É)
Maximum 30¢(0.50É)
Wheel turning angle Minimum 31É00¢(31É00¢) 33É06¢(33.10É)
Full turn*2Inside
Degree
minute
(Decimal
degree)Nominal 33É00¢(33É00¢) 35É06¢(35.10É)
Maximum 33É00¢(33É00¢) 35É06¢(35.10É)
OutsideMinimum 29É00¢(29É00¢) 31É12¢(31.20É)
Degree
minute
(Decimal
degree)Nominal 31É00¢(31É00¢) 33É12¢(33.20É)
Maximum 31É00¢(31É00¢) 33É12¢(33.20É)
Vehicle posture
Lower arm pivot height (H) mm (in) 45.5 - 49.5
(1.791 - 1.949)
SFA816B
*2: On power steering models, wheel turning force (at circumference of steering wheel) of 98 to 147 N (10 to 15 kg, 22 to 33 lb) with engine idle.
SERVICE DATA AND SPECIFICATIONS (SDS)
Inspection and Adjustment (Cont'd)
FA-2005

INSTALLATION
To install SMJ, tighten bolts until orange ``fulltight'' mark appears
and then retighten to specified torque as required.
: 3-5N´m
(0.3 - 0.5 kg-m, 26 - 43 in-lb)
CAUTION:
Do not overtighten bolts, otherwise, they may be damaged.
GEL200

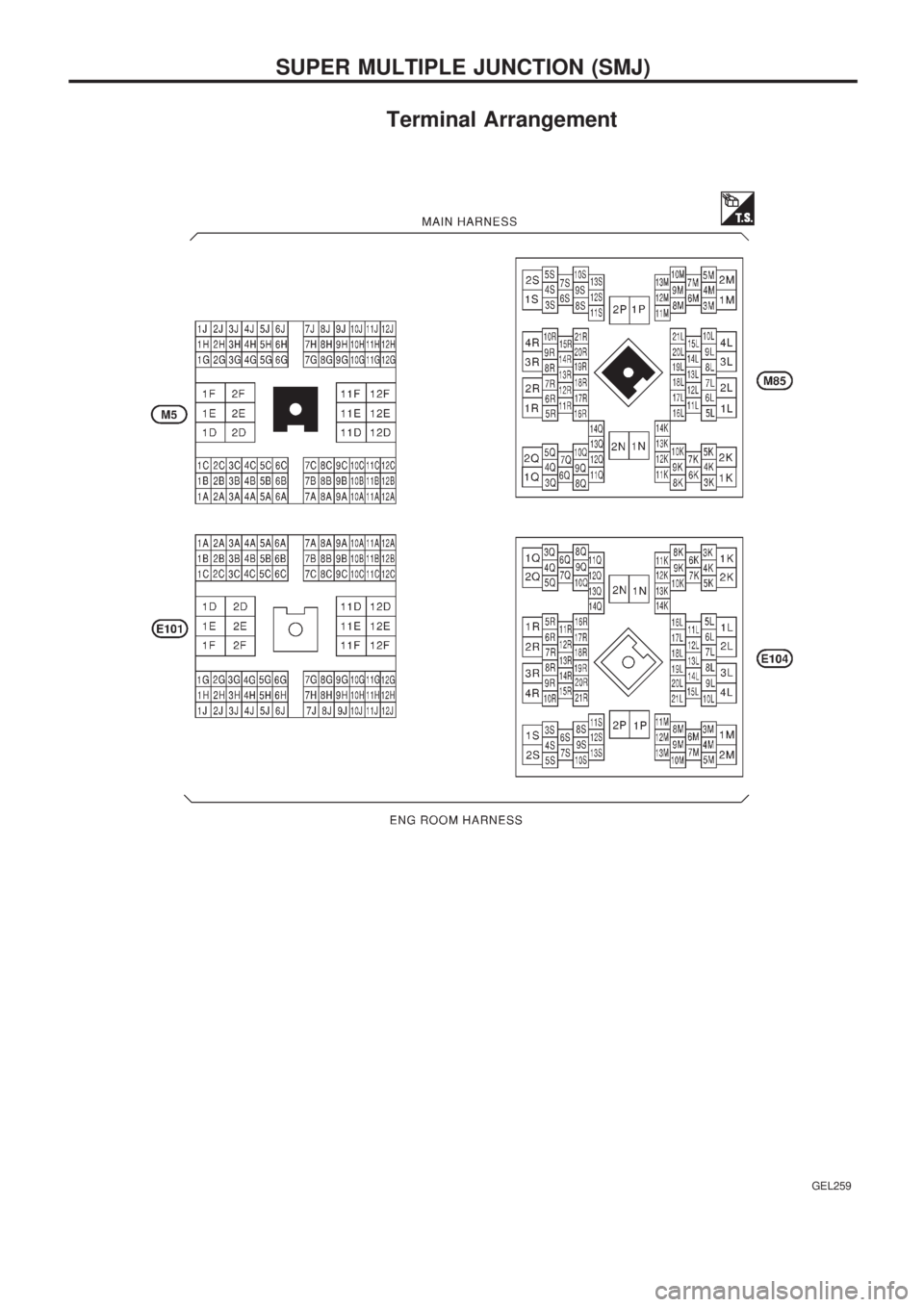

SUPER MULTIPLE JUNCTION (SMJ)

Terminal Arrangement
GEL259
SUPER MULTIPLE JUNCTION (SMJ)

Terminal Arrangement
GEL260

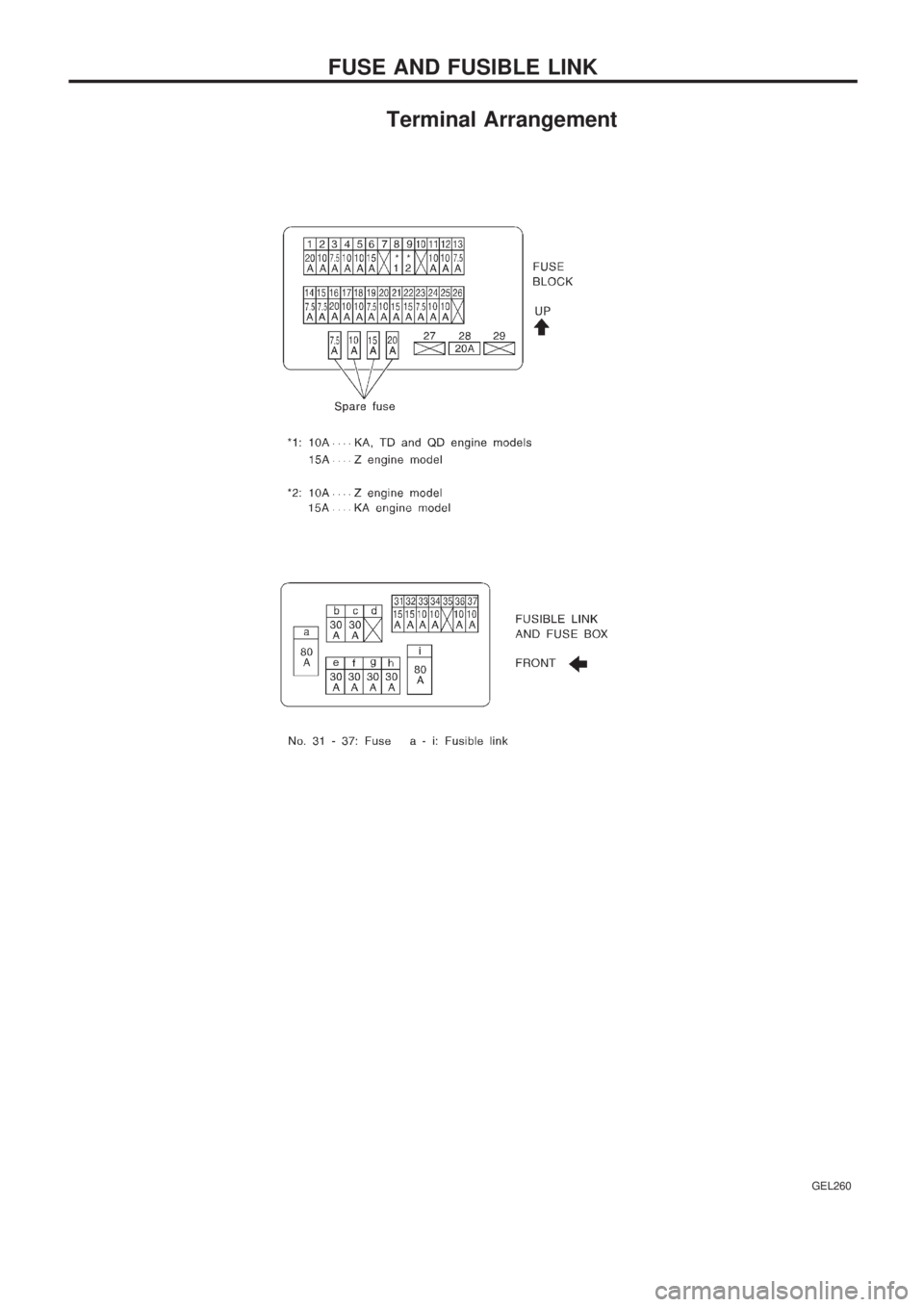

FUSE AND FUSIBLE LINK

Terminal Arrangement
GEL261
CONTROL UNITS/JOINT CONNECTOR (J/C)

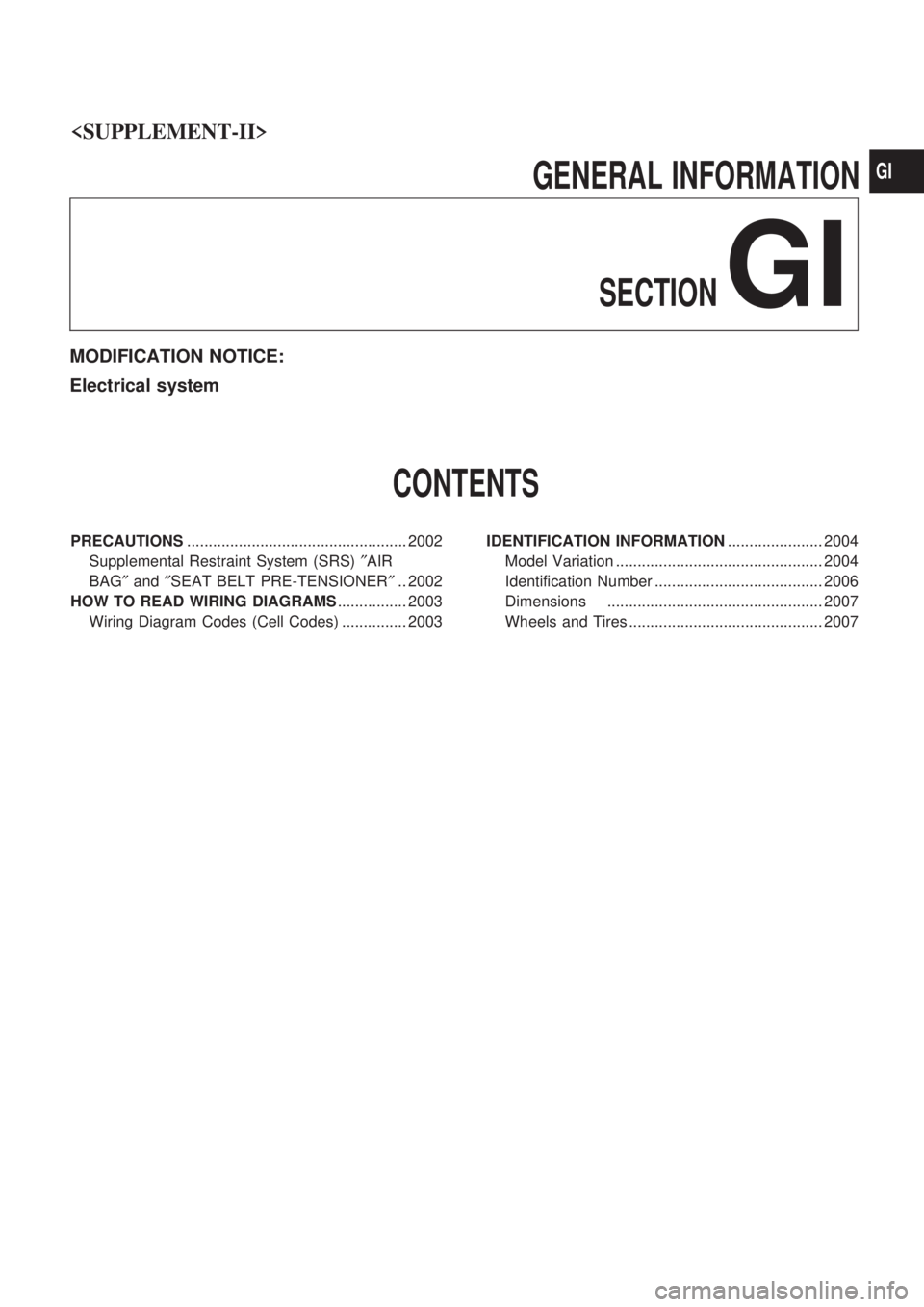

GENERALINFORMATIONSECTION
GI
MODIFICATION NOTICE:
Electrical system
CONTENTS
PRECAUTIONS ................................................... 2002
Supplemental Restraint System (SRS) ²AIR
BAG ²and ²SEAT BELT PRE-TENSIONER ².. 2002
HOW TO READ WIRING DIAGRAMS ................ 2003
Wiring Diagram Codes (Cell Codes) ............... 2003 IDENTIFICATION INFORMATION
...................... 2004
Model Variation ................................................ 2004
Identification Number ....................................... 2006
Dimensions .................................................. 2007
Wheels and Tires ............................................. 2007
GI

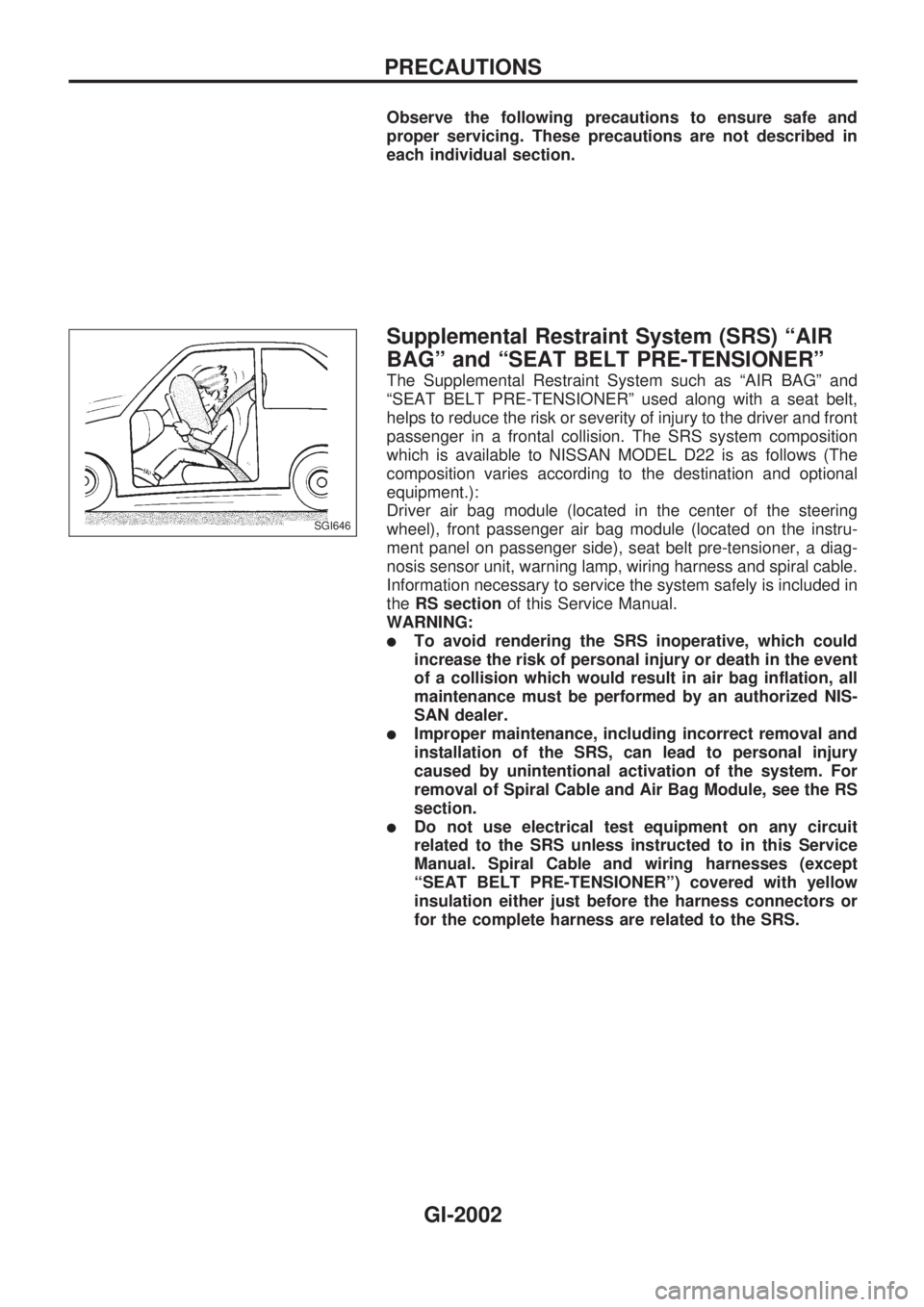

Observe the following precautions to ensure safe and
proper servicing. These precautions are not described in
each individual section.
Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
The Supplemental Restraint System such as ªAIR BAGº and
ªSEAT BELT PRE-TENSIONERº used along with a seat belt,
helps to reduce the risk or severity of injury to the driver and front
passenger in a frontal collision. The SRS system composition
which is available to NISSAN MODEL D22 is as follows (The
composition varies according to the destination and optional
equipment.):
Driver air bag module (located in the center of the steering
wheel), front passenger air bag module (located on the instru-
ment panel on passenger side), seat belt pre-tensioner, a diag-
nosis sensor unit, warning lamp, wiring harness and spiral cable.
Information necessary to service the system safely is included in
theRS sectionof this Service Manual.
WARNING:
lTo avoid rendering the SRS inoperative, which could
increase the risk of personal injury or death in the event
of a collision which would result in air bag inflation, all
maintenance must be performed by an authorized NIS-
SAN dealer.
lImproper maintenance, including incorrect removal and
installation of the SRS, can lead to personal injury
caused by unintentional activation of the system. For
removal of Spiral Cable and Air Bag Module, see the RS
section.
lDo not use electrical test equipment on any circuit
related to the SRS unless instructed to in this Service
Manual. Spiral Cable and wiring harnesses (except
ªSEAT BELT PRE-TENSIONERº) covered with yellow
insulation either just before the harness connectors or
for the complete harness are related to the SRS.
SGI646
PRECAUTIONS
GI-2002

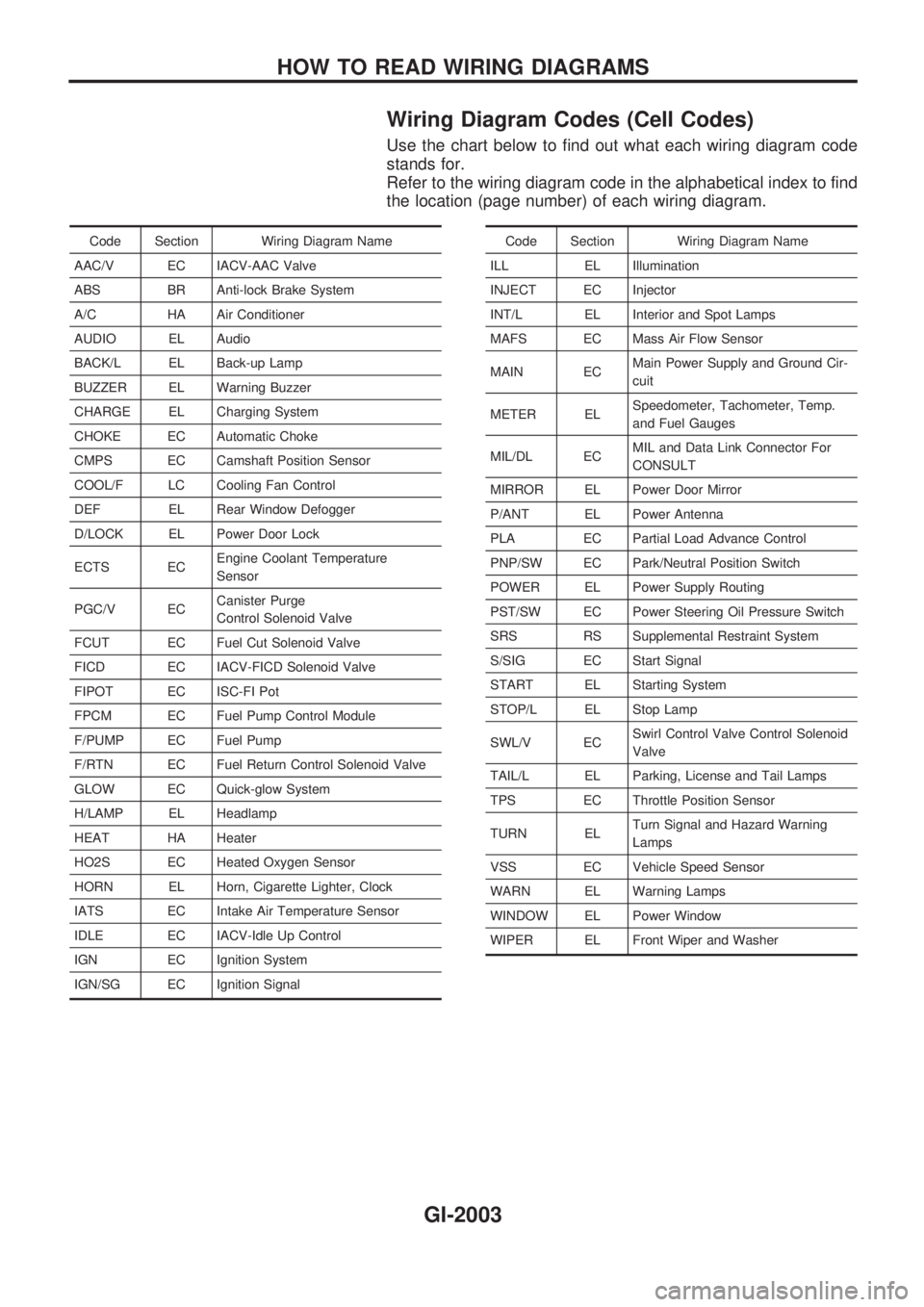

Wiring Diagram Codes (Cell Codes)
Use the chart below to find out what each wiring diagram code
stands for.
Refer to the wiring diagram code in the alphabetical index to find
the location (page number) of each wiring diagram.
Code Section Wiring Diagram Name
AAC/V EC IACV-AAC Valve
ABS BR Anti-lock Brake System
A/C HA Air Conditioner
AUDIO EL Audio
BACK/L EL Back-up Lamp
BUZZER EL Warning Buzzer
CHARGE EL Charging System
CHOKE EC Automatic Choke
CMPS EC Camshaft Position Sensor
COOL/F LC Cooling Fan Control
DEF EL Rear Window Defogger
D/LOCK EL Power Door Lock
ECTS ECEngine Coolant Temperature
Sensor
PGC/V ECCanister Purge
Control Solenoid Valve
FCUT EC Fuel Cut Solenoid Valve
FICD EC IACV-FICD Solenoid Valve
FIPOT EC ISC-FI Pot
FPCM EC Fuel Pump Control Module
F/PUMP EC Fuel Pump
F/RTN EC Fuel Return Control Solenoid Valve
GLOW EC Quick-glow System
H/LAMP EL Headlamp
HEAT HA Heater
HO2S EC Heated Oxygen Sensor
HORN EL Horn, Cigarette Lighter, Clock
IATS EC Intake Air Temperature Sensor
IDLE EC IACV-Idle Up Control
IGN EC Ignition System
IGN/SG EC Ignition SignalCode Section Wiring Diagram Name
ILL EL Illumination
INJECT EC Injector
INT/L EL Interior and Spot Lamps
MAFS EC Mass Air Flow Sensor
MAIN ECMain Power Supply and Ground Cir-
cuit
METER ELSpeedometer, Tachometer, Temp.
and Fuel Gauges
MIL/DL ECMIL and Data Link Connector For
CONSULT
MIRROR EL Power Door Mirror
P/ANT EL Power Antenna
PLA EC Partial Load Advance Control
PNP/SW EC Park/Neutral Position Switch
POWER EL Power Supply Routing
PST/SW EC Power Steering Oil Pressure Switch
SRS RS Supplemental Restraint System
S/SIG EC Start Signal
START EL Starting System
STOP/L EL Stop Lamp
SWL/V ECSwirl Control Valve Control Solenoid
Valve
TAIL/L EL Parking, License and Tail Lamps
TPS EC Throttle Position Sensor
TURN ELTurn Signal and Hazard Warning
Lamps
VSS EC Vehicle Speed Sensor
WARN EL Warning Lamps
WINDOW EL Power Window
WIPER EL Front Wiper and Washer
