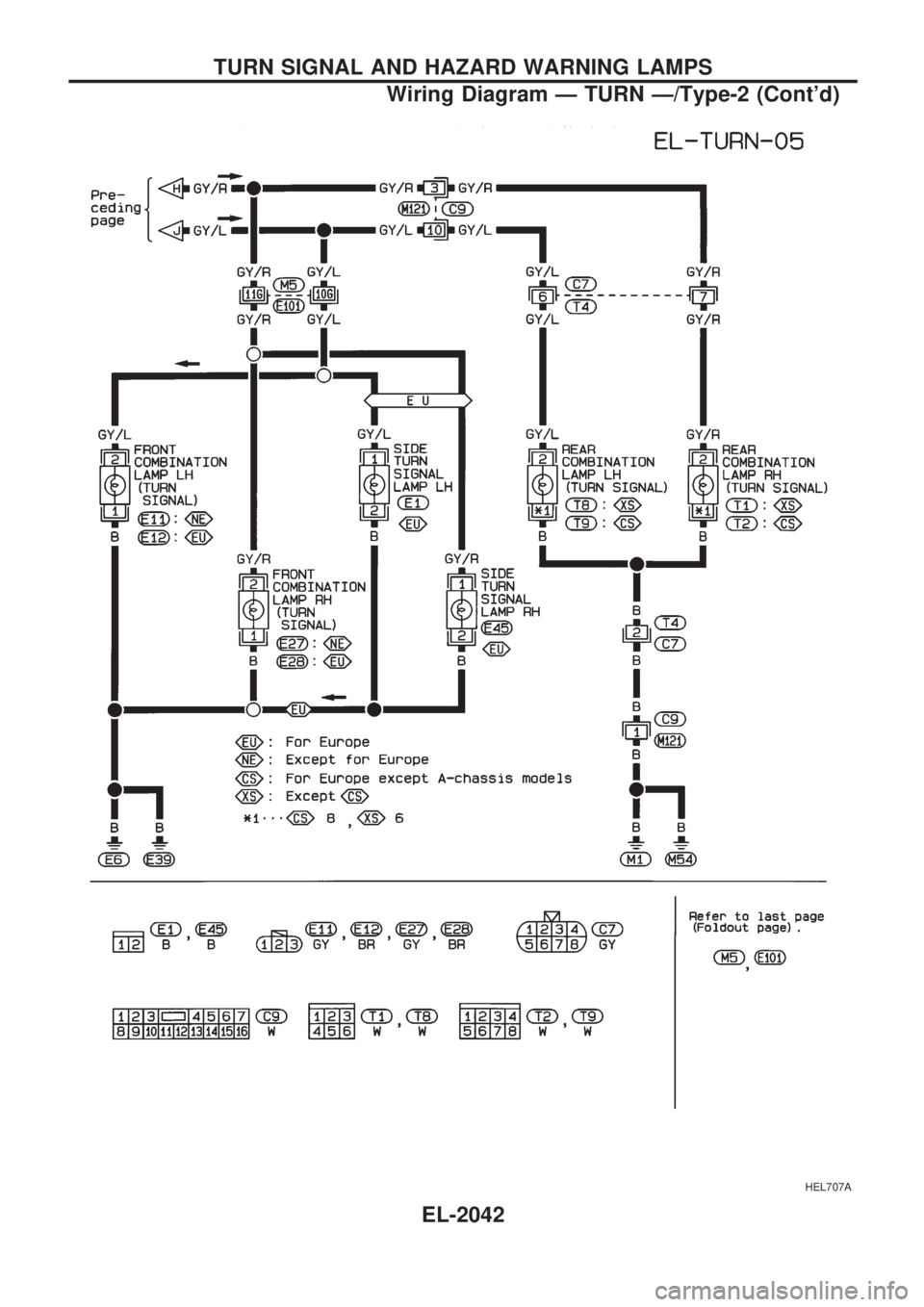

HEL707A
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Type-2 (Cont'd)
EL-2042

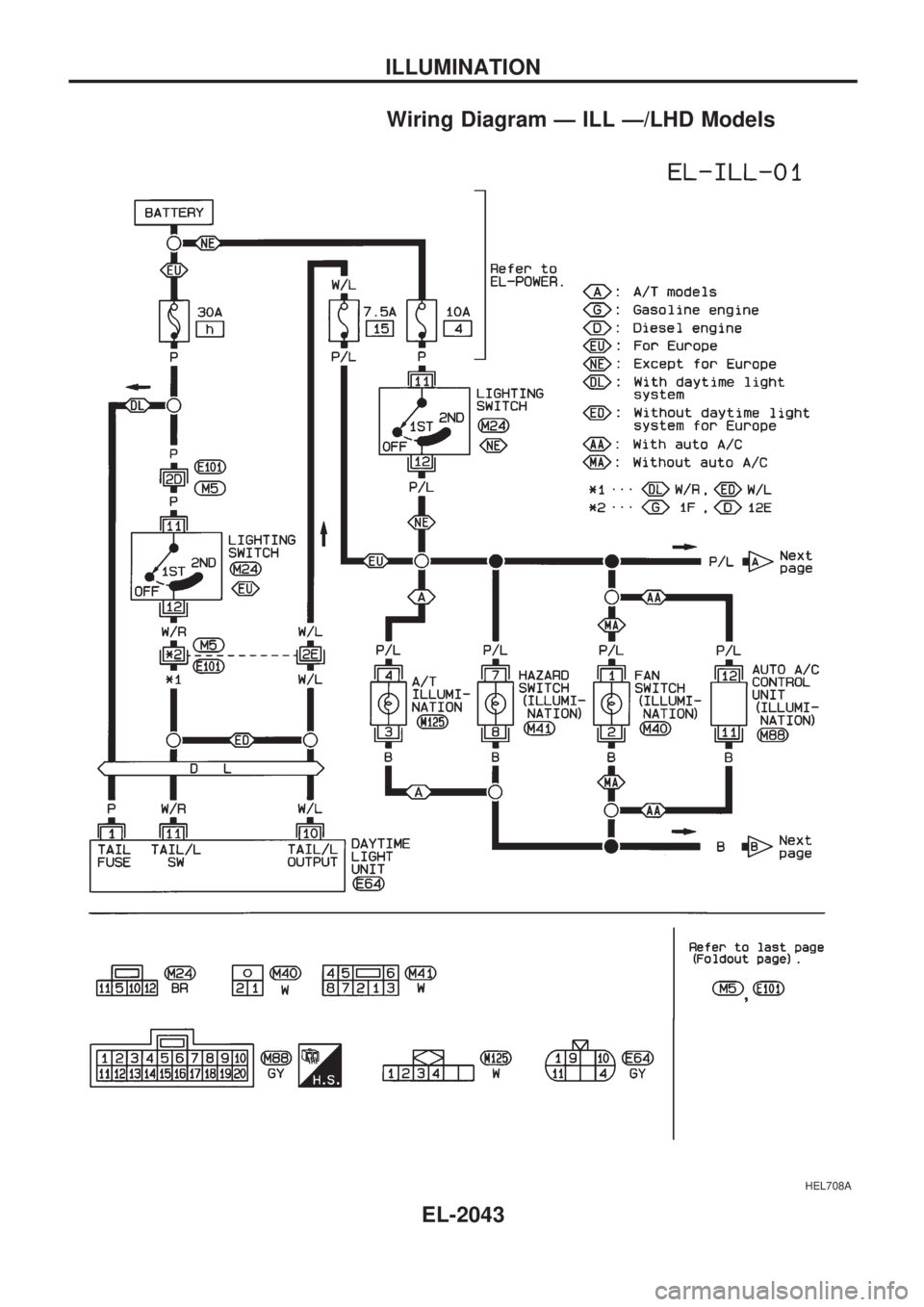

Wiring Diagram Ð ILL Ð/LHD Models
HEL708A
ILLUMINATION
EL-2043

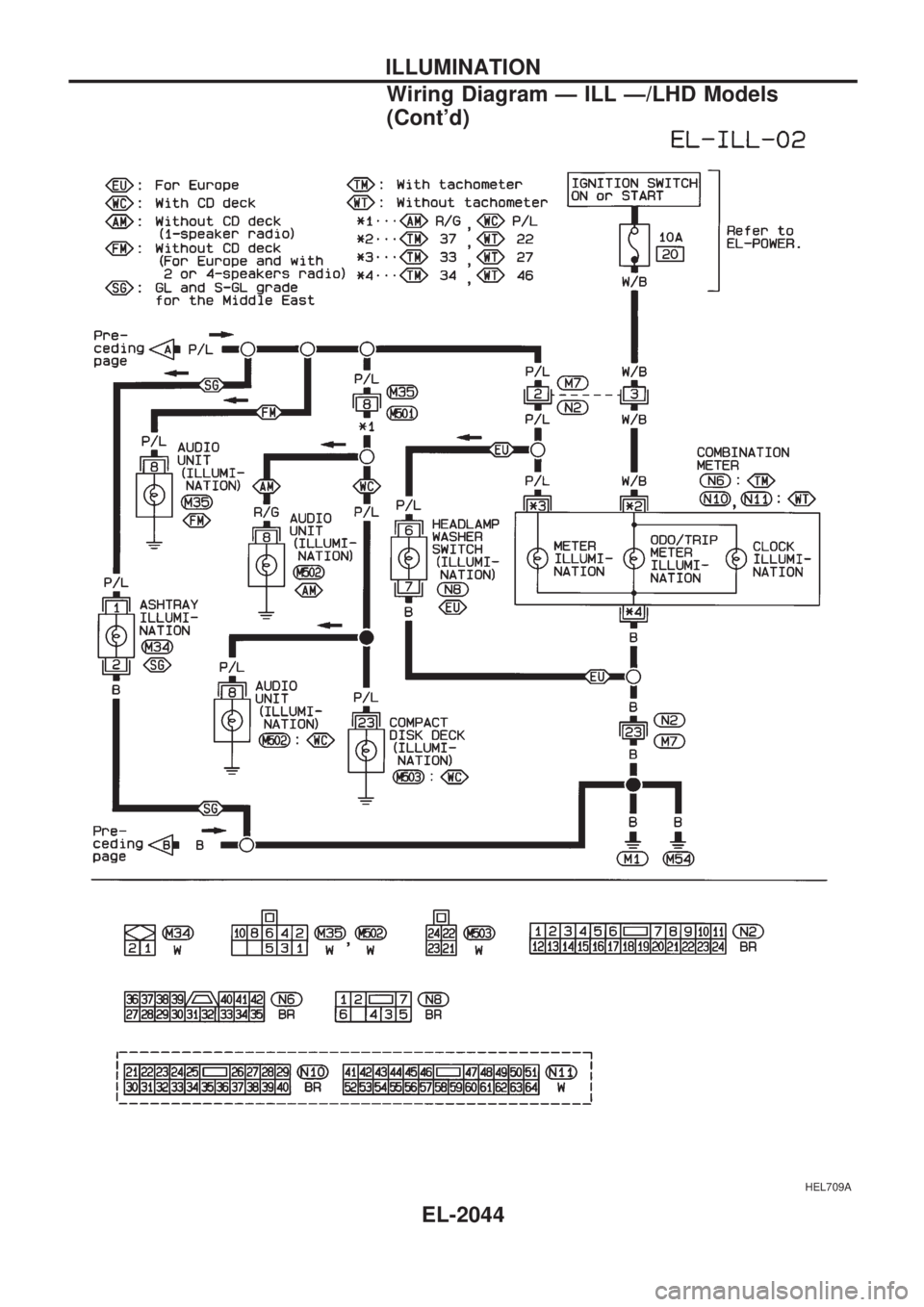

HEL709A
ILLUMINATION
Wiring Diagram Ð ILL Ð/LHD Models
(Cont'd)
EL-2044

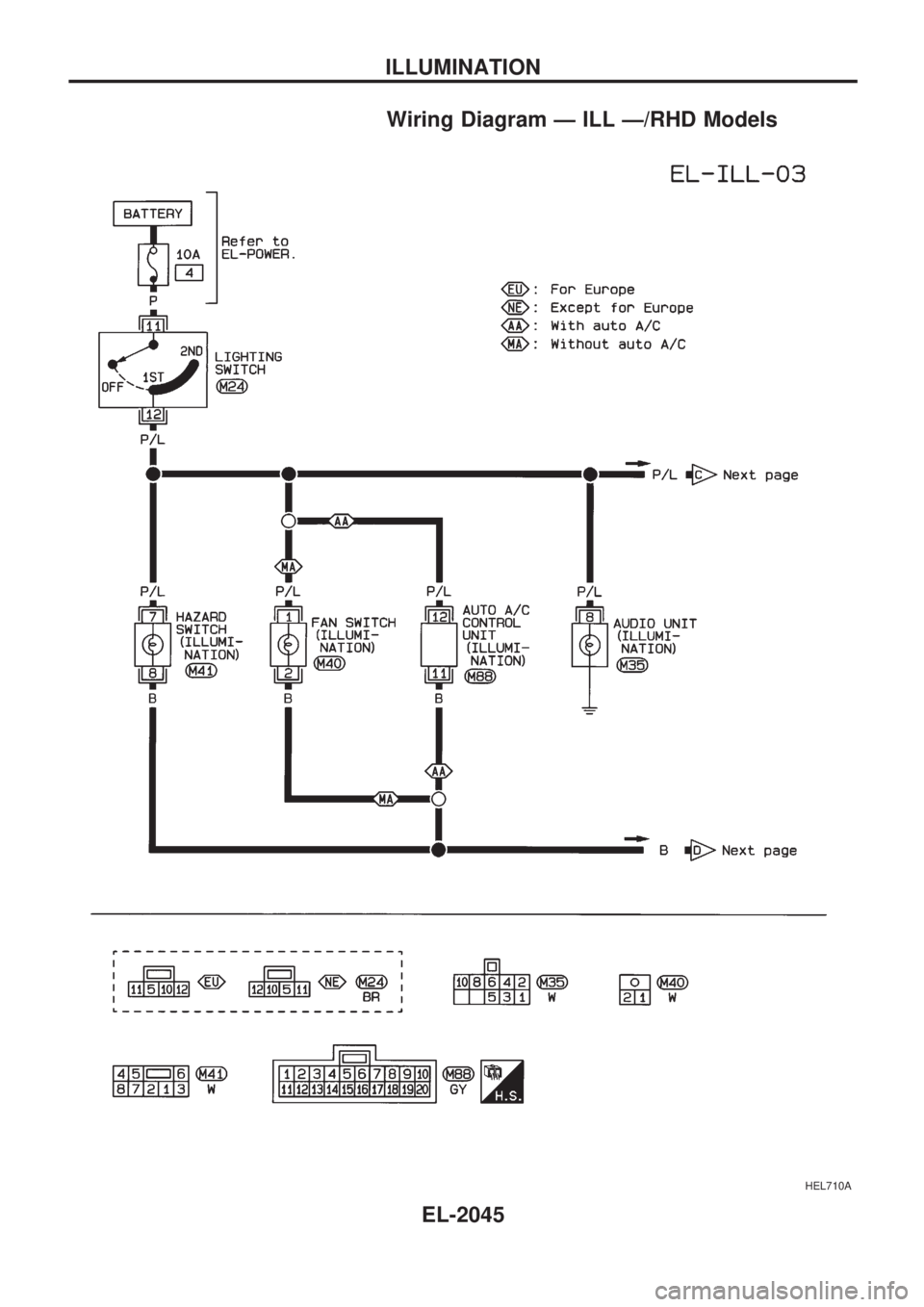

Wiring Diagram Ð ILL Ð/RHD Models
HEL710A
ILLUMINATION
EL-2045

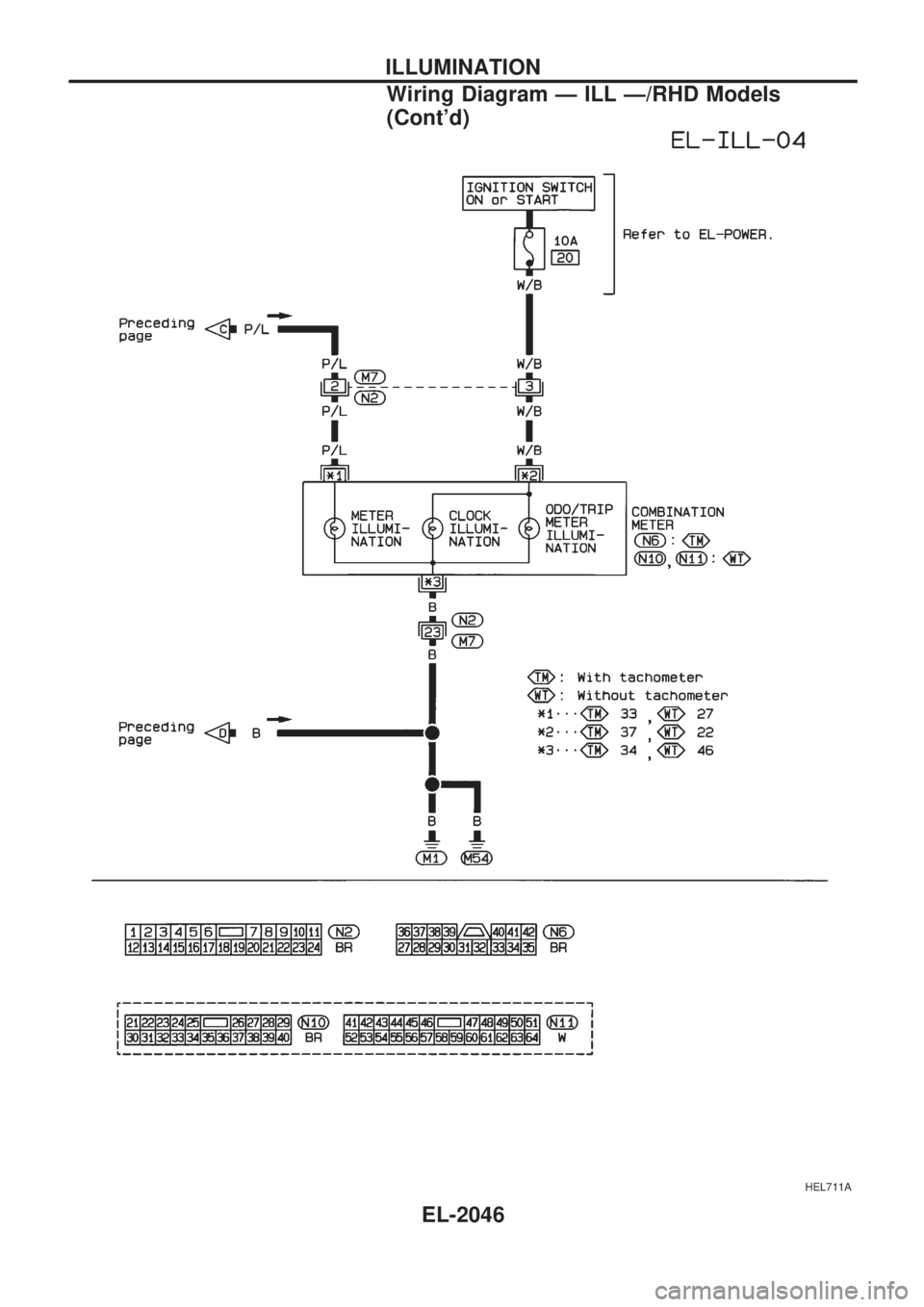

HEL711A
ILLUMINATION
Wiring Diagram Ð ILL Ð/RHD Models
(Cont'd)
EL-2046

Wiring Diagram Ð ROOM/L Ð
HEL712A
INTERIOR ROOM LAMP
EL-2047

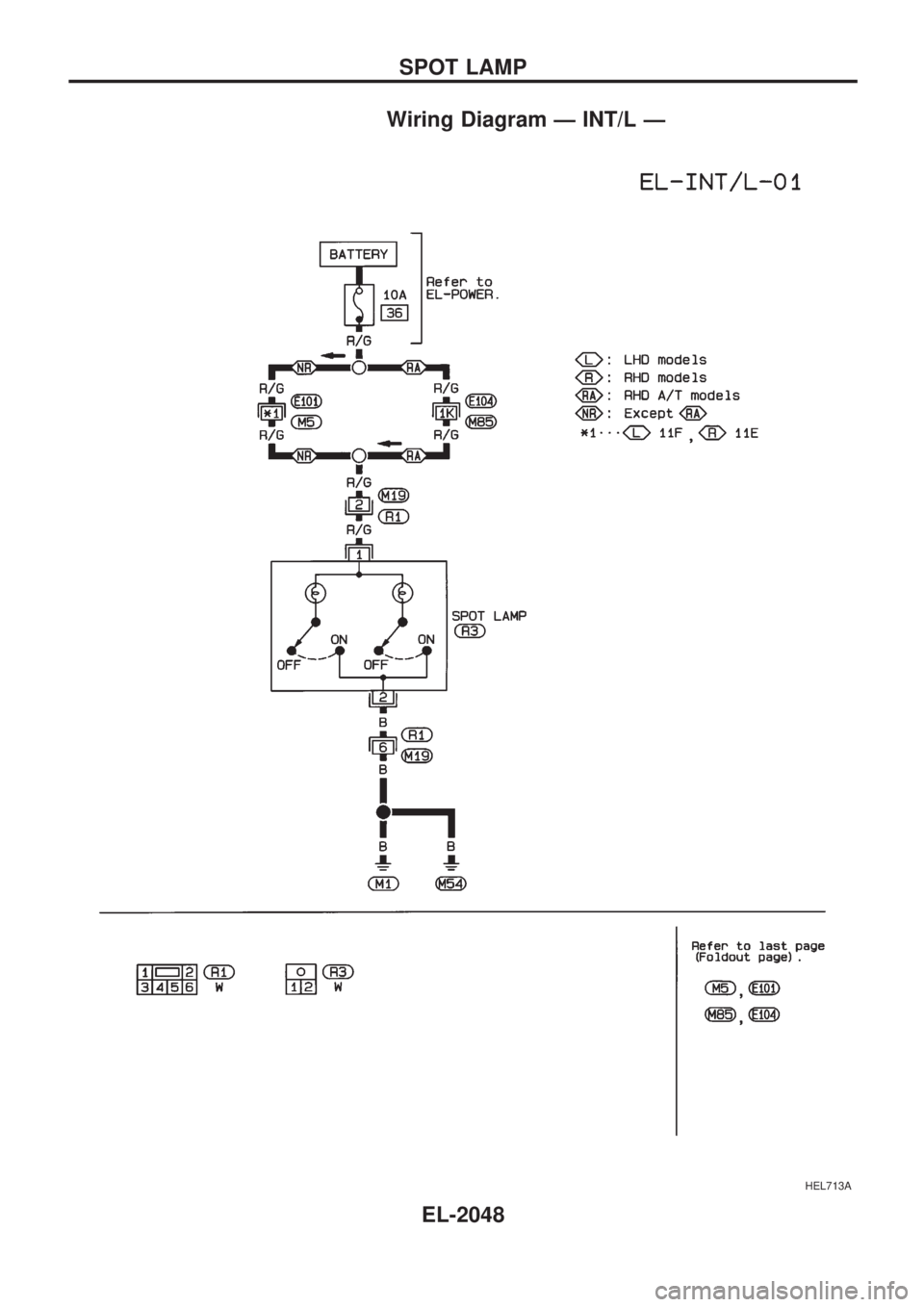

Wiring Diagram Ð INT/L Ð
HEL713A
SPOT LAMP
EL-2048

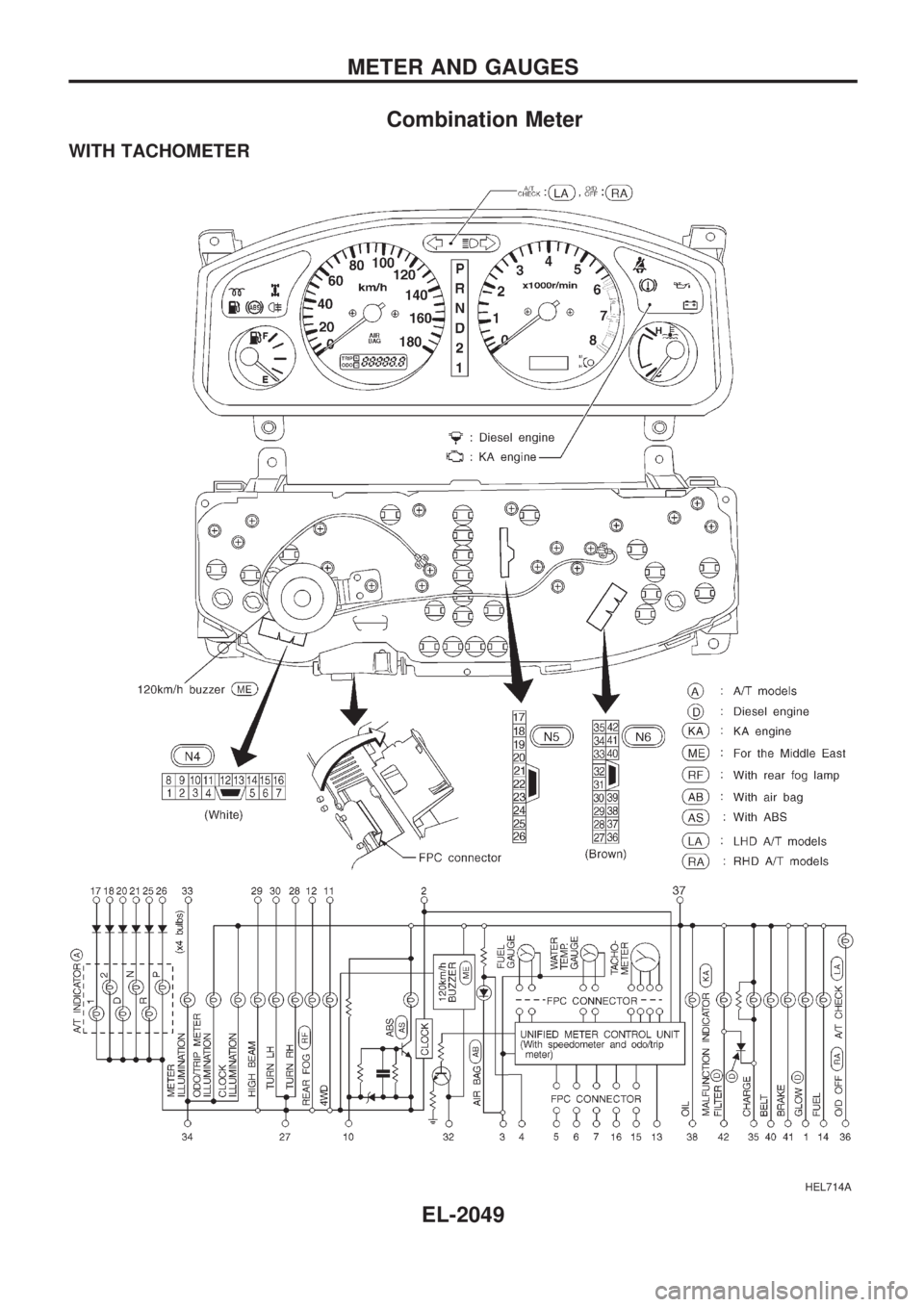

Combination Meter
WITH TACHOMETER
HEL714A
METER AND GAUGES
EL-2049
