Before starting trouble diagnoses below, perform PRELIMINARY CHECK, EL-2065.

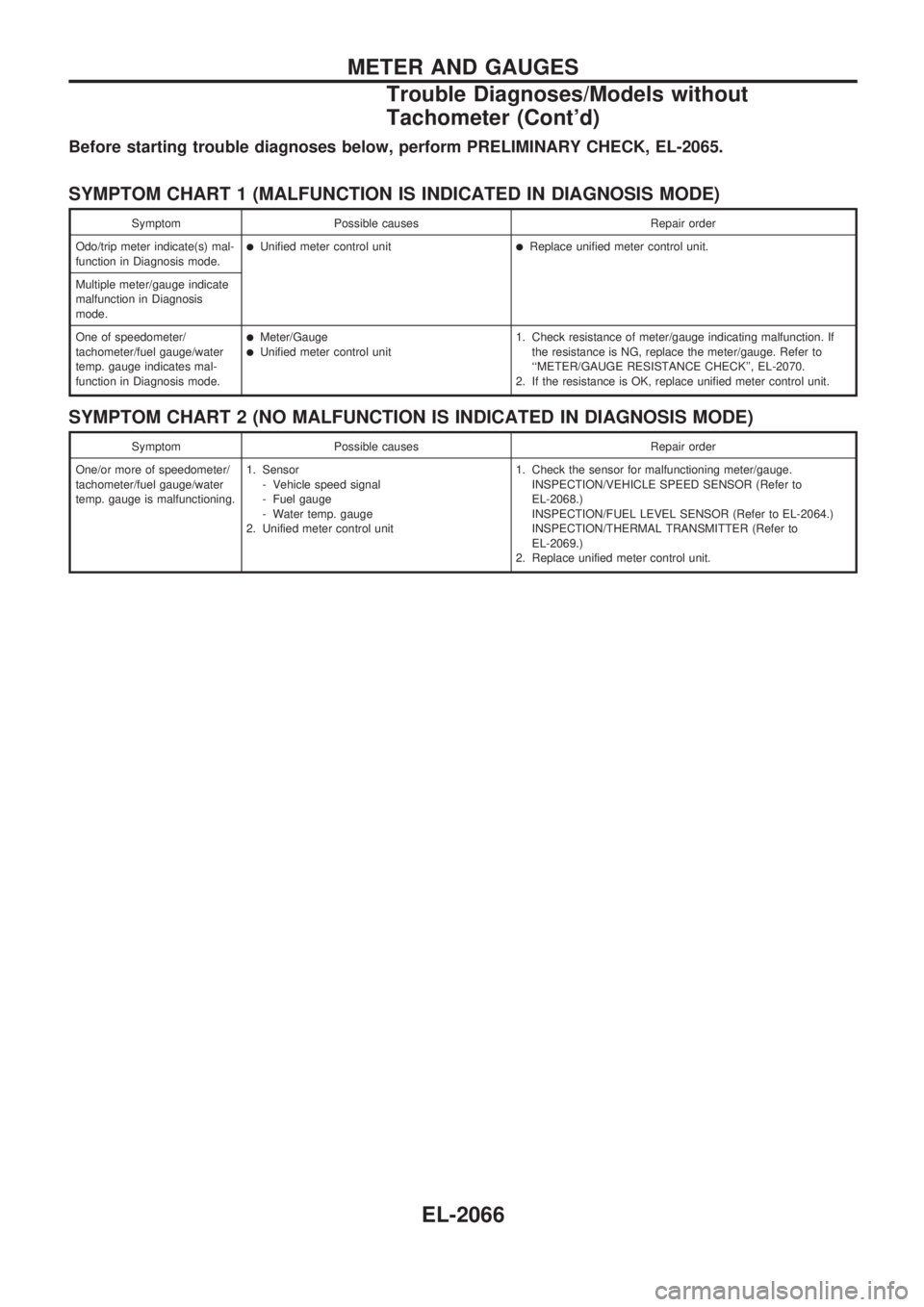

SYMPTOM CHART 1 (MALFUNCTION IS INDICATED IN DIAGNOSIS MODE)
Symptom Possible causes Repair order
Odo/trip meter indicate(s) mal-
function in Diagnosis mode.
lUnified meter control unitlReplace unified meter control unit.
Multiple meter/gauge indicate
malfunction in Diagnosis
mode.
One of speedometer/
tachometer/fuel gauge/water
temp. gauge indicates mal-
function in Diagnosis mode.
lMeter/GaugelUnified meter control unit1. Check resistance of meter/gauge indicating malfunction. If
the resistance is NG, replace the meter/gauge. Refer to
``METER/GAUGE RESISTANCE CHECK'', EL-2070.
2. If the resistance is OK, replace unified meter control unit.
SYMPTOM CHART 2 (NO MALFUNCTION IS INDICATED IN DIAGNOSIS MODE)
Symptom Possible causes Repair order
One/or more of speedometer/
tachometer/fuel gauge/water
temp. gauge is malfunctioning.1. Sensor
- Vehicle speed signal
- Fuel gauge
- Water temp. gauge
2. Unified meter control unit1. Check the sensor for malfunctioning meter/gauge.
INSPECTION/VEHICLE SPEED SENSOR (Refer to
EL-2068.)
INSPECTION/FUEL LEVEL SENSOR (Refer to EL-2064.)
INSPECTION/THERMAL TRANSMITTER (Refer to
EL-2069.)
2. Replace unified meter control unit.
METER AND GAUGES
Trouble Diagnoses/Models without
Tachometer (Cont'd)
EL-2066

POWER SUPPLY AND GROUND CIRCUIT CHECK
Power supply circuit check
Terminals Ignition switch position
Å@OFF ACC ON
V21GroundBattery
voltageBattery
voltageBattery
voltage
V22Ground 0V 0VBattery
voltage
If NG, check the following.
l7.5A fuse [No.3, located in fuse block (J/B)]
l10A fuse [No.20, located in fuse block (J/B)]
lHarness for open or short between fuse and combination
meter
Ground circuit check
Terminals Continuity
V23- Ground Yes
SEL428W
SEL429W
METER AND GAUGES
Trouble Diagnoses/Models without
Tachometer (Cont'd)
EL-2067

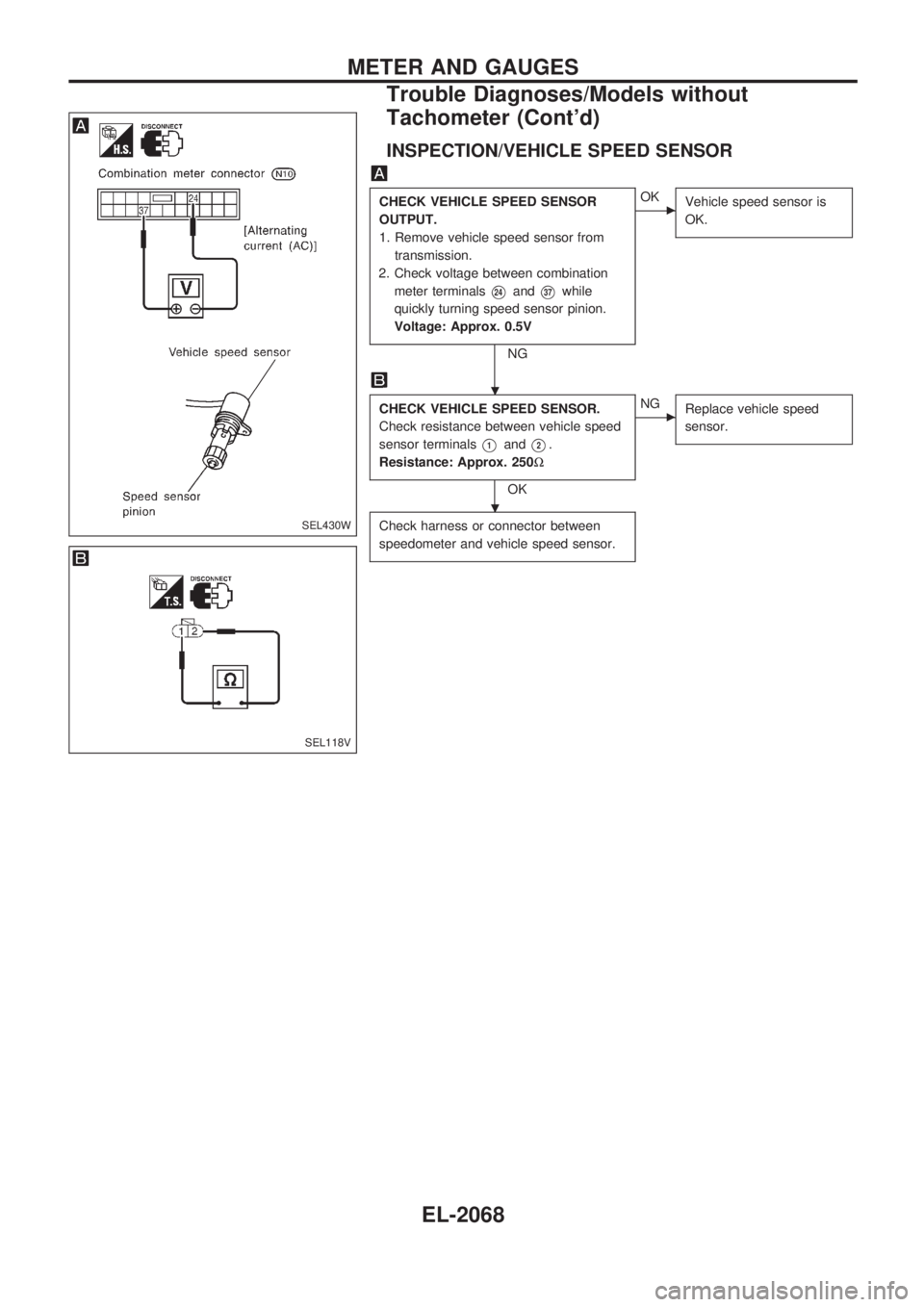

INSPECTION/VEHICLE SPEED SENSOR
CHECK VEHICLE SPEED SENSOR
OUTPUT.
1. Remove vehicle speed sensor from
transmission.
2. Check voltage between combination
meter terminals
V24andV37while
quickly turning speed sensor pinion.
Voltage: Approx. 0.5V
NG
cOK
Vehicle speed sensor is
OK.
CHECK VEHICLE SPEED SENSOR.
Check resistance between vehicle speed
sensor terminals
V1andV2.
Resistance: Approx. 250W
OK
cNG
Replace vehicle speed
sensor.
Check harness or connector between
speedometer and vehicle speed sensor.SEL430W
SEL118V
.
.
METER AND GAUGES
Trouble Diagnoses/Models without
Tachometer (Cont'd)
EL-2068

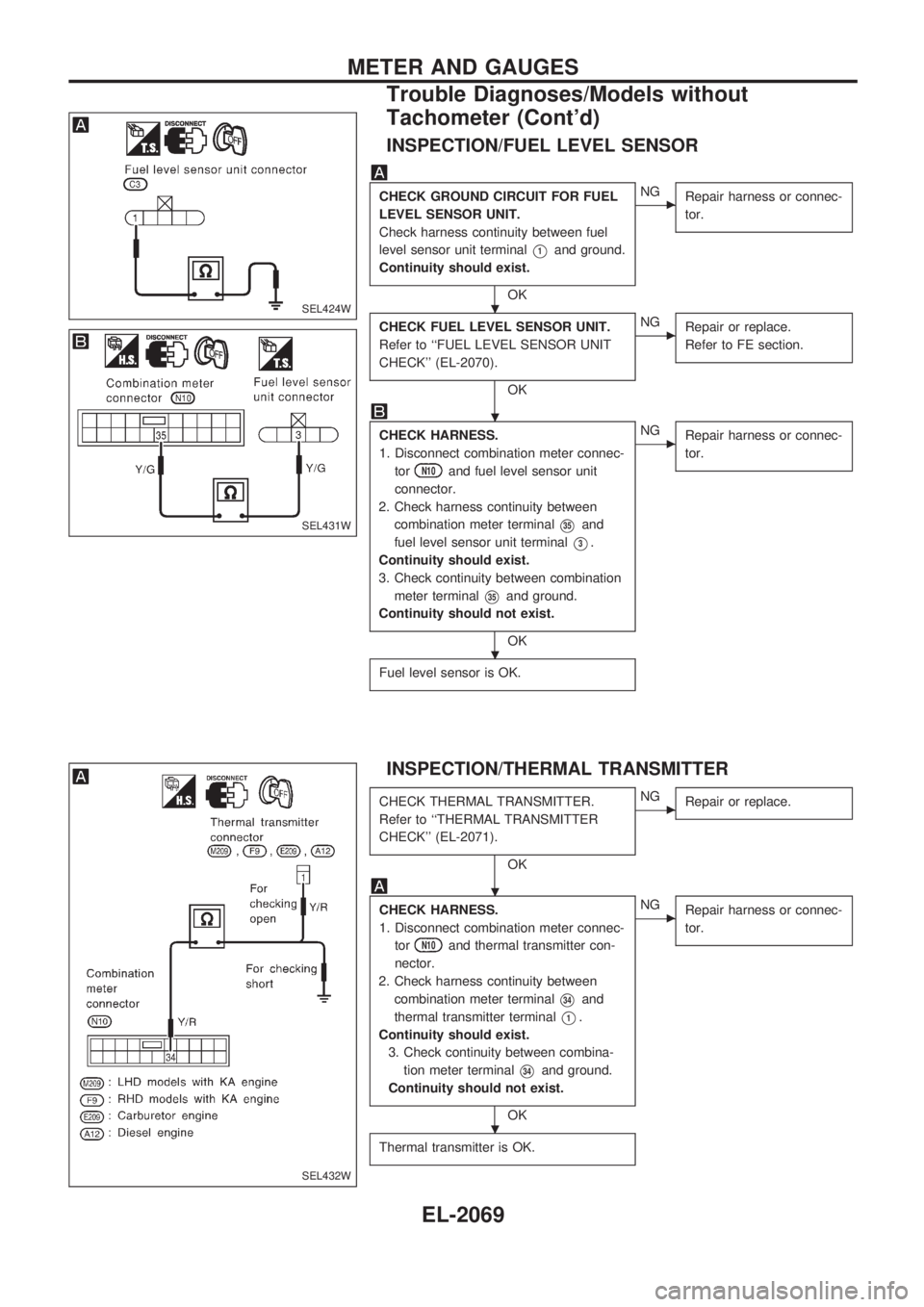

INSPECTION/FUEL LEVEL SENSOR
CHECK GROUND CIRCUIT FOR FUEL
LEVEL SENSOR UNIT.
Check harness continuity between fuel
level sensor unit terminal
V1and ground.
Continuity should exist.
OK
cNG
Repair harness or connec-
tor.
CHECK FUEL LEVEL SENSOR UNIT.
Refer to ``FUEL LEVEL SENSOR UNIT
CHECK'' (EL-2070).
OK
cNG
Repair or replace.
Refer to FE section.
CHECK HARNESS.
1. Disconnect combination meter connec-
tor
N10and fuel level sensor unit
connector.
2. Check harness continuity between
combination meter terminal
V35and
fuel level sensor unit terminal
V3.
Continuity should exist.
3. Check continuity between combination
meter terminal
V35and ground.
Continuity should not exist.
OK
cNG
Repair harness or connec-
tor.
Fuel level sensor is OK.
INSPECTION/THERMAL TRANSMITTER
CHECK THERMAL TRANSMITTER.
Refer to ``THERMAL TRANSMITTER
CHECK'' (EL-2071).
OK
cNG
Repair or replace.
CHECK HARNESS.
1. Disconnect combination meter connec-
tor
N10and thermal transmitter con-
nector.
2. Check harness continuity between
combination meter terminal
V34and
thermal transmitter terminal
V1.
Continuity should exist.
3. Check continuity between combina-
tion meter terminal
V34and ground.
Continuity should not exist.
OK
cNG
Repair harness or connec-
tor.
Thermal transmitter is OK.
SEL424W
SEL431W
SEL432W
.
.
.
.
.
METER AND GAUGES
Trouble Diagnoses/Models without
Tachometer (Cont'd)
EL-2069

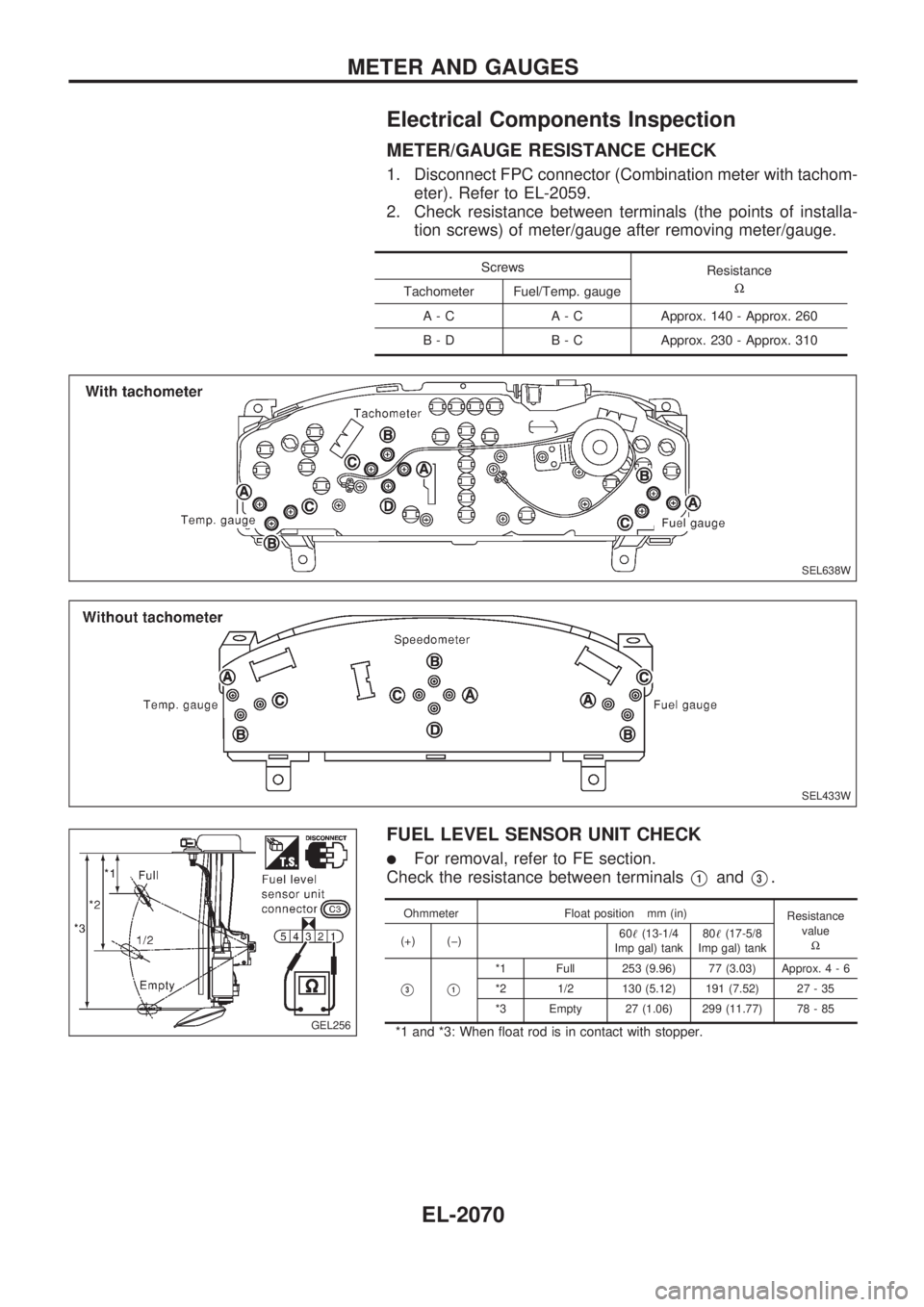

Electrical Components Inspection
METER/GAUGE RESISTANCE CHECK
1. Disconnect FPC connector (Combination meter with tachom-
eter). Refer to EL-2059.
2. Check resistance between terminals (the points of installa-
tion screws) of meter/gauge after removing meter/gauge.
Screws
Resistance
W
Tachometer Fuel/Temp. gauge
A - C A - C Approx. 140 - Approx. 260
B - D B - C Approx. 230 - Approx. 310
FUEL LEVEL SENSOR UNIT CHECK
lFor removal, refer to FE section.
Check the resistance between terminals
V1andV3.
Ohmmeter Float position mm (in)
Resistance
value
W (+) (þ)60!(13-1/4
Imp gal) tank80!(17-5/8
Imp gal) tank
V3V1
*1 Full 253 (9.96) 77 (3.03) Approx. 4 - 6
*2 1/2 130 (5.12) 191 (7.52) 27 - 35
*3 Empty 27 (1.06) 299 (11.77) 78 - 85
*1 and *3: When float rod is in contact with stopper.
SEL638W
SEL433W
GEL256
METER AND GAUGES
EL-2070

THERMAL TRANSMITTER CHECK
Check the resistance between the terminals of thermal transmit-
ter and body ground.
Water temperature Resistance
60ÉC (140ÉF) Approx. 167 - 211W
100ÉC (212ÉF) Approx. 47 - 53W
VEHICLE SPEED SENSOR SIGNAL CHECK
1. Remove vehicle speed sensor from transmission.
2. Turn vehicle speed sensor pinion quickly and measure volt-
age between terminals
VaandVb.
MEL424F
SEL378PA
METER AND GAUGES
Electrical Components Inspection (Cont'd)
EL-2071

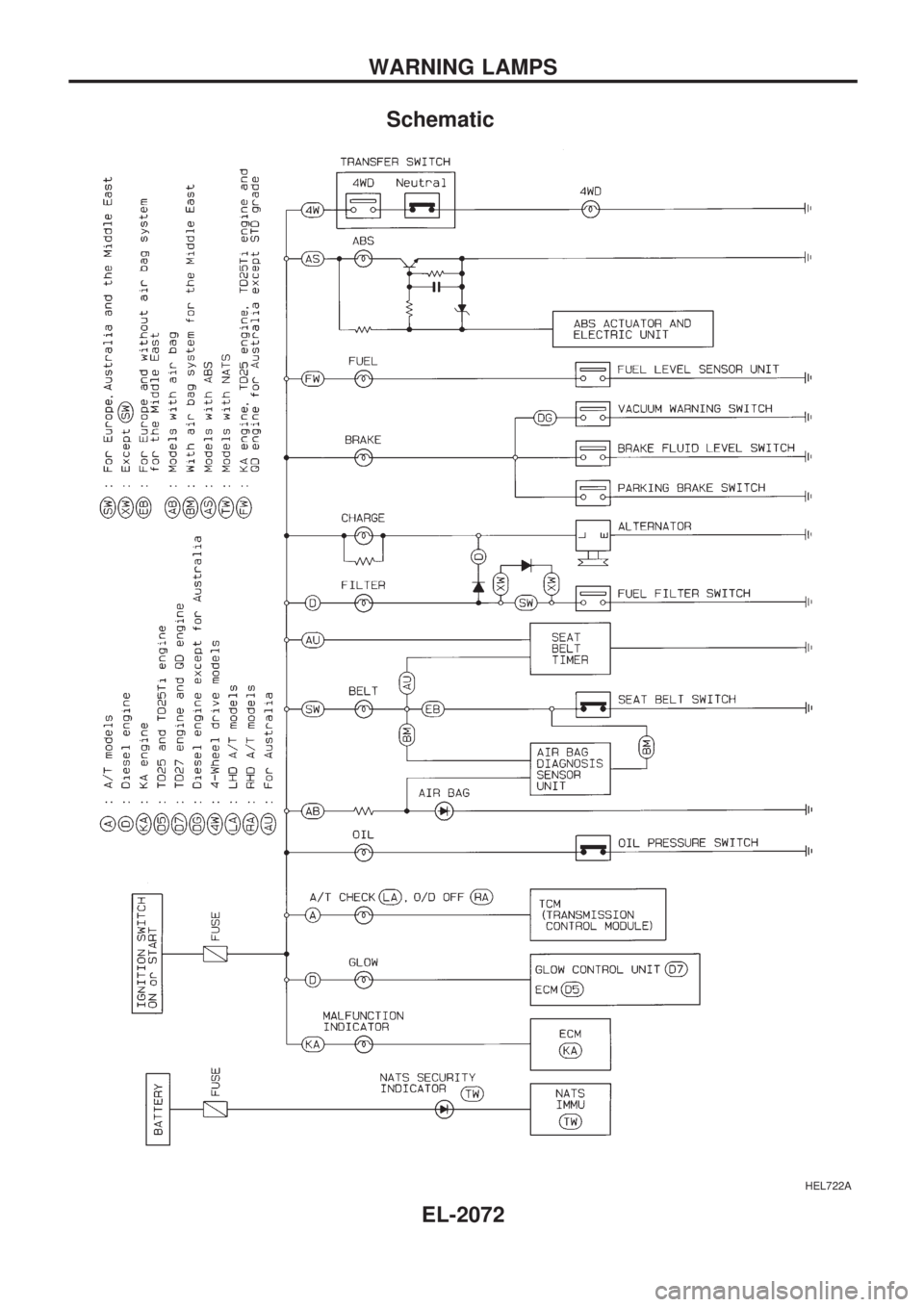

Schematic
HEL722A
