1999 NISSAN PICK-UP Repair Manual

Wiring Diagram Ð CHARGE Ð/Diesel Engine
HEL681A
CHARGING SYSTEM
EL-2014

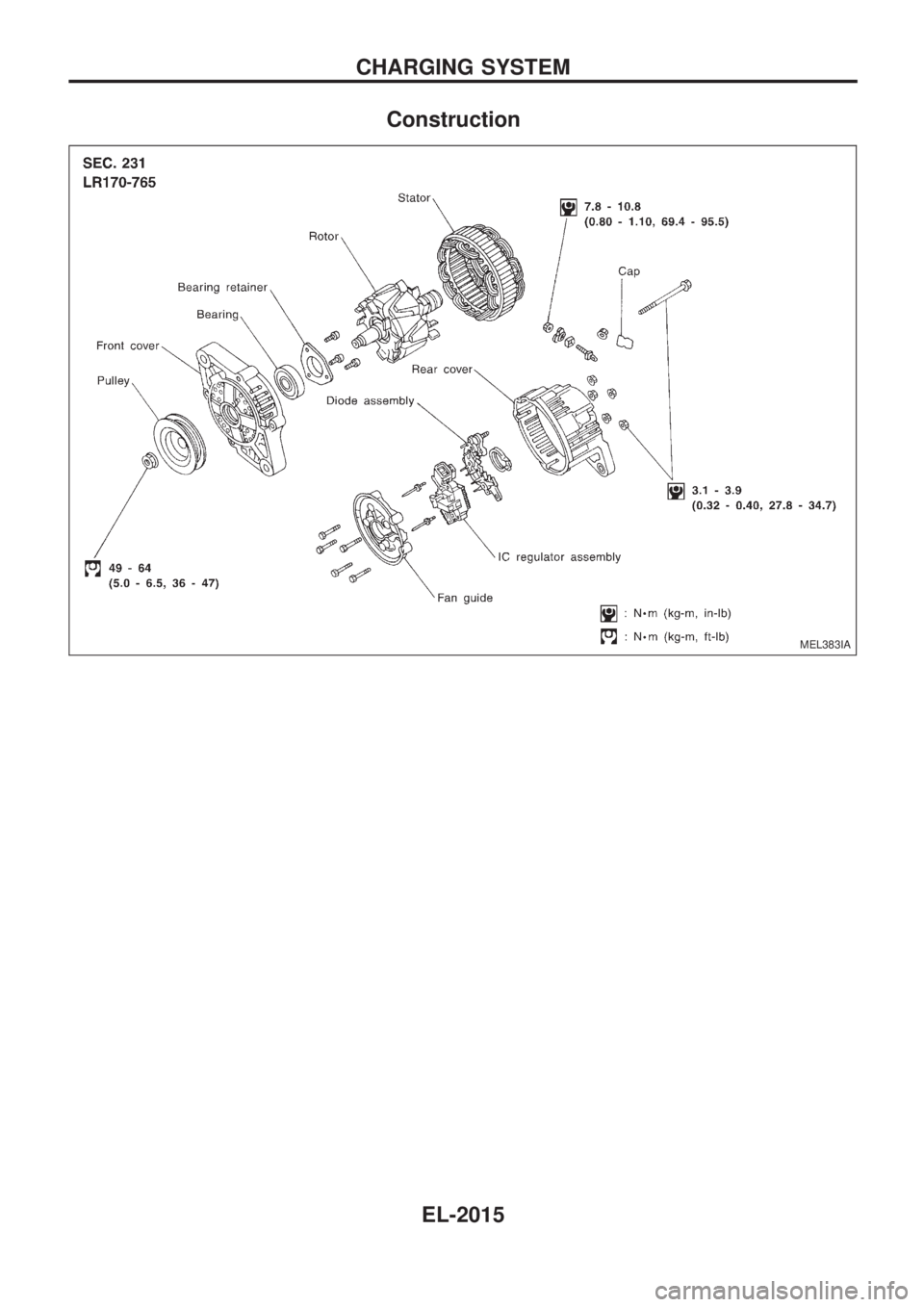

Construction
MEL383IA
CHARGING SYSTEM
EL-2015

Service Data and Specifications (SDS)
ALTERNATOR
TypeLR170-765 LR160-728F
HITACHI
Applied model KA24 TD25
Nominal rating V-A 12-70 12-60
Ground polarityNegative
Minimum revolution under no-
load
(When 13.5V is applied) rpmLess than 1,000
Hot output current
(When 13.5V is applied) A/rpmMore than
17/1,300
More than
54/2,500
More than
75/5,000More than
17/1,300
More than
48/2,500
More than
57/5,000
Regulated output voltage V 14.1 - 14.7
Minimum length of brush
mm (in)6.0 (0.236)
Brush spring pressure
N (g, oz)1.0 - 3.43 (102 - 350, 3.60 - 12.34)
Slip ring minimum outer diameter
mm (in)26.0 (1.024)
Rotor (Field coil) resistanceW2.58
*: Models with power steering and air conditioner
CHARGING SYSTEM
EL-2016

Check
LHD MODELS
HEL682A
COMBINATION SWITCH
EL-2017

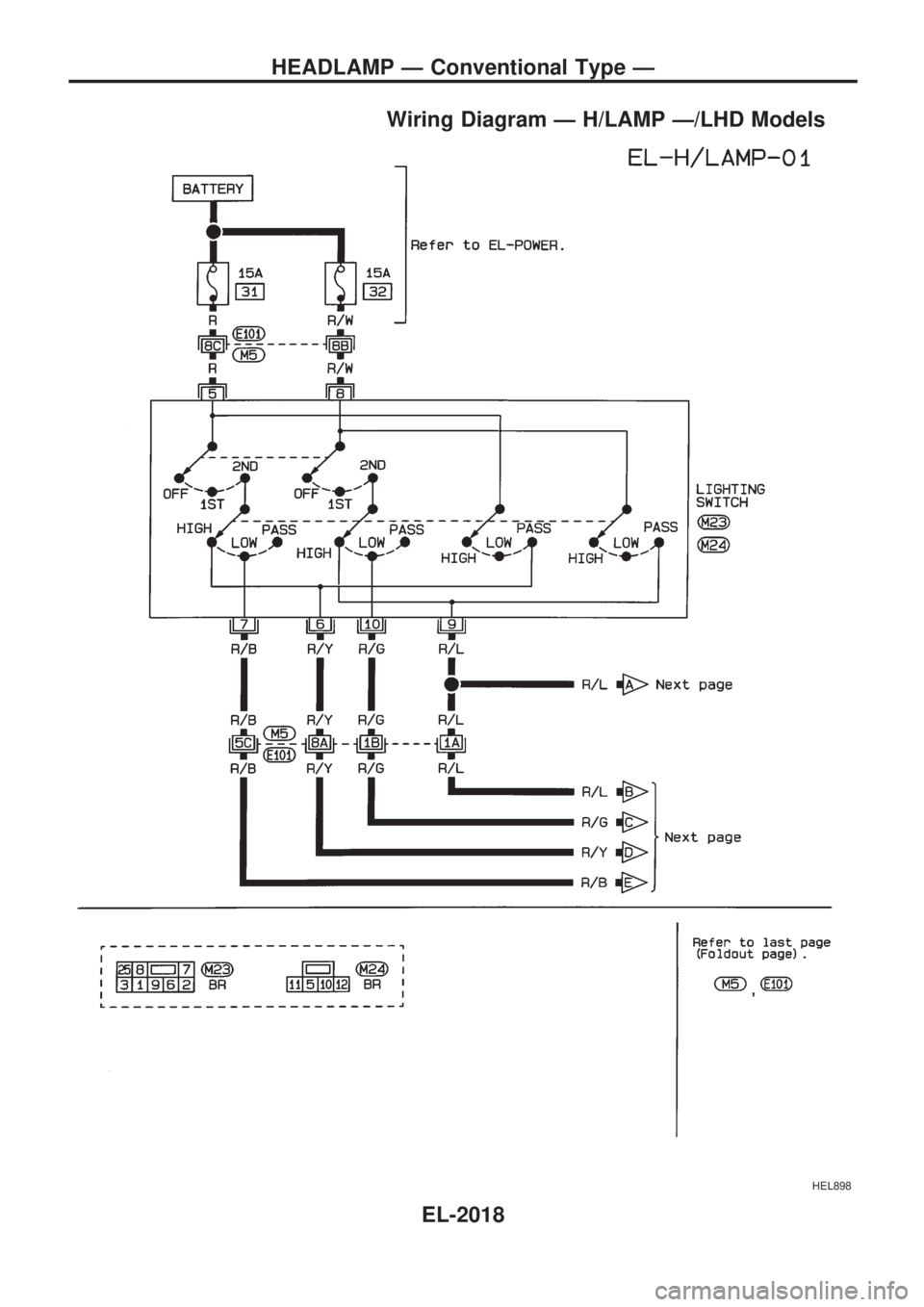

Wiring Diagram Ð H/LAMP Ð/LHD Models
HEL898
HEADLAMP Ð Conventional Type Ð
EL-2018

HEL684A

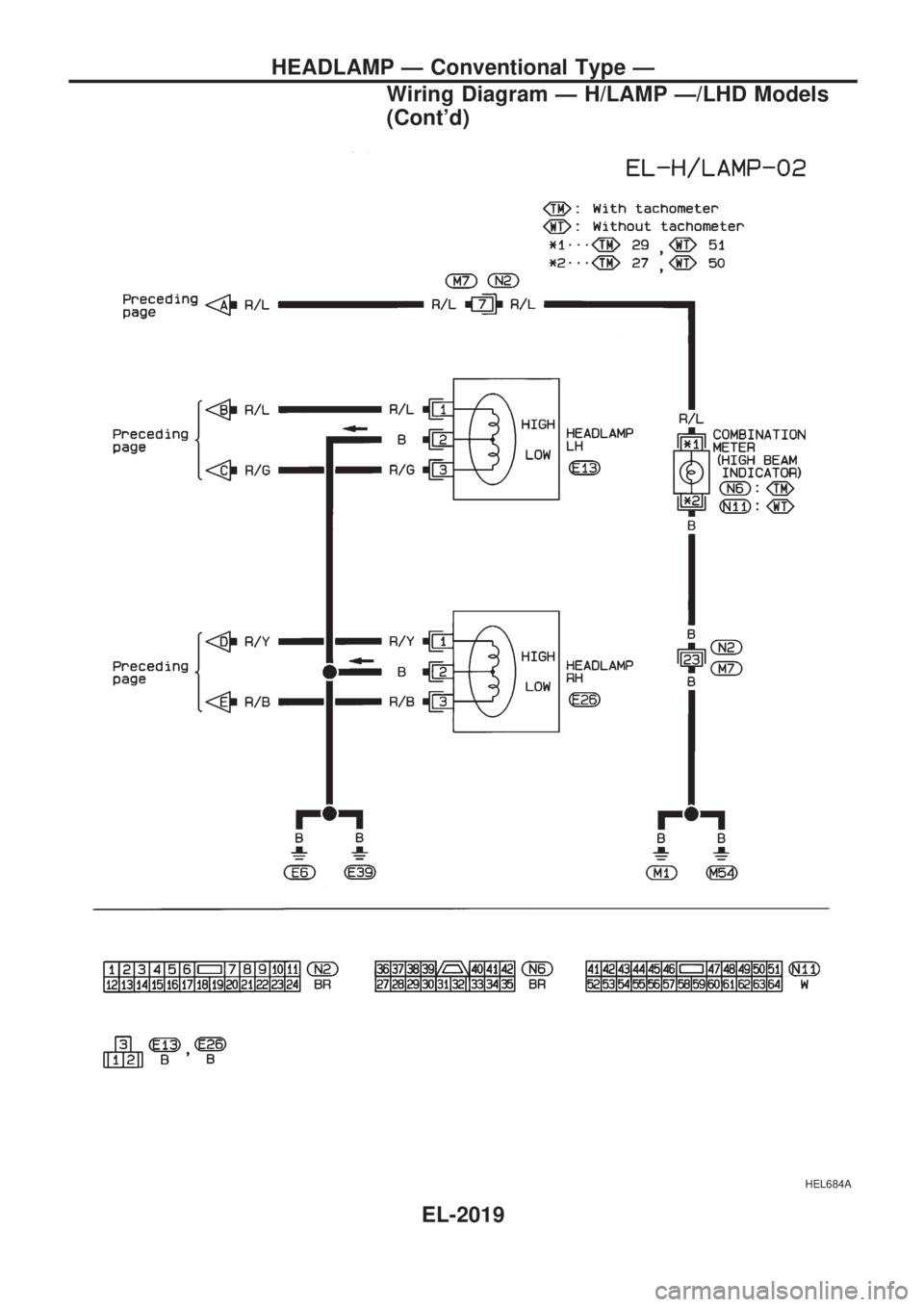

HEADLAMP Ð Conventional Type Ð
Wiring Diagram Ð H/LAMP Ð/LHD Models
(Cont'd)
EL-2019

Wiring Diagram Ð H/LAMP Ð/RHD Models
HEL685A
HEADLAMP Ð Conventional Type Ð
EL-2020

HEL686A

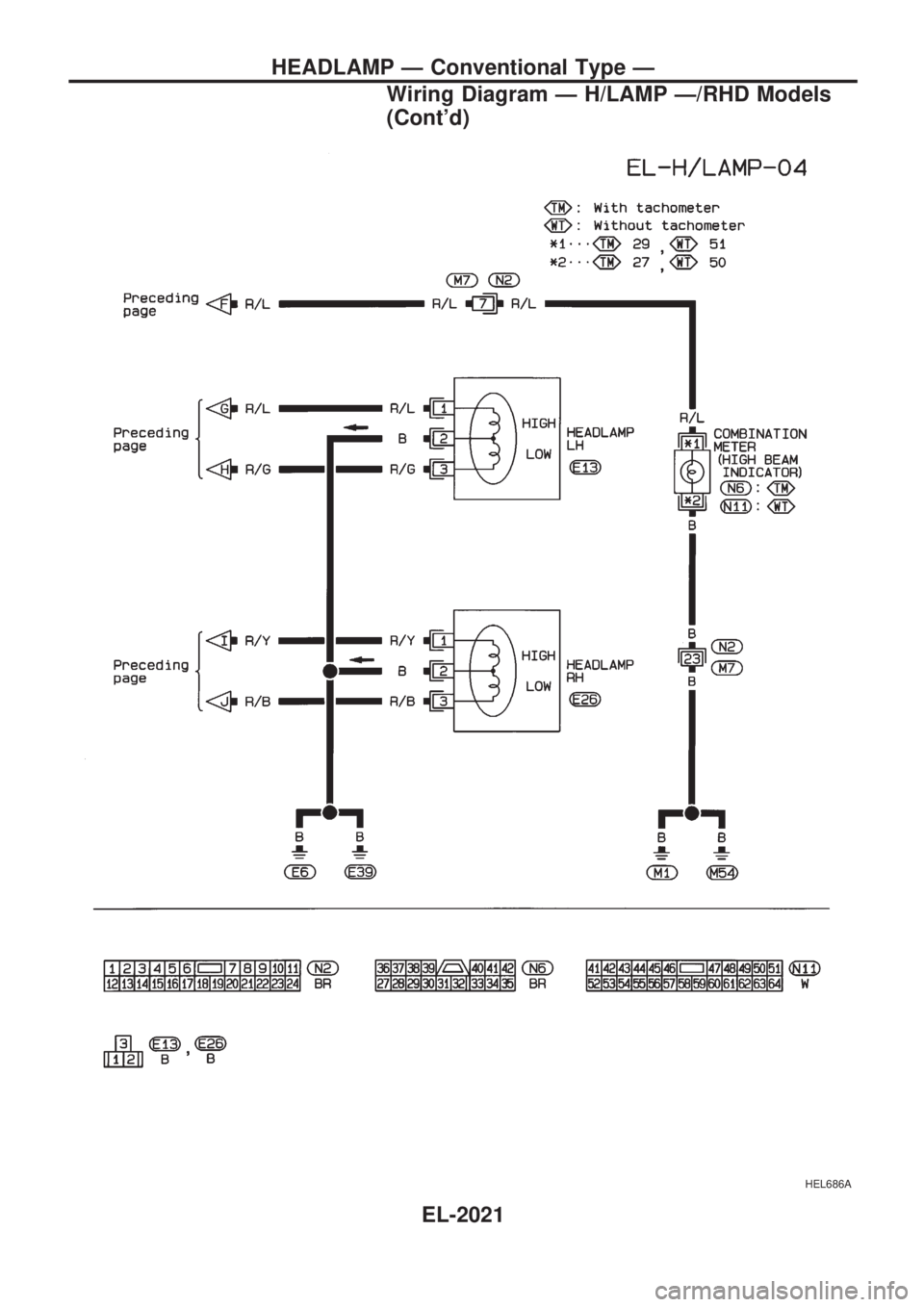

HEADLAMP Ð Conventional Type Ð
Wiring Diagram Ð H/LAMP Ð/RHD Models
(Cont'd)
EL-2021
