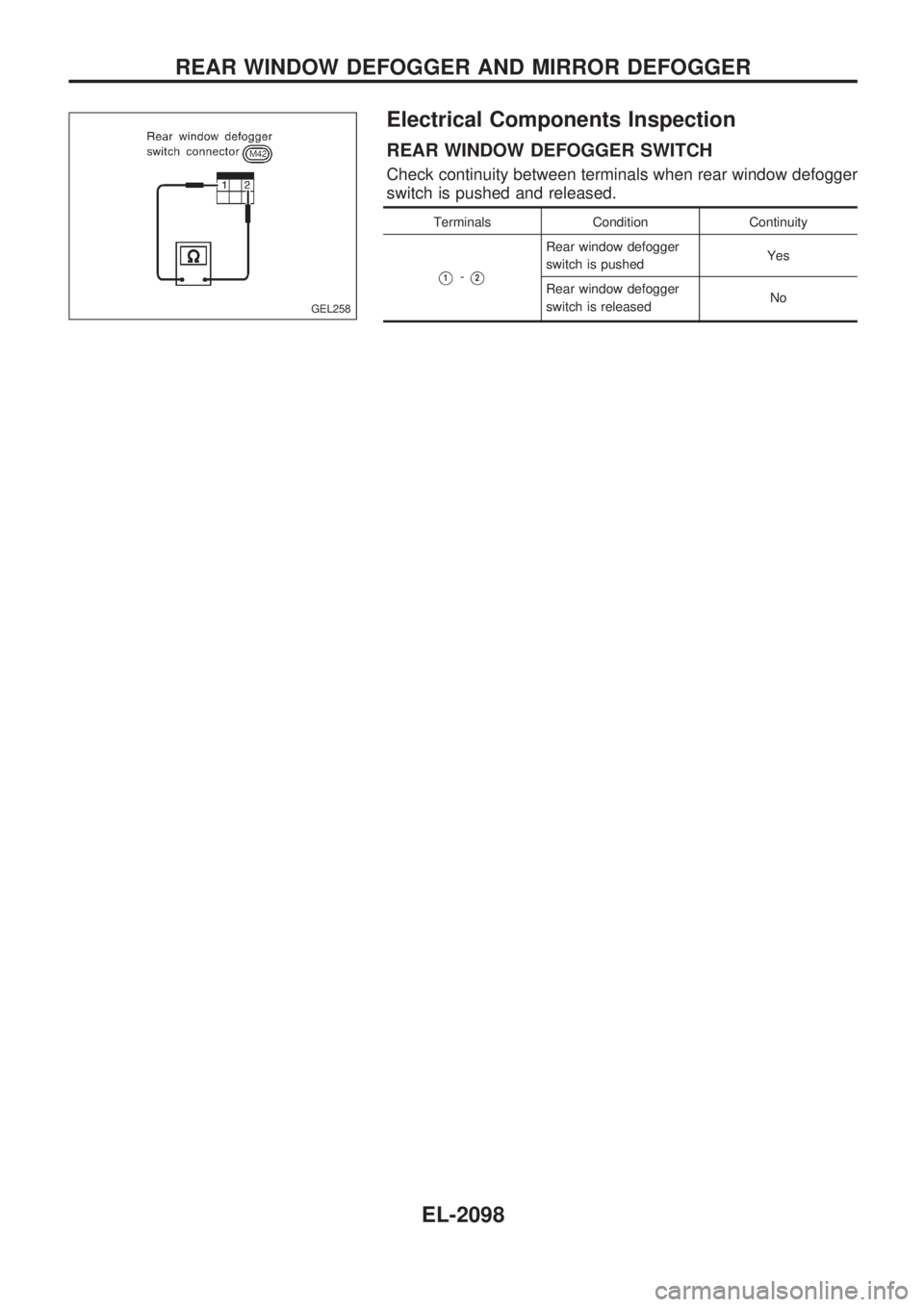

Electrical Components Inspection
REAR WINDOW DEFOGGER SWITCH
Check continuity between terminals when rear window defogger
switch is pushed and released.
Terminals Condition Continuity
V1-V2
Rear window defogger
switch is pushedYes
Rear window defogger
switch is releasedNo
GEL258
REAR WINDOW DEFOGGER AND MIRROR DEFOGGER
EL-2098

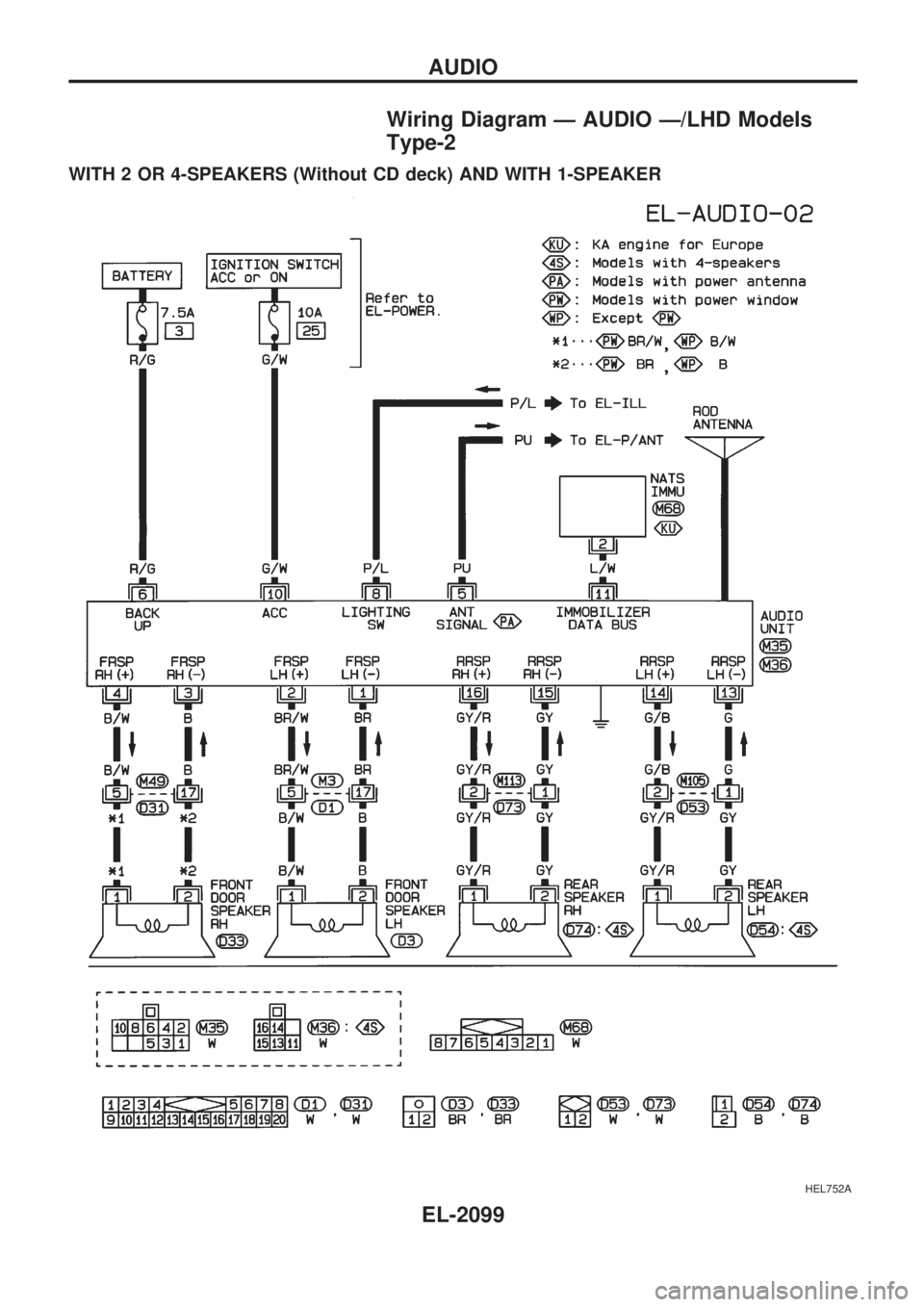

Wiring Diagram Ð AUDIO Ð/LHD Models
Type-2
WITH 2 OR 4-SPEAKERS (Without CD deck) AND WITH 1-SPEAKER
HEL752A
AUDIO
EL-2099

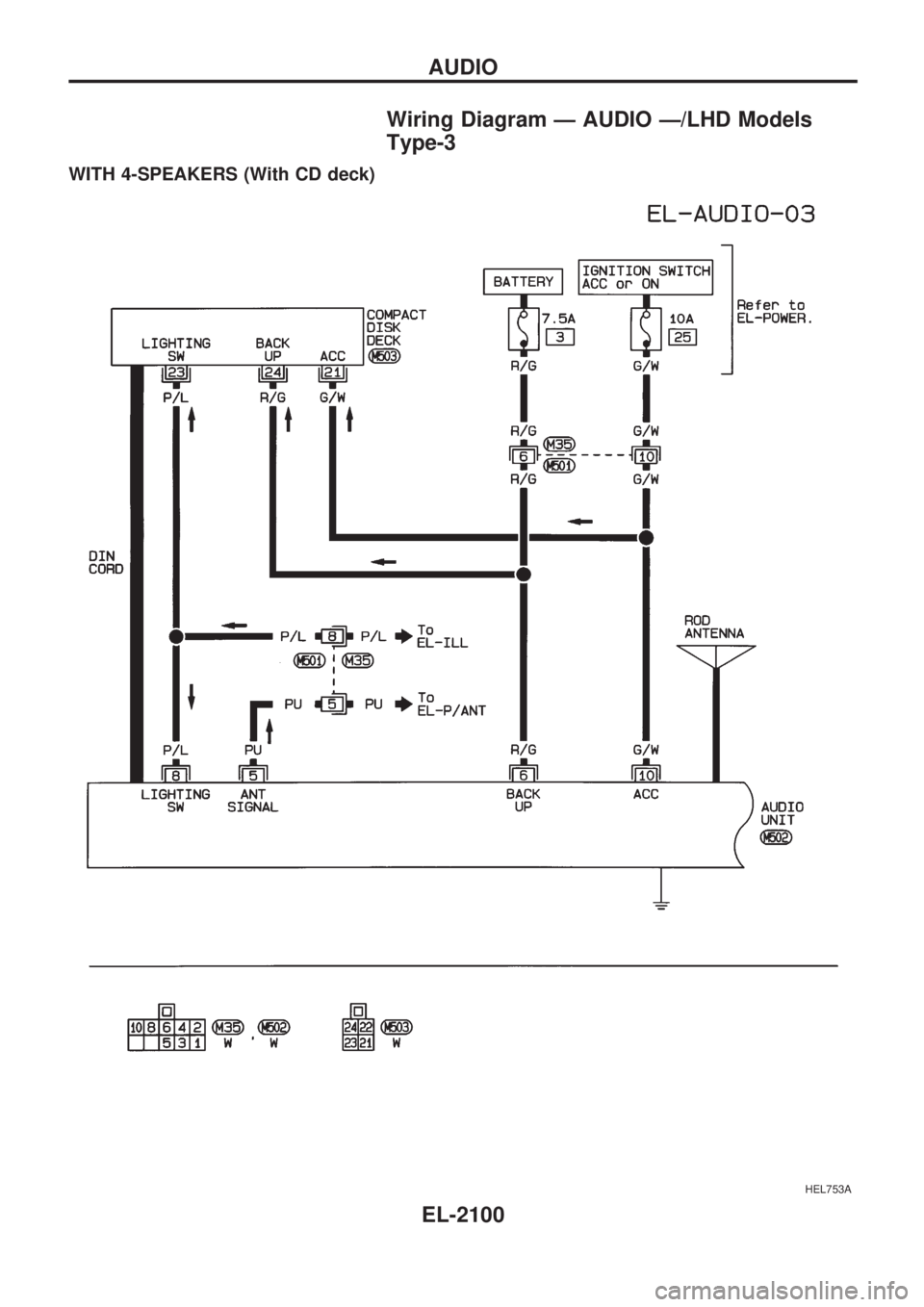

Wiring Diagram Ð AUDIO Ð/LHD Models
Type-3
WITH 4-SPEAKERS (With CD deck)
HEL753A
AUDIO
EL-2100

HEL754A
AUDIO

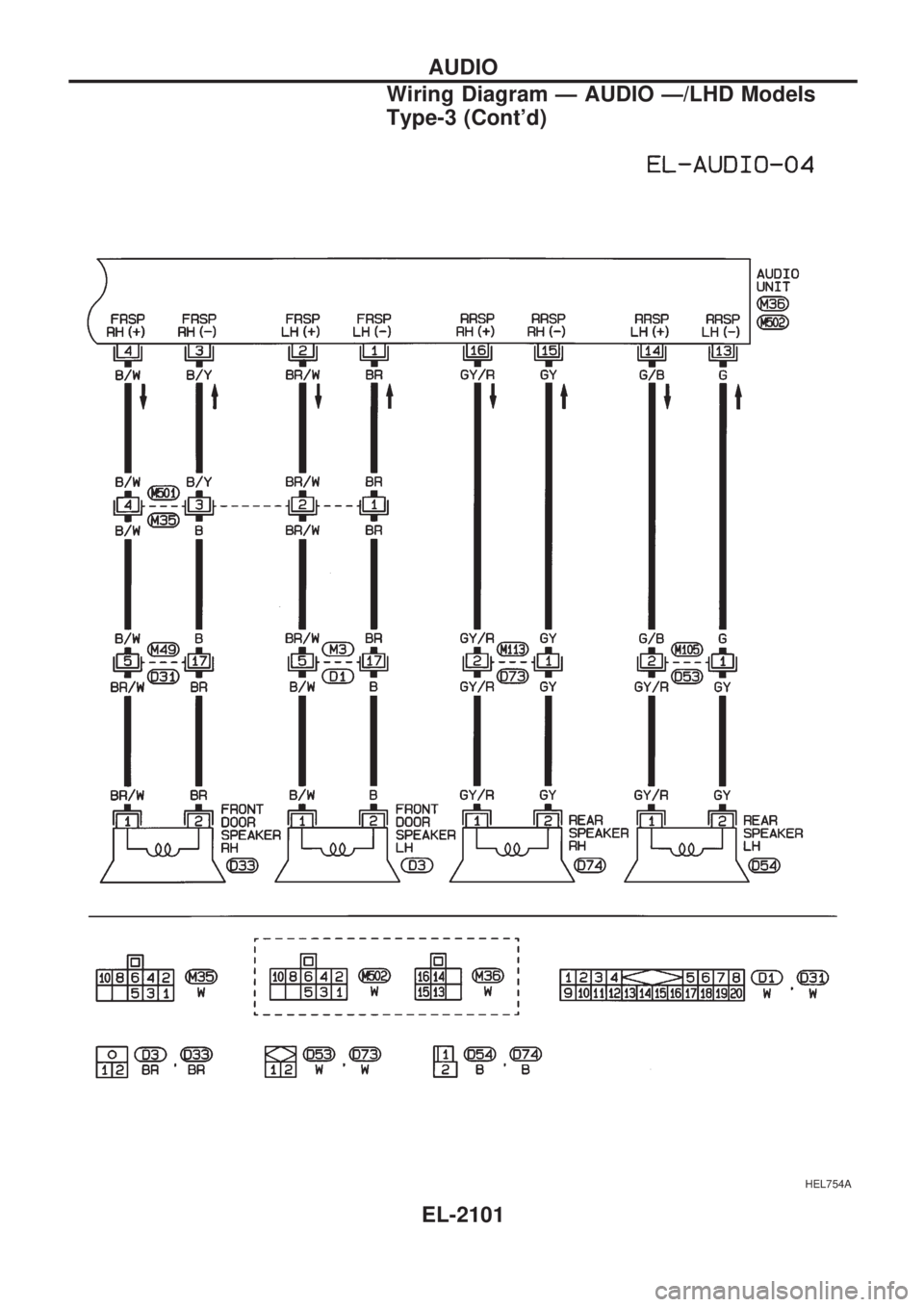

Wiring Diagram Ð AUDIO Ð/LHD Models
Type-3 (Cont'd)
EL-2101

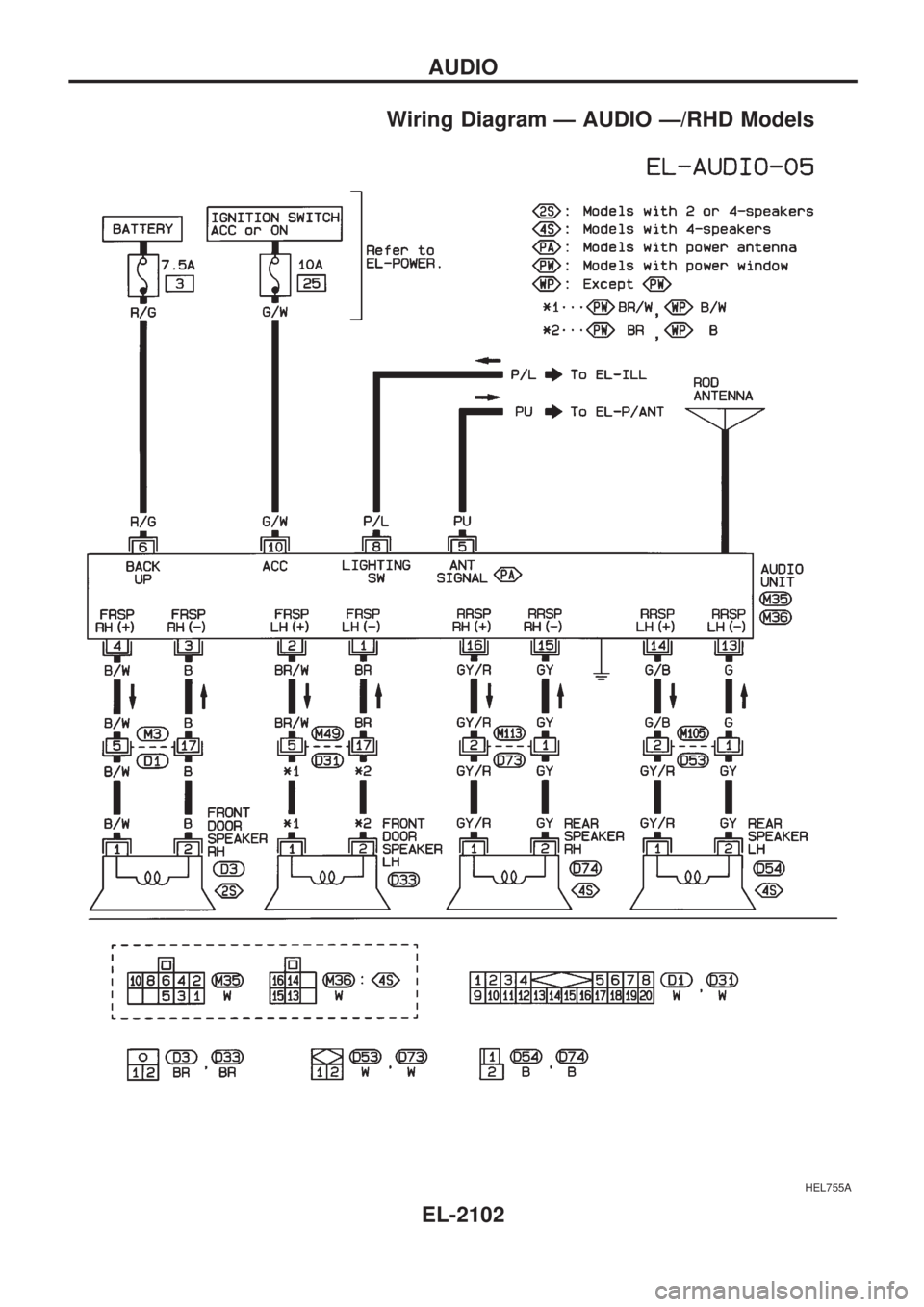

Wiring Diagram Ð AUDIO Ð/RHD Models
HEL755A
AUDIO
EL-2102

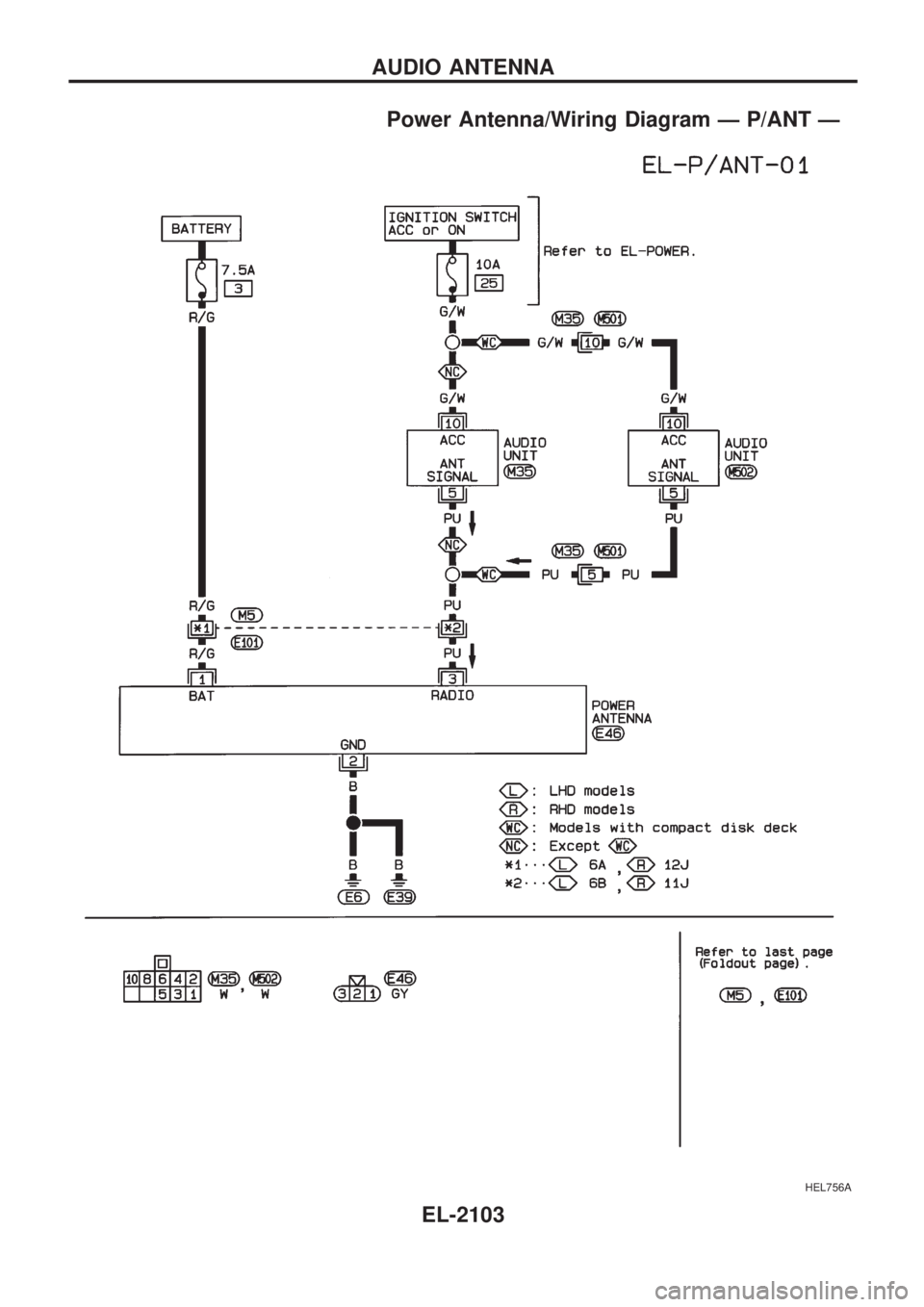

Power Antenna/Wiring Diagram Ð P/ANT Ð
HEL756A
AUDIO ANTENNA
EL-2103

Wiring Diagram Ð MIRROR Ð/LHD Models
HEL757A
POWER DOOR MIRROR
EL-2104

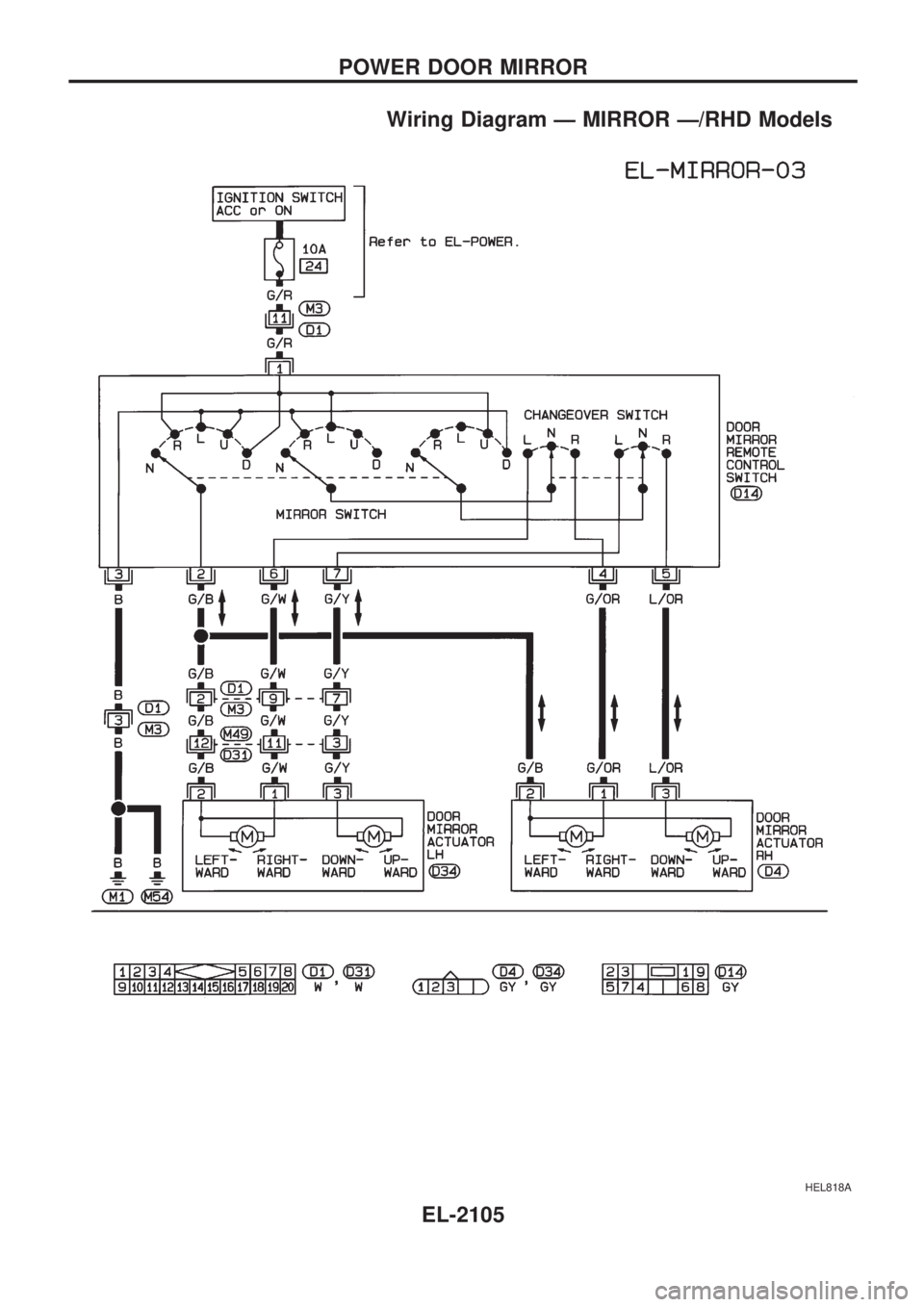

Wiring Diagram Ð MIRROR Ð/RHD Models
HEL818A
POWER DOOR MIRROR
EL-2105
