1999 NISSAN PICK-UP Repair Manual

Wiring Diagram Ð WARN Ð/Diesel Engine
HEL728A
WARNING LAMPS
EL-2078

HEL729A
WARNING LAMPS
Wiring Diagram Ð WARN Ð/Diesel Engine
(Cont'd)
EL-2079

HEL730A
WARNING LAMPS

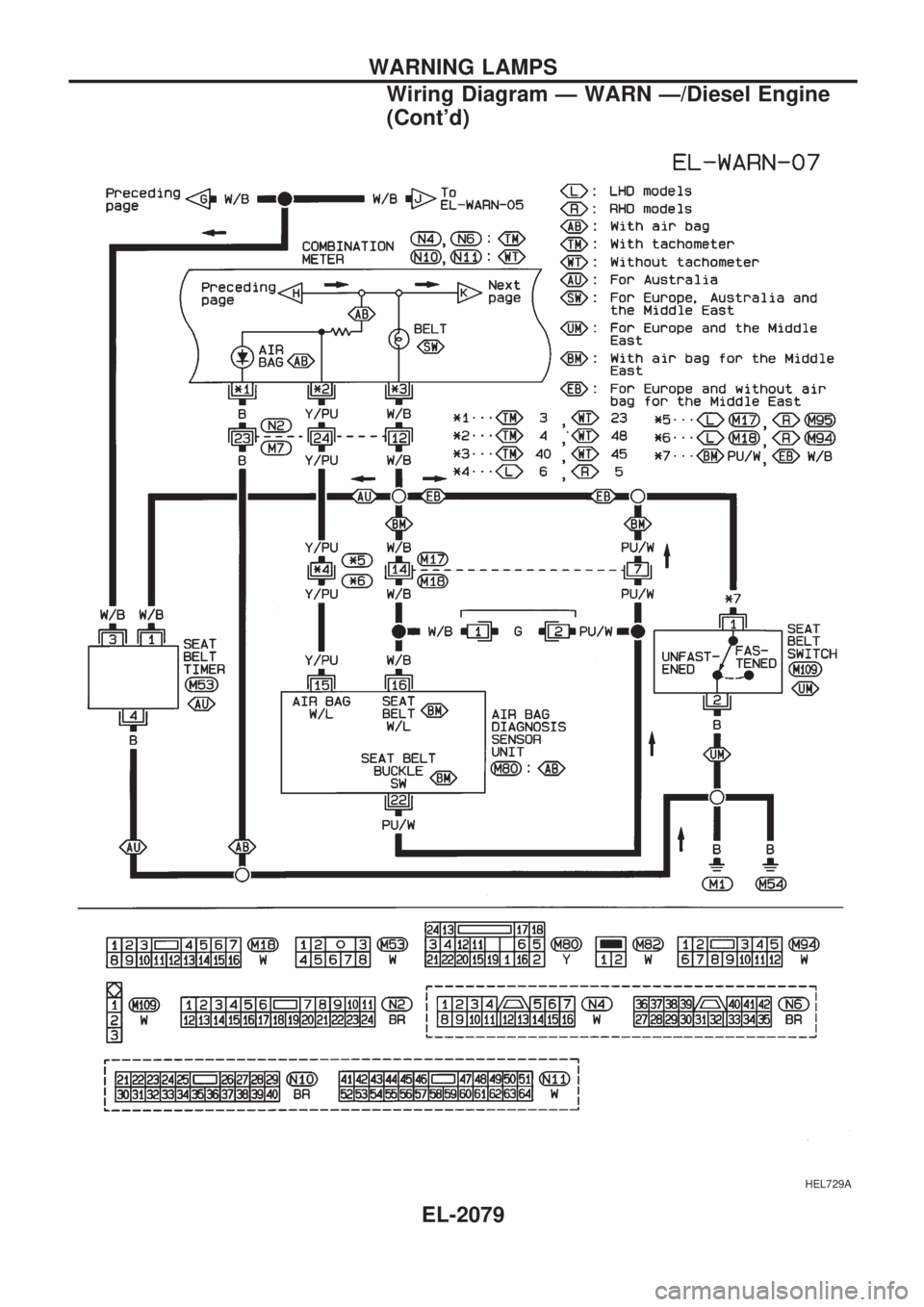

Wiring Diagram Ð WARN Ð/Diesel Engine
(Cont'd)
EL-2080

HEL731A
WARNING LAMPS

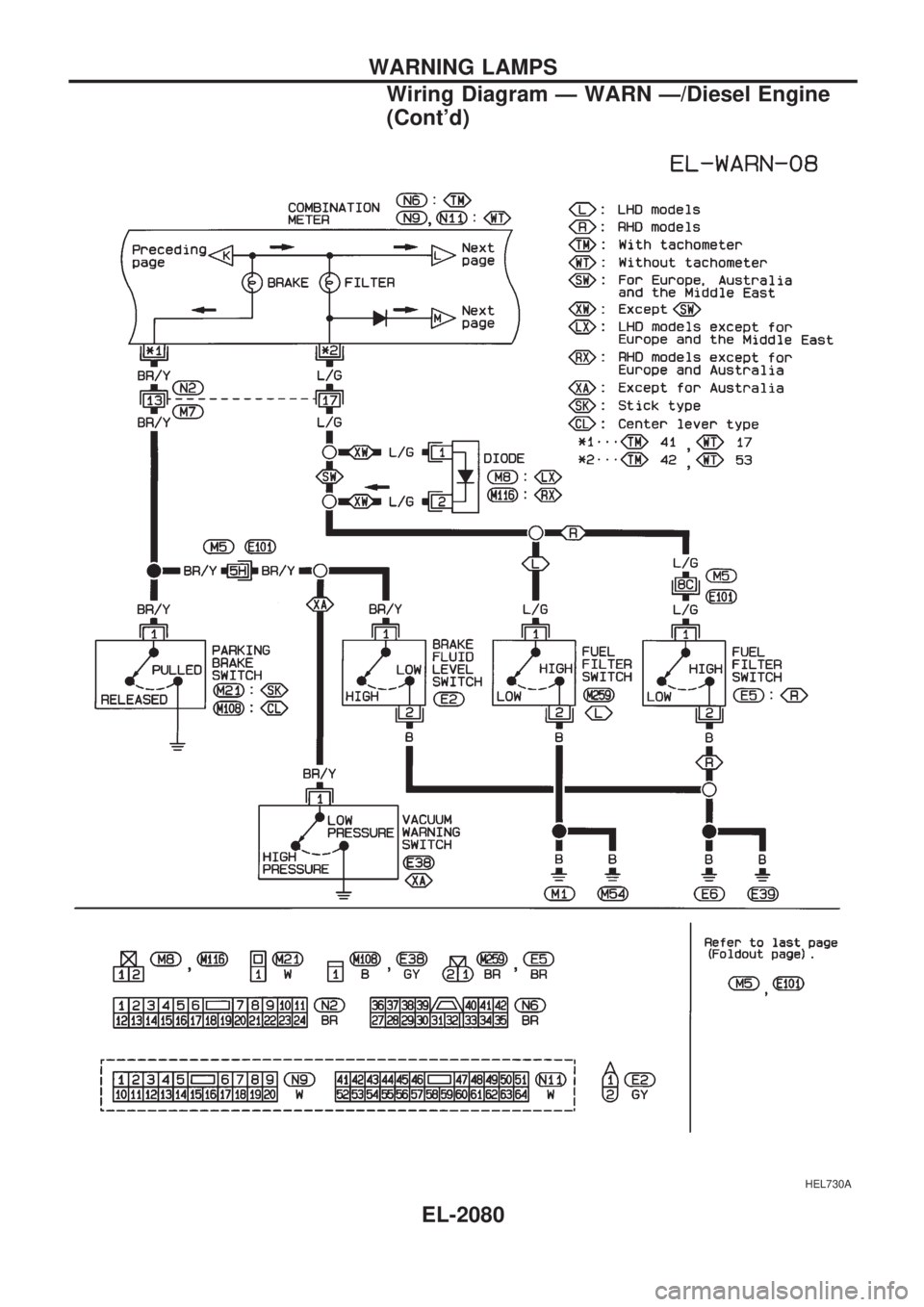

Wiring Diagram Ð WARN Ð/Diesel Engine
(Cont'd)
EL-2081

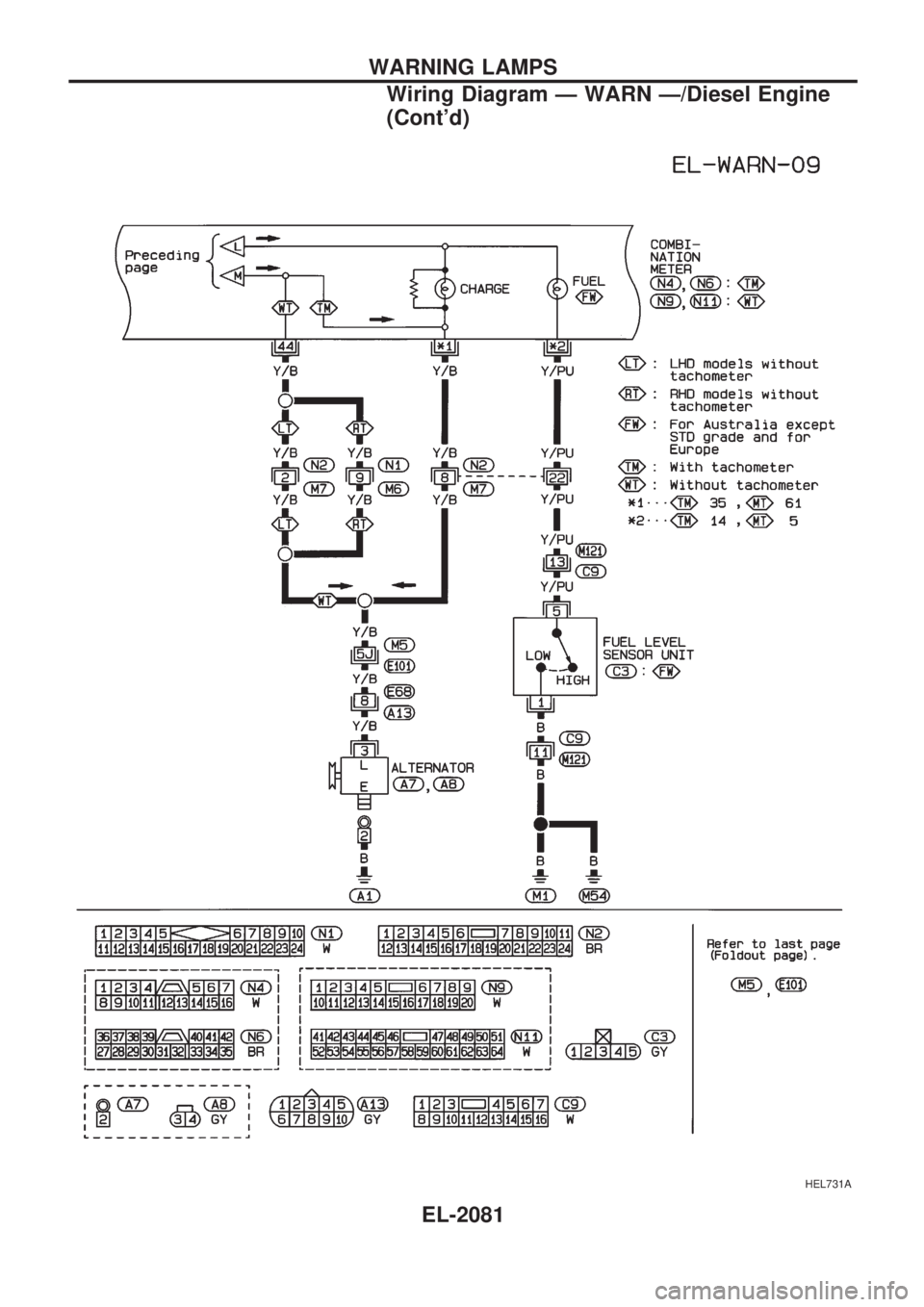

HEL732A
WARNING LAMPS

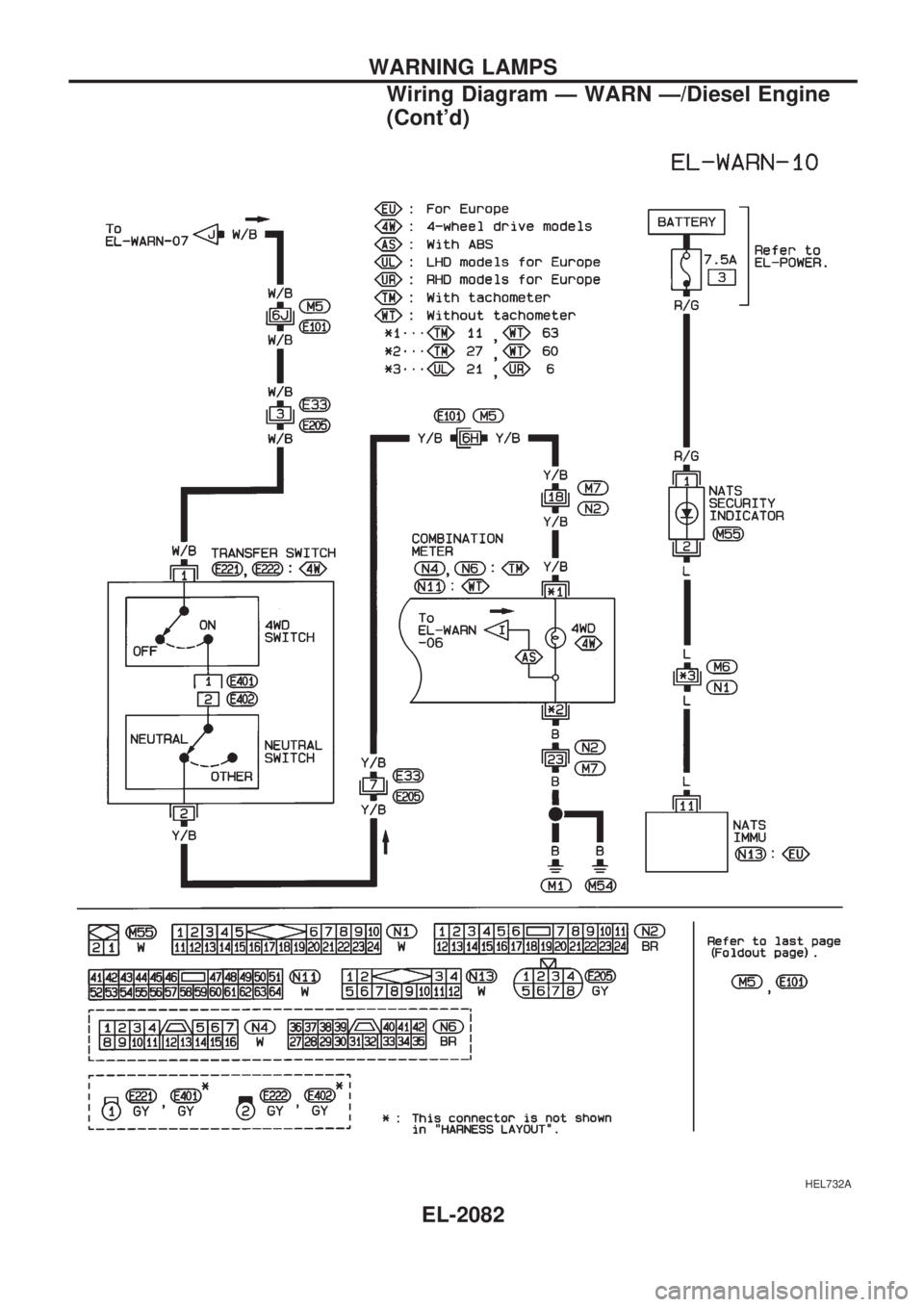

Wiring Diagram Ð WARN Ð/Diesel Engine
(Cont'd)
EL-2082

Electrical Components Inspection

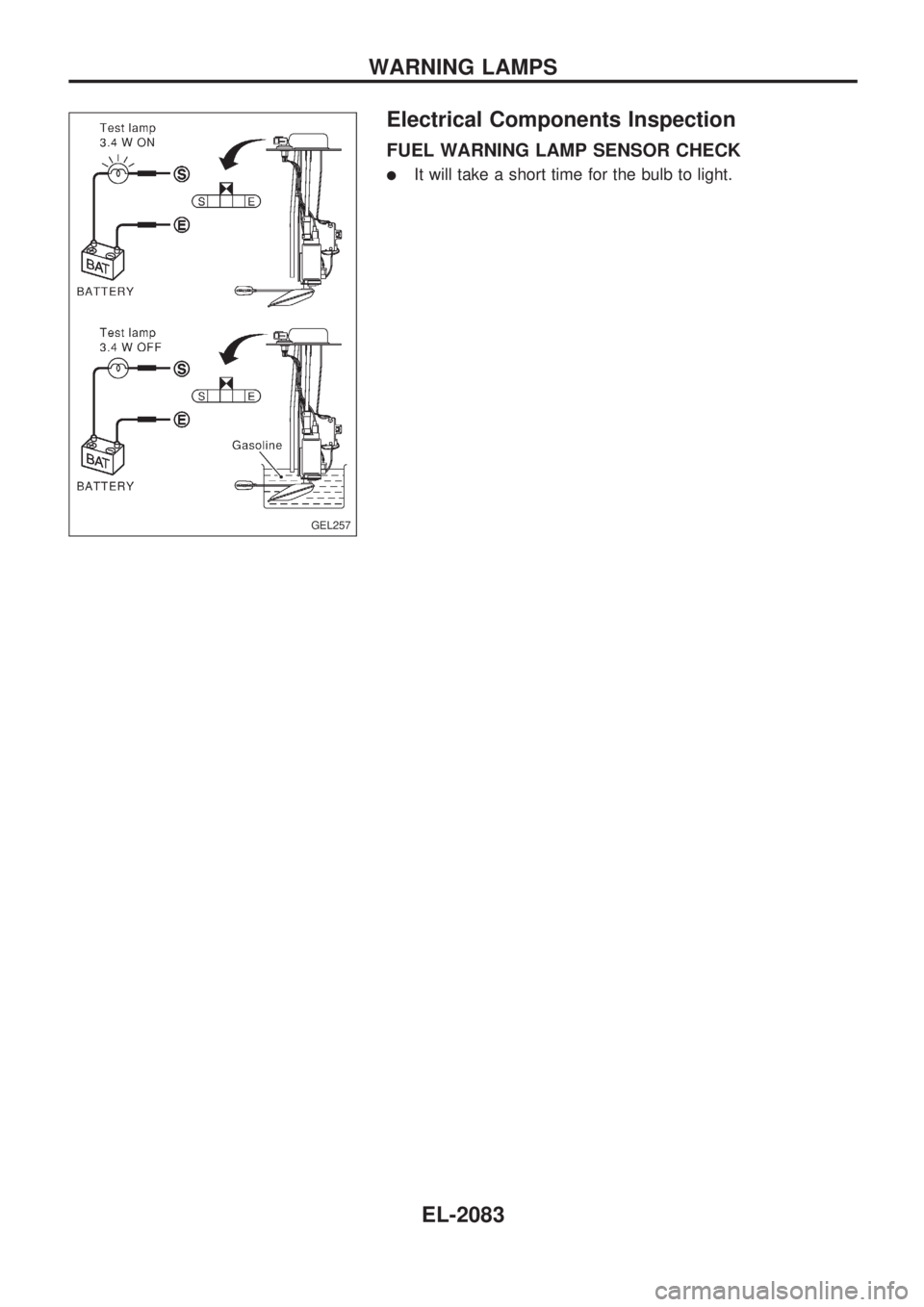

FUEL WARNING LAMP SENSOR CHECK
lIt will take a short time for the bulb to light.
GEL257
WARNING LAMPS
EL-2083

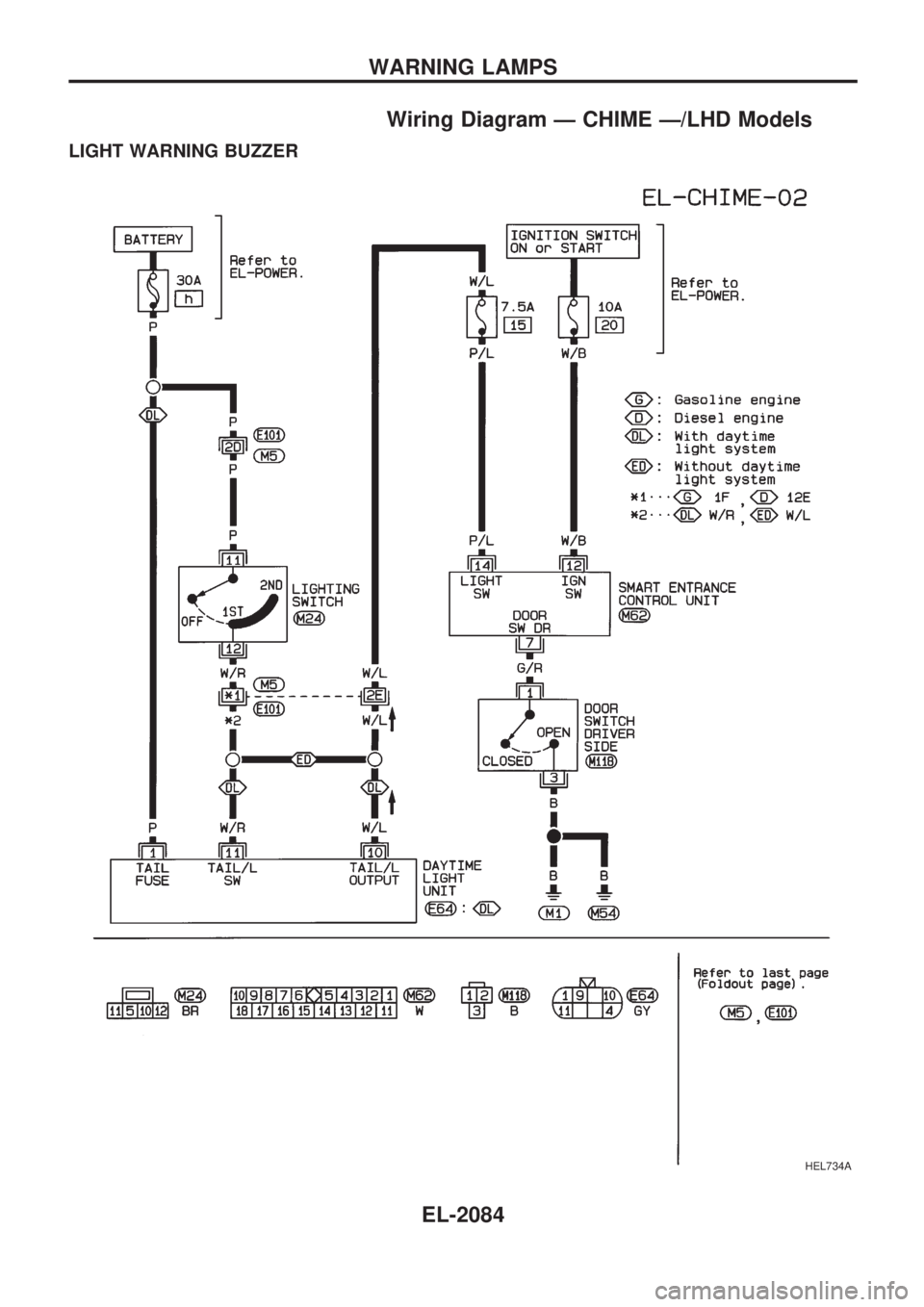

Wiring Diagram Ð CHIME Ð/LHD Models
LIGHT WARNING BUZZER
HEL734A
WARNING LAMPS
EL-2084

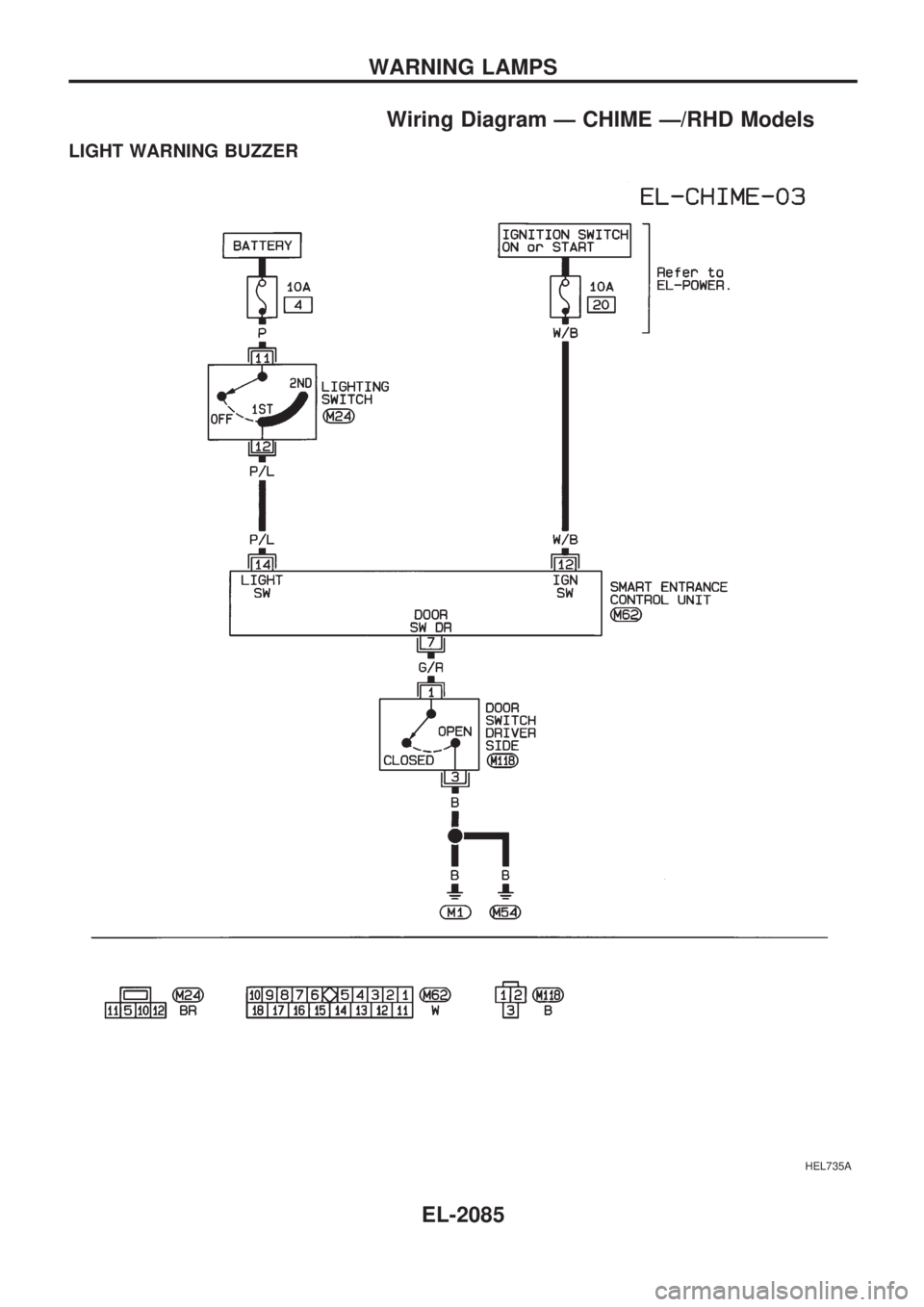

Wiring Diagram Ð CHIME Ð/RHD Models
LIGHT WARNING BUZZER
HEL735A
WARNING LAMPS
EL-2085
