1988 JEEP CHEROKEE Service Repair Manual

Fig. 10: Test 4A - Code 700, Schematic (Cherokee)
Fig. 11: Test 4A - Code 700, TCU 32-Way Connector (Cavity 16)

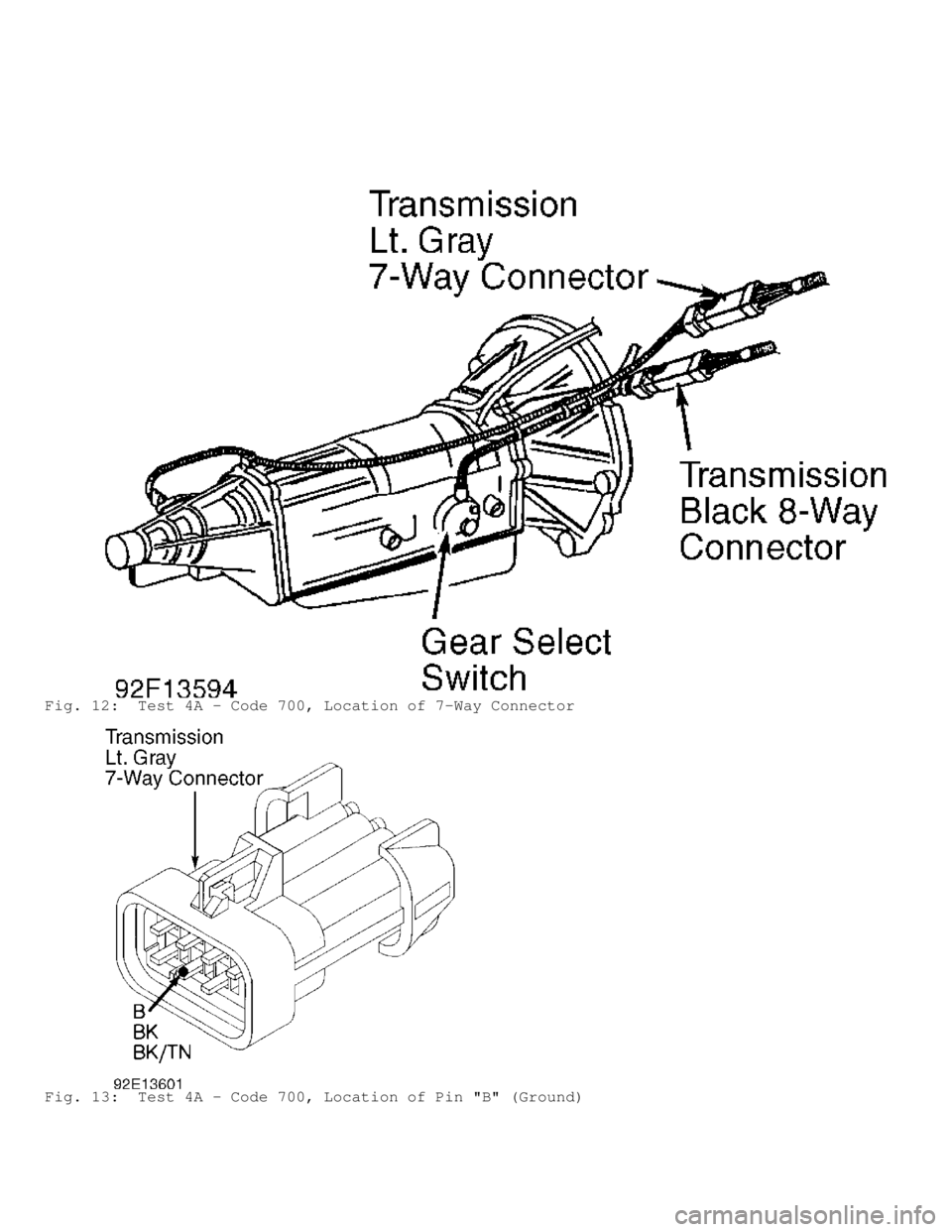

Fig. 12: Test 4A - Code 700, Location of 7-Way Connector
Fig. 13: Test 4A - Code 700, Location of Pin "B" (Ground)

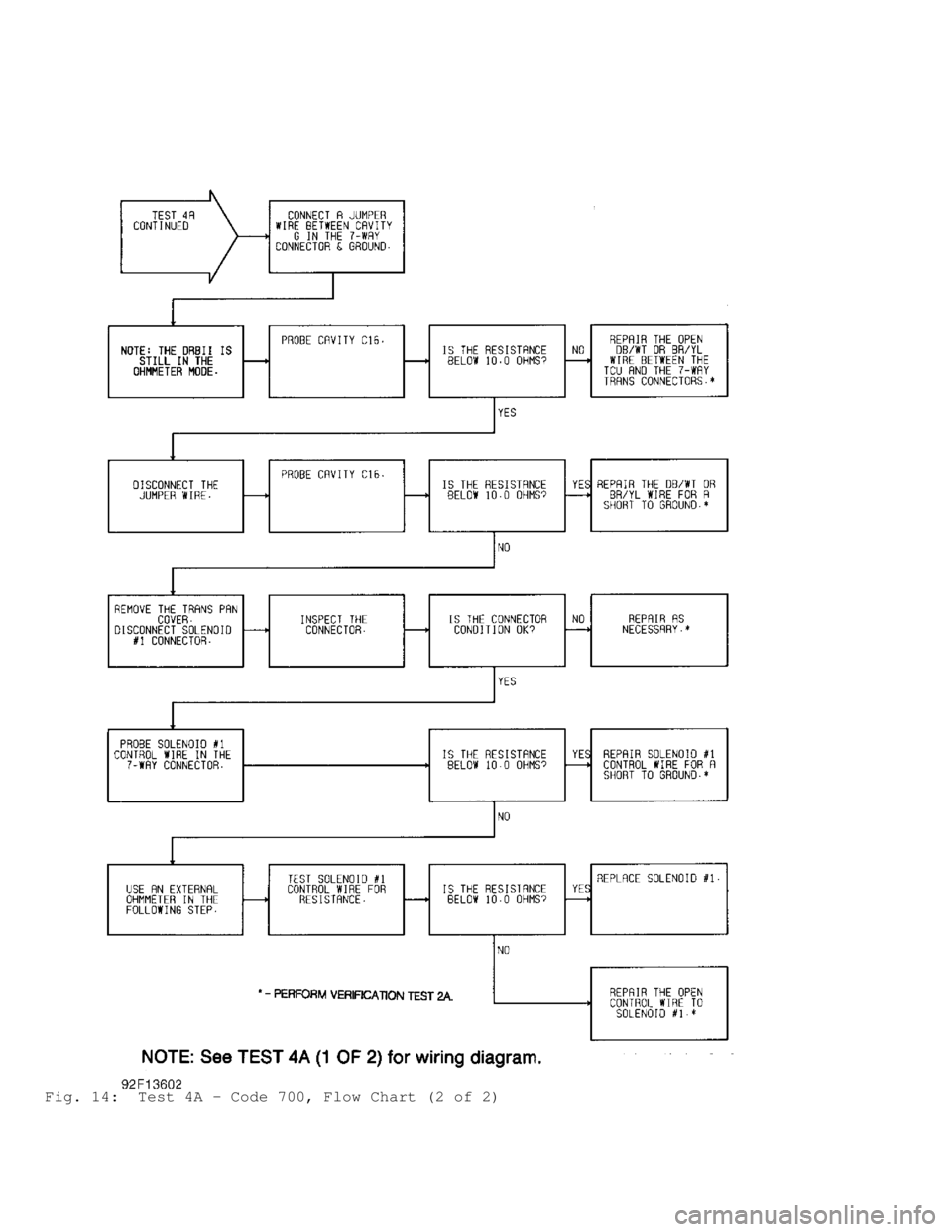

Fig. 14: Test 4A - Code 700, Flow Chart (2 of 2)

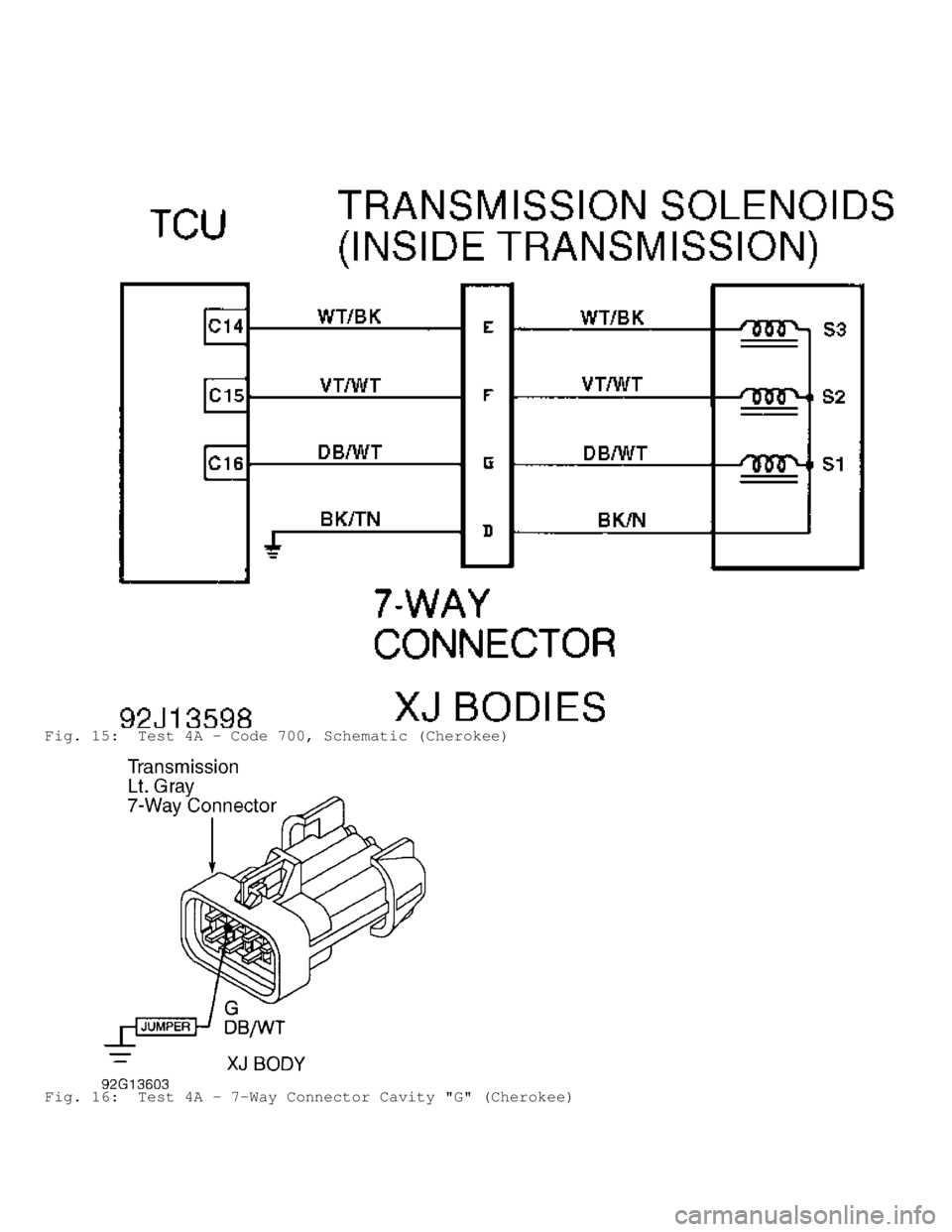

Fig. 15: Test 4A - Code 700, Schematic (Cherokee)
Fig. 16: Test 4A - 7-Way Connector Cavity "G" (Cherokee)

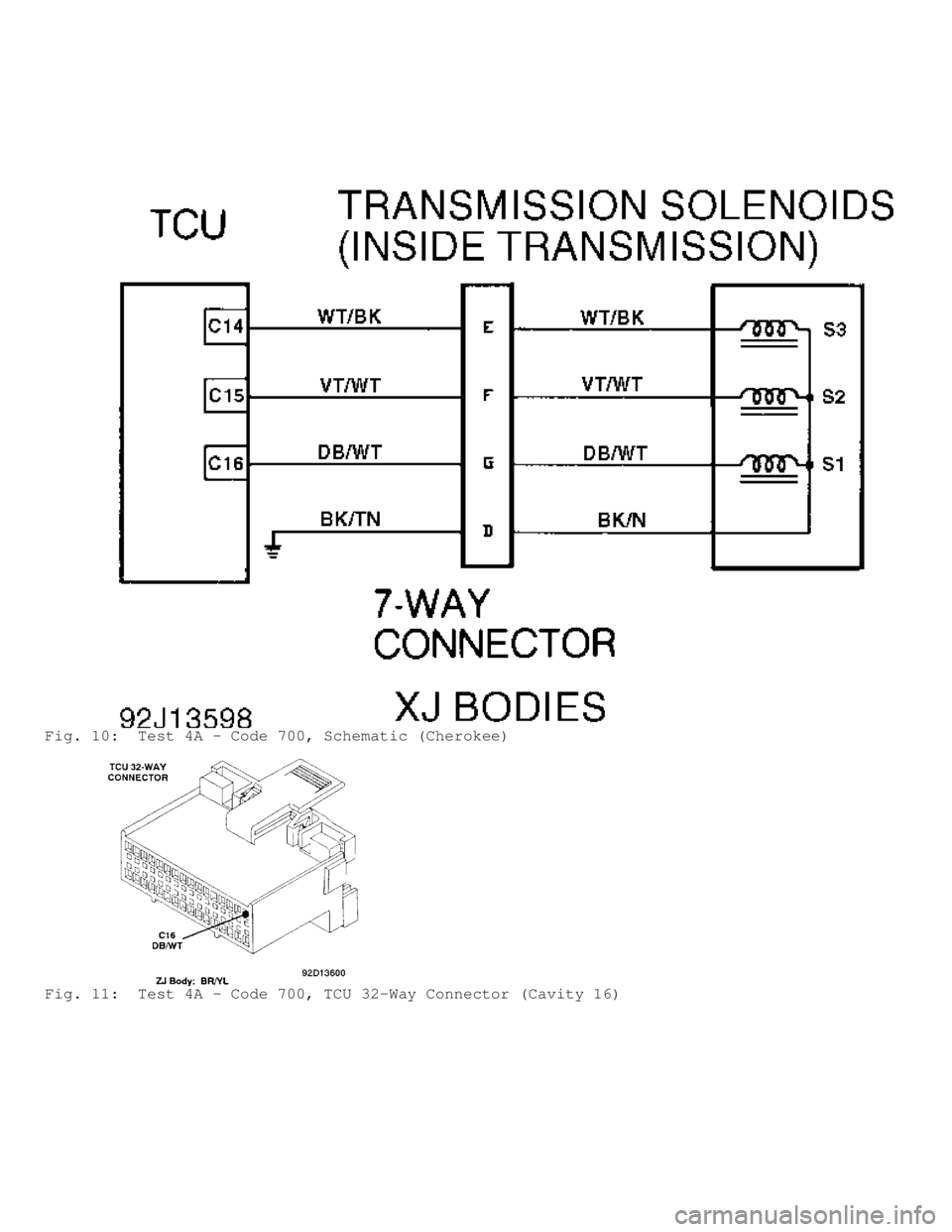

Fig. 17: Test 4A - Code 700, TCU 32-Way Connector (Cavity 16)

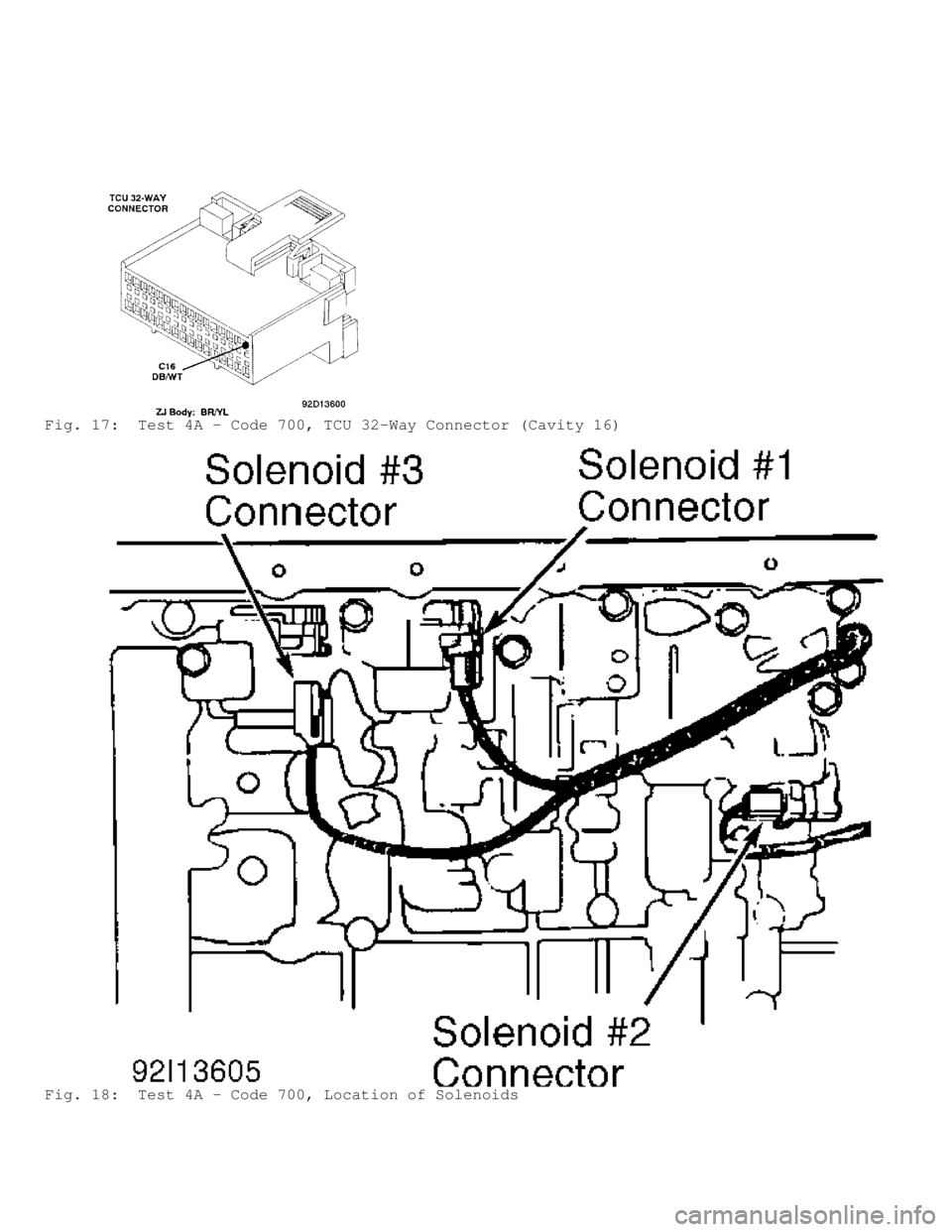

Fig. 18: Test 4A - Code 700, Location of Solenoids

Fig. 19: Test 4A - Code 700, Solenoid No. 1 Wire (Cavity "G")

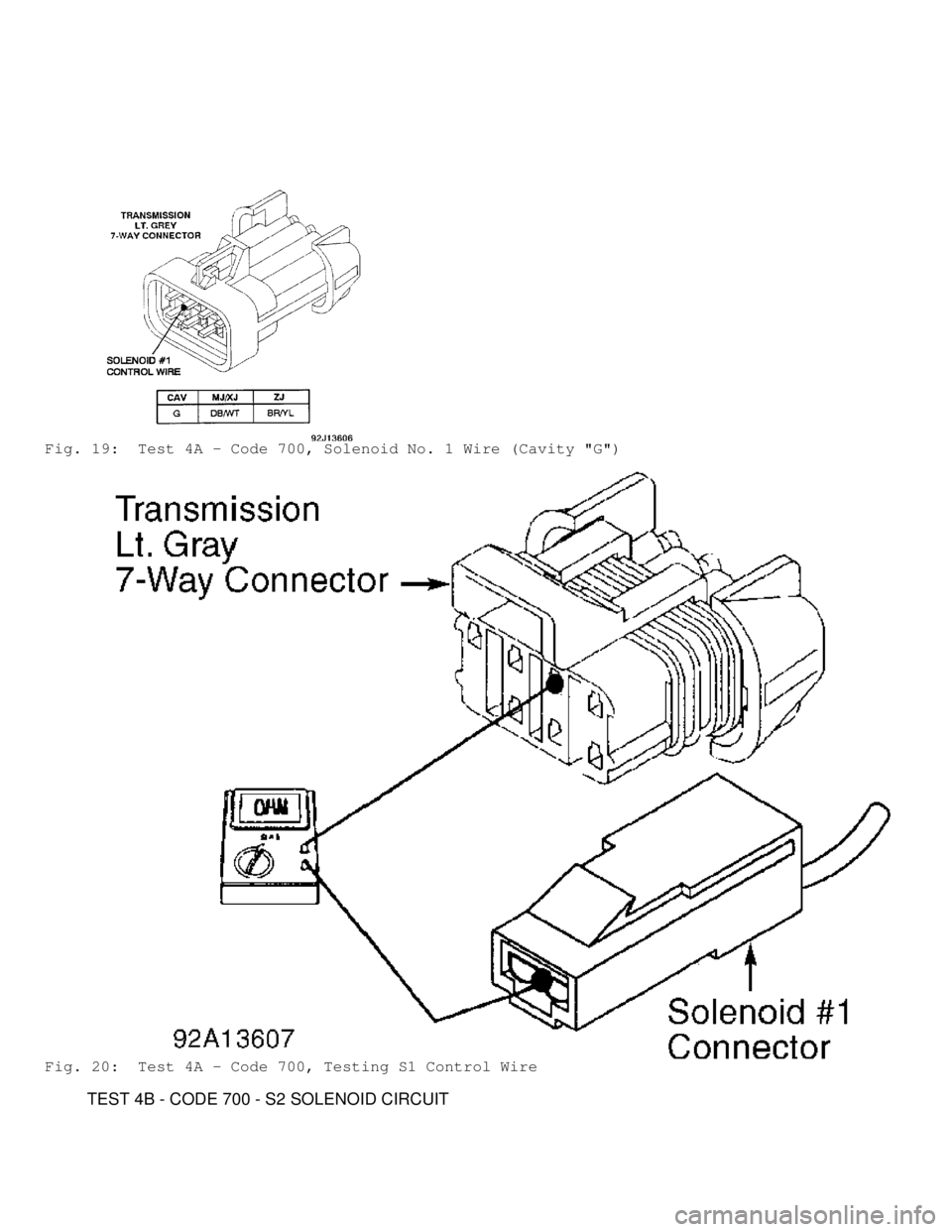

Fig. 20: Test 4A - Code 700, Testing S1 Control Wire
TEST 4B - CODE 700 - S2 SOLENOID CIRCUIT

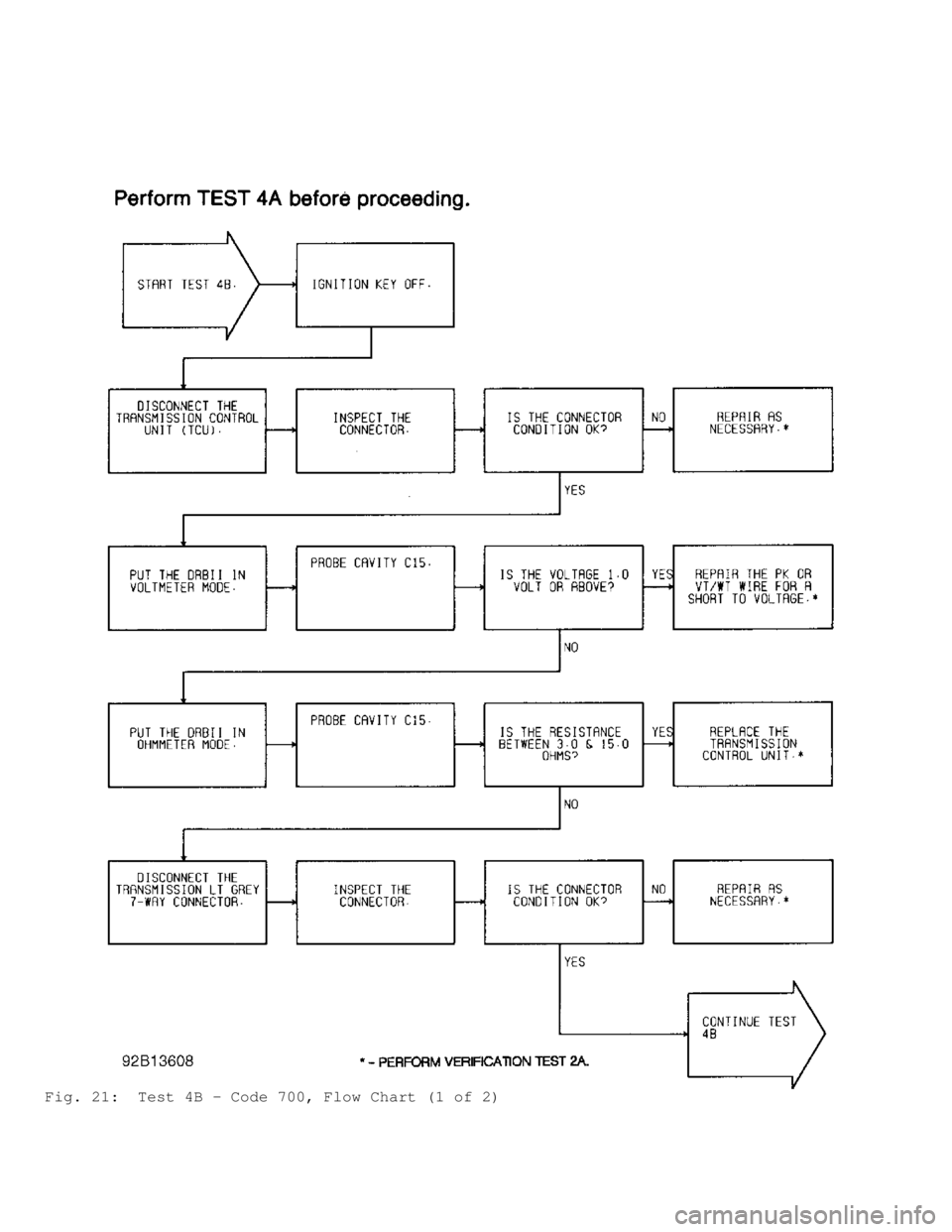

Fig. 21: Test 4B - Code 700, Flow Chart (1 of 2)

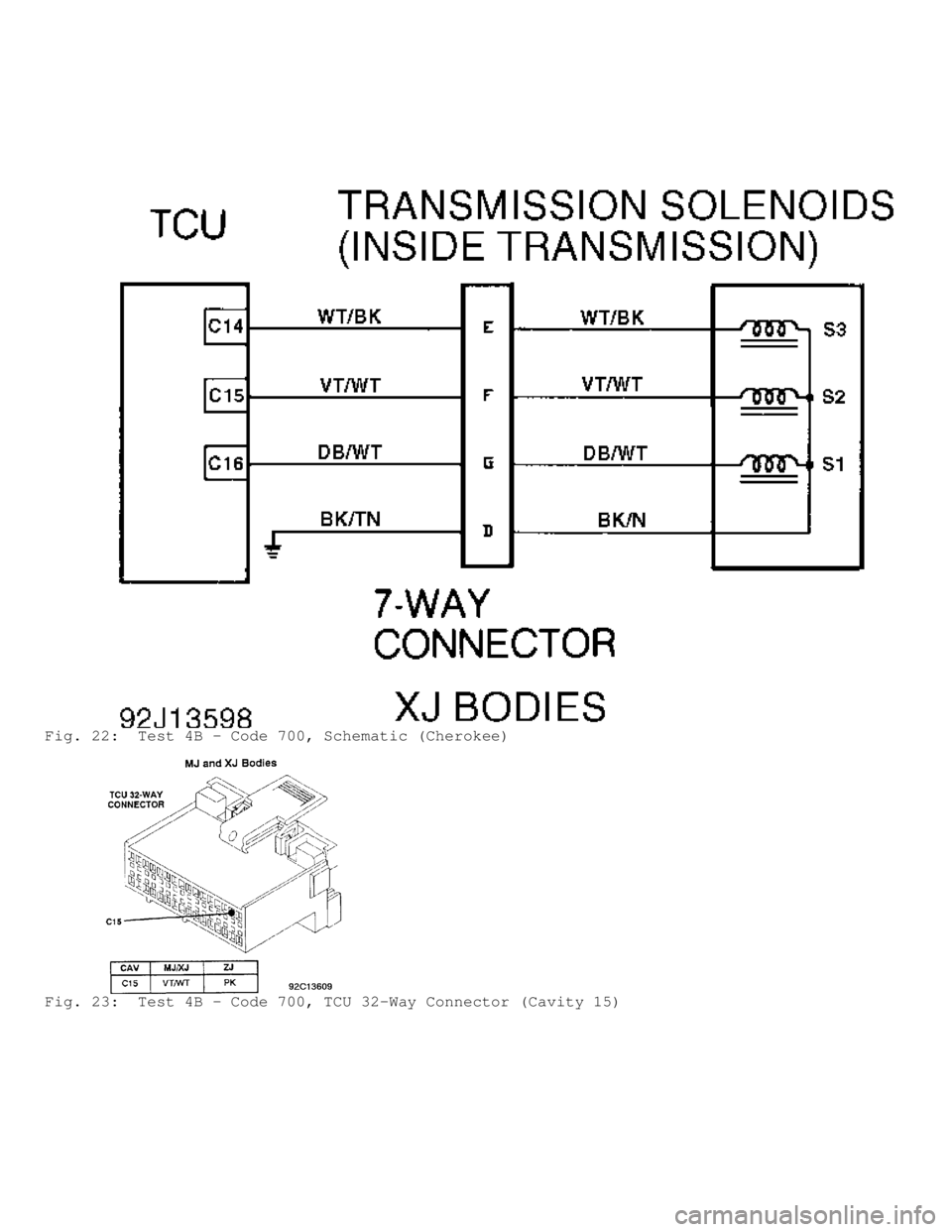

Fig. 22: Test 4B - Code 700, Schematic (Cherokee)
Fig. 23: Test 4B - Code 700, TCU 32-Way Connector (Cavity 15)
