1988 JEEP CHEROKEE Service Repair Manual

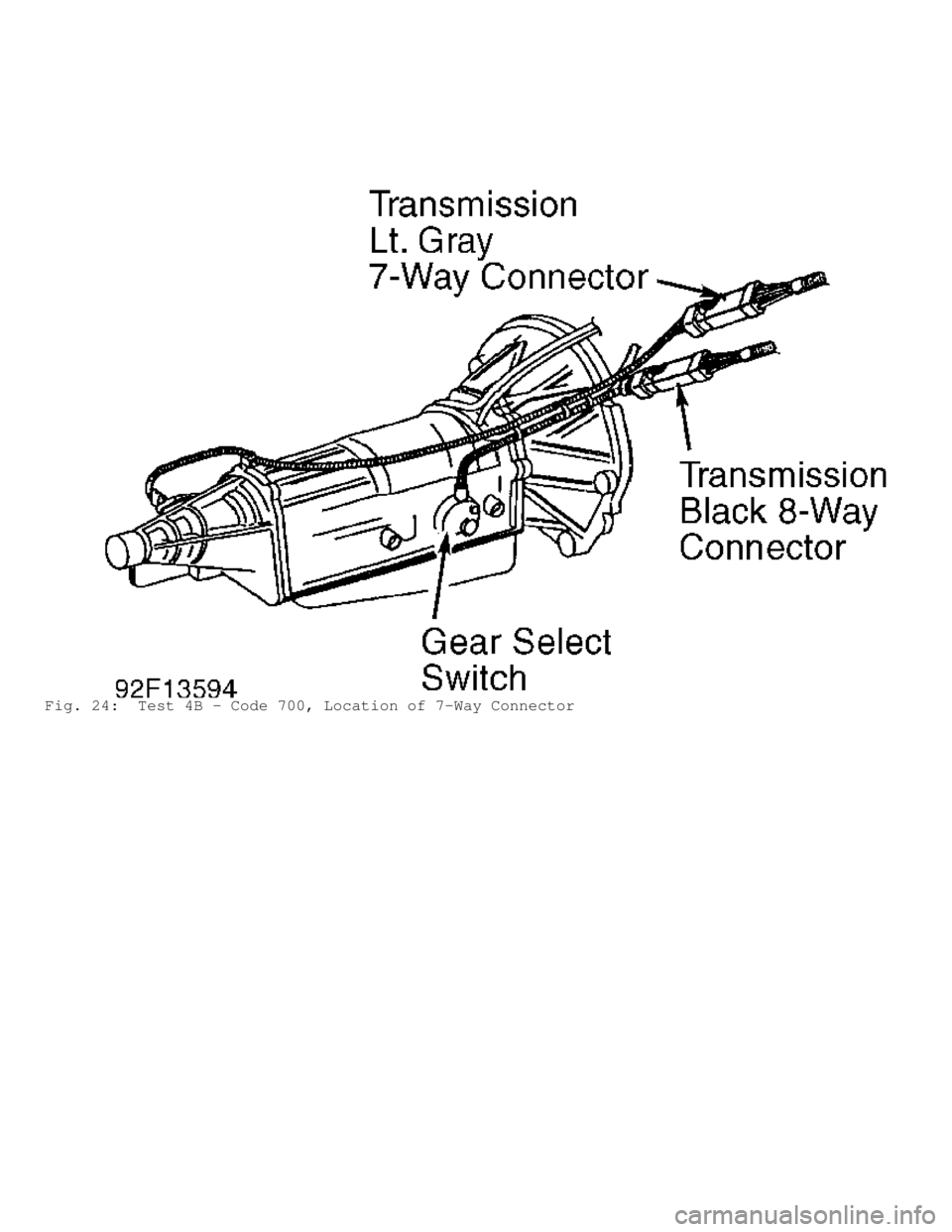

Fig. 24: Test 4B - Code 700, Location of 7-Way Connector

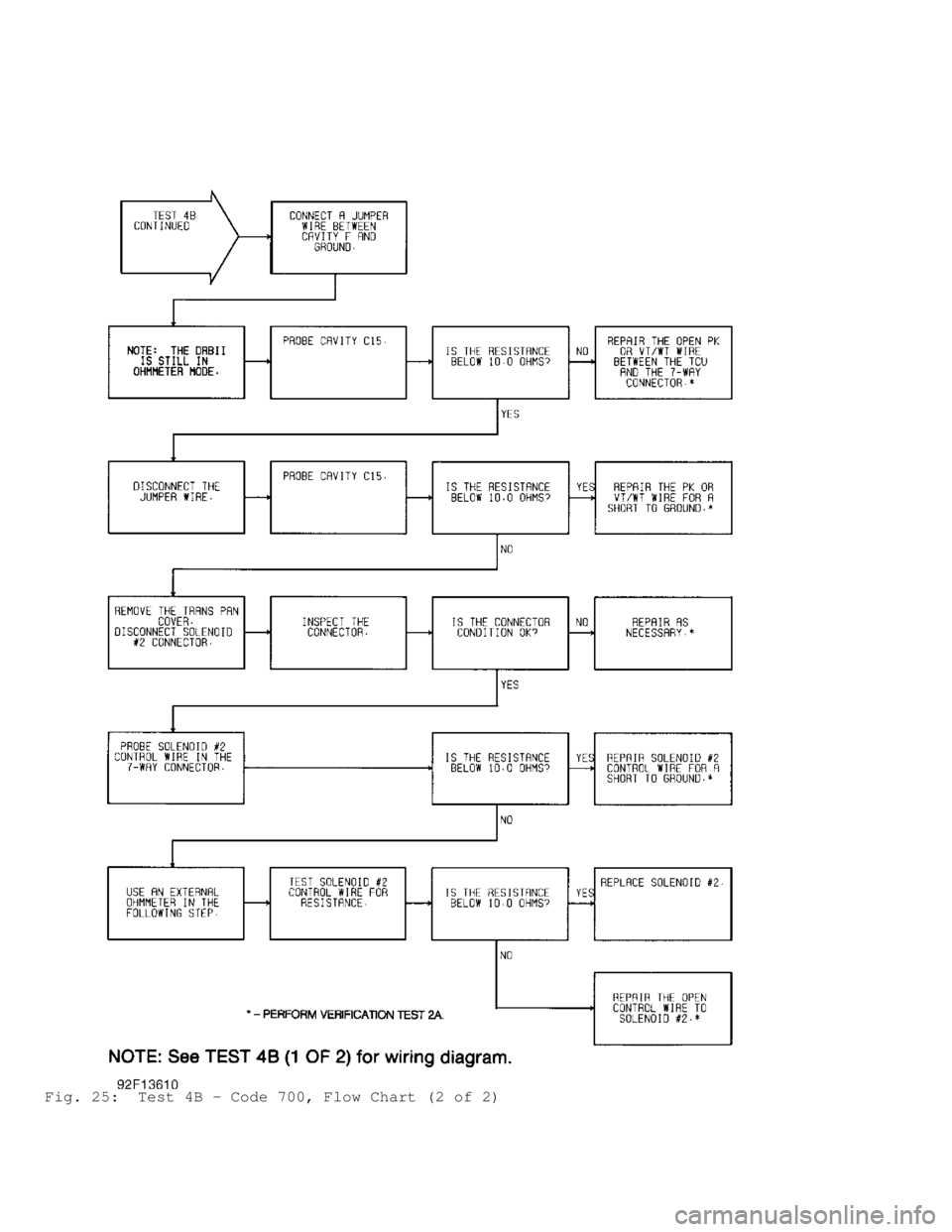

Fig. 25: Test 4B - Code 700, Flow Chart (2 of 2)

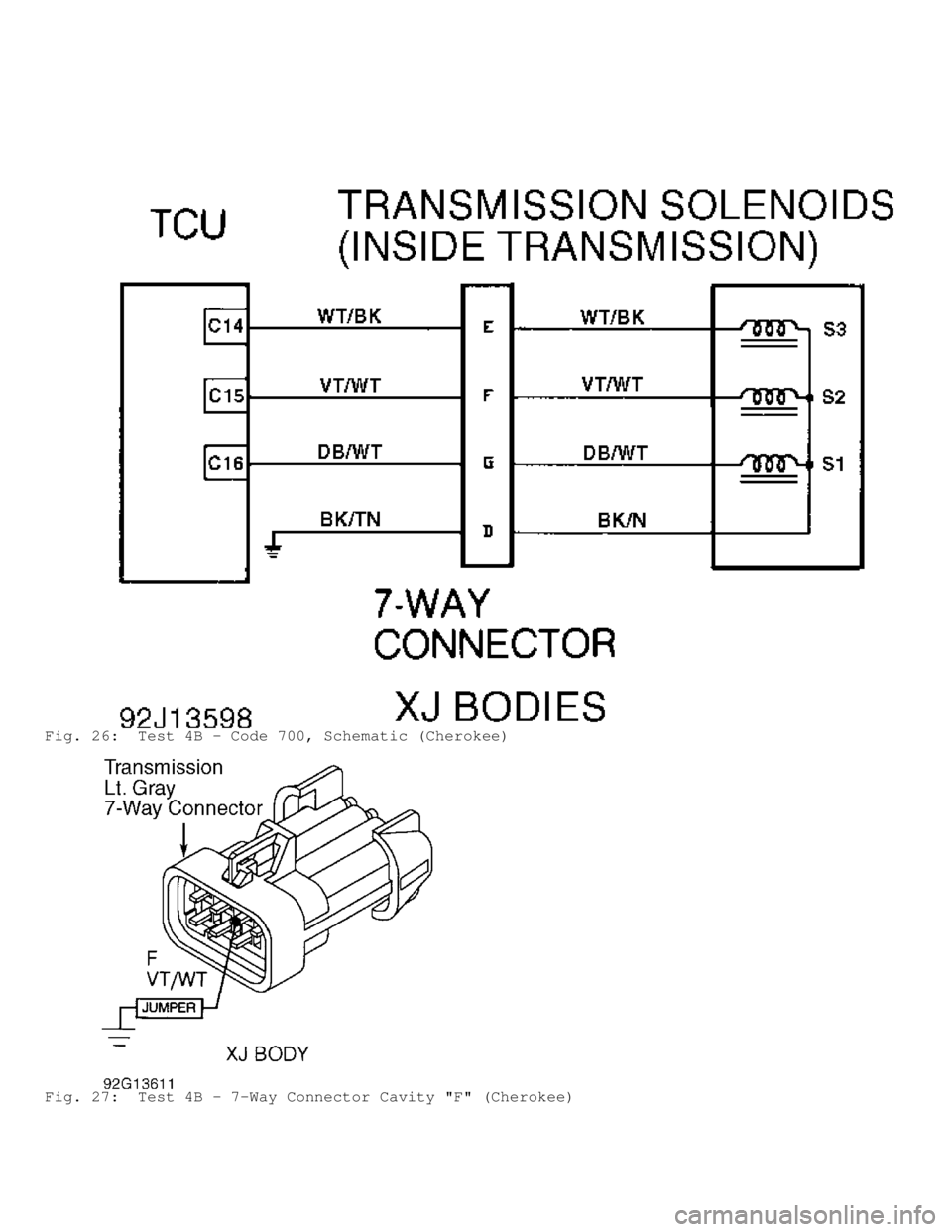

Fig. 26: Test 4B - Code 700, Schematic (Cherokee)
Fig. 27: Test 4B - 7-Way Connector Cavity "F" (Cherokee)

Fig. 28: Test 4B - Code 700, TCU 32-Way Connector (Cavity 15)

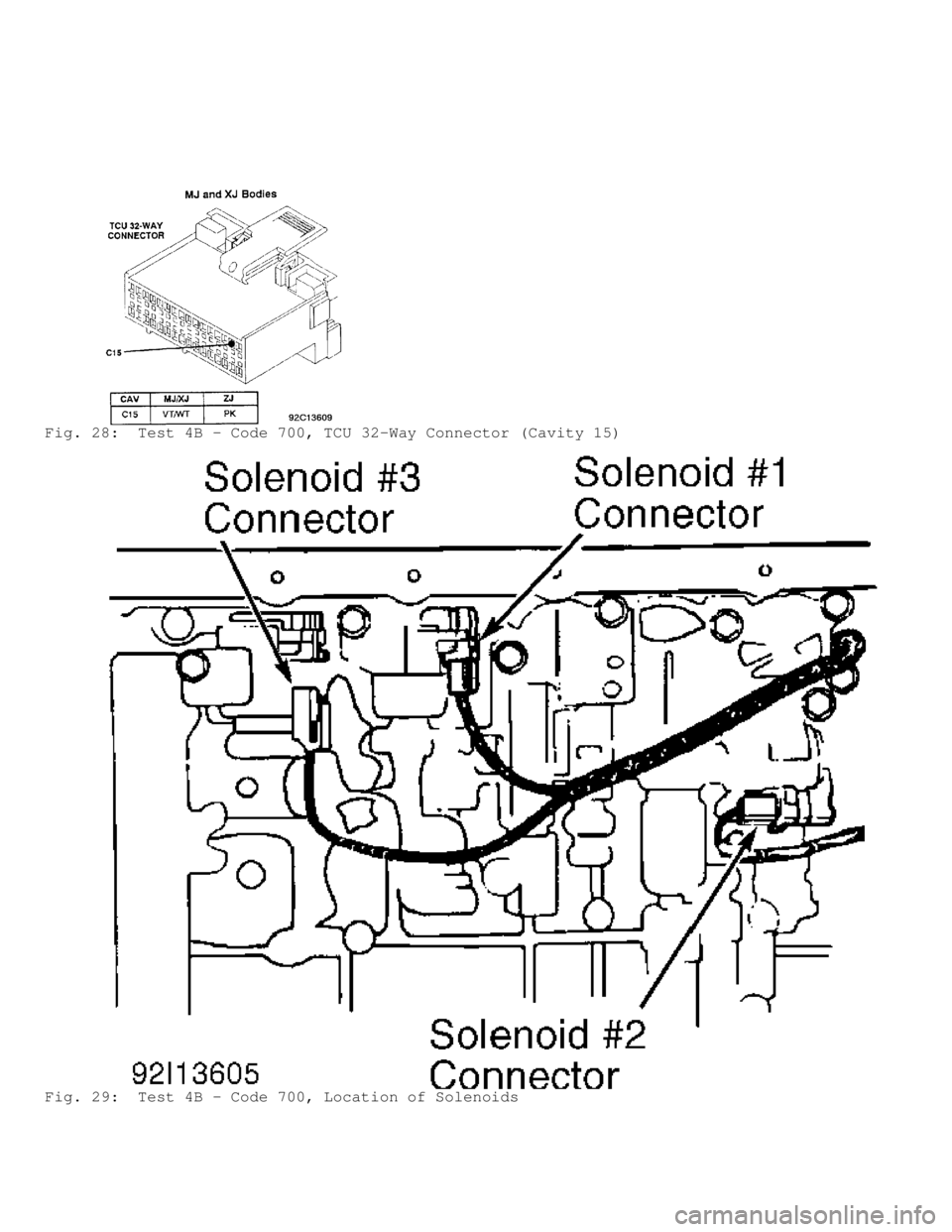

Fig. 29: Test 4B - Code 700, Location of Solenoids

Fig. 30: Test 4B - Code 700, Solenoid No. 1 Wire (Cavity "F")

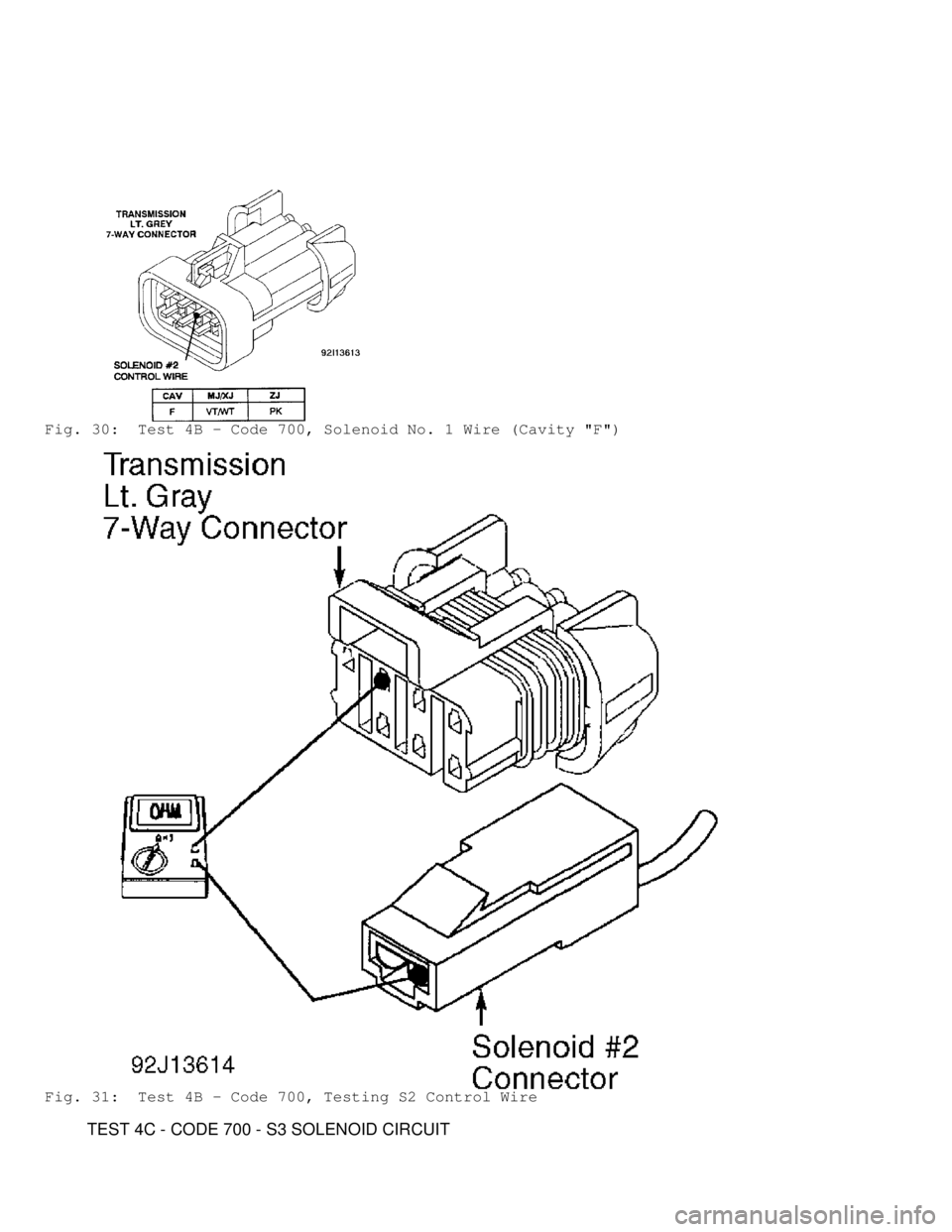

Fig. 31: Test 4B - Code 700, Testing S2 Control Wire
TEST 4C - CODE 700 - S3 SOLENOID CIRCUIT

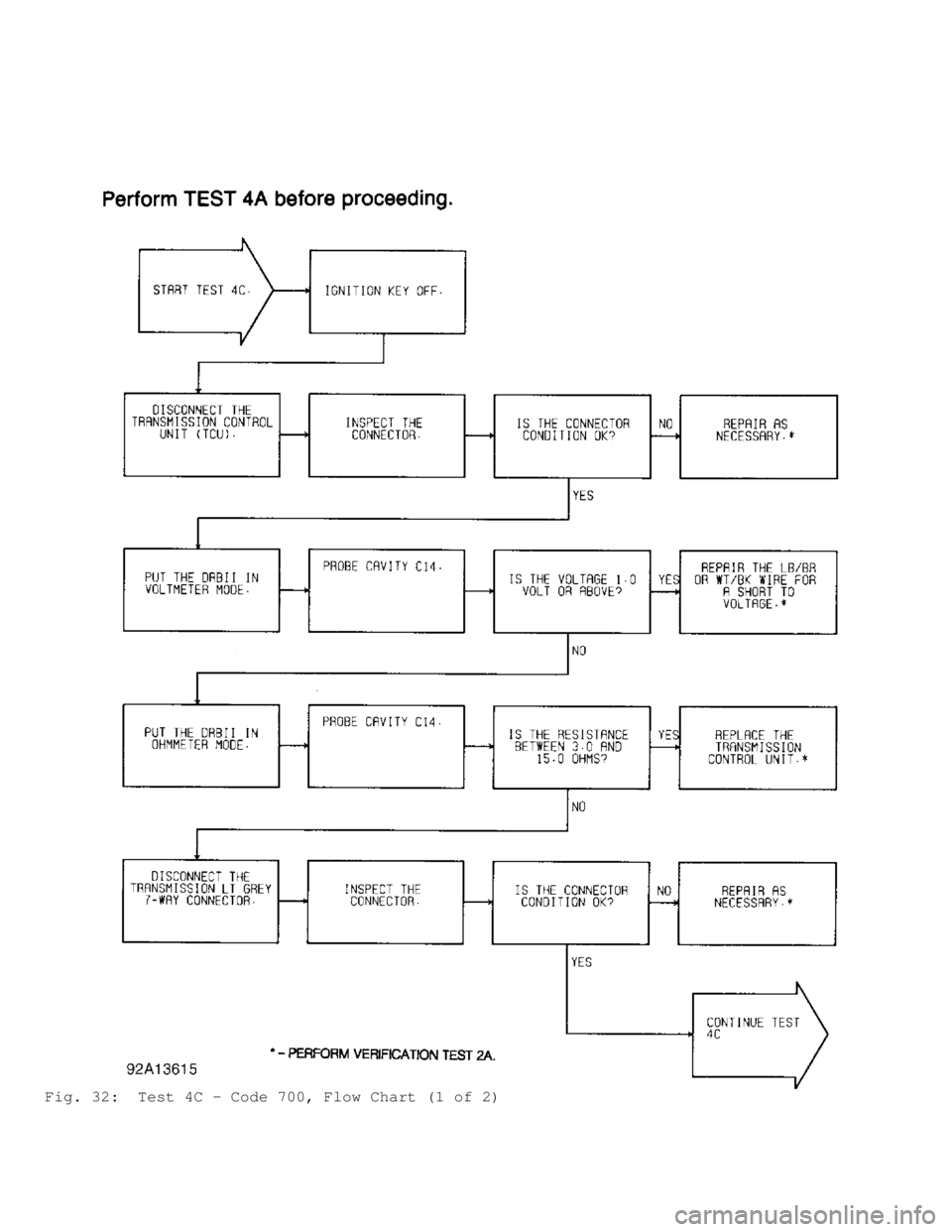

Fig. 32: Test 4C - Code 700, Flow Chart (1 of 2)

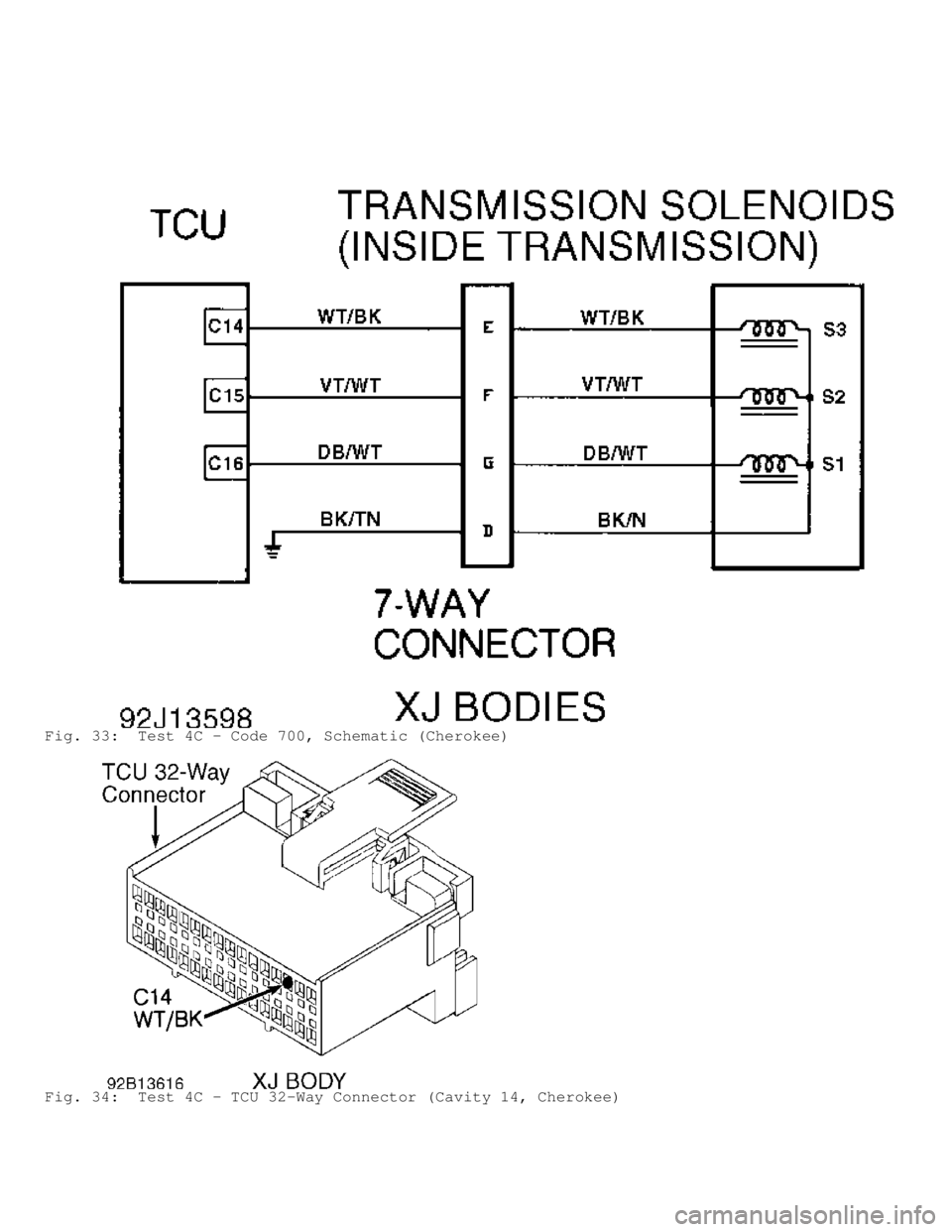

Fig. 33: Test 4C - Code 700, Schematic (Cherokee)
Fig. 34: Test 4C - TCU 32-Way Connector (Cavity 14, Cherokee)

Fig. 35: Test 4C - Code 700, Location of 7-Way Connector
