1988 JEEP CHEROKEE Service Repair Manual

WIR IN G D IA G RAM S

1988 J e ep C hero ke e
1988 Wiring Diagrams
Jeep
Cherokee & Wagoneer
IDENTIFICATION
COMPONENT LOCATION MENU
COMPONENT LOCATIONS TABLE








\









\









\









\









\









\









\


Component Figure No. (Location)
A/C & Htr Systems ............................... 5 (A-D 16-19)
Alternator ............................................ 1 (C 3)
Audio Alarm Module ................................... 7 (D 27)
Back-Up Lt Sw (M/T) .................................. 4 (D 12)
Battery ............................................... 1 (A 2)
Beam Sel Sw .......................................... 6 (E 23)
Brake Warning Sw ..................................... 6 (C 20)
Clock ................................................ 7 (E 27)
Clutch Switch ........................................ 4 (E 15)
Courtesy Lights ................................... 7 (C 24-26)
Cruise Ctrl Sys ................................... 4 (E 12-15)
Diag Conn D1 (2.5L) ................................... 3 (B 9)
Diag Conn D1 (4.0L) ................................... 2 (B 4)
Diag Conn D2 (2.5L) .................................. 3 (B 11)
Diag Conn D2 (4.0L) ................................... 2 (B 7)
DIR Hazard Sw ................................... 6 (D-E 20-21)
Door Switches ........................................ 7 (C 27)
Elect Ctrl Unit (2.5L) ............................. 3 (A 9-10)
Elect Ctrl Unit (4.0L) .............................. 2 (A 4-7)
Engine Compartment Lt ................................. 1 (C 1)
Fog Light Relay ....................................... 1 (D 2)
Fog Light Sw ...................................... 6 (E 21-22)
Fuel Pump Rly (2.5L) .................................. 3 (C 9)
Fuel Pump Rly (4.0L) ................................ 2 (E 5-6)
Fuel Tank Unit ....................................... 6 (B 20)
Fus Links ........................................... 1 (B 2-3)
Fuse Block ...................................... 4 (B-D 12-15)
4WD Switch ..................................... 6 (C 20, D 21)
Gear Sel Sw .......................................... 5 (C 16)
Glove Box Light ...................................... 7 (C 25)
Headlight Delay Module ............................... 6 (E 23)
Headlight Switch .................................. 6 (D 22-23)
Horn Relay ............................................ 1 (C 2)
Ignition Ctrl Mod (2.5L) ............................ 3 (B-C 8)
Ignition Ctrl Module (4.0L) ........................... 2 (E 4)
Ignition Key Warn Sw ................................. 7 (D 26)
Ignition Switch ................................... 4 (A 12-15)
Illum Lights .................................... 7 (C-D 24-25)
Instrument Cluster .............................. 6 (A-C 22-23)
Keyless Entry Module .............................. 7 (B 24-25)
Latch Rly (B+) (4.0L) ............................... 2 (B-C 4)
Power Antenna Rly .................................. 7 (D-E 27)
Power/Comfort Sw ..................................... 5 (D 19)
Power Door Lock Sys ............................. 7 (A-C 24-27)
Power Mirror Sw ................................. 7 (D-E 24-25)
Power Seat Sw ................................... 8 (A-B 28-29)

Power Window Sys ................................ 7 (A-C 24-27)
Radiator Fan Rly (4.0L) ............................. 1 (C 1-2)
Radiator Fan Diode Assy ............................... 1 (C 3)
Radiator Temp Switch .................................. 1 (C 3)
Rear Defogger Unit ................................ 8 (D 28-29)
Rear Wiper/Washer Unit .......................... 8 (B-C 29-30)
Resistor Pack ........................................ 6 (E 21)
Rt Fnt Door Lock/Window Switch .................... 7 (B 26-27)
Starter Solenoid .................................... 1 (A 2-3)
Starter Solenoid Relay ................................ 1 (A 2)
Stop Light Switch .................................... 4 (E 15)
Trailer Towing Harness (Cherokee) ................. 8 (E 28-31)
Trailer Towing Harness (Wagoneer) ................. 8 (A 28-31)
Trans Ctrl Unit ................................. 5 (D-E 16-19)
Upshift Sw (2.5L) .................................... 6 (C 21)
Vanity Lights ........................................ 7 (C 24)
Washer Fluid Level Sw ................................ 3 (D 11)
Wiper/Washer System .............................. 3 (D-E 8-11)









\









\









\









\









\









\









\


WIRING DIAGRAMS

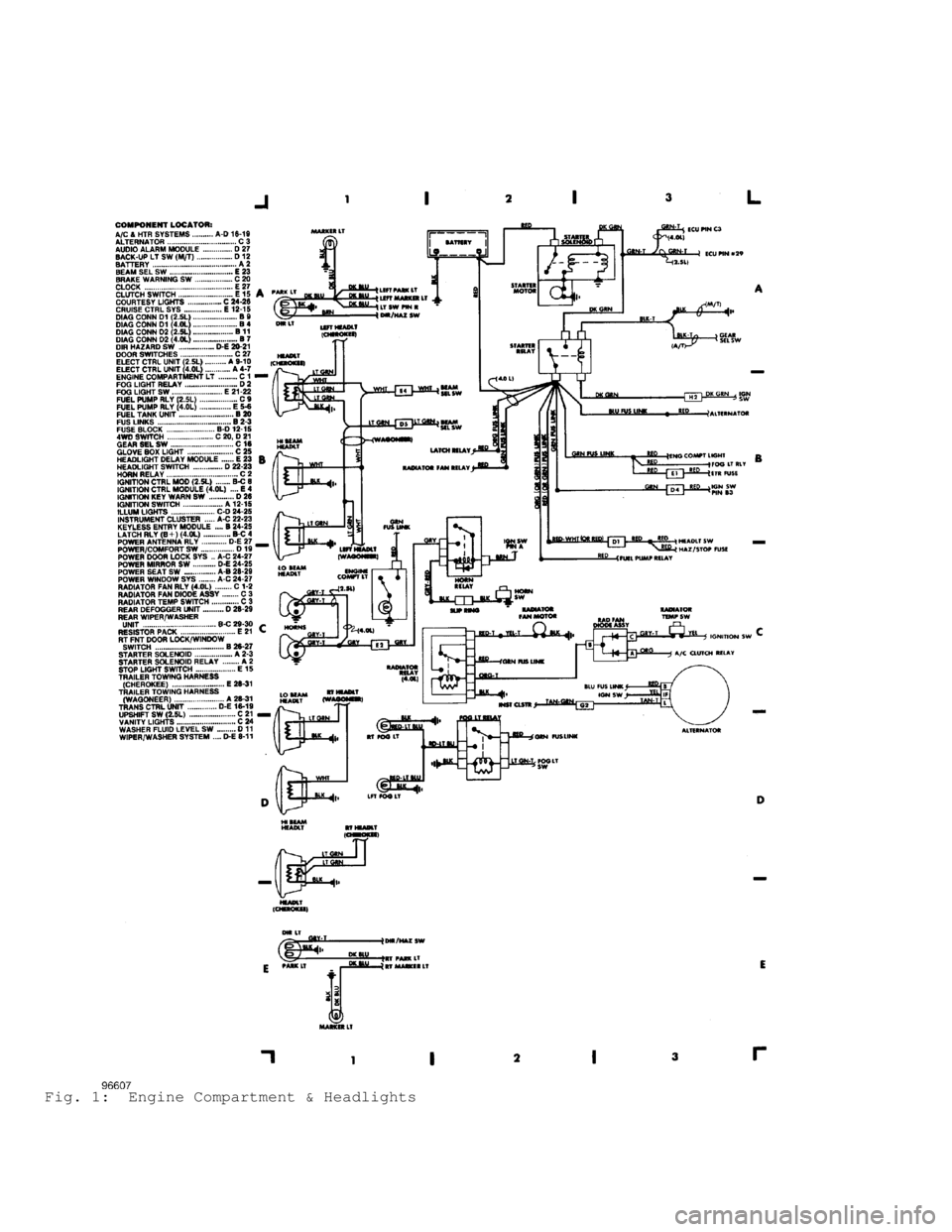

Fig. 1: Engine Compartment & Headlights

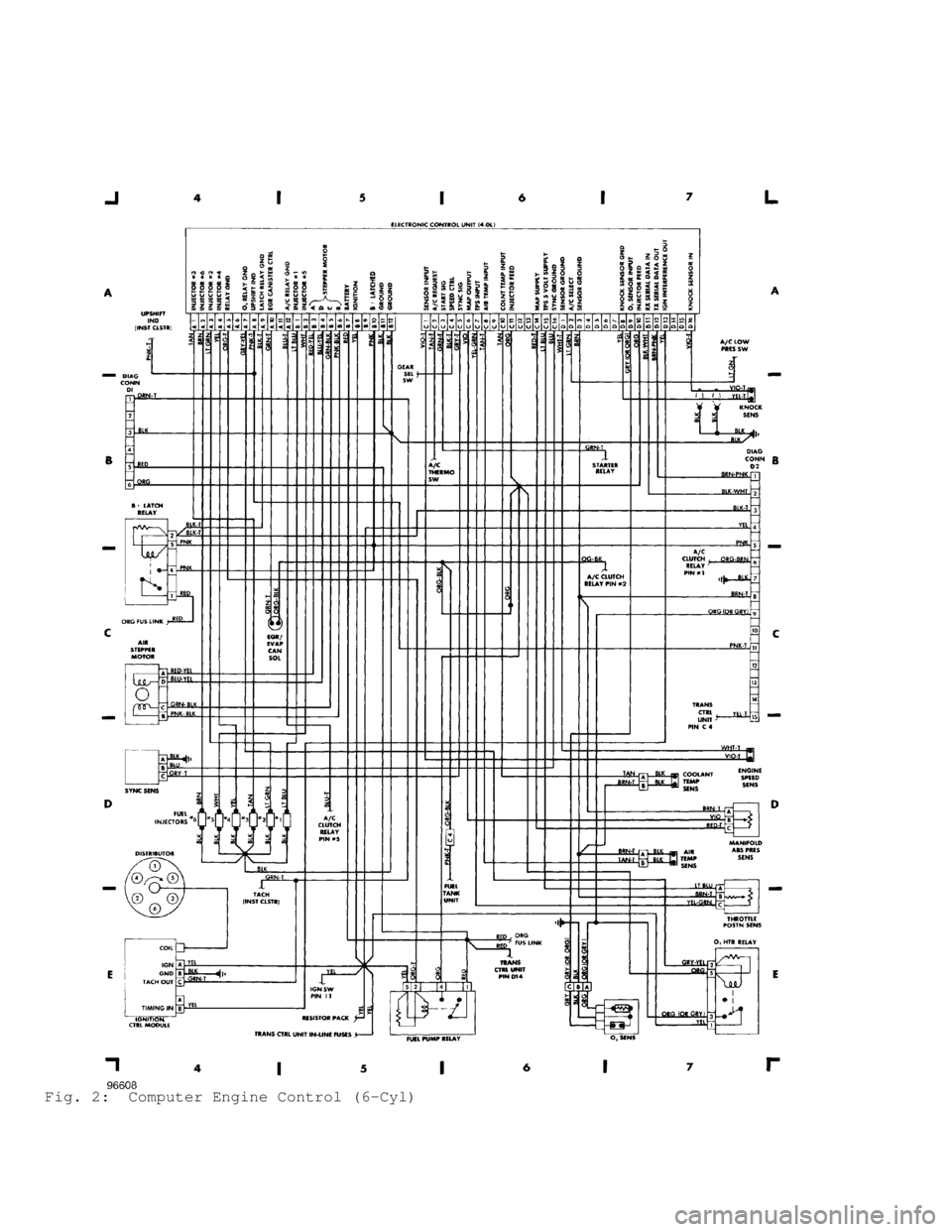

Fig. 2: Computer Engine Control (6-Cyl)

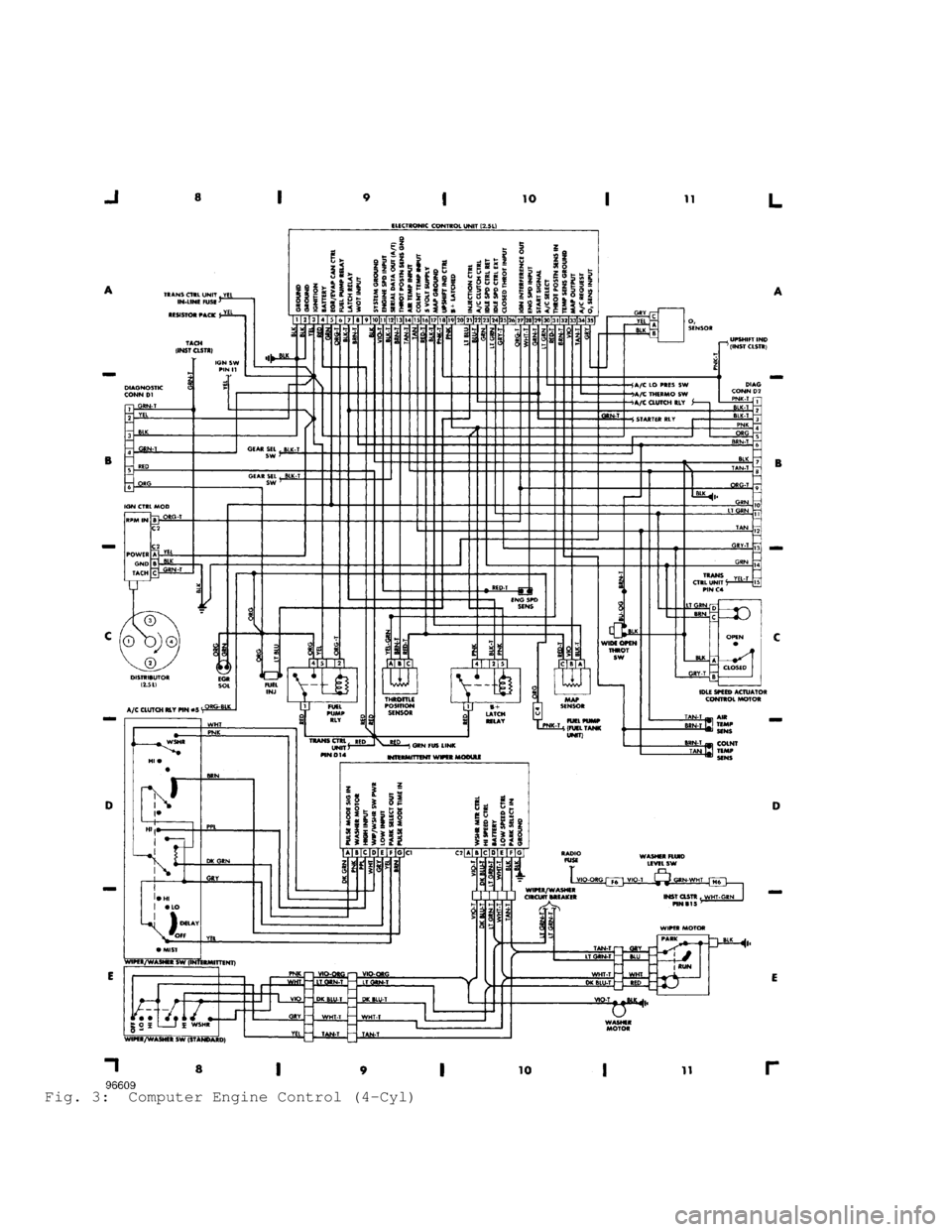

Fig. 3: Computer Engine Control (4-Cyl)

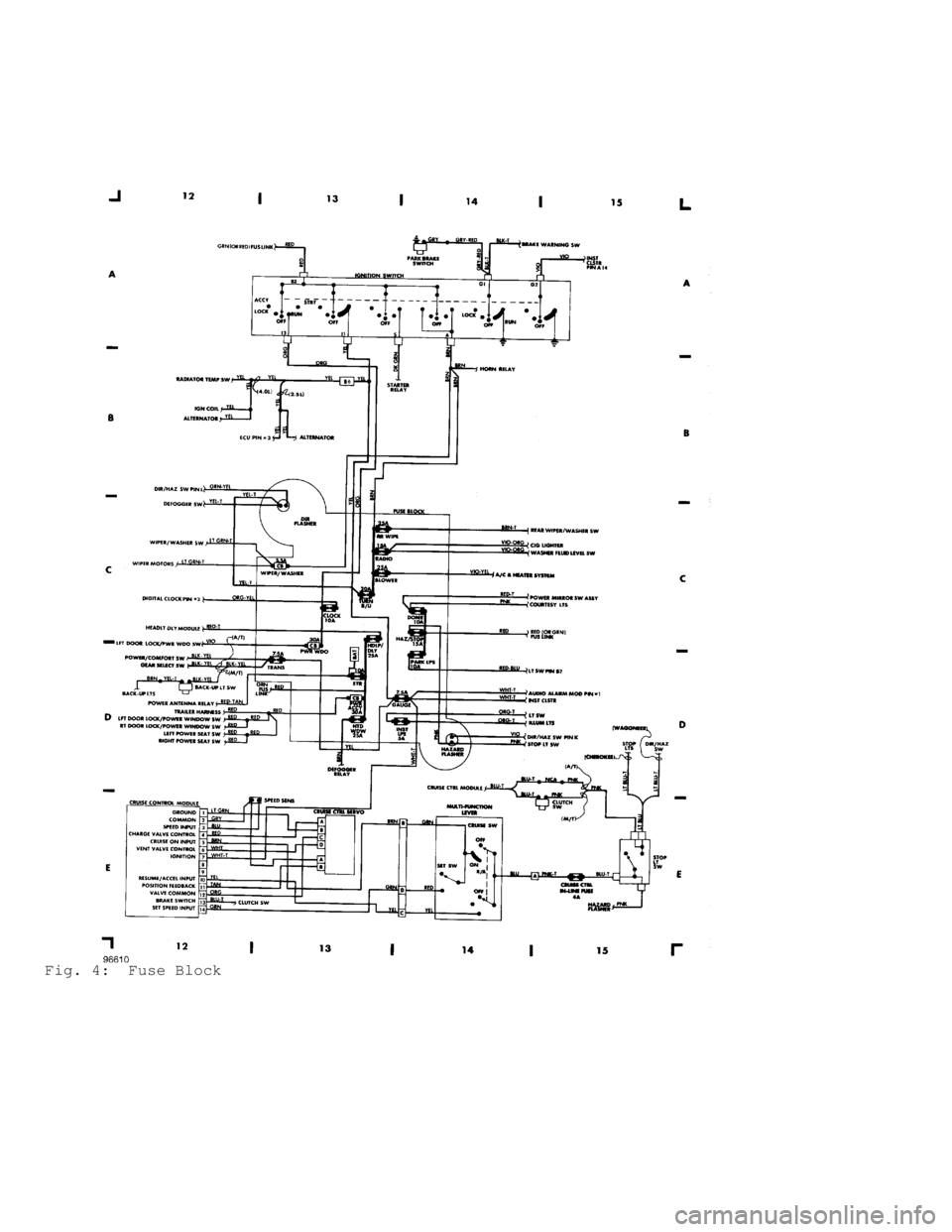

Fig. 4: Fuse Block

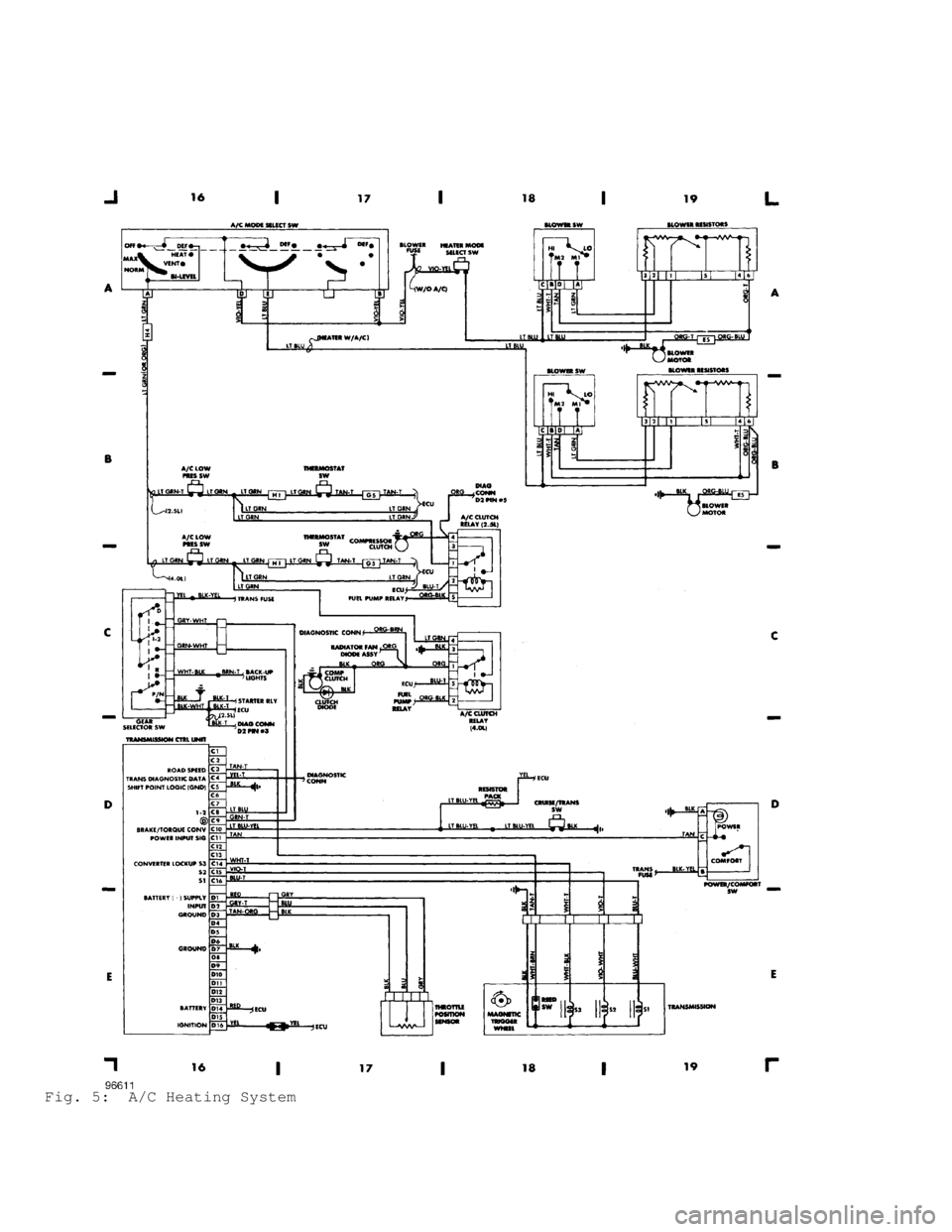

Fig. 5: A/C Heating System

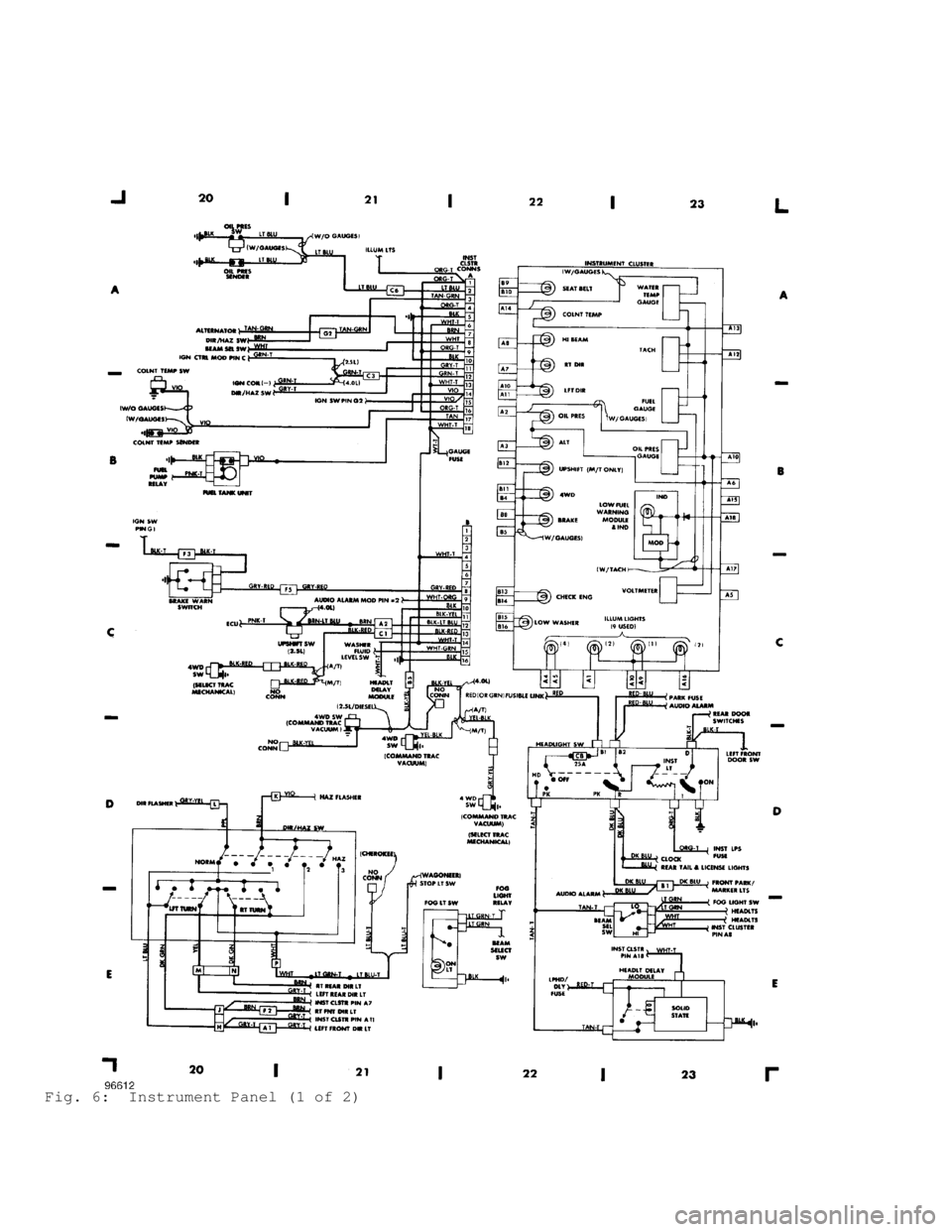

Fig. 6: Instrument Panel (1 of 2)
