1988 JEEP CHEROKEE Service Repair Manual

Fig. 4: Drive Belt Arrangement: 1983-88 2.5L Wrangler
Courtesy of Chrysler Motors
1983-86

Fig. 5: Drive Belt Arrangement: 1983-86 4.2L Wrangler
Courtesy of Chrysler Motors
1989

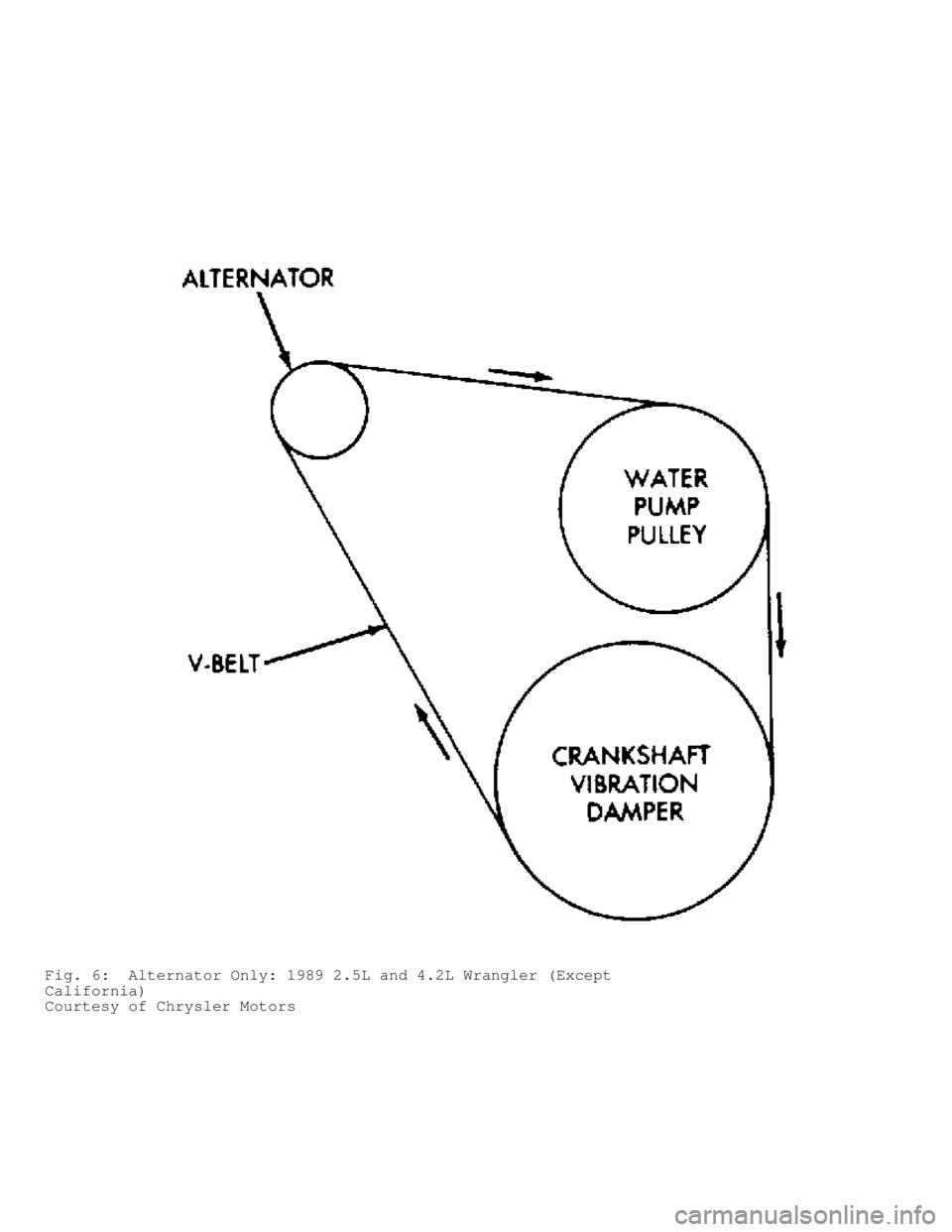

Fig. 6: Alternator Only: 1989 2.5L and 4.2L Wrangler (Except
California)
Courtesy of Chrysler Motors

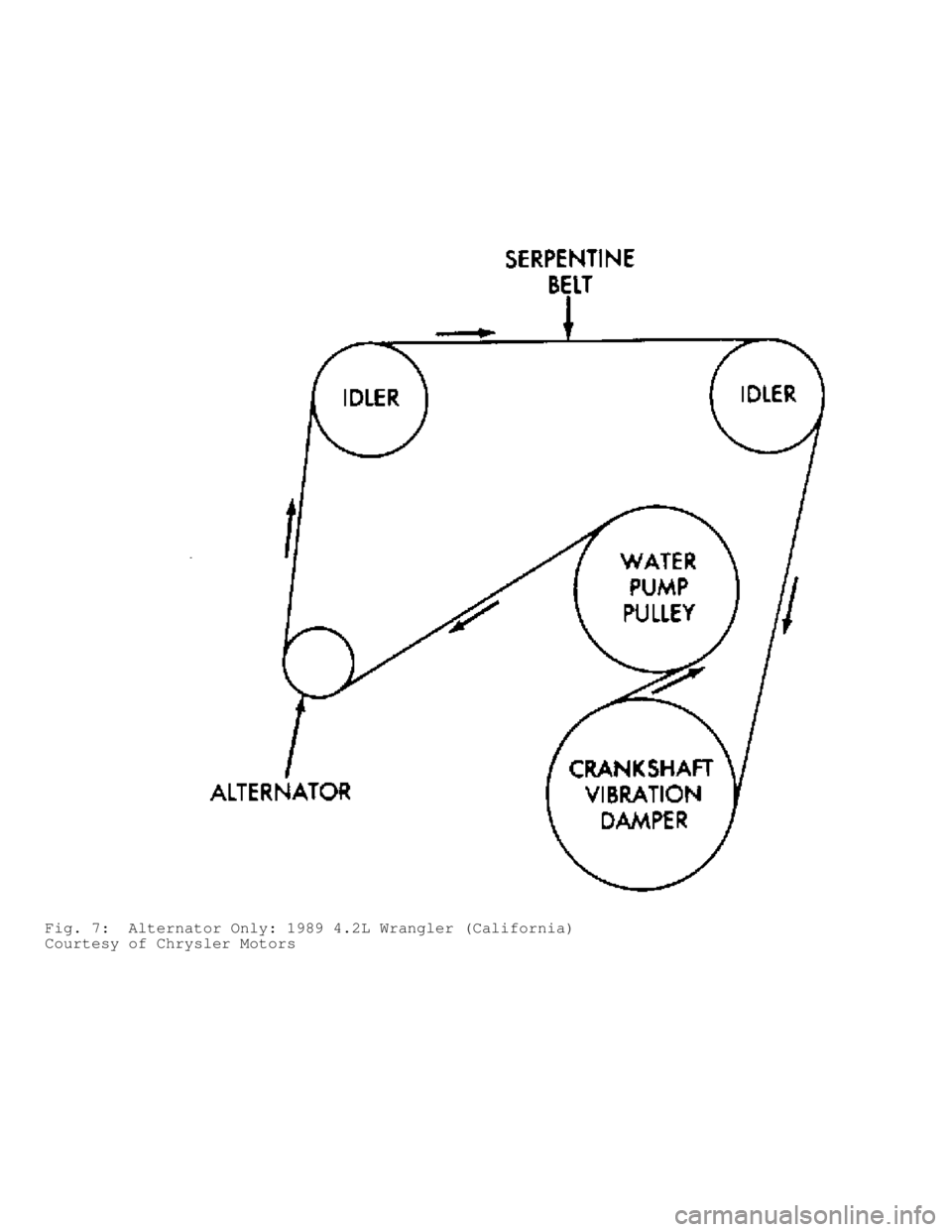

Fig. 7: Alternator Only: 1989 4.2L Wrangler (California)
Courtesy of Chrysler Motors

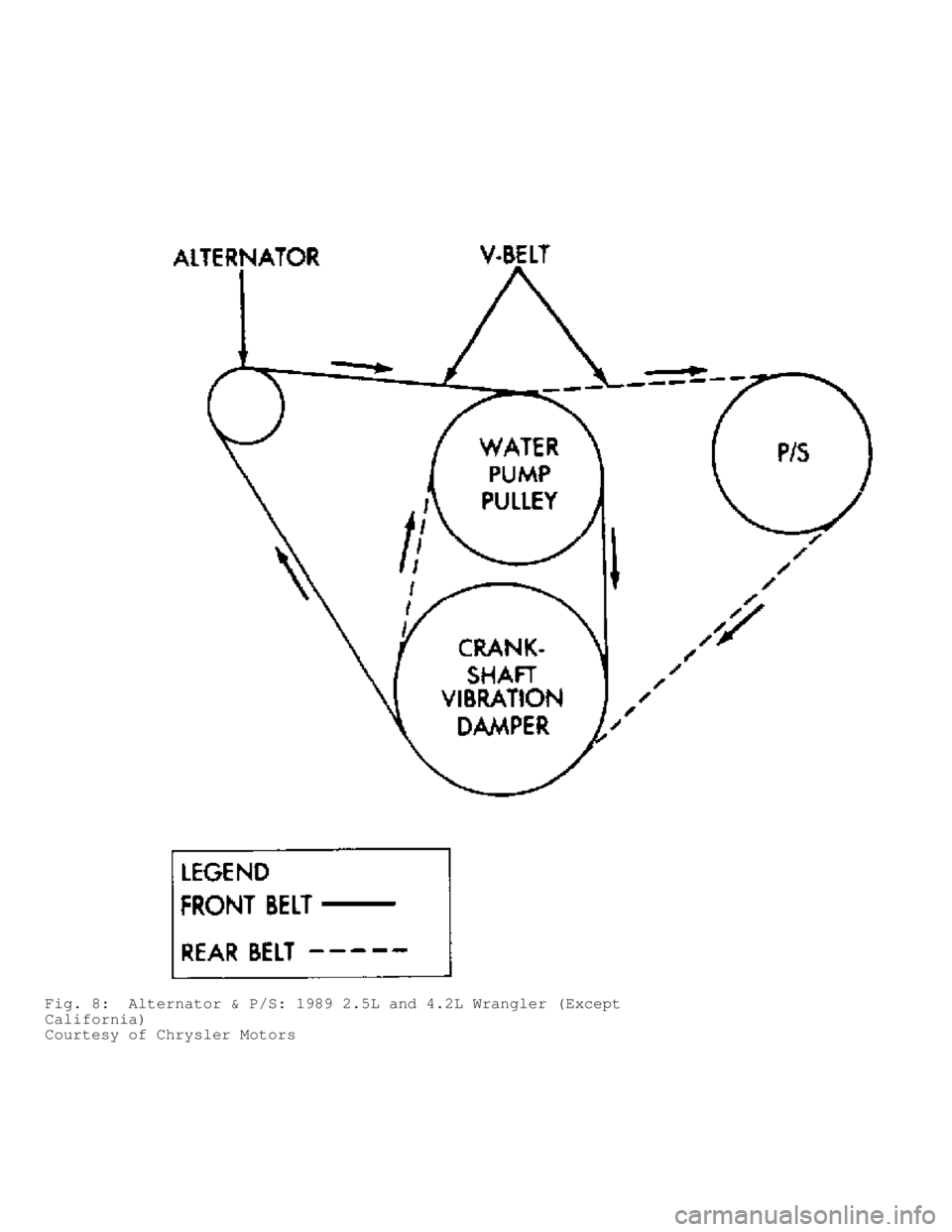

Fig. 8: Alternator & P/S: 1989 2.5L and 4.2L Wrangler (Except
California)
Courtesy of Chrysler Motors

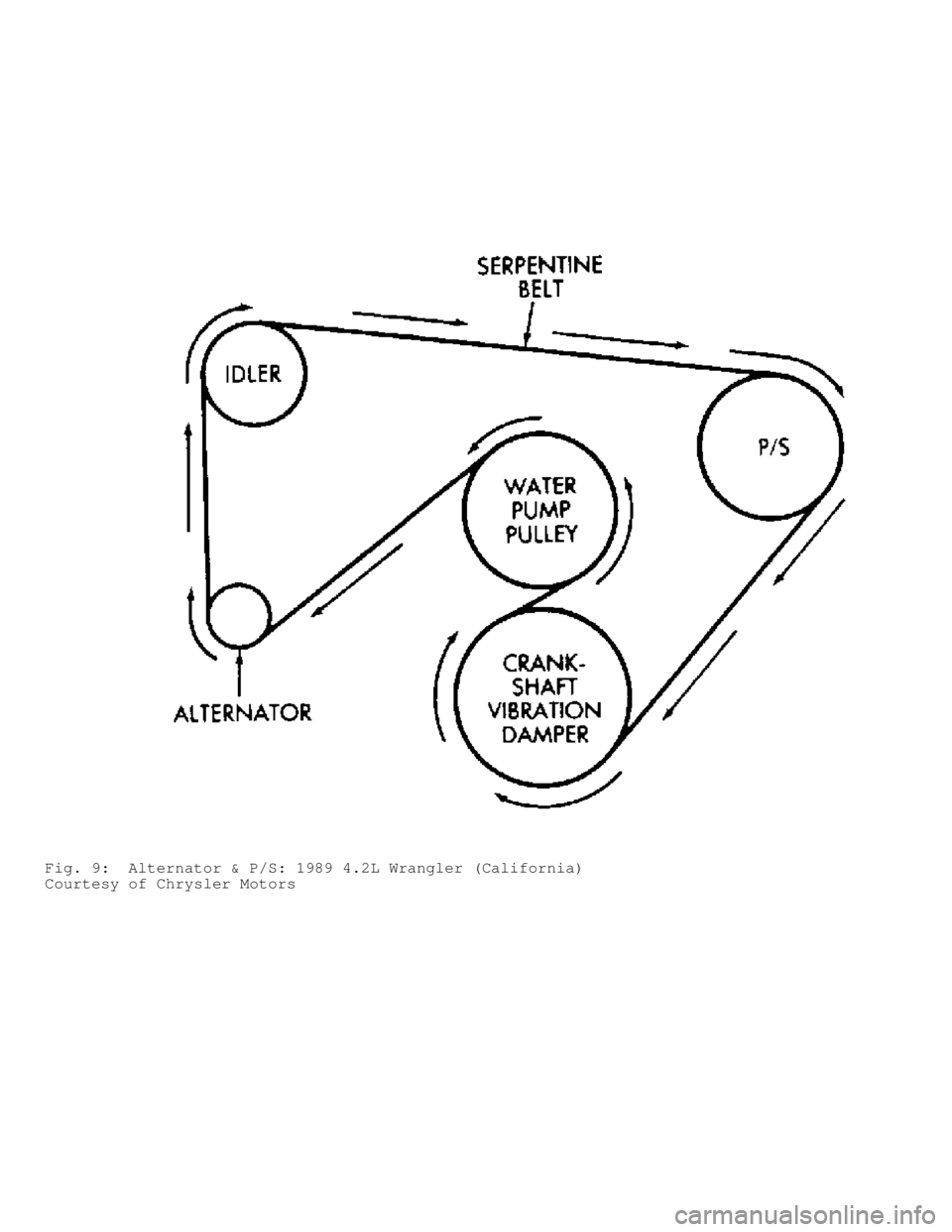

Fig. 9: Alternator & P/S: 1989 4.2L Wrangler (California)
Courtesy of Chrysler Motors

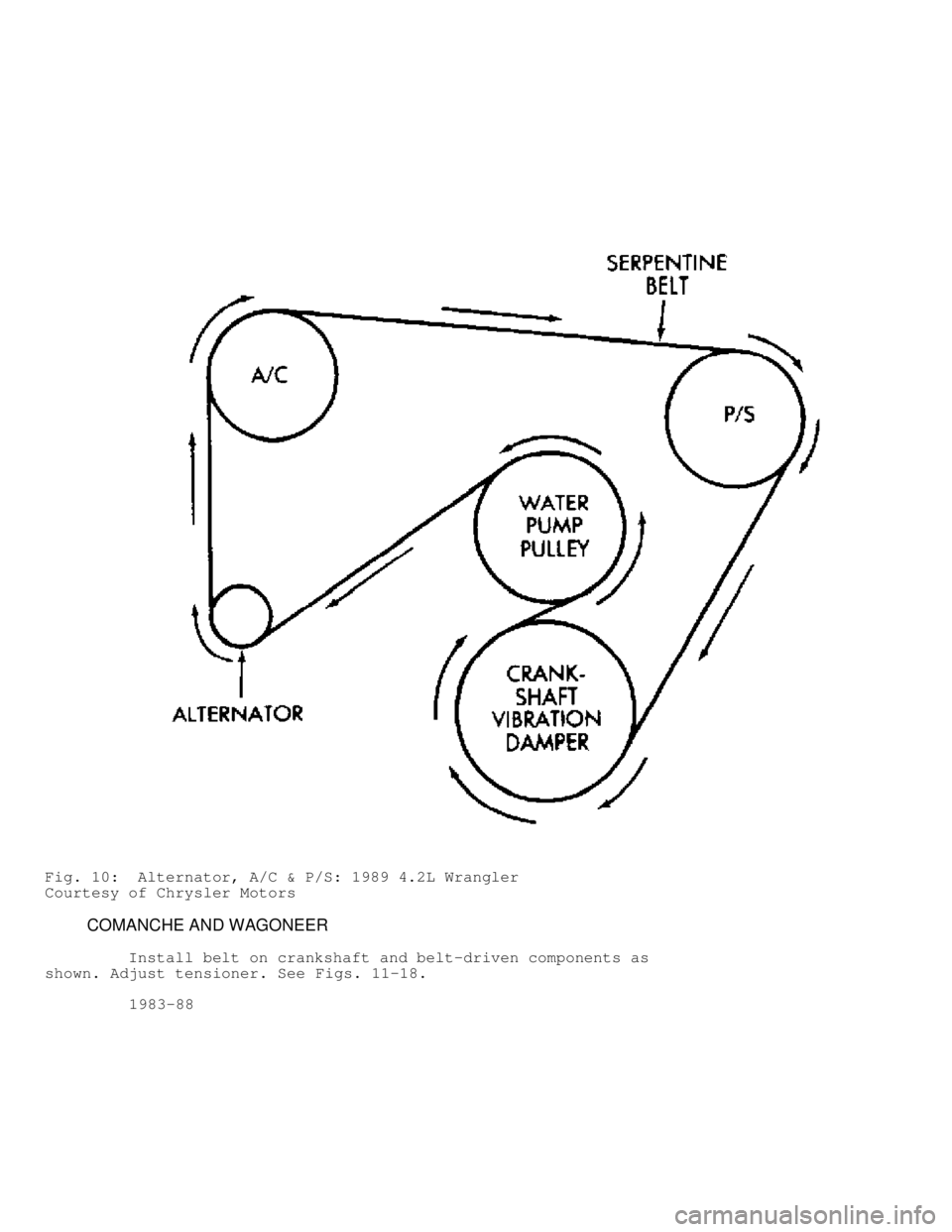

Fig. 10: Alternator, A/C & P/S: 1989 4.2L Wrangler
Courtesy of Chrysler Motors
COMANCHE AND WAGONEER
Install belt on crankshaft and belt-driven components as
shown. Adjust tensioner. See Figs. 11-18.
1983-88

Fig. 11: Drive Belt Arrangement: 1983-88 2.5L Comanche & Wagoneer
Courtesy of Chrysler Motors
1983-86
