1988 JEEP CHEROKEE Service Repair Manual

Fig. 18: Chart 4-F - System Operational Test (Cont.)

Fig. 19: Chart 4-G - System Operational Test (Cont.)

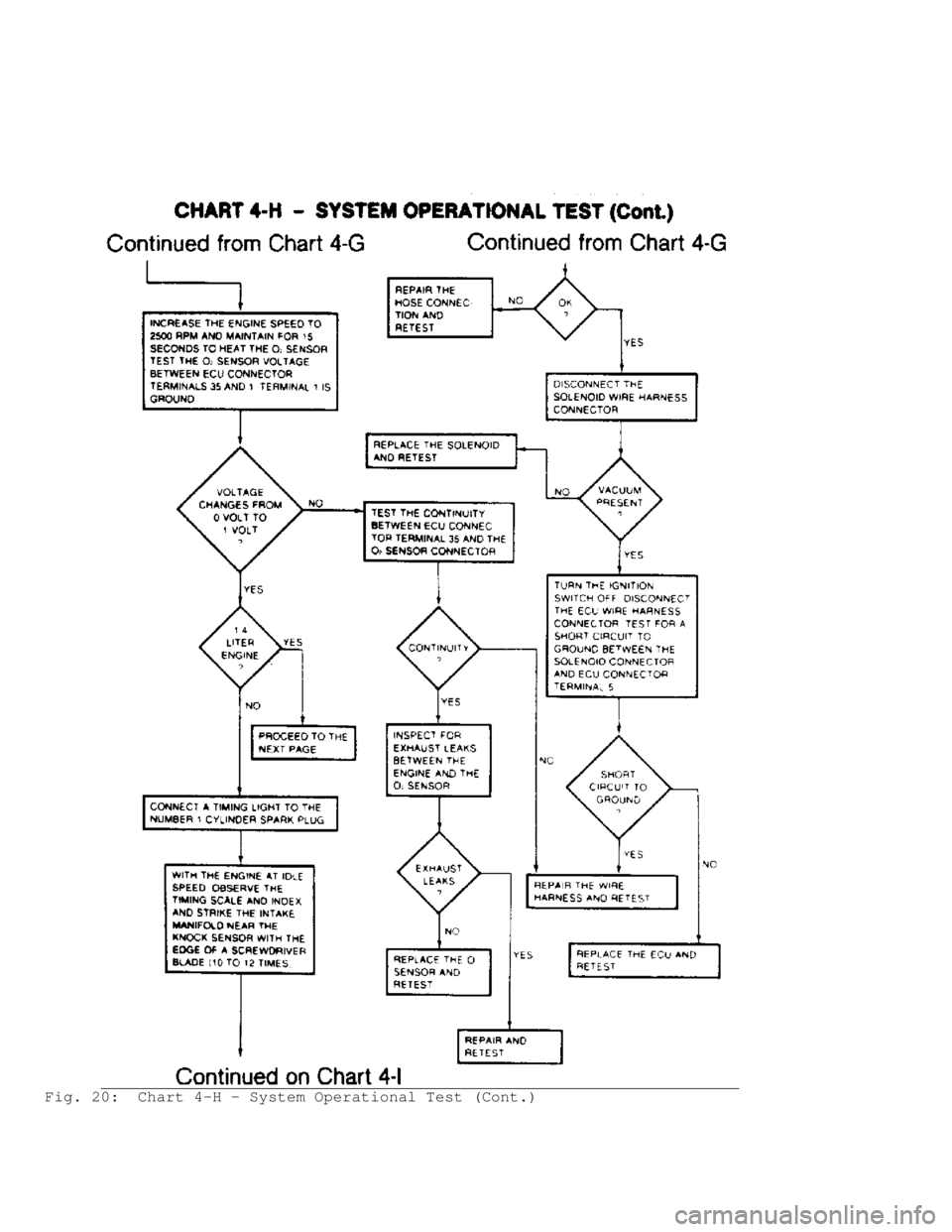

Fig. 20: Chart 4-H - System Operational Test (Cont.)

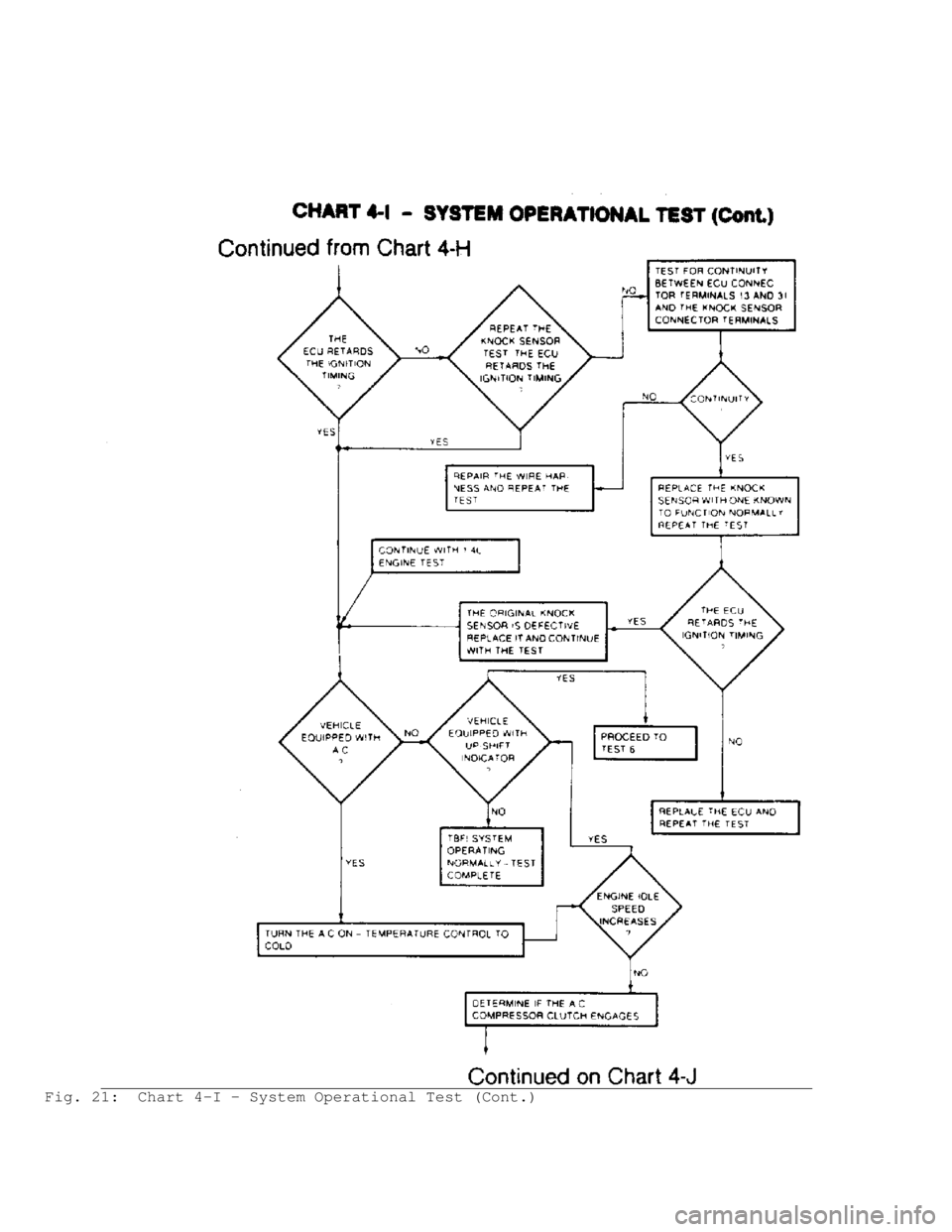

Fig. 21: Chart 4-I - System Operational Test (Cont.)

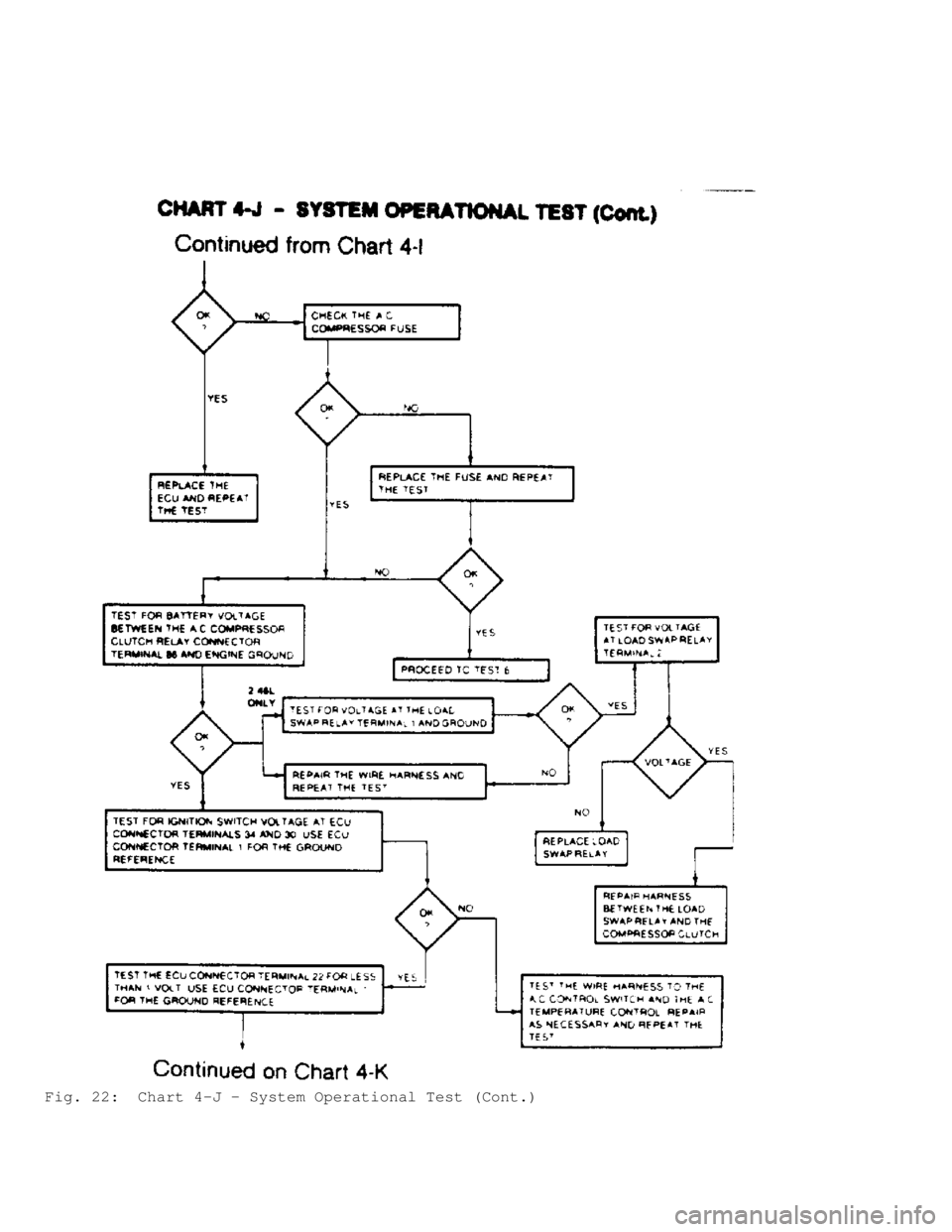

Fig. 22: Chart 4-J - System Operational Test (Cont.)

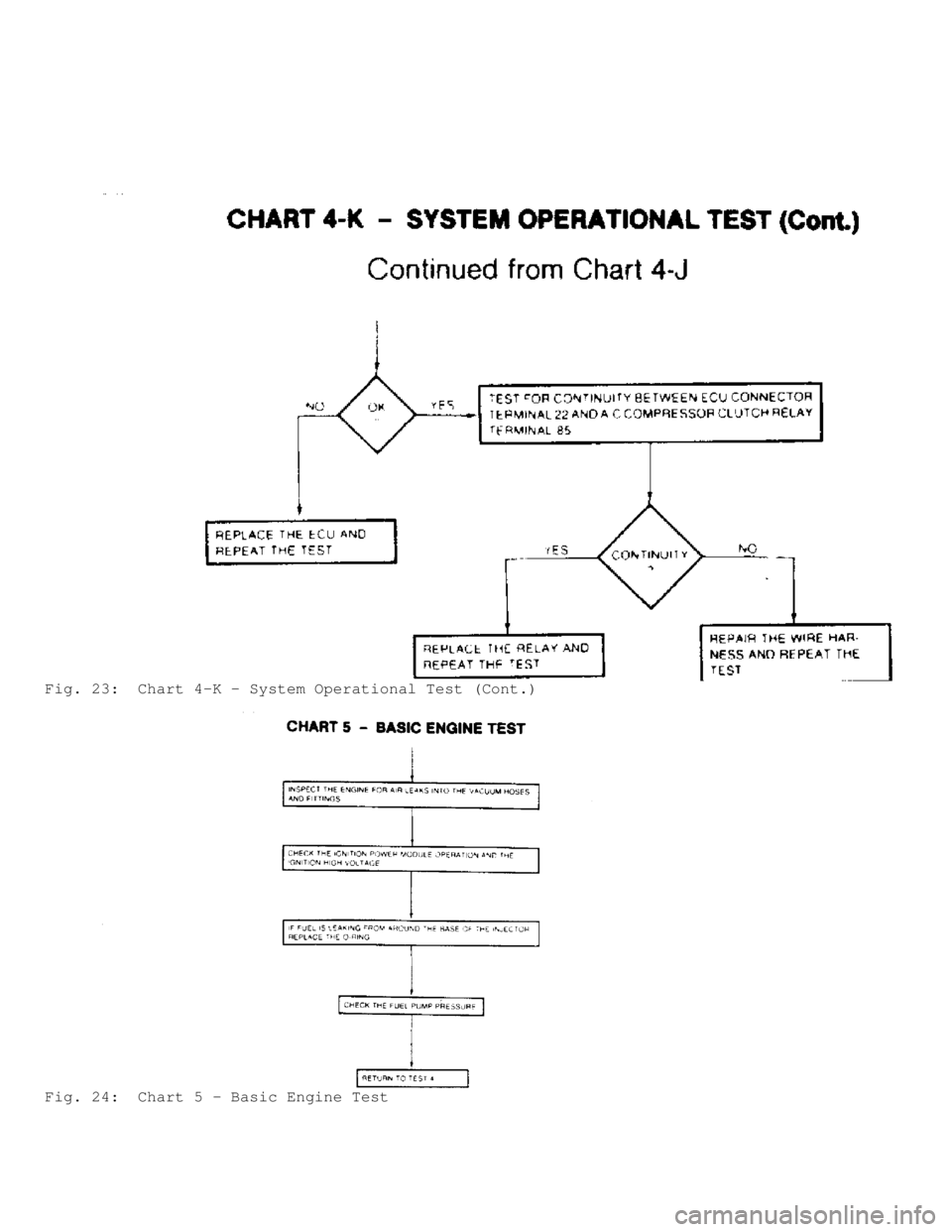

Fig. 23: Chart 4-K - System Operational Test (Cont.)
Fig. 24: Chart 5 - Basic Engine Test

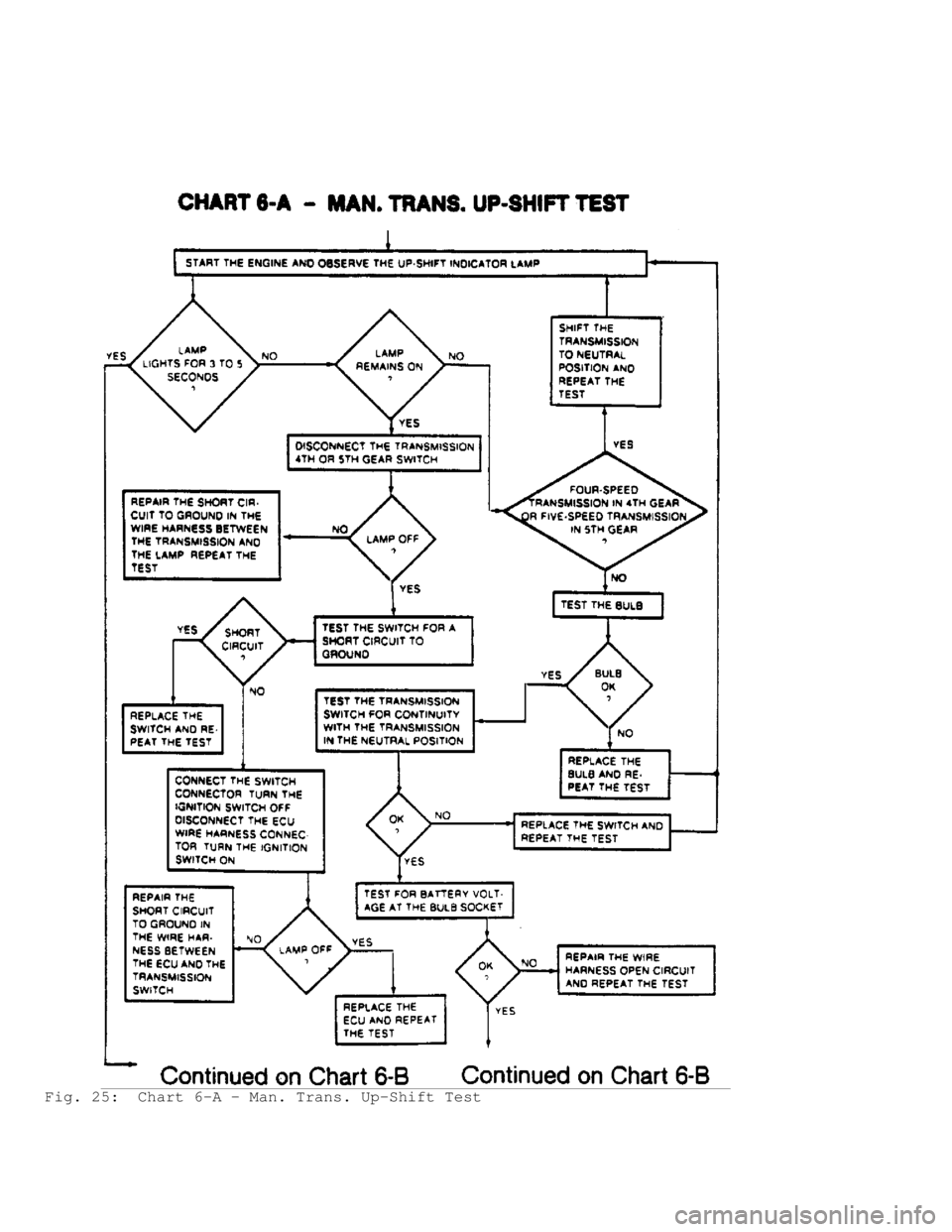

Fig. 25: Chart 6-A - Man. Trans. Up-Shift Test

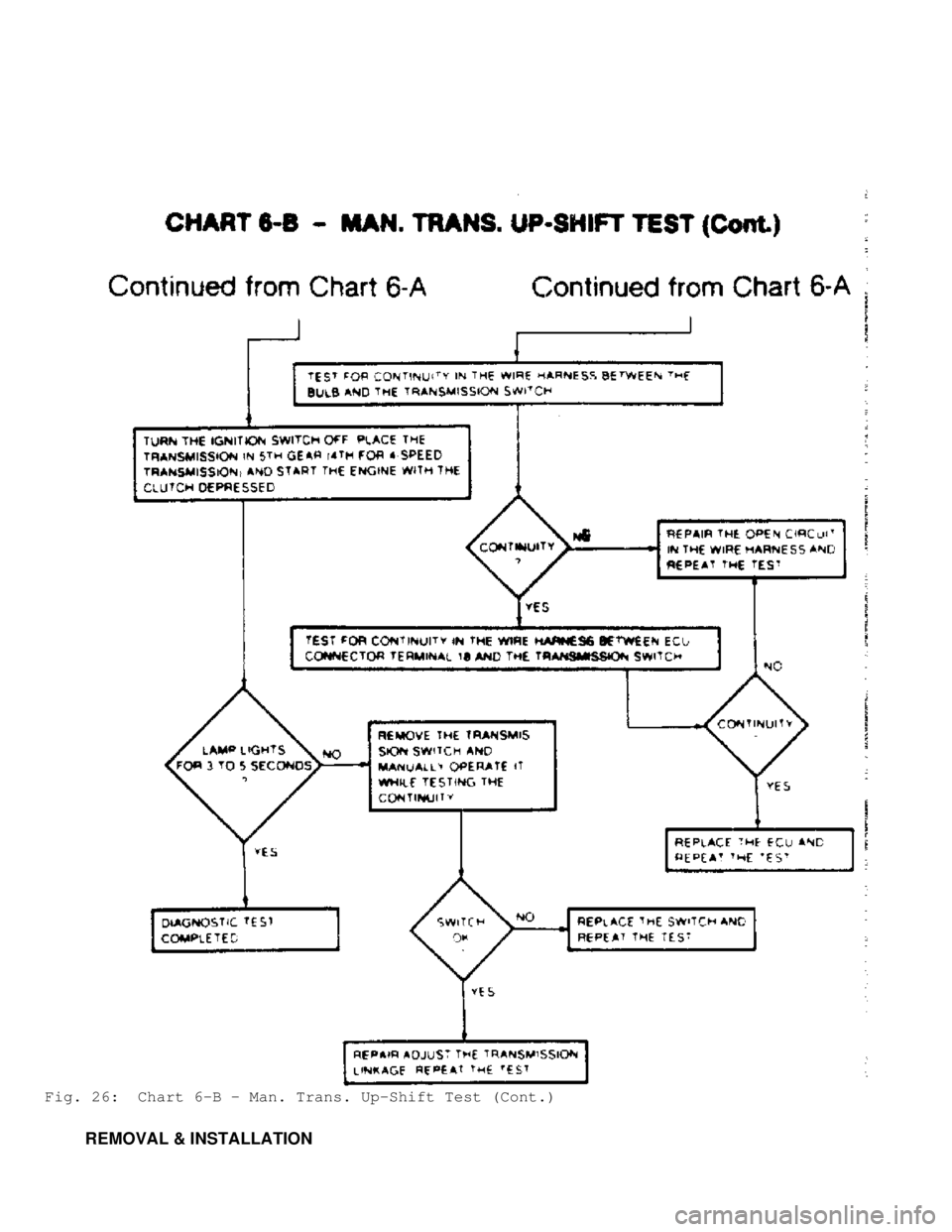

Fig. 26: Chart 6-B - Man. Trans. Up-Shift Test (Cont.)
REMOVAL & INSTALLATION
