1988 JEEP CHEROKEE Service Repair Manual

Fig. 12: TEST 3: IGNITION ON: INPUT (Cont.)

Fig. 13: TEST 3: IGNITION ON: INPUT (Cont.)

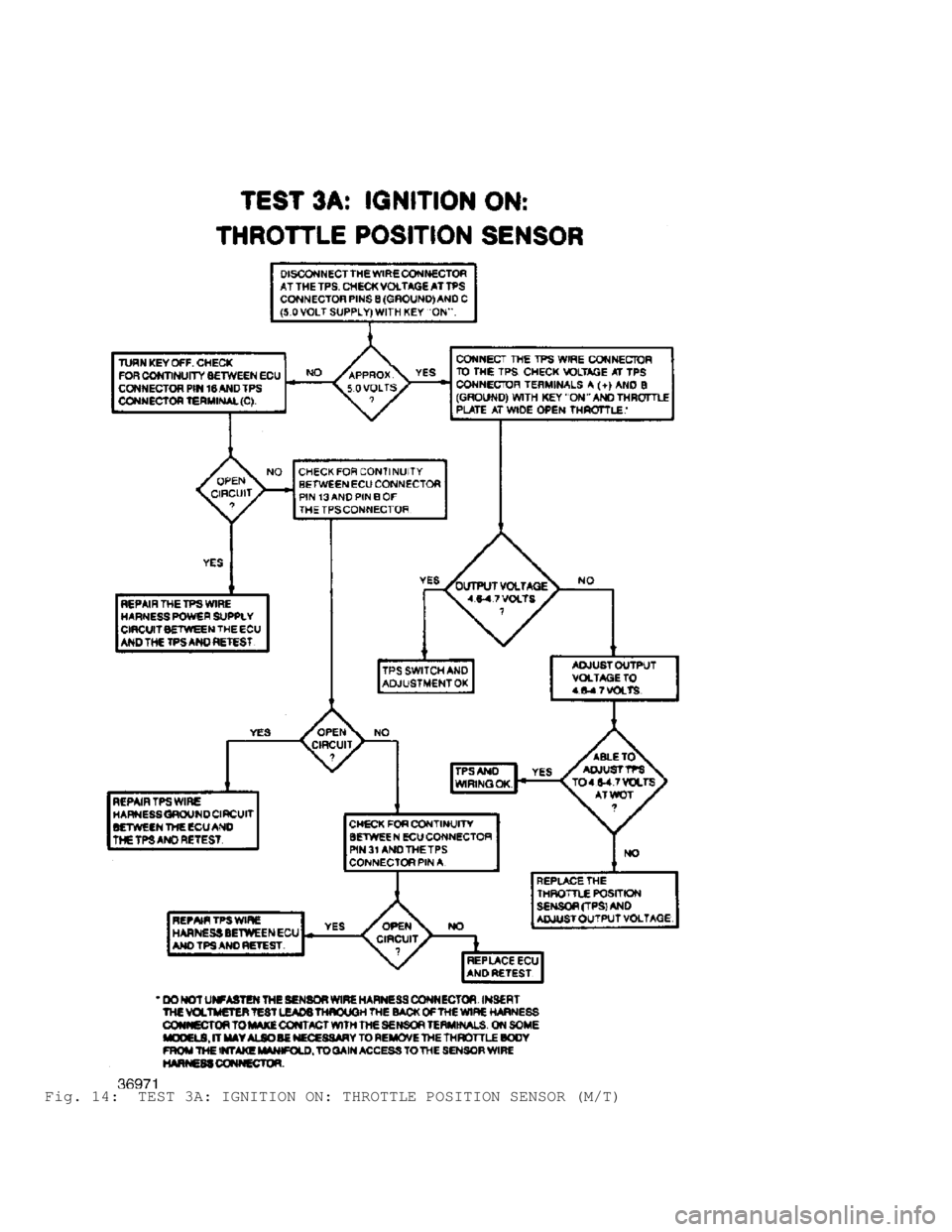

Fig. 14: TEST 3A: IGNITION ON: THROTTLE POSITION SENSOR (M/T)

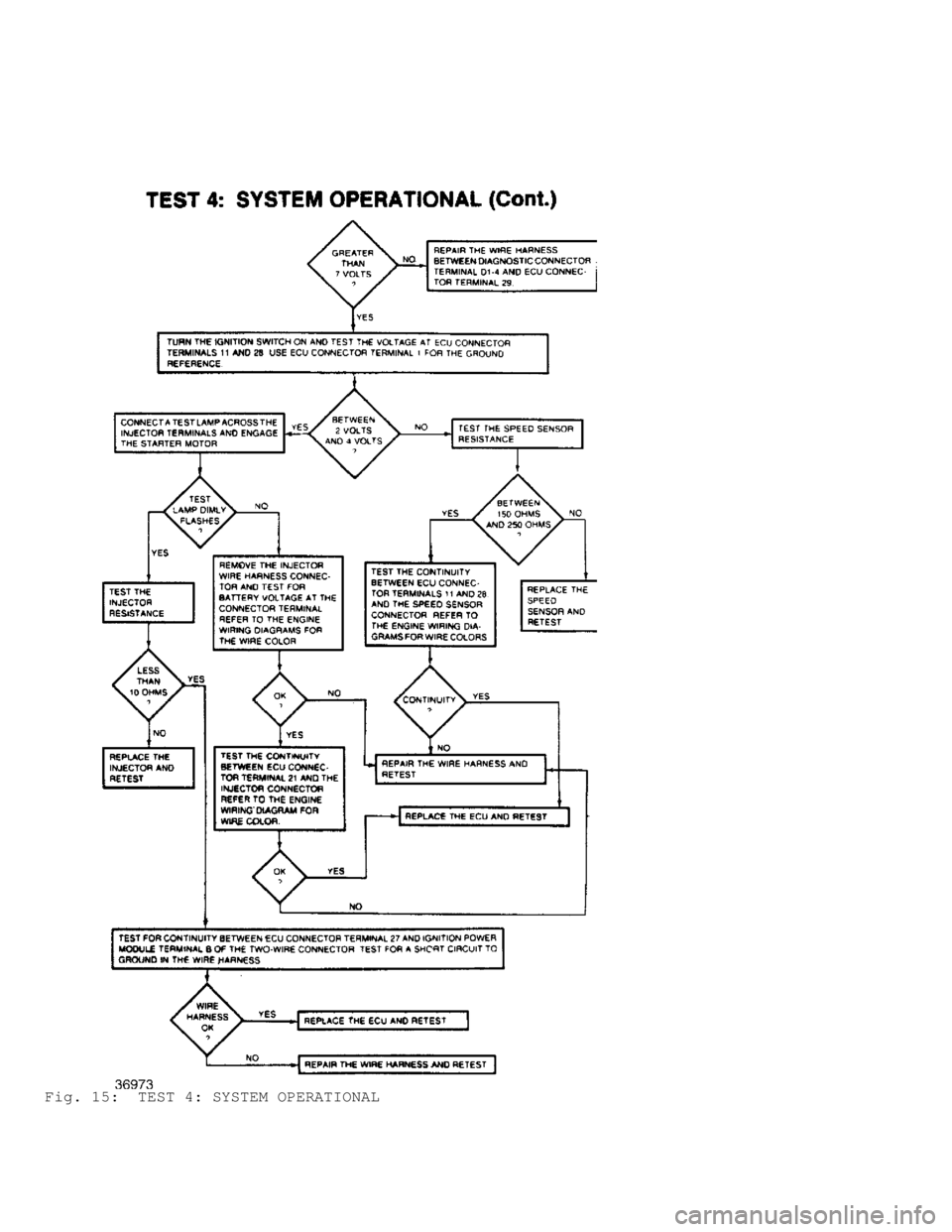

Fig. 15: TEST 4: SYSTEM OPERATIONAL

Fig. 16: TEST 4: SYSTEM OPERATIONAL (Cont.)

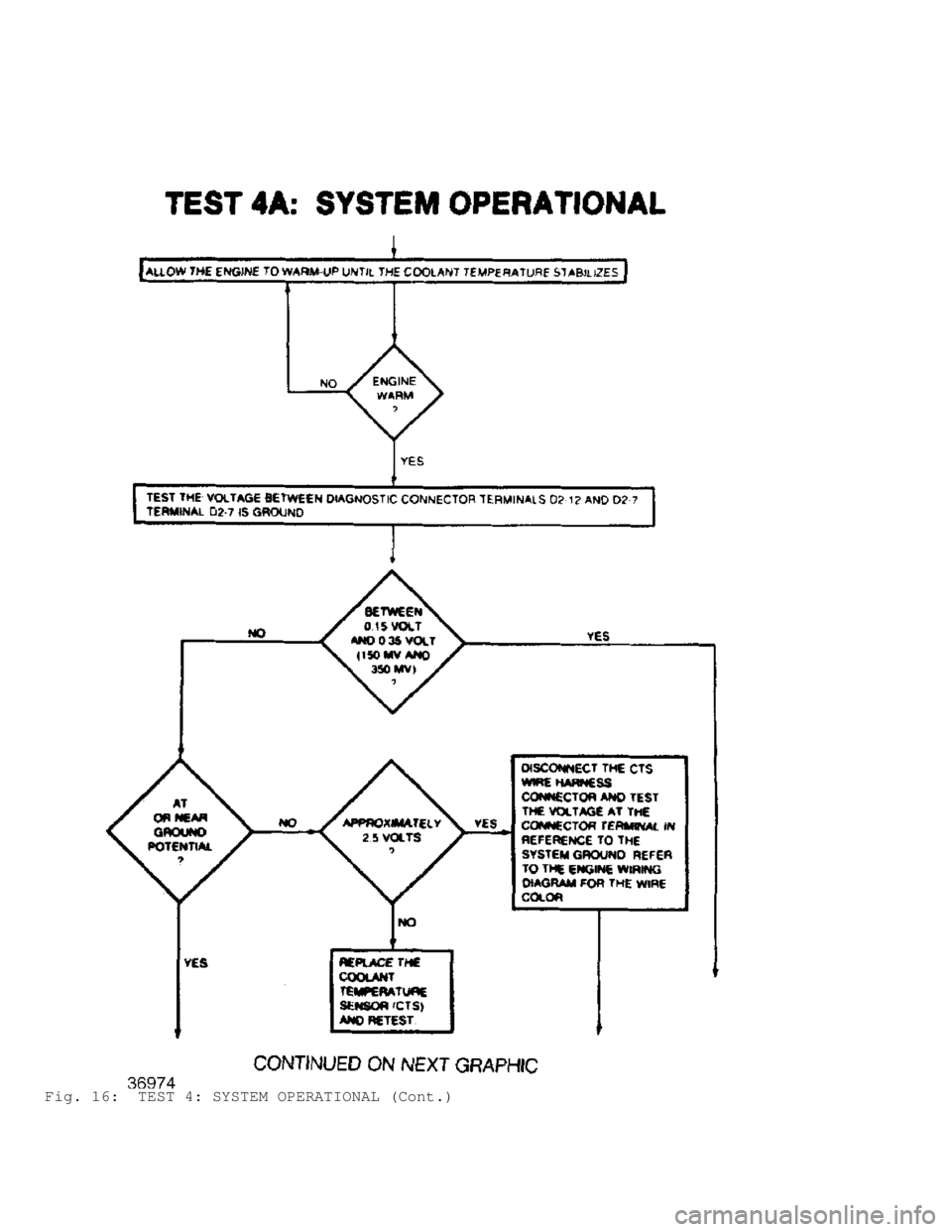

Fig. 17: TEST 4A: SYSTEM OPERATIONAL

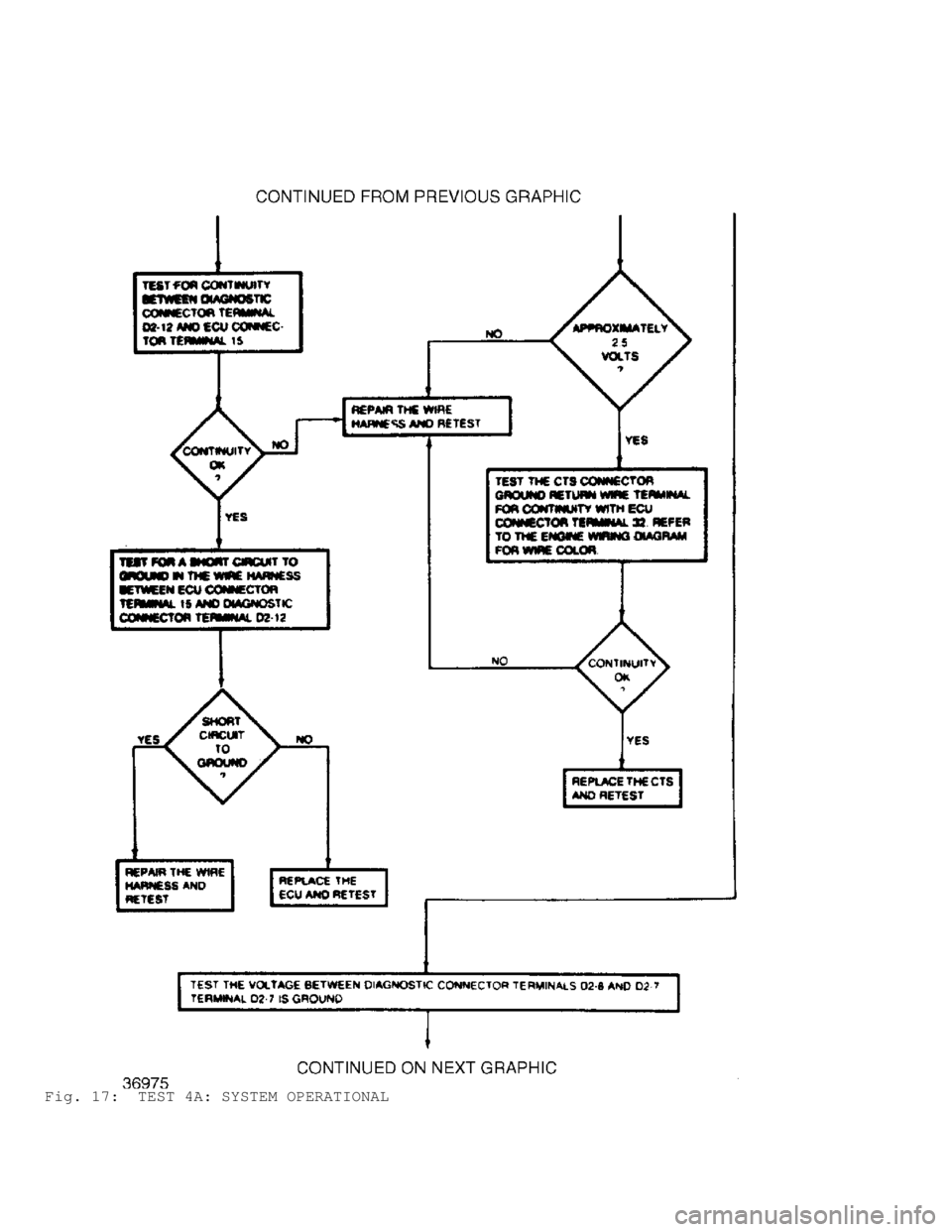

Fig. 18: TEST 4A: SYSTEM OPERATIONAL (Cont.)

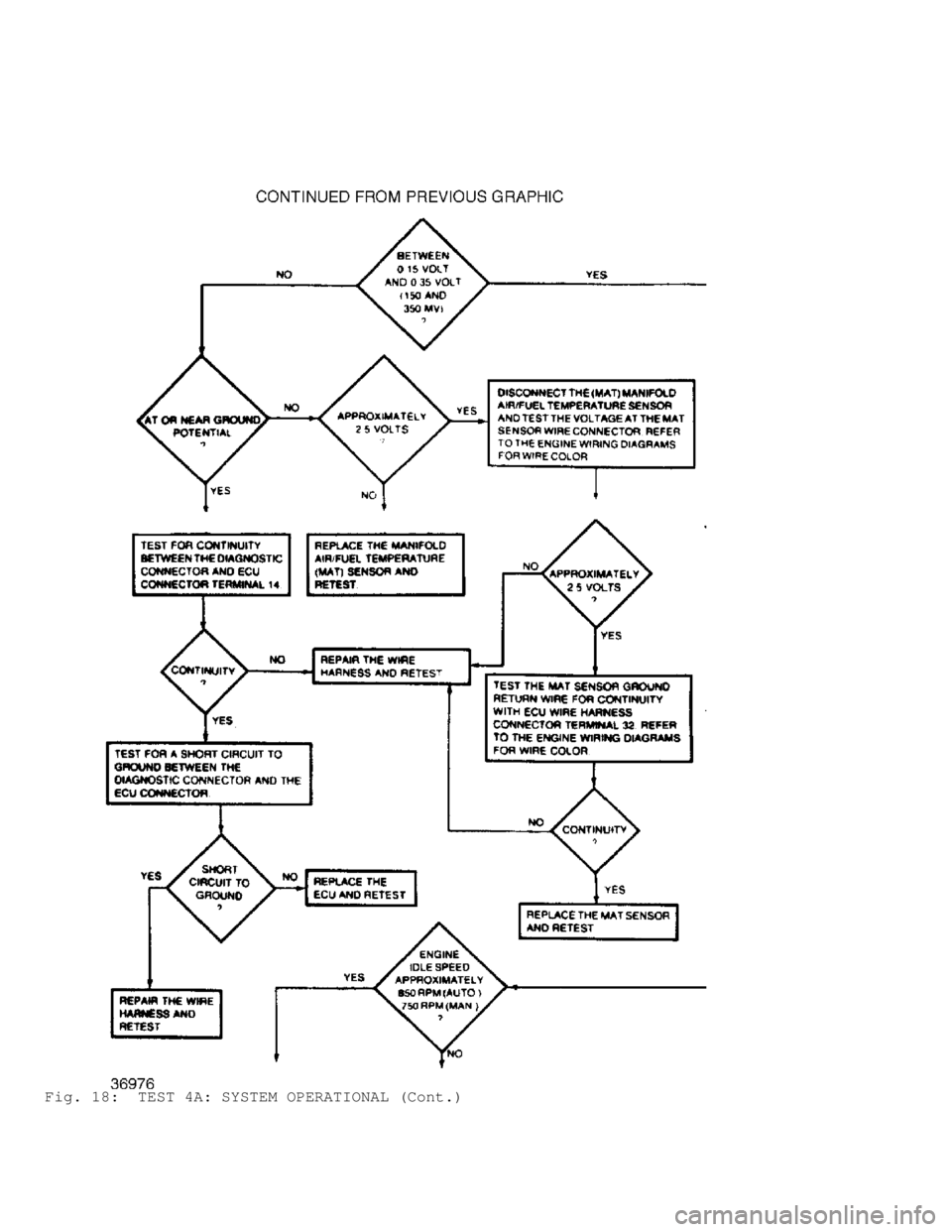

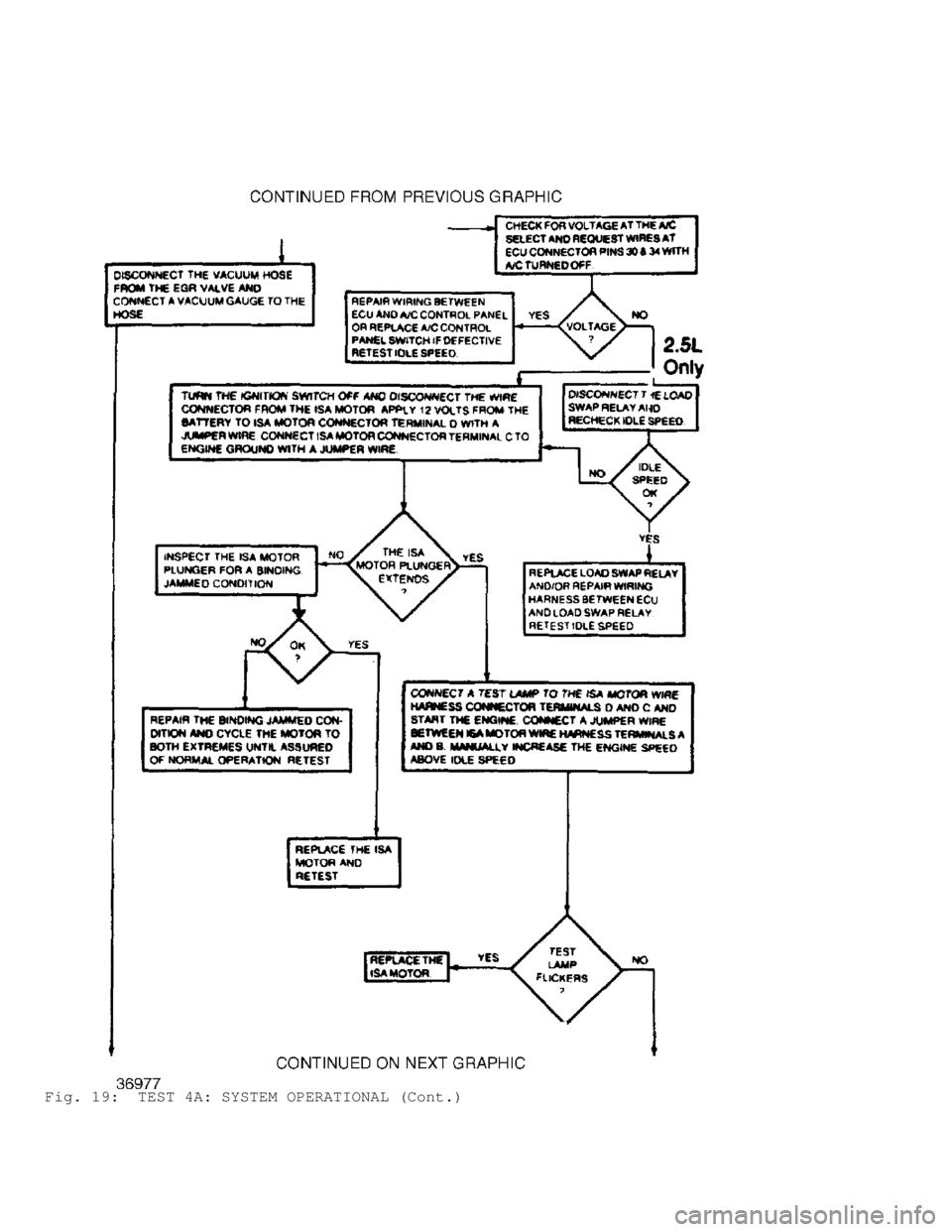

Fig. 19: TEST 4A: SYSTEM OPERATIONAL (Cont.)
