$JEEP CHEROKEE 1988 Service Repair Manual Parking Brake System \b\ \ \ \ \ \$

Parking Brake System

\b\
\
\
\
\
\
\

Inspect Shocks for Leakage

\b\
\
\
\
\
\
\

Inspect Tire Wear Pattern

\b\
\
\
\
\
\
\

Rotate Tires and Adjust Air Pressure (Including Spare)

\
\
\
\
\
\
\

Replace

\
\
\
\
\
\
\

Engine Oil

\b\
\
\
\
\
\
\

Oil Filter

\b\
\
\
\
\
\
\

Spark Plugs

\b\
\
\
\
\
\
\

Ignition Cables

\b\
\
\
\
\
\
\

Distributor Cap and Rotor

\b\
\
\
\
\
\
\

Air Filter Element

\b\
\
\
\
\
\
\

Fuel Filter

\b\
\
\
\
\
\
\

PCV Valve (
1)

\b\
\
\
\
\
\
\

PCV Filter

\b\
\
\
\
\
\
\

EGR Valve & Tube (1987-92)

\b\
\
\
\
\
\
\

Vacuum Operated Emission Components (1987-92)

\b\
\
\
\
\
\
\

PCV Valve (
1)

\b\
\
\
\
\
\
\

Drive Belt (V-Type) (
2)

\b\
\
\
\
\
\
\

Flush and Fill Engine Coolant, if not done in last 24 months

\b\
\
\
\
\
\
\

Automatic Transmission Fluid, Filter and Adjust Bands

\
\
\
\
\
\
\

(
1) - Replacement is recommended by Chrysler at this time, but it

is not required to maintain the warranty on the PCV valve.

(
2) - Check and replace as needed.

\
\
\
\
\
\
\

Lubrication Specifications

\
\
\
\
\
\
\

Application Specification

Automatic Transmission .......................... Dexron-IIE ATF

Brake Master Cylinder .......... DOT 3 (SAE J-1703F) Brake Fluid

Engine Coolant ........... Alugard 340-2 & Water (50/50 Mixture)

Engine Oil (
1)

Gasoline Engine

Temperature Range

Above 30
F (-1
C) ........ SAE 20W-40 Or 20W-50 API SH/CD

Above 0
F (-18
C) ......... SAE 10W-30 Or 10W-40 API SH/CD

Less Than 60
F (16
C) ............... SAE 5W-30 API SH/CD

Drive Axles ................................ SAE 75W-90 API GL-5

Drive Axles (Trac-Lok) (
2) ................ SAE 80W-140 API GL-5

Drive Axles (Trailer Towing) .............. SAE 80W-140 API GL-5

Hydraulic Clutch ............... DOT 3 (SAE J-1703F) Brake Fluid

Manual Transmission ........................ SAE 75W-90 API GL-5

Parking Brake Cable Guides ................. NLGI Grade 2, GC-LB

Page 1002 of 1378

JEEP CHEROKEE 1988 Service Repair Manual Door & Hood Hinges ............................ Light Engine Oil

Manual Steering Box ............... Multi-Purpose NLGI Grade 2EP

Power Steering Pump ....................... Power St

Door & Hood Hinges ............................ Light Engine Oil

Manual Steering Box ............... Multi-Purpose NLGI Grade 2EP

Power Steering Pump ....................... Power Steering Fluid

Transfer Case ................................... Dexron-IIE ATF

Brake Caliper Bushings ........ GE 661 or DOW 111 Silicone Grease

Caliper Slide Pins ........... GE 661 or DOW 111 Silicone Grease

Wheel Bearings .................. Multi-Purpose NLGI Grade GC-LB

Drive Shaft U-Joints .............. Multi-Purpose NLGI Grade 2EP

Steering Linkage (
4)( 5) .................... NLGI Grade 2, GC-LB

Ball Joints (
4)( 6) ......................... NLGI Grade 2, GC-LB

Weatherstrip .......................... Silicone Spray Lubricant

Wheel Lug Nut Torque ...................... 95 ft. lbs. (129 N.m)

(
1) - SAE 10W-30 SH/CD is preferred.

(
2) - Add 4 ozs. (118 ml) of Limited-Slip differential lubricant

additive when changing fluid.

(
3) - For vehicles operating under heavy-duty towing conditions,

use SAE 75W-140 Synthetic lube.

NOTE: Before using SAE 75W-140 Synthetic the old fluid must

be DRAINED and FLUSHED with clean mineral based axle

lubricant. Then refill with new synthetic lube.

(
4) - Use low pressure grease gun to prevent seal damage.

(
5) - Fill until lubricant squeezes out from the base of seals.

(
6) - Fill ball joint until seal starts to swell.

\
\
\
\
\
\
\

Fluid Capacities

\
\
\
\
\
\
\

Application ( 1) Quantity

Automatic Transmission

1984-86 (904 HD)

Fluid Change ............................... 4.0 Qts. (3.8L)

Overhaul (Dry Fill) ........................ 8.0 Qts. (7.6L) \

1987-88

Fluid Change ............................... 4.0 Qts. (3.8L)

Overhaul (Dry Fill) ........................ 8.5 Qts. (8.0L) \

Cooling System (
2)

4-Cylinder .................................. 10.0 Qts. (9.5L)

6-Cylinder ................................. 12.0 Qts. (11.4L)

Engine Oil

4-Cylinder ................................... 4.0 Qts. (3.8L)

6-Cylinder ................................... 6.0 Qts. (5.7L)

Fuel Tank

Standard .................................. 13.5 Gals. (51.1L)

Optional .................................... 20 Gals. (75.7L)

Manual Transmission (
3)

AX4 (AISIN) .................................. 7.4 Pts. (3.5L) \

T4 (Borg-Warner) ............................. 3.9 Pts. (1.8L) \

AX5 (AISIN) .................................. 7.0 Pts. (3.3L) \

T5 (Borg-Warner) ............................. 4.5 Pts. (2.1L) \

Transfer Case

1985-86

Selec-Trac (229 Full-Time) ................. 6.0 Pts. (2.8L) \

Command-Trac (Part-Time 207) ............... 4.5 Pts. (2.1L) \

1987

Selec-Trac ................................. 2.5 Pts. (1.2L)

Command-Trac ............................... 2.2 Pts. (1.0L)

1988

Selec-Trac ................................. 3.0 Pts. (1.4L)

Command-Trac ............................... 2.2 Pts. (1.0L)

Drive Axles (
3)

Front ........................................ 2.5 Pts. (1.2L)

Front (Disconnect Housing) .................. 5.0 Ozs. (0.15L) \

Page 1003 of 1378

JEEP CHEROKEE 1988 Service Repair Manual Rear ......................................... 2.5 Pts. (1.2L)

Rear (Trac-Lok) (
4) .......................... 2.5 Pts. (1.2L)

Rear ......................................... 2.5 Pts. (1.2L)

Rear (Trac-Lok) (
4) .......................... 2.5 Pts. (1.2L)

(
1) - Capacities are recommended or calculated levels. Always use

dipstick (if available) to measure level.

(
2) - Includes 2.3 qts. for coolant recovery bottle.

(
3) - Fill to bottom of filler plug hole.

(
4) - Add 4 ozs. (118 ml) of Limited-Slip differential lubricant

additive first, then add new fluid.

\
\
\
\
\
\
\

Service Labor Times

\
\
\
\
\
\
\

Application Hours

2.5L

Automatic Transmission ................................... 3.5

Manual Transmission ...................................... 3.5

2.8L

Automatic Transmission ................................... 3.7

Manual Transmission ...................................... 3.7

4.0L

Automatic Transmission ................................... 3.6

Manual Transmission ...................................... 3.6

\
\
\
\
\
\
\
\f

LUBRICATION SPECIFICATIONS
LUBRICATION SPECIFICATIONS TABLE\
\
\
\
\
\
\

Application Fluid Specifications
Automatic Transmission ......................... Dexron-IIE ATF
Brake Master Cylinder ......... DOT 3 (SAE J-1703F) Brake Fluid
Engine Coolant .......... Alugard 340-2 & Water (50/50 Mixture)
Engine Oil ( 1)
Gasoline Engine
Temperature Range
Above 30
F (-1
C) ....... SAE 20W-40 Or 20W-50 API SH/CD
Above 0
F (-18
C) ........ SAE 10W-30 Or 10W-40 API SH/CD
Less Than 60
F (16
C) .............. SAE 5W-30 API SH/CD
Drive Axles ............................... SAE 75W-90 API GL-5
Drive Axles (Trac-Lok) ( 2) ............... SAE 80W-140 API GL-5
Drive Axles (Trailer Towing) ............. SAE 80W-140 API GL-5
Hydraulic Clutch .............. DOT 3 (SAE J-1703F) Brake Fluid
Manual Transmission ....................... SAE 75W-90 API GL-5
Manual Steering Box .............. Multi-Purpose NLGI Grade 2EP
Power Steering Pump ...................... Power Steering Fluid
Transfer Case .................................. Dexron-IIE ATF
Brake Caliper Bushings ....... GE 661 or DOW 111 Silicone Grease
Caliper Slide Pins .......... GE 661 or DOW 111 Silicone Grease
Wheel Bearings ........... Mopar Multi-Purpose NLGI Grade GC-LB
Drive Shaft U-Joints ....... Mopar Multi-Purpose NLGI Grade 2EP
Steering Linkage ( 4)( 5) ...... Mopar Multi-mileage or equivalent
Ball Joints ( 4)( 6) ........... Mopar Multi-mileage or equivalent
Weatherstrip ......................... Silicone Spray Lubricant
( 1) - SAE 10W-30 SH/CD is preferred.
( 2) - Add 4 ozs. (118 ml) of Limited-Slip differential lubricant
additive when changing fluid.
( 3) - For vehicles operating under heavy-duty towing conditions,
use SAE 75W-140 Synthetic lube.
NOTE: Before using SAE 75W-140 Synthetic the old fluid must be

Page 1004 of 1378

JEEP CHEROKEE 1988 Service Repair Manual DRAINED and FLUSHED with clean mineral based (non-synthetic)
axle lubricant. Then refill with new synthetic lube.
(4) - Use low pressure grease gun to prevent seal damage.
( 5) - Fill unti

DRAINED and FLUSHED with clean mineral based (non-synthetic)
axle lubricant. Then refill with new synthetic lube.
(4) - Use low pressure grease gun to prevent seal damage.
( 5) - Fill until lubricant squeezes out from the base of seals.
( 6) - Fill ball joint until seal starts to swell.
\
\
\
\
\
\
\

FLUID CAPACITIES
FLUID CAPACITIES TABLE\
\
\
\
\
\
\

Application Quantity ( 1)
A/C System R-12 Refrigerant Capacity ............... 36-40 Ozs.
Automatic Transmission
1984-86 (904 HD)
Fluid Change .............................. 4.0 Qts. (3.8L)
Overhaul (Dry Fill) ....................... 8.0 Qts. (7.6L)
1987-88
Fluid Change .............................. 4.0 Qts. (3.8L)
Overhaul (Dry Fill) ....................... 8.5 Qts. (8.0L)
Cooling System ( 2)
4-Cylinder ................................. 10.0 Qts. (9.5L)
6-Cylinder ................................ 12.0 Qts. (11.4L)
Engine Oil
4-Cylinder .................................. 4.0 Qts. (3.8L)
6-Cylinder .................................. 6.0 Qts. (5.7L)
Fuel Tank
Standard ................................. 13.5 Gals. (51.1L)
Optional ................................... 20 Gals. (75.7L)
Manual Transmission ( 3)
AX4 (AISIN) ................................. 7.4 Pts. (3.5L)
T4 (Borg-Warner) ............................ 3.9 Pts. (1.8L)
AX5 (AISIN) ................................. 7.0 Pts. (3.3L)
T5 (Borg-Warner) ............................ 4.5 Pts. (2.1L)
Transfer Case
1985-86
Selec-Trac (229 Full-Time) ................ 6.0 Pts. (2.8L)
Command-Trac (Part-Time 207) .............. 4.5 Pts. (2.1L)
1987
Selec-Trac ................................ 2.5 Pts. (1.2L)
Command-Trac .............................. 2.2 Pts. (1.0L)
1988
Selec-Trac ................................ 3.0 Pts. (1.4L)
Command-Trac .............................. 2.2 Pts. (1.0L)
Drive Axles ( 3)
Front ....................................... 2.5 Pts. (1.2L)
Front (Disconnect Housing) ................. 5.0 Ozs. (0.15L)
Rear ........................................ 2.5 Pts. (1.2L)
Rear (Trac-Lok) ( 4) ......................... 2.5 Pts. (1.2L)
( 1) - Capacities are recommended or calculated levels. Always use
dipstick (if available) to measure level.
( 2) - Includes 2.3 qts. for coolant recovery bottle.
( 3) - Fill to bottom of filler plug hole.
( 4) - Add 4 ozs. (118 ml) of Limited-Slip differential lubricant
additive first, then add new fluid.
\
\
\
\
\
\
\

Page 1005 of 1378

$JEEP CHEROKEE 1988 Service Repair Manual \003 SEA TS - P O W ER 1988 J e ep C hero ke e 1988 Power Seats JEEP Cherokee, Wagoneer, Grand Wagoneer DESCRIPTION A 3 armature permane$

Page 1006 of 1378

JEEP CHEROKEE 1988 Service Repair Manual Rear Motor
Disconnect switch harness connector. Connect a covered jumper
wire between terminal No. 1 and 5. See Fig. 1. Connect a second
covered jumper wire between terminal No. 2 a

Page 1007 of 1378

JEEP CHEROKEE 1988 Service Repair Manual SER VIC E IN DIC ATO R & W AR NIN G L IG HTS

1988 J e ep C hero ke e
1984-92 MAINTENANCE
AMC/Jeep/Eagle Service Indicator & Warning Lights
Jeep; Cherokee, Wagoneer

Page 1008 of 1378

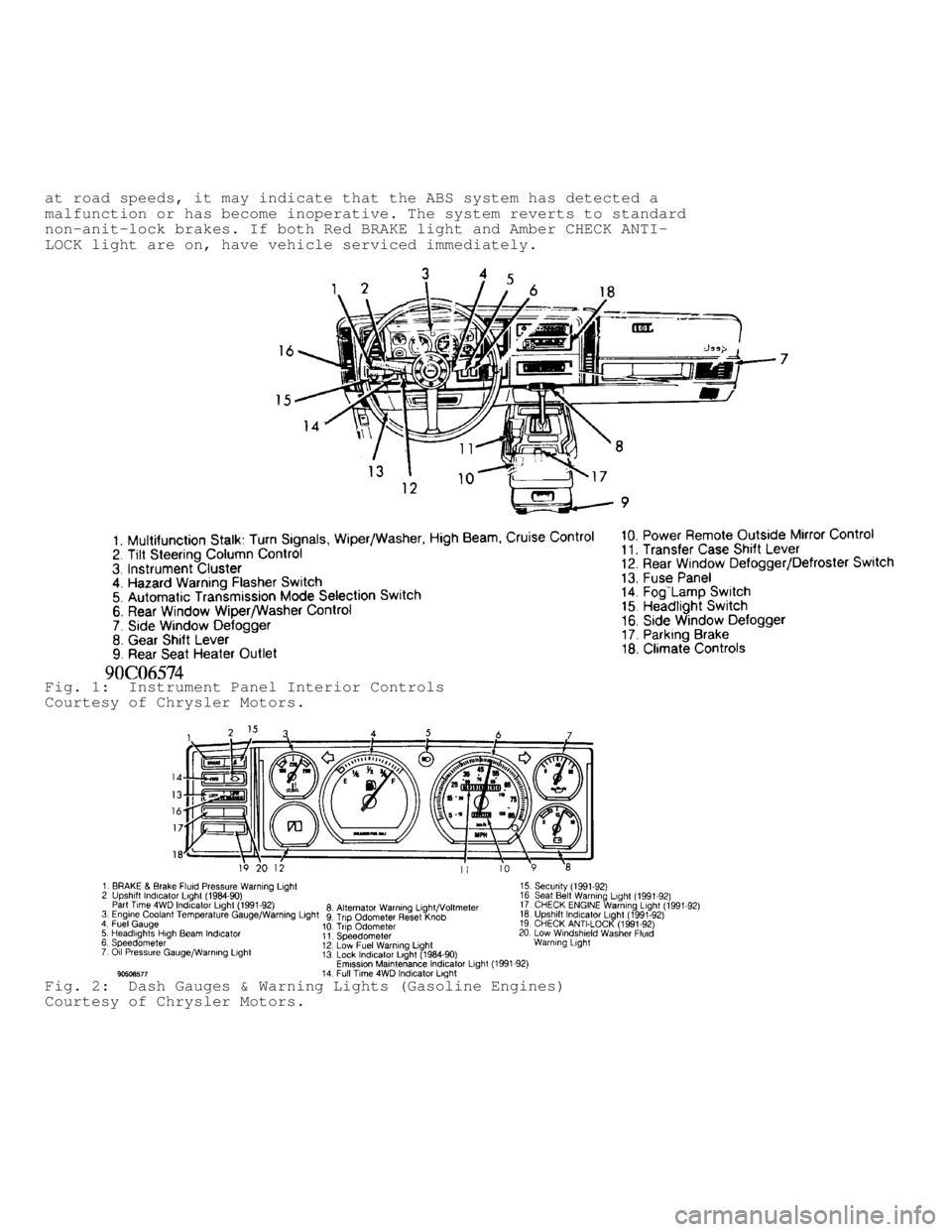

JEEP CHEROKEE 1988 Service Repair Manual at road speeds, it may indicate that the ABS system has detected a
malfunction or has become inoperative. The system reverts to standard
non-anit-lock brakes. If both Red BRAKE light and Amber CHECK A

Load next 8 pages

Page: < prev 1-10 ... 969-976 977-984 985-992 993-1000 1001-1008 1009-1016 1017-1024 1025-1032 1033-1040 ... 1384 next >

towing remove seats airbag key fob battery open bonnet language

Popular search:

remove seats torque fuel pump oil change fuel additives light remote start
