1988 JEEP CHEROKEE Service Repair Manual

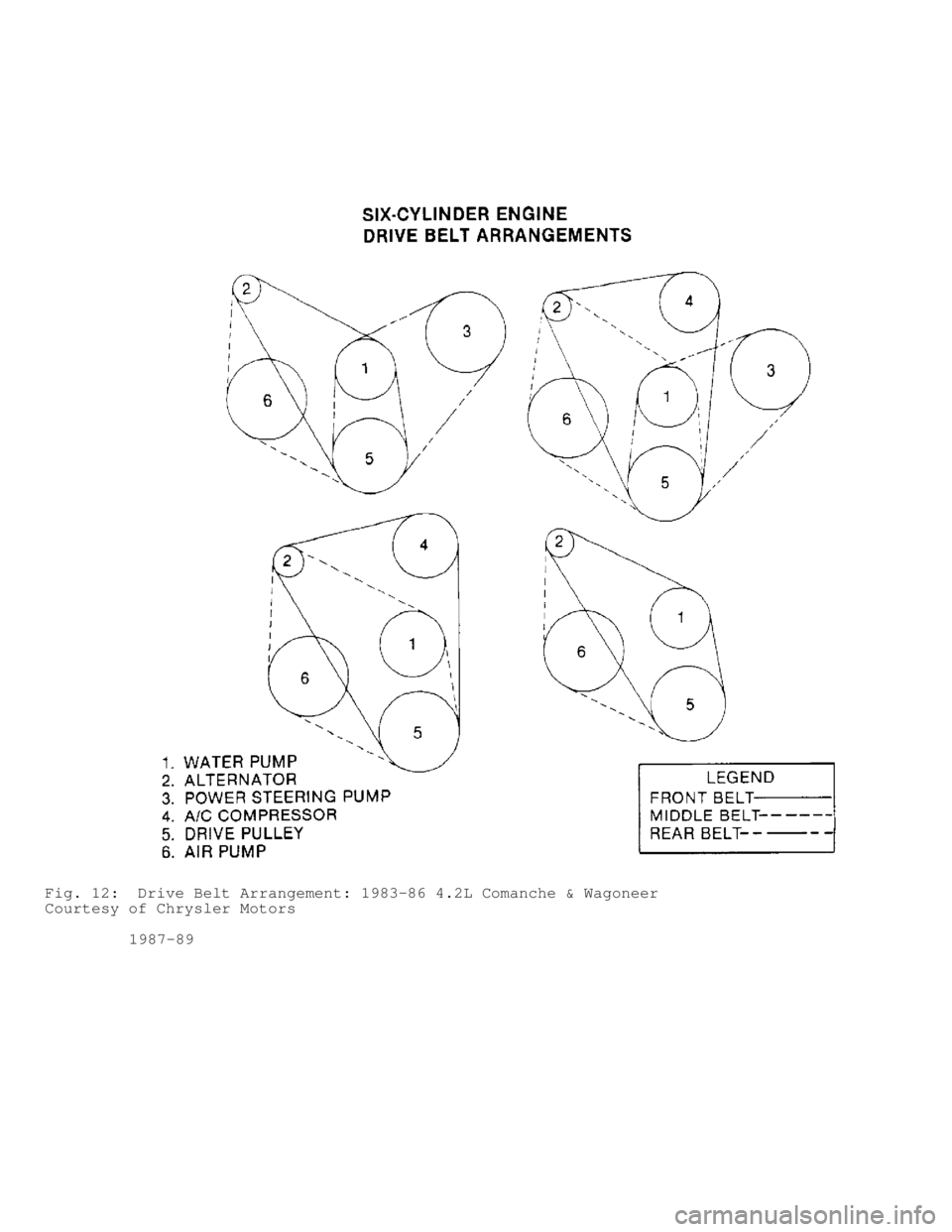

Fig. 12: Drive Belt Arrangement: 1983-86 4.2L Comanche & Wagoneer
Courtesy of Chrysler Motors
1987-89

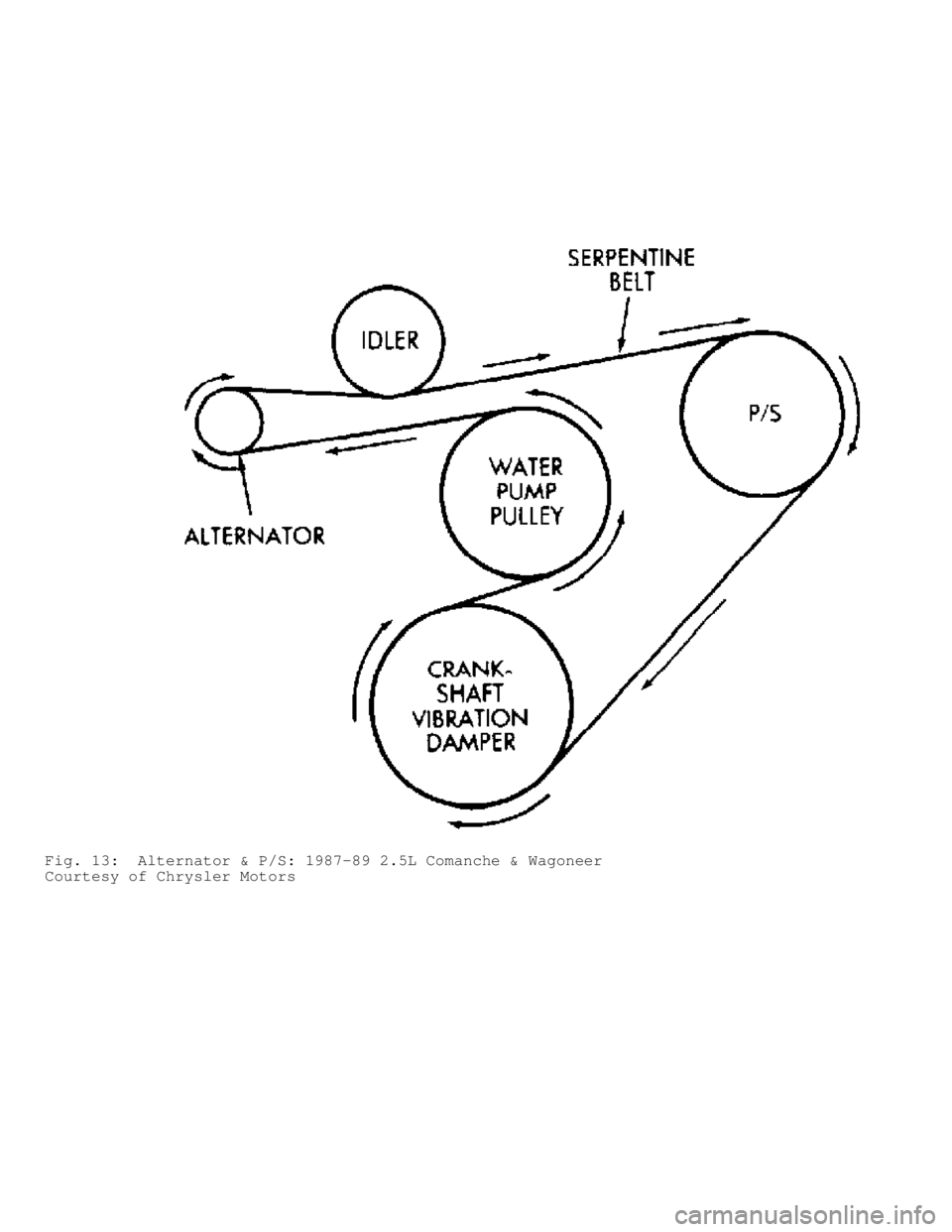

Fig. 13: Alternator & P/S: 1987-89 2.5L Comanche & Wagoneer
Courtesy of Chrysler Motors

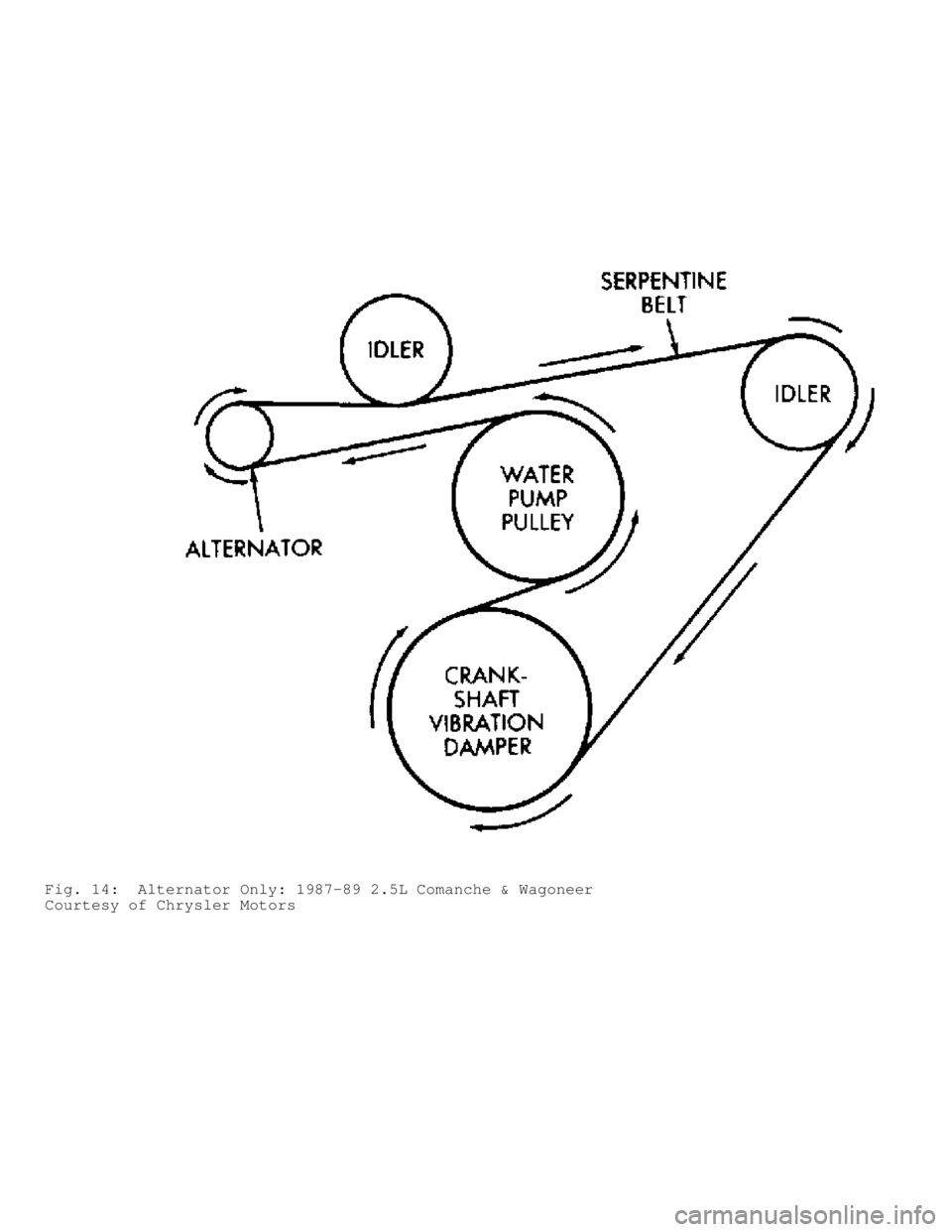

Fig. 14: Alternator Only: 1987-89 2.5L Comanche & Wagoneer
Courtesy of Chrysler Motors

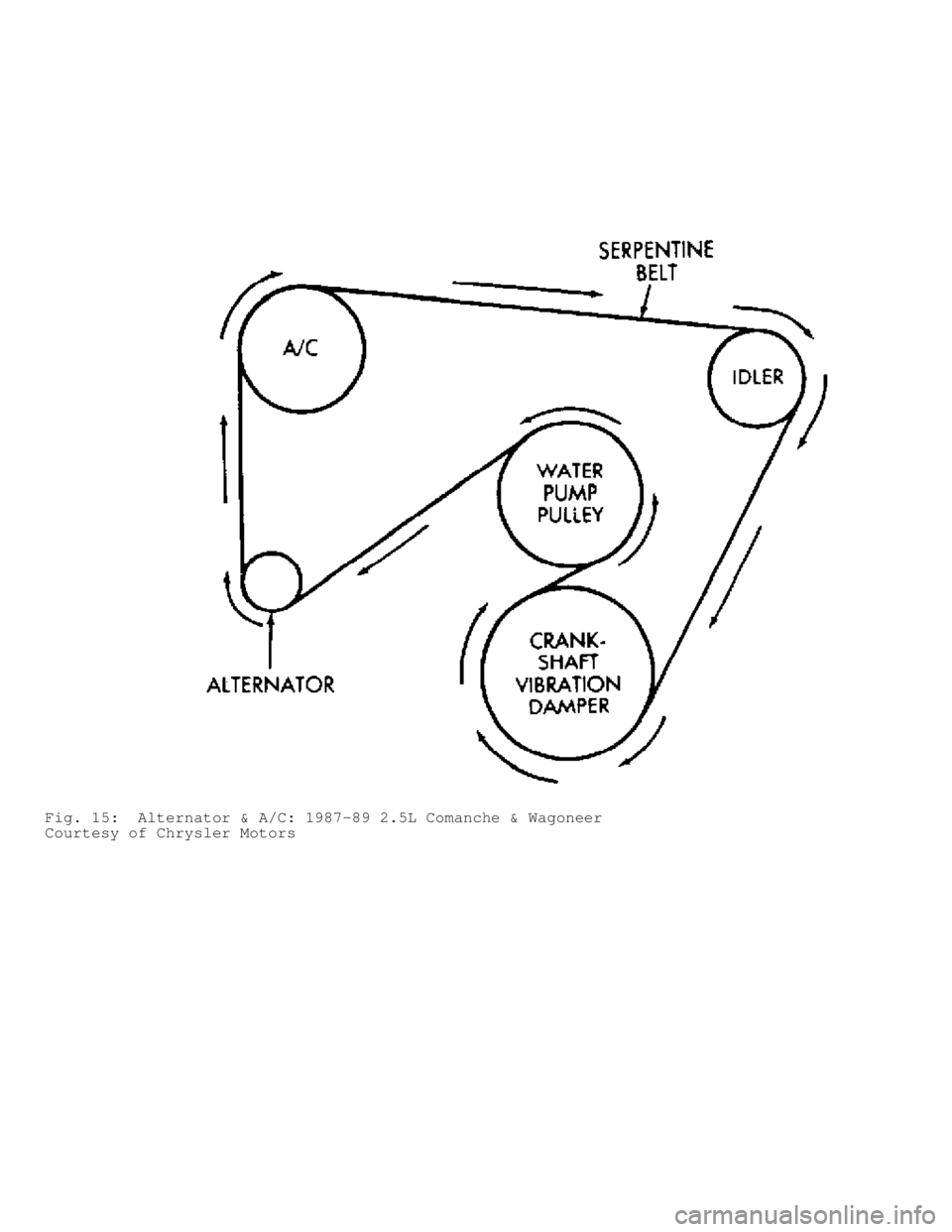

Fig. 15: Alternator & A/C: 1987-89 2.5L Comanche & Wagoneer
Courtesy of Chrysler Motors

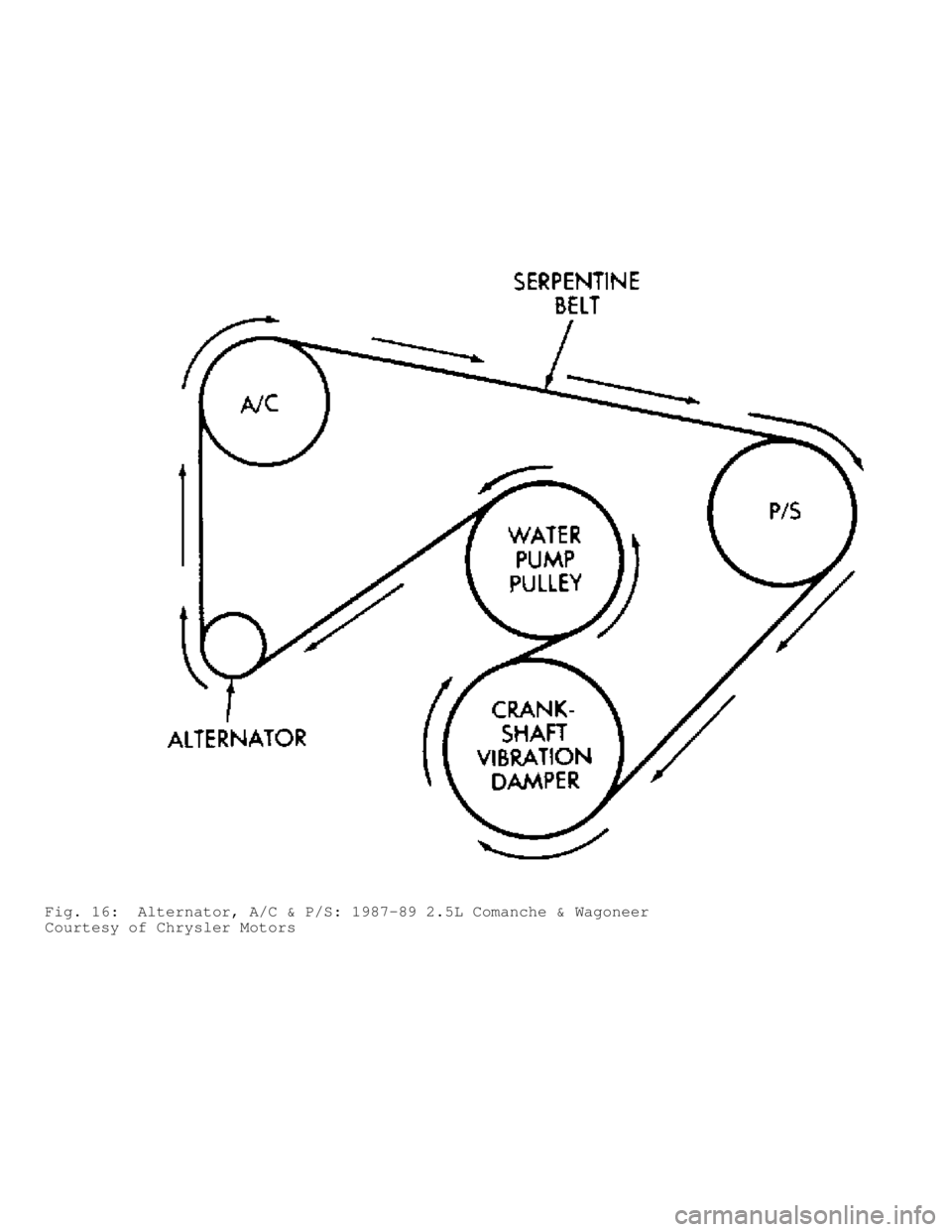

Fig. 16: Alternator, A/C & P/S: 1987-89 2.5L Comanche & Wagoneer
Courtesy of Chrysler Motors

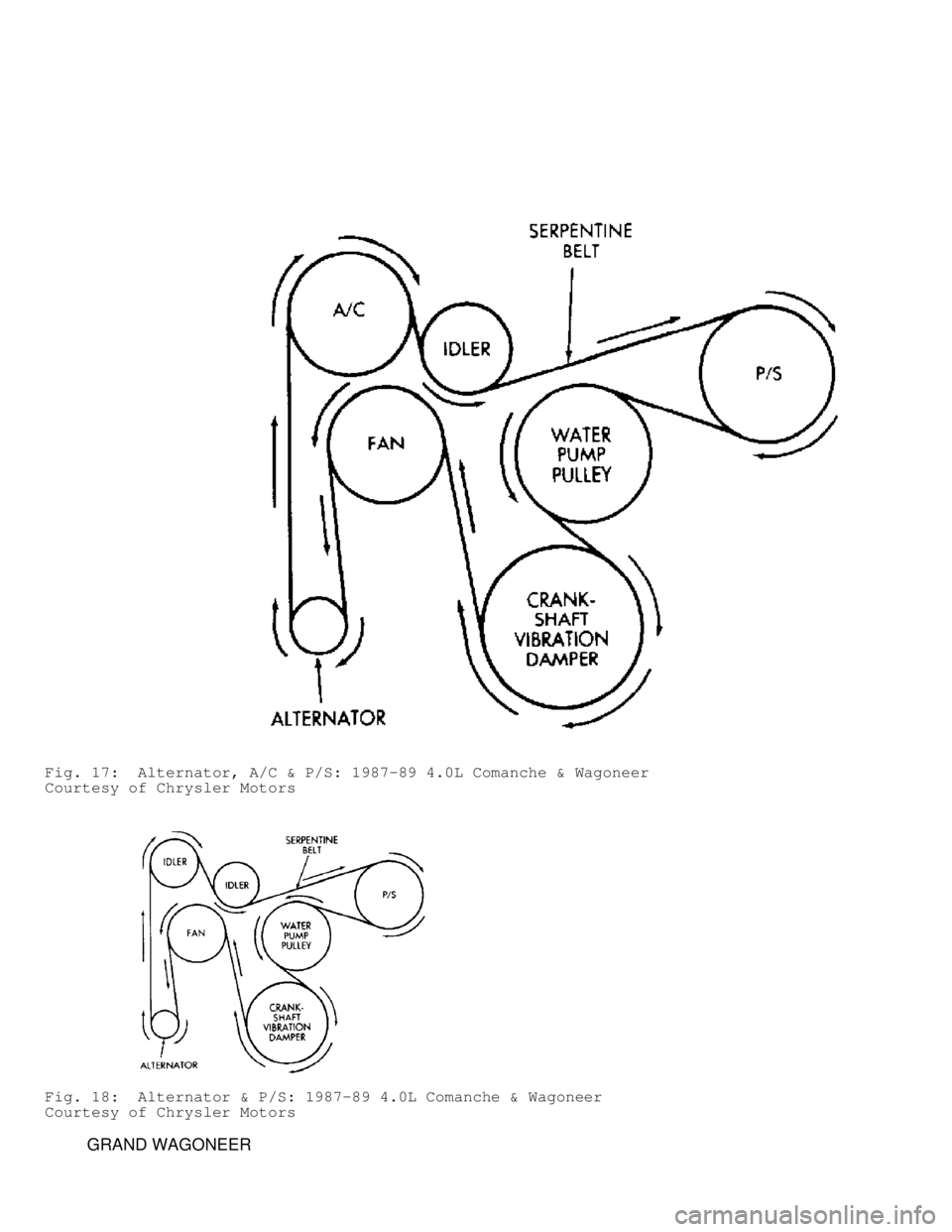

Fig. 17: Alternator, A/C & P/S: 1987-89 4.0L Comanche & Wagoneer
Courtesy of Chrysler Motors
Fig. 18: Alternator & P/S: 1987-89 4.0L Comanche & Wagoneer
Courtesy of Chrysler Motors
GRAND WAGONEER

Install belt on crankshaft and belt-driven components as
shown. Adjust tensioner. See Figs. 19-24.

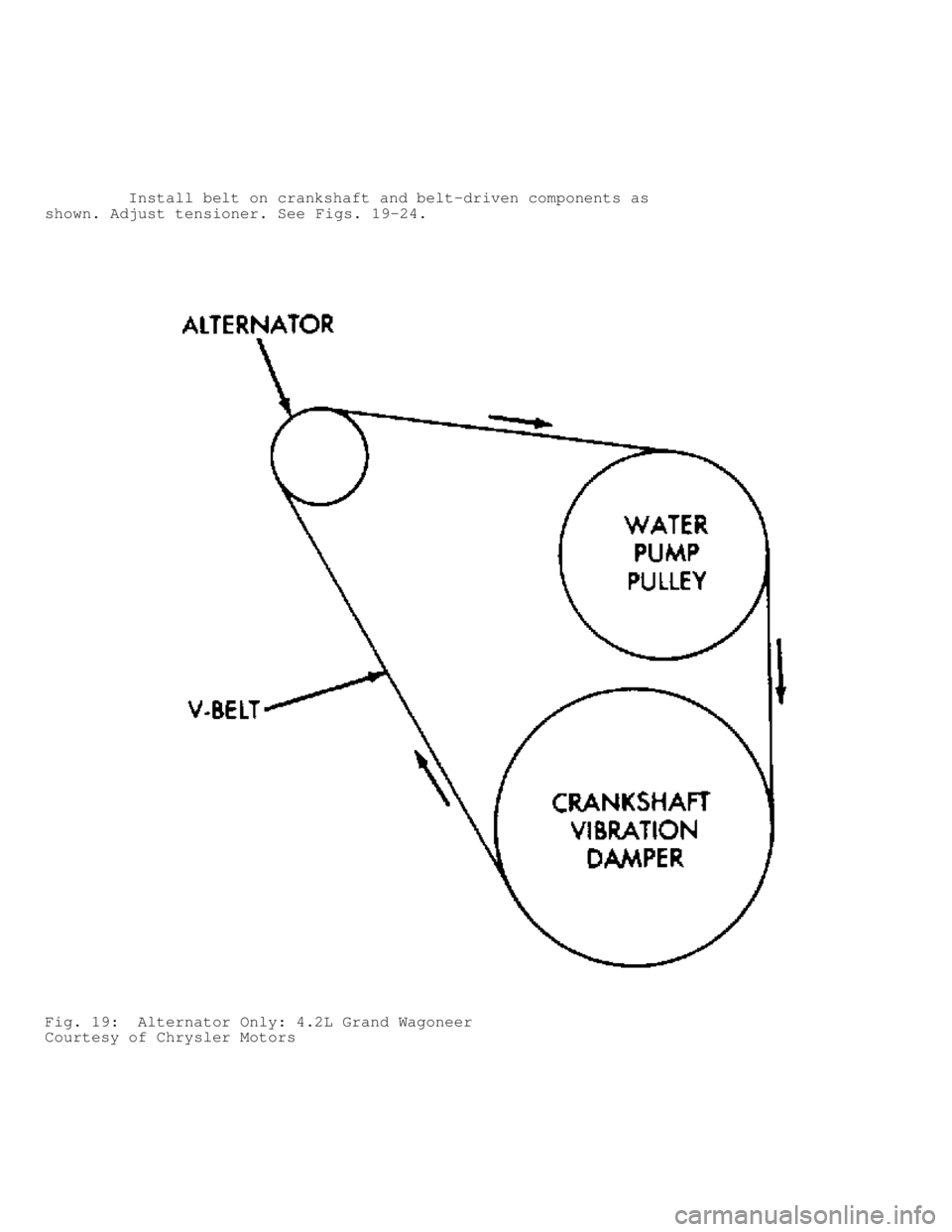

Fig. 19: Alternator Only: 4.2L Grand Wagoneer
Courtesy of Chrysler Motors

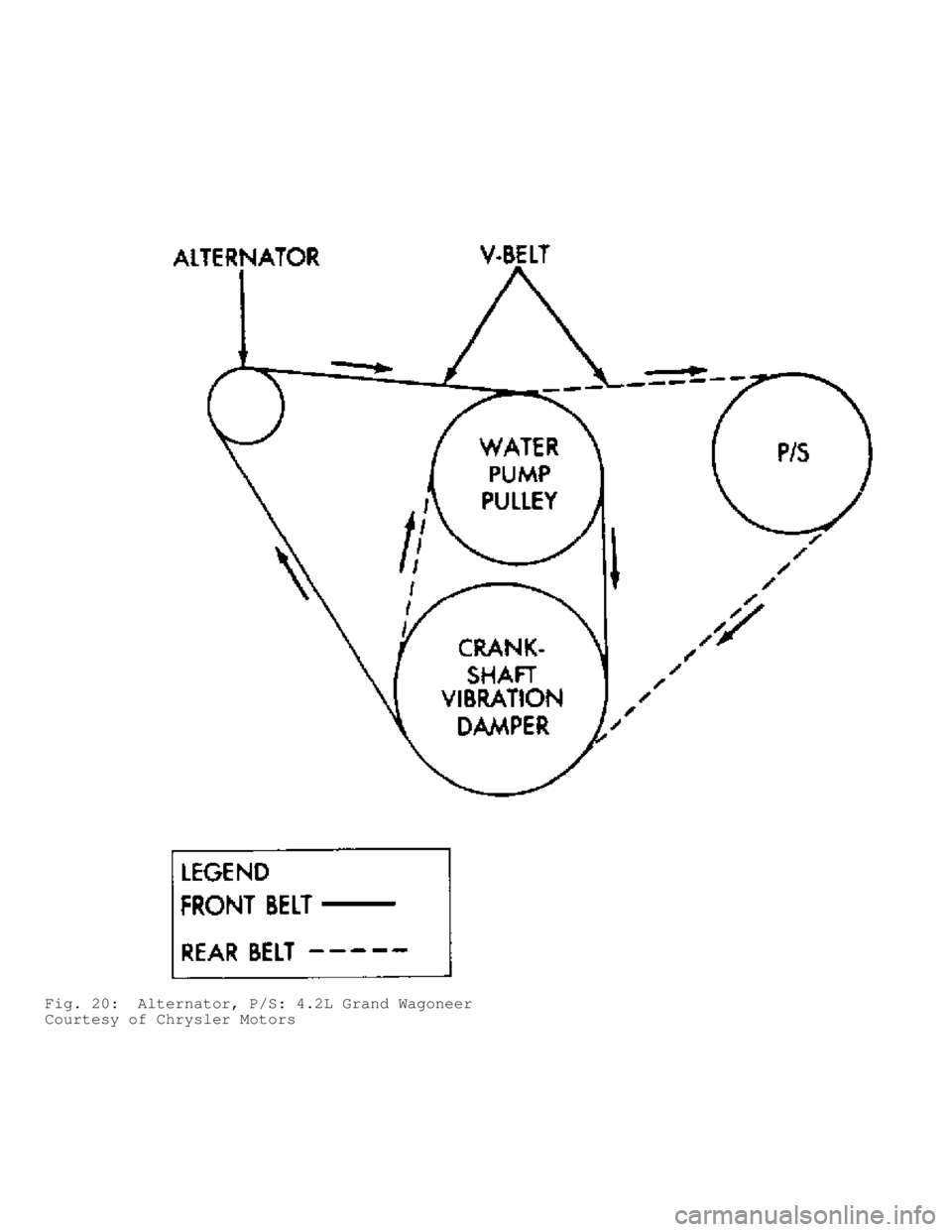

Fig. 20: Alternator, P/S: 4.2L Grand Wagoneer
Courtesy of Chrysler Motors
