Page 905 of 1378
SERVICE POINT LOCATIONS
Fig. 1: Service Point Locations (Typical)
Courtesy of American Motors Corp.
NOTE: The 2.1L Turbo-Diesel engine has two (2) oil drain plugs
ADDITIONAL SERVICE INFORMATION
Fig. 2: Water Separator (Diesel)
Courtesy of American Motors Corp.
NOTE: For more information regarding 2.1L Turbo-Diesel engine
service refer to the TUNE-UP - DIESEL article in
Page 906 of 1378

the ENGINE PERFORMANCE section.
Fuel filter should be drained whenever "WATER IN FUEL"
warning light glows. Diesel fuel can damage asphalt and
painted surfaces. Always place a drain pan under fuel filter
to collect contaminated fuel. See Fig. 2.
1) Stop vehicle and turn engine off. Attach a long piece
of tubing to drain cock outlet. Place end of drain hose into
drain pan. Open filter assembly vent valve (Black + shaped
knob) and drain cock.
2) Drain approximately 1/2 pint (.24 Liters) from fuel
filter. Close vent valve and drain cock. Start engine and
check for leaks. If "WATER IN FUEL" warning lamp comes on
again, remove water contaminated fuel from fuel lines and
fuel tank.
WARNING: DO NOT bleed fuel lines on hot engine, as high exhaust
temperatures could cause fire. Use care when bleeding fuel
lines, as fuel is under extreme pressure and could penetrate
skin, causing personal injury. Wear safety goggles and
protective clothing when bleeding fuel lines.
CAUTION: DO NOT drain fuel/water separator when engine is running or
hot. Allow engine to cool before draining. Verify that the
WATER IN FUEL light on instrument panel is OFF.
Fig. 3: Locking Crankshaft at TDC
Courtesy of American Motors/Jeep Corp.
Page 907 of 1378
Fig. 4: Camshaft & Injection Pump Timing Marks
Courtesy of American Motors/Jeep Corp.
Fig. 5: Rocker Arm Shaft Assembly (Oil Filter Location)
Courtesy of American Motors/Jeep Corp.
Page 908 of 1378
Fig. 6: Valve Layout
Courtesy of American Motors/Jeep Corp.
NOTE: For more information regarding 2.1L Turbo-Diesel engine
service refer to the 2.1L 4-CYL TURBO DIESEL - VIN [B]
Page 909 of 1378
article in the ENGINE MECHANICAL section.
Fig. 7: Hoist Lift Point Locations
Courtesy of American Motors Corp.
NOTE: For more information regarding jacking and hoisting refer
to the JACKING & HOISTING article in the
Page 910 of 1378
WHEEL ALIGNMENT section.

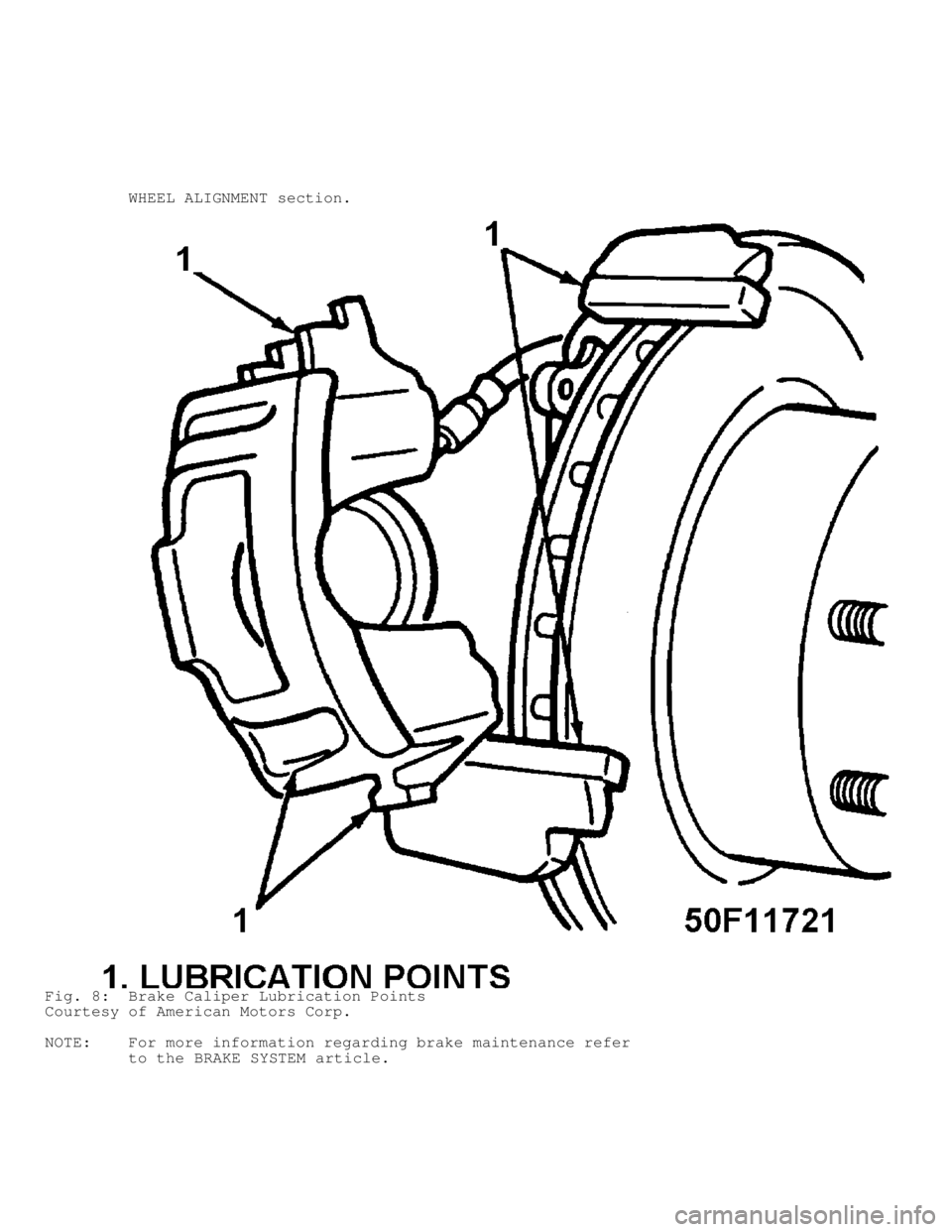

Fig. 8: Brake Caliper Lubrication Points
Courtesy of American Motors Corp.
NOTE: For more information regarding brake maintenance refer
to the BRAKE SYSTEM article.
Page 911 of 1378

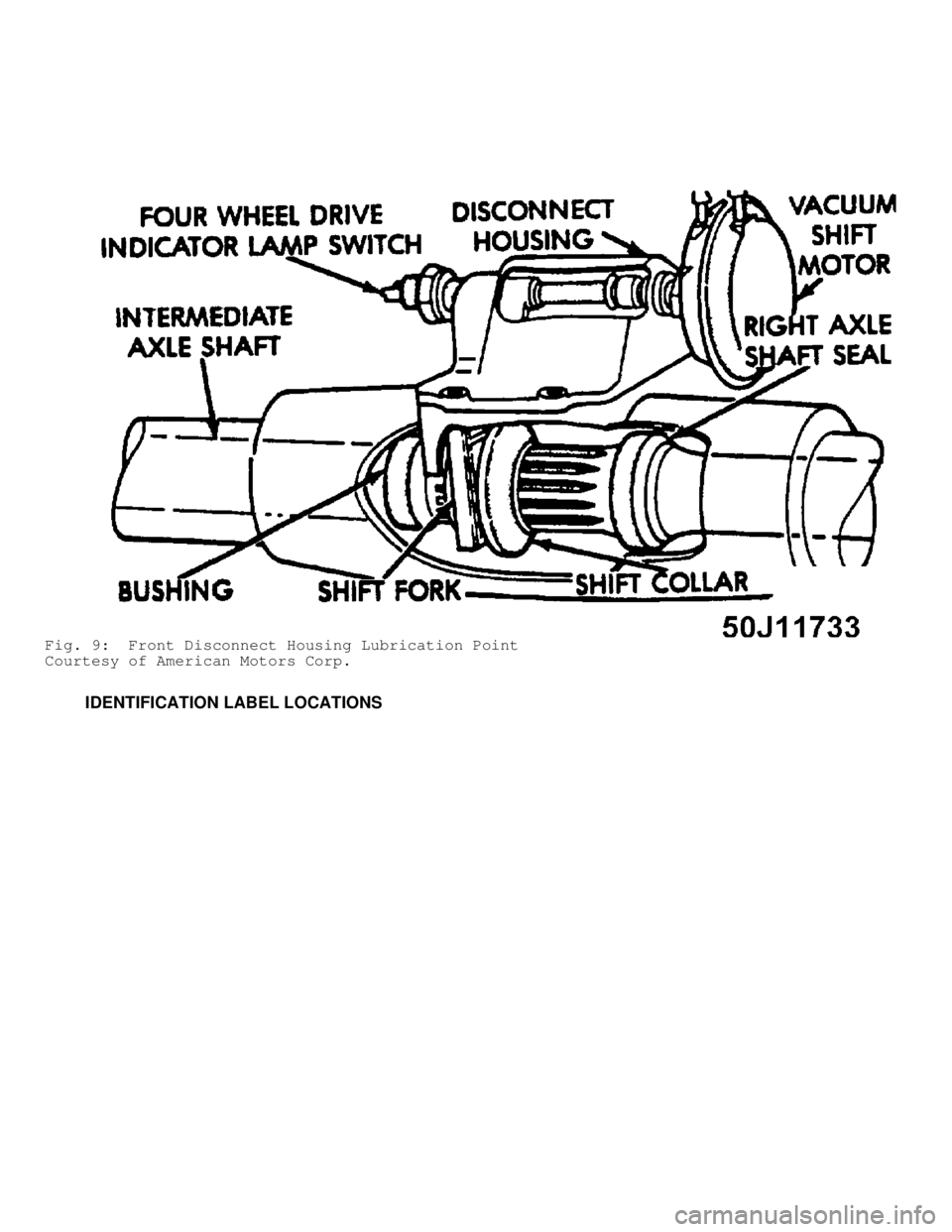

Fig. 9: Front Disconnect Housing Lubrication Point
Courtesy of American Motors Corp.
IDENTIFICATION LABEL LOCATIONS
Page 912 of 1378

Fig. 10: Identification Label Locations
Courtesy of American Motors Corp.
LUBRICATION SPECIFICATIONS
LUBRICATION SPECIFICATIONS TABLE\
\
\
\
\
\
\
Application Fluid Specifications
Automatic Transmission ......................... Dexron-IIE ATF
Brake Master Cylinder ......... DOT 3 (SAE J-1703F) Brake Fluid
Engine Coolant .......... Alugard 340-2 & Water (50/50 Mixture)
Engine Oil ( 1)
Gasoline Engine
Temperature Range
Above 30
\b F (-1\bC) ....... SAE 20W-40 Or 20W-50 API SH/CD
Above 0\b F (-18\bC) ........ SAE 10W-30 Or 10W-40 API SH/CD
Less Than 60\b F (16\bC) .............. SAE 5W-30 API SH/CD
Diesel Engine
Temperature Range
Above 30
\b F (-1\bC) ................ SAE 15W-40, 20W-40 Or
20W-50 API SH/CD
0
\b F (-18\bC) to 100\b F (38\bC) ...... SAE 10W-30 API SH/CD
Less Than 50\b F (10\bC) .............. SAE 5W-30 API SH/CD
Front Axle ................................ SAE 80W-90 API GL-5
Rear Axle ................................. SAE 80W-90 API GL-5
Rear Axle (Trac-Lok) ( 2) ................. SAE 80W-140 API GL-5
Rear Axle (Trailer Towing) ( 3) .......... SAE 75W-140 Synthetic
Hydraulic Clutch .............. DOT 3 (SAE J-1703F) Brake Fluid
Manual Transmission ....................... SAE 75W-90 API GL-5
Manual Steering Box .............. Multi-Purpose NLGI Grade 2EP
Power Steering Pump ...................... Power Steering Fluid
Transfer Case .................................. Dexron-IIE ATF
