2020 MITSUBISHI L200 Owner's Manual (in English)

Service precautions........................................................................... 10-02
Catalytic converter............................................................................ 10-03
Bonnet............................................................................................... 10-03
Engine oil.......................................................................................... 10-05 Engine coolant...................................................................................10-06
Washer fluid...................................................................................... 10-07
Brake fluid.........................................................................................10-08
Clutch fluid*..................................................................................... 10-08 Power steering fluid.......................................................................... 10-09
Battery............................................................................................... 10-09 AdBlue

Service precautions
Adequate care of your vehicle at regular in-
tervals serves to preserve the value and ap- pearance as long as possible.
Maintenance items as described in this own-
er’s manual can be performed by the owner. We recommend you to have the periodic in-
spection and maintenance performed by a MITSUBISHI MOTORS Authorized Service
Point or another specialist.
In the event a malfunction or a problem is
discovered, we recommend you to have it checked and repaired. This section contains
information on inspection maintenance pro- cedures that you can do yourself. Follow theinstructions and cautions for each of the vari-
ous procedures.:ARN,NGz When checking or servicing the inside of
the engine compartment, make sure theengine is switched off and has had a
chance to cool down.
z If it is necessary to do work in the engine
compartment with the engine running, be
especially careful that your clothing, hair, etc., does not become caught by the cool- ing fan, drive belts, or other moving parts.
z After performing the maintenance, make
sure that no tools or cloths are left behindin the engine compartment. If they are leftbehind, a fire or damage to the vehicle
may occur.
z The cooling fan can turn on automatically
even if the engine is not running. Turn the
ignition switch to “LOCK” position or put
the operation mode in OFF to be safe while you work in the engine compart-ment.:ARN,NGz Do not smoke, cause sparks or allow open
flames around fuel or battery. The fumes are flammable.
z Be extremely cautious when working
around the battery. It contains poisonous and corrosive sulphuric acid.
z Do not get under your vehicle with just
the body jack supporting it. Always use automotive jack stands.
z Improper handling of components and
materials used in the vehicle can endanger
your personal safety. We recommend you
to consult a specialist for necessary infor- mation.
Service precautions
10-022.7(20(1Maintenance10

1. Engine coolant reservoir
2. Brake fluid reservoir
3. Clutch fluid reservoir *
4. Engine oil cap
5. Engine oil level gauge
6. Power steering fluid reservoir
7. Washer fluid reservoir
8. BatteryCatalytic converter
The exhaust gas scavenging devices used with the catalytic converter are extremely ef-
ficient for the reduction of noxious gases. The catalytic converter is installed in the ex-
haust system.
It is important to keep the engine properly
tuned to ensure proper catalyst operation andprevent possible catalyst damage.:ARN,NGz As with any vehicle, do not park or oper-
ate this vehicle in areas where combusti-
ble materials such as dry grass or leaves can come in contact with a hot exhaust
since a fire could occur.NOTEz Use fuel of the type recommended in
“Fuel
selection” on page 2-02.Bonnet
To open
1. Pull the release lever towards you to un-
lock the bonnet.
Catalytic converter
10-032.7(20(1Maintenance10

2.Raise the bonnet while pressing the safe-
ty lock.NOTEz Only open the bonnet when the wipers are in
the parked position. Failure to do so may
cause damage to the bonnet, wiper arms or
front windscreen.
3. Support the bonnet by inserting the sup-
port bar in its slot.
CAUT,ONz Note that the support bar may disengage the
bonnet if the open bonnet is lifted by astrong wind.
z After inserting the support bar into the slot,
make sure the bar supports the bonnet se-
curely from falling down on to your head or body.
To close
1. Unlatch the support bar and clip it in its
holder.
2. Slowly lower the bonnet to a position
about 20 cm above the closed position, then let it drop.
3. Make sure the bonnet is securely locked
by softly lifting the centre of the bonnet.CAUT,ONz Be careful that hands or fingers are not trap-
ped when closing the bonnet.
z Before driving, make sure that the bonnet is
securely locked. An incompletely locked bonnet can suddenly open while driving.
This can be extremely dangerous.NOTEz If this does not close the bonnet, release it
from a slightly higher position.
z Do not press down firmly on the bonnet as
doing so could damage it.
Bonnet
10-042.7(20(1Maintenance10

Engine oil
To check and refill engine oil
A:Minimum level
B:Maximum level
C:Oil replacement indication mark
The engine oil used has a significant effect on
the engine’s performance, service life and startability. Be sure to use oil of the recom-
mended quality and appropriate viscosity.
All engines consume a certain amount of oil during normal operation. Therefore, it is im-portant to check the oil level at regular inter- vals or before starting a long trip. 1. Park the car on a horizontal surface.
2. Switch off the engine.
3. Wait a few minutes.
4. Remove the dipstick and wipe it with a
clean cloth.
5. Reinsert the dipstick as far as it goes.
6. Remove the dipstick and read the oil lev- el, which should always be within therange indicated.
7. If the oil level is below the specified
limit, remove the cap located on the cyl- inder head cover and add enough oil to
raise the level to within the specified range. Do not overfill to avoid engine
damage. Be sure to use the specified en-
gine oil and do not mix various types of
oil.
8. After adding oil, close the cap securely.
9. Confirm the oil level by repeating step 4
to 6.NOTEz Check or refill the oil according to the fol-
lowing manner.

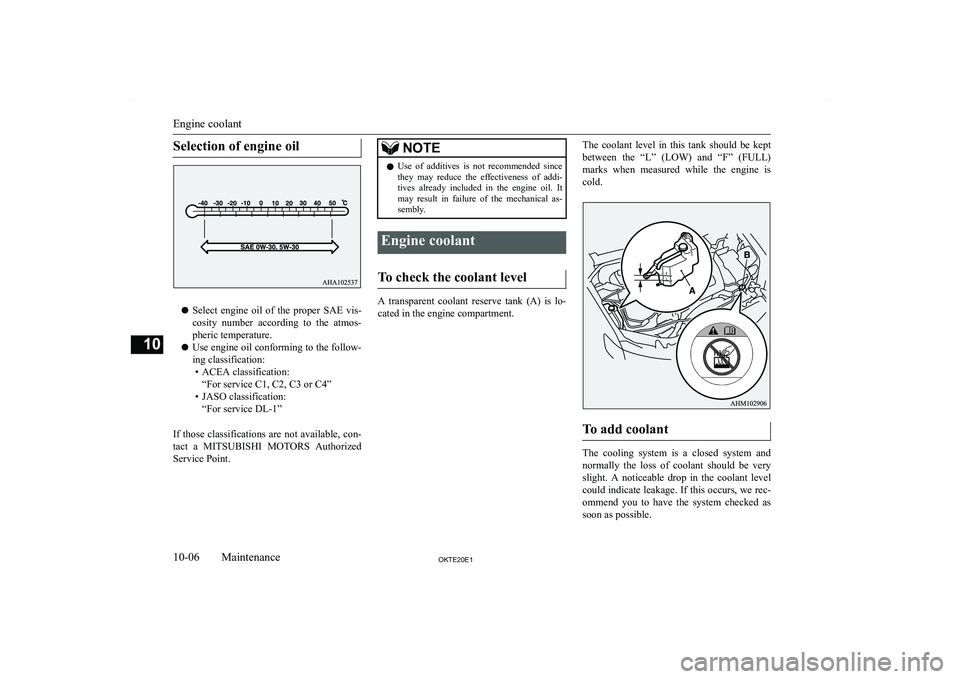

Selection of engine oil
zSelect engine oil of the proper SAE vis-
cosity number according to the atmos-pheric temperature.
z Use engine oil conforming to the follow-
ing classification:

If the level should drop below the “L”
(LOW) level on the reserve tank, open the lid and add coolant.
Also, if the reserve tank is completely empty, remove the radiator cap (B) and add coolant until the level reaches the filler neck.:ARN,NGz Do not open the radiator cap (B) while the
engine is hot. The coolant system is under
pressure and any hot coolant escaping
could cause severe burns.
Anti-freeze
The engine coolant contains an ethylene gly-
col anti-corrosion agent. Some parts of the
engine are cast aluminium alloy, and periodic
changing of the engine coolant is necessary
to prevent corrosion of these parts.

Use “ MITSUBISHI MOTORS GENUINE
SUPER LONG LIFE COOLANT PREMI-
UM” or equivalent*.
*: similar high quality ethylene glycol based
non-silicate, non-amine, nonnitrate and non- borate coolant with long life hybrid organic acid technology

MITSUBISHI MOTORS GENUINE Coolant
has excellent protection against corrosion and rust formation of all metals including alumi-
nium and can avoid blockages in the radiator,
heater, cylinder head, engine block, etc.
Because of the necessity of this anti-corro- sion agent, the coolant must not be replaced
with plain water even in summer. The re- quired concentration of anti-freeze differs de- pending on the expected ambient tempera-
ture.

Above -35

NOTEzThe washer fluid container serves the wind-
screen and headlamps (if so equipped).
During cold weather
To ensure proper operation of the washers at
low temperatures, use a fluid containing an anti-freezing agent.
Brake fluid
To check the fluid level
Check the brake fluid level in the reservoir.
The brake fluid level must be between the “MAX” and “MIN” marks on the reservoir.
The brake fluid level is monitored by a float.
When the brake fluid level falls below the “MIN” mark, the brake fluid warning lamp
lights up.
The fluid level falls slightly with wear of the brake pads, but this does not indicate any ab-
normality.
If the brake fluid level falls markedly in a short length of time, it indicates leaks from
the brake system.
If this occurs, we recommend you to have the vehicle checked.
Fluid type
Use brake fluid conforming to DOT3 or
DOT4. The brake fluid is hygroscopic. Too
much moisture in the brake fluid will ad- versely affect the brake system, reducing the brake performance.
In addition, the brake fluid reservoir is equip-
ped with a special cap to prevent the entrance
of air, and this cap should not be removed.
:ARN,NGz Take care in handling brake fluid as it is
harmful to the eyes, may irritate your
skin and will damage painted surfaces.
Wipe up spills immediately. If brake fluid gets on your hands or in your eyes, flushimmediately with clean water. Follow up
with a doctor as necessary.CAUT,ONz Use only the specified brake fluid.
Do not mix or add different brands of brake fluid to prevent chemical reactions.
Do not let any petroleum-based fluid touch, mix with, or get into the brake fluid.
This will damage the seals.
z Keep the reservoir tank cap closed to pre-
vent the brake fluid from deteriorating ex- cept maintenance.
z Clean the filler cap before removing and
close the cap securely after maintenance.Clutch fluid*
To check the fluid level
The clutch fluid in the master cylinder should
be checked when performing other under-
hood service. In addition, the system should be checked for leakage at the same time.
Brake fluid
10-082.7(20(1Maintenance10
