CAUT,ONzIf the warning is displayed while the engine
is running, immediately park your vehicle in
a safe place and check the engine oil level. Refer to “Maintenance: Engine oil” on page
10-05.
z If the warning is displayed while the engine
oil level is normal, have it inspected.Engine oil level warning dis-
play
When the ignition switch or the operation mode is in ON, if it is suspected that the en-
gine oil level has increased excessively, the
warning display is displayed on the informa- tion screen in the multi information display.
CAUT,ONz If this warning is displayed while driving,
stop the vehicle in a safe place, turn off the
engine, and check the engine oil level.
Refer to “Maintenance: Engine oil” on page
10-05.NOTEz Immediately have your vehicle checked by a
MITSUBISHI MOTORS Authorized Serv-
ice Point.Combination headlamps
and dipper switch
Headlamps
NOTEz When entering a country in which vehicles
are driven on the opposite side of the road tothe country in which your vehicles is sup- plied, necessary measures have to be takento avoid dazzling oncoming traffic. Howev-
er, headlamps on this vehicle do not need any adjustment.
z Do not leave the lamps on for a long time
while the engine is stationary (not running).A run-down battery could result.
z When it rains, or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy, but this does not indicate a
functional problem.
When the lamp is switched on, the heat will remove the fog. However, if water gathers
inside the lamp, we recommend you to have it checked.Type 1
Rotate the switch to turn on the lamps.
OFFAll lamps offPosition, tail, licence plate and instru-
ment panel lamps onHeadlamps and other lamps go on
Combination headlamps and dipper switch
5-552.7(20(1Instruments and controls5

Type 2
Rotate the switch to turn on the lamps.
OFFAll lamps off
AUTO
With the ignition switch or the
operation mode is in ON, head-
lamps, position, tail, licence plate
and instrument panel lamps turn
on and off automatically in ac-
cordance with outside light level.
All lamps turn off automatically
when the ignition switch is turned
to “OFF” position or the opera-
tion mode is put in OFF.Position, tail, licence plate and in-
strument panel lamps onHeadlamps and other lamps go onNOTEz The sensitivity of the automatic on/off con-
trol can be adjusted. For further information,contact a MITSUBISHI MOTORS Author-
ized Service Point.
z If the front fog lamps (if so equipped) turn
on when they are supposed to with the
switch in the “AUTO” position, the lamps turn off automatically with the ignition
switch or operation mode off.
z When the headlamps are turned off by the
automatic on/off control with the ignition
switch in the “ON” position or the operation
mode in ON, the front fog lamps (if so
equipped) and rear fog lamp (if so equipped)
also go off.
When the headlamps are subsequently
turned back on by the automatic on/off con- trol, the front fog lamps also come on but the
rear fog lamp stays off. If you wish to turn
the rear fog lamp back on, operate the switch
again.NOTEz Do not cover the sensor (A) for the automat-
ic on/off control by affixing a sticker or label
to the windscreen.
z If the lamps do not turn on or off with the
switch in the “AUTO” position, manually
operate the switch and we recommend you
to have your vehicle checked.
Combination headlamps and dipper switch
5-562.7(20(1Instruments and controls5

Lamps (headlamps, fog lamps,etc.) auto-cutout function
z If the following operation is performed
while the lamp switch is in the “” po-
sition, the lamps are automatically
turned off when the driver’s door is
opened.
[Except vehicles equipped with keyless
operation system@
The ignition switch is turned to the
“LOCK” or “ACC” position, or the key is removed from the ignition switch.
[For vehicles equipped with keyless op- eration system@
The operation mode is in OFF or ACC.
z If the following operation is performed
while the lamp switch is in the “
” po-
sition, the lamps are automatically
turned off if the driver’s door then re-
mains closed for approximately three minutes.
[Except vehicles equipped with keyless
operation system@
The ignition switch is turned to the
“LOCK” or “ACC” position, or the key is removed from the ignition switch.
[For vehicles equipped with keyless op- eration system@
The operation mode is in OFF or ACC.
NOTEz The lamp auto-cutout function can also be
disabled.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.Lamp monitor buzzer
If the following operation is performed, a
buzzer will sound to remind the driver to turn
off the lamps.
[Except for vehicles equipped with keyless
operation system@
If the driver’s door is opened when the key is
in the “LOCK” or “ACC” position or re-
moved from the ignition switch while the lamps are on.
[For vehicles equipped with keyless opera-
tion system@
If the driver’s door is opened when the opera- tion mode is in ACC or OFF while the lamps
are on.

In both cases, the buzzer will automatically stop if the auto-cutoff function is activated,
the lamp switch is turned off, or the door is closed.
Daytime running lamp
The daytime running lamps comes on when
the engine is running and the lamp switch is in the “OFF” or “AUTO” position and the taillamps are off.
Dipper (High/Low beam
change)
When the lamp switch is in the “” posi-
tion, the beam changes from high to low (or
low to high) each time the lever is pulled fully (1). While the high-beam is on, the
high-beam indication lamp in the instrument
cluster will also illuminate.
Headlamp flasher
The high-beams flash when the lever is
pulled slightly (2), and will go off when it is released.
Combination headlamps and dipper switch
5-572.7(20(1Instruments and controls5

When the high-beam is on, the high-beam in-dication lamp in the instrument cluster will il-
luminate.NOTEz The high-beams can also flash when the
lamp switch is OFF.
z If you turn the lamps off with the headlamps
set to high-beam, the headlamps are auto- matically returned to their low-beam setting
when the lamp switch is next turned to the
“
” position.
Automatic High-Beam (AHB)*
The Automatic High-Beam (AHB) switches
the headlamp beams (high/low) when the
sensor (A) senses a illuminant such as lights
of a vehicle in front or oncoming vehicle or a street lamp.
:ARN,NGz The headlamp beams (high/low) may not
be switched automatically under certain
circumstances. Do not overestimate the system. It is the responsibility of the driv-er to switch the headlamp beams (high/
low) manually to suit each driving condi- tion.
Refer to “Dipper (High/Low beam
change)” on page 5-57How to use the AHB
1. Rotate the lamp switch to the “” posi-
tion or “AUTO” position when the en- gine is running.
2. Press the AHB switch.
The AHB is activated and the indicator
will illuminate.
If the AHB switch is pressed again, the
AHB will be deactivated and the AHB
indicator will go off.NOTEz If the headlamps are on when the lamp
switch is in the “AUTO” position, the AHB
works.
z You can switch the headlamp beams (high/
low) manually by operating the lever even if
the AHB is working.
Refer to “Dipper (High/Low beam change)”
on page 5-57
If the lever is operated manually, the AHB indicator will go off and the AHB will be de-
activated.
Refer to “Manual switching” on page 5-58.
z The AHB is not deactivated when you pull
the lever slightly (operation of the headlamp flasher).
Combination headlamps and dipper switch
5-582.7(20(1Instruments and controls5

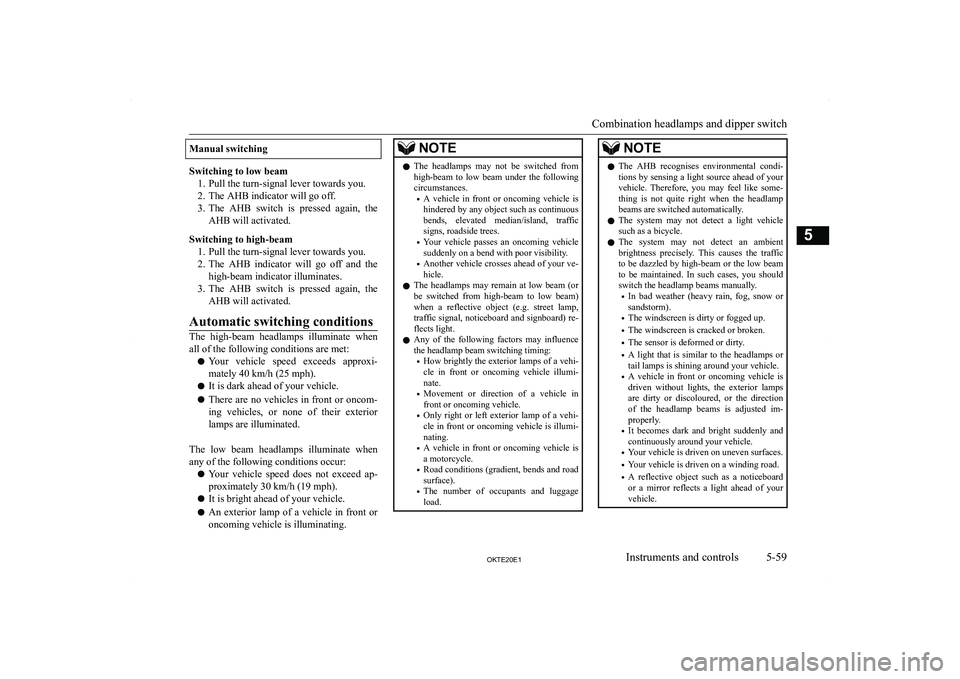

Manual switching
Switching to low beam1. Pull the turn-signal lever towards you.2. The AHB indicator will go off.
3. The AHB switch is pressed again, the
AHB will activated.
Switching to high-beam 1. Pull the turn-signal lever towards you.
2. The AHB indicator will go off and the
high-beam indicator illuminates.
3. The AHB switch is pressed again, the
AHB will activated.
Automatic switching conditions
The high-beam headlamps illuminate when
all of the following conditions are met:
z Your vehicle speed exceeds approxi-
mately 40 km/h (25 mph).
z It is dark ahead of your vehicle.
z There are no vehicles in front or oncom-
ing vehicles, or none of their exterior
lamps are illuminated.
The low beam headlamps illuminate when any of the following conditions occur:
z Your vehicle speed does not exceed ap-
proximately 30 km/h (19 mph).
z It is bright ahead of your vehicle.
z An exterior lamp of a vehicle in front or
oncoming vehicle is illuminating.
NOTEz The headlamps may not be switched from
high-beam to low beam under the following circumstances.

NOTE

When the sensor performance returns, theAHB will resume operation.
If the warning display does not disappear af-
ter waiting for a while, there is a possibility that the sensor has a malfunction. Contact a MITSUBISHI MOTORS Authorized Service
Point for inspection of the sensor.Headlamp levelling switch
The angle of the headlamp beam varies de-
pending on the load carried by the vehicle.
The headlamp levelling switch can be used to adjust the headlamp illumination distance(when the lower beam is illuminated) so that the headlamps’ glare does not distract the
drivers of approaching vehicles.
Set the switch (referring to the following ta-
ble) to the appropriate position according to the number of people and the load in the ve-hicle.CAUT,ONz Always perform adjustments before driving.
Do not attempt to adjust while driving, as it could cause an accident.NOTEz When adjusting the beam position, first put
the dial in the “0” position (the highest beamposition).
Club cab
Vehicle con-
ditionSwitch posi- tion“0”“3” or “4”

:Full luggage loadingSwitch position 0-Driver onlySwitch position 3-Driver + Full luggageloading
(Vehicles with 4N14 en-
gine and 245/70R16
111S RF tyre)
(Vehicles with 4N15 en- gine and heavy duty sus-
pension)Switch position 4-Driver + Full luggage loading
(Vehicles with 4N14 en-
gine and 265/60R18
110H tyre)
(Vehicles with 4N15 en-

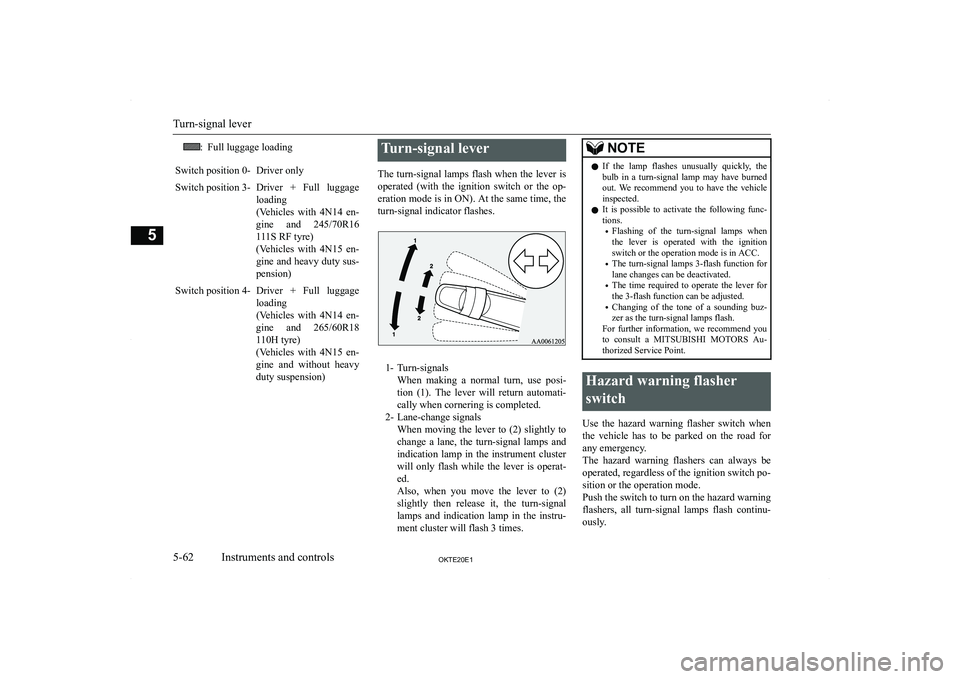

gine and without heavy duty suspension)Turn-signal lever
The turn-signal lamps flash when the lever is
operated (with the ignition switch or the op-
eration mode is in ON). At the same time, the turn-signal indicator flashes.
1- Turn-signals When making a normal turn, use posi-
tion (1). The lever will return automati- cally when cornering is completed.
2- Lane-change signals When moving the lever to (2) slightly to
change a lane, the turn-signal lamps and indication lamp in the instrument clusterwill only flash while the lever is operat- ed.
Also, when you move the lever to (2) slightly then release it, the turn-signal
lamps and indication lamp in the instru- ment cluster will flash 3 times.
NOTEz If the lamp flashes unusually quickly, the
bulb in a turn-signal lamp may have burned out. We recommend you to have the vehicle
inspected.
z It is possible to activate the following func-
tions.
