2020 MITSUBISHI L200 Owner's Manual (in English)

CAUT,ON

When the sensor is temporarilynot available
Example: When the front and/or rear sensors
are temporarily not available
When the warning display appears, the sen- sors are temporarily not available for some
reason such as the environmental condition
or increase of the sensor temperature. When
the warning display does not disappear after
waiting for a while, contact a MITSUBISHI
MOTORS Authorized Service Point.

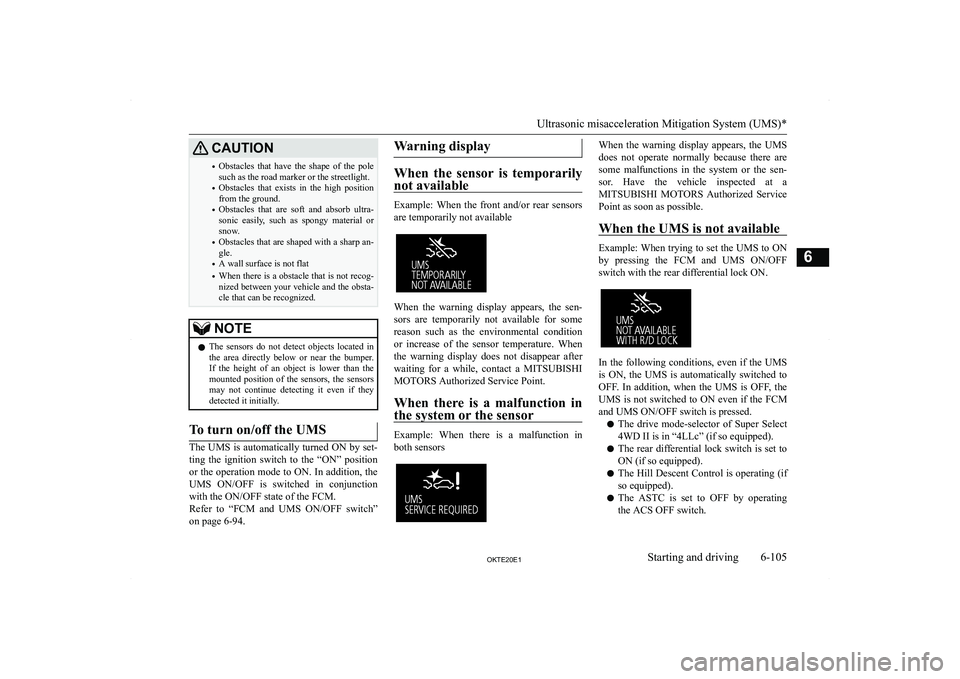

When there is a malfunction in
the system or the sensor
Example: When there is a malfunction in
both sensors
When the warning display appears, the UMS
does not operate normally because there are some malfunctions in the system or the sen-
sor. Have the vehicle inspected at a MITSUBISHI MOTORS Authorized Service
Point as soon as possible.When the UMS is not available
Example: When trying to set the UMS to ON
by pressing the FCM and UMS ON/OFF
switch with the rear differential lock ON.
In the following conditions, even if the UMS is ON, the UMS is automatically switched to OFF. In addition, when the UMS is OFF, the
UMS is not switched to ON even if the FCM and UMS ON/OFF switch is pressed.
z The drive mode-selector of Super Select
4WD II is in “4LLc” (if so equipped).
z The rear differential lock switch is set to
ON (if so equipped).
z The Hill Descent Control is operating (if
so equipped).
z The ASTC is set to OFF by operating
the ACS OFF switch.

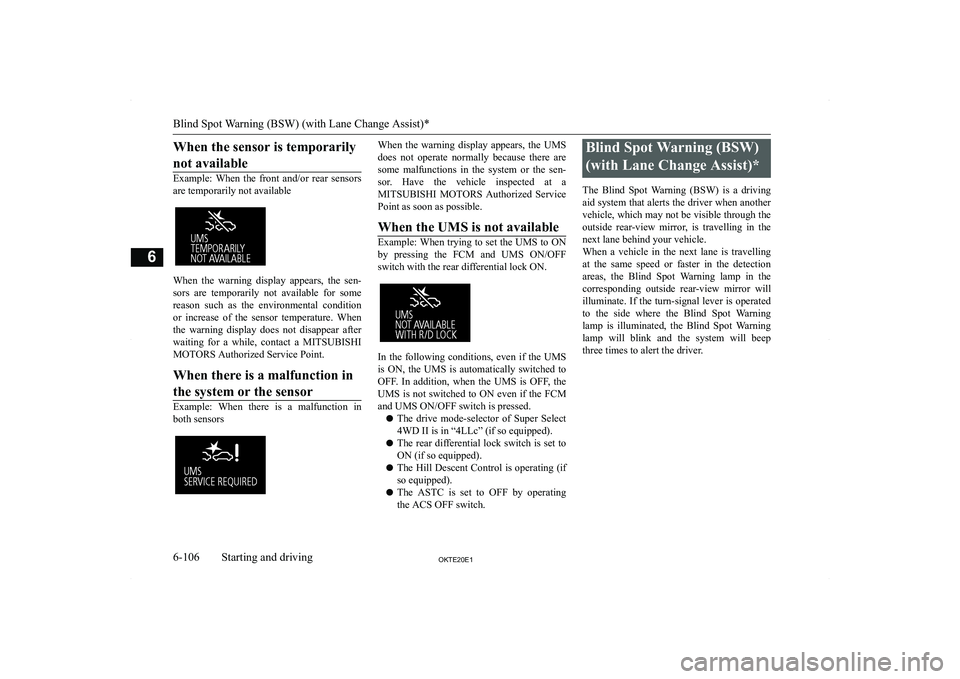

Blind Spot Warning (BSW)
(with Lane Change Assist)*
The Blind Spot Warning (BSW) is a driving
aid system that alerts the driver when another
vehicle, which may not be visible through the outside rear-view mirror, is travelling in the next lane behind your vehicle.
When a vehicle in the next lane is travelling
at the same speed or faster in the detection areas, the Blind Spot Warning lamp in thecorresponding outside rear-view mirror will
illuminate. If the turn-signal lever is operated
to the side where the Blind Spot Warning lamp is illuminated, the Blind Spot Warning
lamp will blink and the system will beep three times to alert the driver.
Blind Spot Warning (BSW) (with Lane Change Assist)*
6-1062.7(20(1Starting and driving6

Depending on the relative speed between
your vehicle and a vehicle in the next lane,
the Blind Spot Warning system will detect up to approximately 70 m from your vehicle.(Lane Change Assist):ARN,NGz Before using the BSW, read this entire
section to fully understand the limitationsof this system. Failure to follow instruc- tions could result in an accident.
z Never rely solely on the BSW system
when changing lanes. The BSW is an aid
only. It is not a substitute for your safe and careful driving. Always check visually
behind and all around your vehicle for other vehicles.
The performance of the BSW may vary
depending on driving, traffic and/or road conditions.Detection areas

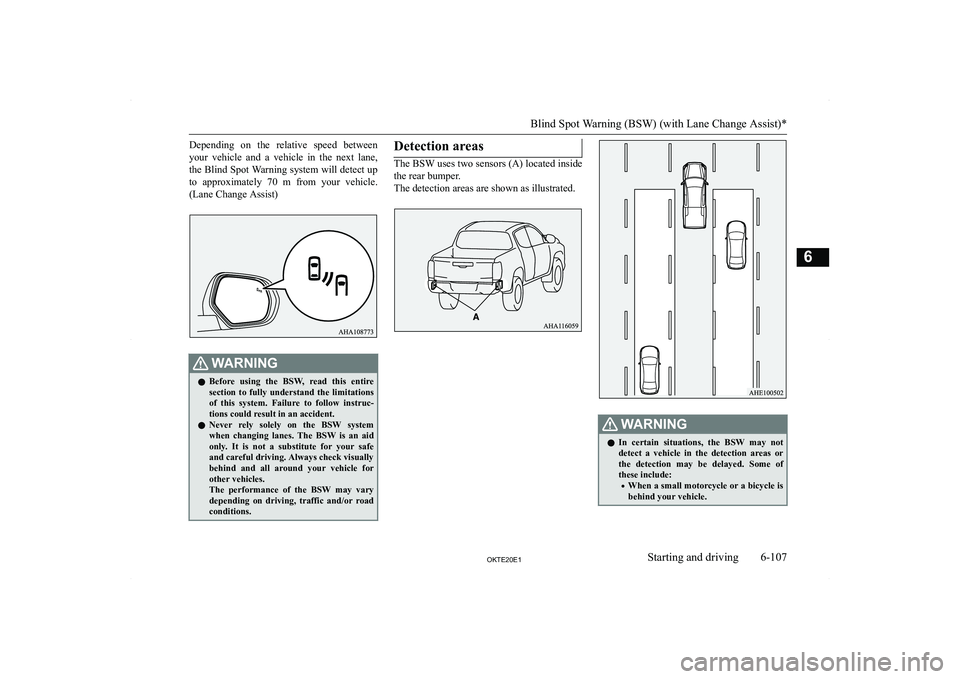

The BSW uses two sensors (A) located inside
the rear bumper.
The detection areas are shown as illustrated.
:ARN,NGz In certain situations, the BSW may not
detect a vehicle in the detection areas or
the detection may be delayed. Some of these include:

:ARN,NG

NOTEzWhen the ignition switch is turned to the
“LOCK” position or the operation mode is set to OFF, the selected condition just before
setting to OFF is retained.
z The BSW operates when all of the following
conditions are met.

When the warning display appears, the BSWdoes not operate normally because there are
some malfunctions in the system or the sen- sor. Have the vehicle inspected at aMITSUBISHI MOTORS Authorized Service
Point as soon as possible.NOTEz When the warning display appears, the BSW
will be deactivated.When the sensor is temporarily
not available
When the warning display appears, the sensor
is temporarily not available for some reason
such as the environmental condition or in-
crease of the sensor temperature. When the
warning display does not disappear after waiting for a while, contact a MITSUBISHI
MOTORS Authorized Service Point.
When there are foreign objects
on the sensor
When the warning display appears, the sensor
cannot detect a vehicle travelling side by side or an approaching vehicle, because foreignobjects, such as dirt, snow or ice, adhere to
the bumper surface around the sensor. Remove dirt, freezing or foreign material on the bumper surface around the sensor.
When the warning display does not disappear after having cleaned the sensor, contact a
MITSUBISHI MOTORS Authorized Service
Point.

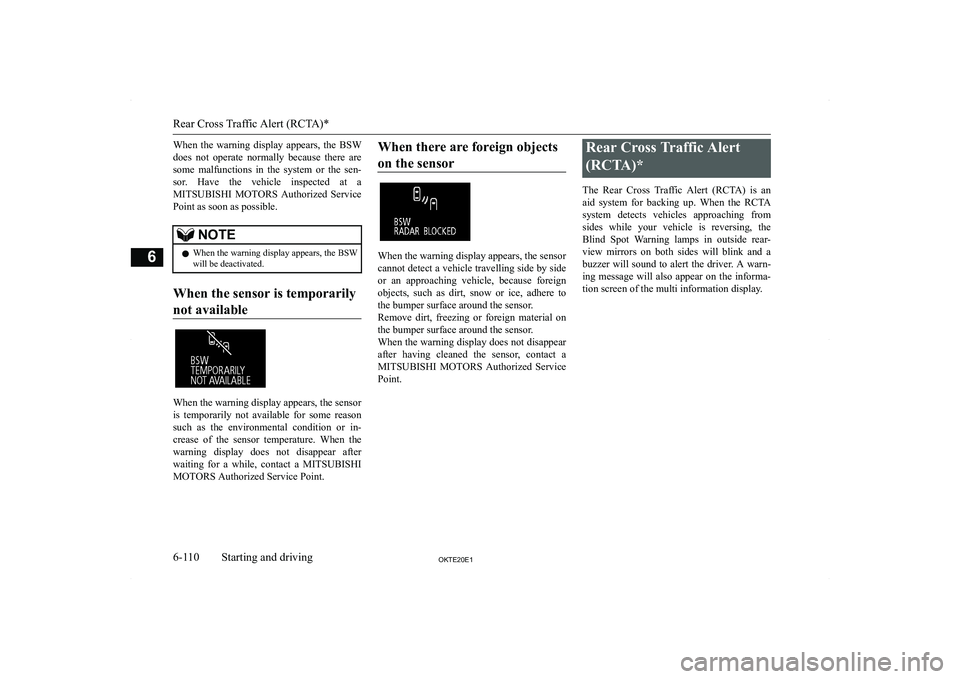

Rear Cross Traffic Alert
(RCTA)*
The Rear Cross Traffic Alert (RCTA) is an
aid system for backing up. When the RCTA
system detects vehicles approaching from
sides while your vehicle is reversing, the Blind Spot Warning lamps in outside rear-
view mirrors on both sides will blink and a buzzer will sound to alert the driver. A warn-
ing message will also appear on the informa-
tion screen of the multi information display.
Rear Cross Traffic Alert (RCTA)*
6-1102.7(20(1Starting and driving6

:ARN,NGzBefore using the RCTA, read this entire
section to fully understand the limitations
of this system. Failure to follow instruc-
tions could result in an accident.:ARN,NGz Never rely solely on the RCTA when
backing up. The RCTA is an aid system.
It is not a substitute for your safe and careful driving. Always check visually be-
hind and all around your vehicle for other vehicles, persons, animals or obstructions.
The performance of the RCTA may vary depending on driving, traffic and/or sur-rounding conditions.NOTEz The Blind Spot Warning lamps in the outside
rear-view mirrors on both sides will blink, even when only one vehicle is approachingfrom one side.Detection areas

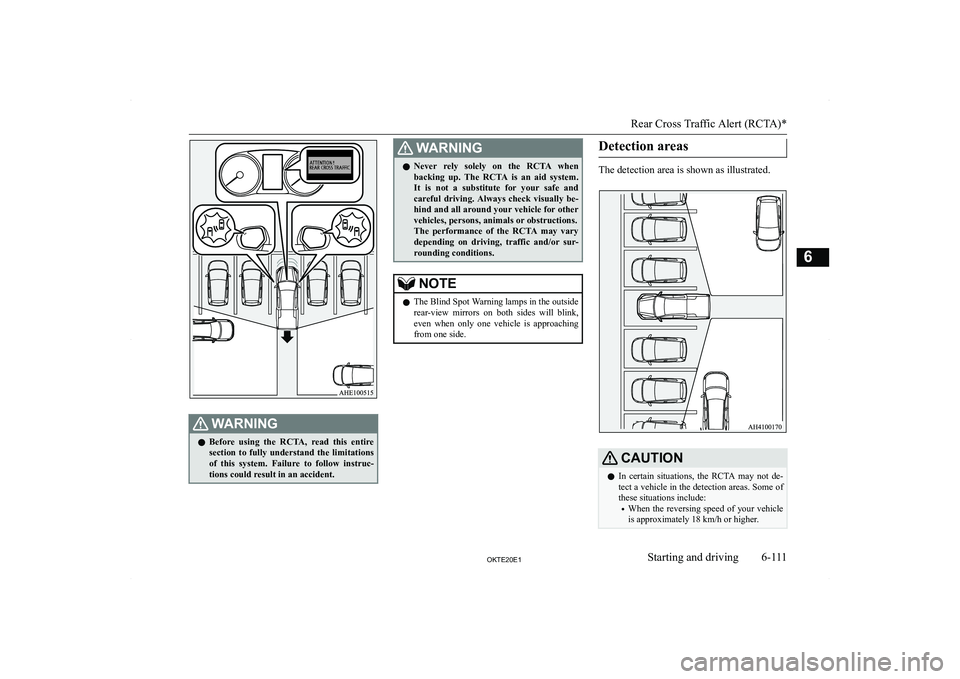

The detection area is shown as illustrated.
CAUT,ONz In certain situations, the RCTA may not de-
tect a vehicle in the detection areas. Some of
these situations include:

CAUT,ON
