2020 MITSUBISHI L200 Owner's Manual (in English)

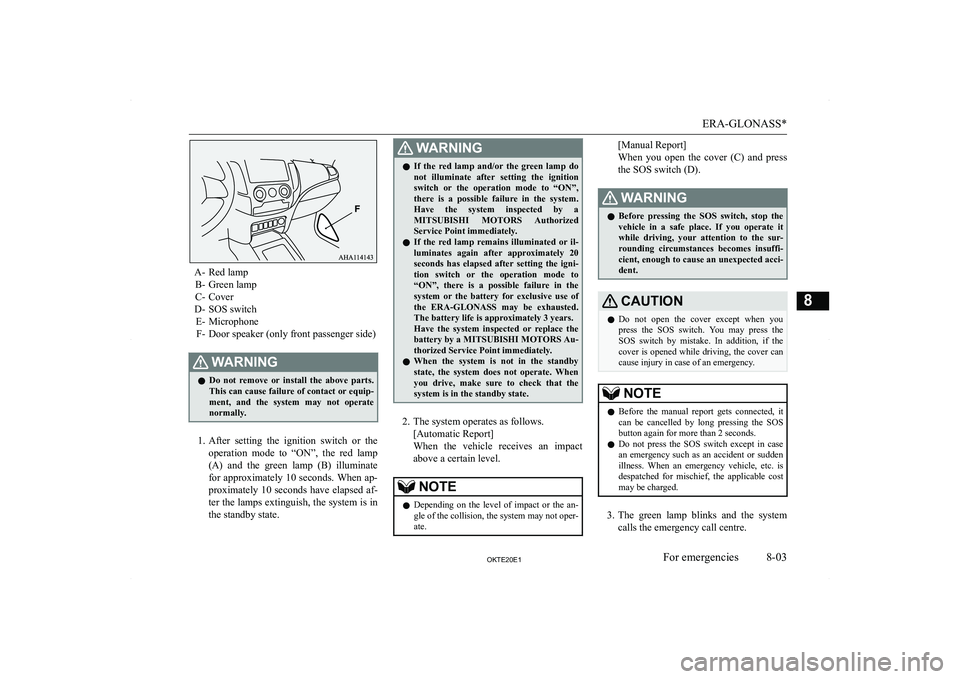

A- Red lampB- Green lamp
C- Cover
D- SOS switch E- MicrophoneF- Door speaker (only front passenger side)
:ARN,NGz Do not remove or install the above parts.
This can cause failure of contact or equip- ment, and the system may not operate
normally.
1. After setting the ignition switch or the
operation mode to “ON”, the red lamp
(A) and the green lamp (B) illuminate
for approximately 10 seconds. When ap- proximately 10 seconds have elapsed af-
ter the lamps extinguish, the system is in the standby state.
:ARN,NGz If the red lamp and/or the green lamp do
not illuminate after setting the ignition
switch or the operation mode to “ON”, there is a possible failure in the system. Have the system inspected by a
MITSUBISHI MOTORS Authorized
Service Point immediately.
z If the red lamp remains illuminated or il-
luminates again after approximately 20
seconds has elapsed after setting the igni-
tion switch or the operation mode to “ON”, there is a possible failure in the system or the battery for exclusive use of
the ERA-GLONASS may be exhausted. The battery life is approximately 3 years.
Have the system inspected or replace the
battery by a MITSUBISHI MOTORS Au-
thorized Service Point immediately.
z When the system is not in the standby
state, the system does not operate. When
you drive, make sure to check that the system is in the standby state.
2. The system operates as follows.
[Automatic Report@
When the vehicle receives an impact
above a certain level.
NOTEz Depending on the level of impact or the an-
gle of the collision, the system may not oper-
ate.[Manual Report@
When you open the cover (C) and press
the SOS switch (D).:ARN,NGz Before pressing the SOS switch, stop the
vehicle in a safe place. If you operate it while driving, your attention to the sur- rounding circumstances becomes insuffi-
cient, enough to cause an unexpected acci- dent.CAUT,ONz Do not open the cover except when you
press the SOS switch. You may press theSOS switch by mistake. In addition, if the
cover is opened while driving, the cover can cause injury in case of an emergency.NOTEz Before the manual report gets connected, it
can be cancelled by long pressing the SOS
button again for more than 2 seconds.
z Do not press the SOS switch except in case
an emergency such as an accident or sudden illness. When an emergency vehicle, etc. is
despatched for mischief, the applicable cost
may be charged.
3. The green lamp blinks and the system
calls the emergency call centre.
ERA-GLONASS*
8-032.7(20(1For emergencies8

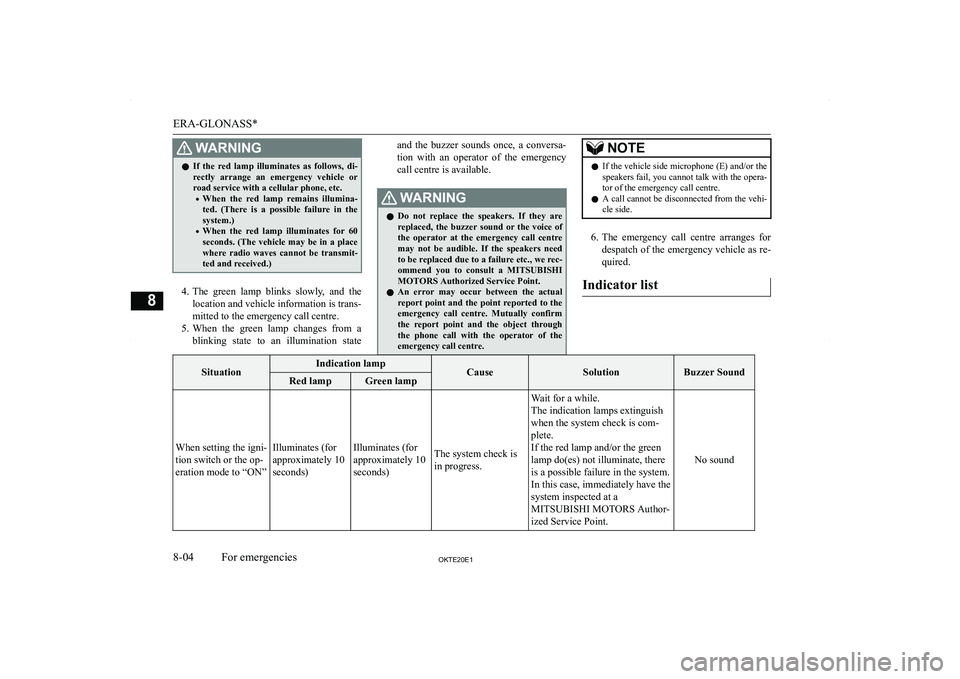

:ARN,NGzIf the red lamp illuminates as follows, di-
rectly arrange an emergency vehicle orroad service with a cellular phone, etc.

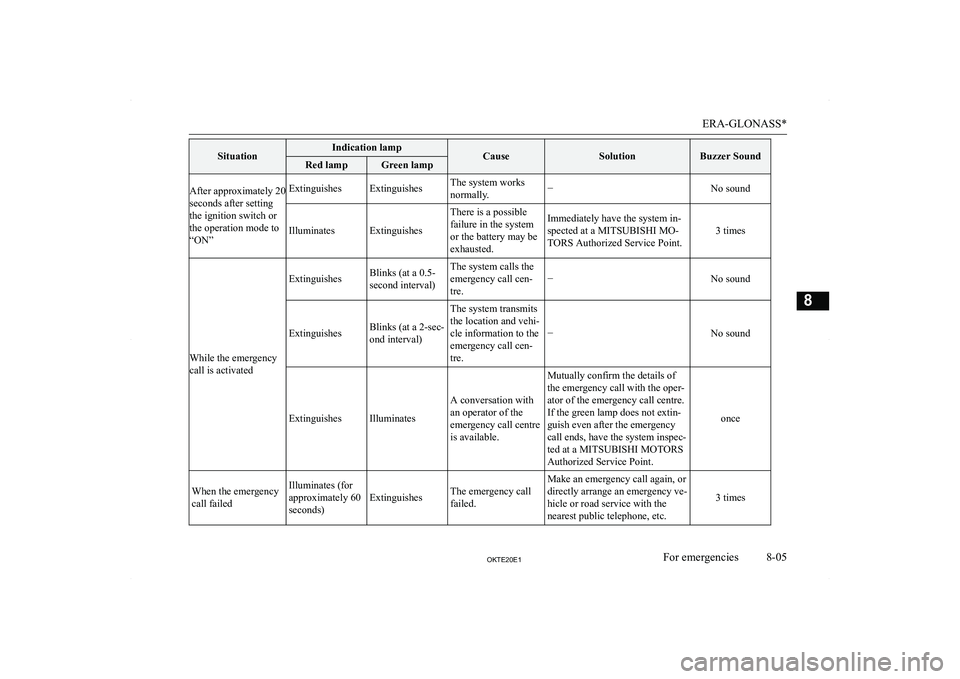

SituationIndication lampCauseSolutionBuzzer SoundRed lampGreen lampAfter approximately 20
seconds after setting
the ignition switch or
the operation mode to
“ON”ExtinguishesExtinguishesThe system works
normally.

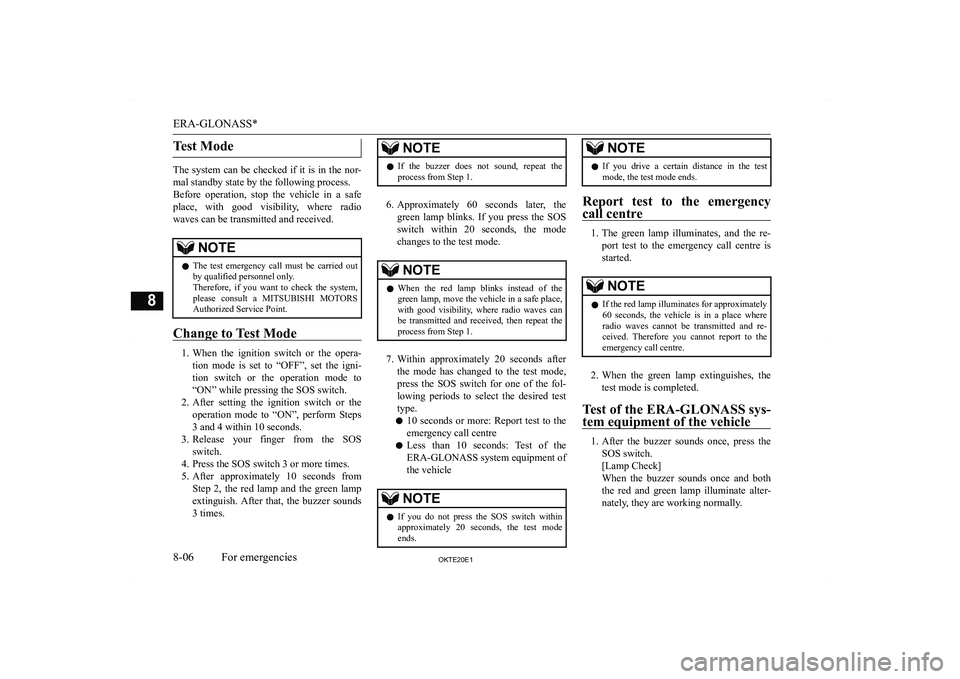

Test Mode
The system can be checked if it is in the nor-
mal standby state by the following process.
Before operation, stop the vehicle in a safe place, with good visibility, where radio
waves can be transmitted and received.
NOTEz The test emergency call must be carried out
by qualified personnel only.
Therefore, if you want to check the system,
please consult a MITSUBISHI MOTORS
Authorized Service Point.
Change to Test Mode
1. When the ignition switch or the opera-
tion mode is set to “OFF”, set the igni- tion switch or the operation mode to
“ON” while pressing the SOS switch.
2. After setting the ignition switch or the
operation mode to “ON”, perform Steps 3 and 4 within 10 seconds.
3. Release your finger from the SOS
switch.
4. Press the SOS switch 3 or more times.
5. After approximately 10 seconds from
Step 2, the red lamp and the green lamp extinguish. After that, the buzzer sounds 3 times.
NOTEz If the buzzer does not sound, repeat the
process from Step 1.
6. Approximately 60 seconds later, the
green lamp blinks. If you press the SOS
switch within 20 seconds, the mode changes to the test mode.
NOTEz When the red lamp blinks instead of the
green lamp, move the vehicle in a safe place, with good visibility, where radio waves can
be transmitted and received, then repeat the process from Step 1.
7. Within approximately 20 seconds after
the mode has changed to the test mode,
press the SOS switch for one of the fol- lowing periods to select the desired testtype.
z 10 seconds or more: Report test to the
emergency call centre
z Less than 10 seconds: Test of the
ERA-GLONASS system equipment of
the vehicle
NOTEz If you do not press the SOS switch within
approximately 20 seconds, the test modeends.NOTEz If you drive a certain distance in the test
mode, the test mode ends.
Report test to the emergency
call centre
1. The green lamp illuminates, and the re-
port test to the emergency call centre is started.
NOTEz If the red lamp illuminates for approximately
60 seconds, the vehicle is in a place where radio waves cannot be transmitted and re-ceived. Therefore you cannot report to the emergency call centre.
2. When the green lamp extinguishes, the
test mode is completed.
Test of the ERA-GLONASS sys- tem equipment of the vehicle
1. After the buzzer sounds once, press the
SOS switch.
[Lamp Check@
When the buzzer sounds once and both the red and green lamp illuminate alter-
nately, they are working normally.
ERA-GLONASS*
8-062.7(20(1For emergencies8

2.When the lamps are normal, press the
SOS switch. When the lamps do not illu- minate normally, wait for approximately
20 seconds.
[Speaker Check@
When the buzzer sounds twice and con-
tinues sounding, they are working nor- mally.
3. When the speakers are normal, press the
SOS switch. When the buzzer does not
sound normally, wait for approximately
20 seconds.
[Microphone Check@
After the buzzer sounds 3 times, say something towards the microphone.If your voice sounds from the speakers, they are working normally.
4. When the microphone is normal, press
the SOS switch. When it does not oper-
ate normally, wait for approximately 20 seconds.
5. If all check results are normal, the green
lamp illuminates (for approximately 5 seconds) and the buzzer sounds once.:ARN,NGz If any of the check results are not normal,
the red lamp illuminates (for approxi-
mately 5 seconds) and the buzzer sounds 3 times. In this case, there is a possible fail-
ure in the system. Have the system inspec- ted by a MITSUBISHI MOTORS Author-
ized Service Point immediately.6. When the green lamp extinguishes, the

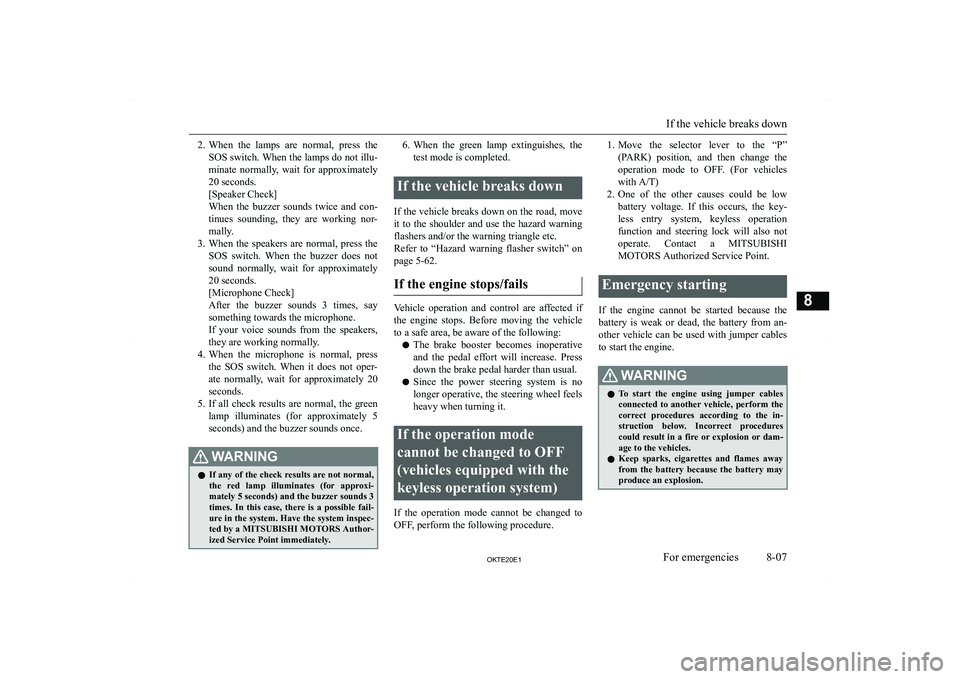

test mode is completed.If the vehicle breaks down
If the vehicle breaks down on the road, move
it to the shoulder and use the hazard warning flashers and/or the warning triangle etc.
Refer to “Hazard warning flasher switch” on
page 5-62.
If the engine stops/fails
Vehicle operation and control are affected if
the engine stops. Before moving the vehicle to a safe area, be aware of the following:
z The brake booster becomes inoperative
and the pedal effort will increase. Press
down the brake pedal harder than usual.
z Since the power steering system is no
longer operative, the steering wheel feels heavy when turning it.
If the operation mode
cannot be changed to OFF (vehicles equipped with the
keyless operation system)
If the operation mode cannot be changed to OFF, perform the following procedure.
1. Move the selector lever to the “P”
(PARK) position, and then change the
operation mode to OFF. (For vehicles with A/T)
2. One of the other causes could be low
battery voltage. If this occurs, the key-
less entry system, keyless operation function and steering lock will also notoperate. Contact a MITSUBISHI
MOTORS Authorized Service Point.Emergency starting
If the engine cannot be started because the battery is weak or dead, the battery from an-other vehicle can be used with jumper cables
to start the engine.
:ARN,NGz To start the engine using jumper cables
connected to another vehicle, perform the correct procedures according to the in- struction below. Incorrect procedures
could result in a fire or explosion or dam-
age to the vehicles.
z Keep sparks, cigarettes and flames away
from the battery because the battery may produce an explosion.
If the vehicle breaks down
8-072.7(20(1For emergencies8

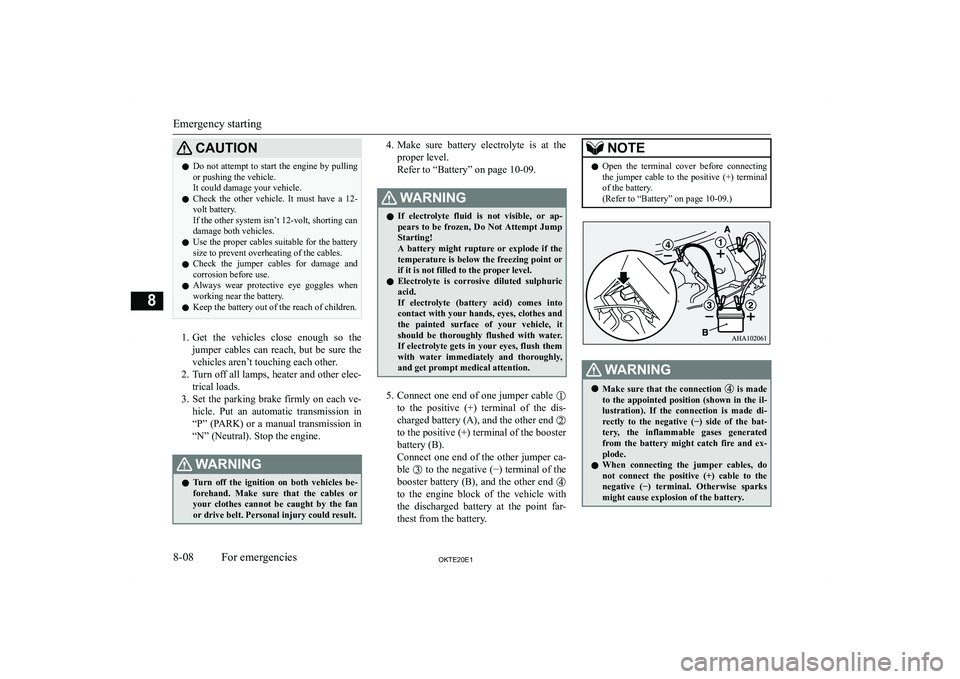

CAUT,ONzDo not attempt to start the engine by pulling
or pushing the vehicle.
It could damage your vehicle.
z Check the other vehicle. It must have a 12-
volt battery.
If the other system isn’t 12-volt, shorting can damage both vehicles.
z Use the proper cables suitable for the battery
size to prevent overheating of the cables.
z Check the jumper cables for damage and
corrosion before use.
z Always wear protective eye goggles when
working near the battery.
z Keep the battery out of the reach of children.
1.
Get the vehicles close enough so the
jumper cables can reach, but be sure the vehicles aren’t touching each other.
2. Turn off all lamps, heater and other elec-
trical loads.
3. Set the parking brake firmly on each ve-
hicle. Put an automatic transmission in
“P” (PARK) or a manual transmission in “N” (Neutral). Stop the engine.
:ARN,NGz Turn off the ignition on both vehicles be-
forehand. Make sure that the cables or
your clothes cannot be caught by the fan or drive belt. Personal injury could result.4. Make sure battery electrolyte is at the
proper level.
Refer to “Battery” on page 10-09.:ARN,NGz If electrolyte fluid is not visible, or ap-
pears to be frozen, Do Not Attempt Jump Starting!
A battery might rupture or explode if the temperature is below the freezing point or
if it is not filled to the proper level.
z Electrolyte is corrosive diluted sulphuric
acid.
If electrolyte (battery acid) comes into
contact with your hands, eyes, clothes and the painted surface of your vehicle, it
should be thoroughly flushed with water.
If electrolyte gets in your eyes, flush them with water immediately and thoroughly,
and get prompt medical attention.
5. Connect one end of one jumper cable
to the positive (+) terminal of the dis-
charged battery (A), and the other end
to the positive (+) terminal of the booster
battery (B).
Connect one end of the other jumper ca- ble
to the negative (

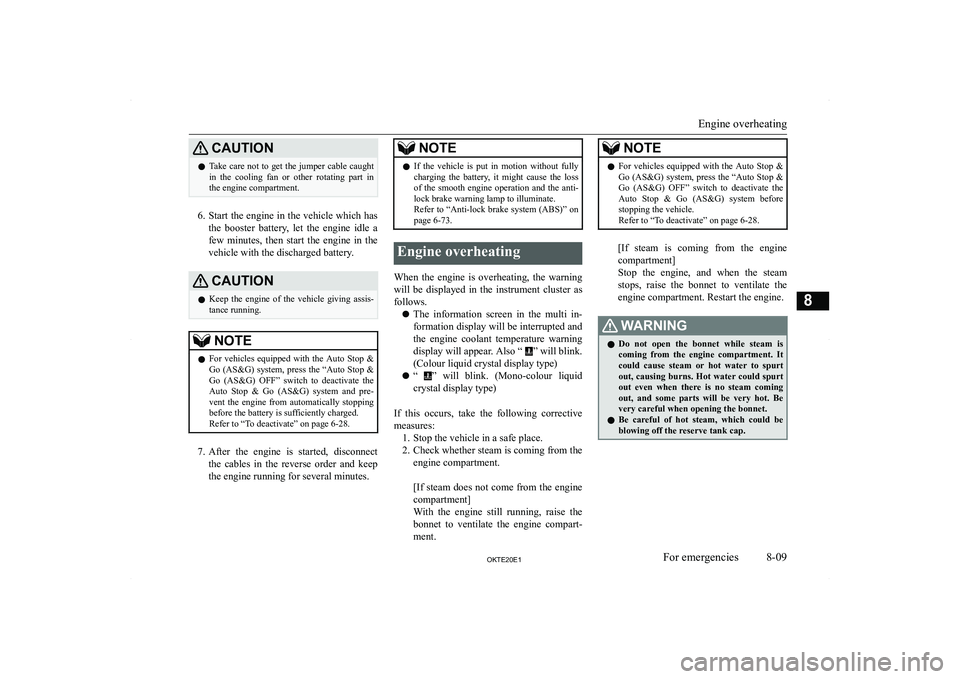

CAUT,ONzTake care not to get the jumper cable caught
in the cooling fan or other rotating part in
the engine compartment.
6. Start the engine in the vehicle which has
the booster battery, let the engine idle a
few minutes, then start the engine in the vehicle with the discharged battery.
CAUT,ONz Keep the engine of the vehicle giving assis-
tance running.NOTEz For vehicles equipped with the Auto Stop &
Go (AS&G) system, press the “Auto Stop &Go (AS&G) OFF” switch to deactivate theAuto Stop & Go (AS&G) system and pre- vent the engine from automatically stoppingbefore the battery is sufficiently charged.
Refer to “To deactivate” on page 6-28.
7. After the engine is started, disconnect
the cables in the reverse order and keep the engine running for several minutes.
NOTEz If the vehicle is put in motion without fully
charging the battery, it might cause the loss
of the smooth engine operation and the anti- lock brake warning lamp to illuminate.
Refer to “Anti-lock brake system (ABS)” on
page 6-73.Engine overheating
When the engine is overheating, the warning
will be displayed in the instrument cluster as follows.
z The information screen in the multi in-
formation display will be interrupted and the engine coolant temperature warning
display will appear. Also “
” will blink.
(Colour liquid crystal display type)
z “
” will blink. (Mono-colour liquid
crystal display type)
If this occurs, take the following corrective measures:
1. Stop the vehicle in a safe place.
2. Check whether steam is coming from the
engine compartment.

[If steam does not come from the engine
compartment@
With the engine still running, raise the
bonnet to ventilate the engine compart-
ment.
NOTEz For vehicles equipped with the Auto Stop &
Go (AS&G) system, press the “Auto Stop &Go (AS&G) OFF” switch to deactivate theAuto Stop & Go (AS&G) system before stopping the vehicle.
Refer to “To deactivate” on page 6-28.
[If steam is coming from the engine
compartment@
Stop the engine, and when the steam
stops, raise the bonnet to ventilate the engine compartment. Restart the engine.

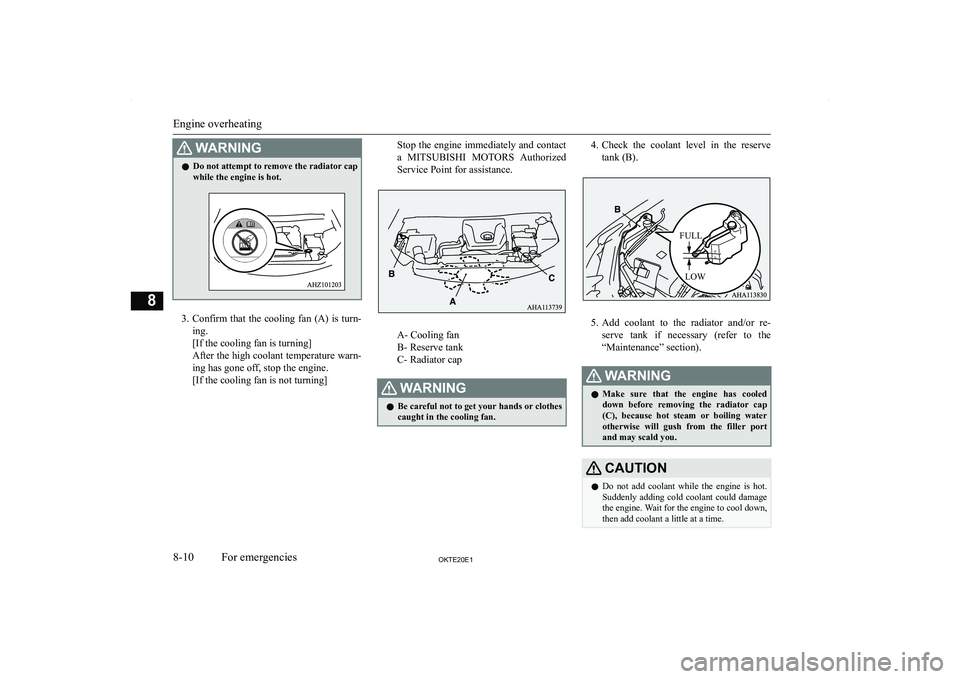

:ARN,NGz Do not open the bonnet while steam is
coming from the engine compartment. It
could cause steam or hot water to spurt out, causing burns. Hot water could spurt
out even when there is no steam coming out, and some parts will be very hot. Be
very careful when opening the bonnet.
z Be careful of hot steam, which could be
blowing off the reserve tank cap.
Engine overheating
8-092.7(20(1For emergencies8

:ARN,NGzDo not attempt to remove the radiator cap
while the engine is hot.
3. Confirm that the cooling fan (A) is turn-
ing.
[If the cooling fan is turning@
After the high coolant temperature warn- ing has gone off, stop the engine.
[If the cooling fan is not turning@
Stop the engine immediately and contact
a MITSUBISHI MOTORS Authorized
Service Point for assistance.
A- Cooling fan
B- Reserve tank
C- Radiator cap
:ARN,NGz Be careful not to get your hands or clothes
caught in the cooling fan.4. Check the coolant level in the reserve
tank (B).
5. Add coolant to the radiator and/or re-
serve tank if necessary (refer to the
“Maintenance” section).
:ARN,NGz Make sure that the engine has cooled
down before removing the radiator cap
(C), because hot steam or boiling water otherwise will gush from the filler port
and may scald you.CAUT,ONz Do not add coolant while the engine is hot.
Suddenly adding cold coolant could damage the engine. Wait for the engine to cool down,
then add coolant a little at a time.
Engine overheating
8-102.7(20(1For emergencies8 FULLLOW
