Changing the fuel consumptiondisplay unit
The display unit for fuel consumption can be
switched. The distance, speed, and amount units are also switched to match the selected
fuel consumption unit. 1. Press and hold the multi information dis-
play switch for approximately 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function set-
tings” on page 5-13.
2. Lightly press the multi information dis-
play switch to select
“AVG UNIT (fuel consumption display
setting)”.
3. Press and hold the multi information dis-
play switch for approximately 2 seconds
or more to display “AVG UNIT”.
4. Lightly press the multi information dis-
play switch to select the units.
5. Press and hold the multi information dis-
play switch for approximately 2 seconds
or more to change the setting to the se-
lected unit.
NOTEz The display units for the driving range, the
average fuel consumption, the average speed and the momentary fuel consumption areswitched, but the units for the indicating
needle (speedometer), the odometer and the tripmeter will remain unchanged.
The distance and speed units are also switch-
ed in the following combinations to match the selected fuel consumption unit.
Fuel con-
sumptionDistance (driving range)Speed (aver- age speed)L/100 kmkmkm/hmpg (US)mile(s)mphmpg (UK)mile(s)mphkm/Lkmkm/hChanging the temperature unit
The display unit for temperature can beswitched. 1. Press and hold the multi information dis-
play switch for approximately 2 seconds
or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function set- tings” on page 5-13.
2. Lightly press the multi information dis-
play switch to select “
” (temperature
unit setting).
3. Press and hold the multi information dis-
play switch for approximately 2 seconds
or more to switch in from

3.Press and hold the multi information dis-
play switch for approximately 2 seconds or more to display “LANGUAGE”.
4. Lightly press the multi information dis-
play switch to select the desired lan- guage.
5. If you hold down the multi information
display switch for approximately 2 sec- onds or more, the setting is changed to
the selected language.NOTEz If “---” is selected in the language setting, a
warning message is not displayed whenthere is a warning display or interrupt dis-
play.Operation sound setting
You can turn off the operation sounds of the
multi information display switch and rheostat
illumination button. 1. Press and hold the multi information dis-
play switch for approximately 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function set-
tings” on page 5-13.
2. Lightly press the multi information dis-
play switch to select “
” (operation
sound setting).
3. Press and hold the multi information dis-
play switch for approximately 2 seconds
or more to switch from ON (operation sound on) to OFF (operation sound off),
or from OFF to ON.
The setting is changed to the selected condition.NOTEz The operation sound setting only deactivates
the operation sound of the multi information
display switch and rheostat illumination but- ton. The warning display and other soundscannot be deactivated.Changing the time until
“REST REMINDER” is dis-played
The time until the display appears can be changed. 1. Press and hold the multi information dis-
play switch for approximately 2 seconds
or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function set- tings” on page 5-13.
2. Lightly press the multi information dis-
play switch to select “ALARM” (rest time setting).
3. Press and hold the multi information dis-
play switch for approximately 2 seconds or more to display “ALARM”.
4. Lightly press the multi information dis-
play switch to select the time until thedisplay.
5. Press and hold the multi information dis-
play switch for approximately 2 seconds
or more, the setting is changed to the se-
lected time.NOTEz The drive time is reset when the ignition
switch is turned off or the operation mode is
put in OFF.Changing the turn-signal
sound
It is possible to change the turn-signal sound. 1. Press and hold the multi information dis-
play switch for approximately 2 seconds
or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function set-
tings” on page 5-13.
2. Lightly press the multi information dis-
play switch to select
(changing the
turn-signal sound).
Multi information display - Type 1
5-162.7(20(1Instruments and controls5

3.Press and hold the multi information dis-
play switch for approximately 2 seconds or more to switch from 1 (turn-signal
sound 1) to 2 (turn-signal sound 2), or from 2 to 1.
The setting changes to the selected turn- signal sound.Changing the momentary fuel
consumption display
It is possible to change the bar graph setting
of the momentary fuel consumption display. 1. Press and hold the multi information dis-
play switch for approximately 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function set-
tings” on page 5-13.
2. Lightly press the multi information dis-
play switch to select
(changing
the momentary fuel consumption dis-
play).
3. Press and hold the multi information dis-
play switch for approximately 2 seconds or more to switch from ON (with the
green bar graph) to OFF (without the
green bar graph), or from OFF to ON.
The setting changes to the selected bar
graph setting.
Returning to the factory set-
tings
Many of the function settings can be returned
to their factory settings. 1. Press and hold the multi information dis-
play switch for approximately 2 seconds
or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function set- tings” on page 5-13.
2. Lightly press the multi information dis-
play switch to select “RESET” (return- ing to the factory settings).
3. When you press and hold the multi in-
formation display switch for approxi-
mately 5 seconds or more, the buzzer sounds and all of the function settings
are returned to the factory settings.
NOTEz The factory settings are as follows.

NOTEzWhen the ignition switch is OFF, the gear-
shift indicator, fuel remaining display and
engine coolant temperature display are not

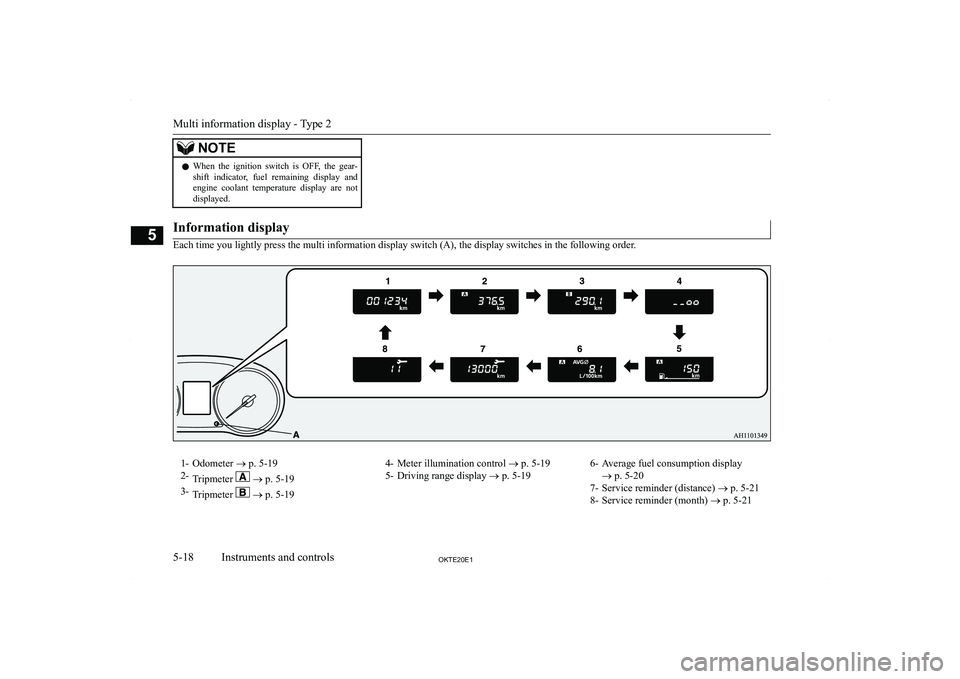

displayed.Information display
Each time you lightly press the multi information display switch (A), the display switches in the following order.
1- Odometer o p. 5-19
2- Tripmeter
o p. 5-19
3- Tripmeter
o p. 5-19
4- Meter illumination control o p. 5-19
5- Driving range display o p. 5-196- Average fuel consumption display
o p. 5-20
7- Service reminder (distance) o p. 5-21
8- Service reminder (month) o p. 5-21
Multi information display - Type 2
5-182.7(20(1Instruments and controls5

NOTEzWhen the ignition switch is OFF, the driving range display and average fuel consumption display are not displayed.
z While driving, the service reminder is not displayed even if you operate the multi information display switch.

Odometer
The odometer indicates the distance travel-
led.
Tripmeter
The tripmeter indicates the distance travelled
between two points.

Example usage of tripmeter
and tripmeter
It is possible to measure two currently
travelled distances, from home using
tripmeter
and from a particular point
on the way using tripmeter
.

To reset the tripmeter
To return the display to 0, hold down the multi information display switch for about 2
seconds or more. Only the currently dis-
played value will be reset.

Example
If tripmeter is displayed, only tripmeter
will be reset.NOTEz When disconnecting the battery terminal, the
memory of tripmeter and are
cleared, and the display returns to “0”.Meter illumination control
Each time you press and hold the multi infor-
mation display switch (2) for about 2 secondsor more, there is a sound and the brightnessof the instruments changes.
1- Brightness level
2- Multi information display switchNOTEz You can adjust to 8 different levels respec-
tively for when the position lamps are illu- minated and when they are not.
Each time you reduce two brightness levels, the segment display of the brightness level decreases one by one.
z If the vehicle is equipped with the automatic
lamp control, when the lamp switch is in a position other than the “OFF” position, the
meter illumination switches automatically to
the adjusted brightness, depending on the
brightness outside the vehicle.
z The brightness level of the instruments is
stored when the ignition switch is turned off.Driving range display
This displays the approximate driving range
(how many more kilometres or miles you can
drive). When the driving range falls below approximately 50 km (30 miles), “---” is dis-
played.
Multi information display - Type 2
5-192.7(20(1Instruments and controls5

NOTEzThe driving range is determined based on
the fuel consumption data. This may vary depending on the driving conditions and habits. Treat the distance displayed as just a
rough guideline.
z When you refuel, the driving range display
is updated.
However, if you only add a small amount of fuel, the correct value will not be displayed.
Fill with a full tank whenever possible.
z On rare occasions, the value displayed for
the driving range may change if you are
parked on an extremely steep incline. This is due to the movement of fuel in the tank and
does not indicate a malfunction.
z The display setting can be changed to the
preferred units (km or miles).
Refer to “Changing the function settings” on page 5-23.Average fuel consumption dis-
play
This displays the average fuel consumption
from the last reset to the present time.
The reset mode conditions for the average fuel consumption display can be switched be-
tween “Auto reset” and “Manual reset”.
For information on how to change the aver- age fuel consumption display setting, refer to“Changing the function settings” on page
5-23.
NOTEz The average fuel consumption display can
be reset separately for the auto reset mode and for the manual reset mode.
z “---” is displayed when the average fuel con-
sumption cannot be measured.
z The initial (default) setting is “Auto reset
mode”.
z The average fuel consumption depends on
the driving condition (road condition, driv- ing behavior, etc.). The displayed fuel con- sumption may vary from the actual fuel con-
sumption. Treat the fuel consumption dis- played as just a rough guideline.
z The memory of the auto reset mode or man-
ual reset mode for the average fuel con-sumption display is erased if the battery isdisconnected.
z The display setting can be changed to the
preferred units {km/L, L/100 km, mpg}.
Refer to “Changing the function settings” on page 5-23.Engine coolant temperature
display
This indicates the engine coolant temperature.If the coolant becomes hot,
“
” will blink.
Pay careful attention to the engine coolant temperature
display while you are driv-
ing.
CAUT,ONz If the engine is overheating, “” will blink.
In this case, the bar graph is in the red zone.
Immediately park the vehicle in a safe place
and take the required measures. Refer to “Engine overheating” on page 8-09.
Multi information display - Type 2
5-202.7(20(1Instruments and controls5

Fuel remaining display
The fuel remaining display indicates the fuel
level in the fuel tank when the ignition switch
is ON.
1- Full
0- Empty
NOTEz It may take several seconds to stabilise the
display after refilling the tank.
z If fuel is added with the ignition switch is
ON, the fuel gauge may incorrectly indicate
the fuel level.
z The fuel lid mark (A) indicates that the fuel
tank filler door is located on the left side of the vehicle.Fuel remaining warning dis-
play
If the remaining fuel level is approximately
10 litres or less (one segment displayed)
when the ignition switch is turned to the
“ON” position, the last segment of the fuel
gauge flashes. If the remaining fuel level is reduced further, the last segment of the fuel gauge goes out and “
” flash.
CAUT,ONz Do not drive with an extremely low fuel lev-
el; running out of fuel could cause damage to the fuel system.NOTEz On inclines or curves, the display may be in-
correct due to the movement of fuel in the
tank.Service reminder
Displays the approximate time until the next
periodic inspection that MITSUBISHI
MOTORS recommends.“---” is displayed
when the inspection time has arrived.
The spanner mark indicates the periodic in-
spection.
NOTEz Depending on the vehicle specifications, the
displayed time until the next periodic inspec-
tion may differ from that of MITSUBISHI
MOTORS recommends.
In addition, the display settings for the next periodic inspection time can be modified.
To modify the display settings, have it adjus- ted at a MITSUBISHI MOTORS Authorized
Service Point.
For more details, contact a MITSUBISHI
MOTORS Authorized Service Point.
Multi information display - Type 2
5-212.7(20(1Instruments and controls5

1.Displays the time until the next periodic
inspection.
NOTEz The distance is shown in units of 100 km
(100 miles). The time is shown in units of months.
2. This informs you that a periodic inspec-
tion is due. Please consult a MITSUBISHI MOTORS Authorized
Service Point.
3. After your vehicle is inspected at a
MITSUBISHI MOTORS Authorized
Service Point, it displays the time until
the next periodic inspection.

To reset
The “---” display can be reset while the igni- tion switch is in OFF. 1. When you lightly press the multi infor-
mation display switch a few times, theinformation display switches to the serv-
ice reminder display.
2. Press and hold the multi information dis-
play switch for about 2 seconds or more to make the spanner mark start flashing.
(If there is no operation for about 10 sec-
onds with flashing, the display will re-
vert to its original indication.)
3. Lightly press the multi information dis-
play switch while the icon is flashing to
change the display from “---” to
“cLEAr”. After this, the time until the next periodic inspection will be dis-played.CAUT,ONz The customer is responsible for making sure
that periodic inspection and maintenance are
performed.
Inspections and maintenance must be per- formed to prevent accidents and malfunc- tions.NOTEz “---” display cannot be reset when the igni-
tion switch is in ON.
Multi information display - Type 2
5-222.7(20(1Instruments and controls5Distance
Month
