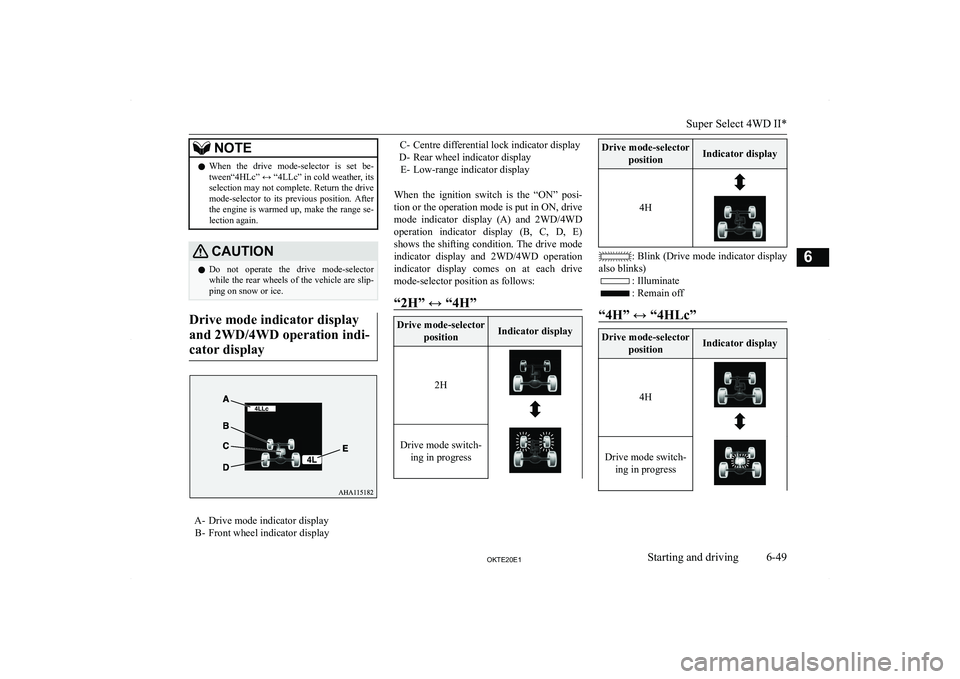

NOTEzWhen the drive mode-selector is set be-
tween“4HLc”
Y “4LLc” in cold weather, its selection may not complete. Return the drive
mode-selector to its previous position. After the engine is warmed up, make the range se-
lection again.CAUT,ONz Do not operate the drive mode-selector
while the rear wheels of the vehicle are slip-
ping on snow or ice.Drive mode indicator display
and 2WD/4WD operation indi- cator display
A- Drive mode indicator display B- Front wheel indicator display
C- Centre differential lock indicator display
D- Rear wheel indicator display E- Low-range indicator display
When the ignition switch is the “ON” posi- tion or the operation mode is put in ON, drive
mode indicator display (A) and 2WD/4WD operation indicator display (B, C, D, E) shows the shifting condition. The drive mode
indicator display and 2WD/4WD operation
indicator display comes on at each drive mode-selector position as follows:
“2H”
Y “4H”Drive mode-selector positionIndicator display
2H
Drive mode switch-ing in progress
Drive mode-selector positionIndicator display
4H
: Blink (Drive mode indicator display
also blinks)
: Illuminate
: Remain off
“4H”
Y “4HLc”
Drive mode-selector positionIndicator display
4H
Drive mode switch-ing in progress
Super Select 4WD II*
6-492.7(20(1Starting and driving6

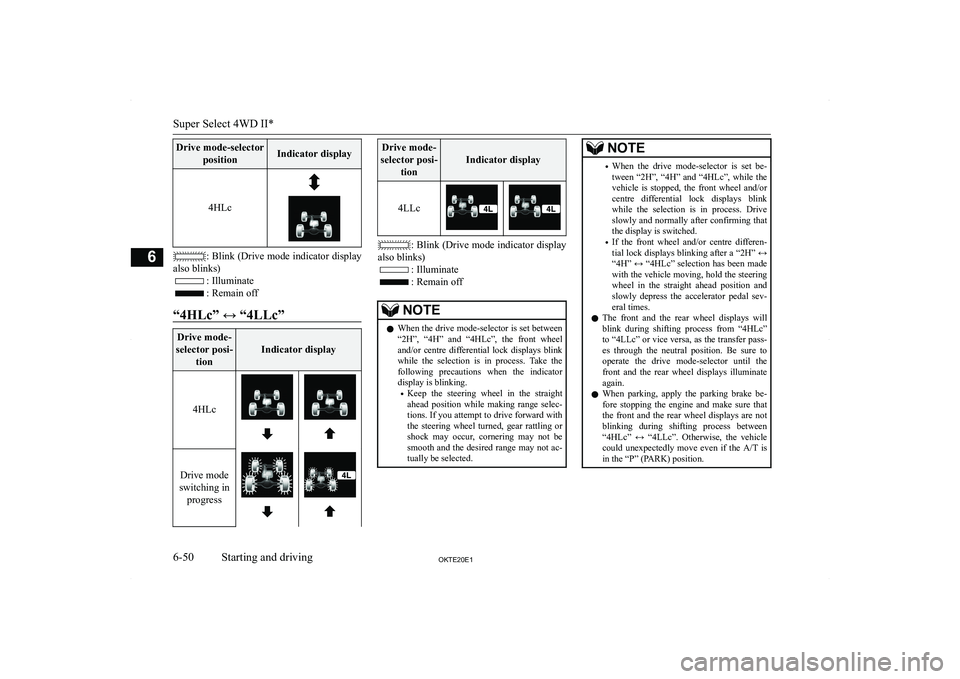

Drive mode-selectorpositionIndicator display
4HLc
: Blink (Drive mode indicator display
also blinks)
: Illuminate
: Remain off
“4HLc”
Y “4LLc”
Drive mode-
selector posi- tion
Indicator display
4HLc
Drive mode
switching in progress
Drive mode-
selector posi- tion
Indicator display4LLc
: Blink (Drive mode indicator display
also blinks)
: Illuminate
: Remain off
NOTEz When the drive mode-selector is set between
“2H”, “4H” and “4HLc”, the front wheel
and/or centre differential lock displays blink
while the selection is in process. Take the following precautions when the indicatordisplay is blinking.

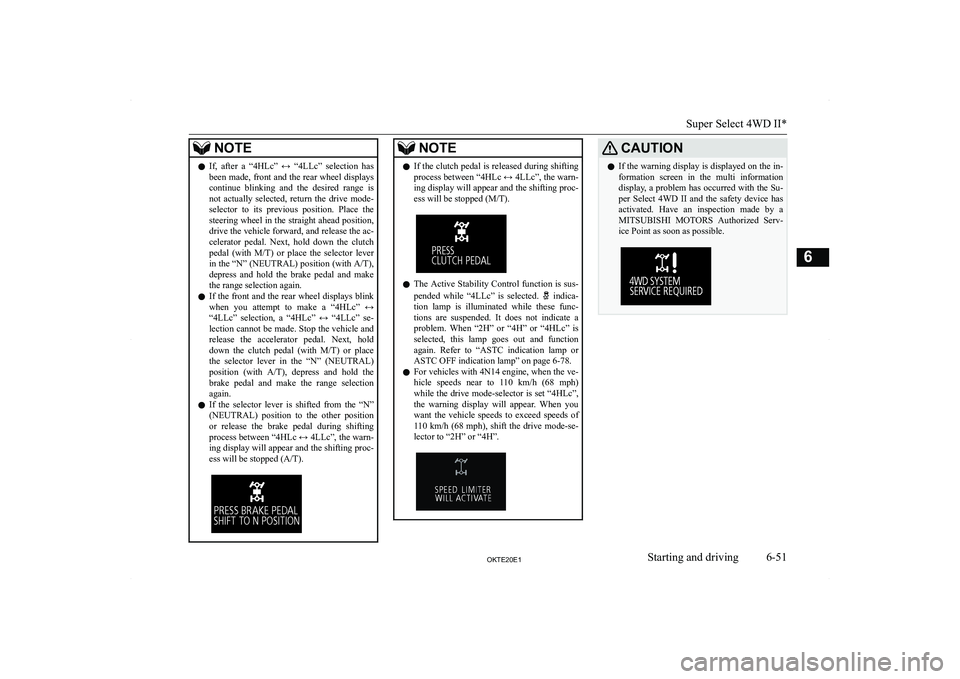

NOTEzIf, after a “4HLc”
Y “4LLc” selection has
been made, front and the rear wheel displayscontinue blinking and the desired range is not actually selected, return the drive mode-
selector to its previous position. Place the steering wheel in the straight ahead position, drive the vehicle forward, and release the ac-
celerator pedal. Next, hold down the clutch
pedal (with M/T) or place the selector lever
in the “N” (NEUTRAL) position (with A/T),
depress and hold the brake pedal and make
the range selection again.
z If the front and the rear wheel displays blink
when you attempt to make a “4HLc”
Y “4LLc” selection, a “4HLc”
Y “4LLc” se-
lection cannot be made. Stop the vehicle and release the accelerator pedal. Next, hold
down the clutch pedal (with M/T) or place
the selector lever in the “N” (NEUTRAL) position (with A/T), depress and hold the
brake pedal and make the range selection
again.
z If the selector lever is shifted from the “N”
(NEUTRAL) position to the other position
or release the brake pedal during shifting process between “4HLc
Y 4LLc”, the warn- ing display will appear and the shifting proc-
ess will be stopped (A/T).NOTEz If the clutch pedal is released during shifting
process between “4HLc
Y 4LLc”, the warn-
ing display will appear and the shifting proc- ess will be stopped (M/T).
z The Active Stability Control function is sus-
pended while “4LLc” is selected. indica-
tion lamp is illuminated while these func-
tions are suspended. It does not indicate a
problem. When “2H” or “4H” or “4HLc” is selected, this lamp goes out and function
again. Refer to “ASTC indication lamp or ASTC OFF indication lamp” on page 6-78.
z For vehicles with 4N14 engine, when the ve-
hicle speeds near to 110 km/h (68 mph)
while the drive mode-selector is set “4HLc”, the warning display will appear. When youwant the vehicle speeds to exceed speeds of
110 km/h (68 mph), shift the drive mode-se-
lector to “2H” or “4H”.
CAUT,ONz If the warning display is displayed on the in-
formation screen in the multi information
display, a problem has occurred with the Su-
per Select 4WD II and the safety device has activated. Have an inspection made by a
MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible.
Super Select 4WD II*
6-512.7(20(1Starting and driving6

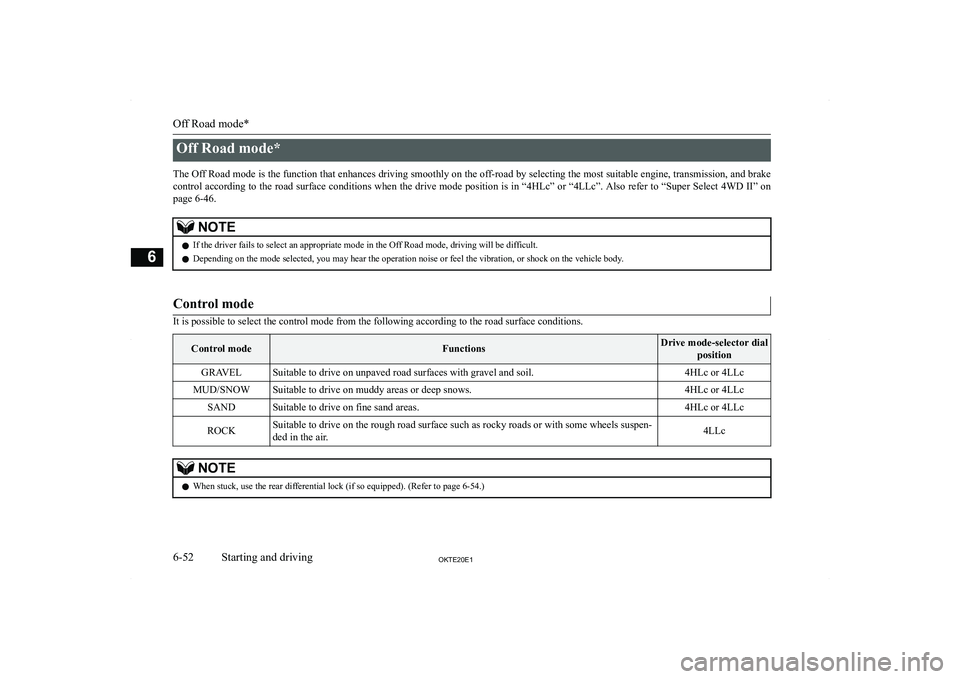

Off Road mode*
The Off Road mode is the function that enhances driving smoothly on the off-road by selecting the most suitable engine, transmission, and brake
control according to the road surface conditions when the drive mode position is in “4HLc” or “4LLc”. Also refer to “Super Select 4WD II” on page 6-46.NOTEz If the driver fails to select an appropriate mode in the Off Road mode, driving will be difficult.
z Depending on the mode selected, you may hear the operation noise or feel the vibration, or shock on the vehicle body.

Control mode
It is possible to select the control mode from the following according to the road surface conditions.
Control modeFunctionsDrive mode-selector dial
positionGRAVELSuitable to drive on unpaved road surfaces with gravel and soil.4HLc or 4LLcMUD/SNOWSuitable to drive on muddy areas or deep snows.4HLc or 4LLcSANDSuitable to drive on fine sand areas.4HLc or 4LLcROCKSuitable to drive on the rough road surface such as rocky roads or with some wheels suspen-
ded in the air.4LLcNOTEz When stuck, use the rear differential lock (if so equipped). (Refer to page 6-54.)

Off Road mode*
6-522.7(20(1Starting and driving6

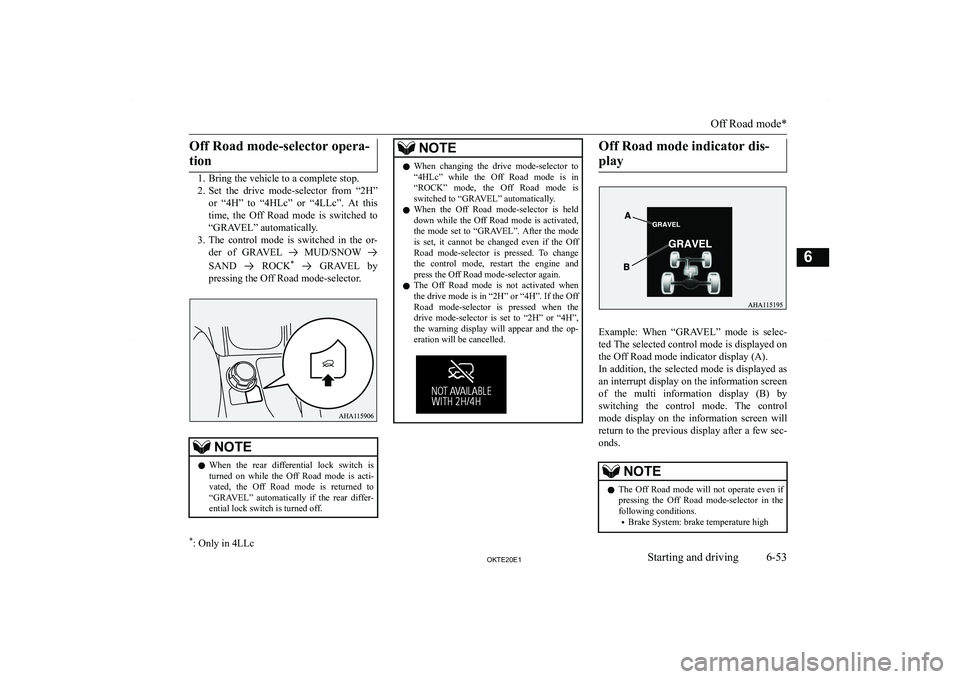

Off Road mode-selector opera-tion
1. Bring the vehicle to a complete stop.
2. Set the drive mode-selector from “2H”
or “4H” to “4HLc” or “4LLc”. At this
time, the Off Road mode is switched to “GRAVEL” automatically.
3. The control mode is switched in the or-
der of GRAVEL
MUD/SNOW
SAND ROCK *
GRAVEL by
pressing the Off Road mode-selector.
NOTEz When the rear differential lock switch is
turned on while the Off Road mode is acti-
vated, the Off Road mode is returned to
“GRAVEL” automatically if the rear differ-
ential lock switch is turned off.* : Only in 4LLcNOTEz When changing the drive mode-selector to
“4HLc” while the Off Road mode is in
“ROCK” mode, the Off Road mode is
switched to “GRAVEL” automatically.
z When the Off Road mode-selector is held
down while the Off Road mode is activated, the mode set to “GRAVEL”. After the mode
is set, it cannot be changed even if the Off Road mode-selector is pressed. To change
the control mode, restart the engine and press the Off Road mode-selector again.
z The Off Road mode is not activated when
the drive mode is in “2H” or “4H”. If the Off Road mode-selector is pressed when the
drive mode-selector is set to “2H” or “4H”,
the warning display will appear and the op- eration will be cancelled.Off Road mode indicator dis-
play
Example: When “GRAVEL” mode is selec-
ted The selected control mode is displayed on
the Off Road mode indicator display (A). In addition, the selected mode is displayed as an interrupt display on the information screenof the multi information display (B) by
switching the control mode. The control
mode display on the information screen will return to the previous display after a few sec-
onds.
NOTEz The Off Road mode will not operate even if
pressing the Off Road mode-selector in the
following conditions.

NOTE

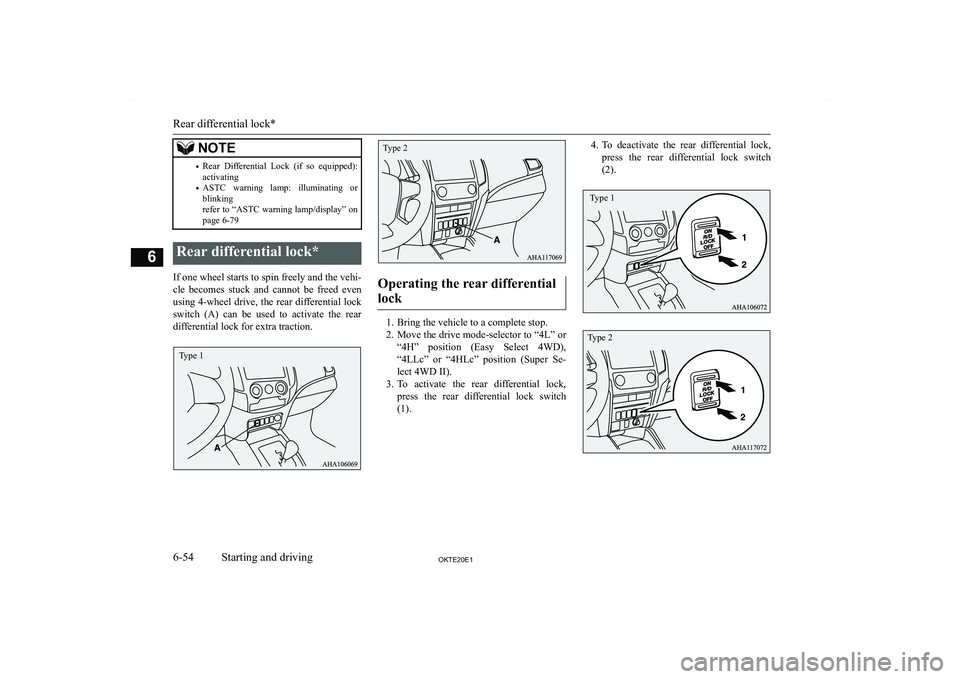

CAUT,ONzOperate the rear differential switch after the
wheels are stopped. Operating the switch with the wheels turning may cause the vehi-
cle to dart in unexpected directions.NOTEz The rear differential lock does not operate
when the drive mode-selector is in “2H” po-
sition (Easy Select 4WD), “2H” or “4H” po-
sition (Super Select 4WD II).
z When the rear differential is locked with the
drive mode-selector in “4L” or “4H” posi-
tion (Easy Select 4WD), “4LLc” or “4HLc”
position (Super Select 4WD II) changing the drive mode-selector to “2H” position (EasySelect 4WD), “2H” or “4H” position (Super
Select 4WD II) makes the rear differential unlock automatically.
z Vehicles equipped with the colour liquid
crystal display, if the rear differential lock
switch is turned on while driving, the warn-
ing display will appear, the buzzer will sound and the rear differential lock will re-
main deactivated.NOTEz Vehicles equipped with the mono-colour liq-
uid crystal display, if the rear differential lock switch is turned on while driving, the
buzzer will sound and the rear differential
lock will remain deactivated.The rear differential lock indi-
cation lamp/display
When the ignition switch is turned to the
“ON” position or the operation mode is put in ON, the rear differential lock indication
lamp/display in the meter cluster illuminates for a few seconds then indicates the rear dif-
ferential lock’s operating status (activated or
deactivated).

[Vehicles equipped with the mono-colour liq- uid crystal display@
[Vehicles equipped with the colour liquid
crystal display@
Rear differential lock*
6-552.7(20(1Starting and driving6 Indicator lamp Indicator display

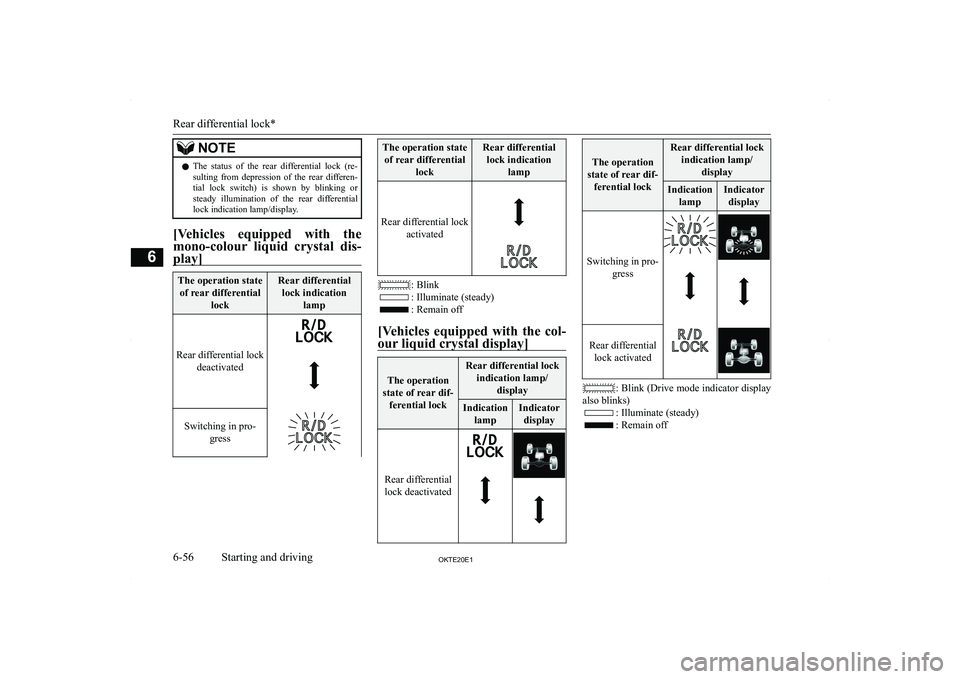

NOTEzThe status of the rear differential lock (re-
sulting from depression of the rear differen-
tial lock switch) is shown by blinking or steady illumination of the rear differential
lock indication lamp/display.
>Vehicles equipped with the
mono-colour liquid crystal dis-
play@
The operation state of rear differential lockRear differentiallock indication lamp
Rear differential lockdeactivated
Switching in pro- gressThe operation stateof rear differential lockRear differentiallock indication lamp
Rear differential lock activated
: Blink
: Illuminate (steady)
: Remain off
>Vehicles equipped with the col-
our liquid crystal display@
The operation
state of rear dif- ferential lock
Rear differential lock indication lamp/ displayIndicationlampIndicatordisplay
Rear differentiallock deactivated
The operation
state of rear dif- ferential lock
Rear differential lock indication lamp/ displayIndicationlampIndicatordisplay
Switching in pro- gress
Rear differentiallock activated
: Blink (Drive mode indicator display
also blinks)
: Illuminate (steady)
: Remain off
Rear differential lock*
6-562.7(20(1Starting and driving6
