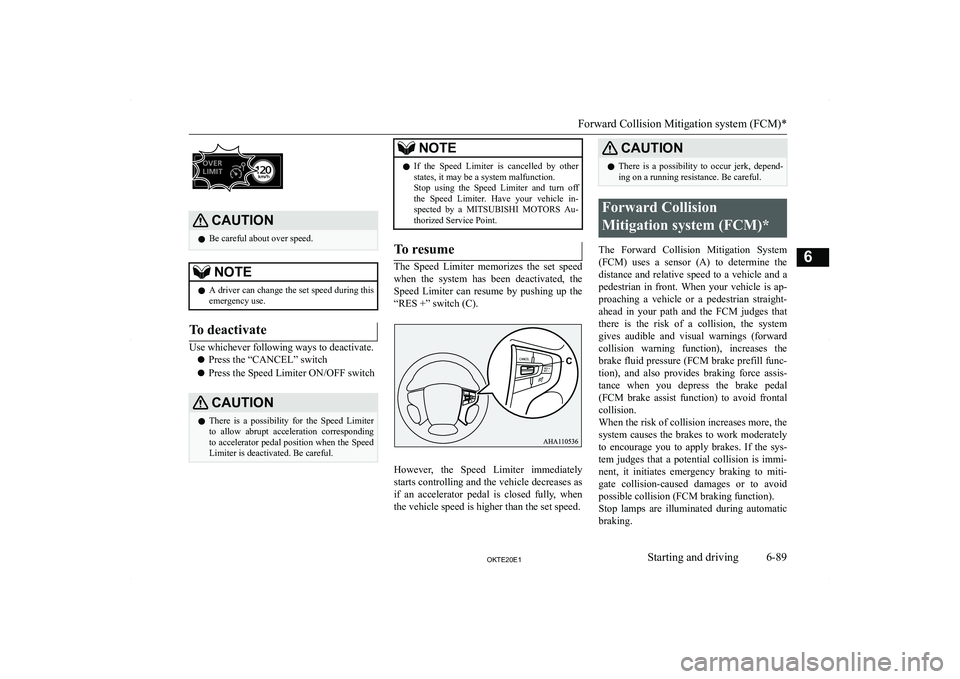

CAUT,ONzBe careful about over speed.NOTEzA driver can change the set speed during this
emergency use.To deactivate
Use whichever following ways to deactivate.
z Press the “CANCEL” switch
z Press the Speed Limiter ON/OFF switch
CAUT,ONzThere is a possibility for the Speed Limiter
to allow abrupt acceleration corresponding
to accelerator pedal position when the Speed Limiter is deactivated. Be careful.NOTEz If the Speed Limiter is cancelled by other
states, it may be a system malfunction.
Stop using the Speed Limiter and turn off
the Speed Limiter. Have your vehicle in-
spected by a MITSUBISHI MOTORS Au-
thorized Service Point.To resume
The Speed Limiter memorizes the set speed
when the system has been deactivated, the Speed Limiter can resume by pushing up the
“RES +” switch (C).
However, the Speed Limiter immediately
starts controlling and the vehicle decreases as if an accelerator pedal is closed fully, whenthe vehicle speed is higher than the set speed.
CAUT,ONz There is a possibility to occur jerk, depend-
ing on a running resistance. Be careful.Forward Collision
Mitigation system (FCM)*
The Forward Collision Mitigation System (FCM) uses a sensor (A) to determine the
distance and relative speed to a vehicle and a pedestrian in front. When your vehicle is ap-
proaching a vehicle or a pedestrian straight- ahead in your path and the FCM judges that
there is the risk of a collision, the system gives audible and visual warnings (forward
collision warning function), increases the
brake fluid pressure (FCM brake prefill func- tion), and also provides braking force assis-
tance when you depress the brake pedal (FCM brake assist function) to avoid frontal
collision.
When the risk of collision increases more, the
system causes the brakes to work moderately to encourage you to apply brakes. If the sys-tem judges that a potential collision is immi- nent, it initiates emergency braking to miti-
gate collision-caused damages or to avoid possible collision (FCM braking function).Stop lamps are illuminated during automatic
braking.
Forward Collision Mitigation system (FCM)*
6-892.7(20(1Starting and driving6

If you turn the FCM ON/OFF, the Ultrasonicmisacceleration Mitigation System (UMS) al- so turns ON/OFF at the same time. (Vehicles
equipped with the UMS):ARN,NGz A driver is responsible for driving safely.
The FCM is the system to mitigate colli- sion- caused damages or to avoid colli- sions as much as possible.
The system is not intended to compensate for driver

CAUT,ONzUnder certain conditions, the audible alarm
may not work at all or may be scarcely audi- ble. Do not overly rely on the system; if your
vehicle is in danger of collision, take all nec- essary collision-evading actions, such as de-
pressing the brake pedal strongly regardless of whether the system is activated or not.FCM brake prefill function
If the system judges that there is a risk of
your vehicle colliding with a vehicle or a pe-
destrian in front, this function prefills the
brake line with additional brake fluid to make
the brakes more responsive to your brake pedal operation.
The FCM brake prefill function operates at
the following vehicle speed:
z Against a vehicle: Approximately 5 to
80 km/h (3 to 50 mph).
z Against a pedestrian: Approximately 5
to 65 km/h (3 to 40 mph).
FCM brake assist function
If the system judges that there is a risk of
your vehicle colliding with a vehicle or a pe- destrian in front, this function deploys the
brake assist sooner than the brake assist oper- ation. The FCM brake assist function oper- ates at the following vehicle speed:
z Against a vehicle: Approximately 15 to
80 km/h (10 to 50 mph).
z Against a pedestrian: Approximately 15
to 65 km/h (10 to 40 mph).CAUT,ONz The brake assist function may not be trig-
gered when the brake pedal is operated in certain ways.
Do not overly rely on the system; if your ve- hicle is in danger of collision, take all neces-
sary collision-evading actions, such as de-
pressing the brake pedal strongly regardless
of whether the system is activated or not.FCM braking function
If the system judges that there is a high risk
of your vehicle colliding with a vehicle or a pedestrian in front, the system applies the
brakes moderately to encourage you to apply the brakes.
If the system judges that a collision is un-
avoidable, it initiates emergency braking con- trol to mitigate collision-caused damages or,
if the situation permits, to avoid a collision. While the FCM braking control is triggered,
you are warned of the hazard with a “BRAKE!” message and audible alarms like
with the forward collision warning function. Once the FCM braking has activated, the fol-
lowing message will appear on the informa-
tion screen of the multi information display.
The FCM braking function operates at the
following vehicle speed:
z Against a vehicle: Approximately 5 to
80 km/h (3 to 50 mph).
z Against a pedestrian: Approximately 5
to 65 km/h (3 to 40 mph).
CAUT,ONz Do not use the FCM as a normal braking.
z After your vehicle has stopped following the
activation of the FCM, automatic braking is
released. As the vehicle will then start creep-
ing, be sure to depress the brake pedal to hold the vehicle stationary.
z When applying the brake during the auto-
matic braking condition the pedal will feel
firm.
This is not abnormal.
You can apply more pressure to the pedal to
assist in braking.
z In the following situations, the system pro-
vides neither control nor alarming.
Forward Collision Mitigation system (FCM)*
6-912.7(20(1Starting and driving6

CAUT,ON

CAUT,ON

CAUT,ON

NOTEzThe indicator is combined with the
“UMS OFF” indicator.CAUT,ONz In the following conditions, even if the FCM
is ON, the FCM is automatically switched to
OFF. In this case, the warning display may appear if you press the FCM and UMSON/OFF switch.

This can occur when:z Foreign objects, such as dirt, snow or
ice, adhere to the windscreen of the sen-
sor portion.
z There are adverse weather conditions,
such as rain, snow, sand storms, etc.
z A vehicle in front or an oncoming vehi-
cle is splashing water, snow or dirt.
The “DRIVER ASSISTANCE CAMERA BLOCKED” message will appear and the
indicator will appear on the information screen of the multi-information display.
When the sensor performance returns, the
FCM functions will resume operation.
If the display keeps showing the message,
there is a possibility that the sensor has a malfunction. Contact a MITSUBISHI
MOTORS Authorized Service Point for in-
spection of the sensor.
NOTEz The “DRIVER ASSISTANCE CAMERA
BLOCKED” message may temporarily ap-
pear on the information screen when the sen-
sor cannot detect a vehicle, a pedestrian or an object within range. This is not a mal-
function. When a vehicle or an object comes
within range, the FCM function will resume and the message will go off.
z The “DRIVER ASSISTANCE CAMERA
BLOCKED” message may appear on the in-
formation screen when driving on a non- busy road with a few vehicles and obstacles
in front.
If the system becomes temporarily unavaila-
ble for some reason, the following message
may appear.
The
indicator will appear on the informa-
tion screen of the multi information display
and the FCM will automatically be turned off. If the display keeps showing the mes-
sage, there is a possibility that the FCM has a
malfunction. Contact a MITSUBISHI
MOTORS Authorized Service Point for in-
spection of the system.
If the system becomes temporarily unavaila-
ble due to a high or low temperature of the
sensor, the following warning message willappear.
The
indicator will appear on the informa-
tion screen of the multi information display
and the FCM will automatically be turned off. After the temperature of the sensor has
been in range, the system will automatically
return to operation.
If the display keeps showing the message,
there is a possibility that the FCM has a mal-
function. Contact a MITSUBISHI MOTORS
Authorized Service Point for inspection of
the system.
