2020 MITSUBISHI L200 Owner's Manual (in English)

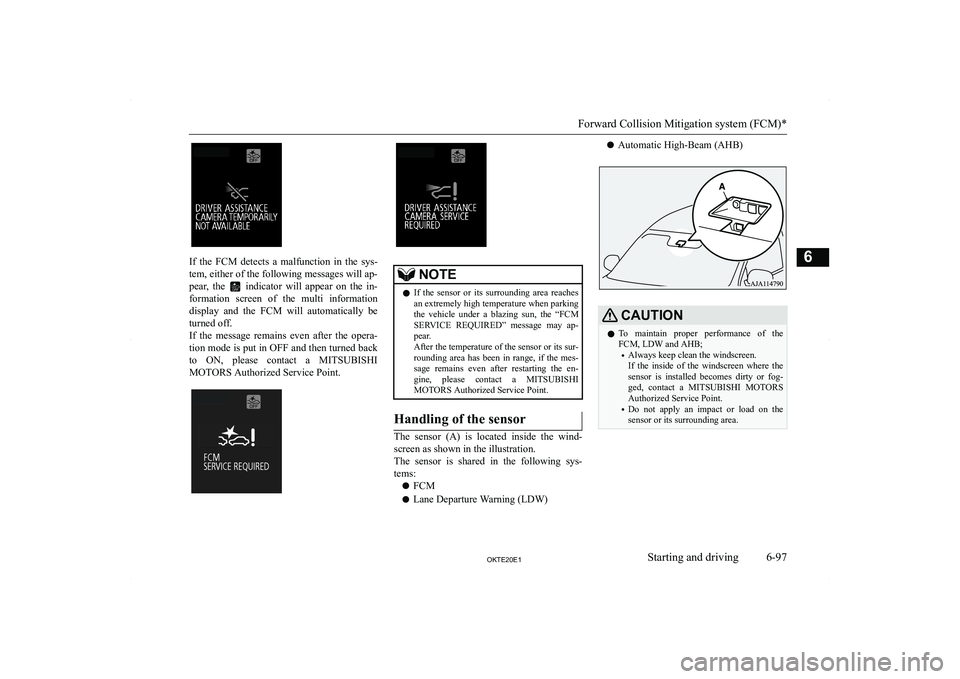

If the FCM detects a malfunction in the sys-
tem, either of the following messages will ap- pear, the
indicator will appear on the in-
formation screen of the multi information display and the FCM will automatically beturned off.
If the message remains even after the opera-
tion mode is put in OFF and then turned back to ON, please contact a MITSUBISHI
MOTORS Authorized Service Point.
NOTEz If the sensor or its surrounding area reaches
an extremely high temperature when parking the vehicle under a blazing sun, the “FCMSERVICE REQUIRED” message may ap-
pear.
After the temperature of the sensor or its sur-
rounding area has been in range, if the mes-
sage remains even after restarting the en- gine, please contact a MITSUBISHI
MOTORS Authorized Service Point.Handling of the sensor
The sensor (A) is located inside the wind-
screen as shown in the illustration.
The sensor is shared in the following sys-
tems:
z FCM
z Lane Departure Warning (LDW)
zAutomatic High-Beam (AHB)CAUT,ONz To maintain proper performance of the
FCM, LDW and AHB;

CAUT,ON

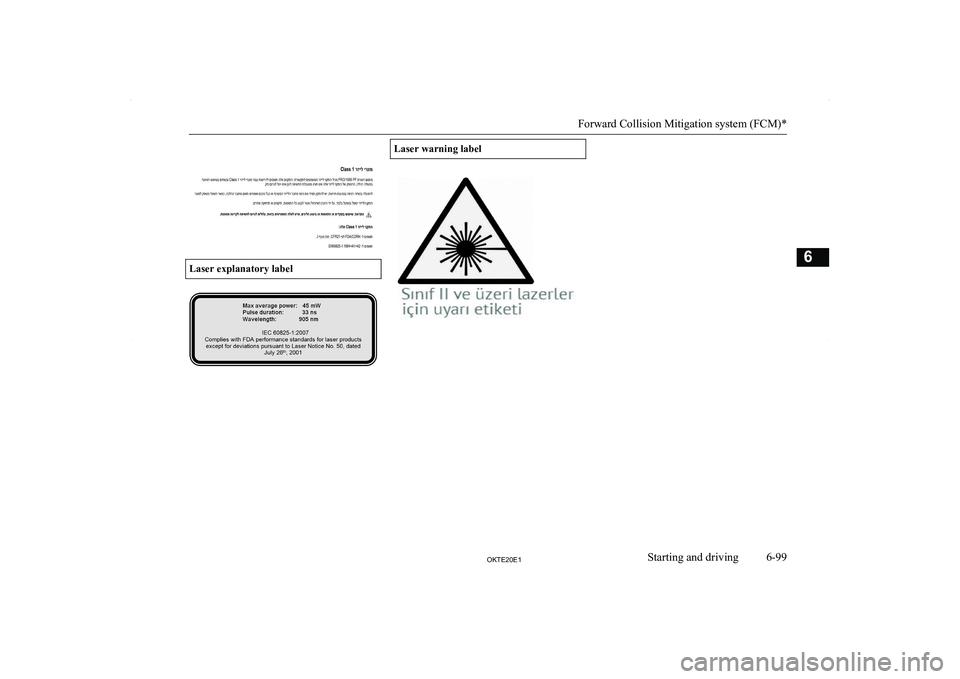

Laser explanatory label
Laser warning label
Forward Collision Mitigation system (FCM)*
6-992.7(20(1Starting and driving6

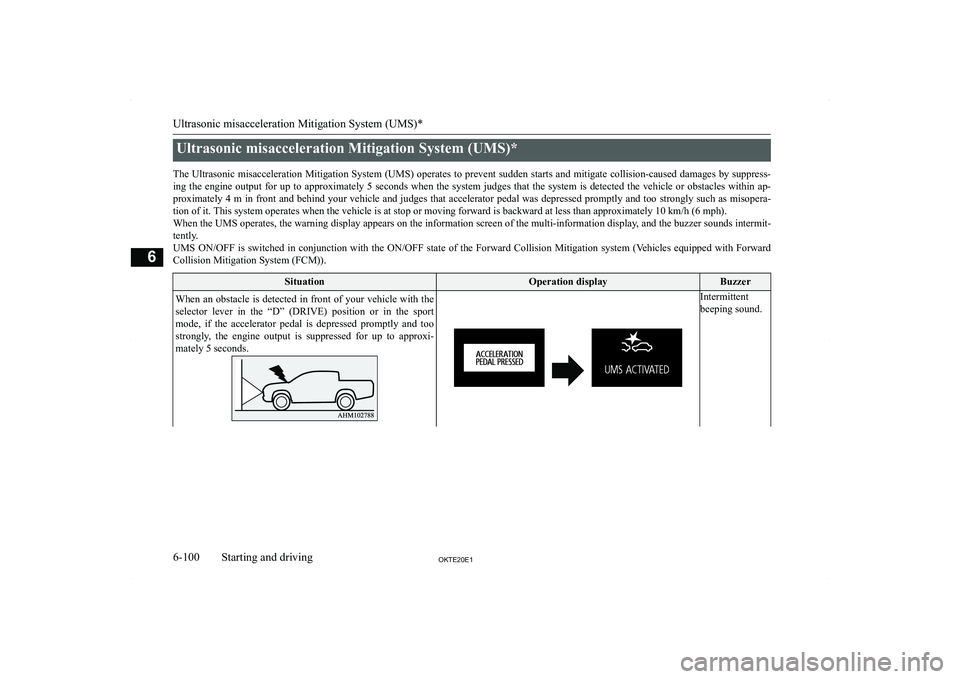

Ultrasonic misacceleration Mitigation System (UMS)*
The Ultrasonic misacceleration Mitigation System (UMS) operates to prevent sudden starts and mitigate collision-caused damages by suppress- ing the engine output for up to approximately 5 seconds when the system judges that the system is detected the vehicle or obstacles within ap-
proximately 4 m in front and behind your vehicle and judges that accelerator pedal was depressed promptly and too strongly such as misopera-
tion of it. This system operates when the vehicle is at stop or moving forward is backward at less than approximately 10 km/h (6 mph).
When the UMS operates, the warning display appears on the information screen of the multi-information display, and the buzzer sounds intermit- tently.
UMS ON/OFF is switched in conjunction with the ON/OFF state of the Forward Collision Mitigation system (Vehicles equipped with Forward
Collision Mitigation System (FCM)).SituationOperation displayBuzzerWhen an obstacle is detected in front of your vehicle with the
selector lever in the “D” (DRIVE) position or in the sport
mode, if the accelerator pedal is depressed promptly and too strongly, the engine output is suppressed for up to approxi-
mately 5 seconds.

Intermittent
beeping sound.
Ultrasonic misacceleration Mitigation System (UMS)*
6-1002.7(20(1Starting and driving6

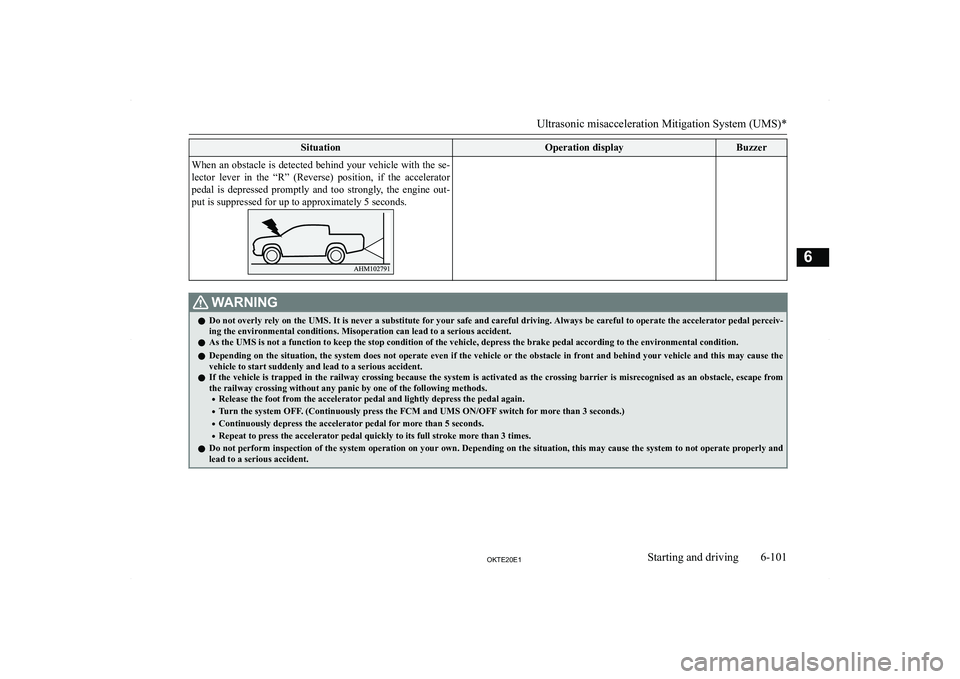

SituationOperation displayBuzzerWhen an obstacle is detected behind your vehicle with the se-
lector lever in the “R” (Reverse) position, if the accelerator pedal is depressed promptly and too strongly, the engine out-
put is suppressed for up to approximately 5 seconds.:ARN,NGz Do not overly rely on the UMS. It is never a substitute for your safe and careful driving. Always be careful to operate the accelerator pedal perceiv-
ing the environmental conditions. Misoperation can lead to a serious accident.
z As the UMS is not a function to keep the stop condition of the vehicle, depress the brake pedal according to the environmental condition.
z Depending on the situation, the system does not operate even if the vehicle or the obstacle in front and behind your vehicle and this may cause the
vehicle to start suddenly and lead to a serious accident.
z If the vehicle is trapped in the railway crossing because the system is activated as the crossing barrier is misrecognised as an obstacle, escape from
the railway crossing without any panic by one of the following methods.

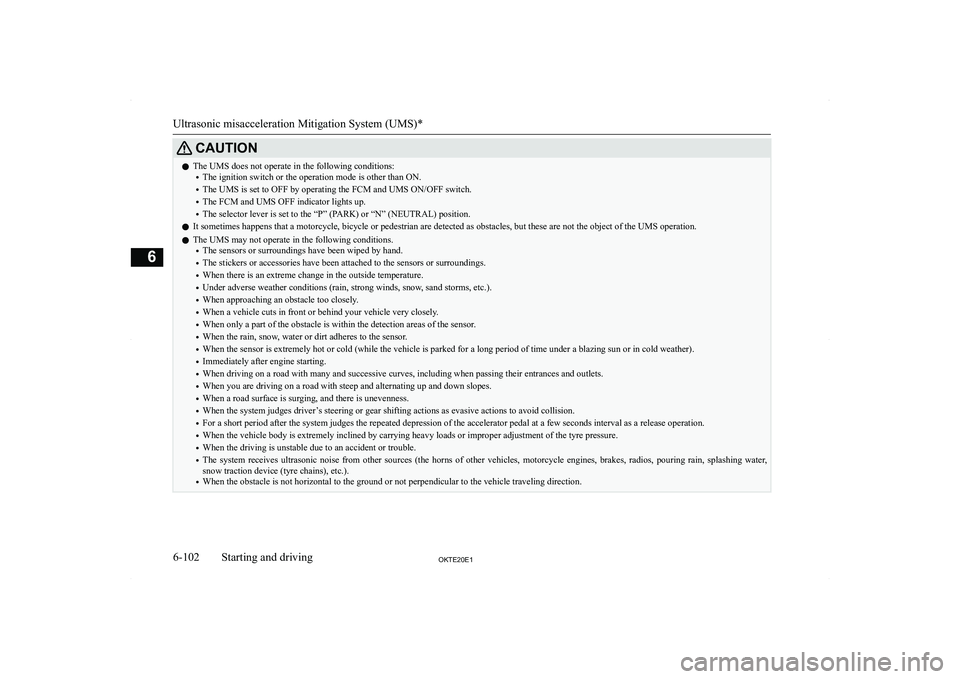

CAUT,ONzThe UMS does not operate in the following conditions:

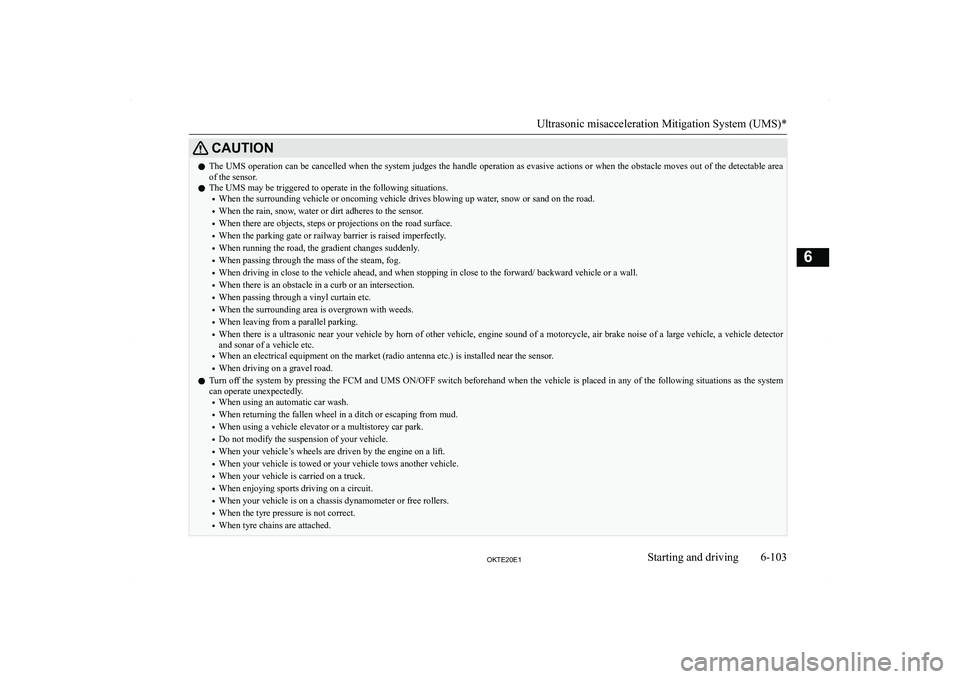

CAUT,ONzThe UMS operation can be cancelled when the system judges the handle operation as evasive actions or when the obstacle moves out of the detectable area
of the sensor.
z The UMS may be triggered to operate in the following situations.

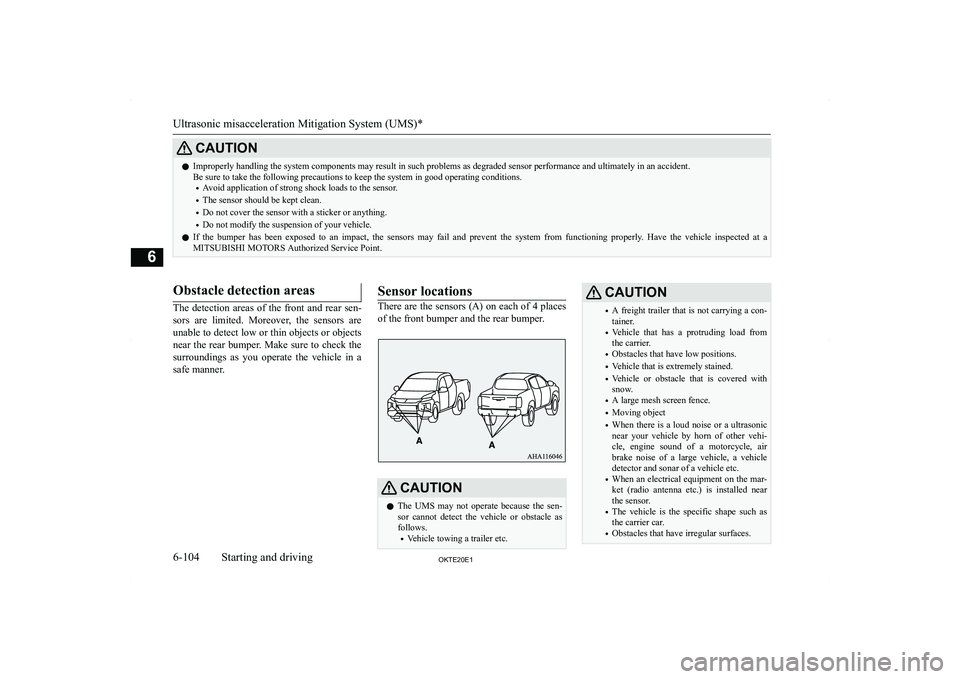

CAUT,ONzImproperly handling the system components may result in such problems as degraded sensor performance and ultimately in an accident.
Be sure to take the following precautions to keep the system in good operating conditions.
