NOTEzWhen the steering wheel does not unlock,
the warning will be displayed on the infor-
mation screen in the multi information dis-
play. Press the engine switch again while
moving the steering wheel slightly right and left.
z When the steering wheel lock is abnormal,
the warning display will appear and the in-ner buzzer will sound. Put the operation
mode in OFF and then press the lock switch of the keyless operation key. And then press the engine switch. If the warning lamp illu- minates again, contact a MITSUBISHI
MOTORS Authorized Service Point.
NOTEz If there is a fault in the steering wheel lock,
the warning display will appear. Immediate-
ly stop the vehicle in a safe place and con-
tact your nearest a MITSUBISHI MOTORS
Authorized Service Point.Starting and stopping the
engine
Tips for starting
Except for vehicles equipped with the keyless operation sys- tem
z Do not operate the starter motor continu-
ously longer than 10 seconds; doing so
could run down the battery. If the engine
does not start, turn the ignition switch back to “LOCK”, wait a few seconds,
and then try again. Trying repeatedly
with the starter motor still turning will damage the starter mechanism.
:ARN,NGz Never run the engine in a closed or poorly
ventilated area any longer than is needed
to move your vehicle in or out of the area. Carbon monoxide gases are odourless and can be fatal.CAUT,ONz Never attempt to start the engine by pushing
or pulling the vehicle.
z Do not run the engine at high speeds or drive
the vehicle at high speeds until the engine
has had a chance to warm up.
z Release the ignition key as soon as the en-
gine starts to avoid damaging the starter mo-
tor.
z If your vehicle is equipped with a turbo-
charger, do not stop the engine immediately
after high-speed or uphill driving. First al-
low the engine to idle to give the turbocharg-
er a chance to cool down.
For vehicles equipped with the
keyless operation system
z The operation mode can be in any mode
to start the engine.
Starting and stopping the engine
6-172.7(20(1Starting and driving6

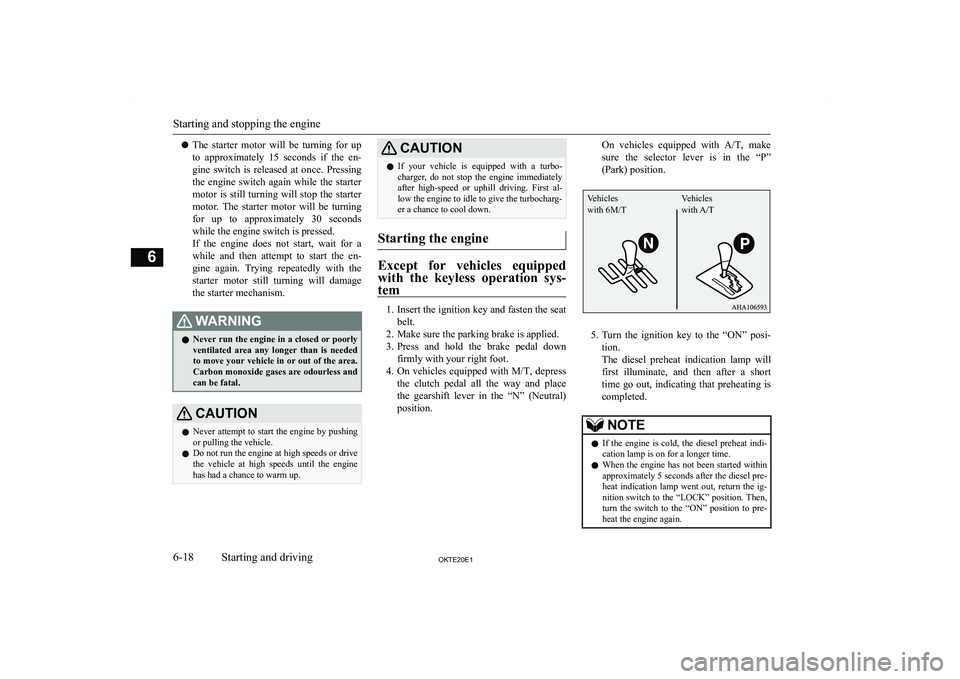

zThe starter motor will be turning for up
to approximately 15 seconds if the en- gine switch is released at once. Pressing
the engine switch again while the starter motor is still turning will stop the starter
motor. The starter motor will be turning for up to approximately 30 secondswhile the engine switch is pressed.
If the engine does not start, wait for a
while and then attempt to start the en-
gine again. Trying repeatedly with the starter motor still turning will damage
the starter mechanism.:ARN,NGz Never run the engine in a closed or poorly
ventilated area any longer than is needed
to move your vehicle in or out of the area. Carbon monoxide gases are odourless and can be fatal.CAUT,ONz Never attempt to start the engine by pushing
or pulling the vehicle.
z Do not run the engine at high speeds or drive
the vehicle at high speeds until the engine
has had a chance to warm up.CAUT,ONz If your vehicle is equipped with a turbo-
charger, do not stop the engine immediately
after high-speed or uphill driving. First al-
low the engine to idle to give the turbocharg-
er a chance to cool down.Starting the engine
Except for vehicles equipped
with the keyless operation sys- tem
1. Insert the ignition key and fasten the seat
belt.
2. Make sure the parking brake is applied.
3. Press and hold the brake pedal down
firmly with your right foot.
4. On vehicles equipped with M/T, depress
the clutch pedal all the way and place the gearshift lever in the “N” (Neutral)
position.
On vehicles equipped with A/T, make
sure the selector lever is in the “P”
(Park) position.
5. Turn the ignition key to the “ON” posi-
tion.
The diesel preheat indication lamp will first illuminate, and then after a short
time go out, indicating that preheating is completed.
NOTEz If the engine is cold, the diesel preheat indi-
cation lamp is on for a longer time.
z When the engine has not been started within
approximately 5 seconds after the diesel pre- heat indication lamp went out, return the ig-nition switch to the “LOCK” position. Then,
turn the switch to the “ON” position to pre-
heat the engine again.
Starting and stopping the engine
6-182.7(20(1Starting and driving6 Vehicles
with 6M/TVehicles
with A/T

NOTEzWhen the engine is warm, the diesel preheat
indication lamp does not come on even if the
ignition key is placed in the “ON” position.
Start the engine by turning the ignition key
right to the “START” position.
6. Turn the ignition key to the “START”
position without depressing the accelera- tor pedal, and release it when the engine starts.
NOTEz Minor noises may be heard on engine start-
up. These will disappear as the engine
warms up.
z Vehicles with 4N15 engine, when the ambi-
ent temperature is low even after the engine
has been warmed up, and when the gearshift
lever is put in the “N” (Neutral) position (M/T ) or the selector lever is put in the “P”
(PARK) position or “N” (NEUTRAL) posi-
tion (A/T), the idling speed may increase.
It does not indicate a malfunction.
For vehicles equipped with the keyless op-
eration system
1. Fasten the seat belt.
2. Make sure the parking brake is applied.
3. Press and hold the brake pedal down
firmly with your right foot.
NOTEz When the engine is not started, it may be-
come hard to depress the brake pedal and thevehicle may not be able to detect the pedal
operation.
Therefore the engine may not be started. In such a case, depress the brake pedal more
firmly than usual.
4. On vehicles with M/T, depress the clutch
pedal all the way and place the gearshift
lever in the “N” (Neutral) position.
On vehicles with A/T, make sure the se-
lector lever is in the “P” (PARK) posi- tion.
5. Press the engine switch. The diesel preheat indication lamp willfirst illuminate, and then after a short
time go out, indicating that preheating is completed. The engine will start.
NOTEz If the engine is cold, the diesel preheat indi-
cation lamp is on for a longer time.
z Putting the operation mode in ON will also
start preheating the engine. When the engine
has not been started within approximately 5 seconds after the diesel preheat indication
lamp went out, put the operation mode in OFF. Then, attempt the engine start proce-dure to preheat the engine again.
z Minor noises may be heard on engine start-
up. These will disappear as the engine
warms up.
z Vehicles with 4N15 engine, when the ambi-
ent temperature is low even after the engine
has been warmed up, and when the gearshift
lever is put in the “N” (Neutral) position (M/T ) or the selector lever is put in the “P”
(PARK) position or “N” (NEUTRAL) posi-
tion (A/T), the idling speed may increase.
It does not indicate a malfunction.
z When starting the engine, you pressed the
engine switch without depressing the clutch pedal, warning display will appear. (M/T)

Warning display (colour liquid crystal dis- play)
Starting and stopping the engine
6-192.7(20(1Starting and driving6 Vehicles
with 6M/TVehicles
with A/T

NOTEzWhen starting the engine, if the selector lev-
er is in a position other than the “P” (PARK)
or the “N” (NEUTRAL) position, or you pressed the engine switch without depress-
ing the brake pedal, the warning display will appear. (A/T)

Warning display (colour liquid crystal dis- play)Stopping the engine
Except for vehicles equipped
with the keyless operation sys- tem
1. Bring the vehicle to a complete stop.
2. Fully engage the parking brake while de-
pressing the brake pedal.
3. For vehicles equipped with M/T, turn the
ignition switch to the “LOCK” position
to stop the engine, and then move the
gearshift lever to the 1 st
(on a uphill) or
“R” (Reverse) (on a downhill) position.
For vehicles equipped with A/T, place
the selector lever in the “P” (PARK) po-
sition, and stop the engine.
For vehicles equipped with the keyless op-
eration system:ARN,NGz Do not operate the engine switch while
driving except in an emergency. If the en-
gine is stopped while driving, the brake servomechanism will cease to function
and braking efficiency will deteriorate. Also, the power steering system will not
function and it will require greater man- ual effort to operate the steering. This could result in a serious accident.NOTEz If you have to bring the engine to an emer-
gency stop while driving, press and hold the engine switch for 3 seconds or more, or
press it quickly 3 times or more. The engine will stop and the operation mode will go to ACC.NOTEz Do not stop the engine with the selector lev-
er in any position other than the “P” (PARK)position (A/T). If the engine is stopped with
the selector lever in any position other than
the “P” (Park) position, the operation mode will go to ACC rather than OFF.
Put the operation mode in OFF after placing the selector lever in the “P” (Park) position.
1. Stop the vehicle.
2. Fully engage the parking brake while de-
pressing the brake pedal.
3. On vehicles with M/T, press the engine
switch to stop the engine, move the gear-
shift lever to the 1 st
(on a uphill) or “R”
(Reverse) (on a downhill) position. On vehicles with A/T, move the selector
lever to the “P” (PARK) position, press the engine switch to stop the engine.
Fuel injection amount learning
process
To keep exhaust emissions and engine noise
low, the engine very occasionally performs a
learning process for the fuel injection amount.
The engine sounds slightly different from
usual while the learning process is taking
place. The change in the engine sound does not indicate a fault.
Starting and stopping the engine
6-202.7(20(1Starting and driving6

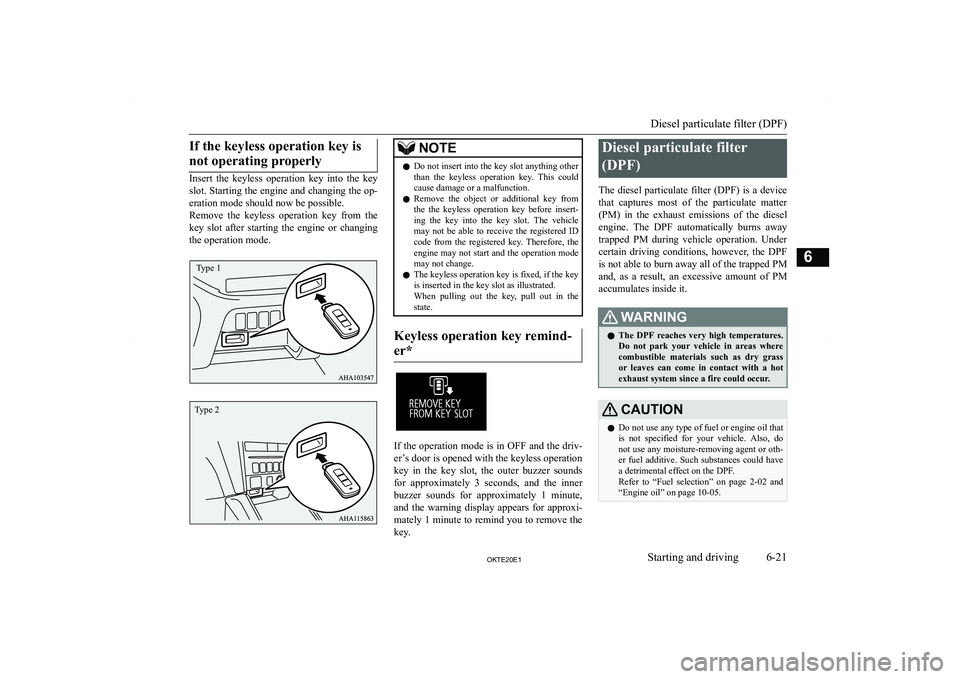

If the keyless operation key isnot operating properly
Insert the keyless operation key into the key
slot. Starting the engine and changing the op- eration mode should now be possible.
Remove the keyless operation key from the
key slot after starting the engine or changing the operation mode.
NOTEz Do not insert into the key slot anything other
than the keyless operation key. This could
cause damage or a malfunction.
z Remove the object or additional key from
the the keyless operation key before insert-ing the key into the key slot. The vehicle
may not be able to receive the registered ID
code from the registered key. Therefore, the engine may not start and the operation mode
may not change.
z The keyless operation key is fixed, if the key
is inserted in the key slot as illustrated.
When pulling out the key, pull out in the state.Keyless operation key remind-
er*
If the operation mode is in OFF and the driv- er’s door is opened with the keyless operation key in the key slot, the outer buzzer sounds
for approximately 3 seconds, and the inner buzzer sounds for approximately 1 minute,
and the warning display appears for approxi- mately 1 minute to remind you to remove the
key.
Diesel particulate filter
(DPF)
The diesel particulate filter (DPF) is a device
that captures most of the particulate matter
(PM) in the exhaust emissions of the dieselengine. The DPF automatically burns away
trapped PM during vehicle operation. Under certain driving conditions, however, the DPFis not able to burn away all of the trapped PM
and, as a result, an excessive amount of PM accumulates inside it.:ARN,NGz The DPF reaches very high temperatures.
Do not park your vehicle in areas where
combustible materials such as dry grass or leaves can come in contact with a hot
exhaust system since a fire could occur.CAUT,ONz Do not use any type of fuel or engine oil that
is not specified for your vehicle. Also, do not use any moisture-removing agent or oth-
er fuel additive. Such substances could have a detrimental effect on the DPF.
Refer to “Fuel selection” on page 2-02 and
“Engine oil” on page 10-05.
Diesel particulate filter (DPF)
6-212.7(20(1Starting and driving6Type 1 Type 2

NOTEzTo minimize the likelihood of excessive ac-
cumulation of PM, try to avoid driving for long periods at low speeds and repeatedly
driving short distances, and try to keep high
engine speed driving as much as possible.
z The engine sounds slightly different from
usual while the DPF automatically burns
away trapped PM. The change in the engine
sound does not indicate a fault.
DPF warning lamp/warning
display
Warning lamp (mono-colour liquid crystal dis- play)Warning display (colour liquid crystal display)
The DPF warning lamp comes on or warning
display will appear in the event of an abnor- mality in the DPF system.
If the DPF warning indicator/
warning display appears dur- ing vehicle operation
Steady illumination of the DPF warning indi-
cator/warning display shows that the DPF has
not been able to burn away all of the trapped PM and that, as a result, an excessive amount
of PM has accumulated inside it. To enable the DPF to burn away the PM, try to drive thevehicle as follows:
z With the bar graph of engine coolant
temperature display stabilized in roughly
the middle of the scale, drive for approx- imately 20 minutes (4N15) or 30 mi-
nutes (4N14) at a speed of at least 40 km/h (25 mph).

If the DPF warning indicator/warning display subsequently stays on, contact your
MITSUBISHI MOTORS Authorized Service
Point.
CAUT,ONz You do not have to continuously drive exact-
ly as indicated above. Always strive to drive safely in accordance with road conditions.If the DPF warning lamp and
check engine warning lamp or the DPF warning display andcheck engine warning lamp il-luminate at the same time dur- ing vehicle operationWarning lampWarning display (colour liquid crystal display)
If an abnormal condition occurs in the DPF system, the DPF warning lamp and check en-gine warning lamp or the DPF warning dis-
play and check engine warning lamp illumi-
nate.
Have the system inspected by a MITSUBISHI MOTORS Authorized Service
Point.
Diesel particulate filter (DPF)
6-222.7(20(1Starting and driving6

CAUT,ONzContinuing to drive with the DPF warning
display and check engine warning lamp illu- minating could result in engine trouble and
DPF damage.Urea SCR system
(AdBlue

Urea SCR system warningWarning lampWarning display
If there is a malfunction in the system, awarning display will appear on the informa-
tion screen in the multi-information display according to the situation. At the same time,
the
warning lamp in the meter will flash.
If a warning display appears, have your vehi- cle inspected by a MITSUBISHI MOTORS
Authorized Service Point as soon as possible.
CAUT,ONz If the urea SCR system warning lamp comes
on and the warning display appears, the ve-
hicle can travel approximately 600 km
(400 miles) before the engine cannot be re- started after it is stopped.NOTEz If there is a malfunction in the system, the
check engine warning lamp may come on at
the same time.Turbocharger operation*CAUT,ONz Do not run the engine at high speeds (for ex-
ample, by revving it or by accelerating rap-
idly) immediately after starting it.
z Do not stop the engine immediately after
high-speed or uphill driving. First allow the
engine to idle to give the turbocharger a
chance to cool down.Turbocharger
The turbocharger increases engine power by
pushing large amounts of air into the engine’scylinders. The finned parts inside the turbo-
charger turn at extremely high speeds and are subjected to extremely high temperatures.
They are lubricated and cooled by engine oil.
If the engine oil is not replaced at the speci- fied intervals, the bearings may seize or emit
abnormal noise.
1- Air compressor
2- Compressed air
3- Cylinder
4- Turbo fin
5- Turbine
6- Exhaust gas
Turbocharger operation*
6-242.7(20(1Starting and driving6
