2020 MITSUBISHI L200 Owner's Manual (in English)

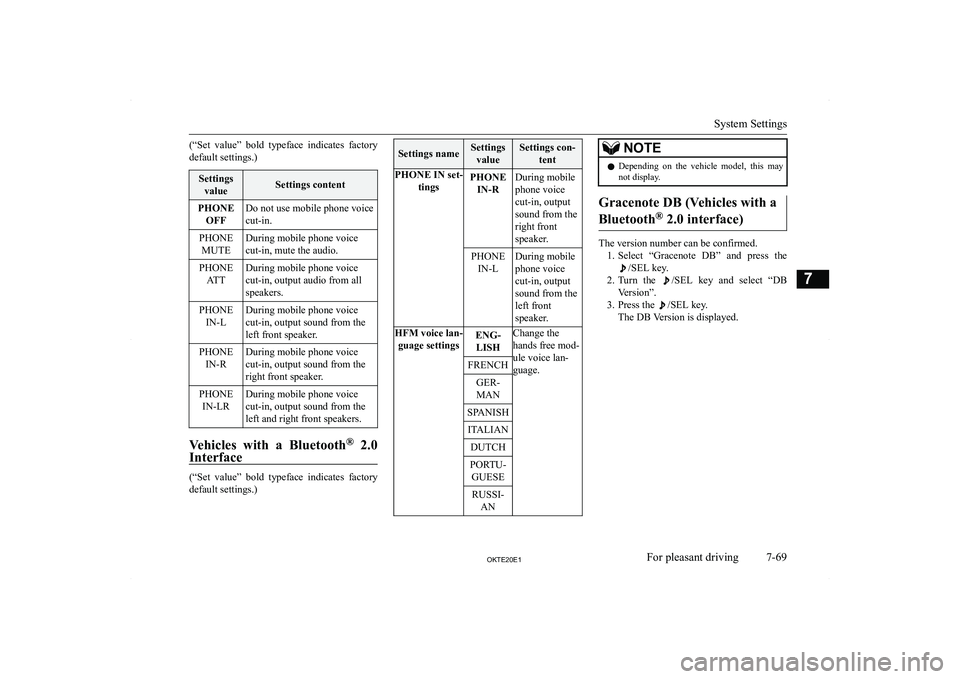

(“Set value” bold typeface indicates factory
default settings.)Settings valueSettings contentPHONE OFFDo not use mobile phone voice
cut-in.PHONE MUTEDuring mobile phone voice
cut-in, mute the audio.PHONE ATTDuring mobile phone voice
cut-in, output audio from all
speakers.PHONE IN-LDuring mobile phone voice
cut-in, output sound from the
left front speaker.PHONE IN-RDuring mobile phone voice
cut-in, output sound from the
right front speaker.PHONE IN-LRDuring mobile phone voice
cut-in, output sound from the
left and right front speakers.
Vehicles with a Bluetooth

Troubleshooting
Please check these items if a message appears on the display, or if you think something is not working properly.If This Message Appears...
A message is displayed on this product according to the situation.
ModeMessageCauseResponseCDCHECK DISCThe disc is inserted upside down.Insert with the label side up.The disc has condensation on it.Wait a while before inserting again.DISC ERRORThe disc is damaged.Clean the read surface of the disc.The disc is dirty.INTERNAL EThe drive has malfunctioned for some reason.Check that there is no problem with the disc, and
insert the disc again. If the problem persists,
consult a MITSUBISHI MOTORS Authorized Service Point.HEAT ERRORThe temperature inside the product is high.Remove the disc, and wait for the internal tem-
perature to return to normal.USBFILE ERRORFiles that cannot be played are selected.Select files that can be played.

W “Audio Files (MP3/WMA/AAC)” (P.7-43)USB BUS PWRThere is high or low electrical current or volt-
age.Turn the power OFF and wait a short while. If the
problem persists, consult a MITSUBISHI MOTORS Authorized Service Point.LSI ERRORThere is an internal malfunction for some rea-
son.UNSUPPORTED FORMATUnsupported audio files have been played.Confirm audio files that can be played.
W “Audio Files (MP3/WMA/AAC)” (P.7-43)UNSUPPORTED DE- VICEAn unsupported USB device has been connec-
ted.Please connect a USB memory device.
Troubleshooting
7-702.7(20(1For pleasant driving7

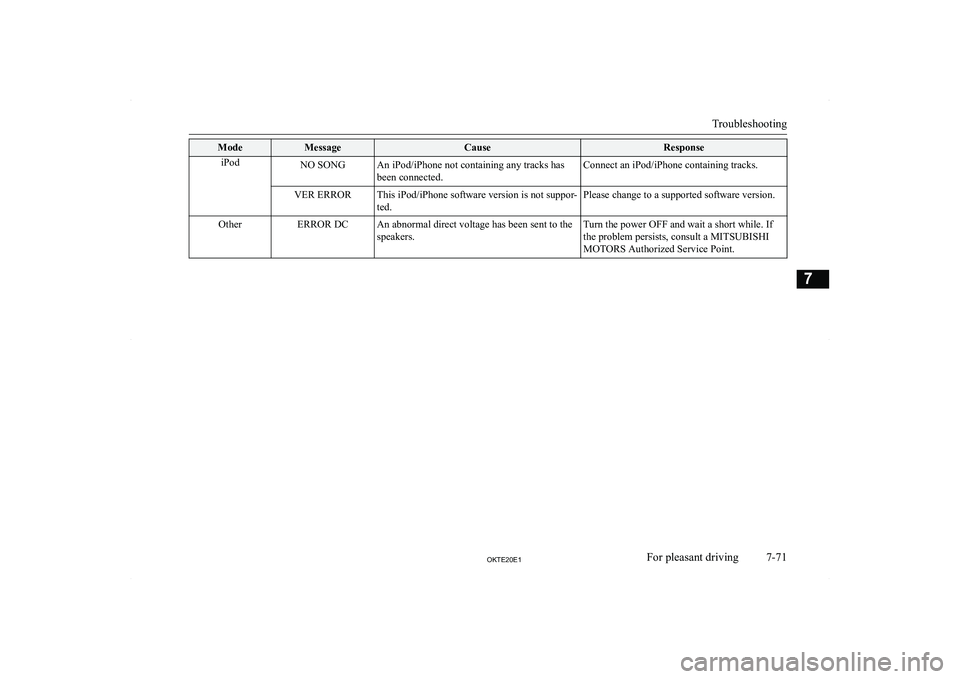

ModeMessageCauseResponseiPodNO SONGAn iPod/iPhone not containing any tracks has
been connected.Connect an iPod/iPhone containing tracks.VER ERRORThis iPod/iPhone software version is not suppor-
ted.Please change to a supported software version.OtherERROR DCAn abnormal direct voltage has been sent to the
speakers.Turn the power OFF and wait a short while. If
the problem persists, consult a MITSUBISHI
MOTORS Authorized Service Point.
Troubleshooting
7-712.7(20(1For pleasant driving7

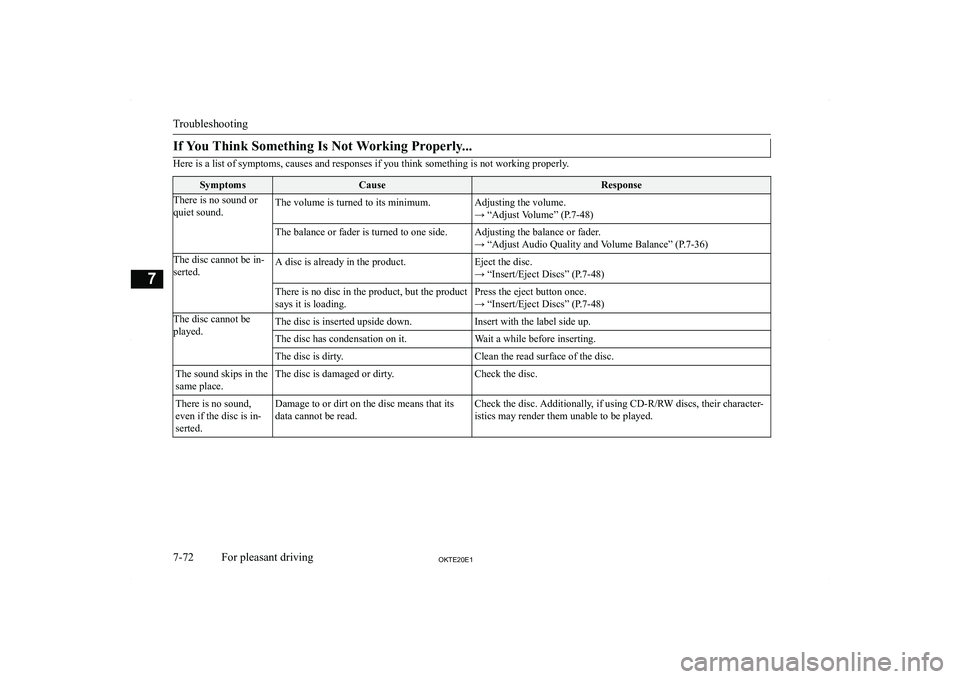

If You Think Something Is Not Working Properly...
Here is a list of symptoms, causes and responses if you think something is not working properly.
SymptomsCauseResponseThere is no sound or
quiet sound.The volume is turned to its minimum.Adjusting the volume.

W “Adjust Volume” (P.7-48)The balance or fader is turned to one side.Adjusting the balance or fader.

W “Adjust Audio Quality and Volume Balance” (P.7-36)The disc cannot be in-
serted.A disc is already in the product.Eject the disc.

W “Insert/Eject Discs” (P.7-48)There is no disc in the product, but the product
says it is loading.Press the eject button once.

W “Insert/Eject Discs” (P.7-48)The disc cannot be
played.The disc is inserted upside down.Insert with the label side up.The disc has condensation on it.Wait a while before inserting.The disc is dirty.Clean the read surface of the disc.The sound skips in the
same place.The disc is damaged or dirty.Check the disc.There is no sound,
even if the disc is in-
serted.Damage to or dirt on the disc means that its data cannot be read.Check the disc. Additionally, if using CD-R/RW discs, their character-
istics may render them unable to be played.

Troubleshooting
7-722.7(20(1For pleasant driving7

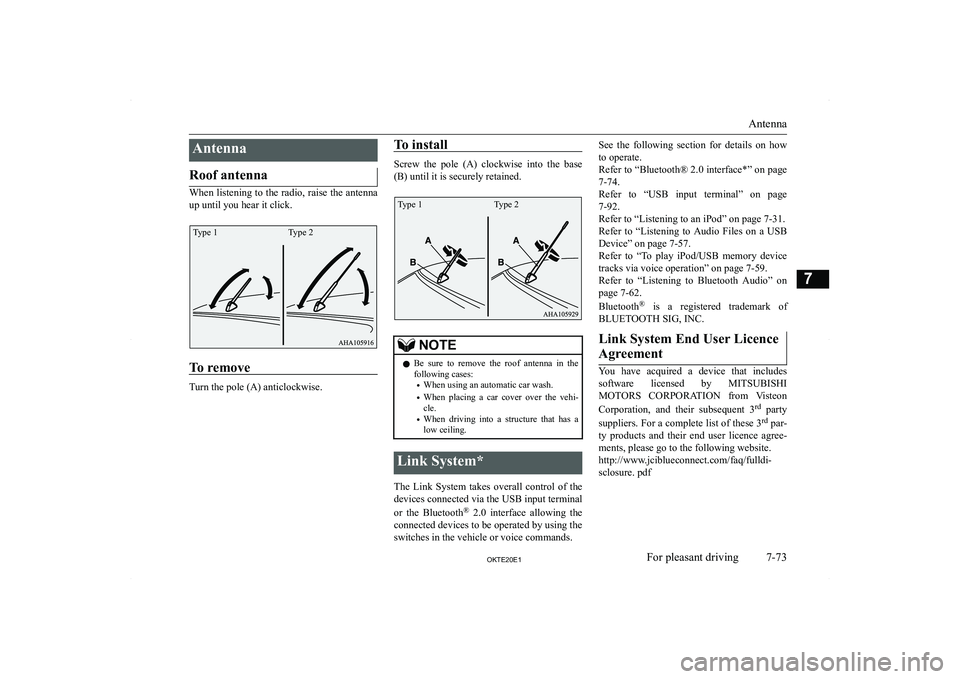

AntennaRoof antenna
When listening to the radio, raise the antennaup until you hear it click.
To remove
Turn the pole (A) anticlockwise.
To install
Screw the pole (A) clockwise into the base(B) until it is securely retained.
NOTEz Be sure to remove the roof antenna in the
following cases:

Bluetooth

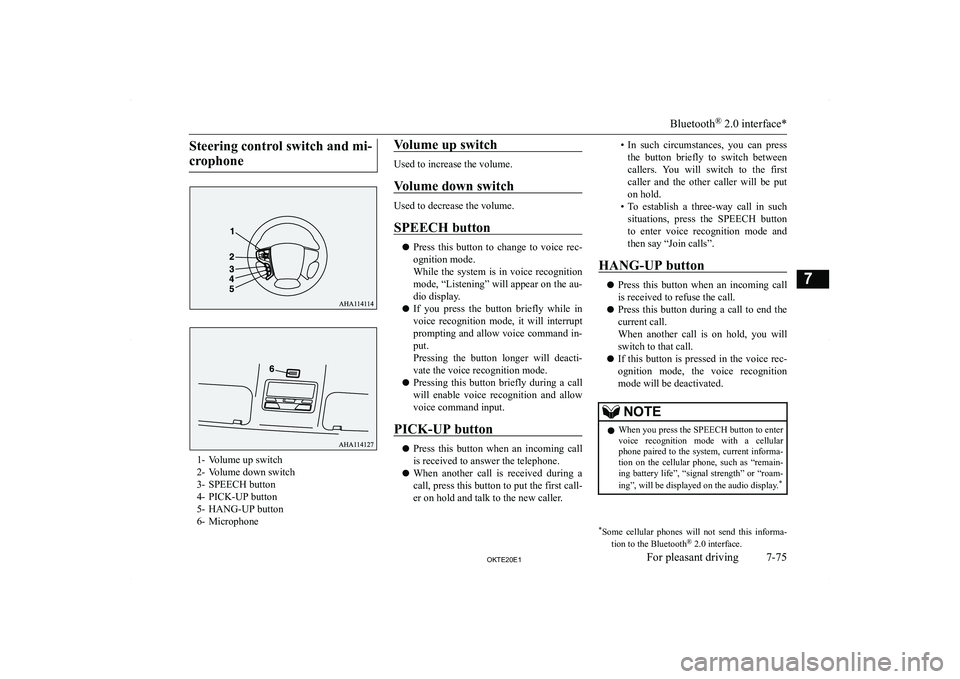

Steering control switch and mi-crophone
1- Volume up switch
2- Volume down switch
3- SPEECH button
4- PICK-UP button
5- HANG-UP button
6- Microphone
Volume up switch
Used to increase the volume.
Volume down switch
Used to decrease the volume. SPEECH button
z Press this button to change to voice rec-
ognition mode.
While the system is in voice recognition mode, “Listening” will appear on the au-
dio display.
z If you press the button briefly while in
voice recognition mode, it will interrupt
prompting and allow voice command in- put.
Pressing the button longer will deacti-
vate the voice recognition mode.
z Pressing this button briefly during a call
will enable voice recognition and allow
voice command input.
PICK-UP button
z Press this button when an incoming call
is received to answer the telephone.
z When another call is received during a
call, press this button to put the first call-
er on hold and talk to the new caller.

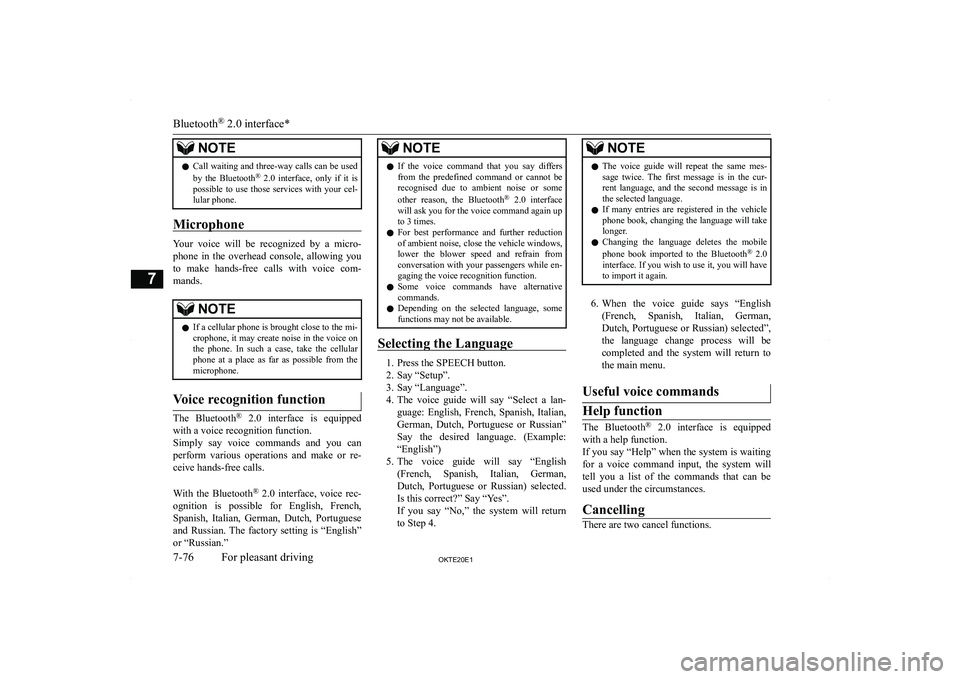

NOTEzCall waiting and three-way calls can be used
by the Bluetooth
