6.Examine the radiator hoses for coolant
leakage and the drive belt for looseness
or damage.
If there is anything wrong with the cool-
ing system or drive belt, we recommend
you to have it checked and repaired.Bleeding the fuel system
The fuel system should be bled to remove air
as described below if the fuel supply is ex- hausted during travel.
Pump the hand pump (A) at the top of the fuel filter until the hand pump becomes stiff.
Then try again to start the engine.
If the engine does not start, repeat the process
above.
CAUT,ONz Do not smoke or have any other open flame
near the vehicle while bleeding the fuel sys-
tem.
z Be sure to carefully clean away any spilt fuel
which could ignite and cause a fire.Removal of water from the
fuel filter
If the fuel filter indication lamp in the instru- ment panel illuminates or the fuel filter indi- cator display on the information screen in the
multi information display appears during
driving, it indicates that water has accumula-
ted in the fuel filter. If this occurs, remove the
water as described below.
Indication lamp (mono-colour liquid crystal display)
Indicator display (colour liquid crystal dis-
play)
1. Loosen the drain plug (A) of the fuel fil-
ter.
2. Operate the hand pump (B) slowly 6 or 7
times in order to force the water out
through the drain plug (A).
3. Tighten the drain plug (A) when water
no longer comes out.
Bleeding the fuel system
8-112.7(20(1For emergencies8

4. Bleed the air in the fuel system.(Refer to “Bleeding the fuel system” onpage 8-11.)
5. [Vehicles equipped with the mono-col-
our liquid crystal display@
Check to be sure that the fuel filter indi-
cation lamp illuminates when the igni-
tion switch is turned to “ON” or the op- eration mode is put in ON, and that it
goes off when the engine is started.
[Vehicles equipped with the colour liq- uid crystal display@
Check to be sure that the fuel filter indi-
cator display does not appear when the
ignition switch is turned to “ON” or the operation mode is put in ON.
If in doubt, we recommend you to con-
sult a specialist for necessary informa- tion.CAUT,ONz Do not smoke or have any other open flame
near the vehicle while bleeding the fuel sys- tem.
z Be sure to carefully clean away any water
drained out because any fuel mixed with the water could ignite and cause a fire.Tools, jack and jack handle
Storage
The storage location of the tools, jack and jack handle should be remembered in case of
an emergency.
Club cab
A- Tools
B- Jack
C- Jack handle
Double cab
A- Tool (wheel nut wrench)
B- Jack handle
C- Jack
A- Tools
B- Jack handle
C- Jack
Tools, jack and jack handle
8-122.7(20(1For emergencies8 Type 1 Type 2

Tools
Type 1
Double cab
1- Wheel nut wrench
Club cab
1- Tool bag
2- Wheel nut wrench
Type 2
1- Tool bag
2- Wheel nut wrench
3- Plier
4- Driver
5- Spanner
Jack
The jack is used only for the purpose of
changing a tyre when a tyre is punctured.
NOTEz The jack is maintenance-free.
z The jack is in conformity with EC law as ap-
proximated by the Machinery Directive
2006/42/EC.
z The EC declaration of conformity is attached
to the section “Declaration of Conformity”
in the end of this owner’s manual.NOTE

2. Open the lid.
3.Remove the securing band (A), and then
take out the tools (B) on the left-hand side.
4. Remove the securing nut (C), and then
take out the jack (D) on the right-hand
side.
5. Remove the jack handle (E) from the
holder (F), and then take out the jack
handle on the right-hand side.
6. Reverse the removing procedure when
storing the tools, jack and jack handle.
NOTEz When stowing the jack handle, align the col-
oured marking on the jack handle with that
on the holder, and fit the jack in the holder.
Double cab
The tools, jack, and jack handle are located
behind the rear seat. 1. Tip the seatback of the rear seat forward. (Refer to “Folding the seatback forward”
on page 4-04.)
2. <Type 1> Remove the wheel nut wrench (A) fromthe holder (B), and take out the wrench.
<Type 2>
Remove the securing band (C), and then
take out the tools (D).
Tools, jack and jack handle
8-142.7(20(1For emergencies8

3.Remove the securing nut (E), and then
take out the jack (F).
4. Remove the jack handle (G) from the
holder (H), and take out the handle.
5. Reverse the removing procedure when
storing the tools, jack and jack handle.
NOTEz When stowing the jack handle, align the
black-marked part (I) of the jack handle with
the holder (H).To use the jack handle (Club
cab)
1. While pressing the snap pin (A) on the
handle that has a black marking, with-
draw and remove the inner handle (B).Tools, jack and jack handle
8-152.7(20(1For emergencies8

2.Reverse the inner handle (B) then, while
pressing the snap pin (C), insert it into
the outer handle (D) until it is locked by the snap pin as illustrated.
3. While pressing the snap pin (F) on the
assembled handle (E), insert the white-
marked handle (G) until it is locked by the snap pin as illustrated.
How to change a tyre
Before changing a tyre, first stop your vehi- cle in a safe, flat location. 1. Park the vehicle on level and stable
ground, free of loose pebbles, etc.
2. Set the parking brake firmly.
3. On vehicles with manual transmission,
turn the ignition switch to the “LOCK”
position or put the operation mode in
OFF, and move the gearshift lever to the
“R” (Reverse) position.
On vehicles with automatic transmis- sion, move the selector lever to the “P” (PARK) position, and turn the ignition
switch to the “LOCK” position or put the operation mode in OFF.
4. Turn on the hazard warning flashers and
set up a warning triangle, flashing signal
lamp, etc., at an adequate distance from
the vehicle, and have all your passengers
leave the vehicle.
5. To prevent the vehicle from rolling when
jacking up the vehicle, place chocks or blocks (A) at the tyre that is diagonallyopposite from the tyre (B) you are
changing.:ARN,NGz Be sure to apply chocks or blocks to the
correct tyre when jacking up the vehicle.
If the vehicle moves while jacked up, the jack could slip out of position, leading to
an accident.NOTEz The chocks shown in the illustration do not
come with your vehicle. It is recommended
that you keep one in the vehicle for use if needed.
z If chocks are not available, use stones or any
other objects that are large enough to hold the wheel in position.
6. Get the jack, jack handle and wheel nut
wrench ready.
Refer to “Tools, jack and jack handle” on page 8-12.
How to change a tyre
8-162.7(20(1For emergencies8

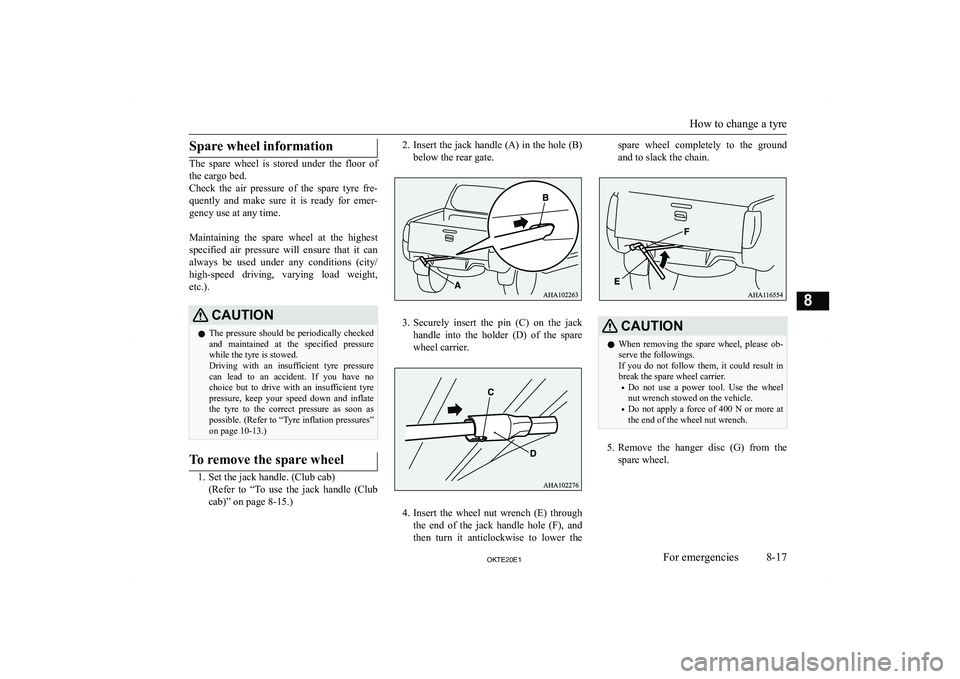

Spare wheel information
The spare wheel is stored under the floor of
the cargo bed.
Check the air pressure of the spare tyre fre- quently and make sure it is ready for emer-
gency use at any time.

Maintaining the spare wheel at the highest specified air pressure will ensure that it canalways be used under any conditions (city/
high-speed driving, varying load weight,
etc.).
CAUT,ONz The pressure should be periodically checked
and maintained at the specified pressure
while the tyre is stowed.
Driving with an insufficient tyre pressure
can lead to an accident. If you have no choice but to drive with an insufficient tyre
pressure, keep your speed down and inflate the tyre to the correct pressure as soon as possible. (Refer to “Tyre inflation pressures”
on page 10-13.)To remove the spare wheel
1. Set the jack handle. (Club cab)
(Refer to “To use the jack handle (Club
cab)” on page 8-15.)
2. Insert the jack handle (A) in the hole (B)
below the rear gate.
3. Securely insert the pin (C) on the jack
handle into the holder (D) of the spare
wheel carrier.
4. Insert the wheel nut wrench (E) through
the end of the jack handle hole (F), and
then turn it anticlockwise to lower the
spare wheel completely to the ground
and to slack the chain.CAUT,ONz When removing the spare wheel, please ob-
serve the followings.
If you do not follow them, it could result in
break the spare wheel carrier.

NOTEzPut the spare wheel under the vehicle body
near the flat tyre. This makes it safer if the jack slips out of position.To change a tyre
1. Loosen the wheel nuts a quarter turn
with the wheel nut wrench. Do not re-
move the wheel nuts yet.
2. Place the jack under one of the jacking
points shown in the illustration. Use the jacking point closest to the tyre you wish
to change.
A- Front jacking point
B- Rear jacking point
:ARN,NGz Set the jack only at the positions shown
here. If the jack is set at a wrong position, it could dent your vehicle or the jack
might fall over and cause personal injury.
z Do not use the jack on a tilted or soft sur-
face. Otherwise, the jack might slip and cause personal injury. Always use the jack
on a flat, hard surface. Before setting the jack, make sure there are no sand or peb-bles under the jack base.
How to change a tyre
