2015 TOYOTA AVENSIS Owners Manual

6019-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
XGasoline engine
XDiesel engine
Fuel
Fuel typeEU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
number
95 or higher
Fuel tank capacity
(reference)60 L (15.9 gal., 13.2 Imp.gal.)
Fuel typeDiesel fuel conforming to European stan-
dard EN590 (Ultra low sulfur diesel max
10 ppm)
Cetane number 48 or higher
Fuel tank capacity
(reference)
60 L (15.9 gal., 13.2 Imp.gal.)
AVENSIS_OM_OM20C20E_(EE).book Page 601 Thursday, January 29,
2015 1:47 PM

6029-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
XGasoline engine
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Lubrication system
Oil capacity
(Drain and refill 
reference
*) With filter: 4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter: 3.9 L (4.1 qt., 3.4 Imp.qt.)
AVENSIS_OM_OM20C20E_(EE).book Page 602 Thursday, January 29,
2015 1:47 PM

6039-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications

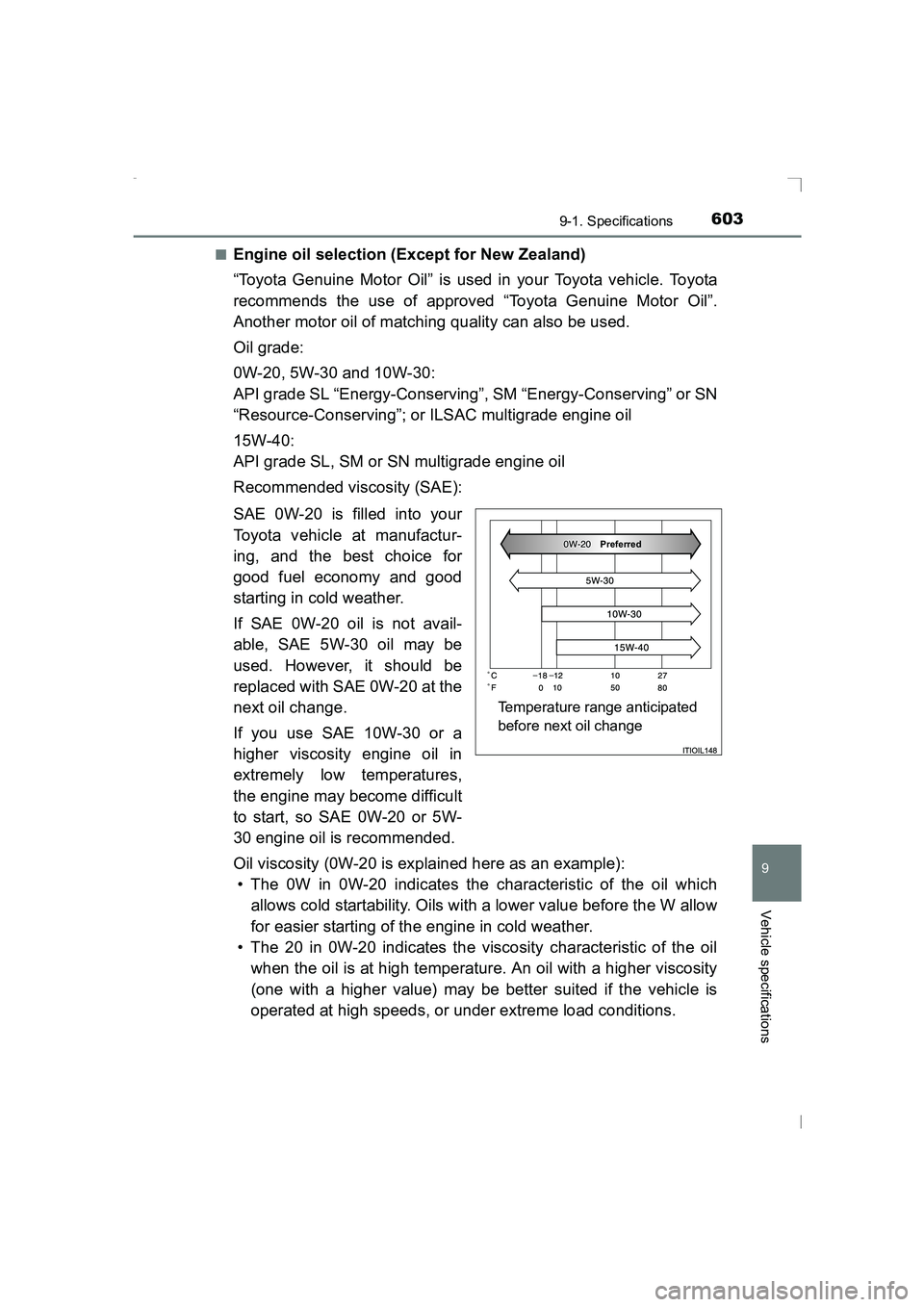

■Engine oil selection (Except for New Zealand)
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred
AVENSIS_OM_OM20C20E_(EE).book Page 603 Thursday, January 29, 2015 1:47 PM

6049-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
121
2
AVENSIS_OM_OM20C20E_(EE).book Page 604 Thursday, January 29, 2015 1:47 PM

6059-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications

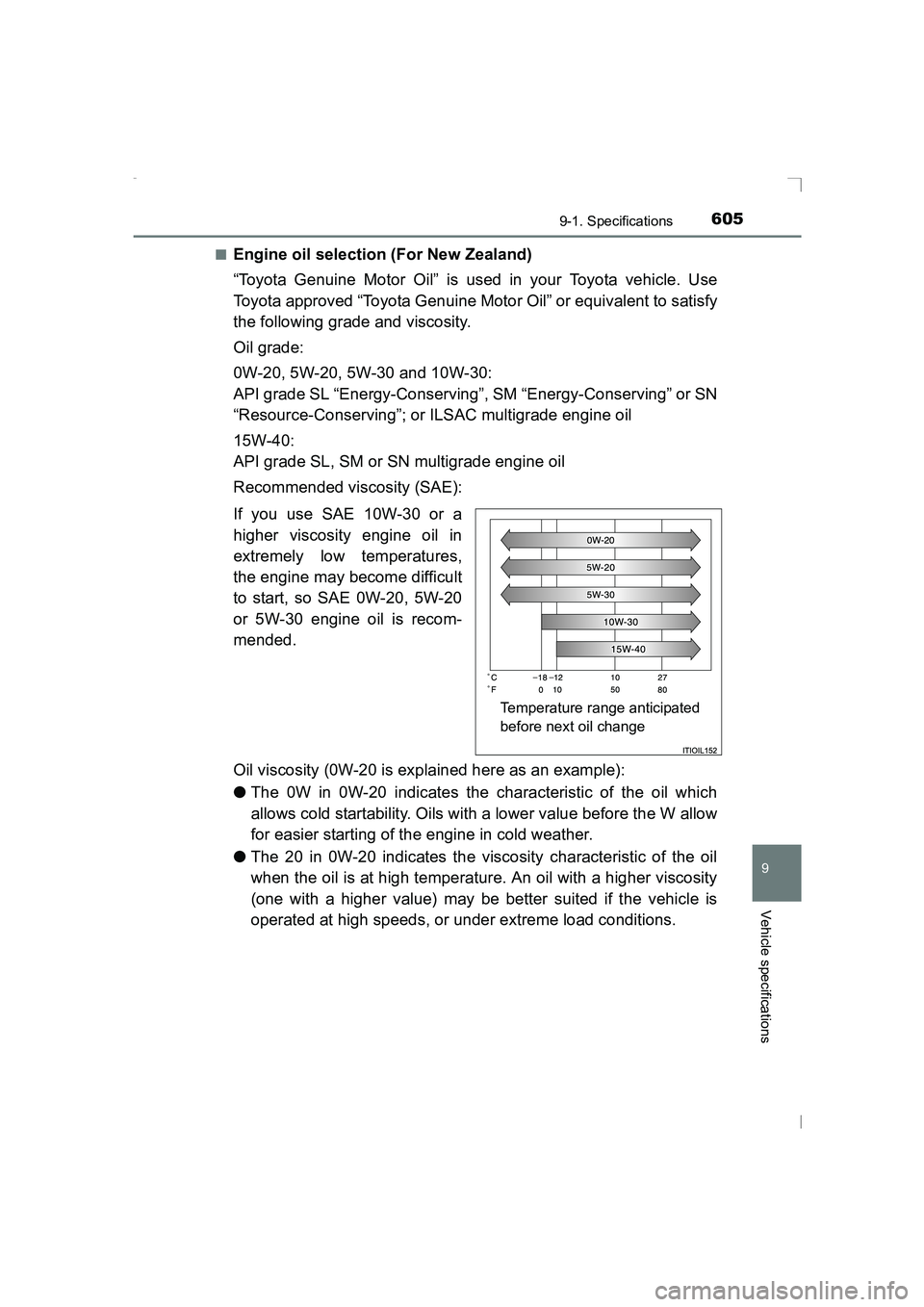

■Engine oil selection (For New Zealand)
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20, 5W-20
or 5W-30 engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
●The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
● The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
AVENSIS_OM_OM20C20E_(EE).book Page 605 Thursday, January 29, 2015 1:47 PM

6069-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
XDiesel engine
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
121
2
Oil capacity
(Drain and refill  reference
*)
With filter 5.2 L (5.5 qt., 4.6 Imp.qt.)
AVENSIS_OM_OM20C20E_(EE).book Page 606 Thursday, January 29, 2015 1:47 PM

6079-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications

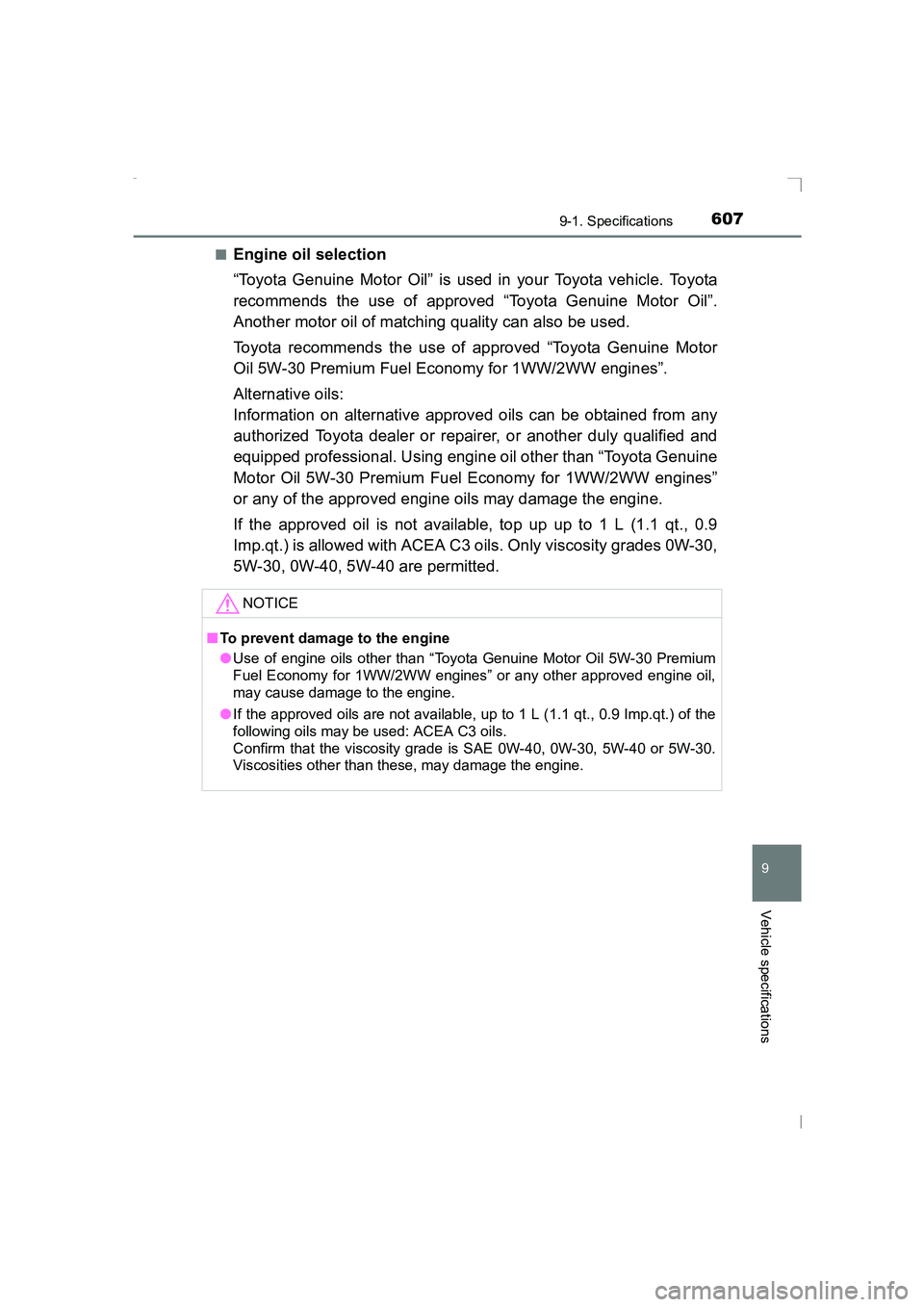

■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Toyota recommends the use of approved “Toyota Genuine Motor
Oil 5W-30 Premium Fuel Economy for 1WW/2WW engines”.
Alternative oils:
Information on alternative approved oils can be obtained from any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional. Using engine oil other than “Toyota Genuine
Motor Oil 5W-30 Premium Fuel Economy for 1WW/2WW engines”
or any of the approved engine oils may damage the engine.
If the approved oil is not available, top up up to 1 L (1.1 qt., 0.9
Imp.qt.) is allowed with ACEA C3 oils. Only viscosity grades 0W-30,
5W-30, 0W-40, 5W-40 are permitted.
NOTICE
■To prevent damage to the engine
●Use of engine oils other than “Toyota Genuine Motor Oil 5W-30 Premium
Fuel Economy for 1WW/2WW engines” or any other approved engine oil,
may cause damage to the engine.
● If the approved oils are not available, up to 1 L (1.1 qt., 0.9 Imp.qt.) of the
following oils may be used: ACEA C3 oils.
Confirm that the viscosity grade is SAE 0W-40, 0W-30, 5W-40 or 5W-30.
Viscosities other than these, may damage the engine.
AVENSIS_OM_OM20C20E_(EE).book Page 607 Thursday, January 29, 2015 1:47 PM

6089-1. Specifications
AVENSIS_OM_OM20C20E_(EE)

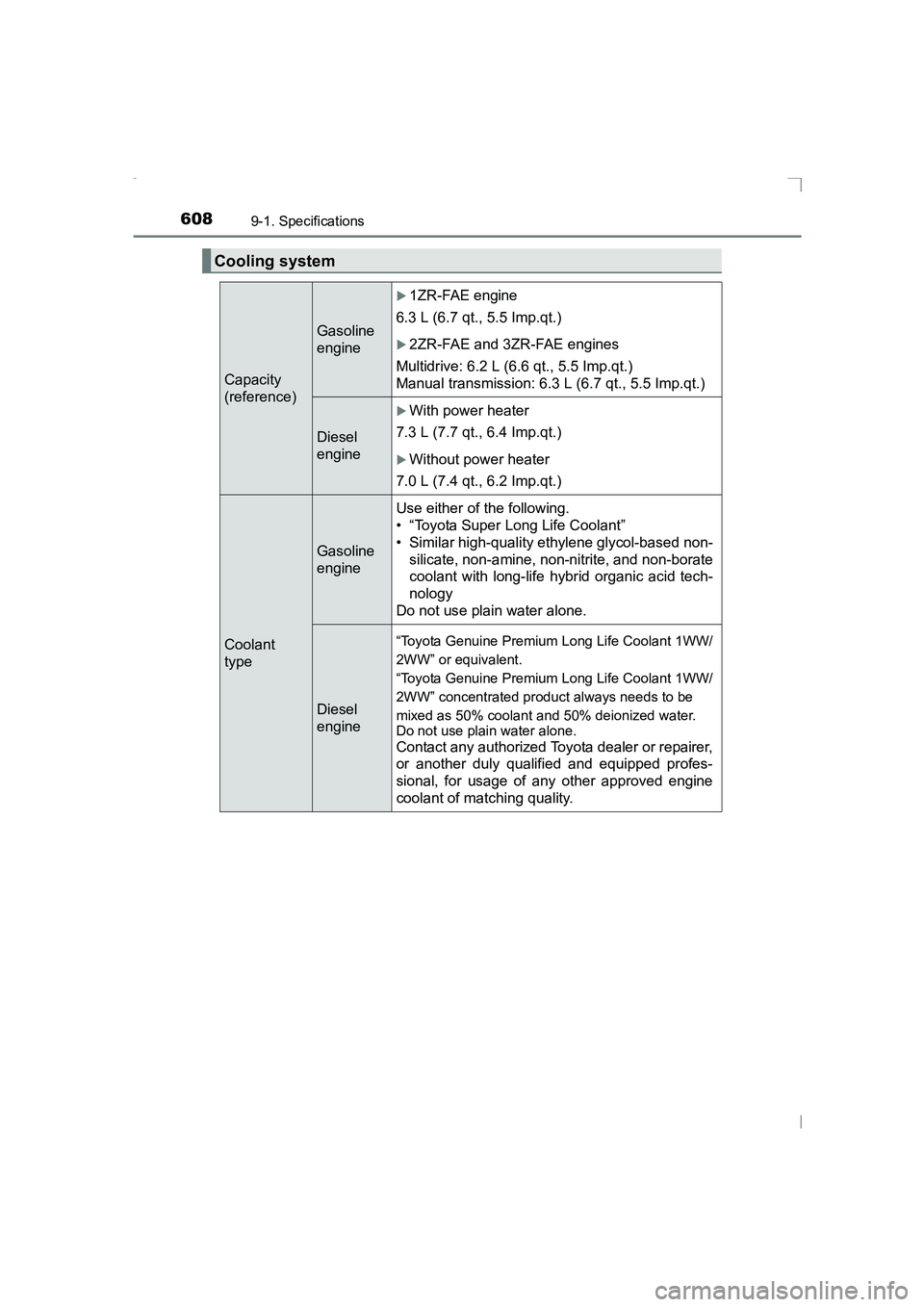

Cooling system
Capacity
(reference)
Gasoline
engine
X1ZR-FAE engine
6.3 L (6.7 qt., 5.5 Imp.qt.)
X2ZR-FAE and 3ZR-FAE engines
Multidrive: 6.2 L (6.6 qt., 5.5 Imp.qt.)
Manual transmission: 6.3 L (6.7 qt., 5.5 Imp.qt.)
Diesel
engine
XWith power heater
7.3 L (7.7 qt., 6.4 Imp.qt.)
XWithout power heater
7.0 L (7.4 qt., 6.2 Imp.qt.)
Coolant
type
Gasoline
engine Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-
silicate, non-amine, non- nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Diesel
engine
“Toyota Genuine Premium Long Life Coolant 1WW/
2WW” or equivalent.
“Toyota Genuine Premium Long Life Coolant 1WW/
2WW” concentrated product always needs to be
mixed as 50% coolant and 50% deionized water.
Do not use plain water alone.
Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped profes-
sional, for usage of any other approved engine
coolant of matching quality.
