2015 TOYOTA AVENSIS Owners Manual

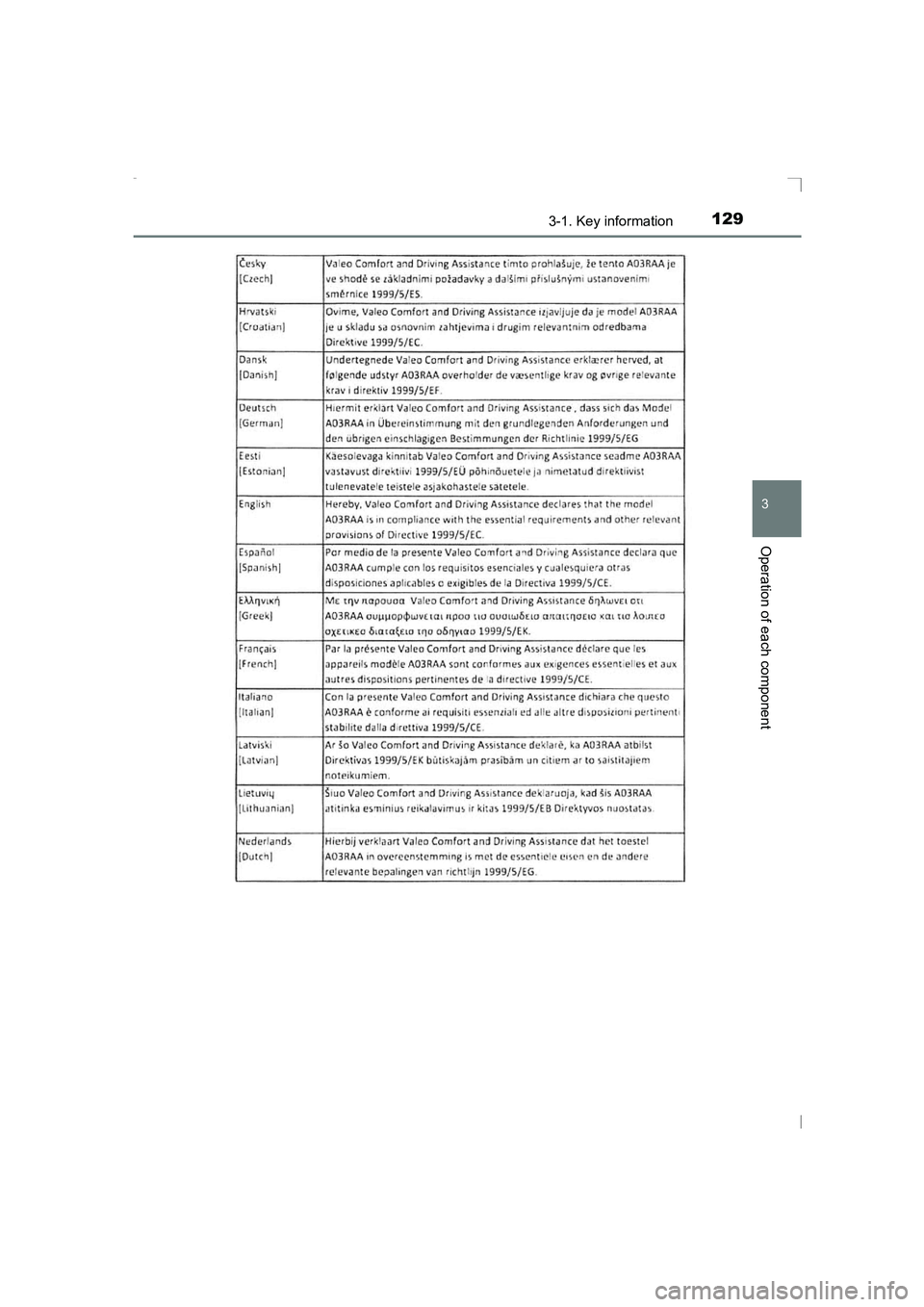

1293-1. Key information
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 129 Thursday, January 29, 2015 1:47 PM

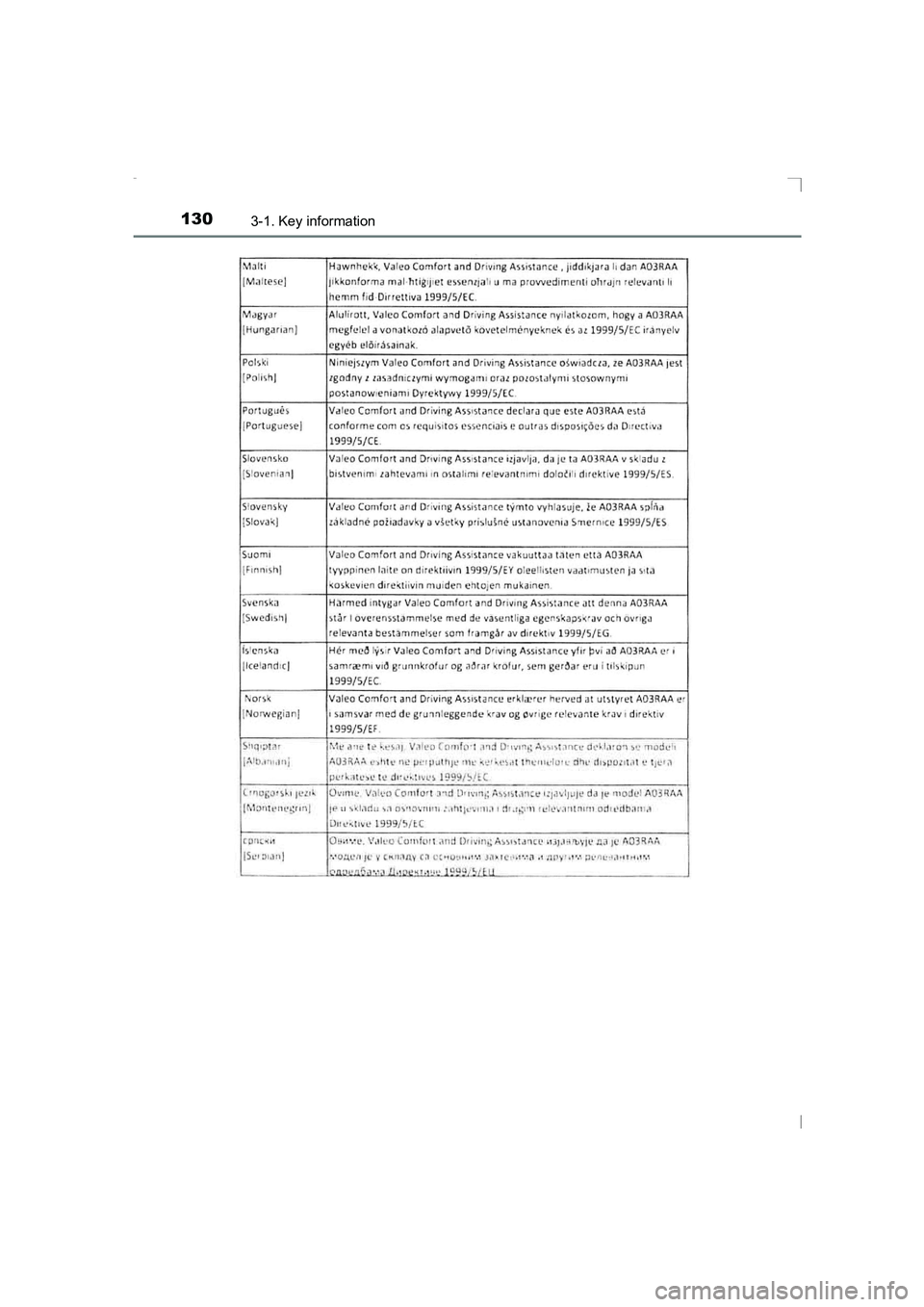

1303-1. Key information
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 130 Thursday, January 29, 2015 1:47 PM

1313-1. Key information
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)NOTICE
■
To prevent key damage
●Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the key with wire-
less remote control function.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.
■ Carrying the electronic key on your person (vehicles with smart entry
& start system)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio wave s emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart entry & start syst em malfunction or other key-related
problems (vehicles with smart entry & start system)
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ When an electronic key is lost (vehicles with smart entry & start sys-
tem)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately with all remaining electronic
keys that were provided with your vehicle.
AVENSIS_OM_OM20C20E_(EE).book Page 131 Thursday, January 29, 2015 1:47 PM

1323-2. Opening, closing and locking the doors
AVENSIS_OM_OM20C20E_(EE)
Side doors
◆Entry function (vehicles with smart entry & start system)
Carry the electronic key to enable this function.Grip either front door handle
to unlock the doors.
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after they are
locked.
Touch the lock sensor (the
indentation on the upper part
of the front door handle) to
lock the doors.
Check that the door is securely
locked.
The vehicle can be locked and unlocked using the smart entry &
start system, wireless remote control or door lock switch.
Unlocking and locking the doors from the outside
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 132 Thursday, January 29, 2015 1:47 PM

1333-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
◆Wireless remote control
XVehicles without smart entry & start system
Locks all the doors and trunk/
back door
Check that the door is securely
locked.
Unlocks all the doors and
trunk/back door
XVehicles with smart entry & start system
Locks all the doors and trunk/
back door
Check that the door is securely
locked.
Unlocks all the doors and
trunk/back door
◆Key
XVehicles without smart entry & start system
Locks all the doors
Unlocks all the doors
XVehicles with smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. ( →P. 582)
1
2
1
2
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 133 Thursday, January 29, 2015 1:47 PM

1343-2. Opening, closing and locking the doors
AVENSIS_OM_OM20C20E_(EE)
■Operation signals
The emergency flashers flash to indicate that the doors and trunk/back door
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ When the door cannot be locked by the lock sensor on the upper part of
the door handle
■ Door lock buzzer (vehicles with smart entry & start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
■ Setting the alarm (if equipped)
Locking the doors will set the alarm system. ( →P. 89)
■ If the smart entry & start system or the wireless remote control does not
operate properly
Use the mechanical key to lock and unlock the doors. ( →P. 582)
Replace the key battery with a new one if it is depleted. ( →P. 482)
If the door will not lock even when the top-
side sensor area is touched, try touching
both the topside and underside sensor
areas at the same time.
AVENSIS_OM_OM20C20E_(EE).book Page 134 Thursday, January 29,
2015 1:47 PM

1353-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
◆Door lock switchLocks all the doors
Unlocks all the doors
Sedan: The trunk is also locked/
unlocked.
◆Inside lock buttonLocks the door
Unlocks the door
The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
XVehicles without smart entry & start system
The door cannot be locked if the key is in the engine switch.
XVehicles with smart entry & start system
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
Depending on the position of the electronic key, the key may not be
detected correctly and the door may be locked.
Locking and unlocking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 135 Thursday, January 29, 2015 1:47 PM

1363-2. Opening, closing and locking the doors
AVENSIS_OM_OM20C20E_(EE)
The door cannot be opened from
inside the vehicle when the locks
are set. Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down the rear door
switches to lock the rear doors.
The following functions can be set or canceled:
*1: Vehicles with Multidrive
*2: Once the function operates, the function does not operate again before theengine switch is turned to “LOCK” position (vehicles without smart entry &
start system) or off (vehicles with smart entry & start system), or a door is
opened and closed.
Rear door child-protector lock
1
2
Automatic door locking and unlocking systems
FunctionOperation
Shift position linked door locking
function
*1Shifting the shift lever out of P locks
all the doors.
Shift position linked door unlocking
function
*1Shifting the shift lever to P unlocks
all the doors.
Speed linked door locking function
All the doors are locked when the
vehicle speed is approximately 20
km/h (12 mph) or higher.
*2
Driver’s door linked door unlocking
function
All the doors are unlocked when the
driver’s door is opened within 45
seconds after turning the engine
switch to “LOCK” position (vehicles
without smart entry & start system)
or off (vehicles with smart entry &
start system).
