2494-4. Refueling
4
Driving
AVENSIS_OM_OM20C20E_(EE)

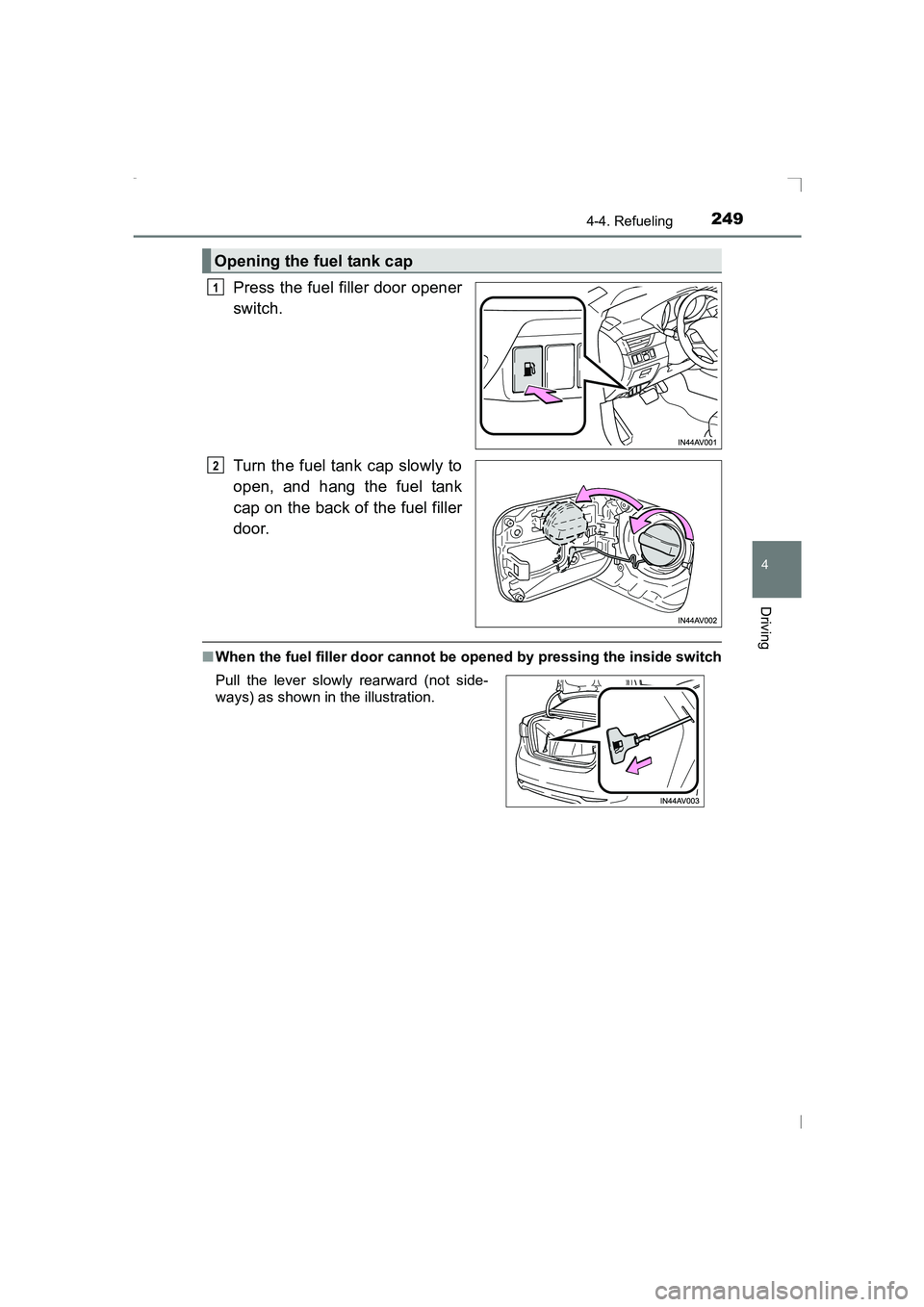

Press the fuel filler door opener
switch.
Turn the fuel tank cap slowly to
open, and hang the fuel tank
cap on the back of the fuel filler
door.
■When the fuel filler door cannot be opened by pressing the inside switch
Opening the fuel tank cap
1
2
Pull the lever slowly rearward (not side-
ways) as shown in the illustration.
AVENSIS_OM_OM20C20E_(EE).book Page 249 Thursday, January 29, 2015 1:47 PM

2504-4. Refueling
AVENSIS_OM_OM20C20E_(EE)
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Closing the fuel tank cap
WARNING
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Failure to do so may cause a fire or other incident which may result
in death or serious injury.
AVENSIS_OM_OM20C20E_(EE).book Page 250 Thursday, January 29, 2015 1:47 PM

251
4
4-5. Toyota Safety Sense
Driving
AVENSIS_OM_OM20C20E_(EE)
Toyota Safety Sense∗
◆PCS (Pre-Crash Safety system)
→P. 2 5 5
◆LDA (Lane Departure Alert)
→P. 2 6 3
◆Automatic High Beam
→P. 2 6 9
◆RSA (Road Sign Assist)
→P. 2 7 5
The pre-crash safety system is equipped with a sophisticated com-
puter that will record certain data, such as: • How far (if at all) the driver was depressing the accelerator and/or brake pedal
• Vehicle speed
• Operation status of the pre-crash safety system functions
• Information (such as the distance and relative speed between your vehicle and the vehicle ahead or another object)
The pre-crash safety system does not record conversations, sounds
or pictures.
∗: If equipped
The Toyota Safety Sense system consists of the following drive
assist systems and contributes to a safe and comfortable driv-
ing experience.
Vehicle data recordings
sec_04-05.fm Page 251 Friday, February 20, 2015 3:43 PM

2524-5. Toyota Safety Sense
AVENSIS_OM_OM20C20E_(EE)
●Data usage
Toyota may use the data recorded in these computers to diagnose
malfunctions, conduct research and development, and improve
quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the
lessee if the vehicle is leased
• In response to an official request by the police, a court of law or a
government agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or vehicle owner
The front sensor is located on the
upper side of the windshield. It
consists of 2 types of sensors,
each of which detects information
necessary to operate the drive
assist systems. Laser sensors
Monocular camera sensor
Front sensor
1
2
WARNING
The front sensor uses lasers to detect vehicles ahead of your vehicle. The
front sensor is classified as class 1M laser product according to the
IEC 60825-1 standard. Under normal usage conditions, these lasers are not
harmful to the naked eye. However, it is necessary to observe the following
precautions.
Failure to do so may result in the loss of eyesight or severe visual impairment. ●To avoid hazardous laser radiation exposure, never attempt to disassem-
ble the front sensor (e.g. remove the lenses). When disassembled, the
front sensor is classified as a class 3B laser product according to the
IEC 60825-1 standard. Class 3B lasers are hazardous and pose a risk of
eye injury under direct exposure.
● Do not attempt to look into the front sensor with a magnifying glass, micro-
scope or other optical instrument within a distance of less than 100 mm
(3.9 in.).
sec_04-05.fm Page 252 Tuesday, February 24, 2015 9:52 AM

2534-5. Toyota Safety Sense
4
Driving
AVENSIS_OM_OM20C20E_(EE)
WARNING
Laser classification label
Laser explanatory label
Laser emission data Maximum average power: 45 mW
Pulse duration: 33 ns
Wave length: 905 nm
Divergence (horizontal × vertical): 28° × 12°
NOTICE
■ Front sensor
Observe the following to ensure that the sensor operates correctly:
●Do not attach stickers, including trans-
parent stickers, or other items to the
outer side of the windshield in front of
the front sensor (shaded area in the
illustration).
A: From the top of the windshield to
approximately 10 cm (4.0 in.) below the
bottom of the front sensor
B: Approximately 20 cm (7.9 in.) (Approx-
imately 10 cm [4.0 in.] to the right and left
from the center of the front sensor)
sec_04-05.fm Page 253 Friday, February 20, 2015 4:06 PM

2544-5. Toyota Safety Sense
AVENSIS_OM_OM20C20E_(EE)NOTICE
●
Do not attach window tinting to the windshield.
● If the part of the windshield in front of the front sensor is fogged up or cov-
ered with condensation or ice, use the windshield defogger to remove the
fog, condensation or ice.
● Keep the windshield clean at all times.
The pre-crash safety system may not function properly if the windshield is
dirty or covered with an oily film, water droplets, snow, etc.
If the inner side of the windshield where the front sensor is installed is dirty,
do not attempt to remove the front sensor. Contact any authorized Toyota
dealer or repairer, or another dul y qualified and equipped professional.
● If the windshield needs to be replaced, contact any authorized Toyota
dealer or repairer, or another dul y qualified and equipped professional.
● Do not install an antenna in front of the sensor.
● Do not spill liquid onto the sensor.
● Do not allow bright lights to shine into the sensor.
● Do not damage or let the lenses of the front sensor get dirty.
When cleaning the inner side of the windshield, do not let glass cleaner
contact the lenses. Also, do not touch the lenses.
For proper care of the lenses of the front sensor, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
● Do not change the installation position or direction of the sensor or remove
it. The direction of the sensor is precisely adjusted.
● Do not subject the sensor to strong impact or disassemble it.
● Do not install an electronic device or device that emits strong electric
waves near the front sensor.
● Do not place reflective objects on top of the instrument panel.
●Do not install or attach anything to the
inner side of the windshield under the
front sensor (shaded area in the illustra-
tion).
A: Approximately 10 cm (4.0 in.) (Start-
ing from the bottom of the front sensor)
B: Approximately 20 cm (7.9 in.)
(Approximately 10 cm [4.0 in.] to the
right and left from the center of the front
sensor)
sec_04-05.fm Page 254 Friday, February 20, 2015 3:43 PM

255
4
4-5. Toyota Safety Sense
Driving
AVENSIS_OM_OM20C20E_(EE)
PCS (Pre-Crash Safety system)∗
◆Pre-crash warning
When the system determines
that the possibility of a frontal
collision with a vehicle is high, a
buzzer will sound and a warn-
ing message will be displayed
on the multi-information display
to urge the driver to take eva-
sive action.
◆Pre-crash brake assist
When the system determines that the possibility of a frontal colli-
sion with a vehicle is high, the system applies greater braking force
in relation to how strongly the brake pedal is depressed.
∗: If equipped
The pre-crash safety system uses the front sensor to detect
vehicles in front of your vehicle. When the system determines
that the possibility of a frontal collision with a vehicle is high,
pre-crash warning urges the driver to take evasive action and
the potential brake pressure will be increased to help the driver
avoid the collision.
If the system determines that the possibility of a frontal collision
with a vehicle is extremely high, the brakes are automatically
applied to help avoid the collision or help reduce the impact to
the vehicle occupants and the vehicle in the collision.The pre-crash warning timing can be changed or the system can be
enabled/disabled, as necessary, by operating the switch. ( →P. 256)
AVENSIS_OM_OM20C20E_(EE).book Page 255 Thursday, January 29, 2015 1:47 PM

2564-5. Toyota Safety Sense
AVENSIS_OM_OM20C20E_(EE)
◆Pre-crash braking
When the system determines that the possibility of a frontal colli-
sion with a vehicle is high, the system warns the driver. If the sys-
tem determines that the possibility of a collision is extremely high,
the brakes are automatically applied to help avoid the collision or
reduce the collision speed.
■Changing the pre-crash warning timing
Each time the PCS switch is
pressed, the warning timing
changes as follows:Far (operation starts earlier)
Middle (default setting)
Near (operation starts later)
When the PCS switch is
pressed to turn the system on,
the current warning timing will
be displayed on the multi-infor-
mation display.
■
Disabling the pre-crash safety system
Press the PCS switch for 3 sec-
onds or more.
The PCS warning light will turn
on and a message will be dis-
played on the multi-information
display.
To enable the system, press the
PCS switch again.
Vehicles without a smart entry &
start system: The system is
enabled each time the engine
switch is turned to the “ON”
position.
Vehicles with a smart entry & start system: The system is enabled each
time the engine switch is turned to IGNITION ON mode.
Changing the pre-crash safety system
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 256 Thursday, January 29, 2015 1:47 PM
