When trouble arises
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (Multidrive) or N (manual transmission).
● Stop the engine.
● Turn on the emergency flashers. ( →P. 508)
XSedan
*1: Use of the jack and wheel nut wrench. (if equipped) ( →P. 551)
A jack and wheel nut wrench can be purchased at any authorized Toyota
dealer or repairer, or another dul y qualified and equipped professional.
*2: Use of the wheel cap clip. (if equipped) ( →P. 478)
Before repairing the tire

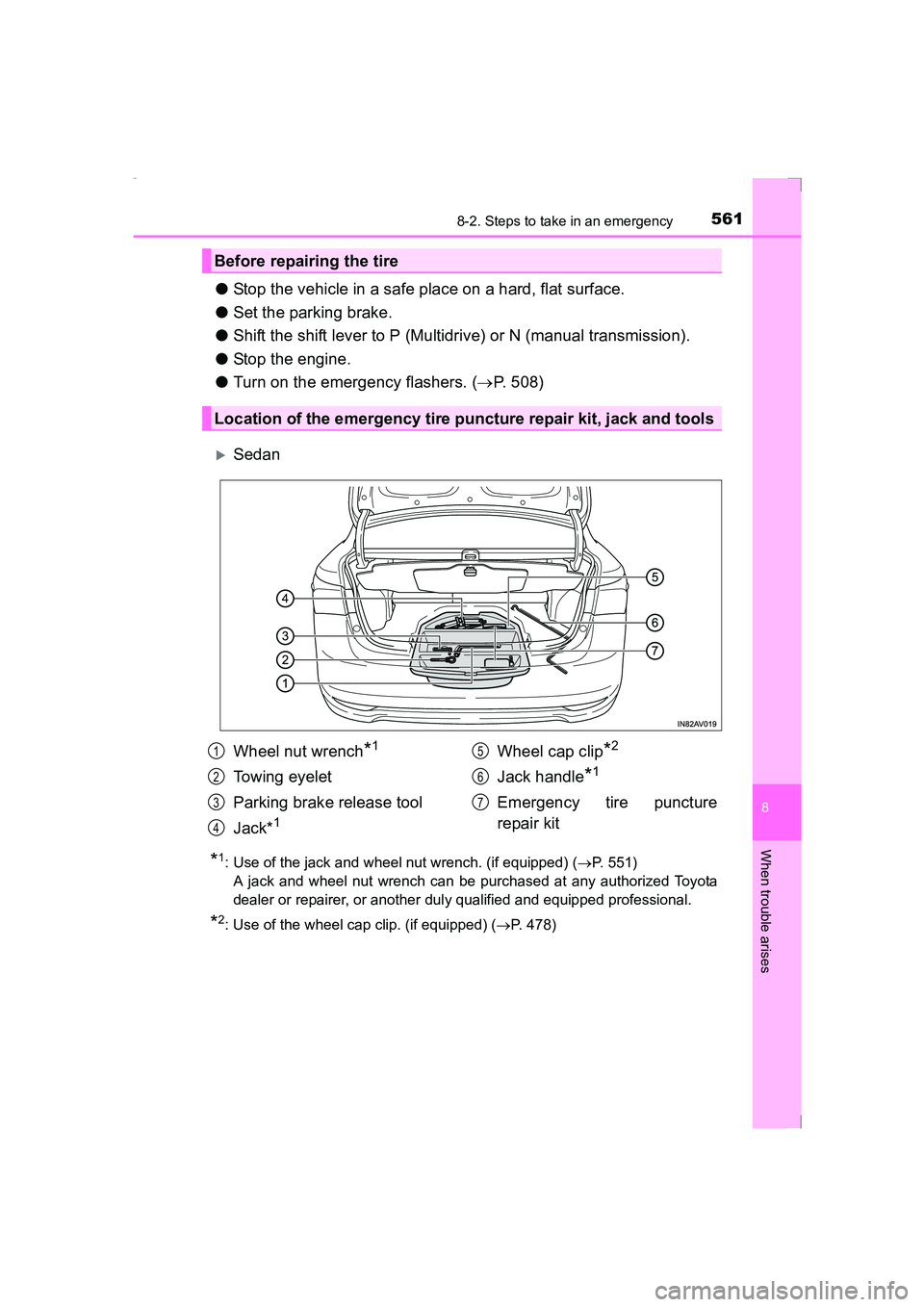

Location of the emergency tire puncture repair kit, jack and tools
Wheel nut wrench*1
Towing eyelet
Parking brake release tool
Jack*
1
Wheel cap clip*2
Jack handle*1
Emergency tire puncture
repair kit
1
2
3
4
5
6
7
AVENSIS_OM_OM20C20E_(EE).book Page 561 Thursday, January 29, 2015 1:47 PM

5628-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)

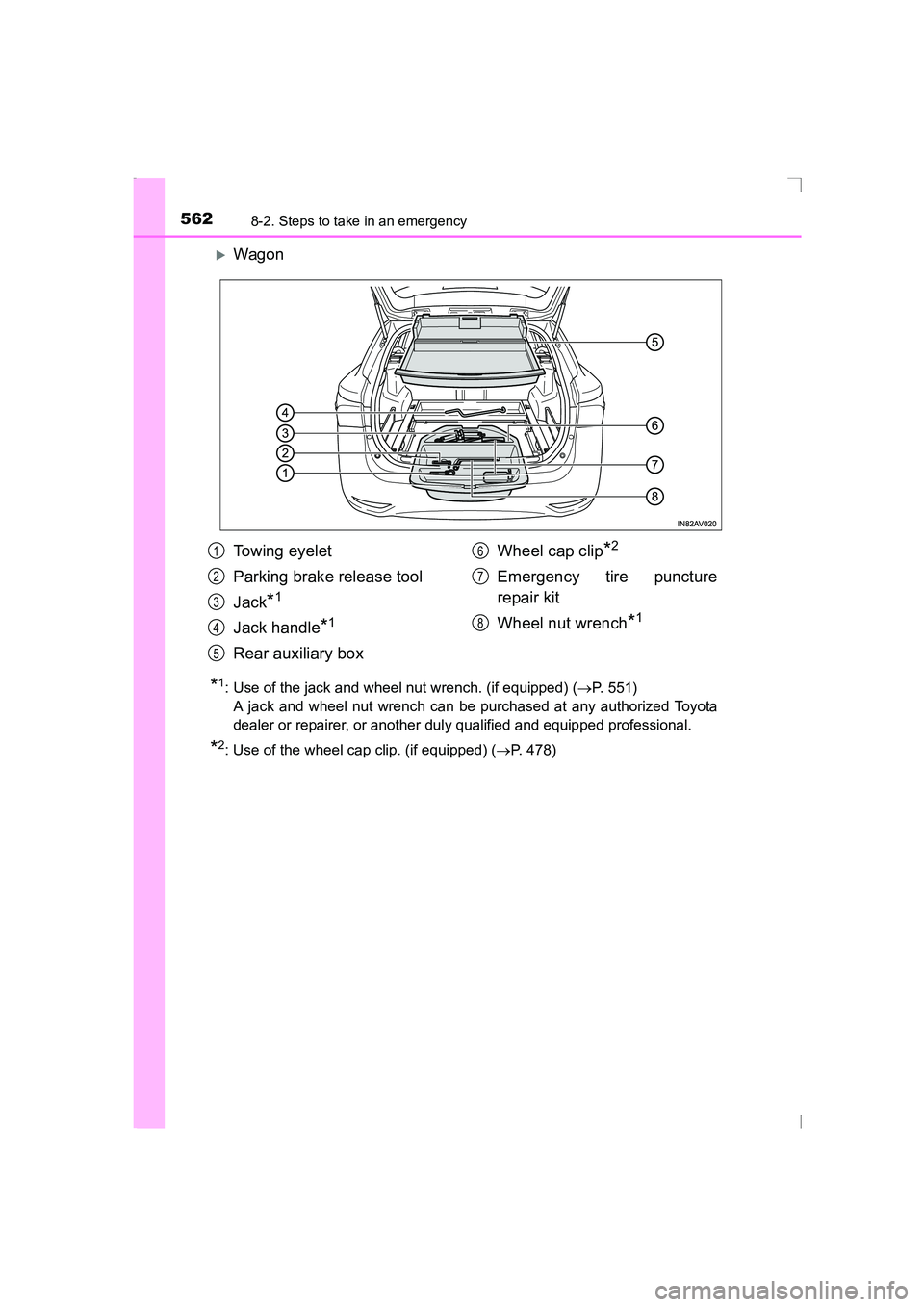

XWagon
*1: Use of the jack and wheel nut wrench. (if equipped) (→P. 551)
A jack and wheel nut wrench can be purchased at any authorized Toyota
dealer or repairer, or another dul y qualified and equipped professional.
*2: Use of the wheel cap clip. (if equipped) ( →P. 478)
Towing eyelet
Parking brake release tool
Jack
*1
Jack handle*1
Rear auxiliary box Wheel cap clip
*2
Emergency tire puncture
repair kit
Wheel nut wrench
*1
1
2
3
4
5
6
7
8
AVENSIS_OM_OM20C20E_(EE).book Page 562 Thursday, January 29,
2015 1:47 PM

5638-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
Check the degree of the tire dam-
age.Do not remove the nail or screw
from the tire. Removing the
object may widen the opening
and prevent emergency repair
with the repair kit.

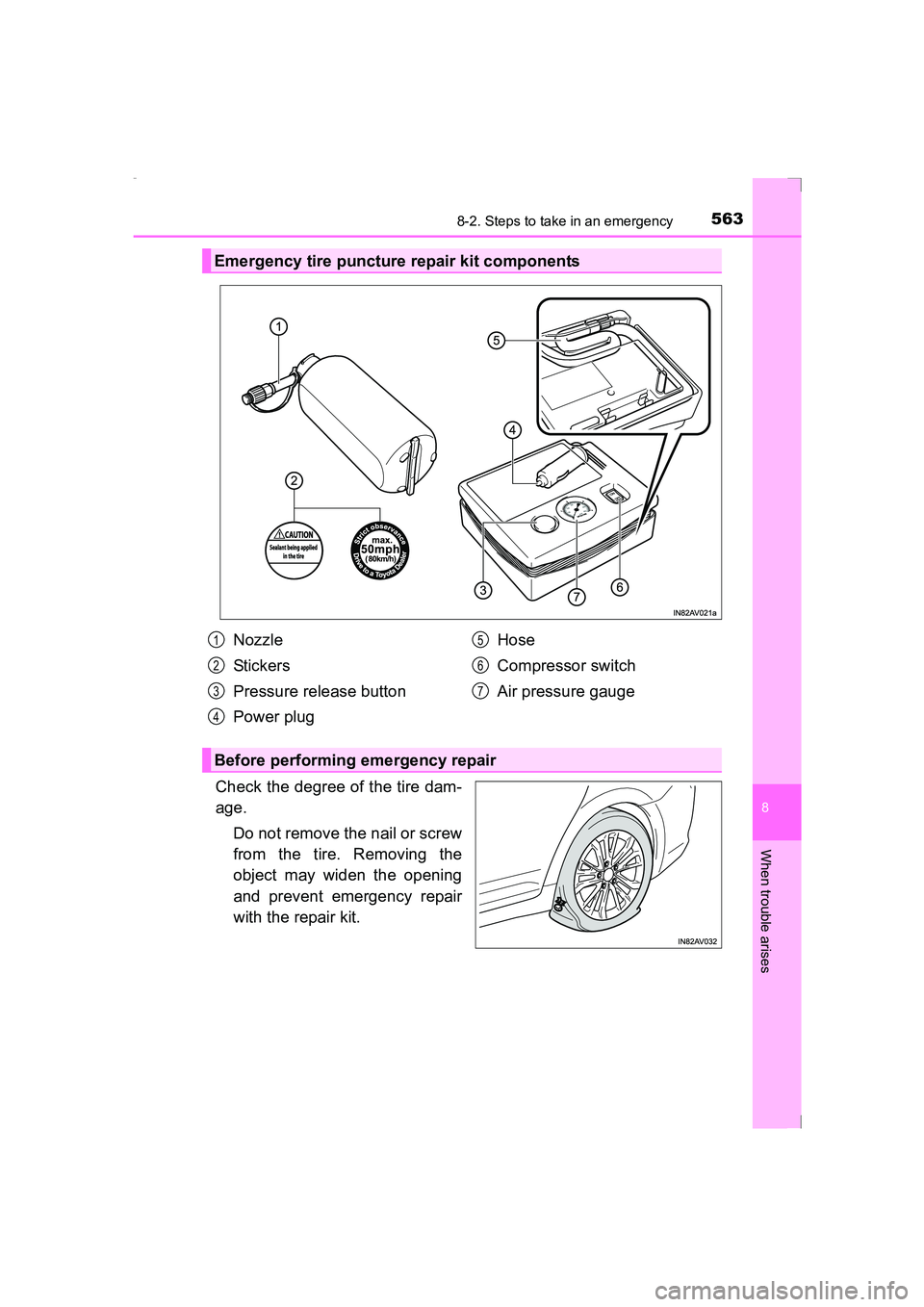

Emergency tire puncture repair kit components
Nozzle
Stickers
Pressure release button
Power plug Hose
Compressor switch
Air pressure gauge1
2
3
4
5
6
7
Before performing emergency repair
AVENSIS_OM_OM20C20E_(EE).book Page 563 Thursday, January 29,
2015 1:47 PM

5648-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
Take out the repair kit from the tool box.
When taking out the bottle from the original bag, do not tear or discard the
bag.

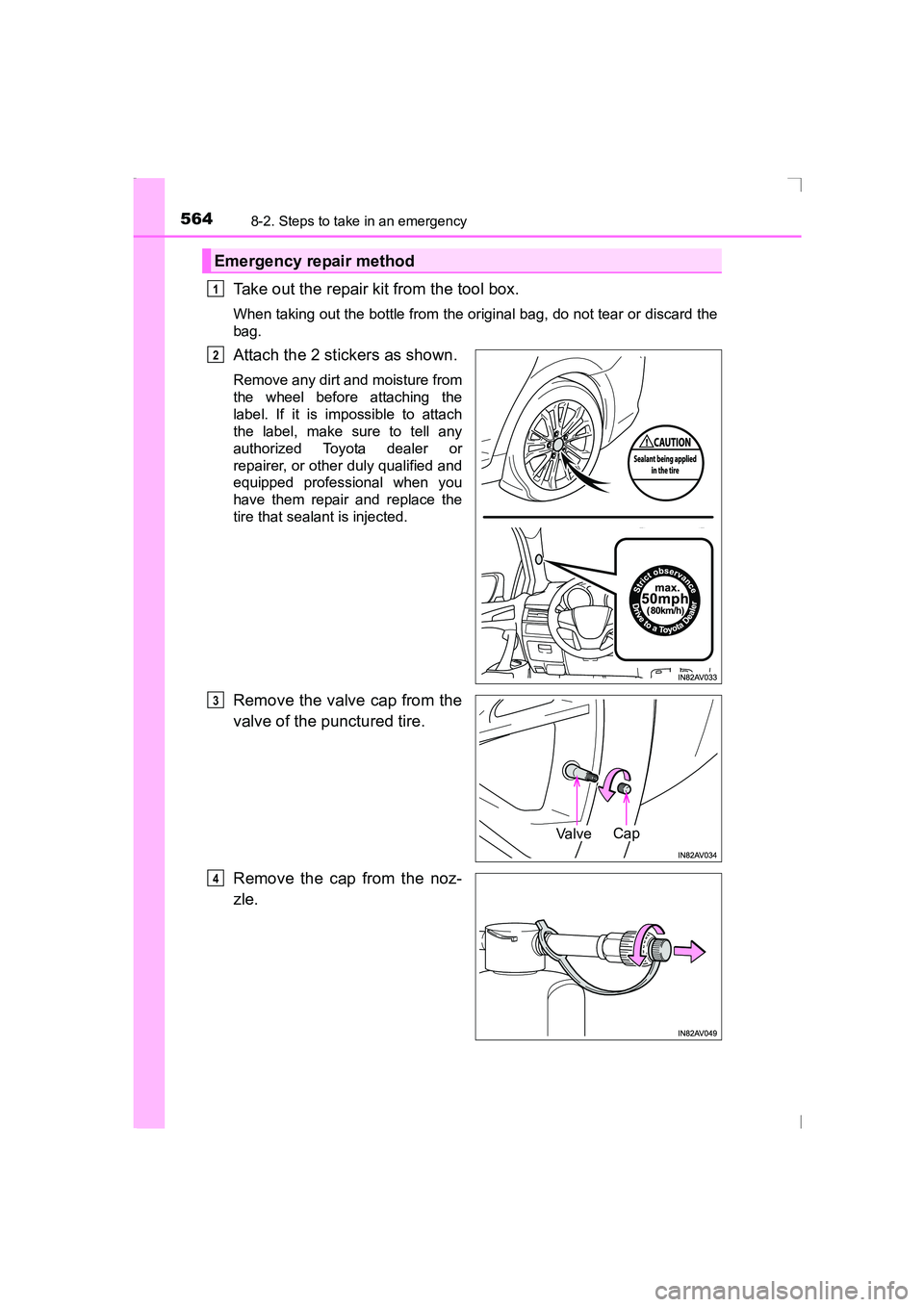

Attach the 2 stickers as shown.
Remove any dirt and moisture from
the wheel before attaching the
label. If it is impossible to attach
the label, make sure to tell any
authorized Toyota dealer or
repairer, or other duly qualified and
equipped professional when you
have them repair and replace the
tire that sealant is injected.
Remove the valve cap from the
valve of the punctured tire.
Remove the cap from the noz-
zle.
Emergency repair method
1

2
Va l v eCap
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 564 Thursday, January 29, 2015 1:47 PM

5658-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises

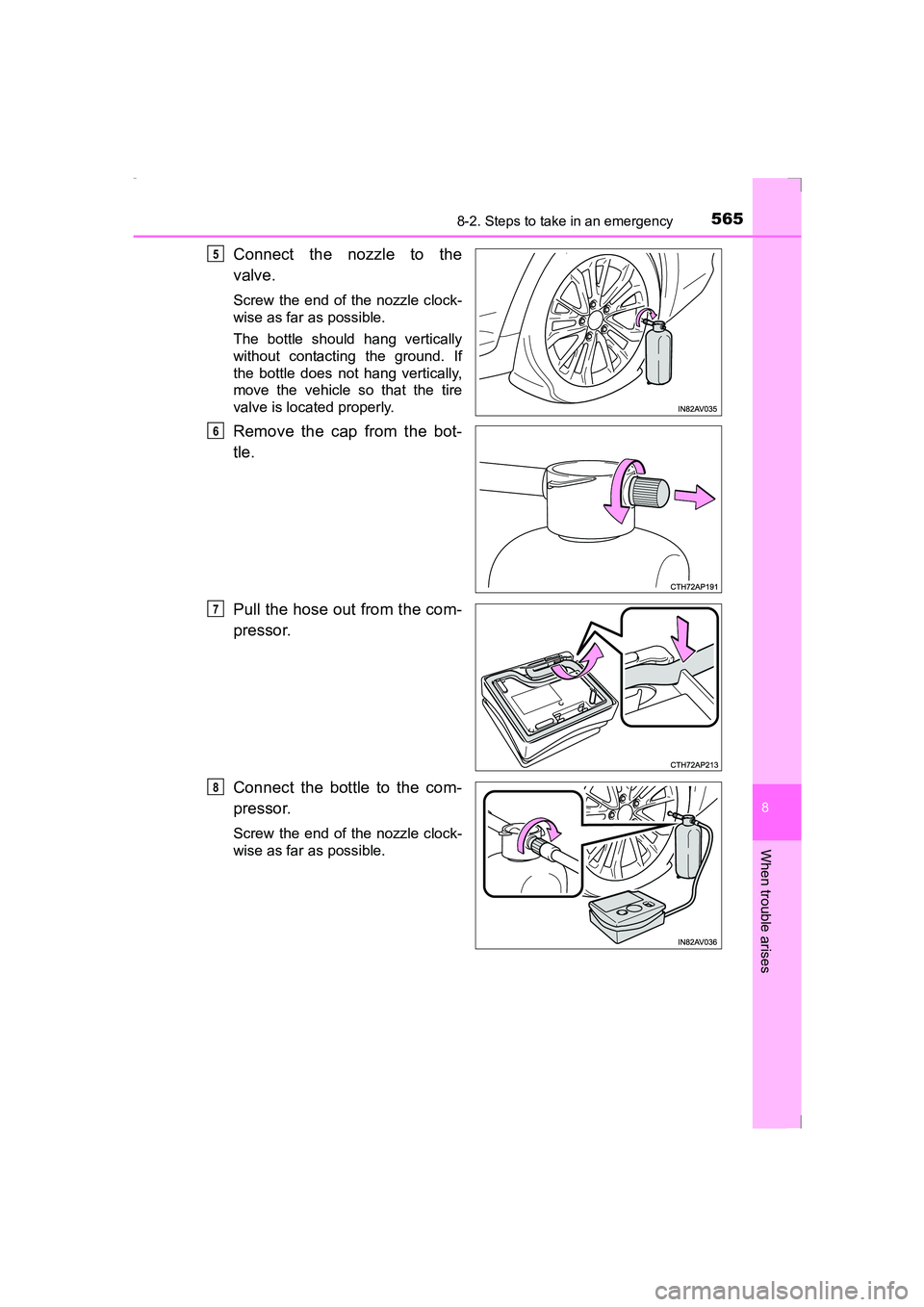

Connect the nozzle to the
valve.
Screw the end of the nozzle clock-
wise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang vertically,
move the vehicle so that the tire
valve is located properly.
Remove the cap from the bot-
tle.
Pull the hose out from the com-
pressor.
Connect the bottle to the com-
pressor.
Screw the end of the nozzle clock-
wise as far as possible.
5
6
7
8
AVENSIS_OM_OM20C20E_(EE).book Page 565 Thursday, January 29, 2015 1:47 PM

5668-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
Connect the power plug to the
power outlet socket. (→P. 418)
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown.
Start the vehicle’s engine.
9
10
11
12
XLeft-hand drive vehiclesXRight-hand drive vehicles
13
AVENSIS_OM_OM20C20E_(EE).book Page 566 Thursday, January 29, 2015 1:47 PM

5678-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
To inject the sealant and inflate
the tire, turn the compressor
switch on.
Inflate the tire until the specified
air pressure is reached.The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
Inflate the tire until the speci-
fied air pressure is reached.• If the tire inflation pressure
is still lower than the speci-
fied point after inflation for
35 minutes with the switch
on, the tire is too damaged
to be repaired. Turn the
compressor switch off and
contact any authorized
Toyota dealer or repairer,
or another duly qualified
and equipped profes-
sional.
• If the tire inflation pressure exceeds the specified air pressure,
let out some air to adjust the tire inflation pressure. ( →P. 571)14
15
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 567 Thursday, January 29, 2015 1:47 PM

5688-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)

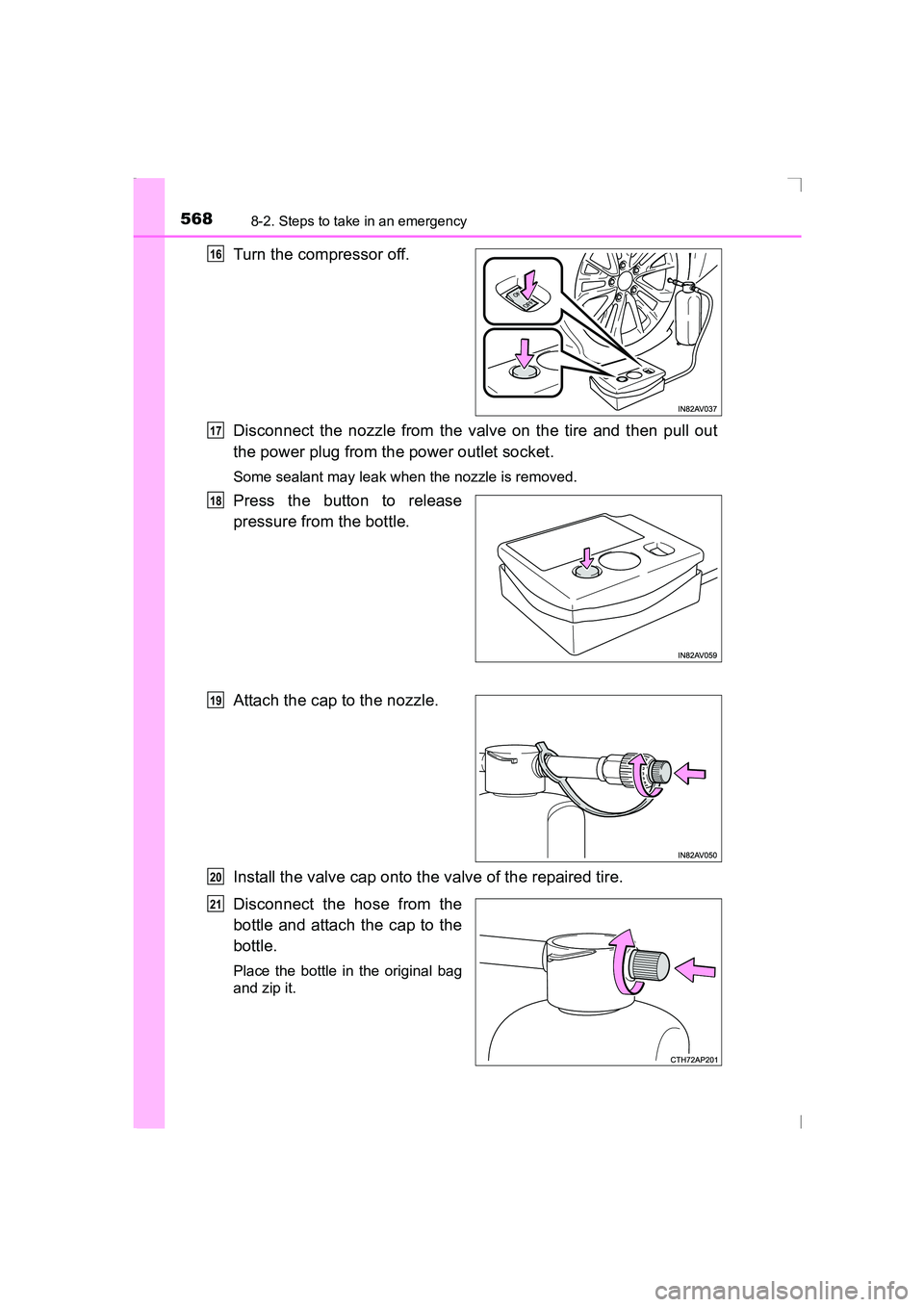

Turn the compressor off.
Disconnect the nozzle from the valve on the tire and then pull out
the power plug from the power outlet socket.
Some sealant may leak when the nozzle is removed.
Press the button to release
pressure from the bottle.
Attach the cap to the nozzle.
Install the valve cap onto the valve of the repaired tire.
Disconnect the hose from the
bottle and attach the cap to the
bottle.
Place the bottle in the original bag
and zip it.
16
17
18
19
20
21
AVENSIS_OM_OM20C20E_(EE).book Page 568 Thursday, January 29, 2015 1:47 PM
