2015 TOYOTA AVENSIS Owners Manual

5057-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
WARNING
■ Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of t he light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
AVENSIS_OM_OM20C20E_(EE).book Page 505 Thursday, January 29, 2015 1:47 PM

5067-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 506 Thursday, January 29, 2015 1:47 PM

507
8When trouble arises
AVENSIS_OM_OM20C20E_(EE)8-1. Essential information
Emergency flashers ........... 508
If your vehicle has to be stopped in an
emergency ....................... 509 8-2. Steps to take in an
emergency
If your vehicle needs to be towed .......................... 511
If you think something is wrong ............................... 518
Fuel pump shut off system (gasoline engine) ............. 519
If a warning light turns on or a warning buzzer
sounds ............................. 520
If a warning message is displayed ......................... 527
If you have a flat tire (vehicles with spare
tire) .................................. 544
If you have a flat tire (vehicles with
emergency tire
puncture repair kit)........... 560
If the engine will not start.................................. 575
If the shift lever cannot be shifted from P .................. 577
If the parking brake cannot be released .......... 578
If the electronic key does not operate properly ........ 582
If the vehicle battery is discharged ....................... 585
If your vehicle overheats .... 590
If the vehicle becomes stuck ................................ 593
AVENSIS_OM_OM20C20E_(EE).book Page 507 Thursday, January 29, 2015 1:47 PM

5088-1. Essential information
AVENSIS_OM_OM20C20E_(EE)
Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
AVENSIS_OM_OM20C20E_(EE).book Page 508 Thursday, January 29, 2015 1:47 PM

5098-1. Essential information
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
XIf the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
XIf the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without smart entry &
start system: Stop the engine
by turning the engine switch to
the “ACC” position.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 509 Thursday, January 29, 2015 1:47 PM

5108-1. Essential information
AVENSIS_OM_OM20C20E_(EE)
Vehicles with smart entry &
start system: To stop the
engine, press and hold the
engine switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
Press and hold for 2 seconds or more, or press briefly 3 times or more
4
WARNING
■ If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without smart entry & start system: Never attempt to remove the
key, as doing so will lock the steering wheel.
5
AVENSIS_OM_OM20C20E_(EE).book Page 510 Thursday, January 29, 2015 1:47 PM

5118-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises

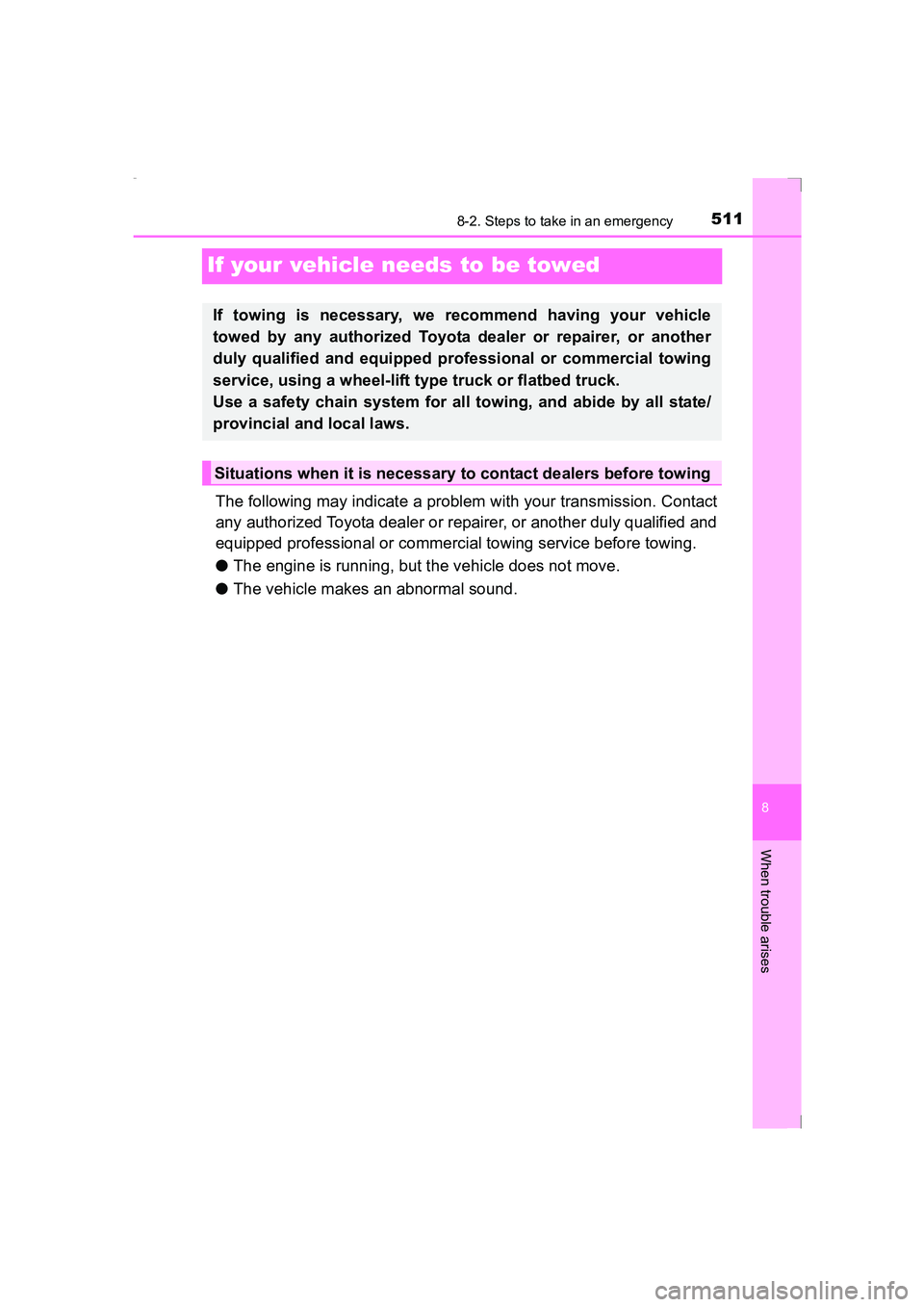

If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional or commercial towing service before towing.
●The engine is running, but the vehicle does not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional or commercial towing
service, using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Situations when it is necessary to contact dealers before towing
AVENSIS_OM_OM20C20E_(EE).book Page 511 Thursday, January 29, 2015 1:47 PM

5128-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)

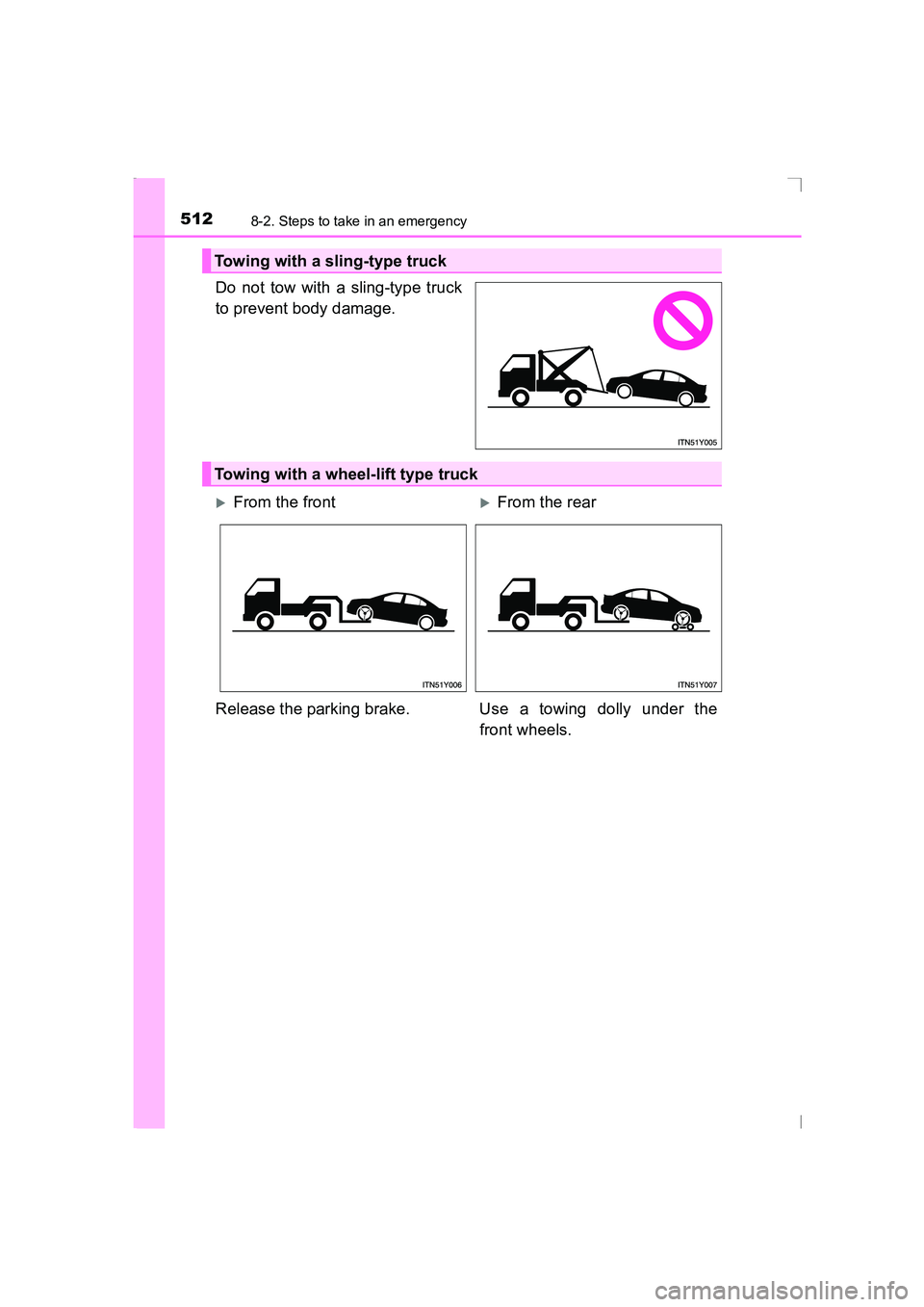

Do not tow with a sling-type truck
to prevent body damage.
Towing with a sling-type truck
Towing with a wheel-lift type truck
XFrom the frontXFrom the rear
Release the parking brake. Use a towing dolly under the front wheels.
AVENSIS_OM_OM20C20E_(EE).book Page 512 Thursday, January 29, 2015 1:47 PM
