2015 TOYOTA AVENSIS Owners Manual

3375-5. Using an external device
5
Audio system
AVENSIS_OM_OM20C20E_(EE)
Press the tune/scroll knob (type A and B) or the “TEXT” button (type
C).
Track title, Artist name and Album title are shown on the display.
To return to the previous display, press the knob or the back button (type A
and B), or the “TEXT” button or [BACK] (type C).
■ About iPod
●“Made for iPod” and “Made for iPhone” mean that an electronic accessory
has been designed to connect specifically to iPod, or iPhone, respectively,
and has been certified by the developer to meet Apple performance stan-
dards.
● Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this acces-
sory with iPod or iPhone may affect wireless performance.
● iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other countries.
■ iPod functions
●When an iPod is connected and the audio source is changed to iPod mode,
the iPod will resume play from the same point in which it was last used.
● Depending on the iPod that is connected to the system, certain functions
may not be available. Disconnecting the device and reconnecting it once
again may resolve some malfunctions.
● While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle’s audio system
instead.
■ iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner’s Man-
ual.
Switching the display
AVENSIS_OM_OM20C20E_(EE).book Page 337 Thursday, January 29, 2015 1:47 PM

3385-5. Using an external device
AVENSIS_OM_OM20C20E_(EE)■
Display
→ P. 327
■ Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota dealer or repair er, or another duly qualified and equipped
professional.
MessageCause/Correction procedures
“iPod error”This indicates a problem in the iPod or its con-
nection.
“NO SONGS”This indicates that there is no music data in
the iPod.
“UPDATE YOUR iPod”
This indicates that the version of the iPod is
not compatible. Upgrade your iPod software
to the latest version.
AVENSIS_OM_OM20C20E_(EE).book Page 338 Thursday, January 29, 2015 1:47 PM

3395-5. Using an external device
5
Audio system
AVENSIS_OM_OM20C20E_(EE)■

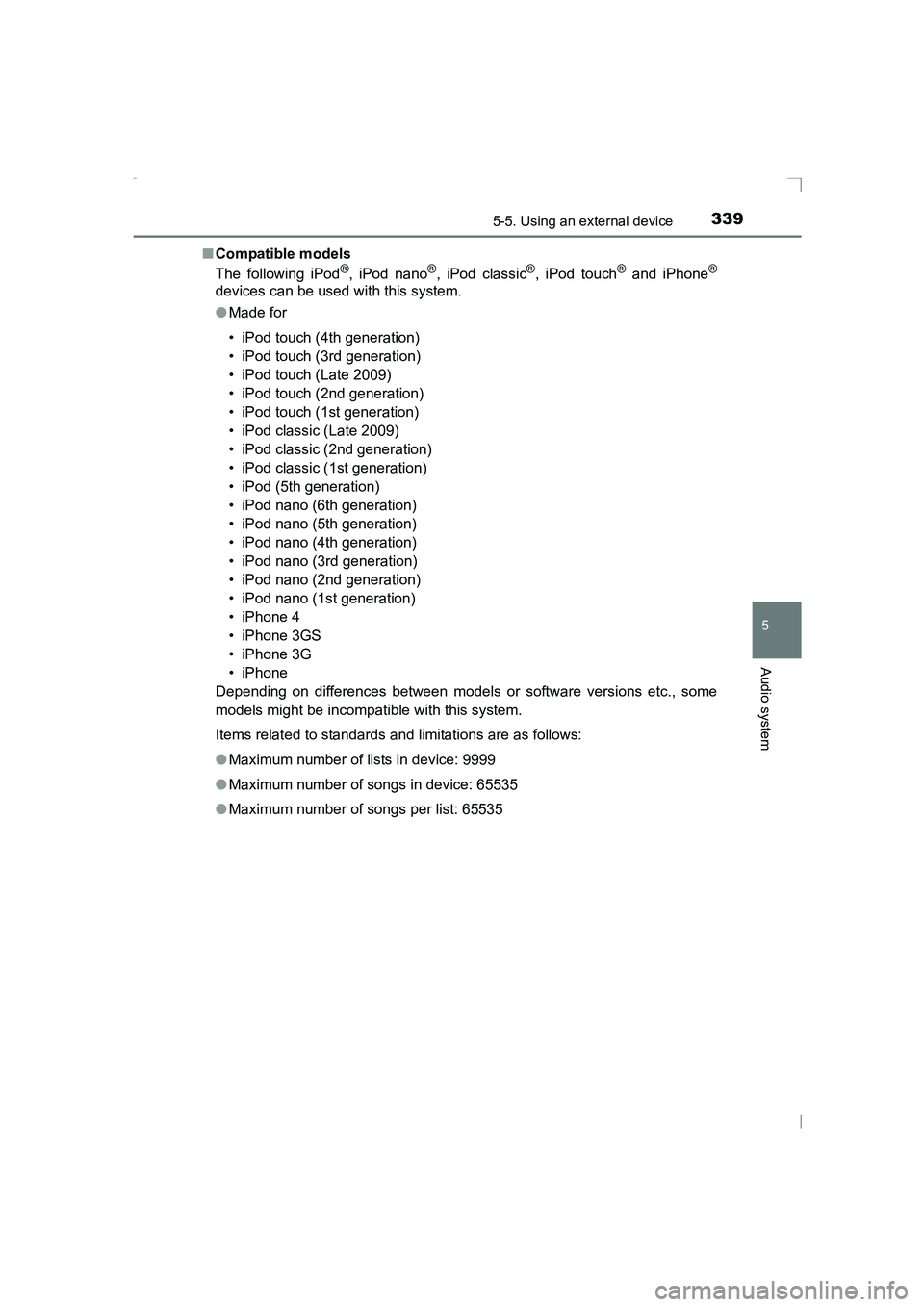

Compatible models
The following iPod
®, iPod nano®, iPod classic®, iPod touch® and iPhone®
devices can be used with this system.
●Made for
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (Late 2009)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic (Late 2009)
• iPod classic (2nd generation)
• iPod classic (1st generation)
• iPod (5th generation)
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
Depending on differences between models or software versions etc., some
models might be incompatible with this system.
Items related to standards and limitations are as follows:
● Maximum number of lists in device: 9999
● Maximum number of songs in device: 65535
● Maximum number of songs per list: 65535
AVENSIS_OM_OM20C20E_(EE).book Page 339 Thursday, January 29, 2015 1:47 PM

3405-5. Using an external device
AVENSIS_OM_OM20C20E_(EE)

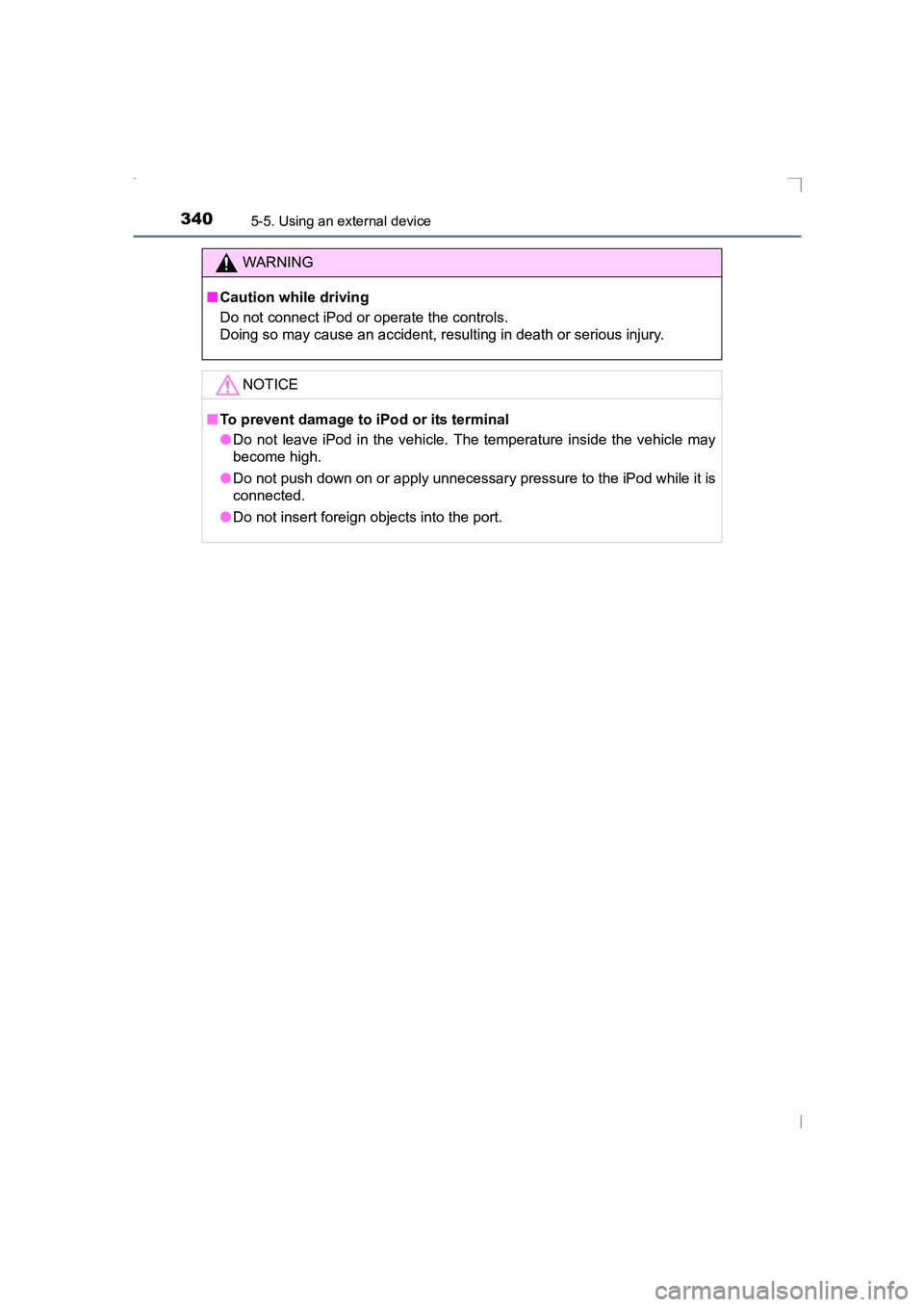

WARNING
■ Caution while driving
Do not connect iPod or operate the controls.
Doing so may cause an accident, resulting in death or serious injury.
NOTICE
■To prevent damage to iPod or its terminal
●Do not leave iPod in the vehicle. The temperature inside the vehicle may
become high.
● Do not push down on or apply unnecessary pressure to the iPod while it is
connected.
● Do not insert foreign objects into the port.
AVENSIS_OM_OM20C20E_(EE).book Page 340 Thursday, January 29, 2015 1:47 PM

341
5
5-5. Using an external device
Audio system
AVENSIS_OM_OM20C20E_(EE)
Listening USB memor y device∗
→P. 3 1 2
XTy pe A
∗: If equipped
Connecting a USB memory enables you to enjoy music from the
vehicle speakers. Press the “MODE” button until “USB” is dis-
played.
Connecting a USB memory
Control panel
Tune/scroll knob: Selecting a
file or displays text message
Selecting a folder
Back button
Random playback
Repeat play Playback
Displays folder list
Selecting a file, fast-forward-
ing or rewinding
Adjusting the volume or turn-
ing the audio system on or off1
2
3
4
5
6
7
8
9
AVENSIS_OM_OM20C20E_(EE).book Page 341 Thursday, January 29,
2015 1:47 PM

3425-5. Using an external device
AVENSIS_OM_OM20C20E_(EE)
XTy pe B
Tune/scroll knob: Selecting a
file or displays text message
Back button
Random playback
Repeat play
PlaybackSelecting a folder
Displays folder list
Selecting a file, fast-forward-
ing or rewinding
Adjusting the volume or turn-
ing the audio system on or off1
2
3
4
5
6
7
8
9
AVENSIS_OM_OM20C20E_(EE).book Page 342 Thursday, January 29,
2015 1:47 PM

3435-5. Using an external device
5
Audio system
AVENSIS_OM_OM20C20E_(EE)
XTy pe C
Tune/scroll knob: Selecting a
file or displays folder list
Displays text message
Random playback or back but-
ton
Repeat play
PlaybackSelecting a folder
Searching playback
Selecting a file, fast-forward-
ing or rewinding
Adjusting the volume or turn-
ing the audio system on or off1
2
3
4
5
6
7
8
9
AVENSIS_OM_OM20C20E_(EE).book Page 343 Thursday, January 29,
2015 1:47 PM

3445-5. Using an external device
AVENSIS_OM_OM20C20E_(EE)■
Selecting folders one at a time
Press “
∧” or “ ∨” on the “FOLDER” button (type A), or [<] or
[>] (type B and C) to select the desired folder.
■Selecting a folder and file from folder list Press the “LIST” button (type A and B) or the tune/scroll knob
(type C).
The folder list will be displayed.
Turn and press the tune/scroll knob to select a folder and file.
To return to the previous display, press the back button (type A and B)
or [BACK] (type C).
To exit, press the “LIST” button (type A and B) or the knob (type C).
Press and hold the “SCAN” button until you hear a beep.
The first 10 seconds of the first file in each folder will be played.
When the desired folder is reached, press the button again.
Turn the tune/scroll knob or press “ ∧” or “ ∨” on the “SEEK TRACK”
button to select the desired file.
Selecting a folder
Scanning the first file of all the folders (type C only)
Selecting files
1
2
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 344 Thursday, January 29, 2015 1:47 PM
