2015 TOYOTA AVENSIS Owners Manual

3775-10. Bluetooth®
5
Audio system
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 377 Thursday, January 29, 2015 1:47 PM

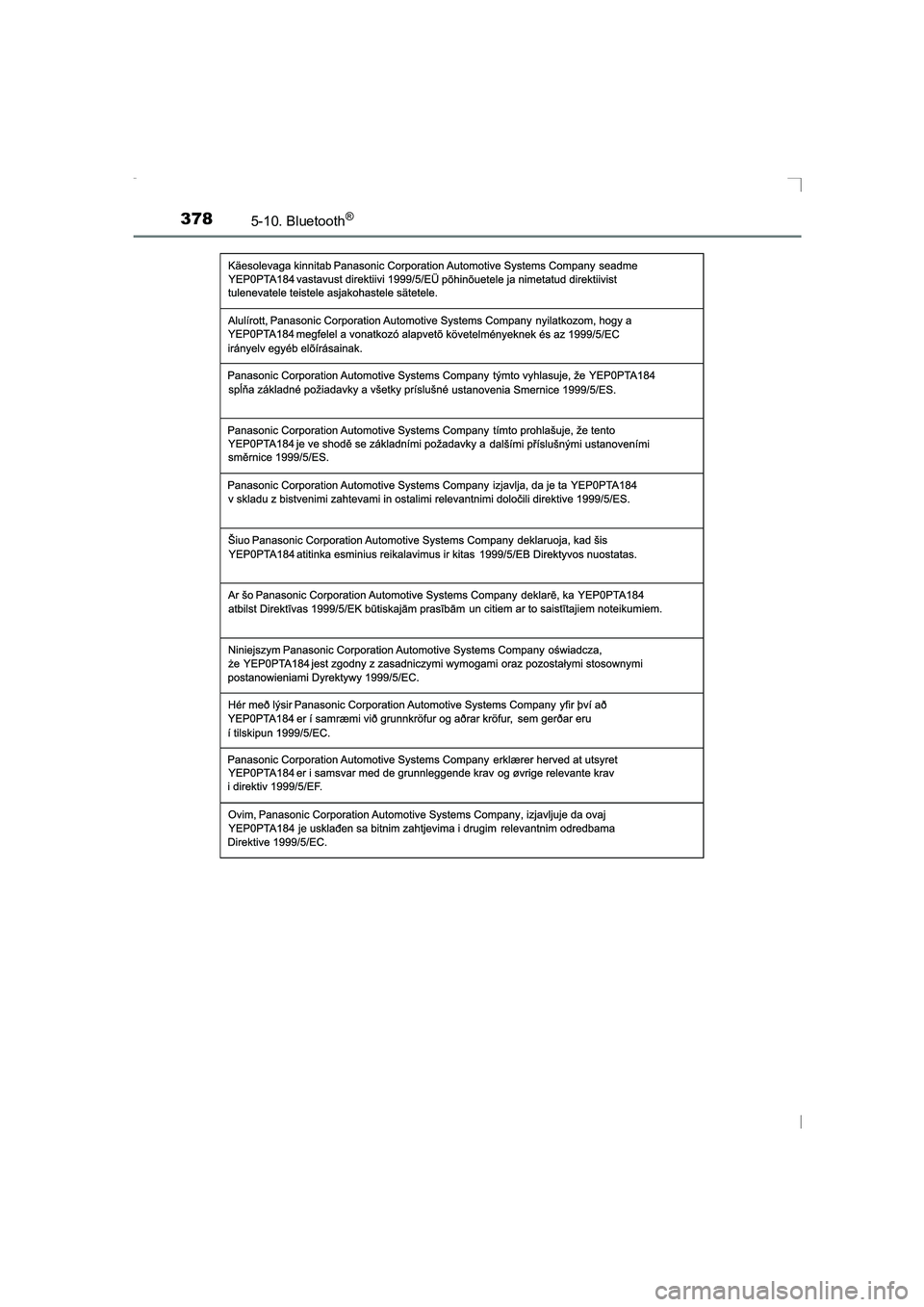

3785-10. Bluetooth®
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 378 Thursday, January 29, 2015 1:47 PM

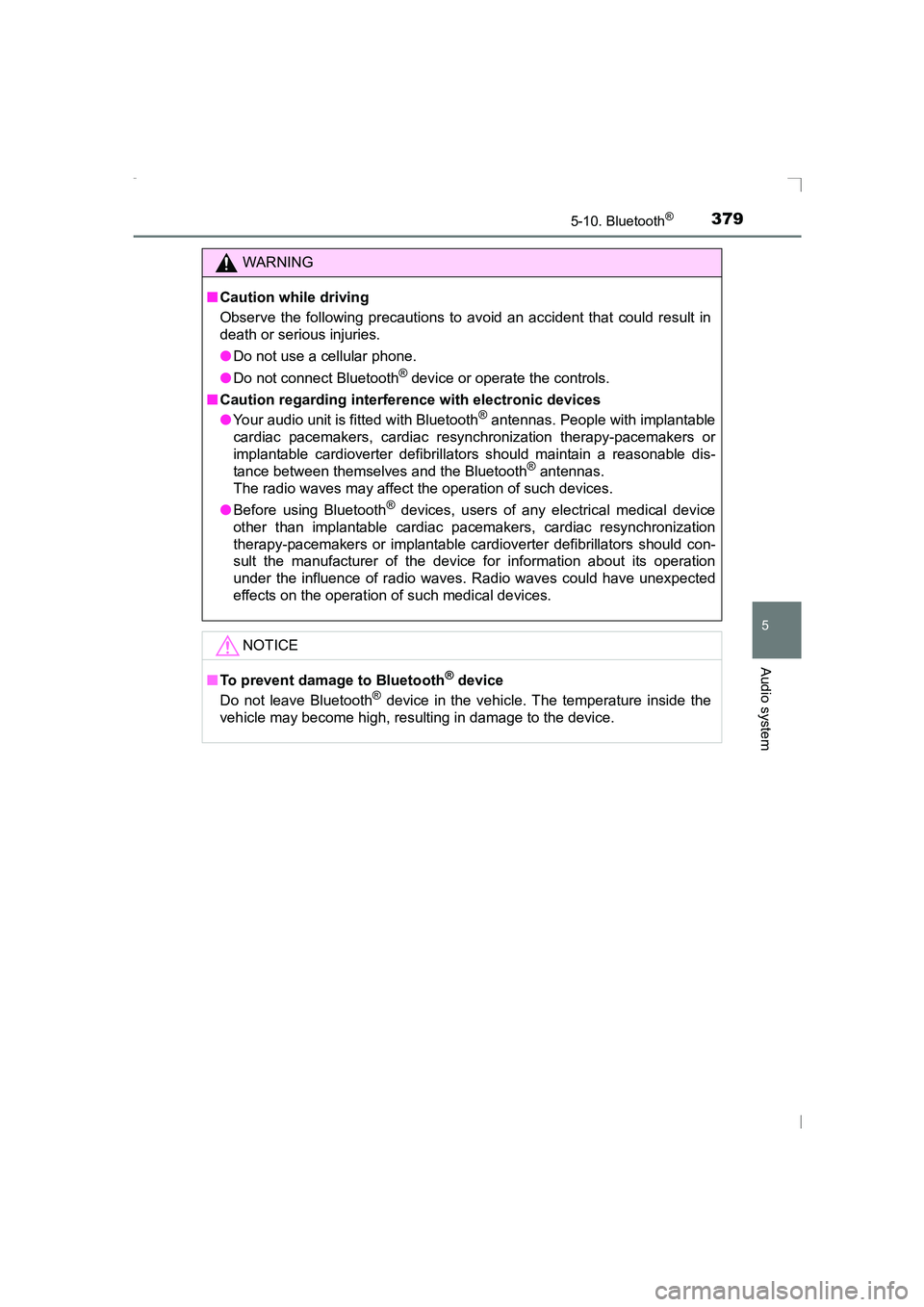

3795-10. Bluetooth®
5
Audio system
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ Caution while driving
Observe the following precautions to avoid an accident that could result in
death or serious injuries.
●Do not use a cellular phone.
● Do not connect Bluetooth
® device or operate the controls.
■ Caution regarding interference with electronic devices
●Your audio unit is fitted with Bluetooth
® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth
® antennas.
The radio waves may affect the operation of such devices.
● Before using Bluetooth
® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■ To prevent damage to Bluetooth® device
Do not leave Bluetooth® device in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the device.
AVENSIS_OM_OM20C20E_(EE).book Page 379 Thursday, January 29, 2015 1:47 PM

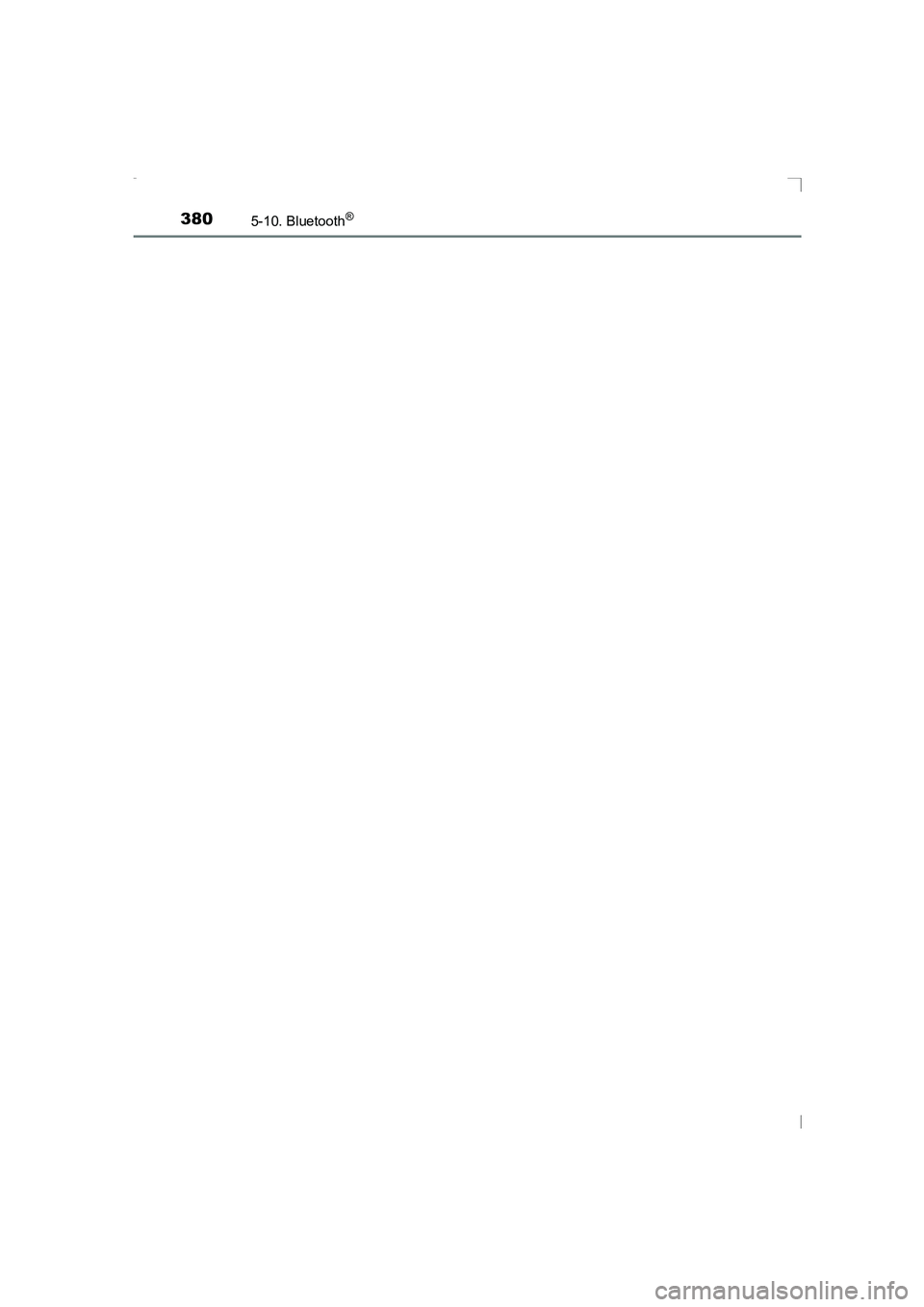

3805-10. Bluetooth®
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 380 Thursday, January 29, 2015 1:47 PM

381
6Interior features
AVENSIS_OM_OM20C20E_(EE)6-1. Using the air conditioning
system and defogger
Manual air conditioning system ............................. 382
Automatic air conditioning system ............................. 388
Power heater ..................... 395
Seat heaters ...................... 397
6-2. Using the interior lights Interior lights list................. 399
• Personal/interior light main switch.................... 400
• Personal/interior lights .............................. 400
• Personal lights ............... 400 6-3. Using the storage features
List of storage features ...... 402
• Glove box ...................... 403
• Console box .................. 404
• Overhead console ......... 404
• Cup holders/bottle holders........................... 405
• Coin box ........................ 407
Trunk features (sedan) ...... 408
Luggage compartment features (wagon).............. 410
6-4. Using the other interior features
Other interior features ........ 417
• Sun visors...................... 417
• Vanity mirror .................. 417
• Power outlet .................. 418
• Armrest .......................... 419
• Trunk/luggage compartment
storage extension .......... 420
• Panoramic roof shade (wagon) ......................... 421
• Coat hooks .................... 423
• Assist grips .................... 423
AVENSIS_OM_OM20C20E_(EE).book Page 381 Thursday, January 29, 2015 1:47 PM

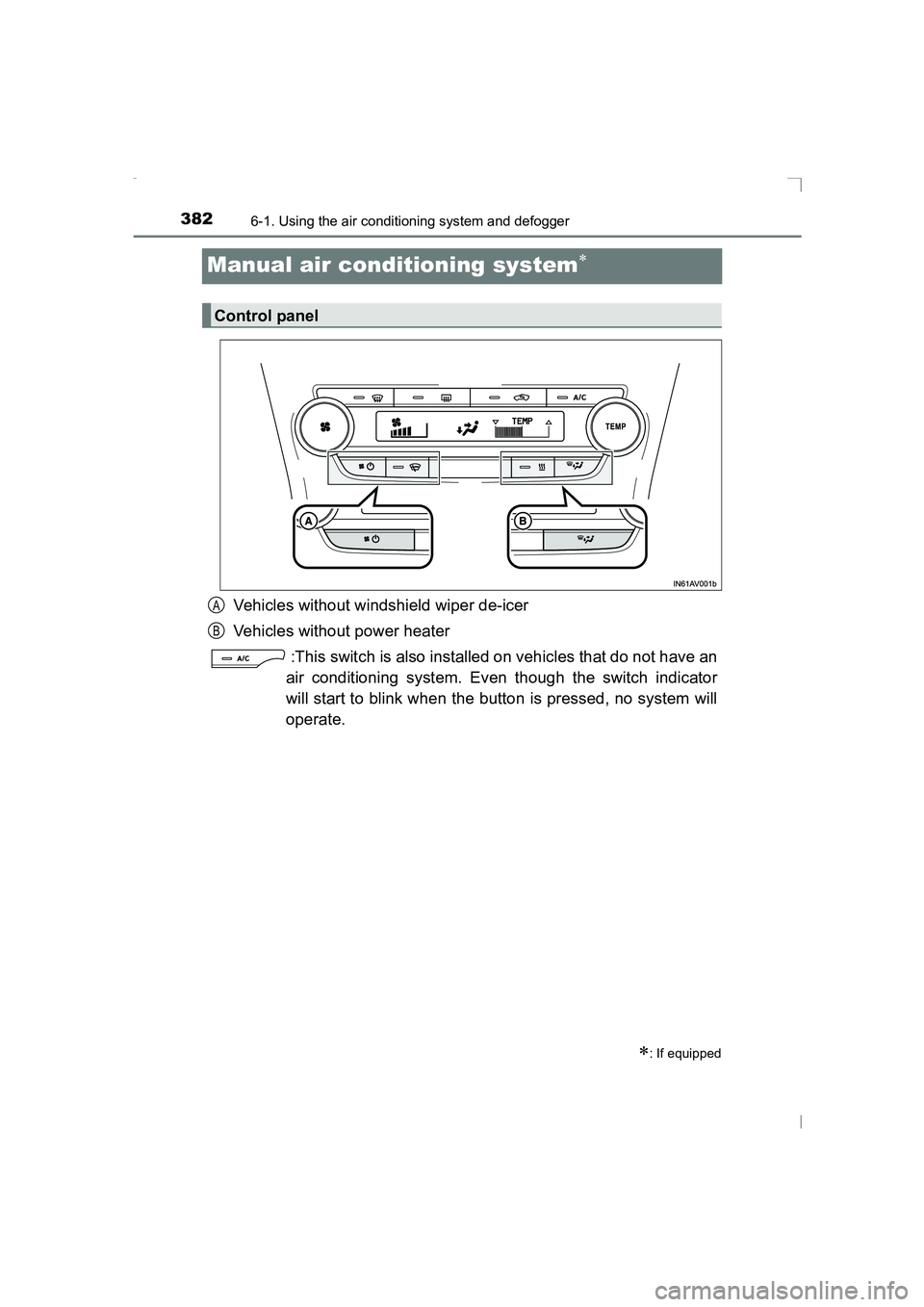

3826-1. Using the air conditioning system and defogger
AVENSIS_OM_OM20C20E_(EE)
Manual air conditioning system∗
Vehicles without windshield wiper de-icer
Vehicles without power heater:This switch is also installed on vehicles that do not have an
air conditioning system. Even though the switch indicator
will start to blink when the button is pressed, no system will
operate.
∗: If equipped
Control panel
A
B
AVENSIS_OM_OM20C20E_(EE).book Page 382 Thursday, January 29, 2015 1:47 PM

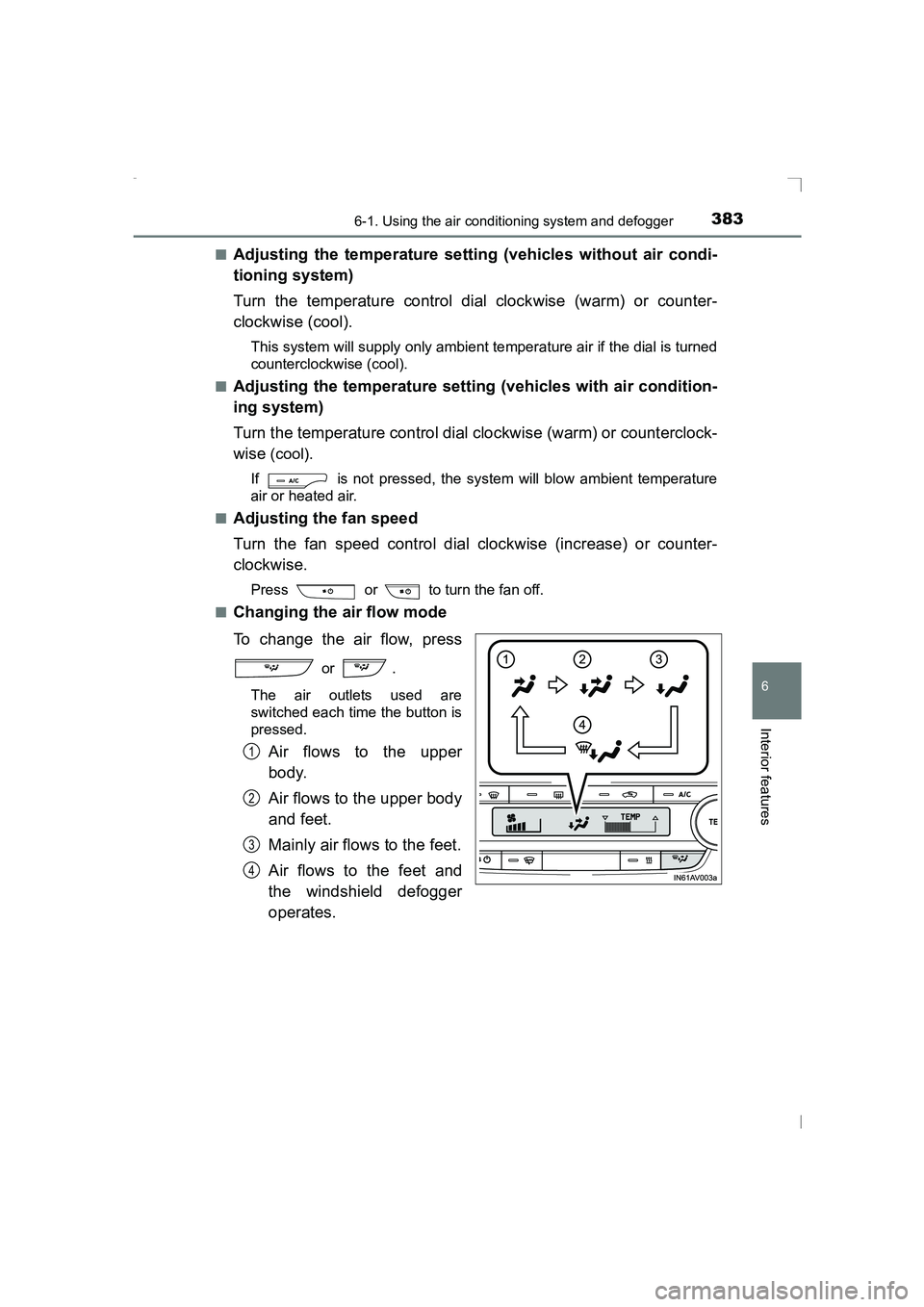

3836-1. Using the air conditioning system and defogger
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
■Adjusting the temperature setting (vehicles without air condi-
tioning system)
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
This system will supply only ambient temperature air if the dial is turned
counterclockwise (cool).
■
Adjusting the temperature setting (vehicles with air condition-
ing system)
Turn the temperature control dial clockwise (warm) or counterclock-
wise
(cool).
If is not pressed, the system will blow ambient temperature
air or heated air.
■
Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter-
clockwise.
Press or to turn the fan off.
■
Changing the air flow mode
To change the air flow, press

or .
The air outlets used are
switched each time the button is
pressed.
Air flows to the upper
body.
Air flows to the upper body
and feet.
Mainly air flows to the feet.
Air flows to the feet and
the windshield defogger
operates.1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 383 Thursday, January 29, 2015 1:47 PM

3846-1. Using the air conditioning system and defogger
AVENSIS_OM_OM20C20E_(EE)■
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recir-
culated air mode (indicator on) each time the button is pressed.
■
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
Set the outside/recirculated air mode button to outside mode if the recir-
culated air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the wind-
shield is defogged.
■
Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time. Pressing
the switch again also turns the rear window defogger off.
■
Windshield wiper de-icer (if equipped)
This feature is used to prevent ice from building up on the wind-
shield and wiper blades.
Press .
The windshield wiper de-icer will autom atically turn off after a period of
time. Pressing the switch again also turns the de-icer off.
■
Power heater (if equipped)
→ P. 3 9 5
Other functions
AVENSIS_OM_OM20C20E_(EE).book Page 384 Thursday, January 29, 2015 1:47 PM
