2015 TOYOTA AVENSIS Owners Manual

6099-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
Ignition system (gasoline engine)
Spark plug
Make DENSO SC20HR11
Gap 1.1 mm (0.043 in.)NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
AVENSIS_OM_OM20C20E_(EE).book Page 609 Thursday, January 29, 2015 1:47 PM

6109-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Electrical system
Battery
Open voltage at 20°C (68 °F): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are
turned off.)
Charging rates 5 A max.
Multidrive
Fluid capacity
(reference)2ZR-FAE engine7.5 L (7.9 qt., 6.6 Imp.qt.)
3ZR-FAE engine7.2 L (7.6 qt., 6.3 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Multidrive fluid type
Using transmission fluid other than “Toyota Genuine CVT Fluid FE” may
cause deterioration in shift quality, locking up of your transmission accom-
panied by vibration, and ultimately dam age the transmission of your vehicle.
sec_09-01.fm Page 610 Friday, February 20, 2015 3:48 PM

6119-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
Manual transmission
Gear oil capacity
(reference)Gasoline engine2.4 L (2.5 qt., 2.1 Imp.qt.)
Diesel engine2.1 L (2.2 qt., 1.8 Imp.qt.)
Gear oil type
Use either of the following:• “TOYOTA Genuine
Manual Transmission
Gear Oil LV”
• Other gear oil that
meets API GL-4 and
SAE 75W specifications
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oi l LV” to achieve optimal perfor-
mance.
AVENSIS_OM_OM20C20E_(EE).book Page 611 Thursday, January 29, 2015 1:47 PM

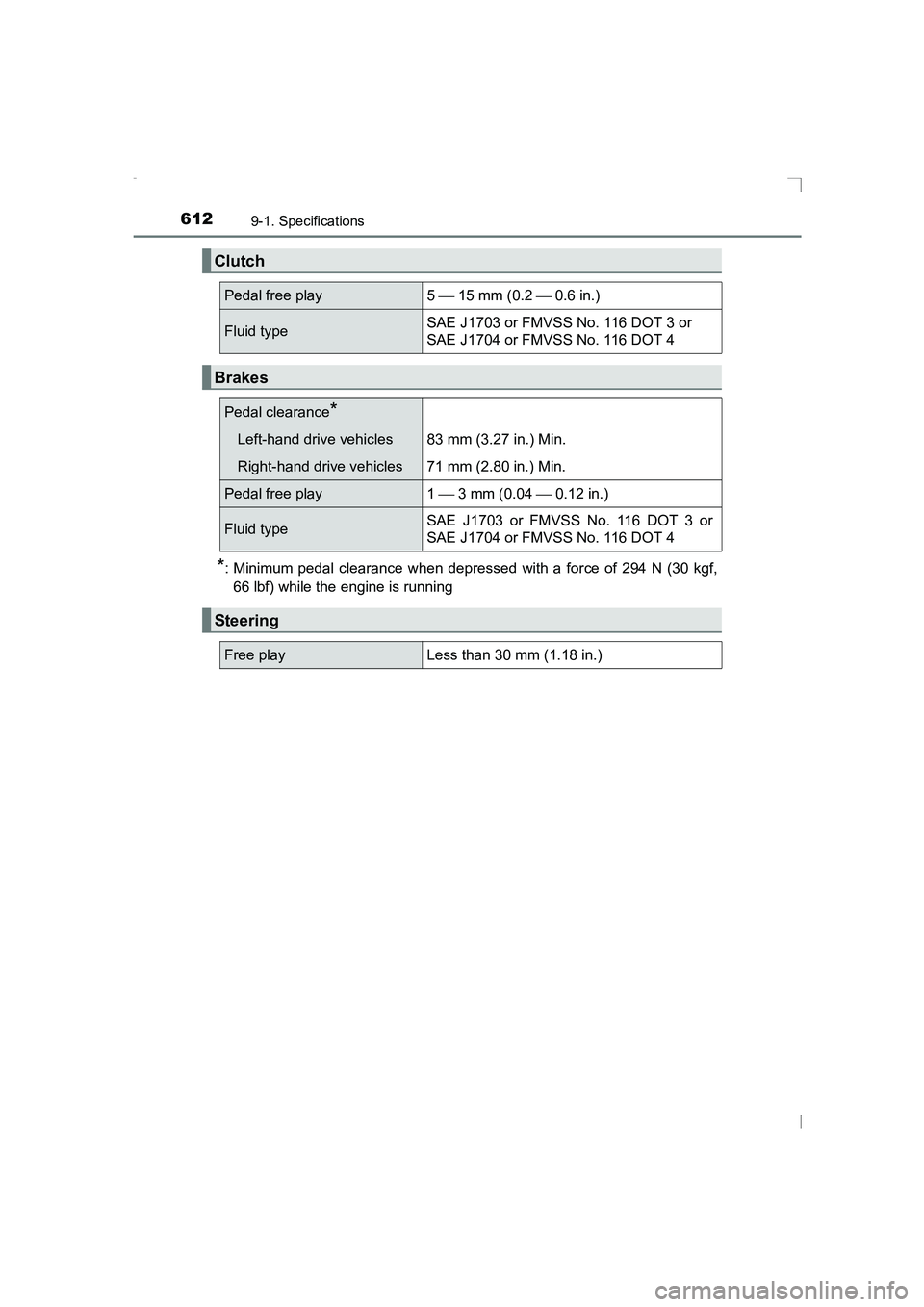

6129-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
*: Minimum pedal clearance when depressed with a force of 294 N (30 kgf,66 lbf) while the engine is running
Clutch
Pedal free play5  15 mm (0.2  0.6 in.)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Brakes
Pedal clearance*
Left-hand drive vehicles 83 mm (3.27 in.) Min.
Right-hand drive vehicles 71 mm (2.80 in.) Min.
Pedal free play 1  3 mm (0.04  0.12 in.)
Fluid type SAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.18 in.)
AVENSIS_OM_OM20C20E_(EE).book Page 612 Thursday, January 29,
2015 1:47 PM

6139-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
X225/45R18 95W
X215/55R17 94W
Tires and wheels
Tire size 225/45R18 95W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speed
Front wheel
kPa (kgf/cm
2
or bar, psi) Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph) 280 (2.8, 41) 250 (2.5, 36)
160 km/h
(99 mph) or
less 250 (2.5, 36) 230 (2.3, 33)
Wheel size 18
× 7 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 215/55R17 94W
Tire inflation pressure
(Recommended cold tire
inflation pressure) Vehicle
speed
Front wheel
kPa (kgf/cm
2
or bar, psi) Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph) 270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less 240 (2.4, 35) 230 (2.3, 33)
Wheel size 17
× 7J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
AVENSIS_OM_OM20C20E_(EE).book Page 613 Thursday, January 29, 2015 1:47 PM

6149-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
X205/60R16 92V (Diesel engine)
X205/60R16 92V (Gasoline engine)
Tire size 205/60R16 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speed
Front wheel
kPa (kgf/cm
2
or bar, psi) Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph) 270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less
250 (2.5, 36) 230 (2.3, 33)
Wheel size 16 × 6 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 205/60R16 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure) Vehicle
speed
Front wheel
kPa (kgf/cm
2
or bar, psi) Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph) 270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less 240 (2.4, 35) 220 (2.2, 32)
Wheel size 16
× 6 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
AVENSIS_OM_OM20C20E_(EE).book Page 614 Thursday, January 29, 2015 1:47 PM

6159-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
XCompact spare tire
Tire size T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17
× 4T
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
Exterior Headlights (halogen bulbs) 55 A
Front turn signal lights 21 B
Front fog lights 19 C
Cornering/fog lights 55 D
Side turn signal lights 5 B
Rear turn signal lights 21 E
Back-up lights 16 F
License plate lights 5 F
Interior
Personal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 G
Trunk/luggage compartment light 5 G
A: HIR2 halogen bulbs
B: Wedge base bulbs (amber)
C: H16 halogen bulbs
D: H11 halogen bulbs E: Single end bulbs (clear)
F: Wedge base bulbs (clear)
G: Double end bulbs
AVENSIS_OM_OM20C20E_(EE).book Page 615 Thursday, January 29, 2015 1:47 PM

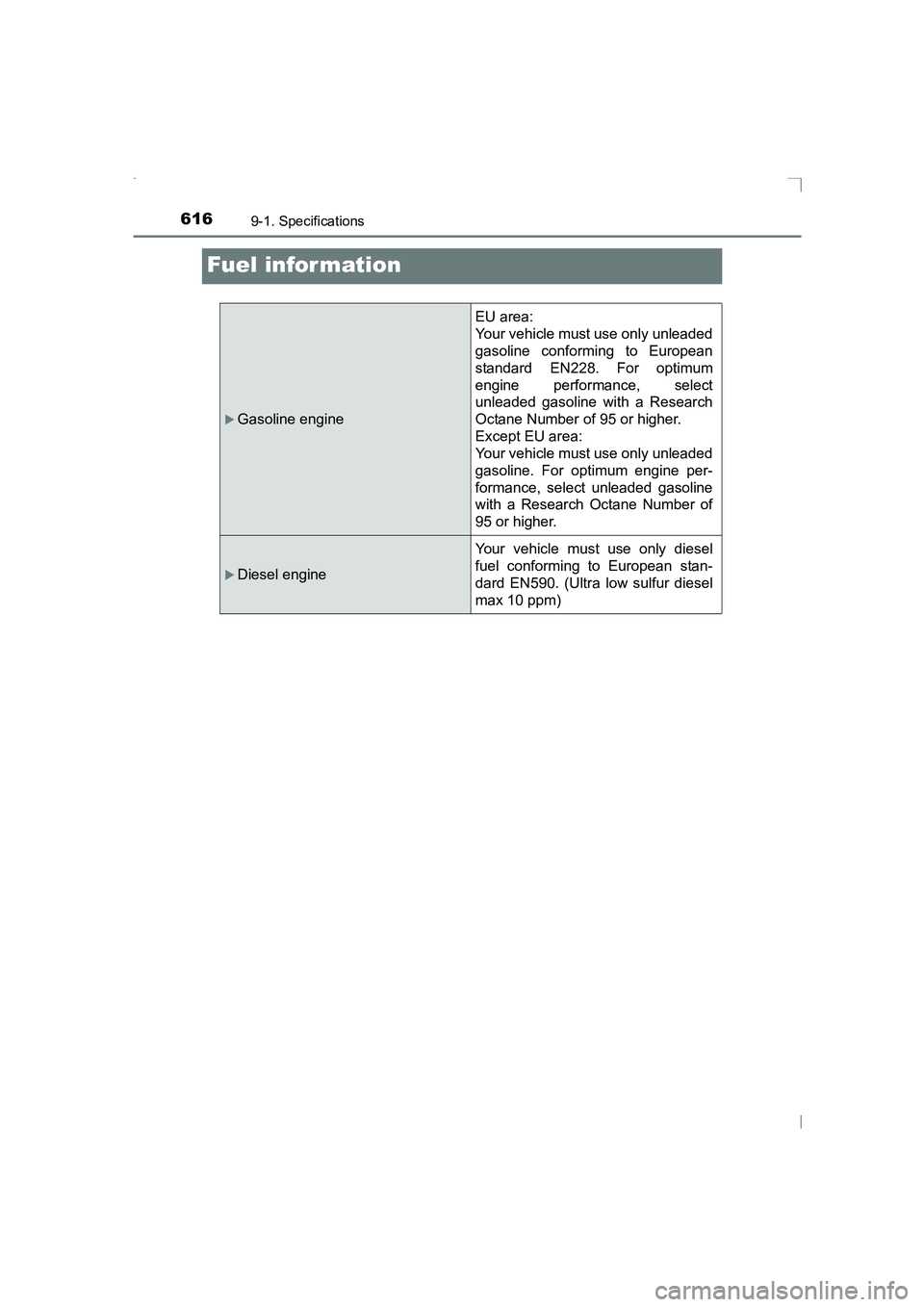

6169-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
Fuel infor mation
XGasoline engine
EU area:
Your vehicle must use only unleaded
gasoline conforming to European
standard EN228. For optimum
engine performance, select
unleaded gasoline with a Research
Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded
gasoline. For optimum engine per-
formance, select unleaded gasoline
with a Research Octane Number of
95 or higher.
XDiesel engine
Your vehicle must use only diesel
fuel conforming to European stan-
dard EN590. (Ultra low sulfur diesel
max 10 ppm)
