571-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

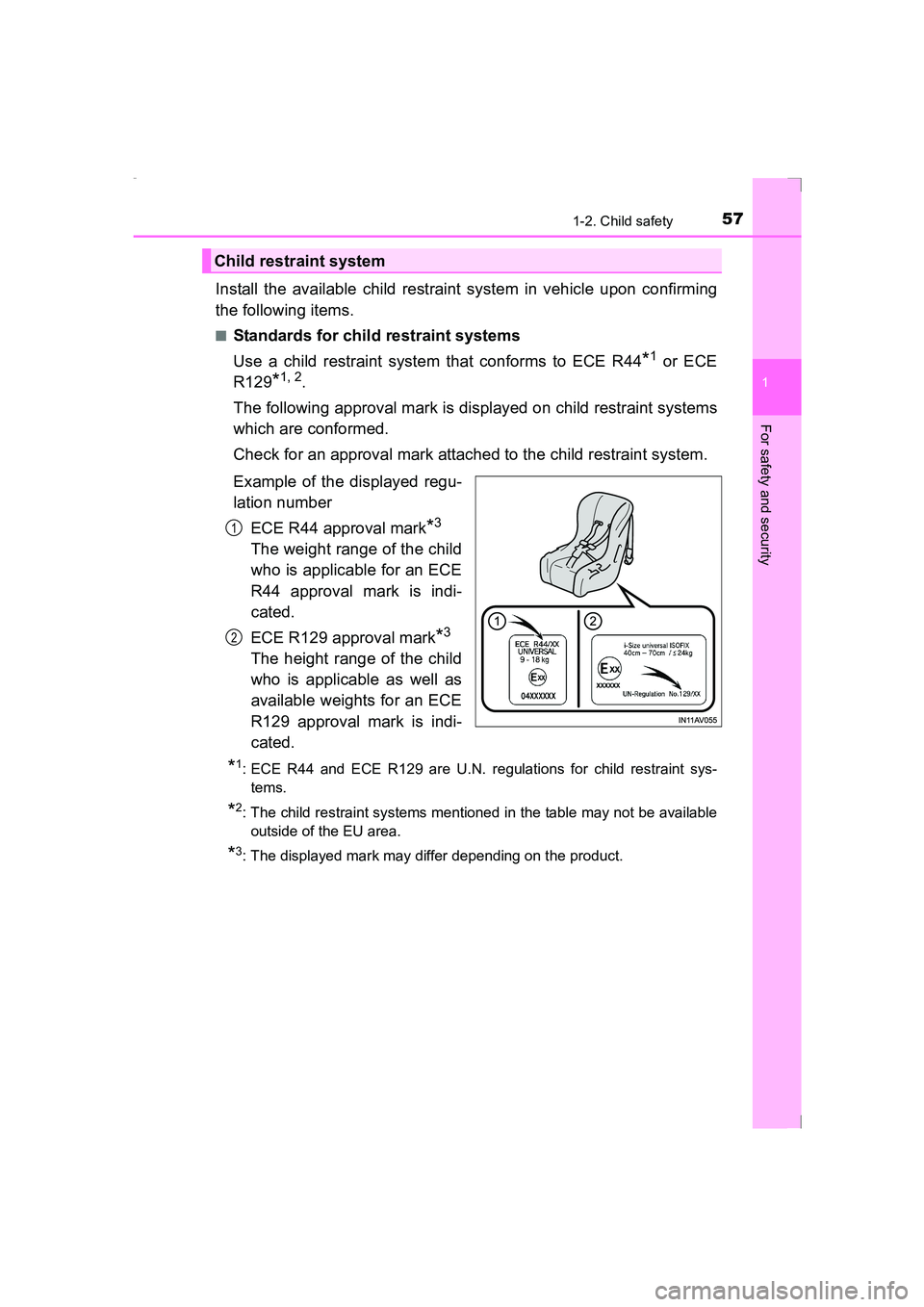

Install the available child restraint system in vehicle upon confirming
the following items.
■Standards for child restraint systems
Use a child restraint system that conforms to ECE R44
*1 or ECE
R129
*1, 2.
The following approval mark is displayed on child restraint systems
which are conformed.
Check for an approval mark attached to the child restraint system.
Example of the displayed regu-
lation number ECE R44 approval mark
*3
The weight range of the child
who is applicable for an ECE
R44 approval mark is indi-
cated.
ECE R129 approval mark
*3
The height range of the child
who is applicable as well as
available weights for an ECE
R129 approval mark is indi-
cated.
*1: ECE R44 and ECE R129 are U.N. regulations for child restraint sys-tems.
*2: The child restraint systems mentioned in the table may not be availableoutside of the EU area.
*3: The displayed mark may differ depending on the product.
Child restraint system
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 57 Thursday, January 29, 2 015 1:47 PM

691-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

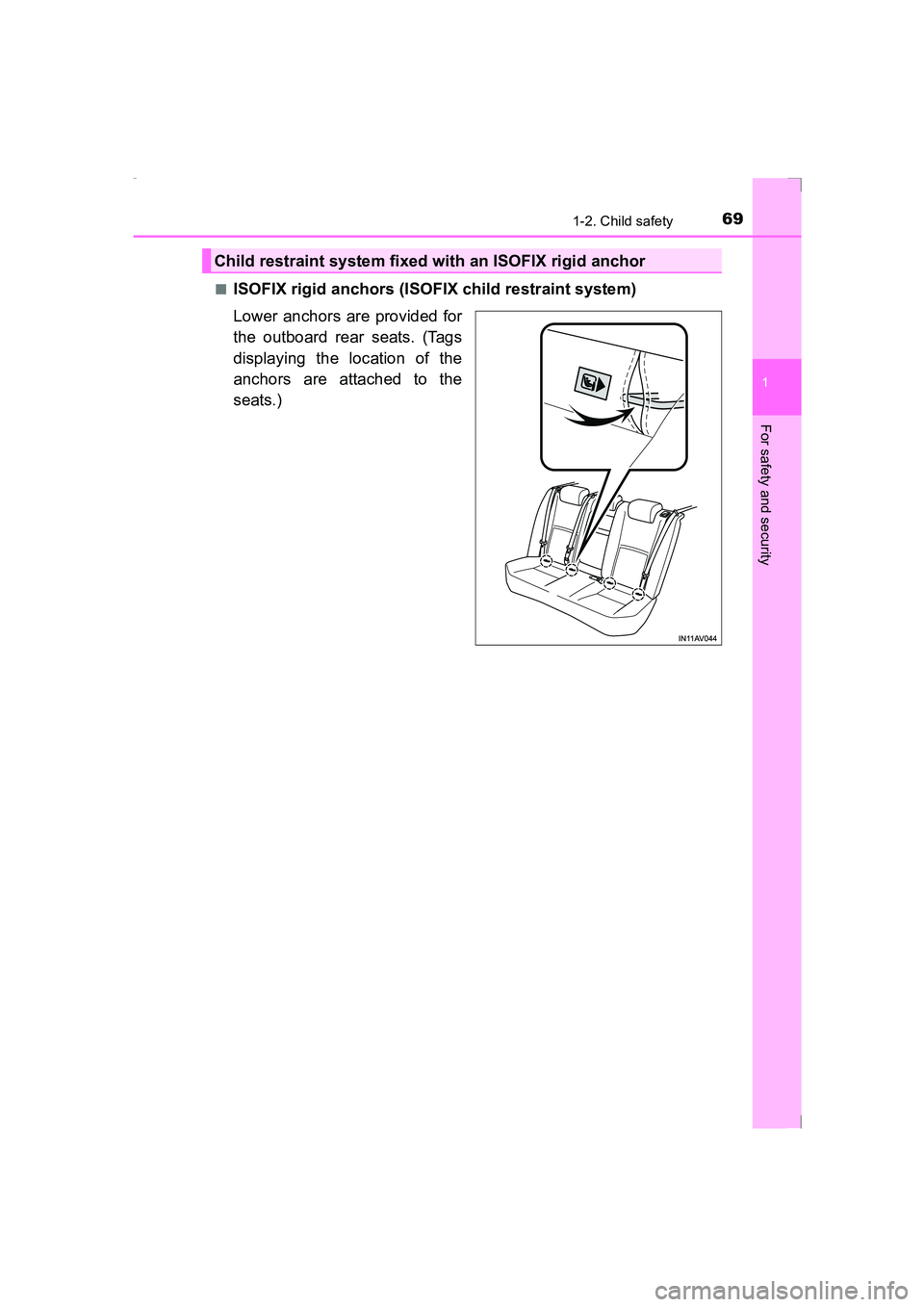

■ISOFIX rigid anchors (ISOFIX child restraint system)
Lower anchors are provided for
the outboard rear seats. (Tags
displaying the location of the
anchors are attached to the
seats.)
Child restraint system fixed with an ISOFIX rigid anchor
AVENSIS_OM_OM20C20E_(EE).book Page 69 Thursday, January 29, 2015 1:47 PM

97
2Instrument cluster
AVENSIS_OM_OM20C20E_(EE)2. Instrument cluster
Warning lights and indicators ........................... 98
Gauges and meters ........... 104
Multi-information display (with monochrome
display) ............................ 108
Multi-information display (with color display) ........... 111
Fuel consumption information ....................... 117
AVENSIS_OM_OM20C20E_(EE).book Page 97 Thursday, January 29, 2 015 1:47 PM

982. Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

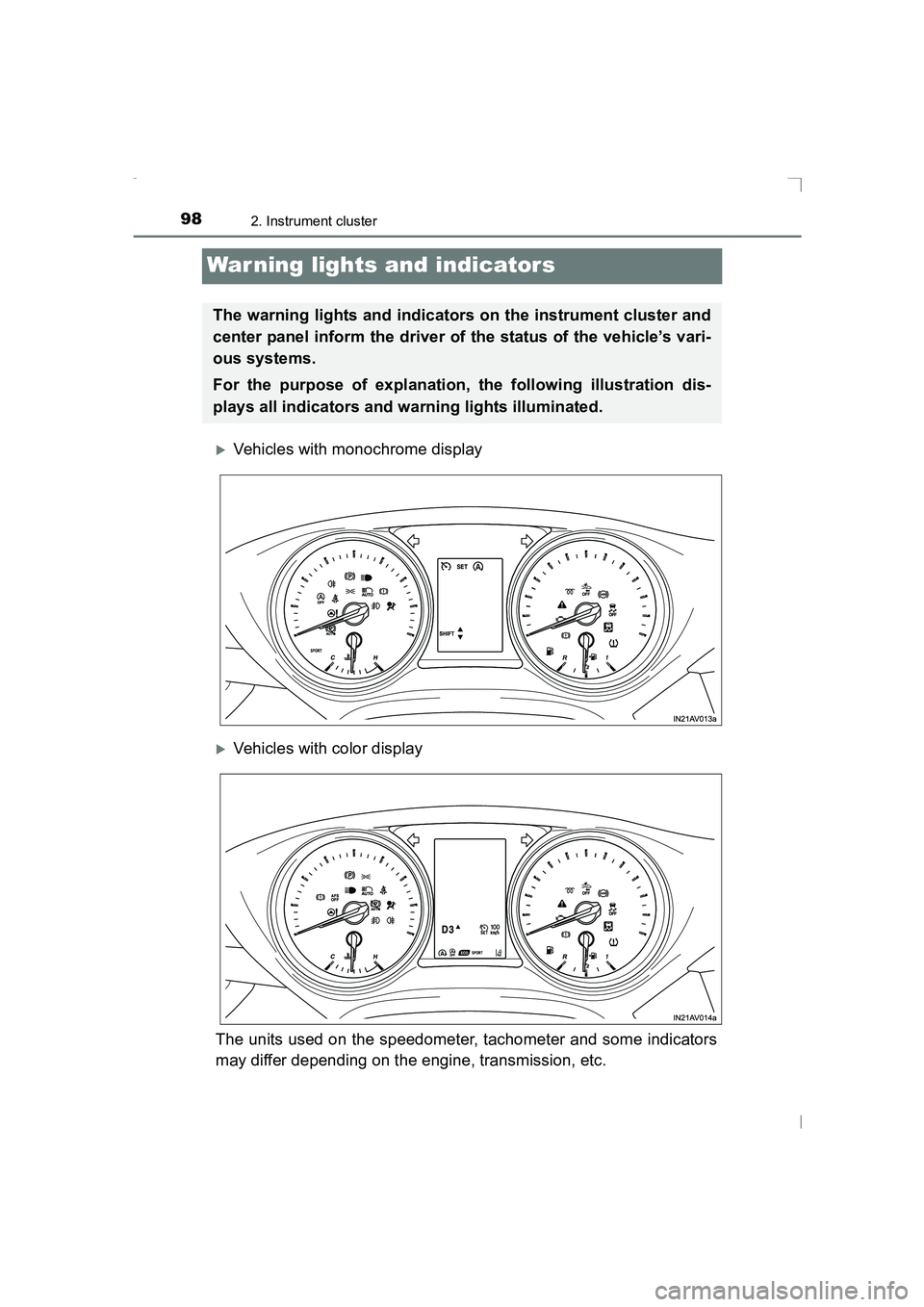

War ning lights and indicators
XVehicles with monochrome display
XVehicles with color display
The units used on the speedometer, tachometer and some indicators
may differ depending on the engine, transmission, etc.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all indicators and warning lights illuminated.
AVENSIS_OM_OM20C20E_(EE).book Page 98 Thursday, January 29, 2 015 1:47 PM
