2015 TOYOTA AVENSIS Owners Manual

571-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
Install the available child restraint system in vehicle upon confirming
the following items.
■Standards for child restraint systems
Use a child restraint system that conforms to ECE R44
*1 or ECE
R129
*1, 2.
The following approval mark is displayed on child restraint systems
which are conformed.
Check for an approval mark attached to the child restraint system.
Example of the displayed regu-
lation number ECE R44 approval mark
*3
The weight range of the child
who is applicable for an ECE
R44 approval mark is indi-
cated.
ECE R129 approval mark
*3
The height range of the child
who is applicable as well as
available weights for an ECE
R129 approval mark is indi-
cated.
*1: ECE R44 and ECE R129 are U.N. regulations for child restraint sys-tems.
*2: The child restraint systems mentioned in the table may not be availableoutside of the EU area.
*3: The displayed mark may differ depending on the product.
Child restraint system
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 57 Thursday, January 29, 2 015 1:47 PM

581-2. Child safety
AVENSIS_OM_OM20C20E_(EE)■

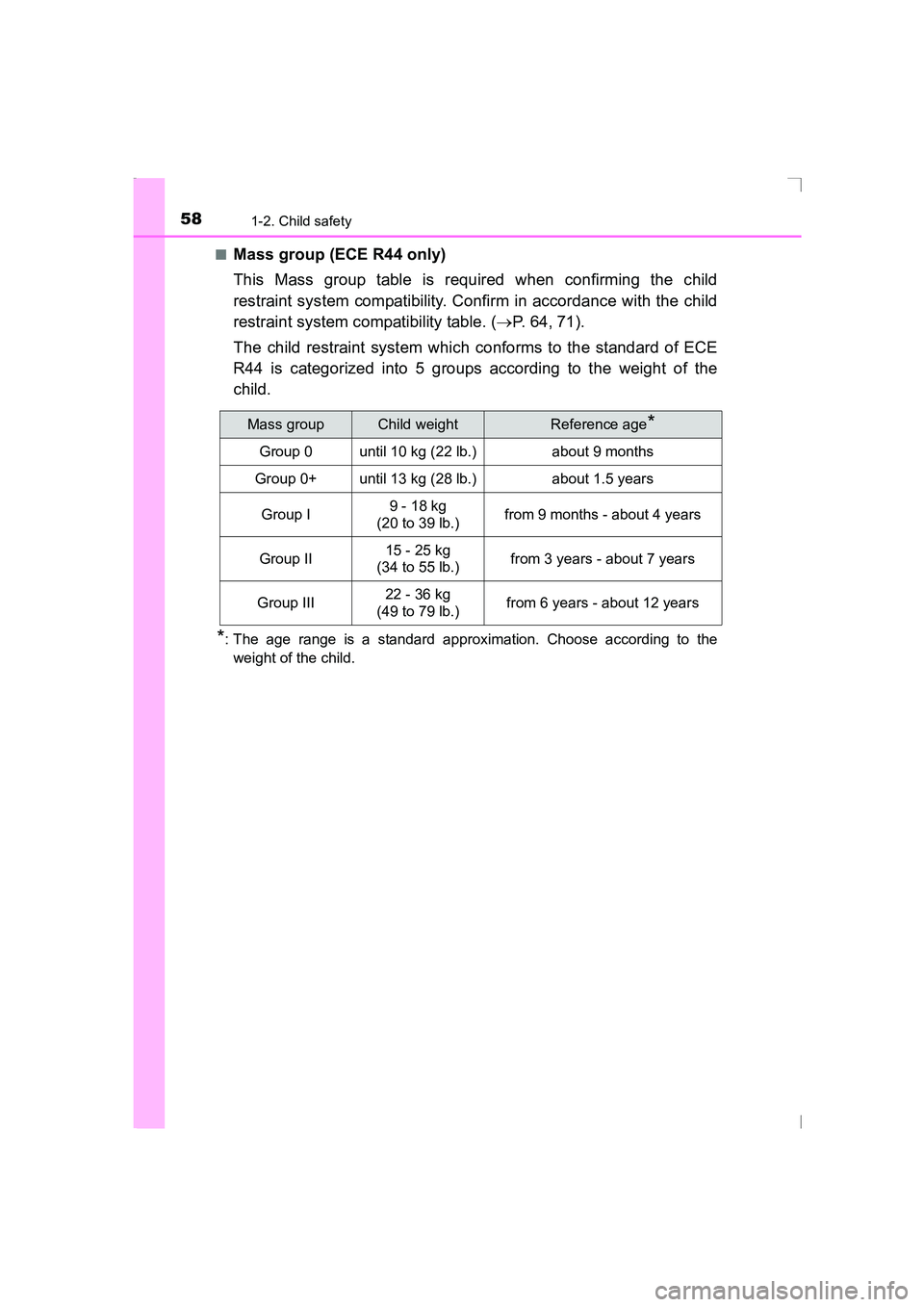

Mass group (ECE R44 only)
This Mass group table is required when confirming the child
restraint system compatibility. Confirm in accordance with the child
restraint system compatibility table. (
→P. 6 4 , 71).
The child restraint system which conforms to the standard of ECE
R44 is categorized into 5 groups according to the weight of the
child.
*: The age range is a standard approximation. Choose according to the weight of the child.
Mass groupChild weightReference age*
Group 0until 10 kg (22 lb.)about 9 months
Group 0+until 13 kg (28 lb.)about 1.5 years
Group I9 - 18 kg
(20 to 39 lb.)from 9 months - about 4 years
Group II15 - 25 kg
(34 to 55 lb.)from 3 years - about 7 years
Group III22 - 36 kg
(49 to 79 lb.)from 6 years - about 12 years
AVENSIS_OM_OM20C20E_(EE).book Page 58 Thursday, January 29, 2 015 1:47 PM

591-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

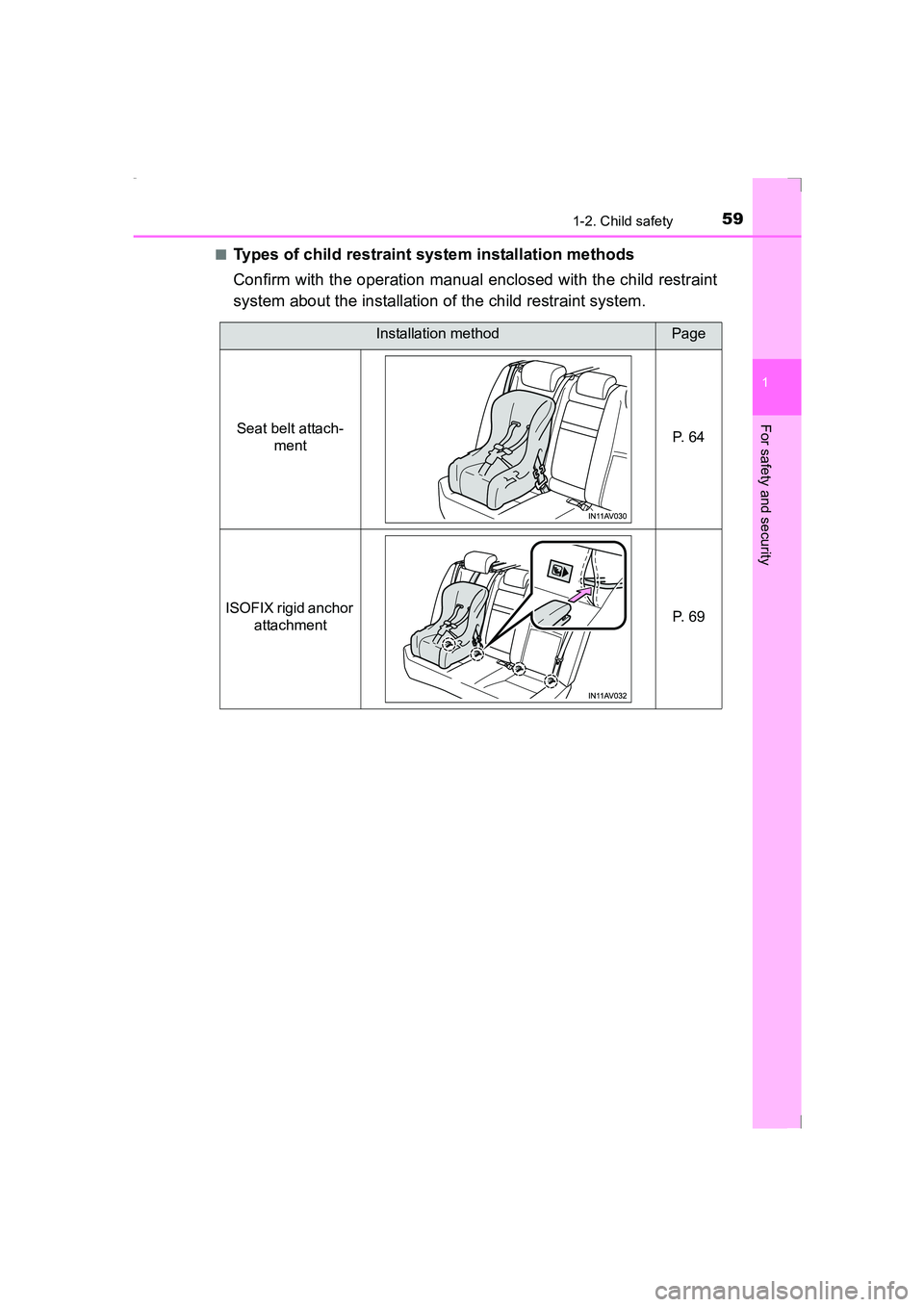

■Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.
Installation methodPage
Seat belt attach- ment P. 6 4
ISOFIX rigid anchor attachment P. 6 9
AVENSIS_OM_OM20C20E_(EE).book Page 59 Thursday, January 29, 2
015 1:47 PM

601-2. Child safety

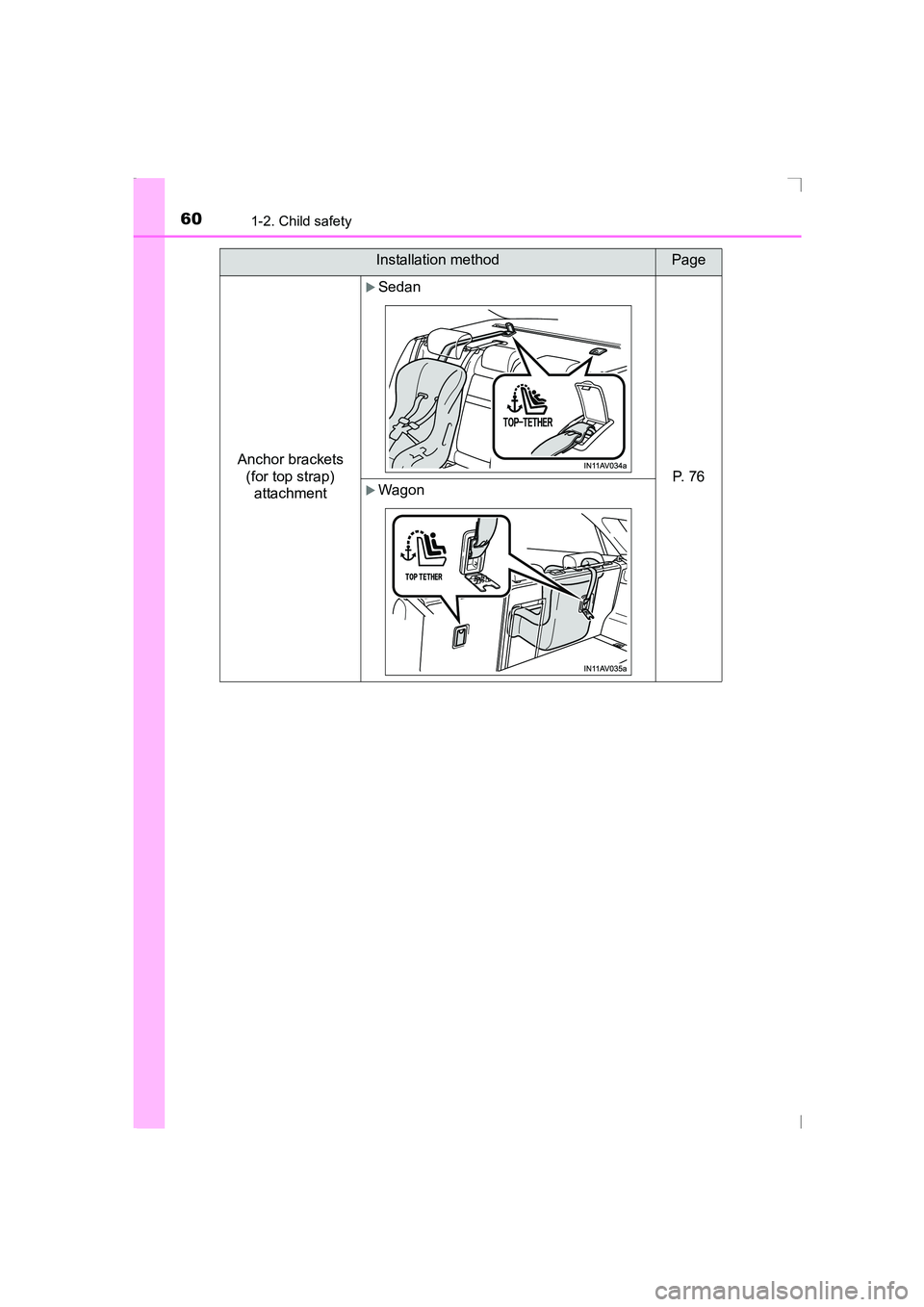

AVENSIS_OM_OM20C20E_(EE)Anchor brackets
(for top strap) attachment
XSedan
P. 7 6XWagon
Installation methodPage
AVENSIS_OM_OM20C20E_(EE).book Page 60 Thursday, January 29, 2 015 1:47 PM

611-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

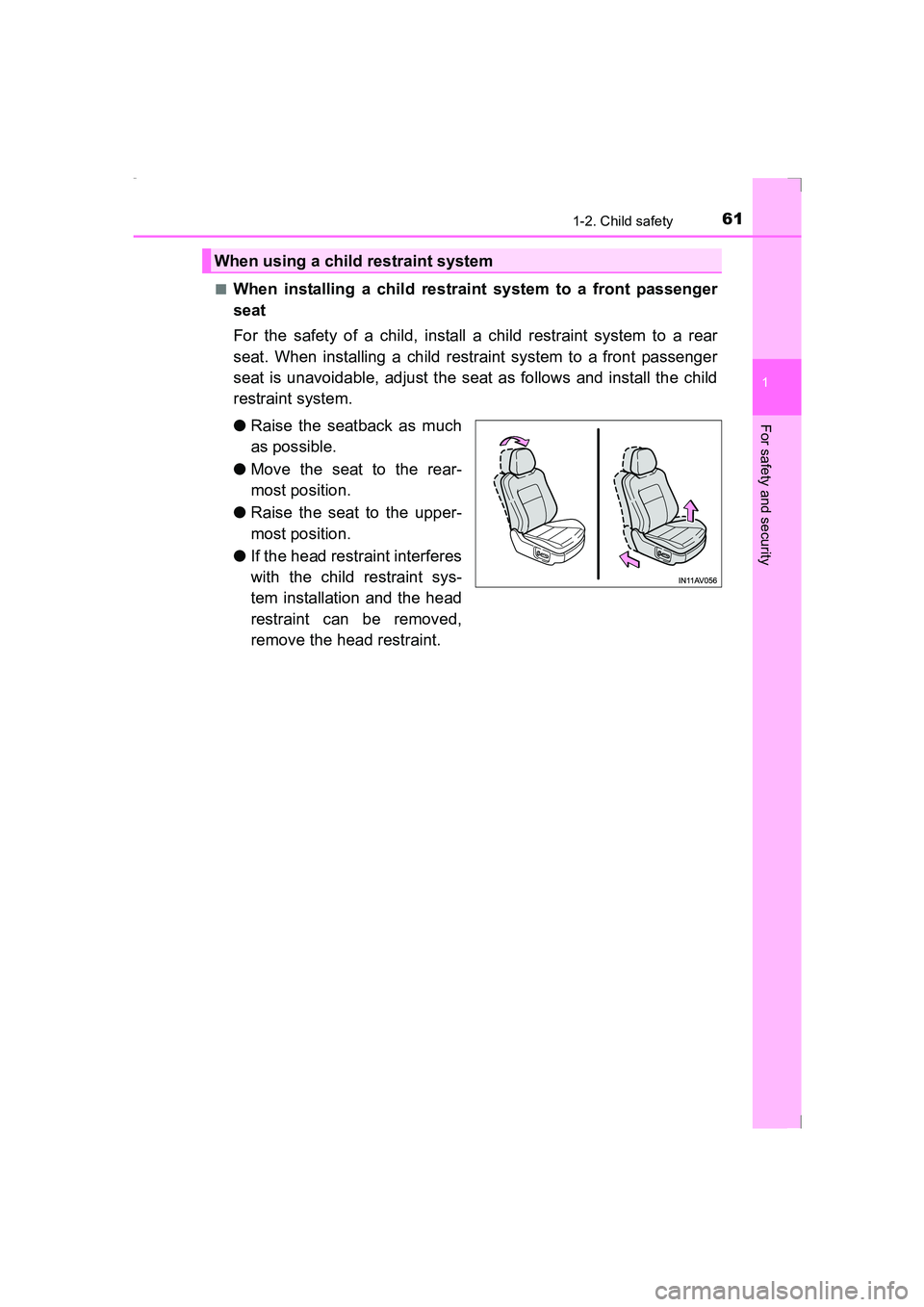

■When installing a child restraint system to a front passenger
seat
For the safety of a child, install a child restraint system to a rear
seat. When installing a child restraint system to a front passenger
seat is unavoidable, adjust the seat as follows and install the child
restraint system.
●Raise the seatback as much
as possible.
● Move the seat to the rear-
most position.
● Raise the seat to the upper-
most position.
● If the head restraint interferes
with the child restraint sys-
tem installation and the head
restraint can be removed,
remove the head restraint.
When using a child restraint system
AVENSIS_OM_OM20C20E_(EE).book Page 61 Thursday, January 29, 2 015 1:47 PM

621-2. Child safety
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. ( →P. 52)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
● There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.
AVENSIS_OM_OM20C20E_(EE).book Page 62 Thursday, January 29, 2 015 1:47 PM

631-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
WARNING
■ When using a child restraint system
●When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
●Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible. Failing to do so may result in
death or serious injury if the airbags
deploy (inflate).
● Do not allow the child to lean his/her
head or any part of his/her body against
the door or the area of the seat, front or
rear pillars, or roof side rails from which
the SRS side airbags or SRS curtain
shield airbags deploy even if the child is
seated in the child restraint system. It is
dangerous if the SRS side airbags and
curtain shield airbags inflate, and the
impact could cause death or serious
injury to the child.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles). ( →P. 66, 73)
AVENSIS_OM_OM20C20E_(EE).book Page 63 Thursday, January 29, 2 015 1:47 PM

641-2. Child safety
AVENSIS_OM_OM20C20E_(EE)

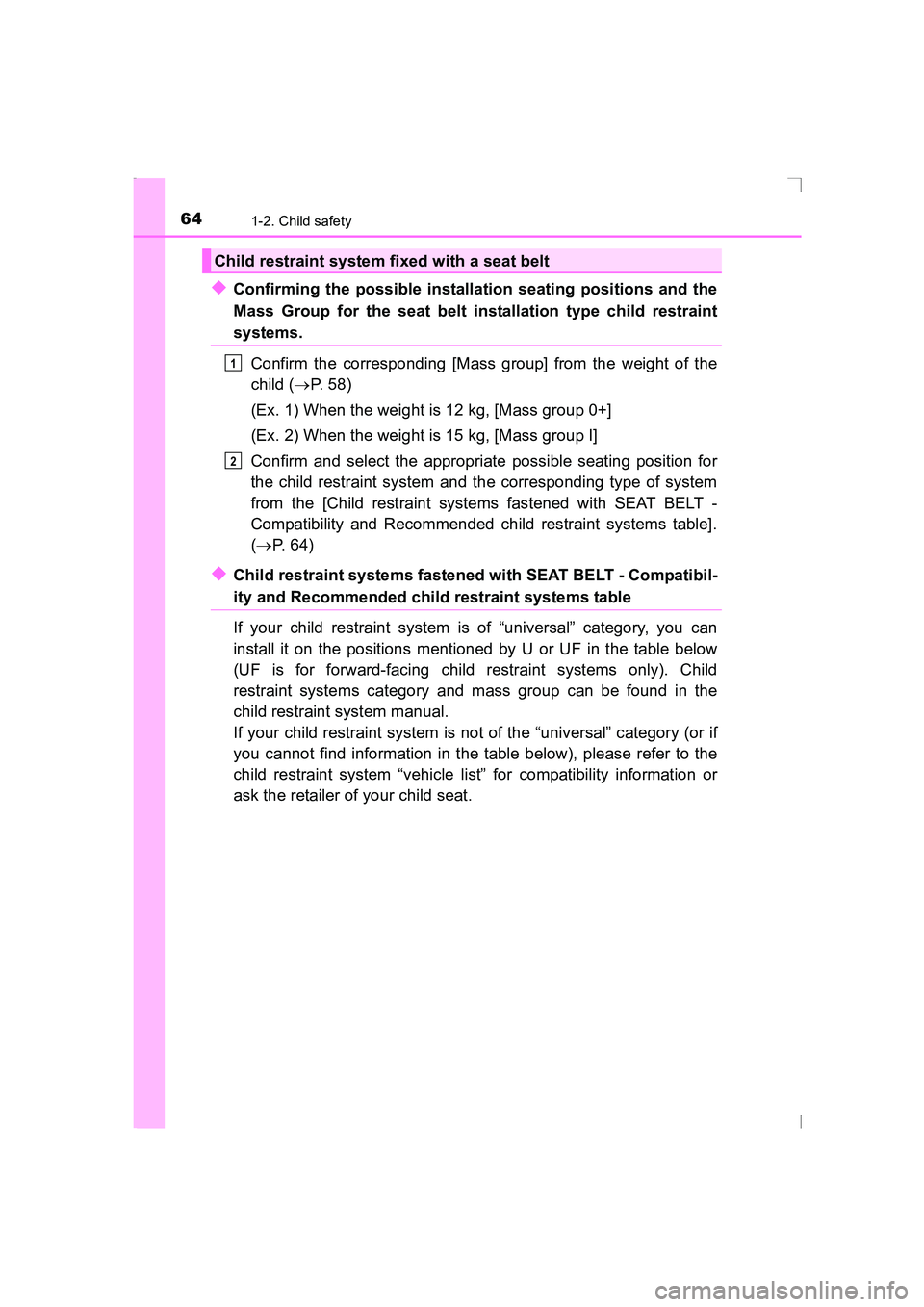

◆Confirming the possible installation seating positions and the
Mass Group for the seat belt installation type child restraint
systems.Confirm the corresponding [Mass group] from the weight of the
child ( →P. 58)
(Ex. 1) When the weight is 12 kg, [Mass group 0+]
(Ex. 2) When the weight is 15 kg, [Mass group I]
Confirm and select the appropriate possible seating position for
the child restraint system and the corresponding type of system
from the [Child restraint systems fastened with SEAT BELT -
Compatibility and Recommended child restraint systems table].
( → P. 6 4 )
◆Child restraint systems fastened with SEAT BELT - Compatibil-
ity and Recommended child restraint systems table
If your child restraint system is of “universal” category, you can
install it on the positions mentioned by U or UF in the table below
(UF is for forward-facing child restraint systems only). Child
restraint systems category and mass group can be found in the
child restraint system manual.
If your child restraint system is not of the “universal” category (or if
you cannot find information in the table below), please refer to the
child restraint system “vehicle list” for compatibility information or
ask the retailer of your child seat.
Child restraint system fixed with a seat belt
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 64 Thursday, January 29, 2 015 1:47 PM
