2015 TOYOTA AVENSIS Owners Manual

1693-3. Adjusting the seats
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
■Returning the seatbacks (sedan)
Tilt the seatback up until it locks, making
sure that you hold the seat belt to prevent
it from getting caught between the seat-
back and the inner side of the vehicle.
Make sure the shoulder belt passes
through the guide and that the seat belt
is in position before folding down the
seat when returning the seatback up.
WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.
■ When folding the rear seatbacks down
●Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (Multidrive) or N (manual transmission).
● Do not allow anyone to sit on a folded seatback, or in the trunk/luggage
compartment while driving.
● Do not allow children to enter the trunk/luggage compartment.
■ After returning the rear seatbacks to the upright position
●Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■ Stowing the seat belt buckles
The rear seat belt buckles and the armrest must be stowed before you fold
down the rear seatbacks. ( →P. 168, 419)
■ When the rear right seatback is folded down (sedan)
Make sure the luggage loaded in the enlarged trunk will not damage the
webbing of the rear center seat belt.
● Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release lever. Make sure
that the red marking is not visible.
AVENSIS_OM_OM20C20E_(EE).book Page 169 Thursday, January 29, 2015 1:47 PM

1703-3. Adjusting the seats
AVENSIS_OM_OM20C20E_(EE)
Driving position memor y∗
Your preferred driving position (the position of the driver’s seat) can
be memorized and recalled by pressing a button.
Two different driving positions can be entered into memory.
■Recording procedureVehicles with Multidrive:
Check that the shift lever is in P.
Vehicles with manual transmission:
Check that the parking brake is set.
Turn the engine switch to IGNITION ON mode.
Adjust the driver’s seat to the desired position.
While pressing the “SET”
button, or within 3 seconds
after the “SET” button is
pressed, press button “1” or
“2” until the buzzer sounds.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
∗: If equipped
This feature automatically adjusts the driver’s seats to suit your
preferences.
Driving position memory
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 170 Thursday, January 29, 2015 1:47 PM

1713-3. Adjusting the seats
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)■
Recall procedure
Vehicles with Multidrive:
Check that the shift lever is in P.
Vehicles with manual transmission:
Check that the parking brake is set.
Turn the engine switch to IGNITION ON mode.
Press button “1” or “2” for the
driving position you want to
recall until the buzzer
sounds.
■To stop the position recall operation part-way through
Perform any of the following:
●Press the “SET” button.
● Press button “1” or “2”.
● Operate any of the seat adjustment switches.
■ Seat positions that can be memorized ( →P. 166)
The adjusted positions other than the position adjusted by lumber support
switch can be recorded.
■ Operating the driving position memory after turning the engine switch
off
Recorded seat positions can be activated up to 180 seconds after the driver’s
door is opened and another 60 seconds after it is closed again.
■ In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is
operated in the same direction, the recorded position may be slightly different
when it is recalled.
1
2
3
WARNING
■ Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear
passenger or squeeze your body against the steering wheel.
AVENSIS_OM_OM20C20E_(EE).book Page 171 Thursday, January 29, 2015 1:47 PM

1723-3. Adjusting the seats
AVENSIS_OM_OM20C20E_(EE)
Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■Removing the head restraints
XFront seat
While pressing in the screwdriver and pressing and holding the lock release
button, pull up the head restraint.
XRear seat
Head restraints are provided for all seats.
Lock
release
button
1
2
Push a flathead screwdriver into the
slot.
The slot is located on the right side of
the right head restraint anchor.
Pull the head restraint while pressing the
lock release button.1
2
Lock release button
AVENSIS_OM_OM20C20E_(EE).book Page 172 Thursday, January 29, 2015 1:47 PM

1733-3. Adjusting the seats
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)■
Installing the head restraints
■ Adjusting the height of the head restraints (front seats)
■ Adjusting the rear seat head restraint Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Always raise the head restraint one level
from the stowed position when using.
WARNING
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
AVENSIS_OM_OM20C20E_(EE).book Page 173 Thursday, January 29, 2015 1:47 PM

1743-4. Adjusting the steering wheel and mirrors
AVENSIS_OM_OM20C20E_(EE)
Steering wheel
Hold the steering wheel and
press the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Adjustment procedure
1
2
Horn
AVENSIS_OM_OM20C20E_(EE).book Page 174 Thursday, January 29, 2015 1:47 PM

1753-4. Adjusting the steering wheel and mirrors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ Caution while driving
Do not adjust the steering wheel.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.
AVENSIS_OM_OM20C20E_(EE).book Page 175 Thursday, January 29, 2015 1:47 PM

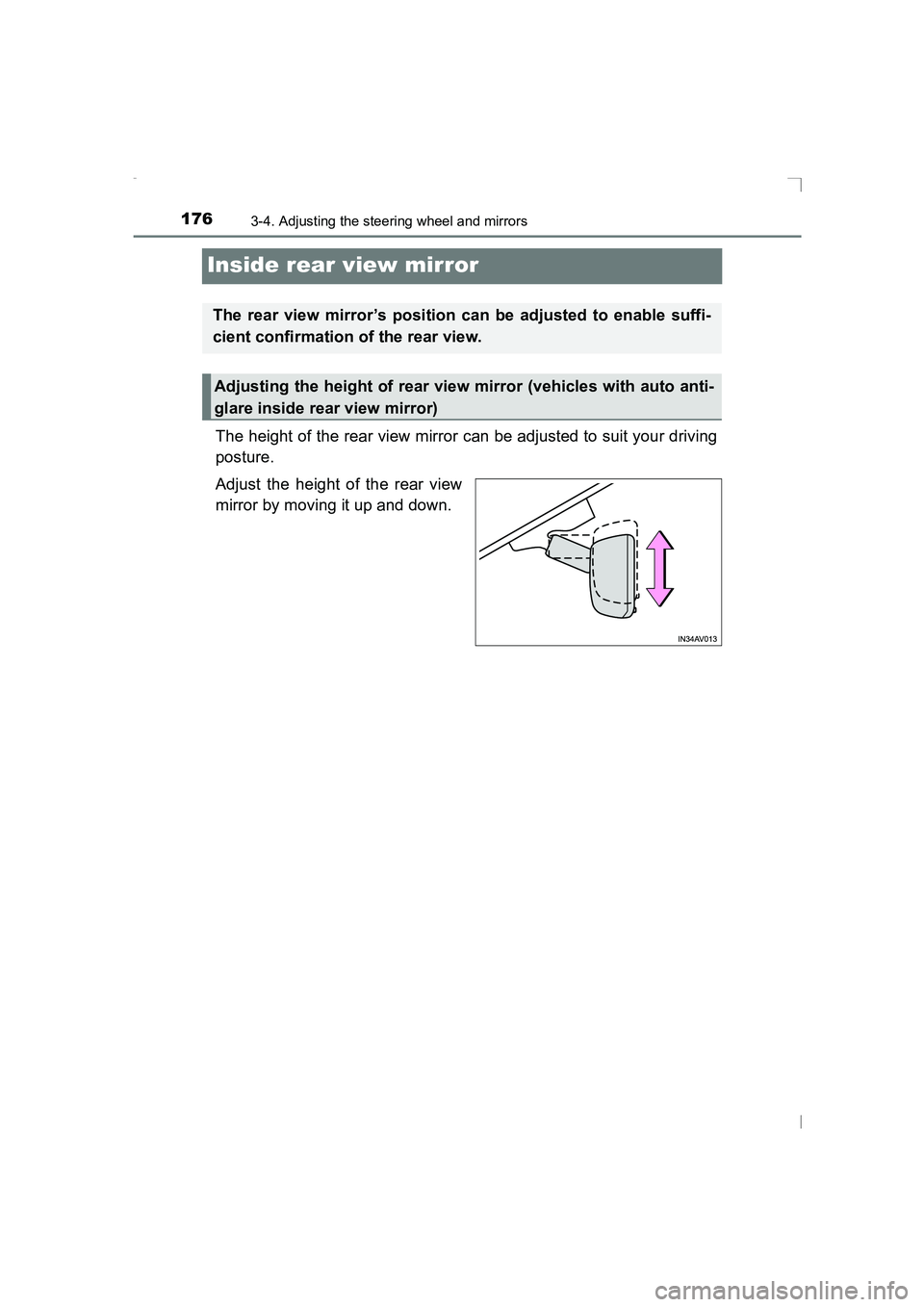

1763-4. Adjusting the steering wheel and mirrors
AVENSIS_OM_OM20C20E_(EE)
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror (vehicles with auto anti-
glare inside rear view mirror)
AVENSIS_OM_OM20C20E_(EE).book Page 176 Thursday, January 29, 2015 1:47 PM
