2015 TOYOTA AVENSIS Owners Manual

313
5
5-2. Using the audio system
Audio system
AVENSIS_OM_OM20C20E_(EE)
Optimal use of the audio system∗
Displays the “SETUP” menu
Changes the following settings• Sound quality and volume
balance
→ P. 3 1 4
The sound quality and balance
setting can be changed to pro-
duce the best sound.
• Automatic Sound Levelizer
→ P. 3 1 4
Selecting the mode
∗: If equipped
The sound quality, volume balance and ASL settings can be
adjusted.
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 313 Thursday, January 29, 2015 1:47 PM

3145-2. Using the audio system
AVENSIS_OM_OM20C20E_(EE)■
Changing sound quality modes
Press the “SETUP” button.
Turn the tune/scroll knob to select “Sound Setting”.
Press the knob.
Turn the knob as corresponds to the desired mode.
“BASS”, “TREBLE”, “FADER”, “BALANCE”, or “ASL” can be selected.
Press the knob.
■Adjusting sound quality
Turning the tune/scroll knob adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
■
Adjusting the Automatic Sound Levelizer (ASL) (if equipped)
When ASL is selected, turning the tune/scroll knob to the right
changes the amount of ASL in the order of LOW, MID and HIGH.
Turning the knob to the left turns ASL off.
ASL automatically adjusts the volume and tone quality according to
vehicle speed.
Using the audio control function
1
2
3
4
5
Sound
quality modeMode
displayedLevelTurn to the leftTurn to the right
Bass*“BASS”-5 to 5LowHighTreble*“TREBLE”-5 to 5
Front/rear volume balance“FADER”F7 to R7Shifts to rearShifts to front
Left/right
volume
balance
“BALANCE”L7 to R7Shifts to leftShifts to right
AVENSIS_OM_OM20C20E_(EE).book Page 314 Thursday, January 29, 2015 1:47 PM

315
5
5-3. Using the radio
Audio system
AVENSIS_OM_OM20C20E_(EE)
Radio operation∗
XTy pe A
∗: If equipped
Press the “MODE” button until “AM” or “FM” is displayed.
AF/region code/TA mode setup
Tune/scroll knob: Adjusting the
frequency or selecting items
Back button
Station selector buttonsAM/FM mode button
Displays station list
Seeking the frequency
Adjusting the volume or turn-
ing the audio system on or off1
2
3
4
5
6
7
8
AVENSIS_OM_OM20C20E_(EE).book Page 315 Thursday, January 29,
2015 1:47 PM

3165-3. Using the radio
AVENSIS_OM_OM20C20E_(EE)
XTy pe B
AF/region code/TA mode setup
Tune/scroll knob: Adjusting the
frequency or selecting items
Back button
Station selector buttonsAM/FM mode button
Displays station list
Seeking the frequency
Adjusting the volume or turn-
ing the audio system on or off1
2
3
4
5
6
7
8
AVENSIS_OM_OM20C20E_(EE).book Page 316 Thursday, January 29,
2015 1:47 PM

3175-3. Using the radio
5
Audio system
AVENSIS_OM_OM20C20E_(EE)
XTy pe C
Search for desired stations by turning the tune/scroll knob or press-
ing “∧” or “ ∨” on the “SEEK TRACK” button.
Press and hold a desired station selector button until you hear a
beep.
AF/region code/TA mode setup
Tune/scroll knob: Adjusting the
frequency or selecting items/
displays station list
Station selector buttons
AM/FM mode button Scanning for receivable sta-
tions
Seeking the frequency
Adjusting the volume or turn-
ing the audio system on or off1
2
3
4
5
6
7
Setting station presets
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 317 Thursday, January 29,
2015 1:47 PM

3185-3. Using the radio
AVENSIS_OM_OM20C20E_(EE)■
Scanning the preset radio stations
Press and hold the “SCAN” button until you hear a beep.
When the desired station is reached, press the button once
again.
■Scanning all radio stations within rangePress the “SCAN” button.
All stations with reception will be played for 5 seconds each.
When the desired station is reached, press the button once
again.
■Updating the station list
Press the “LIST” button (type A and B) or the tune/scroll knob
(type C).
The station list will be displayed.
Press [UPDATE] to update the list.
“Updating” is displayed while the searching is in process, and then avail-
able stations will be listed on the display.
To cancel the updating process, press the back button (type A and B) or [BACK] (type C).
■
Selecting a station from the station list
Press the “LIST” button (type A and B) or the tune/scroll knob
(type C).
The station list will be displayed.
Turn the tune/scroll knob to select a station.
Press the knob to tune in the station.
To return to the previous display, press the back button (type A and B)
or [BACK] (type C).
Scanning radio stations (type C only)
Using the station list
1
2
1
2
1
2
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 318 Thursday, January 29, 2015 1:47 PM

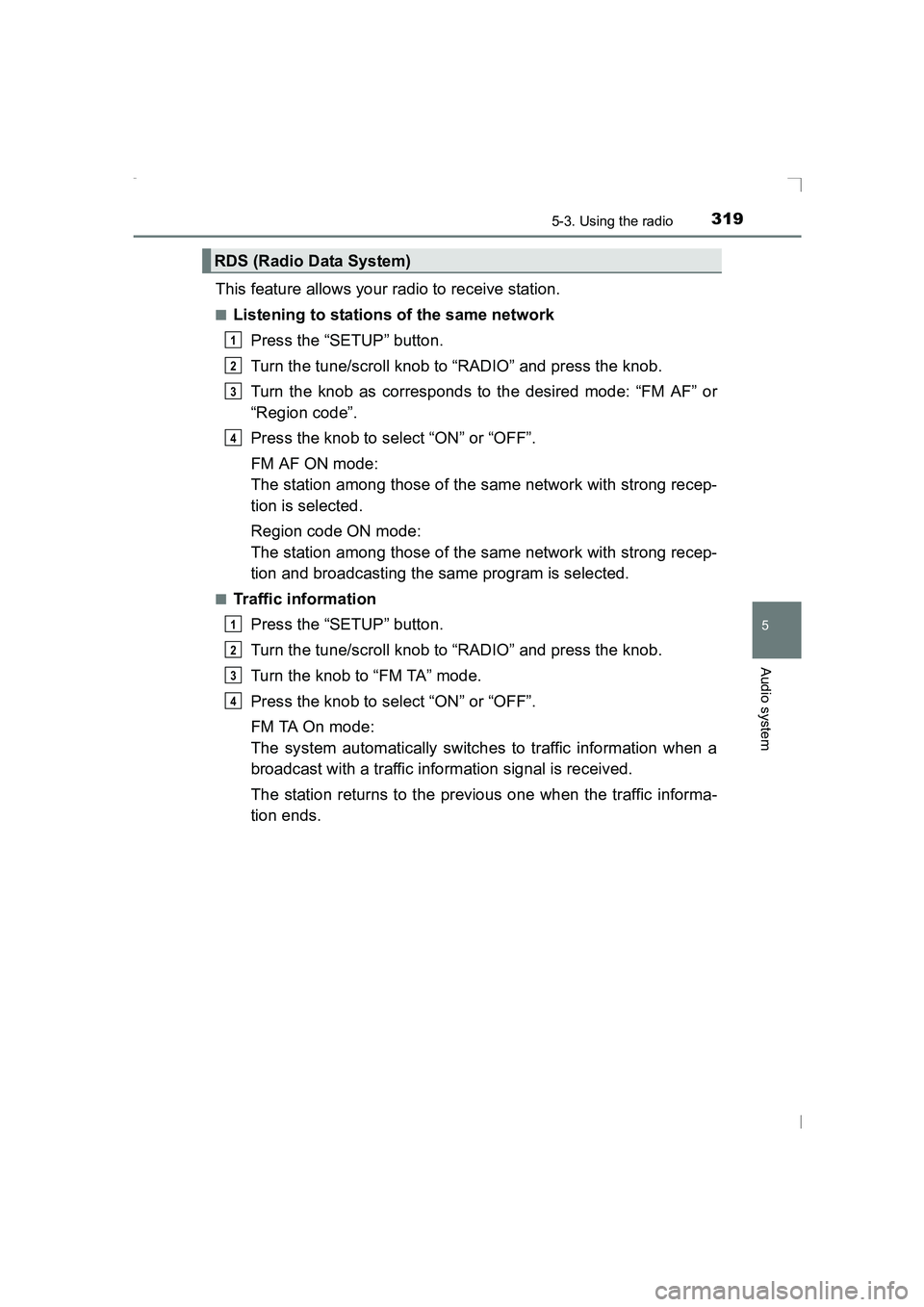

3195-3. Using the radio
5
Audio system
AVENSIS_OM_OM20C20E_(EE)
This feature allows your radio to receive station.
■Listening to stations of the same networkPress the “SETUP” button.
Turn the tune/scroll knob to “RADIO” and press the knob.
Turn the knob as corresponds to the desired mode: “FM AF” or
“Region code”.
Press the knob to select “ON” or “OFF”.
FM AF ON mode:
The station among those of the same network with strong recep-
tion is selected.
Region code ON mode:
The station among those of the same network with strong recep-
tion and broadcasting the same program is selected.
■Traffic informationPress the “SETUP” button.
Turn the tune/scroll knob to “RADIO” and press the knob.
Turn the knob to “FM TA” mode.
Press the knob to select “ON” or “OFF”.
FM TA On mode:
The system automatically switches to traffic information when a
broadcast with a traffic information signal is received.
The station returns to the previous one when the traffic informa-
tion ends.
RDS (Radio Data System)
1
2
3
4
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 319 Thursday, January 29, 2015 1:47 PM

3205-3. Using the radio
AVENSIS_OM_OM20C20E_(EE)
■EON (Enhanced Other Network) system (for traffic announcement func-
tion)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
■ When the battery is disconnected
Stations presets are erased.
■ Reception sensitivity
●Maintaining perfect radio reception at a ll times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
● Sedan: The radio antenna is mounted inside the rear window. To maintain
clear radio reception, do not attach me tallic window tinting or other metallic
objects to the antenna wire mounted inside the rear window.
● Short pole type antenna: The radio antennas are mounted inside the rear
quarter window and on the rear roof. To maintain clear radio reception, do
not attach metallic window tinting or other metallic objects to the antenna
wire mounted inside the rear quarter window. The rear roof antenna can be
removed from the base by turning.
● Shark fin type antenna: The radio antenna is mounted on the rear roof.
■ Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital
Audio Broadcast (DAB) radio.
