2015 TOYOTA AVENSIS Owners Manual

1453-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Before driving
●Make sure that the back door is fully closed. If the back door is not fully
closed, it may open unexpectedly while driving, causing an accident.
● Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■ Important points while driving
●Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects or luggage in the
luggage compartment may be thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or a collision, they are susceptible to death or
serious injury.
■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
●Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
AVENSIS_OM_OM20C20E_(EE).book Page 145 Thursday, January 29, 2015 1:47 PM

1463-2. Opening, closing and locking the doors
AVENSIS_OM_OM20C20E_(EE)
WARNING
● Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.
●The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
● When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.
AVENSIS_OM_OM20C20E_(EE).book Page 146 Thursday, January 29, 2015 1:47 PM

1473-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)NOTICE
■
Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
●Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Toyota parts to the back
door.
● Do not place your hand on the damper
stay or apply lateral forces to it.
Damper stay
AVENSIS_OM_OM20C20E_(EE).book Page 147 Thursday, January 29, 2015 1:47 PM

1483-2. Opening, closing and locking the doors
AVENSIS_OM_OM20C20E_(EE)
Smar t entr y & start system∗
●Unlocks and locks the doors ( →P. 132)
● Unlocks and locks the trunk ( →P. 139)
● Unlocks and locks the back door ( →P. 143)
● Starts and stops the engine ( →P. 212)
■Antenna location
XSedan
∗: If equipped
The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.
Antennas outside cabin
Antenna outside trunk
Antenna inside trunk
Antennas inside cabin1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 148 Thursday, January 29, 2015 1:47 PM

1493-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)

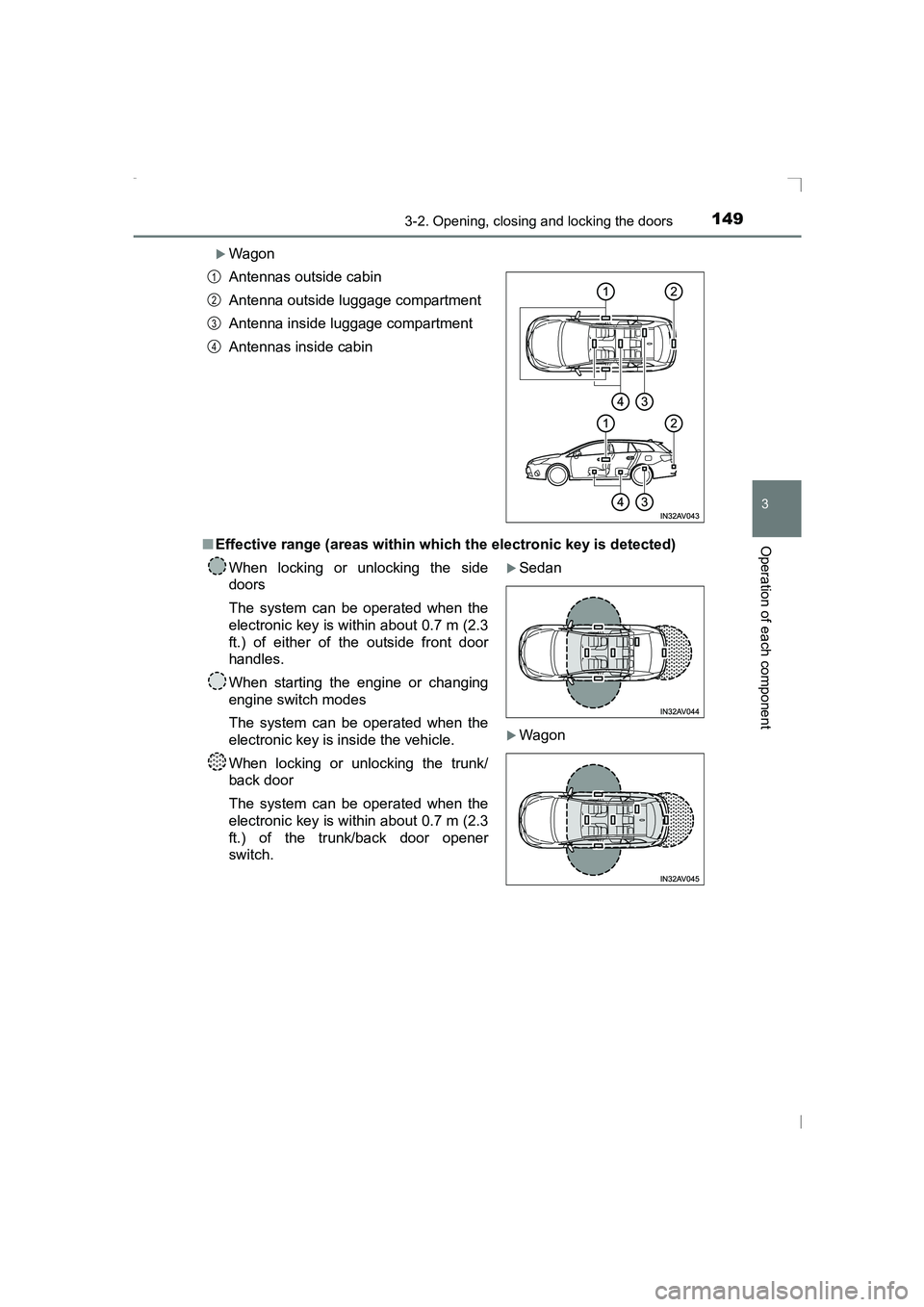

XWagon
■ Effective range (areas within whic h the electronic key is detected)
Antennas outside cabin
Antenna outside luggage compartment
Antenna inside luggage compartment
Antennas inside cabin
When locking or unlocking the side
doors
The system can be operated when the
electronic key is within about 0.7 m (2.3
ft.) of either of the outside front door
handles.
When starting the engine or changing
engine switch modes
The system can be operated when the
electronic key is inside the vehicle.
When locking or unlocking the trunk/
back door
The system can be operated when the
electronic key is within about 0.7 m (2.3
ft.) of the trunk/back door opener
switch.
XSedan
XWagon
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 149 Thursday, January 29,
2015 1:47 PM

1503-2. Opening, closing and locking the doors
AVENSIS_OM_OM20C20E_(EE)■
Alarms and warning indicators
A combination of exterior and interior alarms are used to prevent theft of the
vehicle and unforeseeable accidents re sulting from erroneous operation.
Take appropriate measures according to the warning message shown on the
multi-information display. ( →P. 527)
The following table describes circumstances and correction procedures when
only alarms are sounded.
AlarmSituationCorrection procedure
Interior alarm
pings once and
exterior alarm
sounds once for
10 seconds
Tried to lock the doors using
the entry function while the
electronic key is still inside
the passenger compart-
ment or trunk/luggage com-
partment
Retrieve the electronic
key and lock the doors
again
Tried to exit the vehicle and
lock the doors without first
turning the engine switch offTurn the engine switch
off and lock the doors
again
Exterior alarm
sounds once for 5
secondsTried to lock the vehicle
while a door, trunk or back
door is openClose all of the doors
and lock the doors
again
Interior alarm
pings continuously
The engine switch was
turned to ACCESSORY
mode while the driver’s door
was open (or the driver’s
door was opened while the
engine switch was in
ACCESSORY mode)
Turn the engine switch
off and close the
driver’s door
The engine switch was
turned off while the driver’s
door was open
Close the driver’s door
Interior alarm
sounds continu-
ously
When the engine switch is in
IGNITION ON or ACCES-
SORY mode, an attempt
was made to open the door
and exit the vehicle, and the
shift lever was not in P
Shift the shift lever to P
and turn the engine
switch off
AVENSIS_OM_OM20C20E_(EE).book Page 150 Thursday, January 29, 2015 1:47 PM

1513-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
*: If the engine does not start when the electronic key is inside the vehicle,the electronic key battery may be depleted or there may be difficulties
receiving signal from the key. ( →P. 583)
Interior and exte-
rior alarms sound
continuously
When the engine switch is in
IGNITION ON or ACCES-
SORY mode, the driver’s
door was closed after the
electronic key was carried
outside the vehicle, and the
shift lever was not in P
Shift the shift lever to P,
turn the engine switch
off and close the
driver’s door again
Interior alarm
pings once
The electronic key battery is
lowReplace the electronic
key battery
Tried to start the engine
without the electronic key
being present, or the elec-
tronic key was not function-
ing normally
Start the engine with
the electronic key
present
*
Interior alarm
pings once and
exterior alarm
sounds 3 times
The driver’s door was
closed after the electronic
key was carried outside the
vehicle, and the engine
switch was not turned off
Turn the engine switch
off and close the
driver’s door again
An occupant carried the
electronic key outside the
vehicle and closed the door
while the engine switch was
not off
Bring the electronic key
back into the vehicle
AlarmSituationCorrection procedure
AVENSIS_OM_OM20C20E_(EE).book Page 151 Thursday, January 29, 2015 1:47 PM

1523-2. Opening, closing and locking the doors
AVENSIS_OM_OM20C20E_(EE)■
Battery-saving function
In the following circumstances, the smart entry & start system is disabled in
order to prevent the vehicle and elec tronic key batteries from discharging.
● When the smart entry & start system has not been used for 5 days or more
● When the electronic key has been left within approximately 1 m (3 ft.) of the
vehicle for 10 minutes or more
The system will resume operation when...
● The vehicle is locked touching the door handle lock sensor area.
● The vehicle is locked/unlocked using the wireless remote control function.
(→ P. 133)
● The vehicle is locked/unlocked using the mechanical key. ( →P. 582)
■ Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
tions, the communication between the electronic key and the vehicle may be
affected, preventing the smart entry & start system and wireless remote con-
trol from operating proper ly. (Ways of coping: →P. 582)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When multiple electronic keys are in the vicinity
● When another wireless key (that emits radio waves) is being used nearby
● When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computer or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to the
rear window
● Sedan: If a metallic object is placed on the package tray
AVENSIS_OM_OM20C20E_(EE).book Page 152 Thursday, January 29, 2015 1:47 PM
