2015 TOYOTA AVENSIS Owners Manual

3695-9. Bluetooth® Phone
5
Audio system
AVENSIS_OM_OM20C20E_(EE)

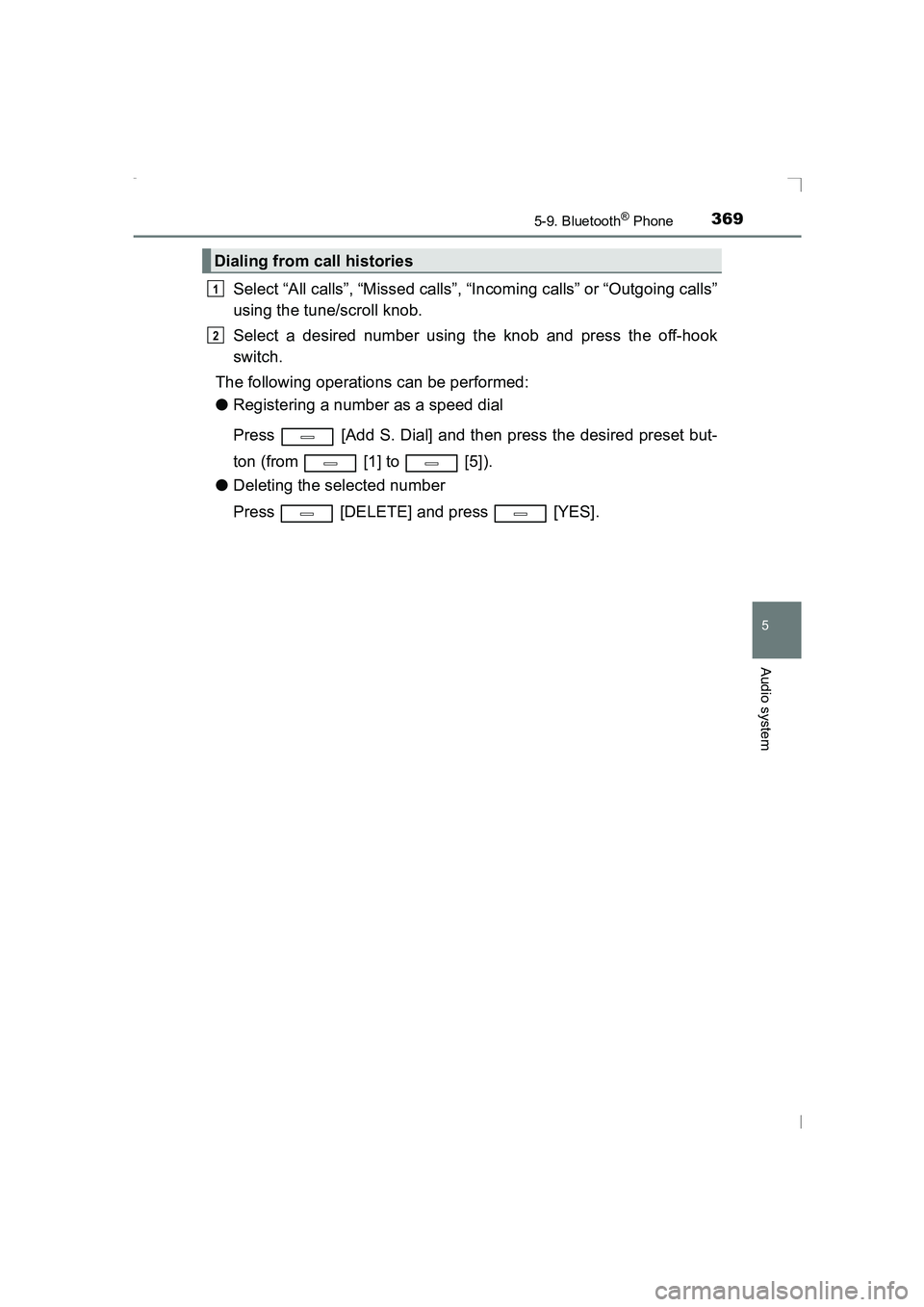

Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing calls”
using the tune/scroll knob.
Select a desired number using the knob and press the off-hook
switch.
The following operations can be performed:
● Registering a number as a speed dial
Press [Add S. Dial] and then press the desired preset but-
ton (from [1] to [5]).
● Deleting the selected number
Press [DELETE] and press [YES].
Dialing from call histories
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 369 Thursday, January 29, 2015 1:47 PM

3705-9. Bluetooth® Phone
AVENSIS_OM_OM20C20E_(EE)

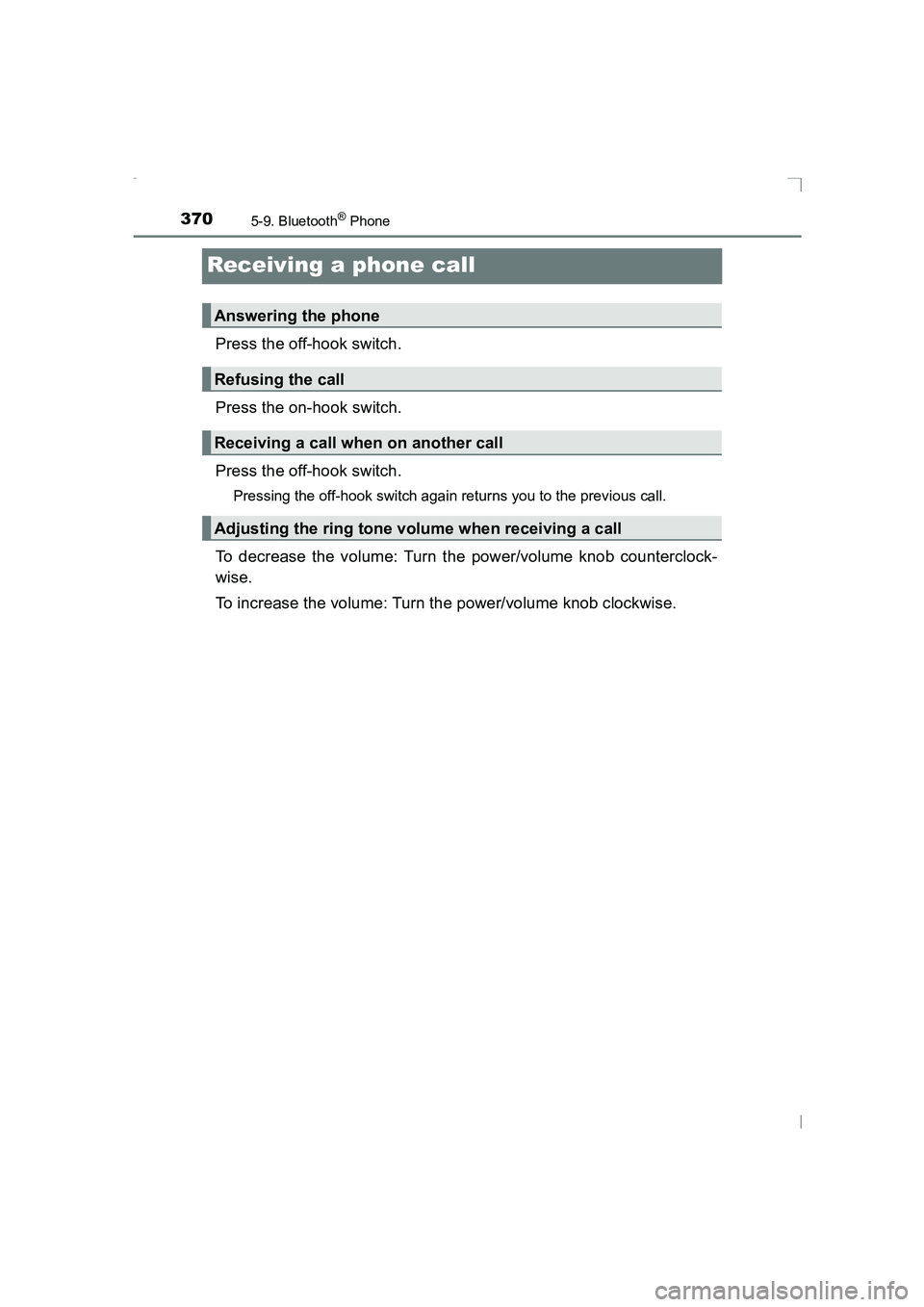

Receiving a phone call
Press the off-hook switch.
Press the on-hook switch.
Press the off-hook switch.
Pressing the off-hook switch again returns you to the previous call.
To decrease the volume: Turn the power/volume knob counterclock-
wise.
To increase the volume: Turn the power/volume knob clockwise.
Answering the phone
Refusing the call
Receiving a call when on another call
Adjusting the ring tone volume when receiving a call
AVENSIS_OM_OM20C20E_(EE).book Page 370 Thursday, January 29, 2015 1:47 PM

371
5
5-9. Bluetooth® Phone
Audio system
AVENSIS_OM_OM20C20E_(EE)
Speaking on the phone
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following
methods:a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation
of the phone.
b. Press the * [PHONE].
*: This operation can be performed only when transferring a call from the
cellular phone to the system during a call.
Press [MUTE].
Press [0-9] and using the tune/scroll knob input the desired
digits.
• To send the input digits press [SEND].
• When finished, press [EXIT] to return to the previous screen.
To decrease the volume: Turn the power/volume knob counterclock-
wise.
To increase the volume: Turn the power/volume knob clockwise.
Transferring a call
Muting your voice
Inputting digits
Setting call volume
AVENSIS_OM_OM20C20E_(EE).book Page 371 Thursday, January 29, 2015 1:47 PM

3725-9. Bluetooth® Phone
AVENSIS_OM_OM20C20E_(EE)

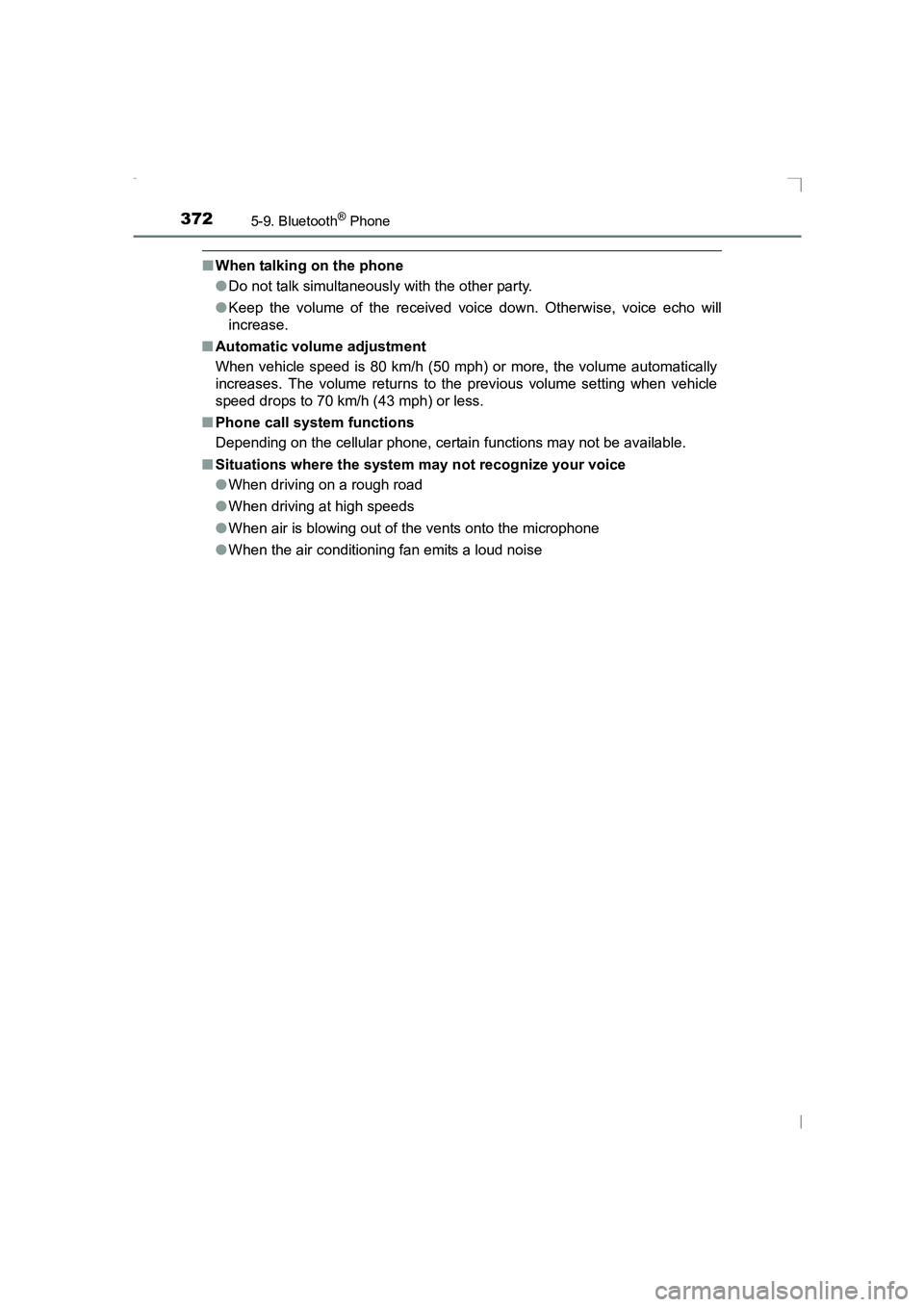

■When talking on the phone
●Do not talk simultaneously with the other party.
● Keep the volume of the received voice down. Otherwise, voice echo will
increase.
■ Automatic volume adjustment
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
■ Phone call system functions
Depending on the cellular phone, certai n functions may not be available.
■ Situations where the system may not recognize your voice
●When driving on a rough road
● When driving at high speeds
● When air is blowing out of the vents onto the microphone
● When the air conditioning fan emits a loud noise
AVENSIS_OM_OM20C20E_(EE).book Page 372 Thursday, January 29, 2015 1:47 PM

373
5
5-10. Bluetooth®
Audio system
AVENSIS_OM_OM20C20E_(EE)
Bluetooth®
■When using the Bluetooth® audio/phone
● In the following situations, the system may not function.
• The portable player does not support Bluetooth
®
• The cellular phone is located outside the service area
• The Bluetooth® device is switched off
• The Bluetooth® device has a low battery
• The Bluetooth® device is not connected to the system
• The Bluetooth® device is behind the seat or in the glove box or
console box, or metal material covers or touches the device
● There may be a delay if a cellular phone connection is made dur-
ing Bluetooth
® audio play.
● Depending on the type of portable audio player that is connected
to the system, operation may differ slightly and certain functions
may not be available.
■When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being
improperly accessed. ( →P. 360)
AVENSIS_OM_OM20C20E_(EE).book Page 373 Thursday, January 29, 2015 1:47 PM

3745-10. Bluetooth®
AVENSIS_OM_OM20C20E_(EE)■
About Bluetooth®
Bluetooth is a registered trade-
mark of Bluetooth SIG, Inc.
■Compatible models
●
Bluetooth
® specifications:
Ver. 1.1, or higher (recommended: Ver. 2.1 + EDR or higher)
● Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (recommended: Ver. 1.2 or higher)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (recommended: Ver. 1.3 or higher)
Portable players must correspond to the above specifications in
order to be connected to the Bluetooth
® audio system. However,
please note that some functions may be limited depending on the
type of portable player.
● Cellular phone
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.5)
• OPP (Object Push Profile) Ver. 1.1
• PBAP (Phone Book Access Profile) Ver. 1.0
AVENSIS_OM_OM20C20E_(EE).book Page 374 Thursday, January 29, 2015 1:47 PM

3755-10. Bluetooth®
5
Audio system
AVENSIS_OM_OM20C20E_(EE)■

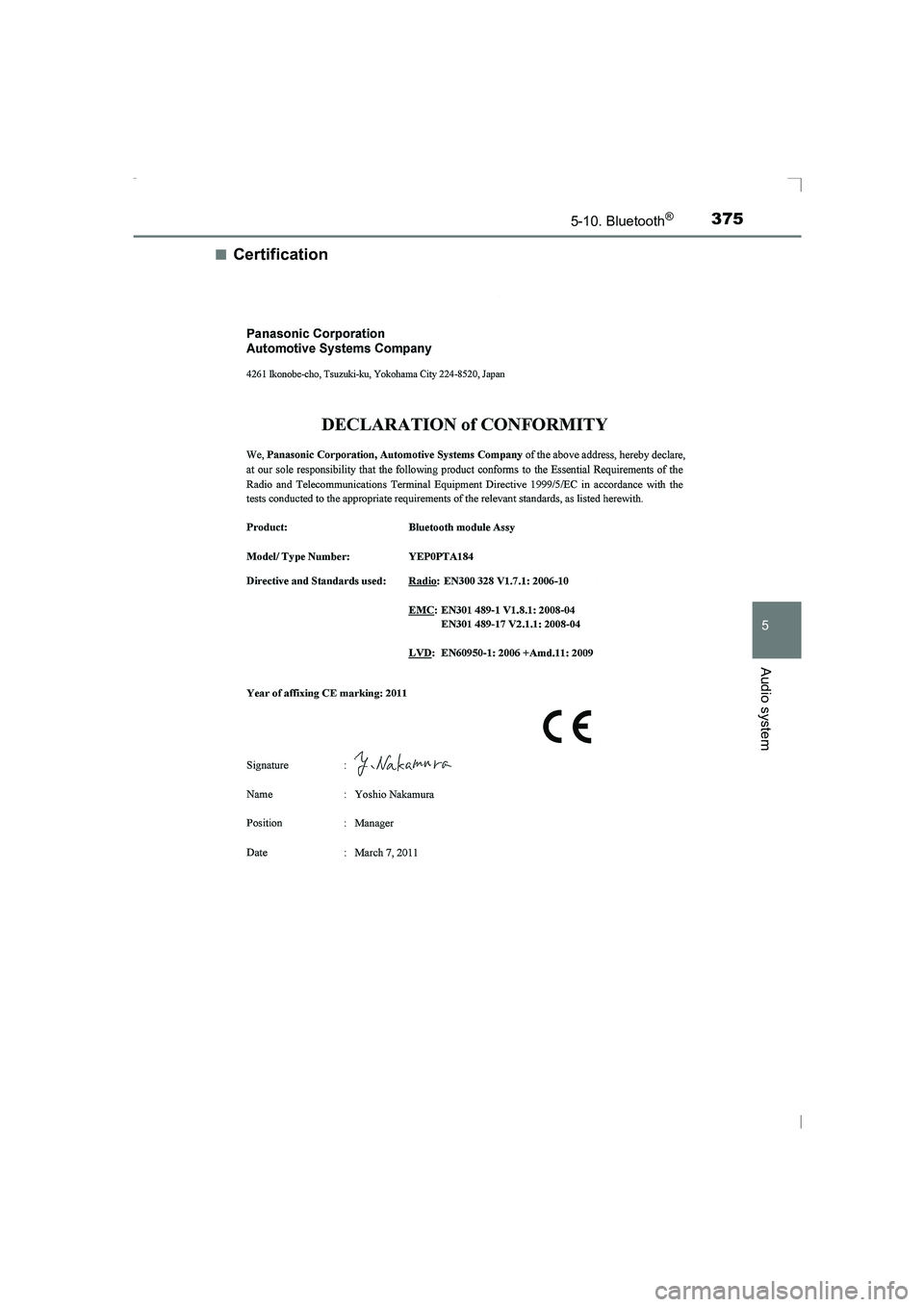

Certification
AVENSIS_OM_OM20C20E_(EE).book Page 375 Thursday, January 29,
2015 1:47 PM

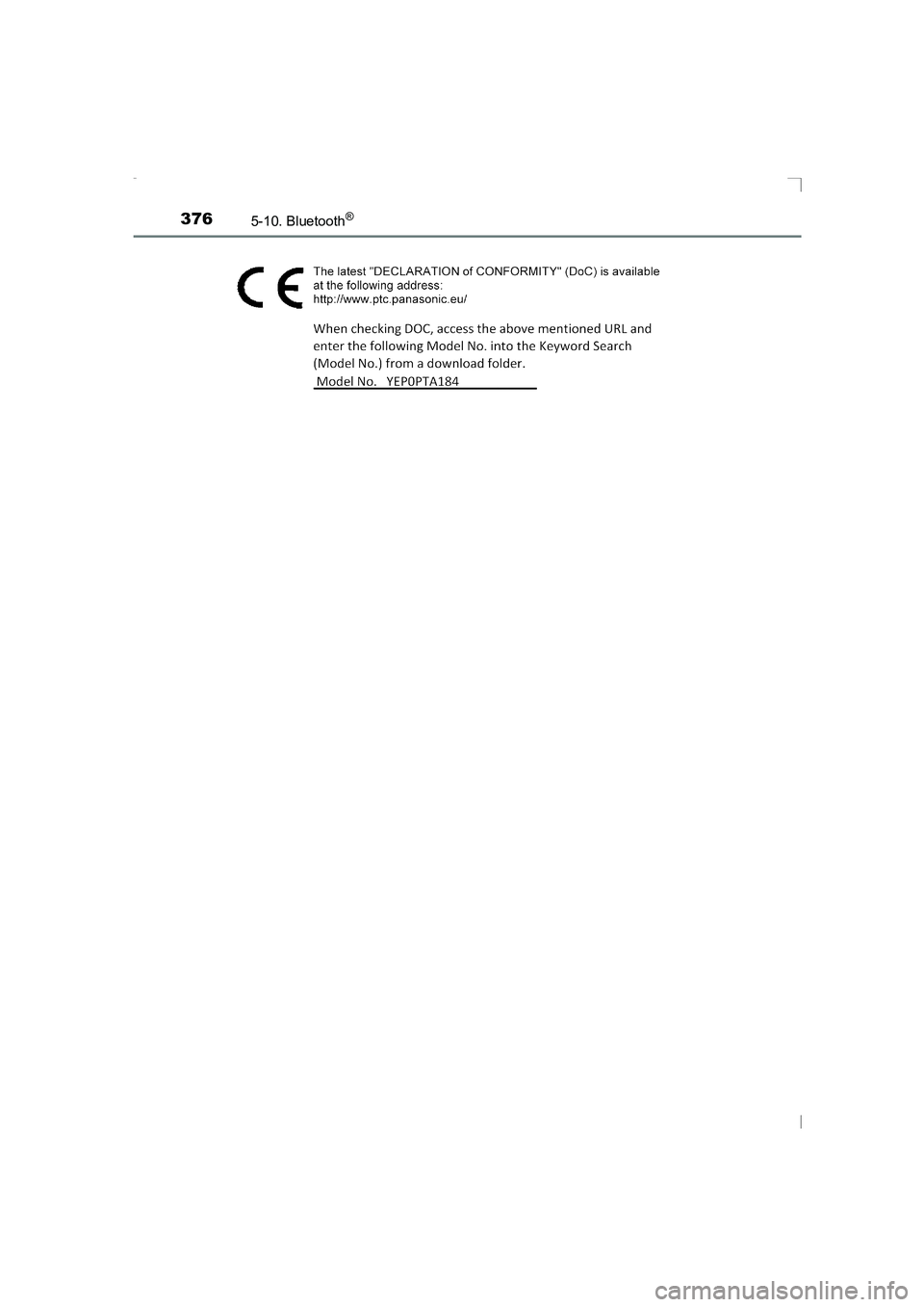

3765-10. Bluetooth®
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 376 Thursday, January 29, 2015 1:47 PM
