2015 TOYOTA AVENSIS air filter

5
1
8 6 5
4
3
2
AVENSIS_OM_OM20C20E_(EE)
9
7

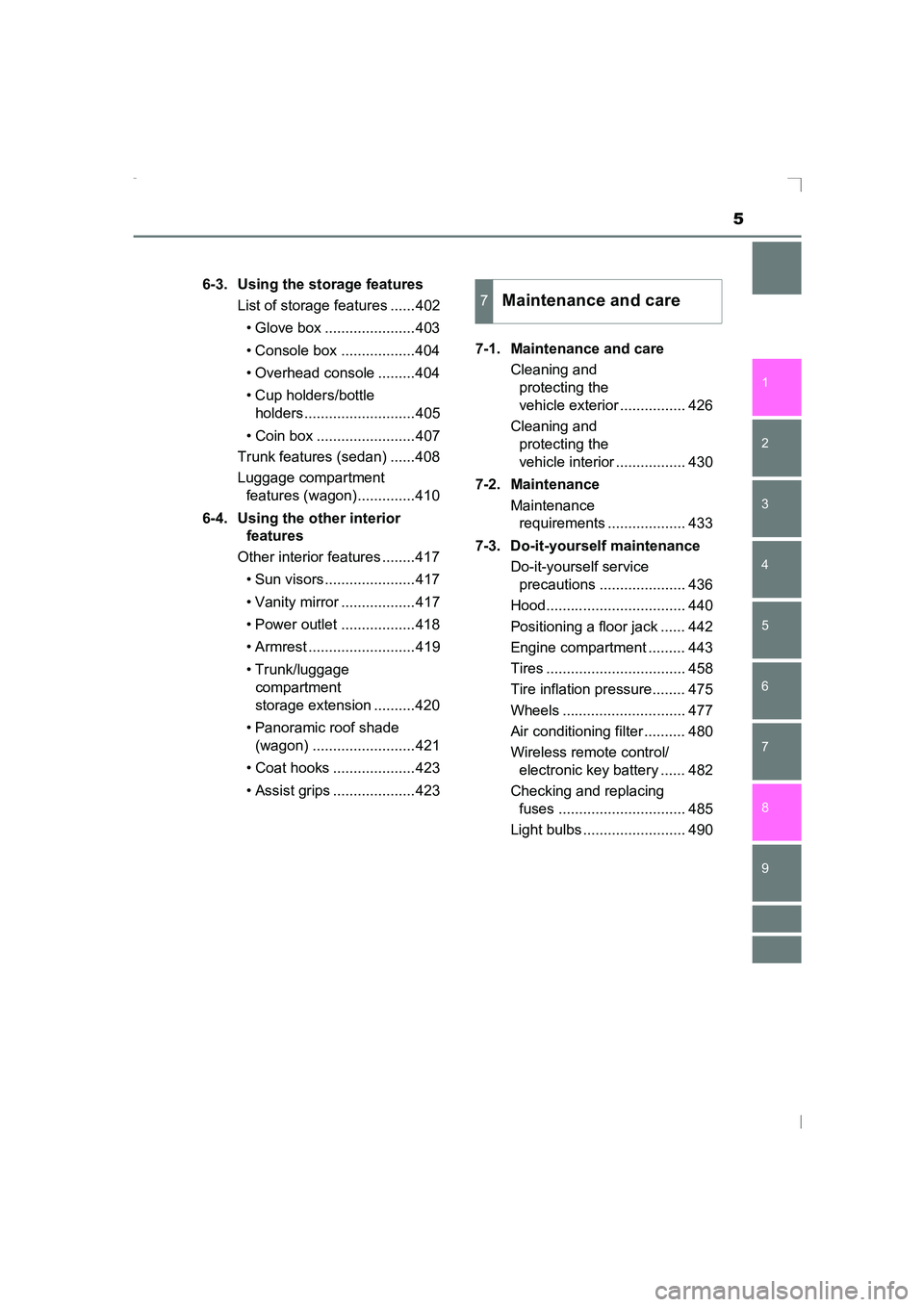

6-3. Using the storage featuresList of storage features ......402
• Glove box ......................403
• Console box ..................404
• Overhead console .........404
• Cup holders/bottle holders ...........................405
• Coin box ........................407
Trunk features (sedan) ......408
Luggage compartment features (wagon)..............410
6-4. Using the other interior features
Other interior features ........417
• Sun visors ......................417
• Vanity mirror ..................417
• Power outlet ..................418
• Armrest ..........................419
• Trunk/luggage compartment
storage extension ..........420
• Panoramic roof shade (wagon) .........................421
• Coat hooks ....................423
• Assist grips ....................423 7-1. Maintenance and care
Cleaning and protecting the
vehicle exterior ................ 426
Cleaning and protecting the
vehicle interior ................. 430
7-2. Maintenance Maintenance requirements ................... 433
7-3. Do-it-yourself maintenance Do-it-yourself service precautions ..................... 436
Hood.................................. 440
Positioning a floor jack ...... 442
Engine compartment ......... 443
Tires .................................. 458
Tire inflation pressure........ 475
Wheels .............................. 477
Air conditioning filter .......... 480
Wireless remote control/ electronic key battery ...... 482
Checking and replacing fuses ............................... 485
Light bulbs ......................... 490
7Maintenance and care
AVENSIS_OM_OM20C20E_(EE).book Page 5 Thursday, January 29, 20 15 1:47 PM

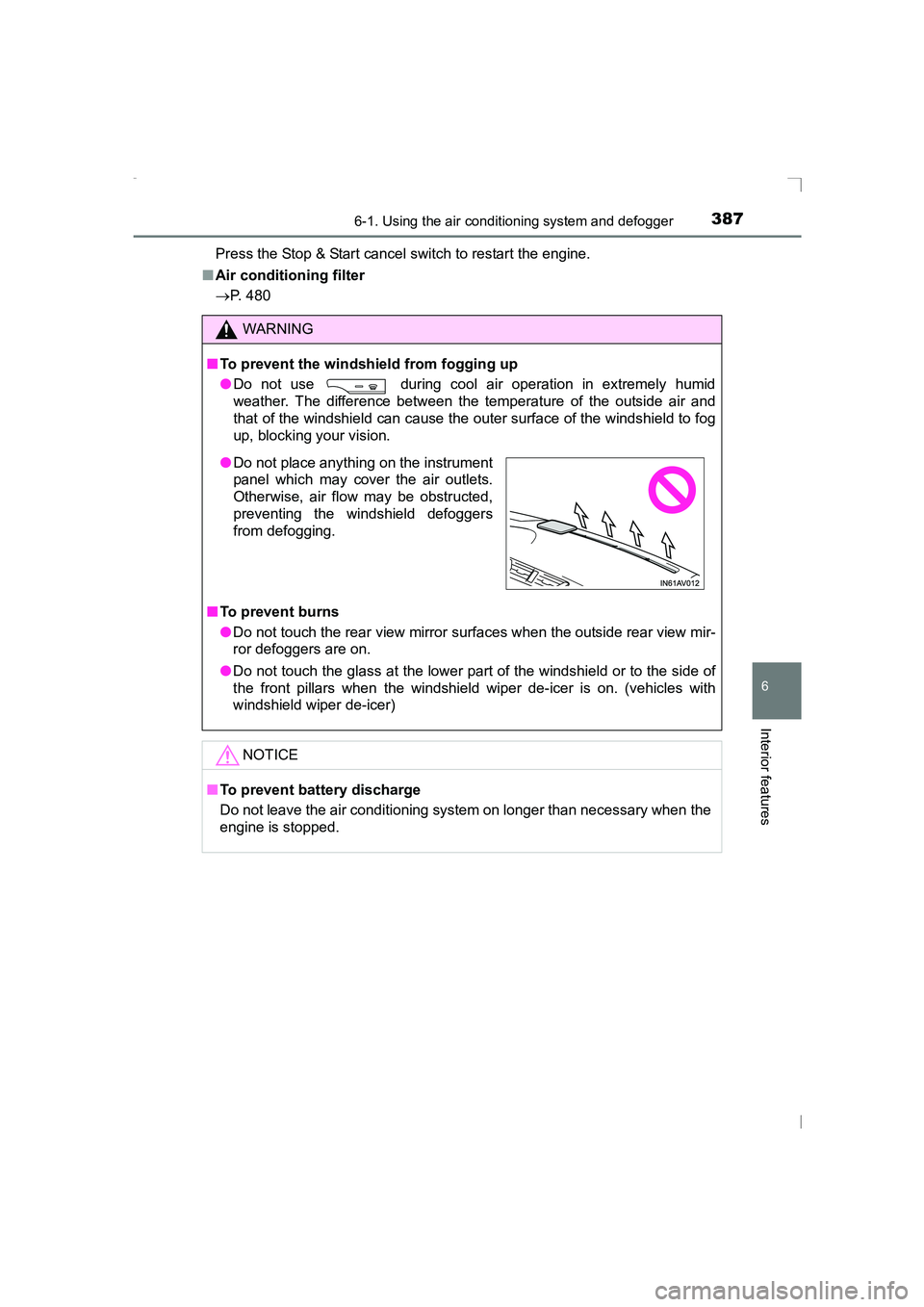

3876-1. Using the air conditioning system and defogger
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
Press the Stop & Start cancel switch to restart the engine.
■ Air conditioning filter
→ P. 480
WARNING
■ To prevent the windshield from fogging up
●Do not use
during cool air operation in extremely humid
weather. The difference between the temperature of the outside air and
that of the windshield can cause the outer surface of the windshield to fog
up, blocking your vision.
■ To prevent burns
●Do not touch the rear view mirror surfaces when the outside rear view mir-
ror defoggers are on.
● Do not touch the glass at the lower part of the windshield or to the side of
the front pillars when the windshield wiper de-icer is on. (vehicles with
windshield wiper de-icer)
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning syst em on longer than necessary when the
engine is stopped.
● Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.
AVENSIS_OM_OM20C20E_(EE).book Page 387 Thursday, January 29, 2015 1:47 PM

3946-1. Using the air conditioning system and defogger
AVENSIS_OM_OM20C20E_(EE)■
When an odor comes from the air conditioning system while the engine
is stopped due to the Stop & Start system (vehicles with Stop & Start
system)
Press the Stop & Start cancel switch to restart the engine.
■ Air conditioning filter
→ P. 480
WARNING
■ To prevent the windshield from fogging up
●Do not use during cool air operation in extremely humid
weather. The difference between the temperature of the outside air and
that of the windshield can cause the outer surface of the windshield to fog
up, blocking your vision.
■ To prevent burns
●Do not touch the rear view mirror surfaces when the outside rear view mir-
ror defoggers are on.
● Do not touch the glass at the lower part of the windshield or to the side of
the front pillars when the windshield wiper de-icer is on. (vehicles with
windshield wiper de-icer)
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning syst em on longer than necessary when the
engine is stopped.
● Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.
AVENSIS_OM_OM20C20E_(EE).book Page 394 Thursday, January 29, 2015 1:47 PM

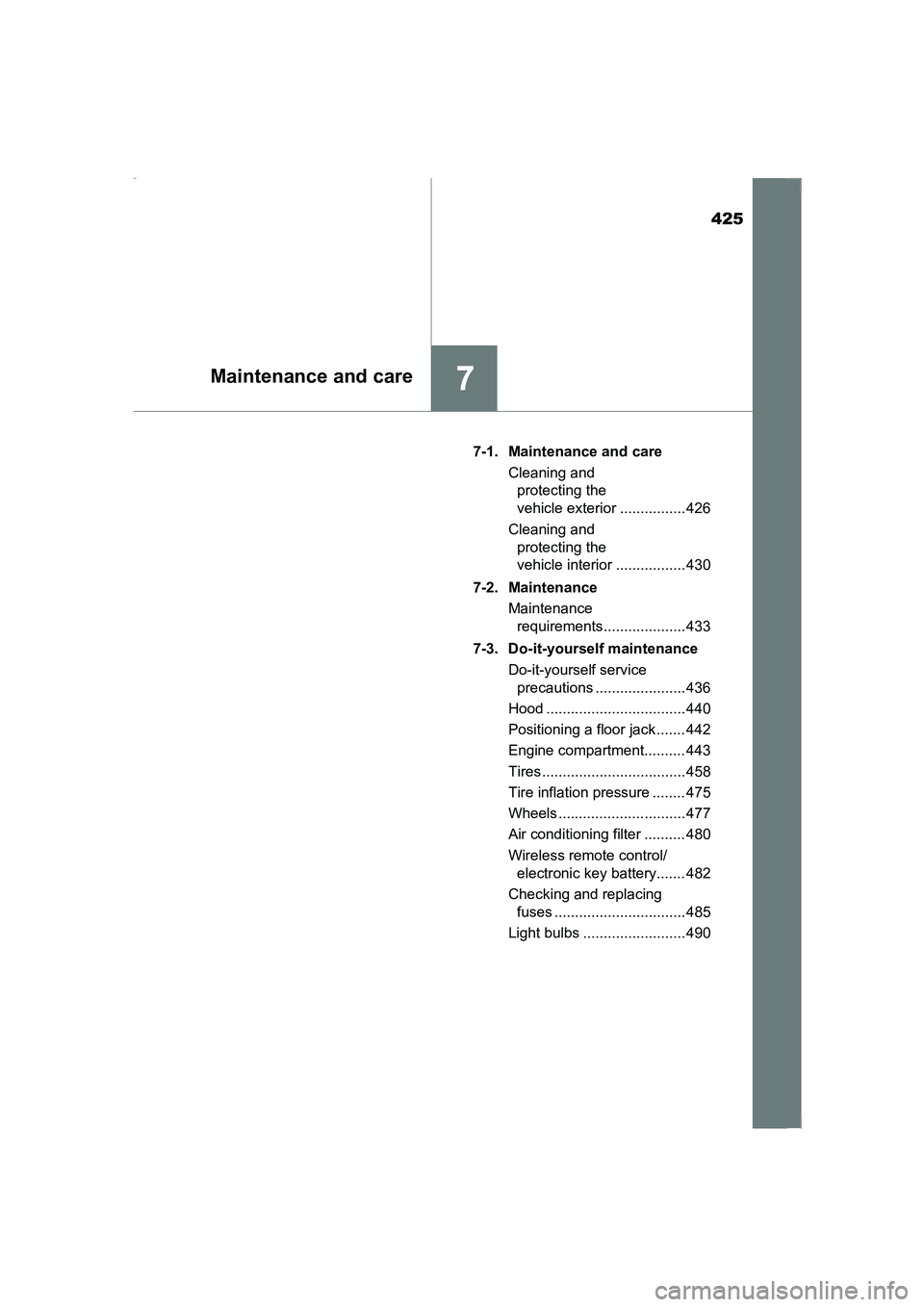

425
7Maintenance and care
AVENSIS_OM_OM20C20E_(EE)7-1. Maintenance and care
Cleaning and protecting the
vehicle exterior ................ 426
Cleaning and protecting the
vehicle interior ................. 430
7-2. Maintenance Maintenance requirements.................... 433
7-3. Do-it-yourself maintenance Do-it-yourself service precautions ...................... 436
Hood .................................. 440
Positioning a floor jack ....... 442
Engine compartment.......... 443
Tires ................................... 458
Tire inflation pressure ........ 475
Wheels ............................... 477
Air conditioning filter .......... 480
Wireless remote control/ electronic key battery....... 482
Checking and replacing fuses ................................ 485
Light bulbs ......................... 490
AVENSIS_OM_OM20C20E_(EE).book Page 425 Thursday, January 29, 2015 1:47 PM

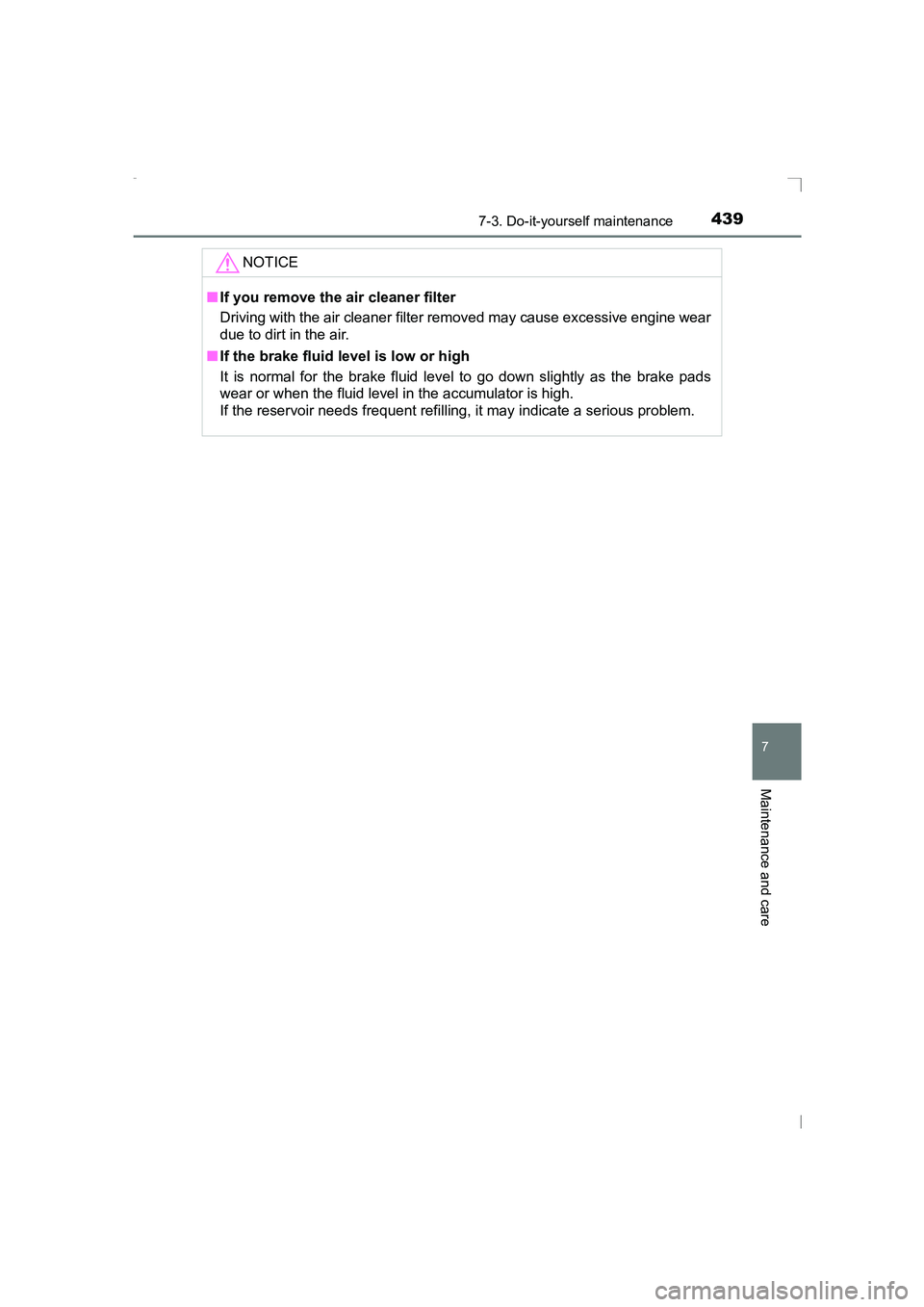

4397-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
■ If the brake fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
AVENSIS_OM_OM20C20E_(EE).book Page 439 Thursday, January 29, 2015 1:47 PM

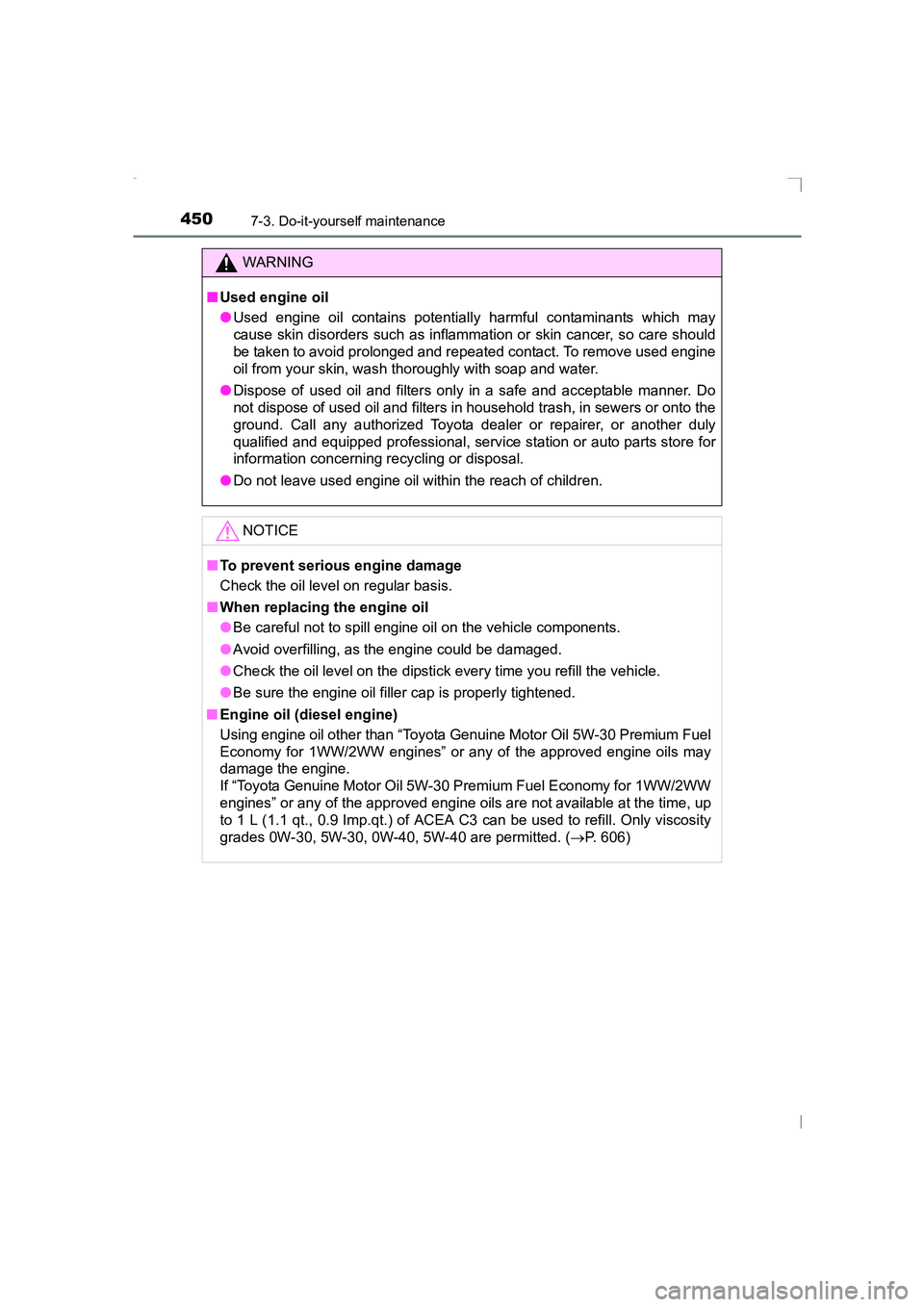

4507-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ Used engine oil
●Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota deal er or repairer, or another duly
qualified and equipped professional, service station or auto parts store for
information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■ To prevent serious engine damage
Check the oil level on regular basis.
■ When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, as the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.
■ Engine oil (diesel engine)
Using engine oil other than “Toyota G enuine Motor Oil 5W-30 Premium Fuel
Economy for 1WW/2WW engines” or any of the approved engine oils may
damage the engine.
If “Toyota Genuine Motor Oil 5W-30 Premium Fuel Economy for 1WW/2WW
engines” or any of the approved engine oils are not available at the time, up
to 1 L (1.1 qt., 0.9 Imp.qt.) of ACEA C3 can be used to refill. Only viscosity
grades 0W-30, 5W-30, 0W- 40, 5W-40 are permitted. (→P. 606)
AVENSIS_OM_OM20C20E_(EE).book Page 450 Thursday, January 29, 2015 1:47 PM

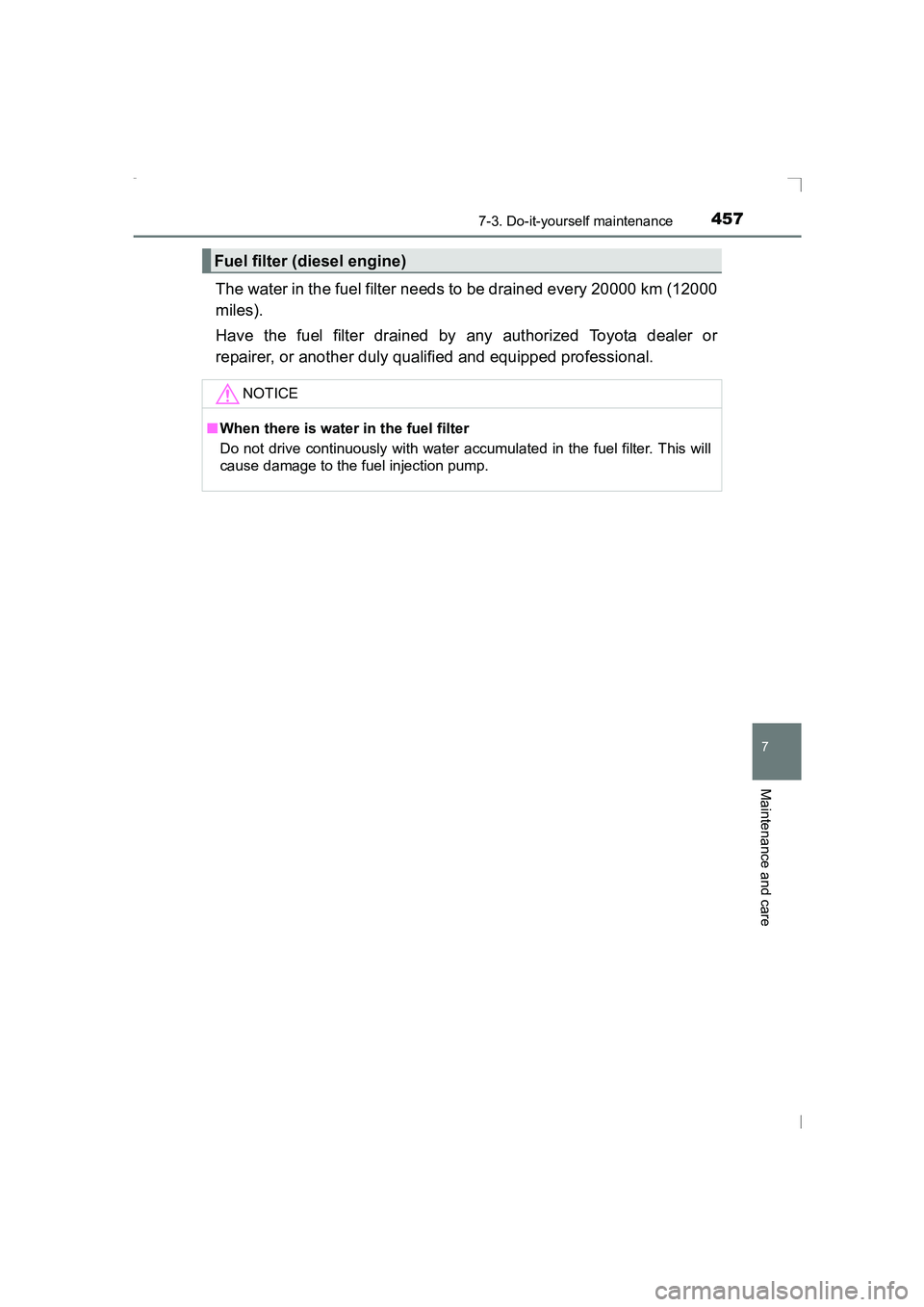

4577-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
The water in the fuel filter needs to be drained every 20000 km (12000
miles).
Have the fuel filter drained by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Fuel filter (diesel engine)
NOTICE
■When there is water in the fuel filter
Do not drive continuously with water accumulated in the fuel filter. This will
cause damage to the fuel injection pump.
AVENSIS_OM_OM20C20E_(EE).book Page 457 Thursday, January 29, 2015 1:47 PM

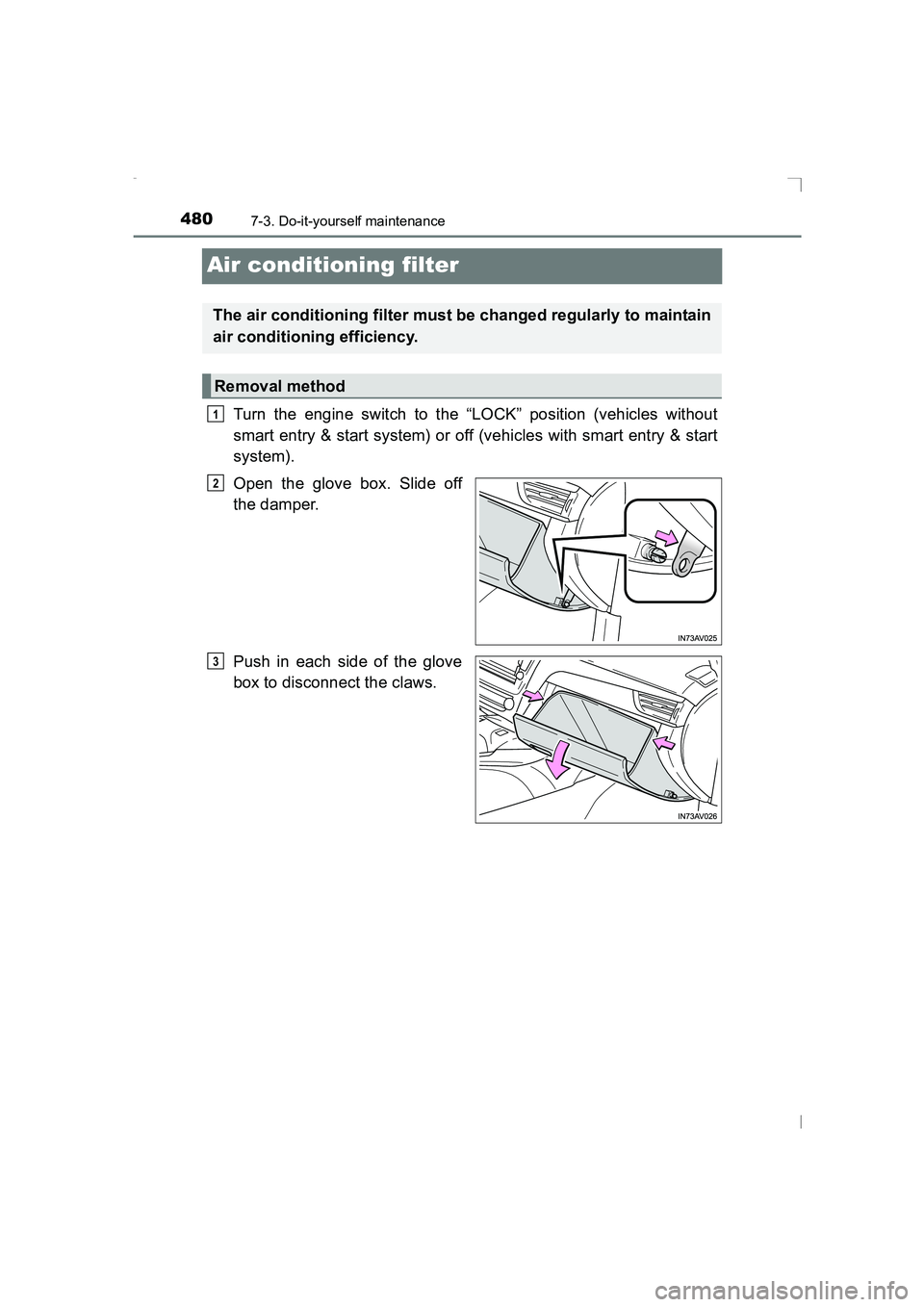

4807-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
Air conditioning filter
Turn the engine switch to the “LOCK” position (vehicles without
smart entry & start system) or off (vehicles with smart entry & start
system).
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 480 Thursday, January 29, 2015 1:47 PM
