25Pictorial index
AVENSIS_OM_OM20C20E_(EE)Paddle shift switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . P. 108, 112
LDA (Lane Departure Alert) switch
*1. . . . . . . . . . . . . . . . . . P. 263
Speed limiter switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 283
Cruise control switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
Telephone switches
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Talk switch
*1, 2
Audio remote control switches*1, 2. . . . . . . . . . . . . . . . . . . P. 311
Front seat heater switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 397
“SPORT” switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
1
2
3
4
5
6
7
8
*1: If equipped
*2: For vehicles with navigation system or a multimedia system, refer to “Navigation and multimedia system Owner’s manual”.
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 25 Thursday, January 29, 2 015 1:47 PM

26Pictorial index
AVENSIS_OM_OM20C20E_(EE)
■Interior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 39
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 404
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4231
2
3
4
5
6
7
8
9
10
11
AVENSIS_OM_OM20C20E_(EE).book Page 26 Thursday, January 29, 2015 1:47 PM

27Pictorial index
AVENSIS_OM_OM20C20E_(EE)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 176
Sun visors
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417
Personal/interior lights
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Panoramic roof shade switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 421
Intrusion sensor cancel switch
*1 . . . . . . . . . . . . . . . . . . . . . P. 92
Overhead console
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 404
*3: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6
*1: If equipped
*2: NEVER use a rearward facing child restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. ( →P. 6 2 )
AVENSIS_OM_OM20C20E_(EE).book Page 27 Thursday, January 29, 2 015 1:47 PM

28Pictorial index
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 28 Thursday, January 29, 2015 1:47 PM

29
1For safety and security
AVENSIS_OM_OM20C20E_(EE)1-1. For safe use
Before driving....................... 30
For safety drive .................... 32
Seat belts ............................. 34
SRS airbags.........................39
Exhaust gas precautions ..... 51
1-2. Child safety Airbag manual on-off system ............................... 52
Safety information for children .............................. 54
Child restraint systems ........ 55
1-3. Theft deterrent system Engine immobilizer system ............................... 78
Double locking system ......... 87
Alarm ................................... 89
AVENSIS_OM_OM20C20E_(EE).book Page 29 Thursday, January 29, 2 015 1:47 PM

301-1. For safe use
AVENSIS_OM_OM20C20E_(EE)

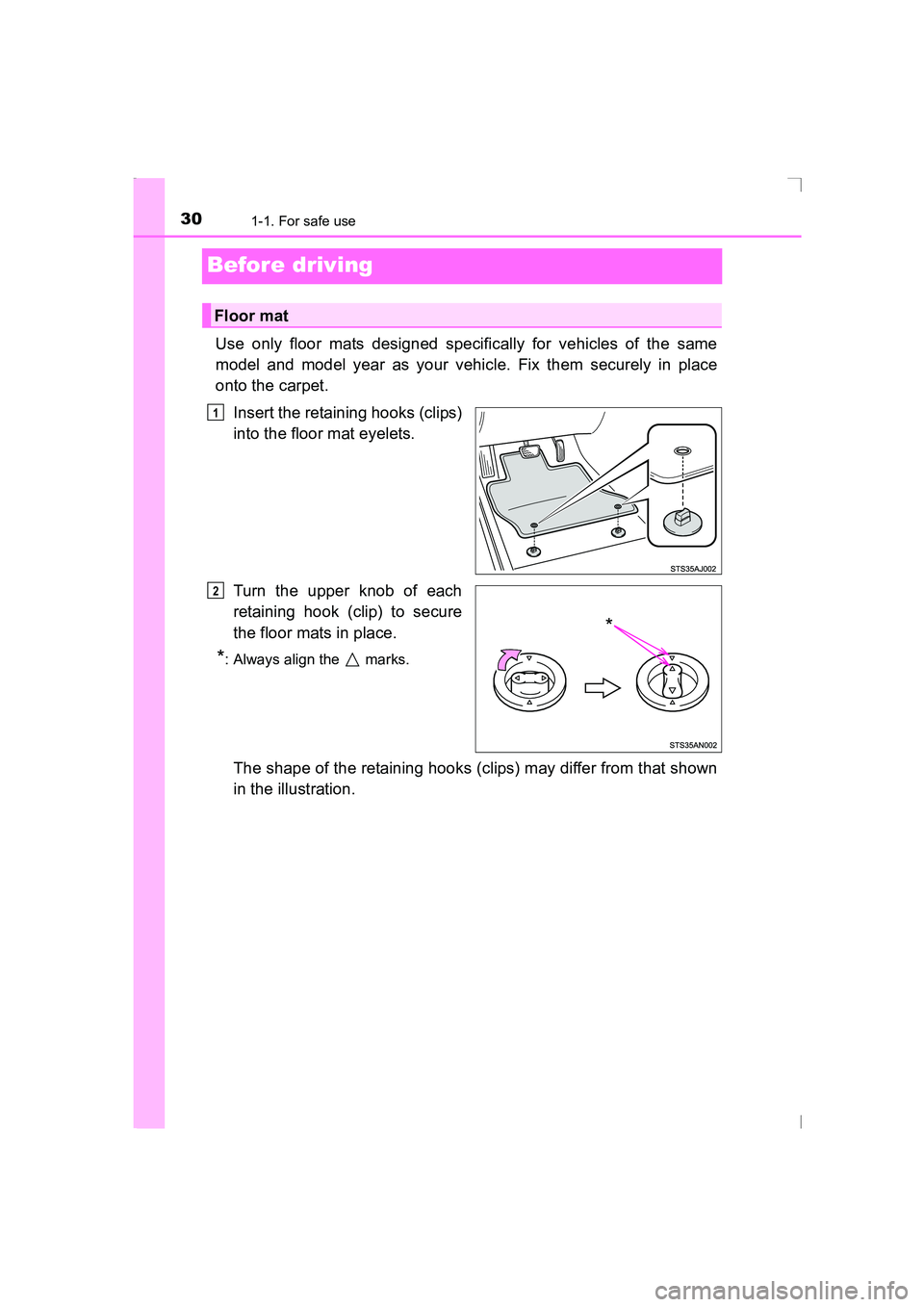

Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet. Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown
in the illustration.
Floor mat
1
*
2
AVENSIS_OM_OM20C20E_(EE).book Page 30 Thursday, January 29, 2 015 1:47 PM

311-1. For safe use
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P (Multidrive) or N (manual
transmission), fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.
AVENSIS_OM_OM20C20E_(EE).book Page 31 Thursday, January 29, 2 015 1:47 PM

321-1. For safe use
AVENSIS_OM_OM20C20E_(EE)
For safety drive
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (→P. 166)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( →P. 166)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( →P. 172)
Wear the seat belt correctly. ( →P. 3 4 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( →P. 3 4 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( → P. 5 5 )
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. ( →P. 176, 179)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4
