2015 TOYOTA AVENSIS Owners Manual

89
1
1-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
For safety and security
Alar m∗
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
being set:
●A locked door or trunk/back door is unlocked or opened in any way
other than using the entry function (vehicles with smart entry & start
system) or wireless remote control. (The doors will lock again auto-
matically.)
● The hood is opened.
● If equipped, the intrusion sensor detects something moving inside
the vehicle. (An intruder gets in the vehicle.)
Close the doors, trunk/back door
and hood, and lock all the doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to deactivate or stop the alarm.
● Unlock the doors or trunk/back door using the entry function (vehi-
cles with smart entry & start system) or wireless remote control.
● Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
∗: If equipped
The alarm
Setting the alarm system
Deactivating or stopping the alarm
AVENSIS_OM_OM20C20E_(EE).book Page 89 Thursday, January 29, 2 015 1:47 PM

901-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
●The door is unlocked using the key.
● A person inside the vehicle opens a door
or hood.
● The battery is recharged or replaced
when the vehicle is locked.
AVENSIS_OM_OM20C20E_(EE).book Page 90 Thursday, January 29, 2 015 1:47 PM

911-3. Theft deterrent system
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
■When the battery is disconnected
Be sure to cancel the alarm system.
If the battery is disconnected before canceling the alarm, the system may be
triggered when the battery is reconnected.
■ Alarm-operated door lock
●When the alarm is operating, the doors are locked automatically to prevent
intruders.
● Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing the
battery.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
AVENSIS_OM_OM20C20E_(EE).book Page 91 Thursday, January 29, 2 015 1:47 PM

921-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
The intrusion sensor detects intruders or movement in the vehicle.
When an intruder or movement is detected, the alarm will be trig-
gered.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm is set.
(→ P. 8 9 )
■Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to disable the intrusion sensor before setting the alarm,
as it will respond to movement inside the vehicle.
Turn the engine switch to the lock position (vehicles without
smart entry & start system) or off (vehicles with smart entry &
start system).
Press the intrusion sensor
cancel switch.
Pressing the switch again will
re-enable the intrusion sensor.
■Canceling and automatic re-enabling of the intrusion sensor
●The alarm will still be set even when the intrusion sensor is canceled.
● Vehicles without smart entry & start system: After the intrusion sensor is
canceled, turn the engine switch to the “LOCK” position or unlocking the
doors using the wireless remote control will re-enable the intrusion sensor.
Vehicles with smart entry & start system: After the intrusion sensor is can-
celed, pressing the engine switch or unlocking the doors using the entry
function or wireless remote control will re-enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
Intrusion sensor (if equipped)
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 92 Thursday, January 29, 2 015 1:47 PM

931-3. Theft deterrent system
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
■Intrusion sensor detection considerations
The sensor may trigger the alar m in the following situations:
● Unstable items, such as dangling accessories or clothes hanging on the
coat hooks, are in the vehicle.
● A window is open.
● The vehicle is inside an automatic or high-pressure car washer.
● The vehicle experiences impacts, such as hail, lightning strikes, or other
kinds of repeated impacts or vibrations.
●
Persons or pets are in the vehicle.
● The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.
● Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.
● The wind or something similar causes a
frost cover to move.
AVENSIS_OM_OM20C20E_(EE).book Page 93 Thursday, January 29, 2 015 1:47 PM

941-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)■

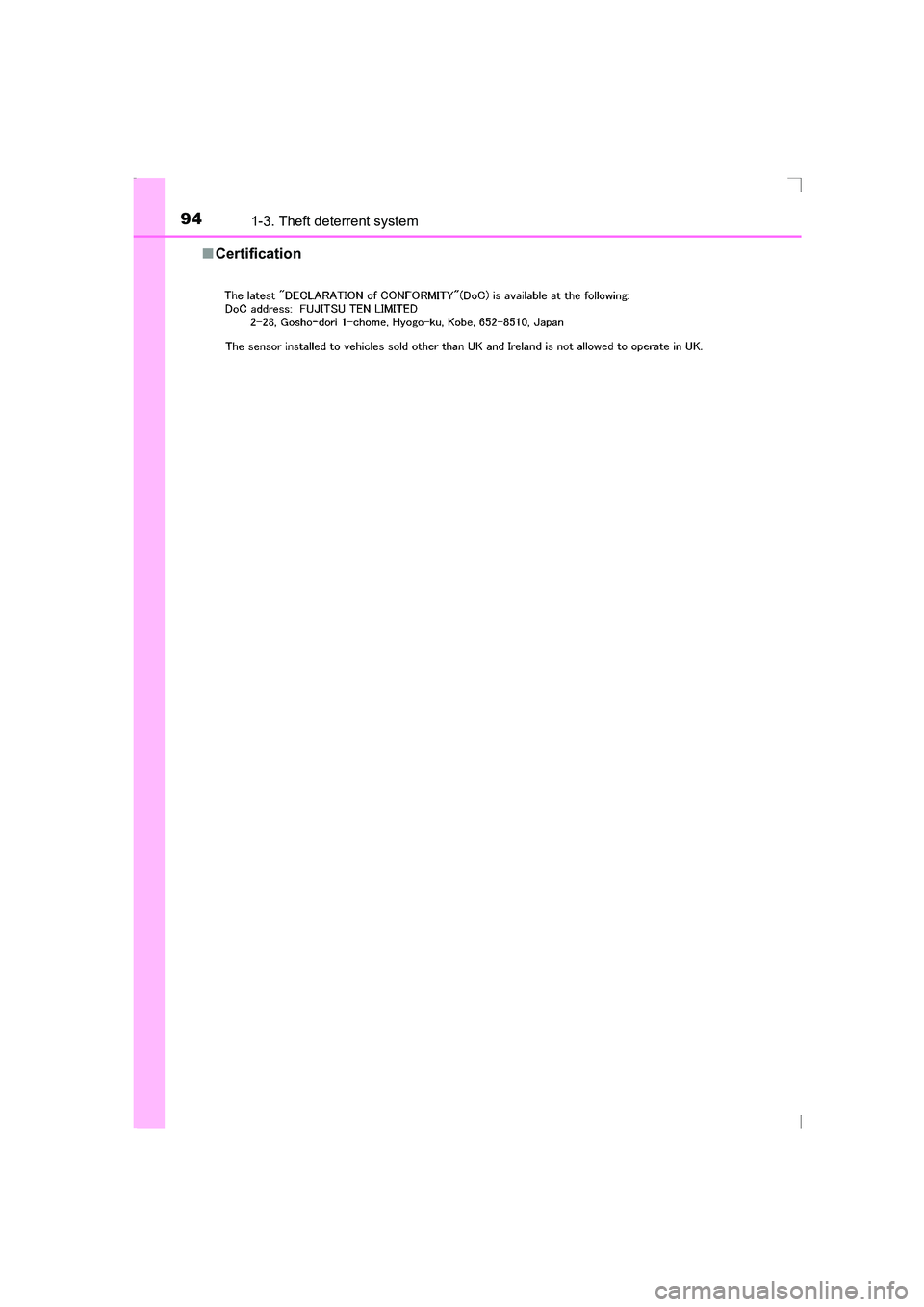

Certification
AVENSIS_OM_OM20C20E_(EE).book Page 94 Thursday, January 29, 2 015 1:47 PM

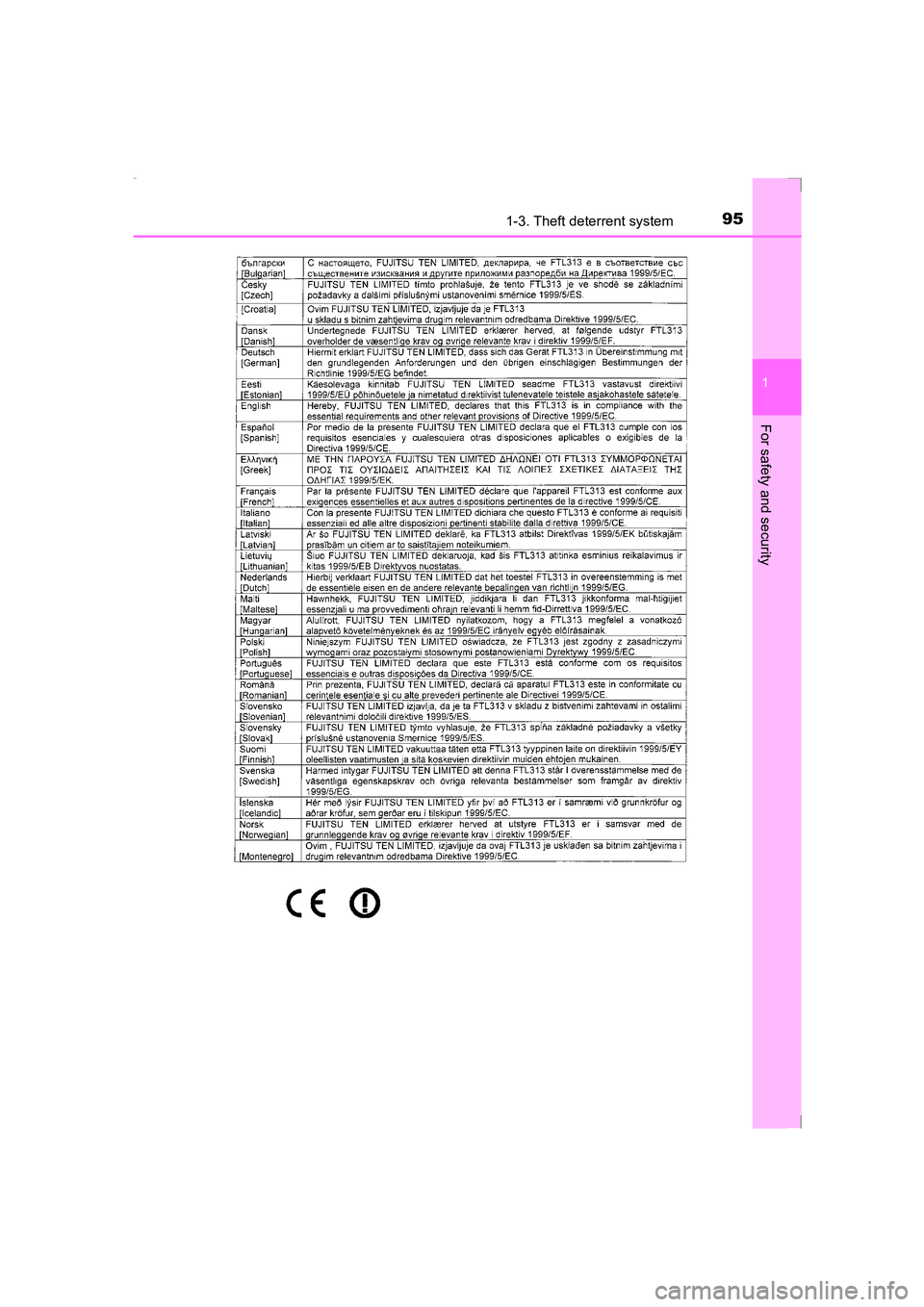

951-3. Theft deterrent system
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
AVENSIS_OM_OM20C20E_(EE).book Page 95 Thursday, January 29, 2015 1:47 PM

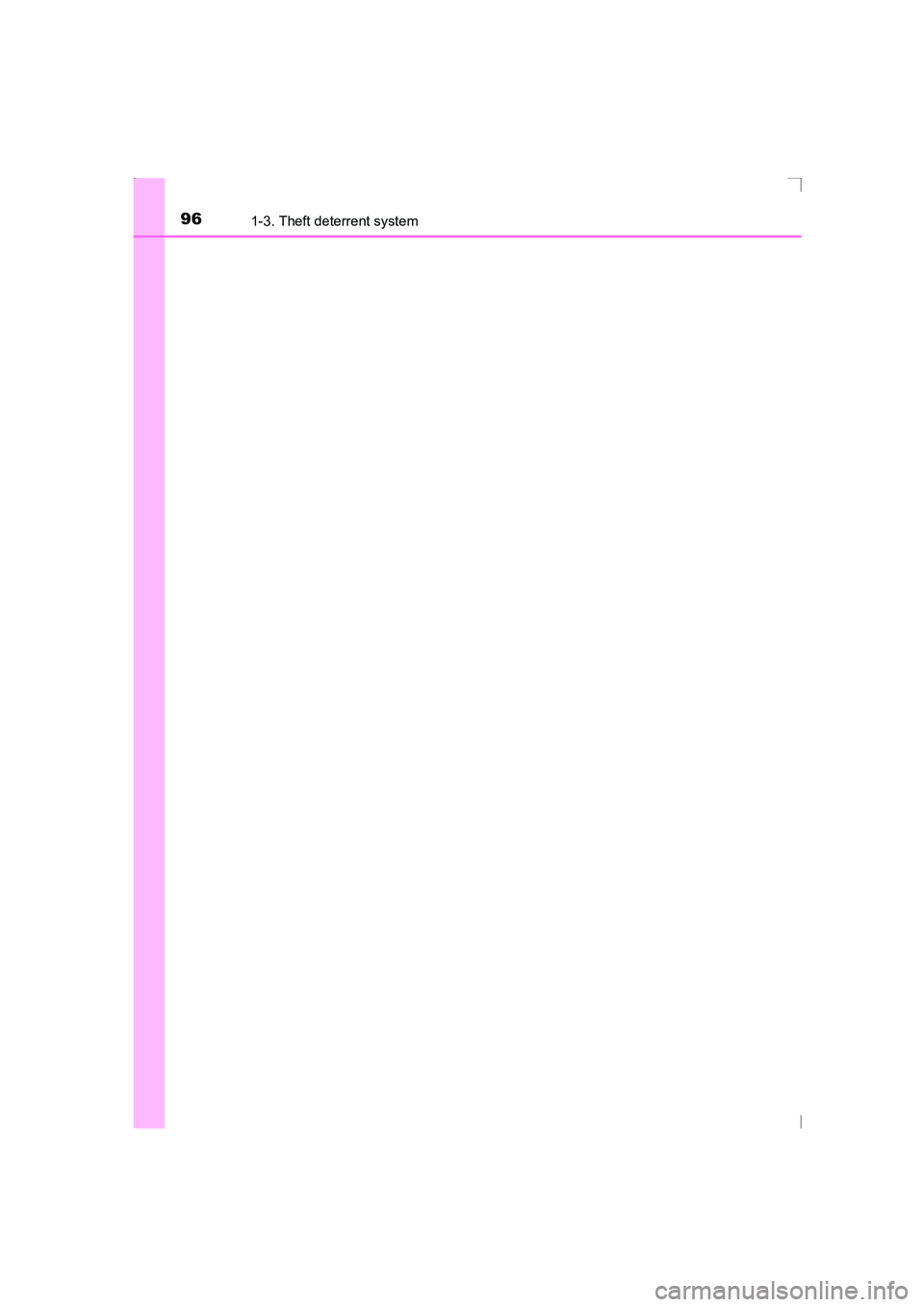

961-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 96 Thursday, January 29, 2015 1:47 PM
