2015 TOYOTA AVENSIS Owners Manual

6259-2. Customization
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
■Smart entry & start system (→P. 148)
■Wireless remote control ( →P. 121)
*: Vehicles with smart entry & start system
■
Door lock ( →P. 136)
*: Vehicles with Multidrive
FunctionDefault
settingCustomized setting
Smart entry & start system ON OFF O - O
123
FunctionDefault
settingCustomized setting
Wireless remote control ON OFF - - O
Operation signal (Emergency
flashers) ON OFF O - O
Open door reminder buzzer
(when locking the vehicle)
*ON OFF - - O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being unlocked 30 seconds60 seconds O - O
120 seconds O - O
123
FunctionDefault settingCustomized setting
Speed-detecting automatic
door lock functionONOFFO-O
Opening driver’s door
unlocks all doorsONOFF O -O
Shifting the shift lever to “P”
unlocks all doors
*OFFONO-O
Shifting the shift lever to posi-
tion other than “P” locks all
doors
*
OFFONO-O
123
AVENSIS_OM_OM20C20E_(EE).book Page 625 Thursday, January 29, 2015 1:47 PM

6269-2. Customization
AVENSIS_OM_OM20C20E_(EE)■
Automatic light control system (
→P. 232)
*: If equipped
■
Illumination ( →P. 399)
*: Vehicles with smart entry & start system
FunctionDefault
settingCustomized setting
Light sensor sensitivityLevel 3Level 1 to 5O-O
Follow me home*
(Time elapsed before head-
lights automatically turn off)30
seconds
60
seconds
--
O90
seconds
120
seconds
123
FunctionDefault settingCustomized setting
Time period before lights turn
off 15 seconds7.5 seconds
O-O
30 seconds
Operation after the engine
switch is turned to the
“LOCK” position (vehicles
without smart entry & start
system) or off (vehicles with
smart entry & start system)
ONOFF - - O
Operation when the doors
are unlocked ON OFF - - O
Operation when you
approach the vehicle with the
electronic key on your person
(When the interior light
switch is in the door posi-
tion)
*
ONOFF - - O
Foot lightsONOFF - - O
123
AVENSIS_OM_OM20C20E_(EE).book Page 626 Thursday, January 29,
2015 1:47 PM

6279-2. Customization
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
■Turn signal lever (→P. 228)
■Automatic air conditioning system ( →P. 391)
On the navigation system or multimedia system, select “Vehicle” on
the “Setup” screen and select “Climate control setting”.
FunctionDefault settingCustomized setting
Times of flashing of the lane
change signal flashers 34
--O
56
7
Off
123
FunctionDefault settingCustomized setting
Fan speed in automatic
mode MediumFast
O-O
Soft
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
123
AVENSIS_OM_OM20C20E_(EE).book Page 627 Thursday, January 29, 2015 1:47 PM

6289-3. Items to initialize
AVENSIS_OM_OM20C20E_(EE)
Items to initialize
*1: Diesel engine only
*2: If equipped
The following items must be initialized for normal system opera-
tion after such cases as the battery is reconnected, or mainte-
nance is performed on the vehicle.
ItemWhen to initializeReference
Engine oil mainte-
nance data
*1After changing engine oil P. 449
Panoramic roof
shade
*2
When the automatic open/
close function does not
operate P. 4 2 1
Tire pressure warn-
ing system
*2
• When rotating the tires
• When changing the tire size
• When the tire inflation pres- sure is changed such as
when changing traveling
speed
• When changing between two registered wheel sets P. 4 6 0
AVENSIS_OM_OM20C20E_(EE).book Page 628 Thursday, January 29,
2015 1:47 PM

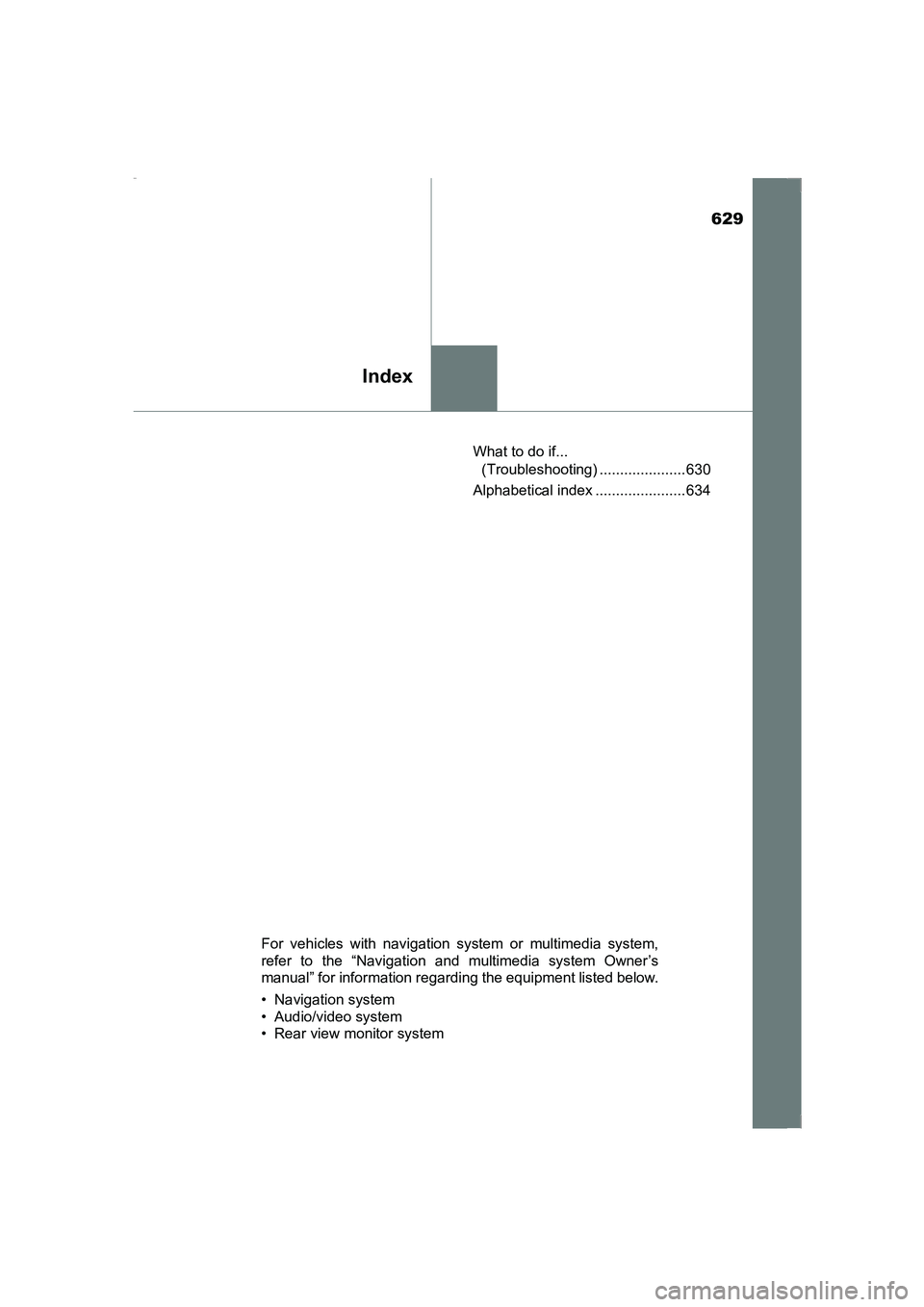

629
Index
AVENSIS_OM_OM20C20E_(EE)What to do if...
(Troubleshooting) ..................... 630
Alphabetical index ......................634
For vehicles with navigation system or multimedia system,
refer to the “Navigation and multimedia system Owner’s
manual” for information regarding the equipment listed below.
• Navigation system
• Audio/video system
• Rear view monitor system
AVENSIS_OM_OM20C20E_(EE).book Page 629 Thursday, January 29, 2015 1:47 PM

630What to do if... (Troubleshooting)
AVENSIS_OM_OM20C20E_(EE)
What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional. (→P. 122)
●Vehicles with smart entry & start system
If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately. ( →P. 122)
●Is the key battery weak or depleted? ( →P. 482)
●Vehicles with smart entry & start system
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( →P. 215)
●Vehicles with smart entry & start system
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. ( →P. 123, 152)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. ( →P. 136)
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
AVENSIS_OM_OM20C20E_(EE).book Page 630 Thursday, January 29, 2015 1:47 PM

631What to do if... (Troubleshooting)
AVENSIS_OM_OM20C20E_(EE)
●Vehicles with Multidrive
Is the shift lever in P? (→P. 209)
●Vehicles with manual transmission
Do you turn the key with the clutch pedal depressed firmly? ( →P. 209)
●Is the battery discharged? ( →P. 585)
●Vehicles with Multidrive
Did you press the engine switch while firmly depressing the brake pedal?
(→ P. 212)
●Vehicles with manual transmission
Did you press the engine switch while firmly depressing the clutch pedal?
(→ P. 212)
●Vehicles with Multidrive
Is the shift lever in P? ( →P. 212)
●Is the electronic key anywhere detectable inside the vehicle? ( →P. 149)
●Is the steering wheel unlocked? ( →P. 216)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( →P. 582)
●Is the battery discharged? ( →P. 585)
●Vehicles without smart entry & start system
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in the “ON” position. ( →P. 577)
●Vehicles with smart entry & start system
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode. ( →P. 577)
If you think something is wrong
The engine does not start
(vehicles without smart entry & start system)
The engine does not start
(vehicles with smart entry & start system)
The shift lever cannot be shifted from P even if you depress
the brake pedal (vehicles with Multidrive)
AVENSIS_OM_OM20C20E_(EE).book Page 631 Thursday, January 29, 2015 1:47 PM

632What to do if... (Troubleshooting)
AVENSIS_OM_OM20C20E_(EE)
●Vehicles without smart entry & start system
It is locked to prevent theft of the vehicle if the key is removed from the
engine switch. (→P. 210)
●Vehicles with smart entry & start system
It is locked automatically to prevent theft of the vehicle. ( →P. 216)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( →P. 182)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not operating) for a period of
time. ( →P. 216)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 522)
●The brake system warning light is on
Is the parking brake released? ( →P. 229)
Depending on the situation, other types of warning buzzer may also sound.
( → P. 520, 527)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The engine switch is turned off automatically
(vehicles with smart entry & start system)
A warning buzzer sounds during driving
AVENSIS_OM_OM20C20E_(EE).book Page 632 Thursday, January 29, 2015 1:47 PM
