2015 TOYOTA AVENSIS Owners Manual

4096-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)
6
Interior features

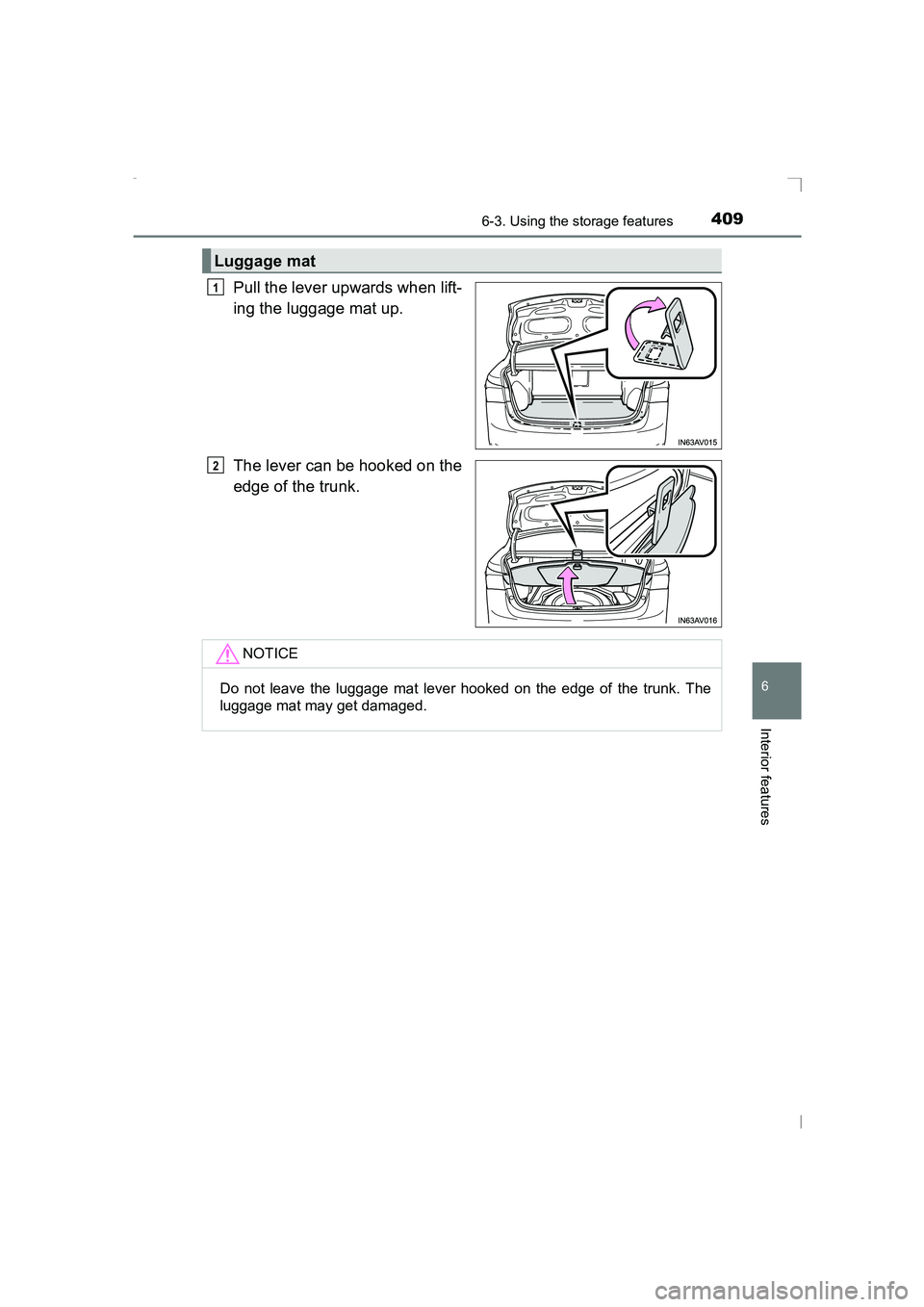

Pull the lever upwards when lift-
ing the luggage mat up.
The lever can be hooked on the
edge of the trunk.
Luggage mat
1
2
NOTICE
Do not leave the luggage mat lever hooked on the edge of the trunk. The
luggage mat may get damaged.
AVENSIS_OM_OM20C20E_(EE).book Page 409 Thursday, January 29, 2015 1:47 PM

4106-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)

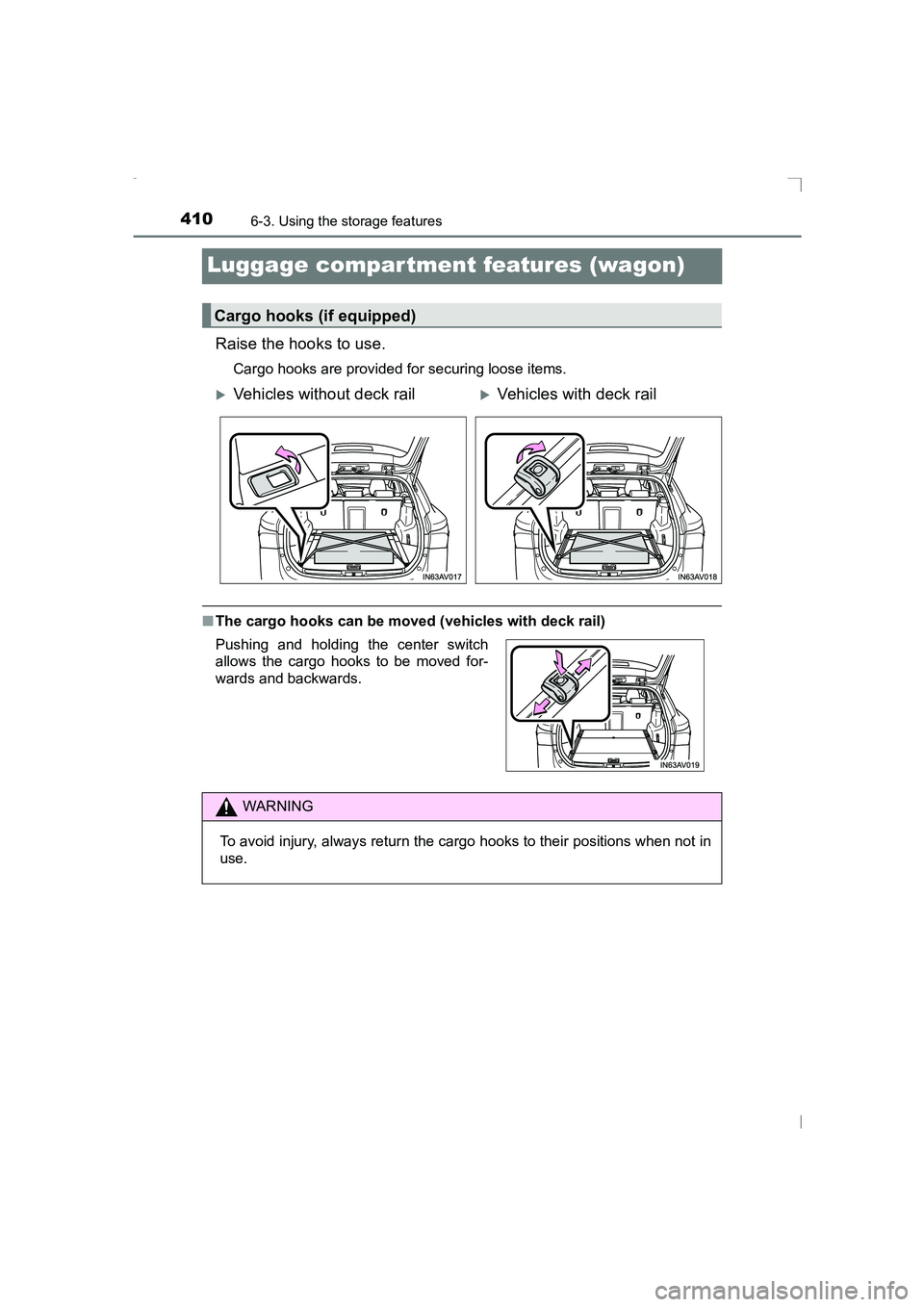

Luggage compartment features (wagon)
Raise the hooks to use.
Cargo hooks are provided for securing loose items.
■The cargo hooks can be moved (vehicles with deck rail)
Cargo hooks (if equipped)
XVehicles without deck railXVehicles with deck rail
Pushing and holding the center switch
allows the cargo hooks to be moved for-
wards and backwards.
WARNING
To avoid injury, always return the cargo hooks to their positions when not in
use.
AVENSIS_OM_OM20C20E_(EE).book Page 410 Thursday, January 29, 2015 1:47 PM

4116-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)
6
Interior features

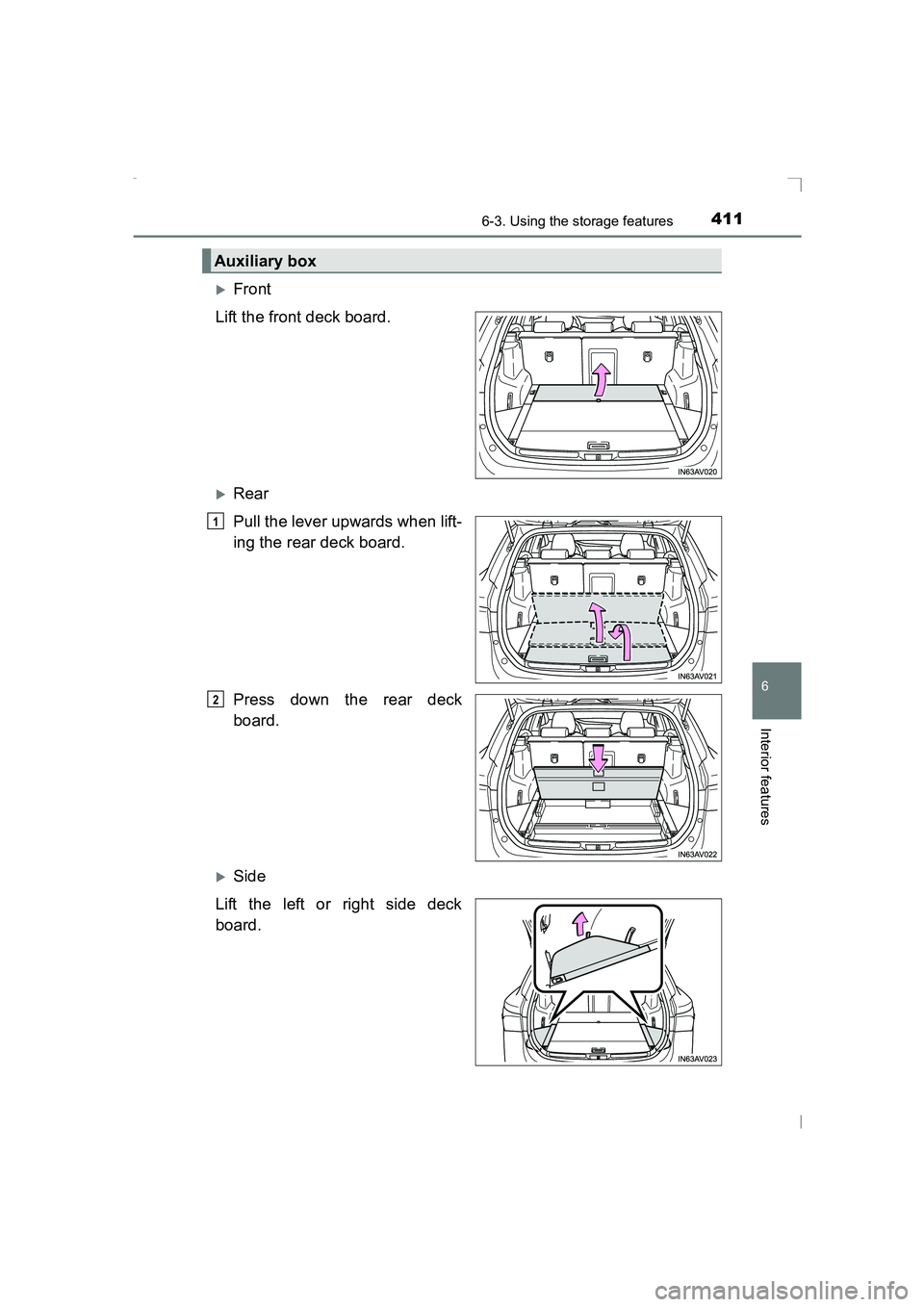

XFront
Lift the front deck board.
XRear
Pull the lever upwards when lift-
ing the rear deck board.
Press down the rear deck
board.
XSide
Lift the left or right side deck
board.
Auxiliary box
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 411 Thursday, January 29, 2015 1:47 PM

4126-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)

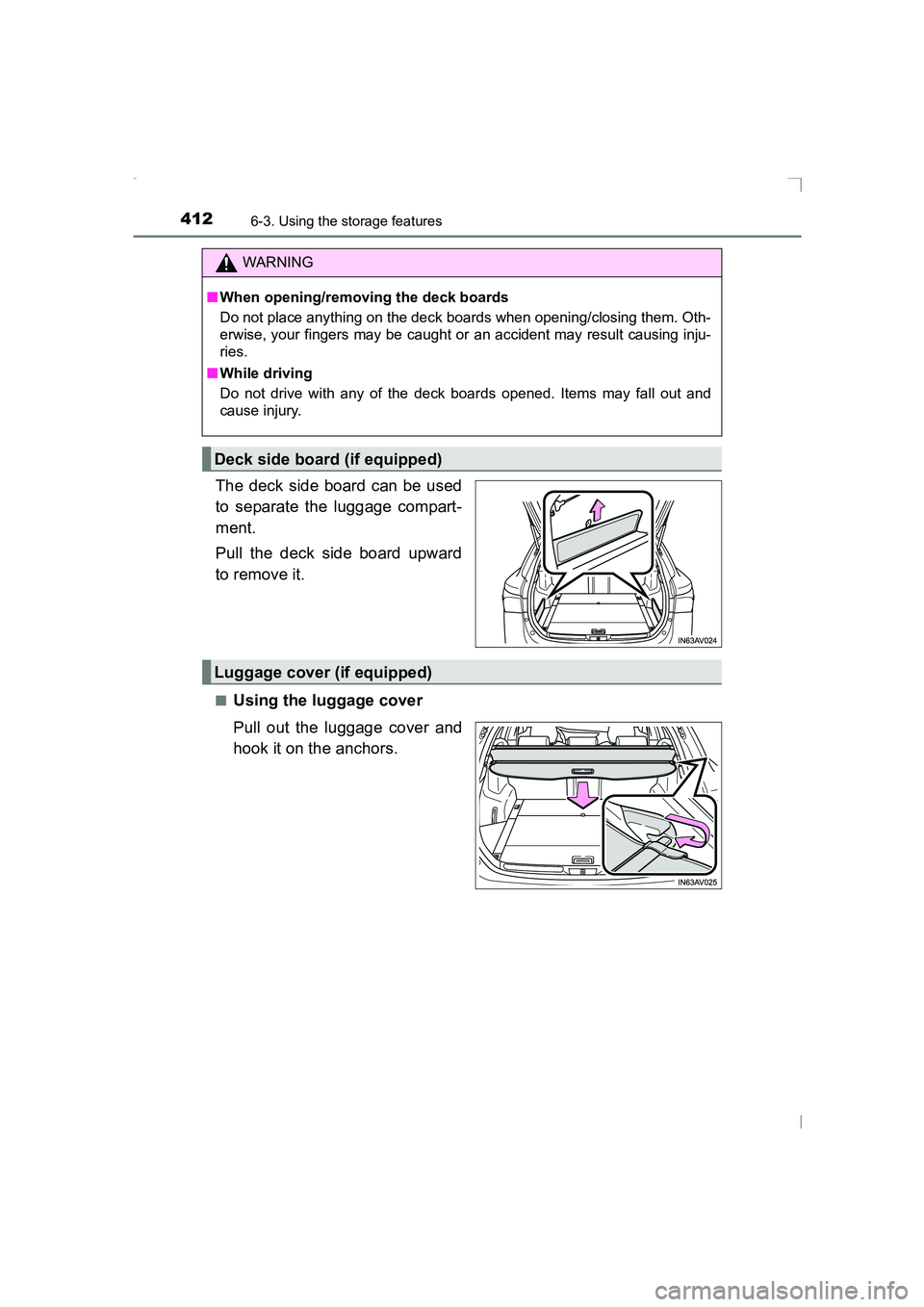

The deck side board can be used
to separate the luggage compart-
ment.
Pull the deck side board upward
to remove it.
■Using the luggage cover
Pull out the luggage cover and
hook it on the anchors.
WARNING
■ When opening/removing the deck boards
Do not place anything on the deck boards when opening/closing them. Oth-
erwise, your fingers may be caught or an accident may result causing inju-
ries.
■ While driving
Do not drive with any of the deck boards opened. Items may fall out and
cause injury.
Deck side board (if equipped)
Luggage cover (if equipped)
AVENSIS_OM_OM20C20E_(EE).book Page 412 Thursday, January 29, 2015 1:47 PM

4136-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)
6
Interior features

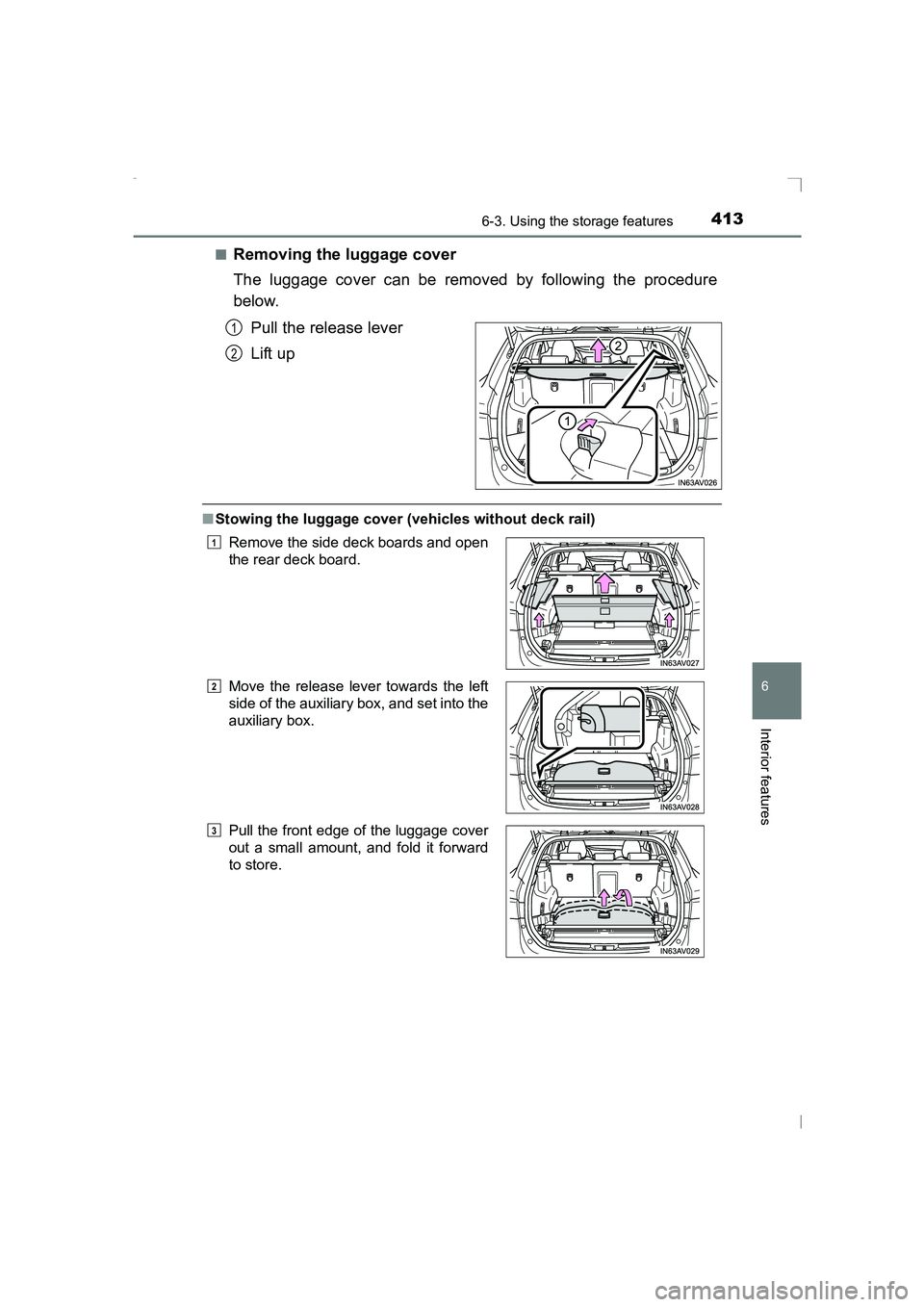

■Removing the luggage cover
The luggage cover can be removed by following the procedure
below.Pull the release lever
Lift up
■Stowing the luggage cover (vehicles without deck rail)
1
2
Remove the side deck boards and open
the rear deck board.
Move the release lever towards the left
side of the auxiliary box, and set into the
auxiliary box.
Pull the front edge of the luggage cover
out a small amount, and fold it forward
to store.1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 413 Thursday, January 29, 2015 1:47 PM

4146-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)

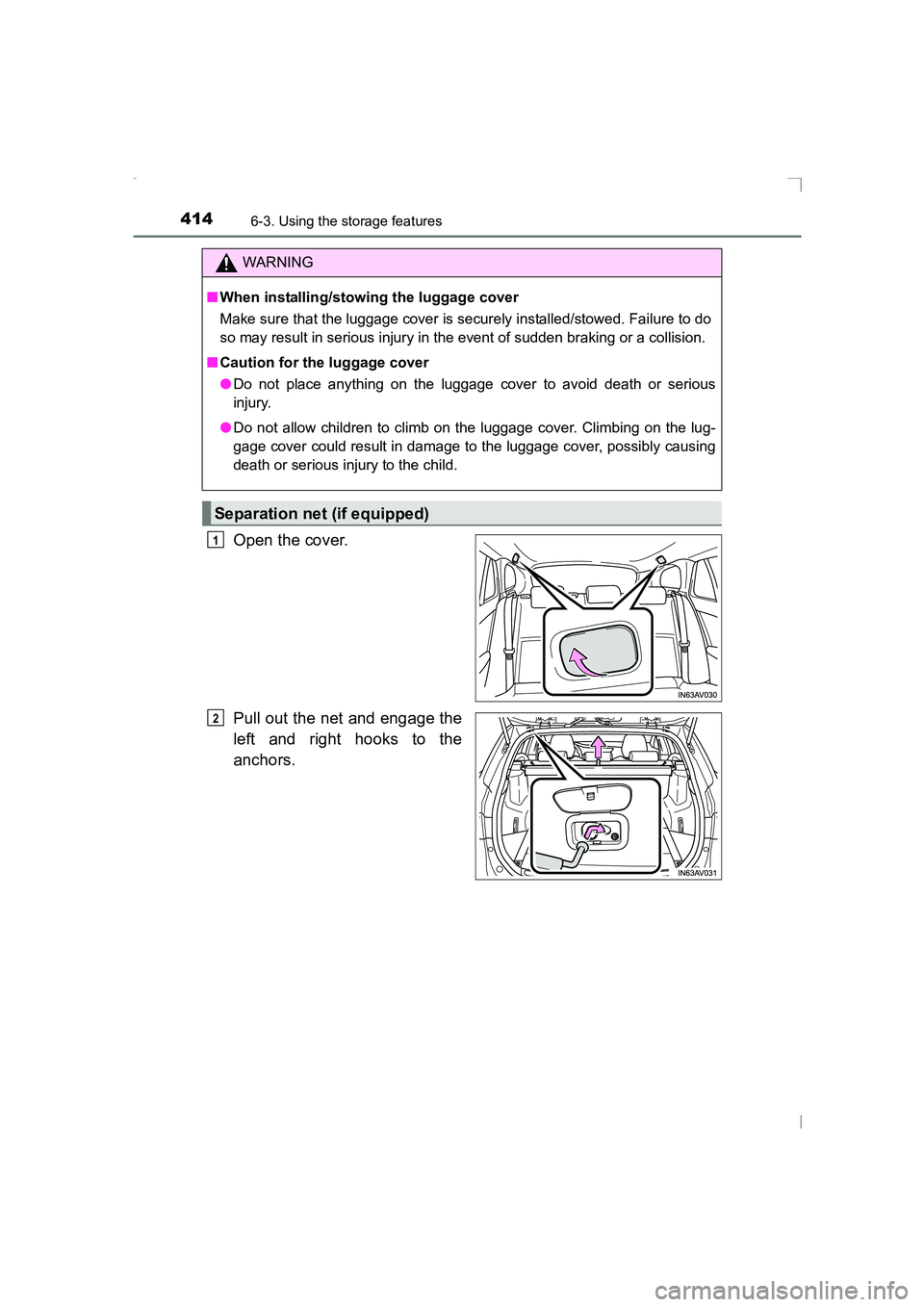

Open the cover.
Pull out the net and engage the
left and right hooks to the
anchors.
WARNING
■ When installing/stowing the luggage cover
Make sure that the luggage cover is securely installed/stowed. Failure to do
so may result in serious injury in the event of sudden braking or a collision.
■ Caution for the luggage cover
●Do not place anything on the luggage cover to avoid death or serious
injury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
Separation net (if equipped)
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 414 Thursday, January 29, 2015 1:47 PM

4156-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)
6
Interior features

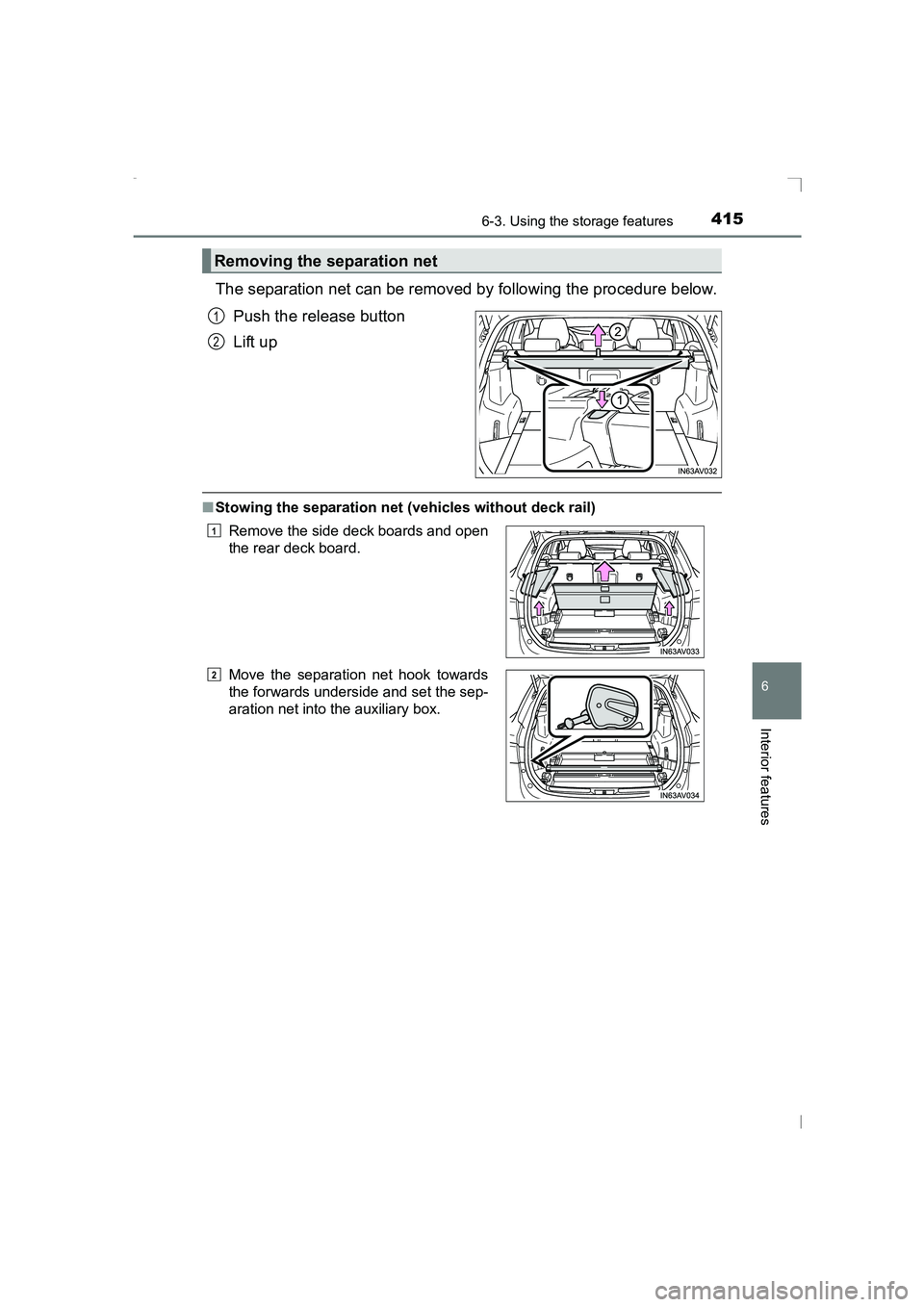

The separation net can be removed by following the procedure below.Push the release button
Lift up
■Stowing the separation net (vehicles without deck rail)
Removing the separation net
1
2
Remove the side deck boards and open
the rear deck board.
Move the separation net hook towards
the forwards underside and set the sep-
aration net into the auxiliary box.1
2
AVENSIS_OM_OM20C20E_(EE).book Page 415 Thursday, January 29, 2015 1:47 PM

4166-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)

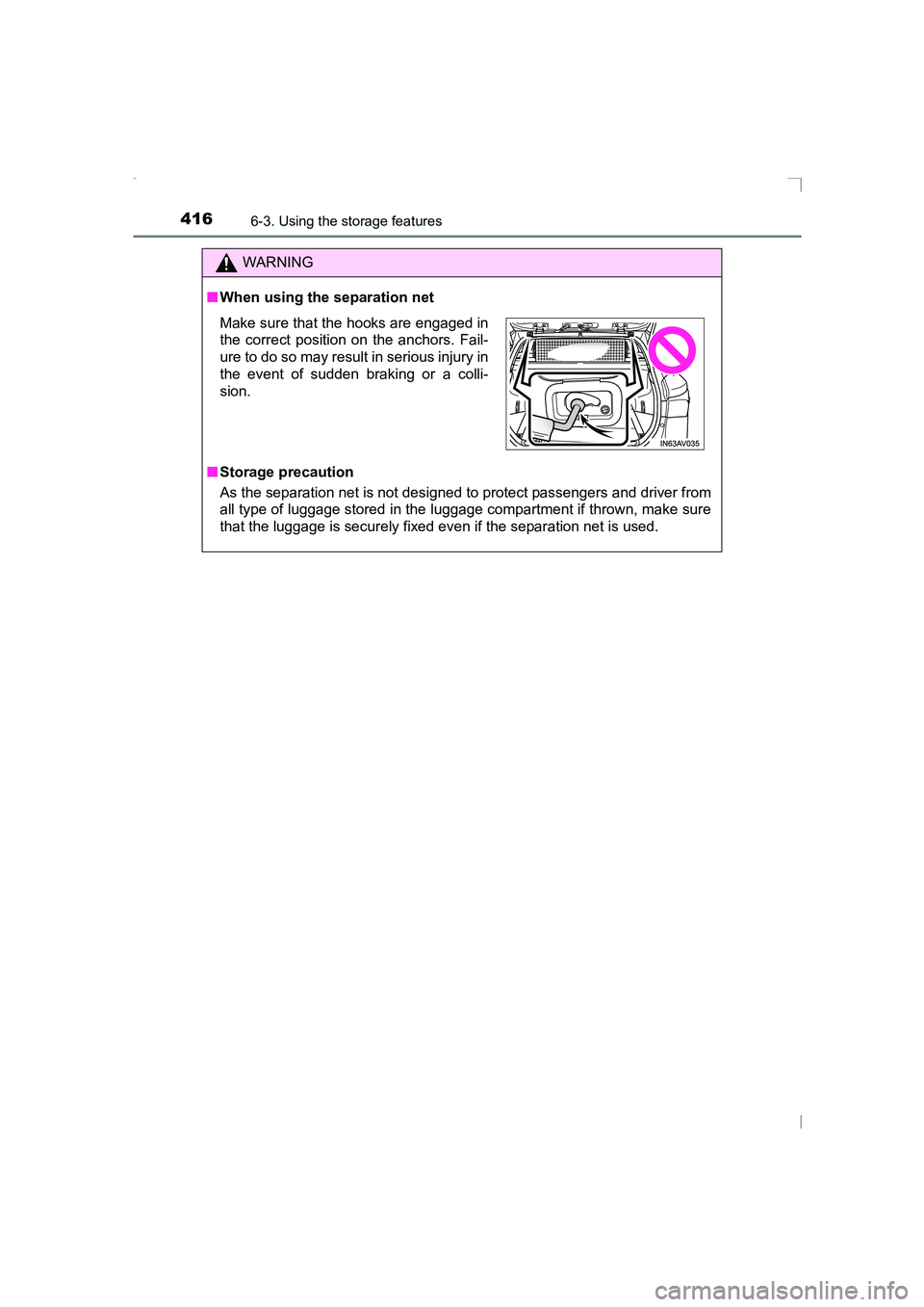

WARNING
■ When using the separation net
■ Storage precaution
As the separation net is not designed to protect passengers and driver from
all type of luggage stored in the luggage compartment if thrown, make sure
that the luggage is securely fixed even if the separation net is used.
Make sure that the hooks are engaged in
the correct position on the anchors. Fail-
ure to do so may result in serious injury in
the event of sudden braking or a colli-
sion.
AVENSIS_OM_OM20C20E_(EE).book Page 416 Thursday, January 29, 2015 1:47 PM
