2015 TOYOTA AVENSIS Owners Manual

6179-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
■Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be available, so please confirm the availability
with your distributor.
■ If your engine knocks
●Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be
damaged.
● Gasoline engine: Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and emission control system to function improperly.
● Diesel engine:
Do not use a fuel that contains more than 10 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.
● Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
● Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
AVENSIS_OM_OM20C20E_(EE).book Page 617 Thursday, January 29, 2015 1:47 PM

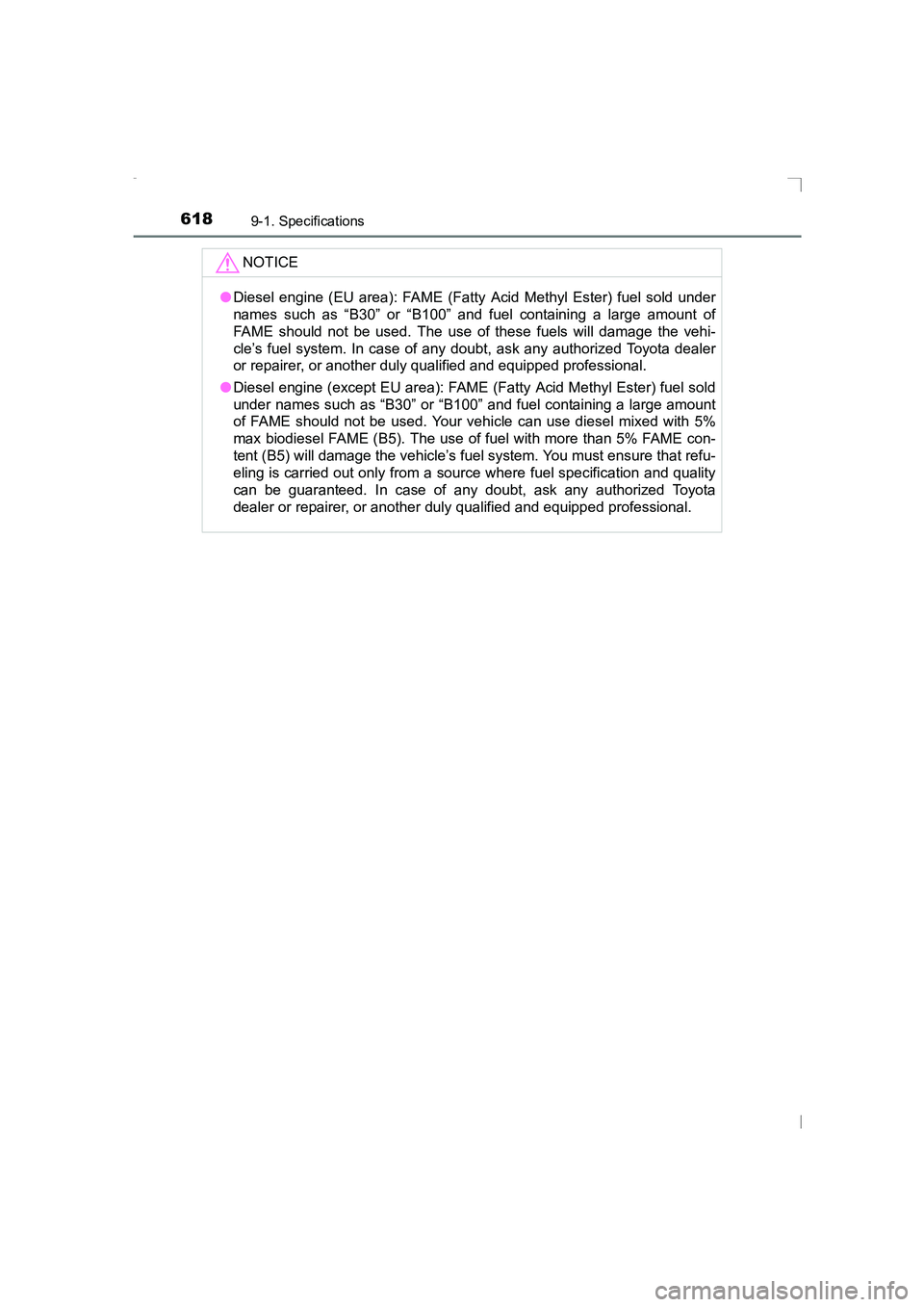

6189-1. Specifications
AVENSIS_OM_OM20C20E_(EE)NOTICE
●
Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle’s fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
● Diesel engine (except EU area): FAME (Fatty Acid Methyl Ester) fuel sold
under names such as “B30” or “B100” and fuel containing a large amount
of FAME should not be used. Your vehicle can use diesel mixed with 5%
max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-
tent (B5) will damage the vehicle’s fuel system. You must ensure that refu-
eling is carried out only from a source where fuel specification and quality
can be guaranteed. In case of any doubt, ask any authorized Toyota
dealer or repairer, or another dul y qualified and equipped professional.
AVENSIS_OM_OM20C20E_(EE).book Page 618 Thursday, January 29, 2015 1:47 PM

619
9
9-2. Customization
Vehicle specifications
AVENSIS_OM_OM20C20E_(EE)
Customizable features
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details.
■Changing using a navigation system or multimedia system
When customizing vehicle features, ensure that the vehicle is
parked in a safe place with the shift lever in P (Multidrive) or N
(manual transmission) and the parking brake set.Press the “SETUP” button on the navigation system or multime-
dia system.
Select “Vehicle” on the “Setup” screen and select “Vehicle cust-
omisation”, or select “General” on the “Setup” screen.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using navigation system or the multime-
dia system, the multi-information display or at any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
Customizing vehicle features
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 619 Thursday, January 29, 2015 1:47 PM

6209-2. Customization
AVENSIS_OM_OM20C20E_(EE)■
Changing using the multi-information display
XVehicles with monochrome display
Press the “DISP” switch to display the setting screen while the
vehicle is stopped, and then press and hold the “DISP” switch to
display the customize mode screen.
Press the “DISP” switch and select the item, and then press and
hold the “DISP” switch.
Press the “DISP” switch and select the desired setting, and then
press and hold the “DISP” switch.
To exit the customize mode, press the “DISP” switch to select the
“EXIT”, and then press and hold the “DISP” switch.
XVehicles with color display
Use the meter control switches to select while the vehicle
is stopped.
Select the desired item, and then press .
Select the desired setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
1
2
3
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 620 Thursday, January 29, 2015 1:47 PM

6219-2. Customization
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
Vehicles with a navigation system or multimedia system: Settings
that can be changed using the navigation system or multimedia
system
Settings that can be changed using the multi-information display
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
Definition of symbols: O = Available, - = Not available
■Gauges, meters and multi-information display ( →P. 108, 111)
XVehicles with monochrome display
Customizable features
1
2
3
Function*1Default settingCustomized
setting
Eco Driving Indicator Light On Off – O –
Language
*2English French
–O–
Spanish
German
Italian
Russian
Portuguese Turkish
Units
*2km (L/100 km) miles (MPG)*3
–O–
km (km/L)
° C (Celsius) °F (Fahrenheit) – O –
123
AVENSIS_OM_OM20C20E_(EE).book Page 621 Thursday, January 29, 2015 1:47 PM

6229-2. Customization
AVENSIS_OM_OM20C20E_(EE)
XVehicles with color display
Function*1Default settingCustomized setting
LDA (Lane Departure
Alert) sensitivity
*3High Standard – O –
RSA (Road Sign Assist)
*3On Off – O –
AFS (Adaptive Front-light-
ing System)
*3On Off – O –
RSA (Road Sign Assist)
*3
set up (Excess speed con-
dition method) Only visualNo notification
-O-
Visual and
audible
*4
RSA (Road Sign Assist)*3
set up (Excess speed noti-
fication level) 2 km/h (1 mph)
5 km/h (3 mph)
-O-10 km/h (5 mph)
RSA (Road Sign Assist)*3
set up (Other notifications
method
*5) Only visualNo notification
-O-
Visual and
audible
Stop & Start system
setup
*3Normal Extend – O –
123
AVENSIS_OM_OM20C20E_(EE).book Page 622 Thursday, January 29, 2015 1:47 PM

6239-2. Customization
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
Language*2EnglishFrench
OO –
Spanish
German Italian
Russian
Portuguese Turkish
Czech
Danish Greek
Hungarian Dutch
Norwegian
Polish
Romanian Slovak
Finnish
Swedish
Ukrainian
Units
*2km (L/100 km) miles (MPG)*3
OO –
km (km/L)
° C (Celsius) °F (Fahrenheit) – O –
Eco Driving Indicator Light On Off – O –
Drive information 1 Current fuel
economy
*6
–O–
Average fuel economy –O–
Function*1Default settingCustomized
setting123
AVENSIS_OM_OM20C20E_(EE).book Page 623 Thursday, January 29, 2015 1:47 PM

6249-2. Customization
AVENSIS_OM_OM20C20E_(EE)
*1: For details about each function: →P. 108, 114
*2: The default setting varies according to country.
*3: If equipped
*4: If a speed limit with supplemental mark is exceeded, the warning buzzer
does not operate.
*5: No-overtaking notification only
*6: Customized items are the following items except for default setting items:average fuel economy, tank average fuel economy, trip average fuel econ-
omy, current fuel economy, distance to empty, trip distance, trip elapsed
time, elapsed time, trip average speed, average speed, Stop & Start sys-
tem operation time (if equipped), Stop & Start system total operation time
(if equipped), blank.
Drive information 2
Distance to
empty
*6–O–
Average speed – O –
Drive information 3 Stop & Start
system
operation time
*6
–O–
Stop & Start
system total
operation time –O–
Pop-up display On Off – O –
Function*1Default settingCustomized setting123
AVENSIS_OM_OM20C20E_(EE).book Page 624 Thursday, January 29, 2015 1:47 PM
