When trouble arises
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P
(Multidrive) or N (manual transmission).
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material to help provide traction
under the tires.
Restart the engine.
Shift the shift lever to the D or R (Multidrive), or 1 or R (manual
transmission) and release the parking brake. Then, while exercising
caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Press to turn off TRC. ( →P. 298)
WARNING
■ When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Vehicles with Multidrive: Be careful not to shift the shift lever with the accel-
erator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
1
2
3
4
5
AVENSIS_OM_OM20C20E_(EE).book Page 593 Thursday, January 29, 2015 1:47 PM

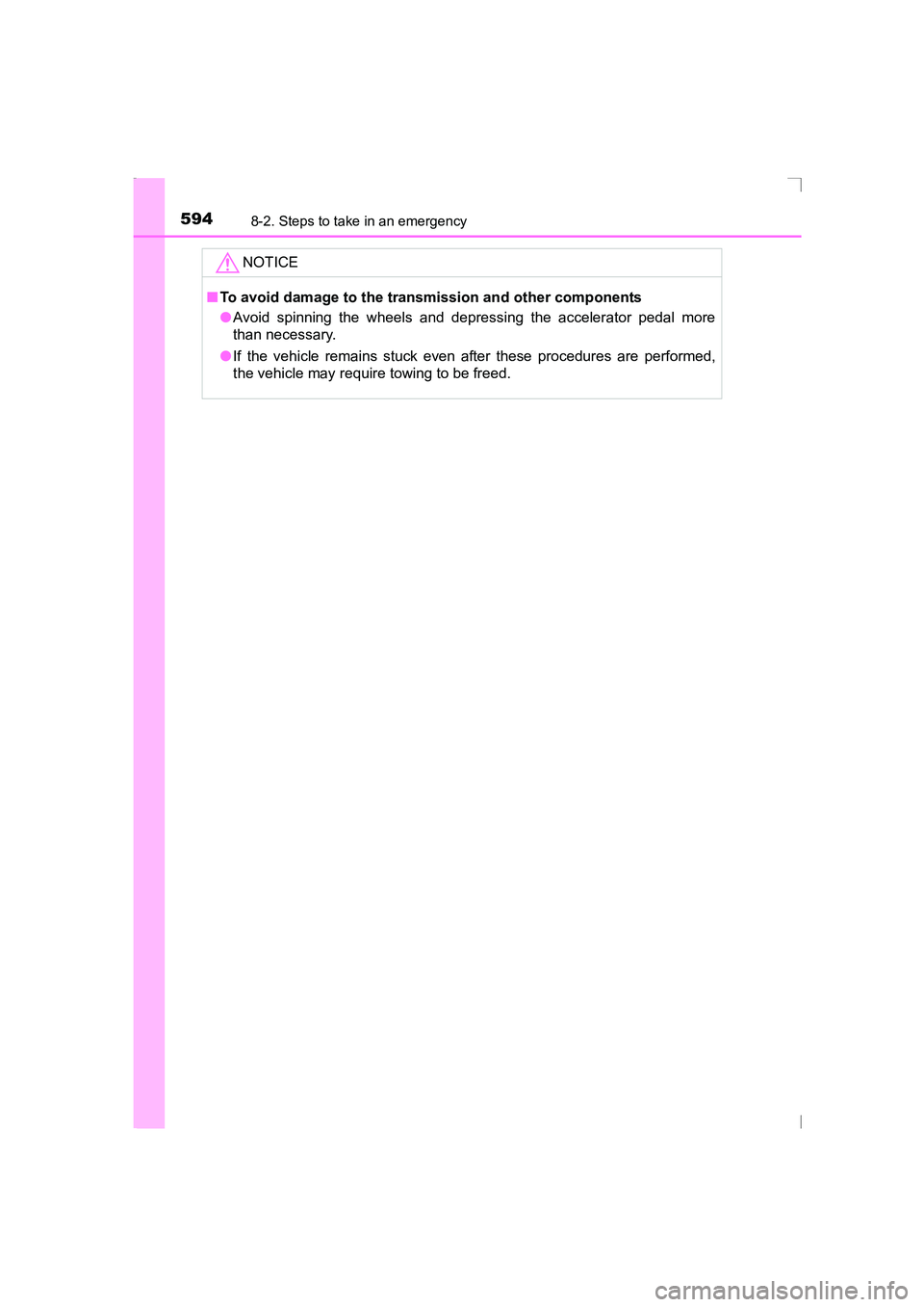

5948-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)NOTICE
■
To avoid damage to the transmission and other components
●Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
AVENSIS_OM_OM20C20E_(EE).book Page 594 Thursday, January 29, 2015 1:47 PM

595
9Vehicle specifications
AVENSIS_OM_OM20C20E_(EE)9-1. Specifications
Maintenance data (fuel, oil level, etc.)........... 596
Fuel information ................. 616
9-2. Customization Customizable features ....... 619
9-3. Items to initialize Items to initialize ................628
AVENSIS_OM_OM20C20E_(EE).book Page 595 Thursday, January 29, 2015 1:47 PM

5969-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall lengthSedan 4750 mm (187.0 in.)
Wagon 4820 mm (189.8 in.)
Overall width 1810 mm (71.3 in.)
Overall height*11480 mm (58.3 in.)
Wheelbase 2700 mm (106.3 in.)
Tread
Front1560 mm (61.4 in.)*2
1550 mm (61.0 in.)*3
Rear1560 mm (61.4 in.)*2
1550 mm (61.0 in.)*3
Gross vehicle
mass
1ZR-FAE engine 1970 kg (4343.1 lb.)
2ZR-FAE engine2020 kg (4453.3 lb.)*4
2000 kg (4409.2 lb.)*5
3ZR-FAE engine 2050 kg (4519.5 lb.)
1WW engine 2040 kg (4497.4 lb.)
2WW engine 2100 kg (4629.7 lb.)
Maximum permis-
sible axle capacityFront 1215 kg (2678.6 lb.)
Rear 1135 kg (2502.2 lb.)
AVENSIS_OM_OM20C20E_(EE).book Page 596 Thursday, January 29,
2015 1:47 PM

5979-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
*1: Unladen vehicles
*2: 205/60R16 tires
*3: 215/55R17 and 225/45R18 tires
*4: Vehicles with a Multidrive
*5: Vehicles with a manual transmission
Drawbar load 75 kg (165.3 lb.)
Towing capacityWith brake
X1ZR-FAE engine
1400 kg (3086.5 lb.)
X2ZR-FAE engine
1600 kg (3527.4 lb.)
*4
1500 kg (3306.9 lb.)*5
X3ZR-FAE engine
1800 kg (3968.3 lb.)
X1WW engine
1600 kg (3527.4 lb.)
X2WW engine
1800 kg (3968.3 lb.)
Without brake 500 kg (1102.3 lb.)
AVENSIS_OM_OM20C20E_(EE).book Page 597 Thursday, January 29, 2015 1:47 PM

5989-1. Specifications
AVENSIS_OM_OM20C20E_(EE)■

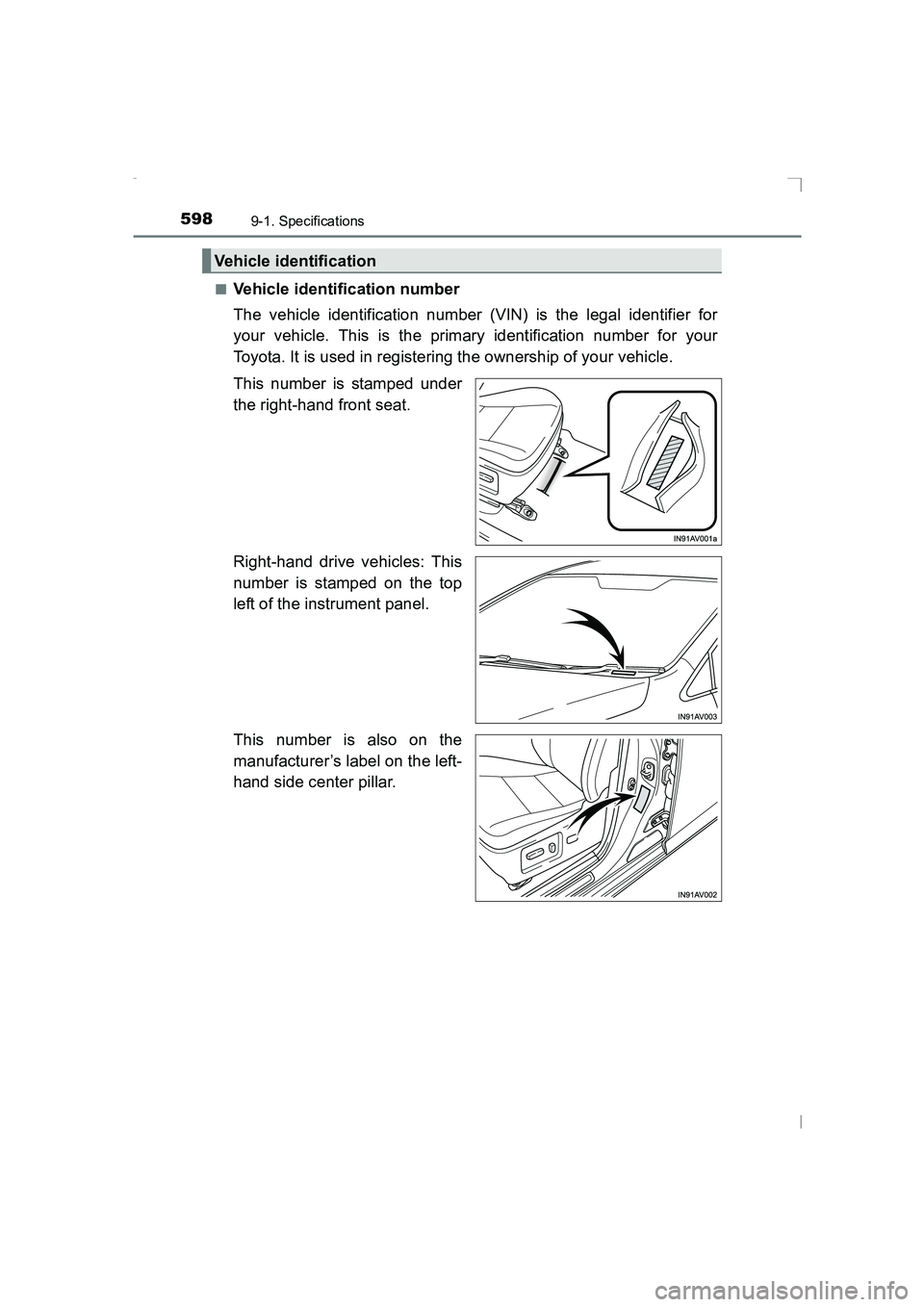

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
Right-hand drive vehicles: This
number is stamped on the top
left of the instrument panel.
This number is also on the
manufacturer’s label on the left-
hand side center pillar.
Vehicle identification
AVENSIS_OM_OM20C20E_(EE).book Page 598 Thursday, January 29,
2015 1:47 PM

5999-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
■Engine number
The engine number is stamped on the engine block as shown.
XGasoline engine
XGasoline engineXDiesel engine
Engine
Model 1ZR-FAE, 2ZR-FAE, 3ZR-FAE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke
X1ZR-FAE engine
80.5 × 78.5 mm (3.17 × 3.09 in.)
X2ZR-FAE engine
80.5 × 88.3 mm (3.17 × 3.48 in.)
X3ZR-FAE engine
80.5 × 97.6 mm (3.17 × 3.84 in.)
Displacement
X1ZR-FAE engine
1598 cm
3 (97.5 cu.in.)
X2ZR-FAE engine
1798 cm
3 (109.7 cu.in.)
X3ZR-FAE engine
1987 cm
3 (121.3 cu.in.)
Valve clearance
(engine cold) Automatic adjustment
AVENSIS_OM_OM20C20E_(EE).book Page 599 Thursday, January 29,
2015 1:47 PM

6009-1. Specifications
AVENSIS_OM_OM20C20E_(EE)

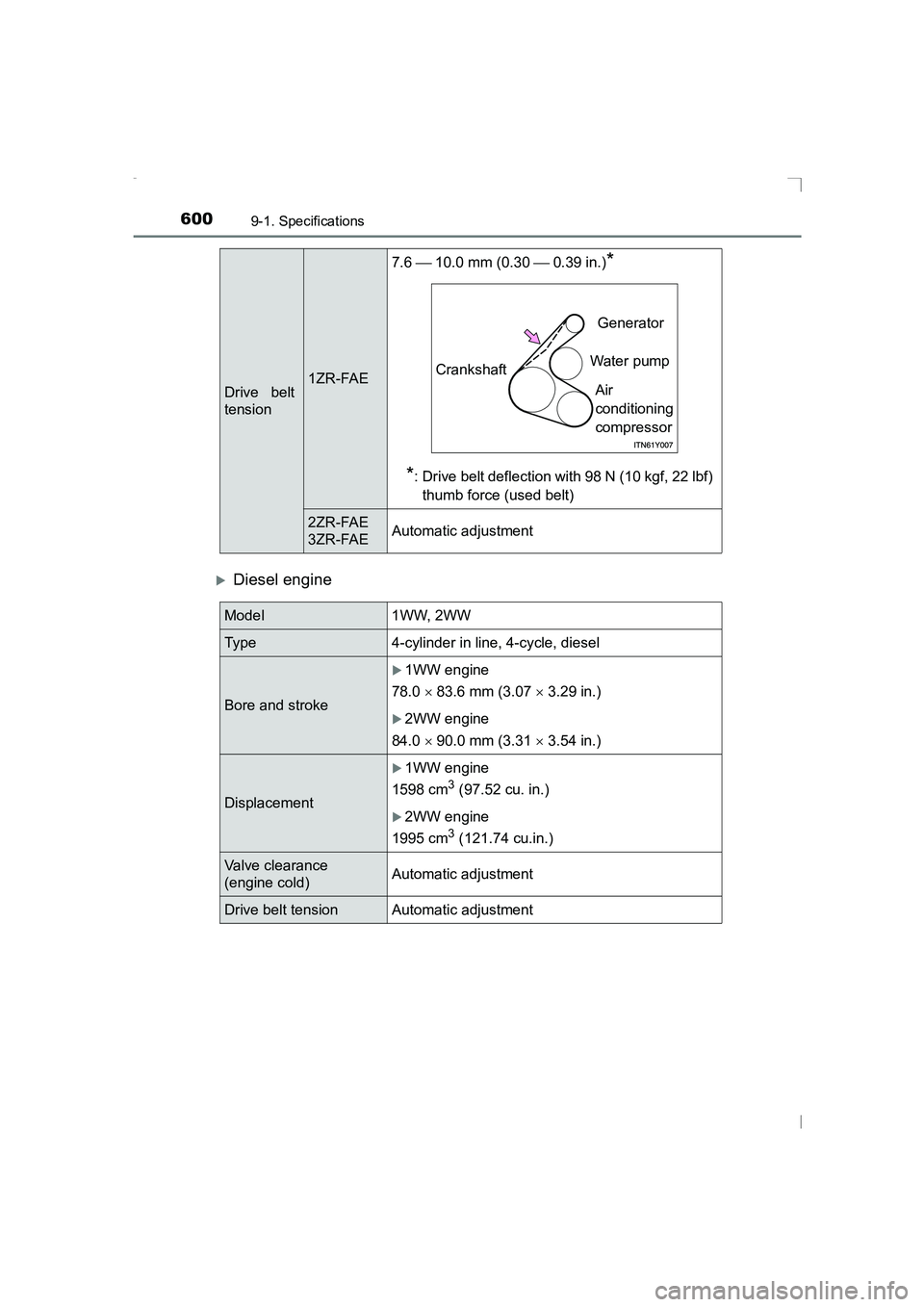

XDiesel engine
