2015 TOYOTA AVENSIS length

2064-1. Before driving
AVENSIS_OM_OM20C20E_(EE)
Your vehicle will handle differently when towing a trailer. In order to
avoid accident, death or serious injury, keep the following in mind
when towing:
■Checking connections between trailer and lights
Stop the vehicle and check the operation of the connection between
the trailer and lights after driving for a brief period as well as before
setting off.
■Practicing driving with a coupled trailer
●Get the feel for turning, stopping and reversing with the trailer
coupled by practicing in an area with no or light traffic.
● When reversing with a coupled trailer, hold the section of the
steering wheel nearest to you and rotate clockwise to turn the
trailer left or counterclockwise to turn it right. Always rotate a little
at a time to prevent steering error. Have someone guide you
when reversing to lessen the risk of an accident.
■Increasing vehicle-to-vehicle distance
At a speed of 10 km/h (6 mph), the distance to the vehicle running
ahead of you should be equivalent to or greater than the combined
length of your vehicle and trailer. Avoid sudden braking that may
cause skidding. Otherwise, the vehicle may spin out of control. This
is especially true when driving on wet or slippery road surfaces.
■Sudden acceleration/steering input/cornering
Executing sharp turns when towing may result in the trailer colliding
with your vehicle. Decelerate well in advance when approaching
turns and take them slowly and carefully to avoid sudden braking.
■Important points regarding turning
The wheels of the trailer will travel closer to the inside of the curve
than the wheels of the vehicle. To make allowance for this, take the
turns wider than you would normally do.
Guidance
AVENSIS_OM_OM20C20E_(EE).book Page 206 Thursday, January 29, 2015 1:47 PM

2074-1. Before driving
4
Driving
AVENSIS_OM_OM20C20E_(EE)■
Important points regarding stability
Vehicle movement resulting from uneven road surfaces and strong
crosswinds will affect handling. The vehicle may also be rocked by
passing buses or large trucks. Frequently check behind when mov-
ing alongside such vehicles. As soon as such vehicle movement
occurs, immediately start to decelerate smoothly by slowly applying
the brakes. Always steer the vehicle straight ahead while braking.
■Passing other vehicles
Consider the total combined length of your vehicle and trailer, and
ensure that the vehicle-to-vehicle distance is sufficient before exe-
cuting lane changes.
■Transmission information
XMultidrive
To maintain engine braking efficiency, when using engine braking,
do not use the transmission in D. Select an appropriate gear in M
mode.
XManual transmission
To maintain engine braking efficiency, when using engine braking,
do not use the transmission in 6.
■If the engine overheats
Towing a loaded trailer up a long steep incline in temperatures
exceeding 30 °C (85 °F) may result in the engine overheating. If the
engine coolant temperature gauge indicates that the engine is over-
heating, turn the air conditioning off immediately, leave the road and
stop the vehicle in a safe place. ( →P. 590)
■When parking the vehicle
Always place wheel chocks under the wheels of both the vehicle
and trailer. Firmly set the parking brake and shift the shift lever to P
for Multidrive, and 1 or R for manual transmission.
AVENSIS_OM_OM20C20E_(EE).book Page 207 Thursday, January 29, 2015 1:47 PM

2534-5. Toyota Safety Sense
4
Driving
AVENSIS_OM_OM20C20E_(EE)
WARNING
Laser classification label
Laser explanatory label
Laser emission data Maximum average power: 45 mW
Pulse duration: 33 ns
Wave length: 905 nm
Divergence (horizontal × vertical): 28° × 12°
NOTICE
■ Front sensor
Observe the following to ensure that the sensor operates correctly:
●Do not attach stickers, including trans-
parent stickers, or other items to the
outer side of the windshield in front of
the front sensor (shaded area in the
illustration).
A: From the top of the windshield to
approximately 10 cm (4.0 in.) below the
bottom of the front sensor
B: Approximately 20 cm (7.9 in.) (Approx-
imately 10 cm [4.0 in.] to the right and left
from the center of the front sensor)
sec_04-05.fm Page 253 Friday, February 20, 2015 4:06 PM

3295-4. Playing an audio CD and MP3/WMA discs
5
Audio system
AVENSIS_OM_OM20C20E_(EE)●
Compatible disc formats
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet) MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not be
displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
● File names
The only files that can be recognized as MP3/WMA and played are those
with the extension .mp3 or .wma.
● Multi-sessions
As the audio system is compatible with multi-sessions, it is possible to play
discs that contain MP3 and WMA files. However, only the first session can
be played.
● ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track
title, artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
● MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc
are first checked. Once the file check is finished, the first MP3 or WMA file
is played. To make the file check finish more quickly, we recommend you do
not write in any files other than MP3 or WMA files or create any unneces-
sary folders.
If the discs contain a mixture of music data and MP3 or WMA format data,
only music data can be played.
● Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage to
the speakers.
AVENSIS_OM_OM20C20E_(EE).book Page 329 Thursday, January 29, 2015 1:47 PM

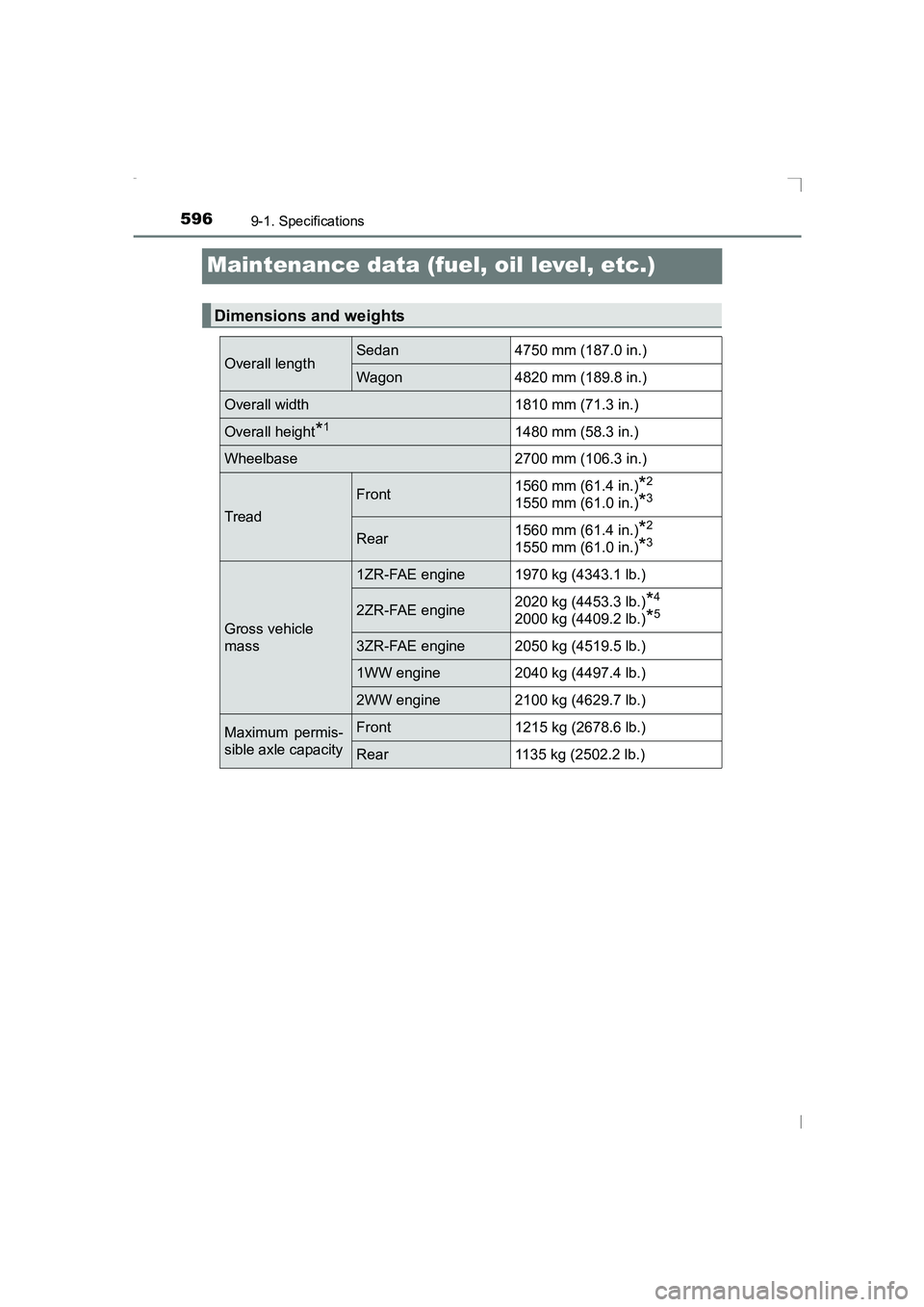

5969-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall lengthSedan 4750 mm (187.0 in.)
Wagon 4820 mm (189.8 in.)
Overall width 1810 mm (71.3 in.)
Overall height*11480 mm (58.3 in.)
Wheelbase 2700 mm (106.3 in.)
Tread
Front1560 mm (61.4 in.)*2
1550 mm (61.0 in.)*3
Rear1560 mm (61.4 in.)*2
1550 mm (61.0 in.)*3
Gross vehicle
mass
1ZR-FAE engine 1970 kg (4343.1 lb.)
2ZR-FAE engine2020 kg (4453.3 lb.)*4
2000 kg (4409.2 lb.)*5
3ZR-FAE engine 2050 kg (4519.5 lb.)
1WW engine 2040 kg (4497.4 lb.)
2WW engine 2100 kg (4629.7 lb.)
Maximum permis-
sible axle capacityFront 1215 kg (2678.6 lb.)
Rear 1135 kg (2502.2 lb.)
AVENSIS_OM_OM20C20E_(EE).book Page 596 Thursday, January 29,
2015 1:47 PM
