6-3. Using the storage featuresList of storage features ......402
• Glove box ......................403
• Console box ..................404
• Overhead console .........404
• Cup holders/bottle holders ...........................405
• Coin box ........................407
Trunk features (sedan) ......408
Luggage compartment features (wagon)..............410
6-4. Using the other interior features
Other interior features ........417
• Sun visors ......................417
• Vanity mirror ..................417
• Power outlet ..................418
• Armrest ..........................419
• Trunk/luggage compartment
storage extension ..........420
• Panoramic roof shade (wagon) .........................421
• Coat hooks ....................423
• Assist grips ....................423 7-1. Maintenance and care
Cleaning and protecting the
vehicle exterior ................ 426
Cleaning and protecting the
vehicle interior ................. 430
7-2. Maintenance Maintenance requirements ................... 433
7-3. Do-it-yourself maintenance Do-it-yourself service precautions ..................... 436
Hood.................................. 440
Positioning a floor jack ...... 442
Engine compartment ......... 443
Tires .................................. 458
Tire inflation pressure........ 475
Wheels .............................. 477
Air conditioning filter .......... 480
Wireless remote control/ electronic key battery ...... 482
Checking and replacing fuses ............................... 485
Light bulbs ......................... 490
7Maintenance and care
AVENSIS_OM_OM20C20E_(EE).book Page 5 Thursday, January 29, 20 15 1:47 PM

13Pictorial index

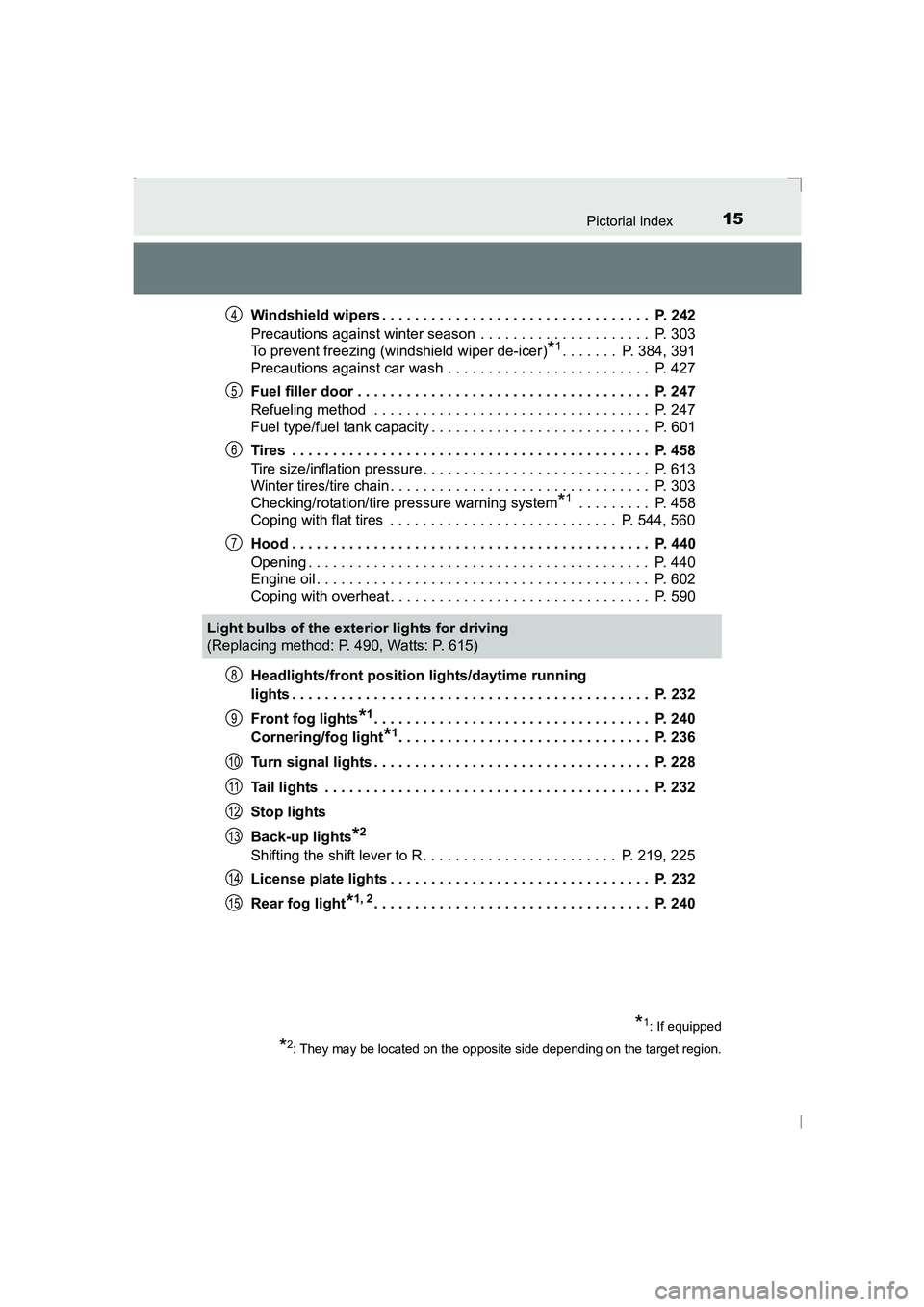

AVENSIS_OM_OM20C20E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 303
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . P. 384, 391
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 427
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 601
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 458
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 613
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 303
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 458
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 544, 560
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 602
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 590
Headlights/front position lights/daytime running
lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Cornering/fog light
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Stop lights
Back-up lights
*2
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 219, 225
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Rear fog light
*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 490, Watts: P. 615)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13
14
15
AVENSIS_OM_OM20C20E_(EE).book Page 13 Thursday, January 29, 2 015 1:47 PM

15Pictorial index
AVENSIS_OM_OM20C20E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 303
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . P. 384, 391
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 427
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 601
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 458
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 613
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 303
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 458
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 544, 560
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 602
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 590
Headlights/front position lights/daytime running
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Cornering/fog light
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Stop lights
Back-up lights
*2
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 219, 225
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Rear fog light
*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 490, Watts: P. 615)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13
14
15
AVENSIS_OM_OM20C20E_(EE).book Page 15 Thursday, January 29, 2 015 1:47 PM

1884-1. Before driving
AVENSIS_OM_OM20C20E_(EE)
XMultidrive
Make sure that the parking brake is set and shift the shift lever to D
or M.
Gently depress the accelerator pedal.
Release the parking brake.
XManual transmission
With the parking brake set and the clutch pedal fully depressed,
shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as gradually
releasing the clutch pedal.
The parking brake will automatically release. (→P. 229)
■When starting off on a uphill
The hill-start assist control is available. ( →P. 297)
■ Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
■ Engine speed while driving (vehicles with Multidrive)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting control or down-shifting implementation to
meet driving conditions. It does not indicate sudden acceleration.
● The vehicle is judged to be driving uphill or downhill
● When the accelerator pedal is released
● When the brake pedal is depressed while sport mode is selected.
● When the vehicle suddenly decelerates because the brake pedal is
depressed

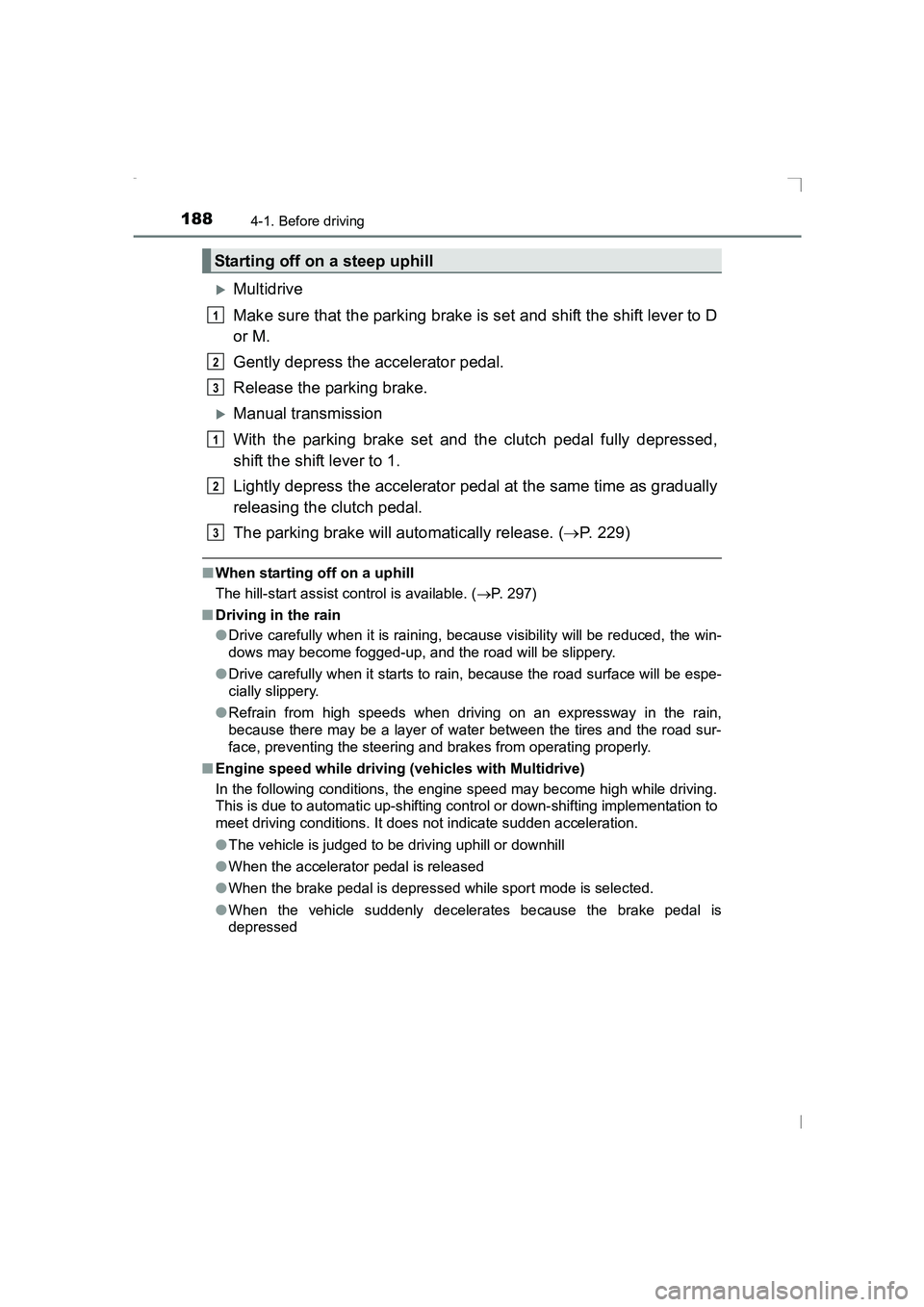

Starting off on a steep uphill
1
2
3
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 188 Thursday, January 29, 2015 1:47 PM

2034-1. Before driving
4
Driving
AVENSIS_OM_OM20C20E_(EE)

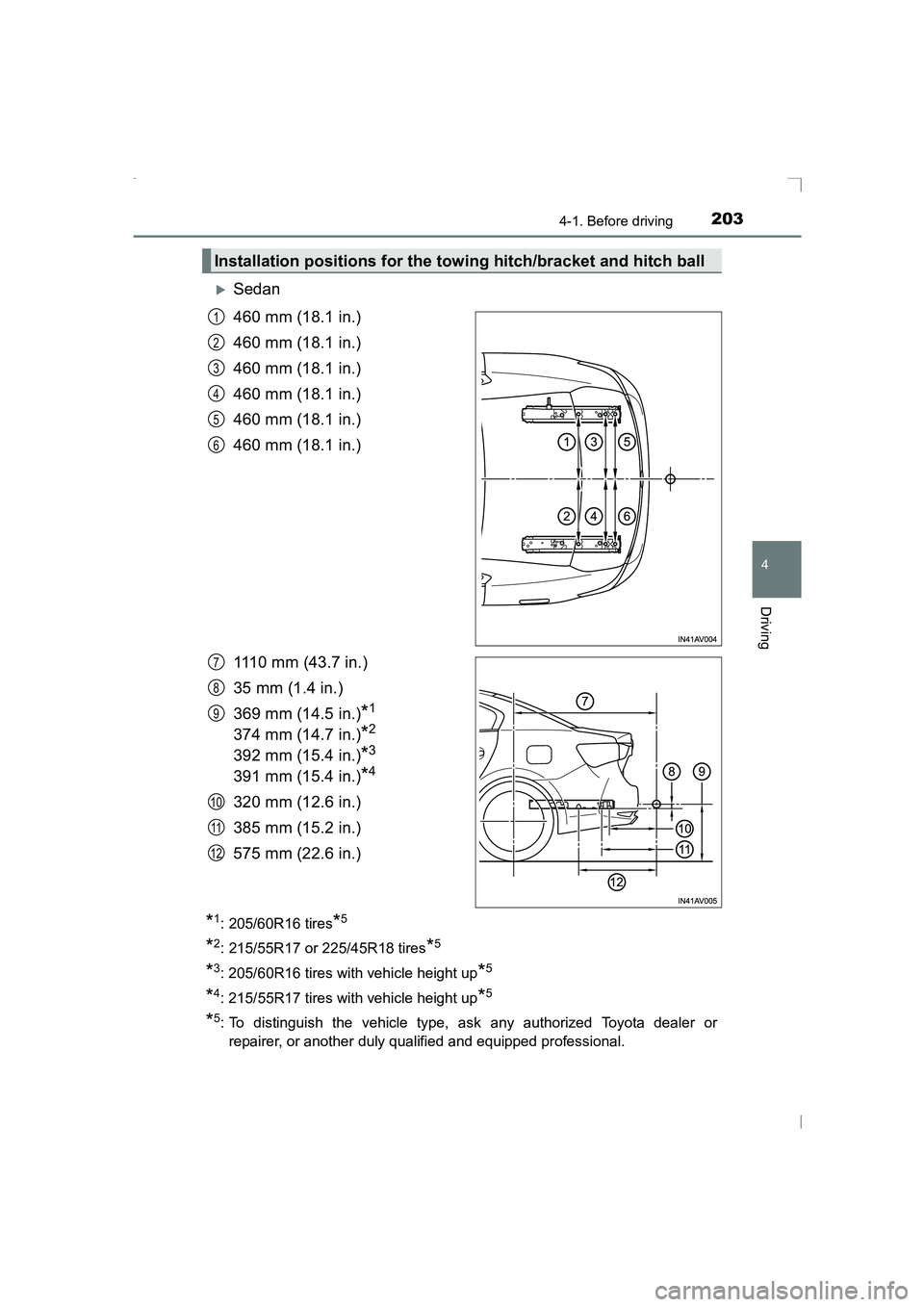

XSedan
460 mm (18.1 in.)
460 mm (18.1 in.)
460 mm (18.1 in.)
460 mm (18.1 in.)
460 mm (18.1 in.)
460 mm (18.1 in.)
1110 mm (43.7 in.)
35 mm (1.4 in.)
369 mm (14.5 in.)
*1
374 mm (14.7 in.)*2
392 mm (15.4 in.)*3
391 mm (15.4 in.)*4
320 mm (12.6 in.)
385 mm (15.2 in.)
575 mm (22.6 in.)
*1: 205/60R16 tires*5
*2: 215/55R17 or 225/45R18 tires*5
*3: 205/60R16 tires with vehicle height up*5
*4: 215/55R17 tires with vehicle height up*5
*5: To distinguish the vehicle type, ask any authorized Toyota dealer orrepairer, or another duly qualified and equipped professional.
Installation positions for the towing hitch/bracket and hitch ball
1
2
3
4
5
6
7
8
9
10
11
12
AVENSIS_OM_OM20C20E_(EE).book Page 203 Thursday, January 29, 2015 1:47 PM

2044-1. Before driving
AVENSIS_OM_OM20C20E_(EE)

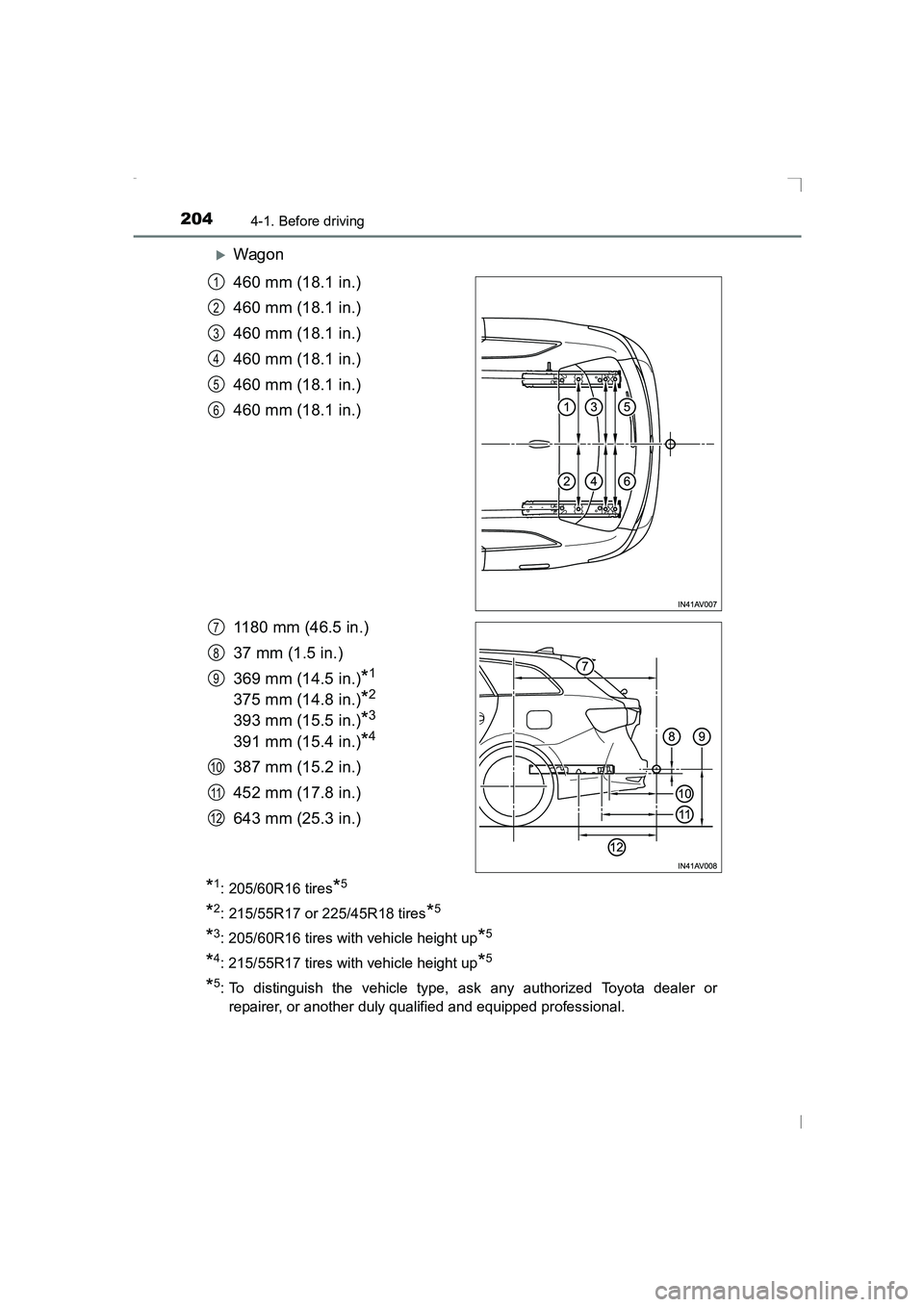

XWagon
460 mm (18.1 in.)
460 mm (18.1 in.)
460 mm (18.1 in.)
460 mm (18.1 in.)
460 mm (18.1 in.)
460 mm (18.1 in.)
1180 mm (46.5 in.)
37 mm (1.5 in.)
369 mm (14.5 in.)
*1
375 mm (14.8 in.)*2
393 mm (15.5 in.)*3
391 mm (15.4 in.)*4
387 mm (15.2 in.)
452 mm (17.8 in.)
643 mm (25.3 in.)
*1: 205/60R16 tires*5
*2: 215/55R17 or 225/45R18 tires*5
*3: 205/60R16 tires with vehicle height up*5
*4: 215/55R17 tires with vehicle height up*5
*5: To distinguish the vehicle type, ask any authorized Toyota dealer orrepairer, or another duly qualified and equipped professional.
1
2
3
4
5
6
7
8
9
10
11
12
AVENSIS_OM_OM20C20E_(EE).book Page 204 Thursday, January 29, 2015 1:47 PM

2054-1. Before driving
4
Driving
AVENSIS_OM_OM20C20E_(EE)
■Tire information
●Increase the tire inflation pressure to 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi)
greater than the recommended value when towing. ( →P. 613)
● Increase the air pressure of the trailer tires in accordance with the total
trailer weight and according to the values recommended by the manufac-
turer of your trailer.
■ Trailer lights
Please consult at any authorized dealer or repairer, or another duly qualified
and equipped professional when installing trailer lights, as incorrect installa-
tion may cause damage to the vehicle’s lights. Please take care to comply
with your state’s laws when installing trailer lights.
■ Break-in schedule
Toyota recommends that vehicles fitted with new power train components
should not be used for towing trailers for the first 800 km (500 miles).
■ Maintenance
●Maintenance must be performed more frequently when using the vehicle for
towing due to the greater weight burden placed on the vehicle compared to
normal driving.
● Retighten all bolts securing the hitching ball and bracket after towing for
approximately 1000 km (600 miles).
■ Safety checks before towing
●Check that the maximum load limit for the towing hitch/bracket and hitch ball
is not exceeded. Bear in mind that the coupling weight of the trailer will add
to the load exerted on the vehicle. Also make sure that the total load exerted
on the vehicle is within the range of the weight limits. ( →P. 201)
● Ensure that the trailer load is secure.
● Supplementary outside rear view mirrors should be added to the vehicle if
the traffic behind cannot be clearly seen with standard mirrors. Adjust the
extending arms of these mirrors on both sides of the vehicle so that they
always provide maximum visibility of the road behind.
NOTICE
■When the rear bumper strengthening material is aluminum
Ensure the steel bracket part does not come directly in contact with that
area.
When steel and aluminum come into contact, there is a reaction similar to
corrosion, which will weaken the section concerned and may result in dam-
age. Apply a rust inhibitor to parts that will come in contact when attaching a
steel bracket.
AVENSIS_OM_OM20C20E_(EE).book Page 205 Thursday, January 29, 2015 1:47 PM

2624-5. Toyota Safety Sense
AVENSIS_OM_OM20C20E_(EE)

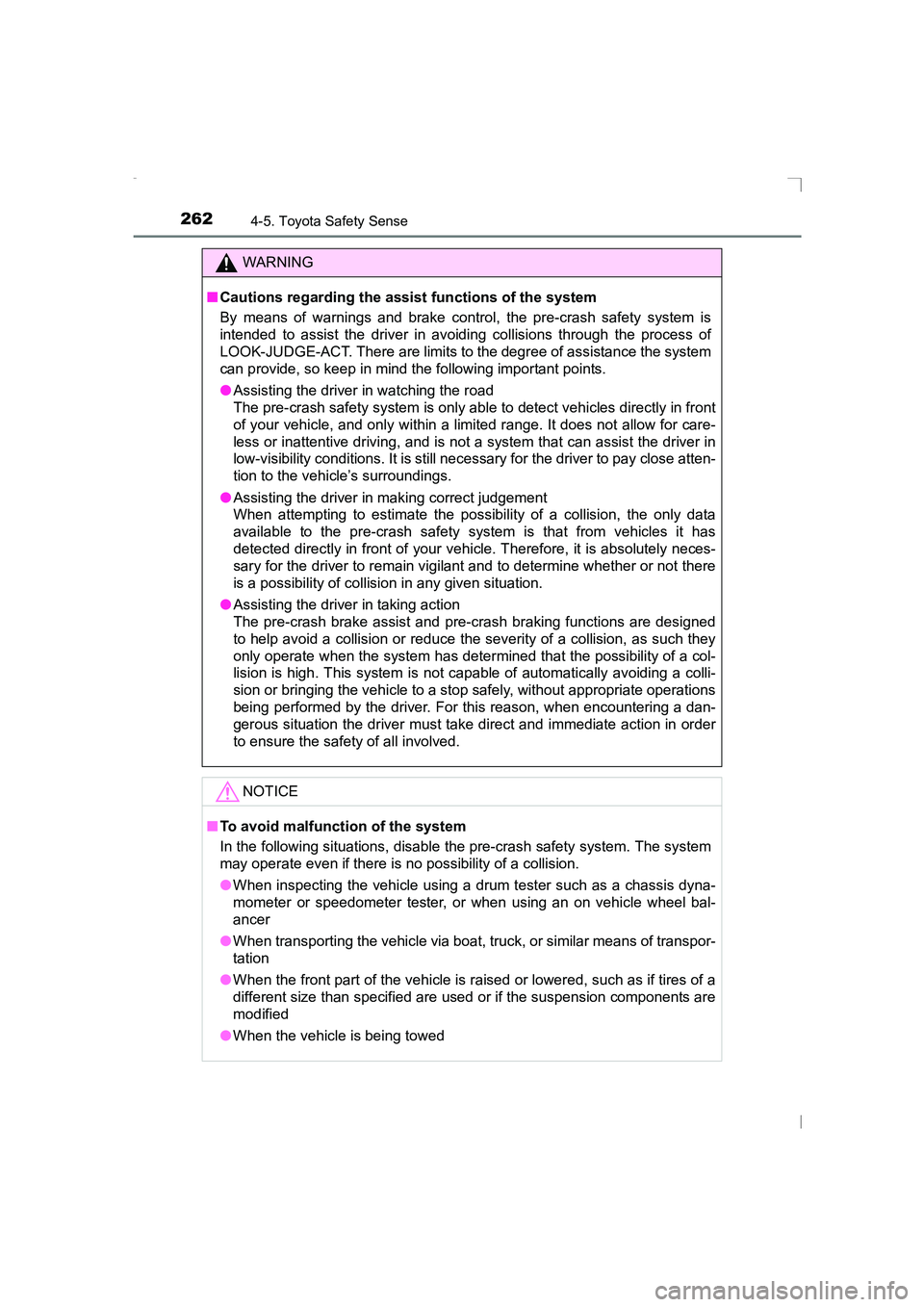

WARNING
■ Cautions regarding the assist functions of the system
By means of warnings and brake control, the pre-crash safety system is
intended to assist the driver in avoiding collisions through the process of
LOOK-JUDGE-ACT. There are limits to the degree of assistance the system
can provide, so keep in mind the following important points.
● Assisting the driver in watching the road
The pre-crash safety system is only able to detect vehicles directly in front
of your vehicle, and only within a limi ted range. It does not allow for care-
less or inattentive driving, and is not a system that can assist the driver in
low-visibility conditions. It is still necessary for the driver to pay close atten-
tion to the vehicle’s surroundings.
● Assisting the driver in making correct judgement
When attempting to estimate the possibility of a collision, the only data
available to the pre-crash safety system is that from vehicles it has
detected directly in front of your vehicle. Therefore, it is absolutely neces-
sary for the driver to remain vigila nt and to determine whether or not there
is a possibility of collision in any given situation.
● Assisting the driver in taking action
The pre-crash brake assist and pre- crash braking functions are designed
to help avoid a collision or reduce the severity of a collision, as such they
only operate when the system has determined that the possibility of a col-
lision is high. This system is not capable of automatically avoiding a colli-
sion or bringing the vehicle to a stop safely, without appropriate operations
being performed by the driver. For this reason, when encountering a dan-
gerous situation the driver must take direct and immediate action in order
to ensure the safety of all involved.
NOTICE
■ To avoid malfunction of the system
In the following situations, disable the pre-crash safety system. The system
may operate even if there is no possibility of a collision.
●When inspecting the vehicle using a drum tester such as a chassis dyna-
mometer or speedometer tester, or when using an on vehicle wheel bal-
ancer
● When transporting the vehicle via boat, tr uck, or similar means of transpor-
tation
● When the front part of the vehicle is raised or lowered, such as if tires of a
different size than specified are used or if the suspension components are
modified
● When the vehicle is being towed
AVENSIS_OM_OM20C20E_(EE).book Page 262 Thursday, January 29, 2015 1:47 PM
