2015 MAZDA MODEL 3 HATCHBACK Brukerhåndbok (in Norwegian)

1-5
Bilderegister

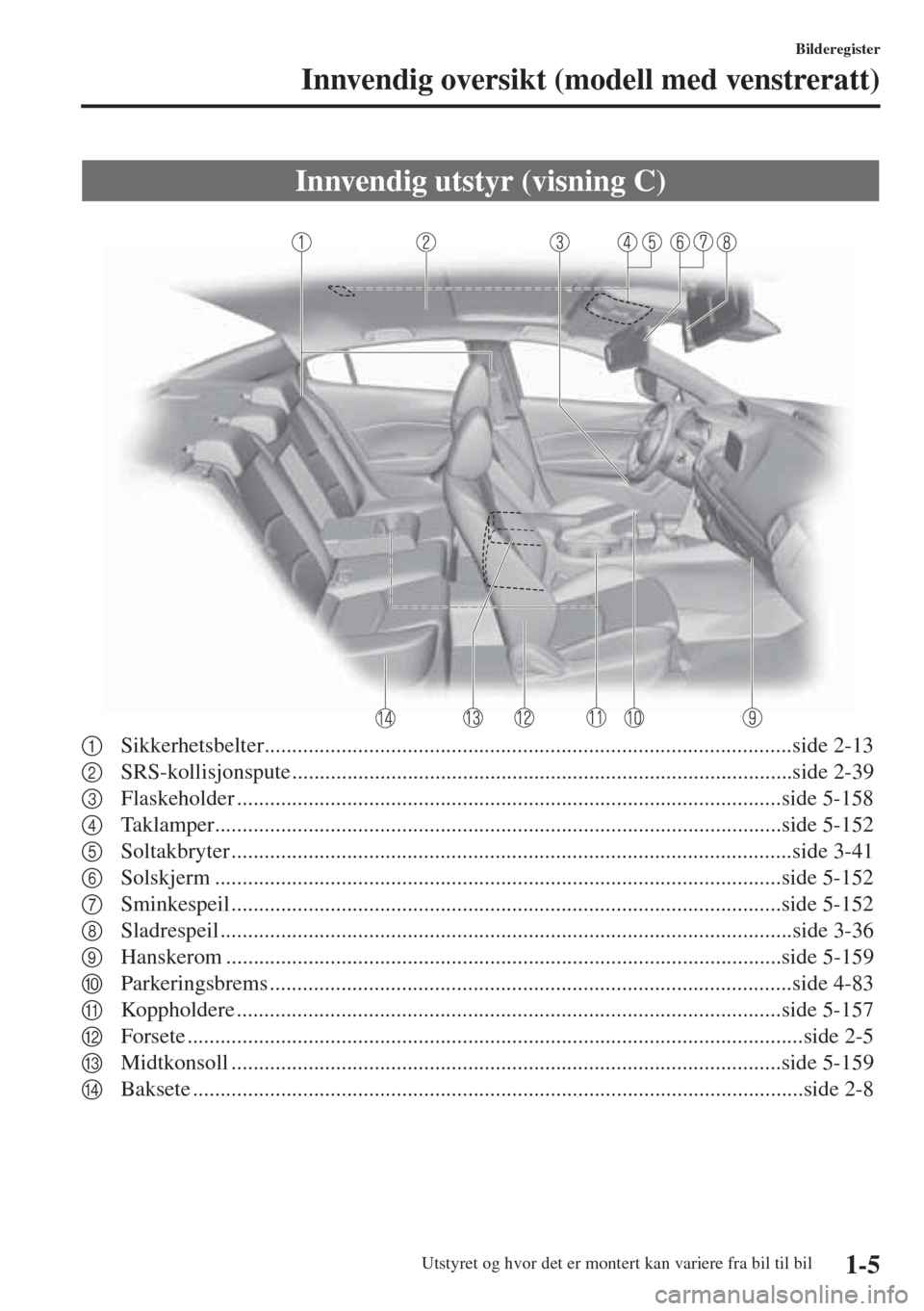

Innvendig oversikt (modell med venstreratt)
Utstyret og hvor det er montert kan variere fra bil til bil
1Sikkerhetsbelter................................................................................................side 2-13
2SRS-kollisjonspute ...........................................................................................side 2-39
3Flaskeholder ...................................................................................................side 5-158
4Taklamper.......................................................................................................side 5-152
5Soltakbryter ......................................................................................................side 3-41
6Solskjerm .......................................................................................................side 5-152
7Sminkespeil ....................................................................................................side 5-152
8Sladrespeil ........................................................................................................side 3-36
9Hanskerom .....................................................................................................side 5-159
0Parkerin
gsbrems ...............................................................................................side 4-83
AKoppholdere ...................................................................................................side 5-157
BForsete ................................................................................................................side 2-5
CMidtkonsoll ....................................................................................................side 5-159
DBaksete ...............................................................................................................side 2-8
Innvendig utstyr (visning C)

1-6
Bilderegister
Utstyret og hvor det er montert kan variere fra bil til bil
Innvendig oversikt (modell med høyreratt)
1Visker- og spylerspak....................................................................................... side 4-73
2Blinklyssignal .................................................................................................. side 4-72
3Lysbryter .......................................................................................................... side 4-62
4Dørlåsknapp .....................................................................................................side 3-20
5Brytere for elektriske vinduer .......................................................................... side 3-38
6Låsebryter for de elektriske vinduene..............................................................side 3-41
7Bryter for sidespeil ..........................................................................................side 3-34
8DSC AV-bryter ................................................................................................. side 4-
90
9Innstillingsbryter for system for overvåking av dekktrykk............................ side 4-164
0i-stop AV-bryter................................................................................................side 4-19
ALDWS-bryter ................................................................................................. side 4-110
BAFS AV-bryter ............................................................................................... side 4-103
CRVM-bryter.................................................................................................... side 4-119
Innvendig utstyr (visning A)

1-7
Bilderegister
Innvendig oversikt (modell med høyreratt)
Utstyret og hvor det er montert kan variere fra bil til bil
1Setevarmebrytere................................................................................................side 2-7
2Bryter for nødblinklys ......................................................................................side 4-80
3Brytere for stereoanlegg ...................................................................................side 5-73
4Instrumentpanel................................................................................................side 4-24
5Instrumentbelysningsknapp .............................................................................side 4-28
6Cruisekontrollbrytere ......................................................................... side 4-127, 4-156
7Fjernutløser for tankluken ................................................................................side 3-31
8Panserutløserhåndtak .......................................................................................side 6-19
9Låsutløserspak..................................................................................................side 3-33
0Girbrytere på rattet ...........................................................................................side 4-53
AStarte med knappetrykk .....................................................................................side 4-4

1-8
Bilderegister
Innvendig oversikt (modell med høyreratt)
Utstyret og hvor det er montert kan variere fra bil til bil
1SRS-kollisjonsputer ......................................................................................... side 2-39
2Stereoanlegg.....................................................................................................side 5-19
3Klimaanlegg .......................................................................................................side 5-2
4Bryter for varmetråder i bakruten .................................................................... side 4-78
5Aktivt kjøredisplay ..........................................................................................side 4-38
6DVD/CD-spiller ............................................................................................... side 5-19
7Stikkontakter for tilbehør ............................................................................... side 5-155
8Ekstern inngan
gskontakt .................................................................................. side 5-75
9Kommandørbryter ............................................................................................ side 5-48
0Girkasser ................................................................................................ side 4-47, 4-50
ASikringsboks (venstre side) .............................................................................. side 6-65
Innvendig utstyr (visning B)

1-9
Bilderegister
Innvendig oversikt (modell med høyreratt)
Utstyret og hvor det er montert kan variere fra bil til bil
1Sladrespeil ........................................................................................................side 3-36
2Solskjerm .......................................................................................................side 5-152
3Sminkespeil ....................................................................................................side 5-152
4Taklamper.......................................................................................................side 5-152
5Soltakbryter ......................................................................................................side 3-41
6Flaskeholder ...................................................................................................side 5-158
7SRS-kollisjonspute ...........................................................................................side 2-39
8Sikkerhetsbelter................................................................................................side 2-13
9Baksete ...............................................................................................................side 2-8
0Midtkonsoll ....................................................................................................side 5-15
9
AForsete ................................................................................................................side 2-5
BKoppholdere ...................................................................................................side 5-157
CParkeringsbrems ...............................................................................................side 4-83
DHanskerom .....................................................................................................side 5-159
Innvendig utstyr (visning C)

1-10
Bilderegister
Utstyret og hvor det er montert kan variere fra bil til bil
Utvendig oversikt
1Panser ............................................................................................................... side 6-19
2Vindusviskerblader, frontrute .......................................................................... side 6-36
3Soltak ............................................................................................................... side 3-41
4Dører og nøkler ................................................................................................side 3-12
5Tankluke...........................................................................................................side 3-31
6Felger og dekk ................................................................................................. side 6-45
7Utvendige lys ................................................................................................... side 6-50
8Bagasjeromslokk.............................................................................................. side 3-22
9Barnelåser ........................................................................................................ side 3-21
0Sidespeil ...........................................................................................................side 3-34
(Sedan)

1-11
Bilderegister
Utvendig oversikt
Utstyret og hvor det er montert kan variere fra bil til bil
1Panser ...............................................................................................................side 6-19
2Vindusviskerblader, frontrute...........................................................................side 6-36
3Soltak ...............................................................................................................side 3-41
4Dører og nøkler ................................................................................................side 3-12
5Tankluke ...........................................................................................................side 3-31
6Felger og dekk..................................................................................................side 6-45
7Utvendige lys ...................................................................................................side 6-50
8Vindusviskerblad, bakrute................................................................................side 6-38
9Bakluke ............................................................................................................side 3-22
0Barnelåser ........................................................................................................side 3-21
ASidespeil ...........................................................................................................sid
e 3-34
(Kombi)

1-12
MEMO
